Basic Information
| Model NO. | CL-ECC-25601 |
| Mathematical Model | Logical Programming |
| Signal | Continuous |
| Function | Automatic Control, Protection, Monitoring, Measurement |
| Material | Stainless Steel |
| Major Components | Circuit Breaker, Supply Power, PLC, VFD, etc |
| Application | Industrial Automation Equipment |
| Type | Electrical Control Panel |
| Production Capacity | 100 Sets/Month |
Product Description
Electrical control panels are centralized enclosures that house critical components for managing, protecting, and monitoring electrical systems. They integrate devices like circuit breakers, relays, programmable logic controllers (PLCs), human-machine interfaces (HMIs), and communication modules to ensure safe and efficient operation.
Key Specifications & Applications
Applications
- Manufacturing: PLCs, industrial robots
- Energy & Power: SCADA, smart cabinets
- Building Automation: Smart thermostats, integrated systems
- Agriculture: Smart irrigation
- Healthcare: Pharmacy automation
System Configuration
Enclosure: The External Protective Layer
Circuit Breakers: The Safety Guardians
Supply Power: High-Efficiency Energy Source
PLC: The Central Intelligence Brain
Relays & Contactors: Reliable Switching Units
HMI: Advanced User Interface
Cables & Wiring: Precision Nervous System
Servo Motor with Drive: High-Performance Actuators
▶

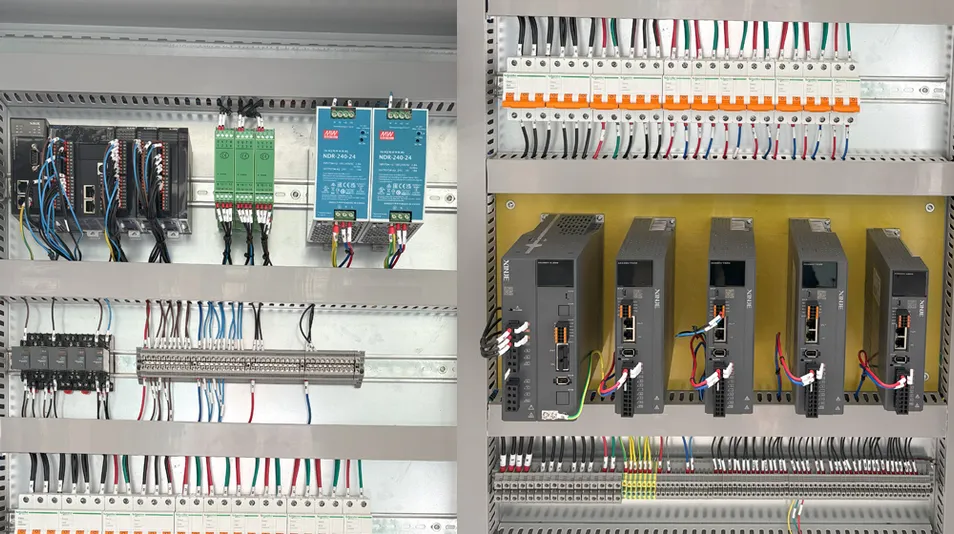

Core Components Display

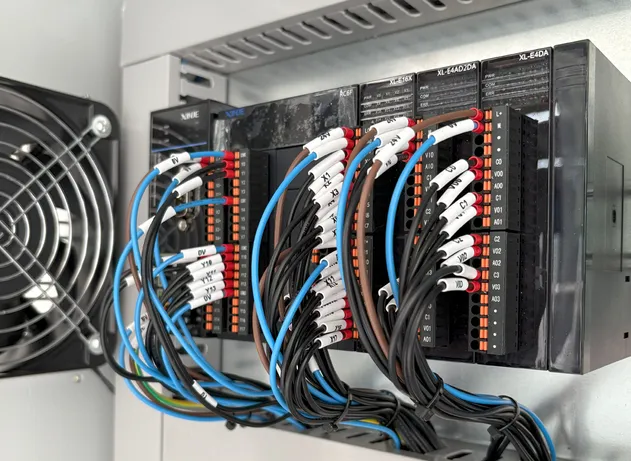

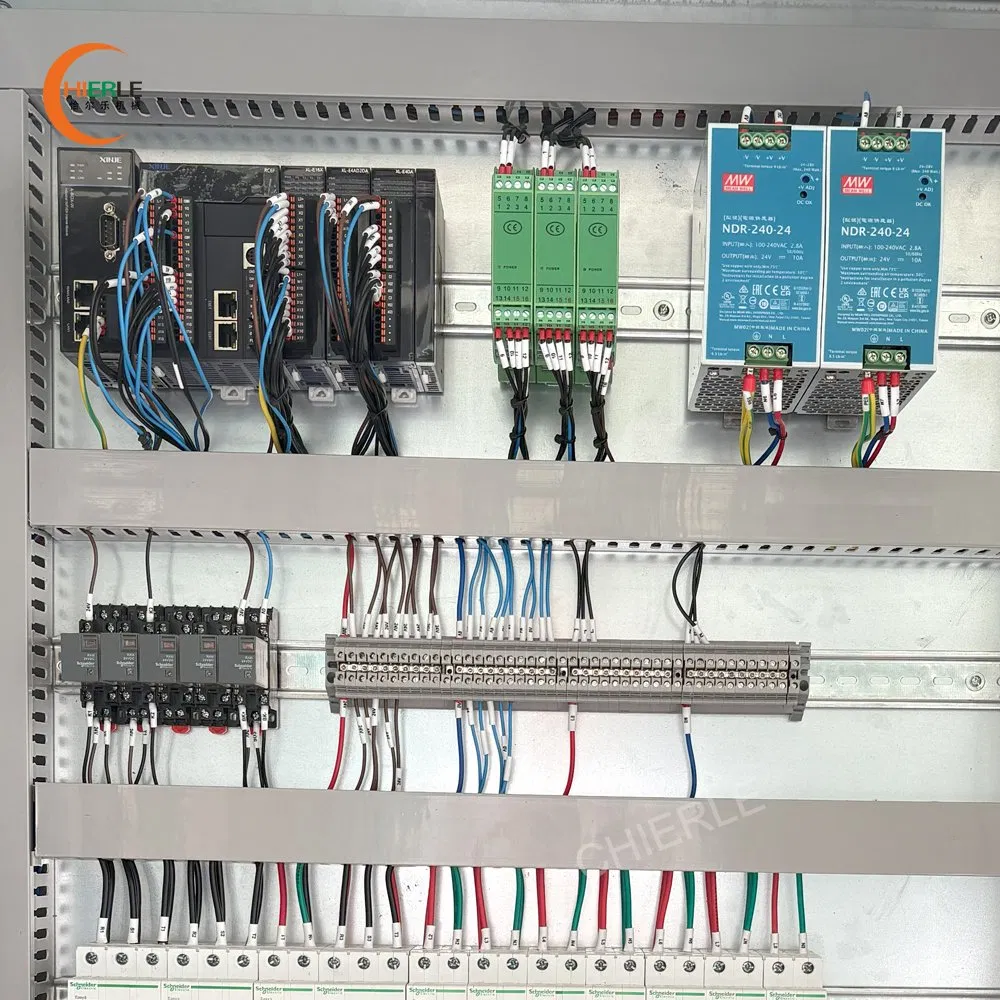

PLC System

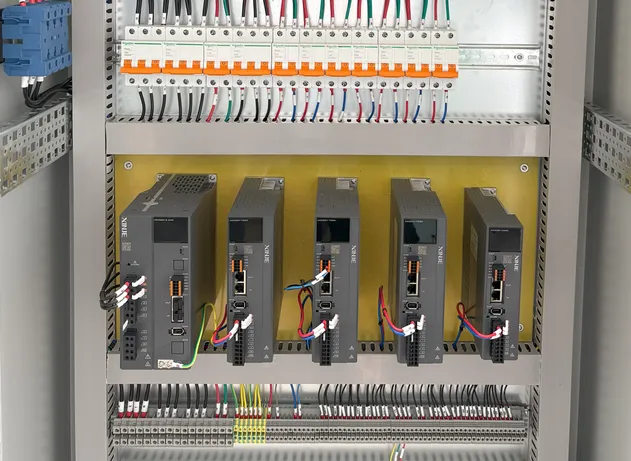

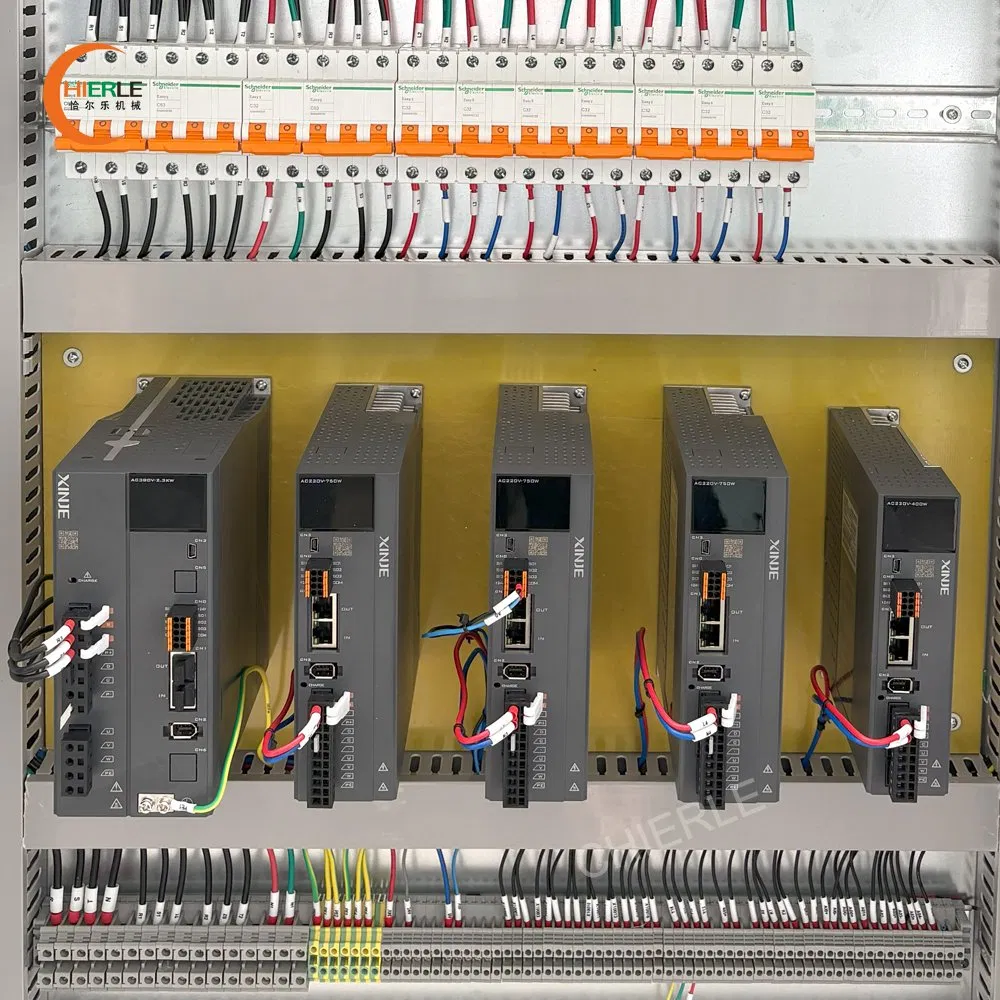

Servo Drive

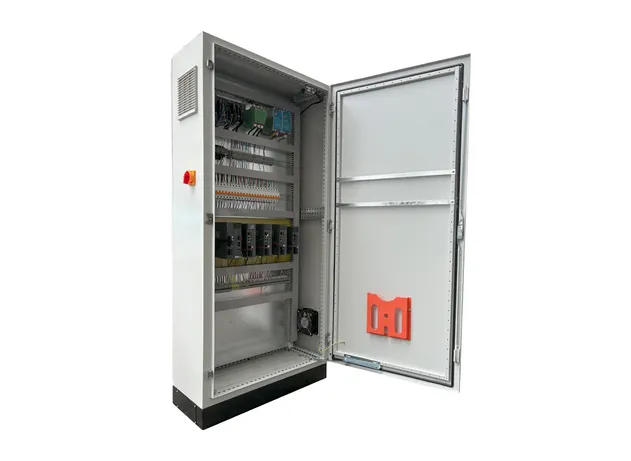

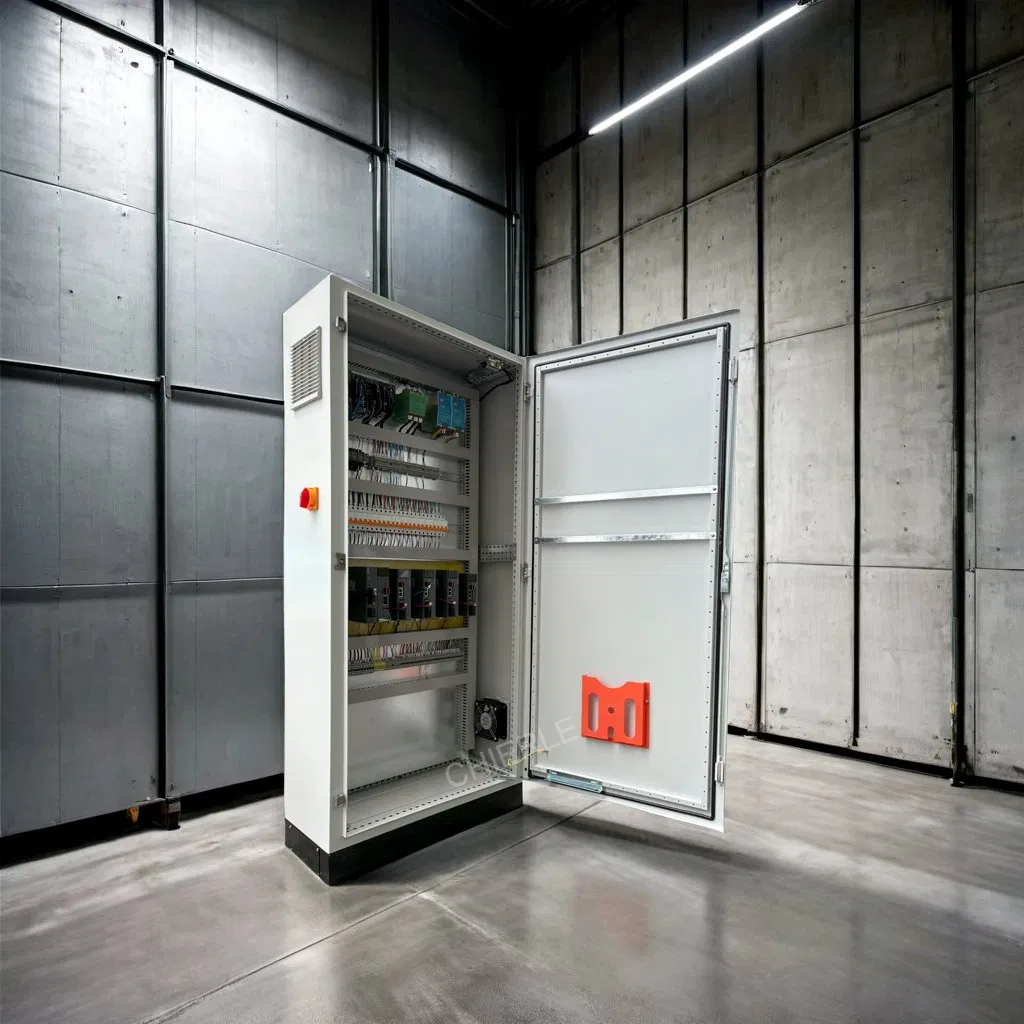

Control Cabinet
Technical Parameters
| Name | Electrical Control Panel/Cabinet |
| Component Brands | SIEMENS, MITSUBISHI, DELTA, XINJIE, INOVANCE, CHINT, etc |
| Shell Material | Carbon Steel, Stainless Steel, Explosion-proof options |
| Power Supply Type | Single-phase and Three-phase AC |
| Cabinet Thickness | 0.8mm / 1.2mm / 1.5mm |
| Cabinet Size | Fully Customizable |
| Primary Function | Integrate and supervise power systems and operational workflows |
Service & Support
Standard Warranty: 12 months for core components.
Technical Support: 24/7 online technical assistance.
Training: Comprehensive remote operation and maintenance training provided.
We are a professional team engaged in electrical automation, dedicated to providing overall power distribution and automation solutions for control cabinets, explosion-proof units, network design, and PLC programming. Our expertise spans manufacturing, energy, agriculture, and transportation.

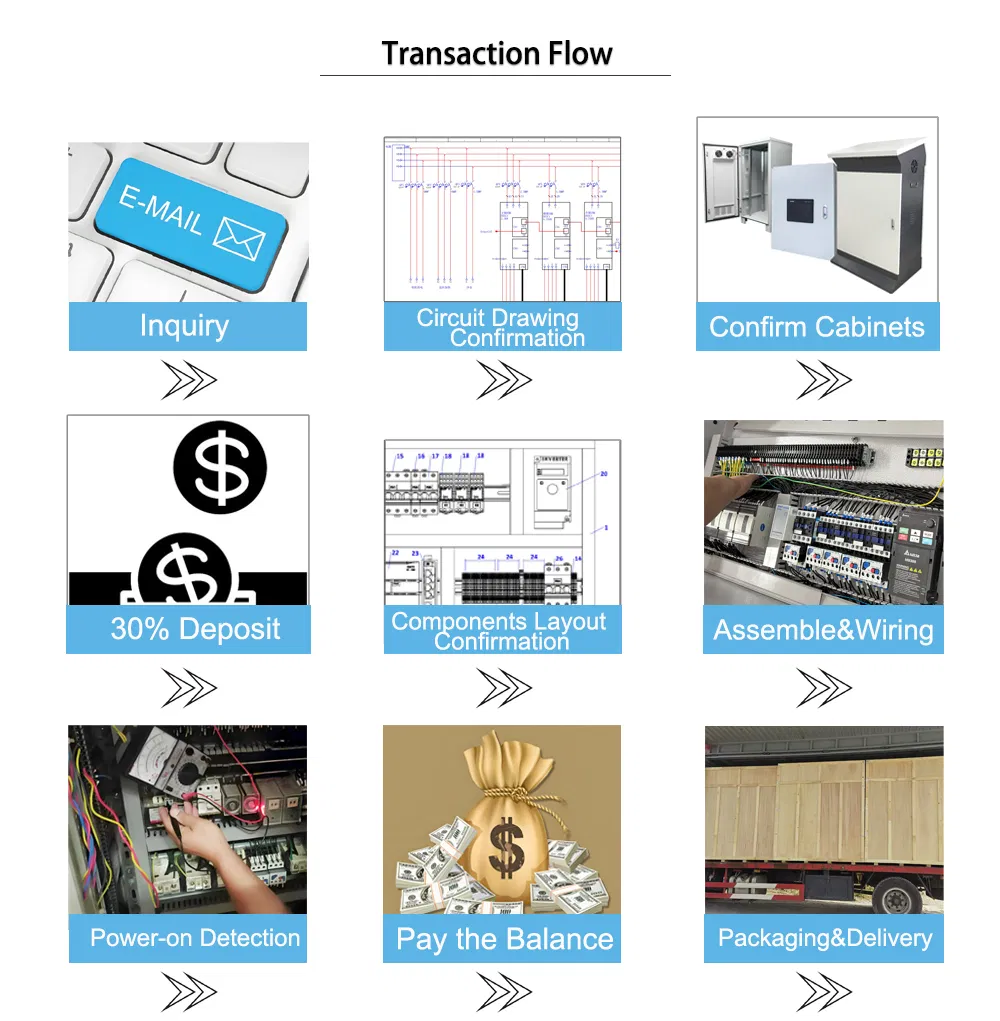

Packing & Transaction Flow
Frequently Asked Questions
1. Are you a manufacturer or a trader?
We operate as both a manufacturer and a trader, providing direct factory solutions and integrated sourcing services.
2. Do you support OEM/ODM customization?
Yes, we fully support OEM and ODM services. We can design and manufacture equipment according to your specific dimensions and technical requirements.
3. What is the typical delivery time?
Generally, delivery takes between 7 to 15 days, depending on the specific customization requirements and the order quantity.
4. What are your payment terms?
We accept T/T and Global Pay. Specific payment schedules can be discussed during the quotation process.
5. How do I place an order?
Please contact us via inquiry for a formal quote. Once details are finalized, you can confirm the order with a Purchase Order (PO).
6. Do you provide technical support?
Yes, we provide 24/7 online technical support to assist with installation, operation, and troubleshooting.
