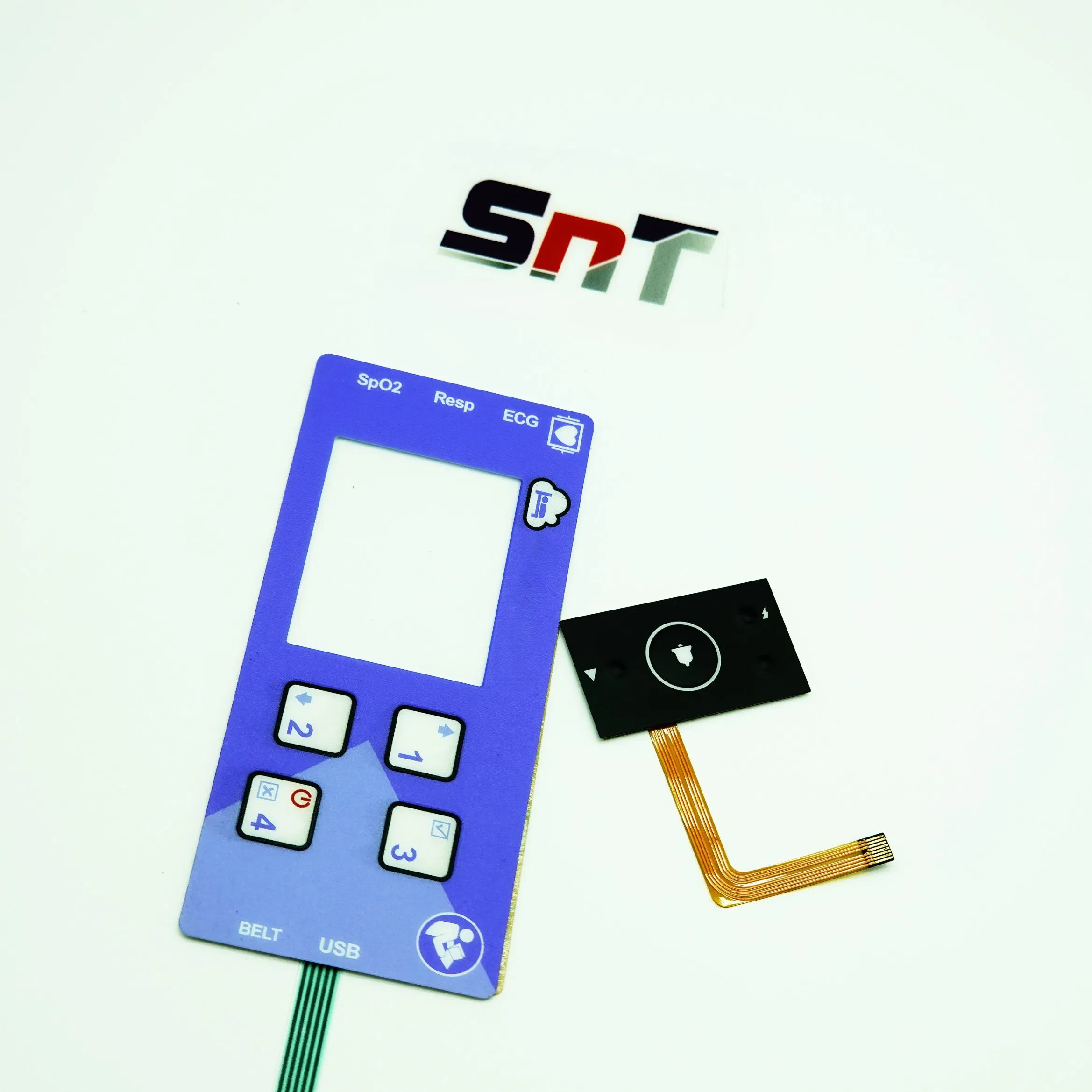

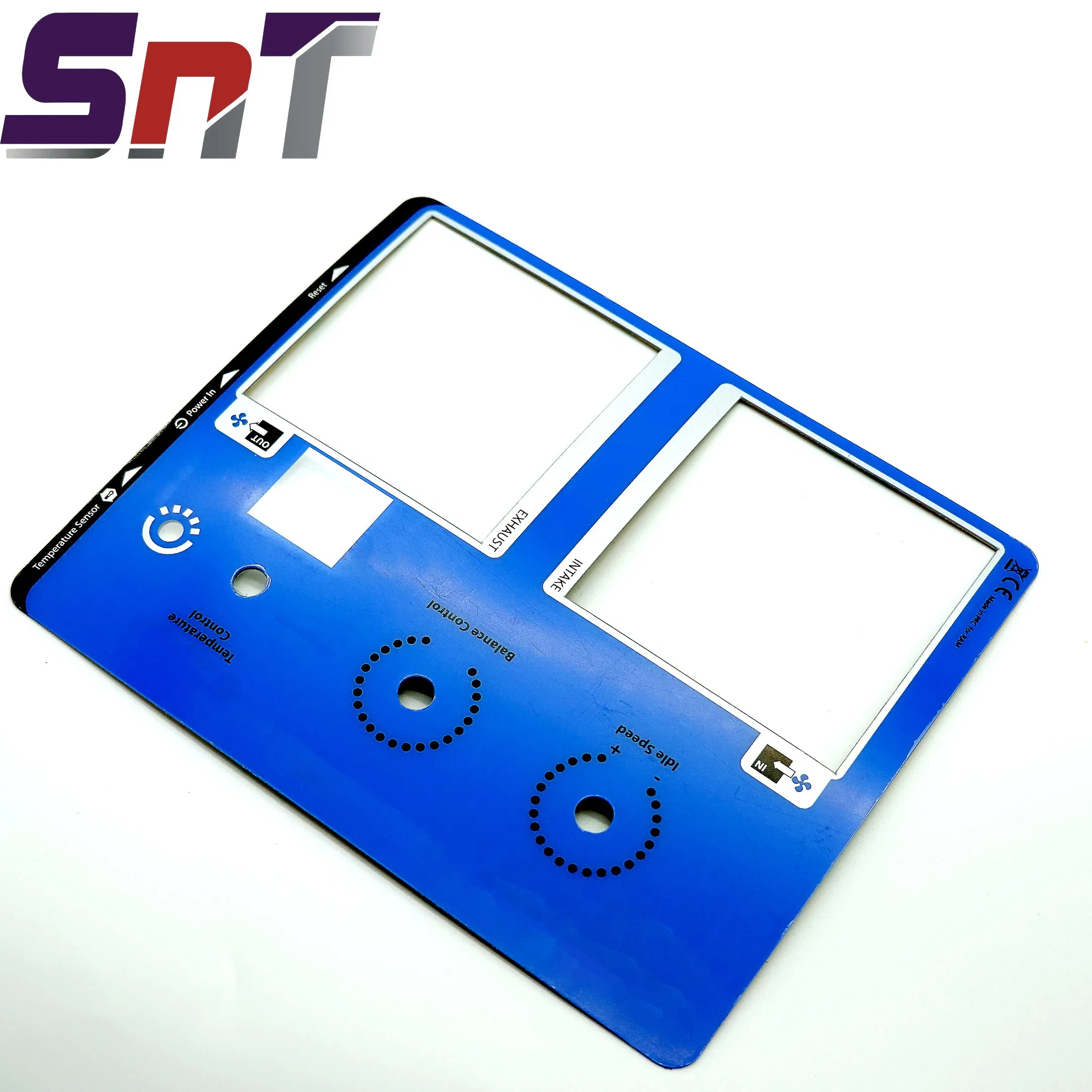

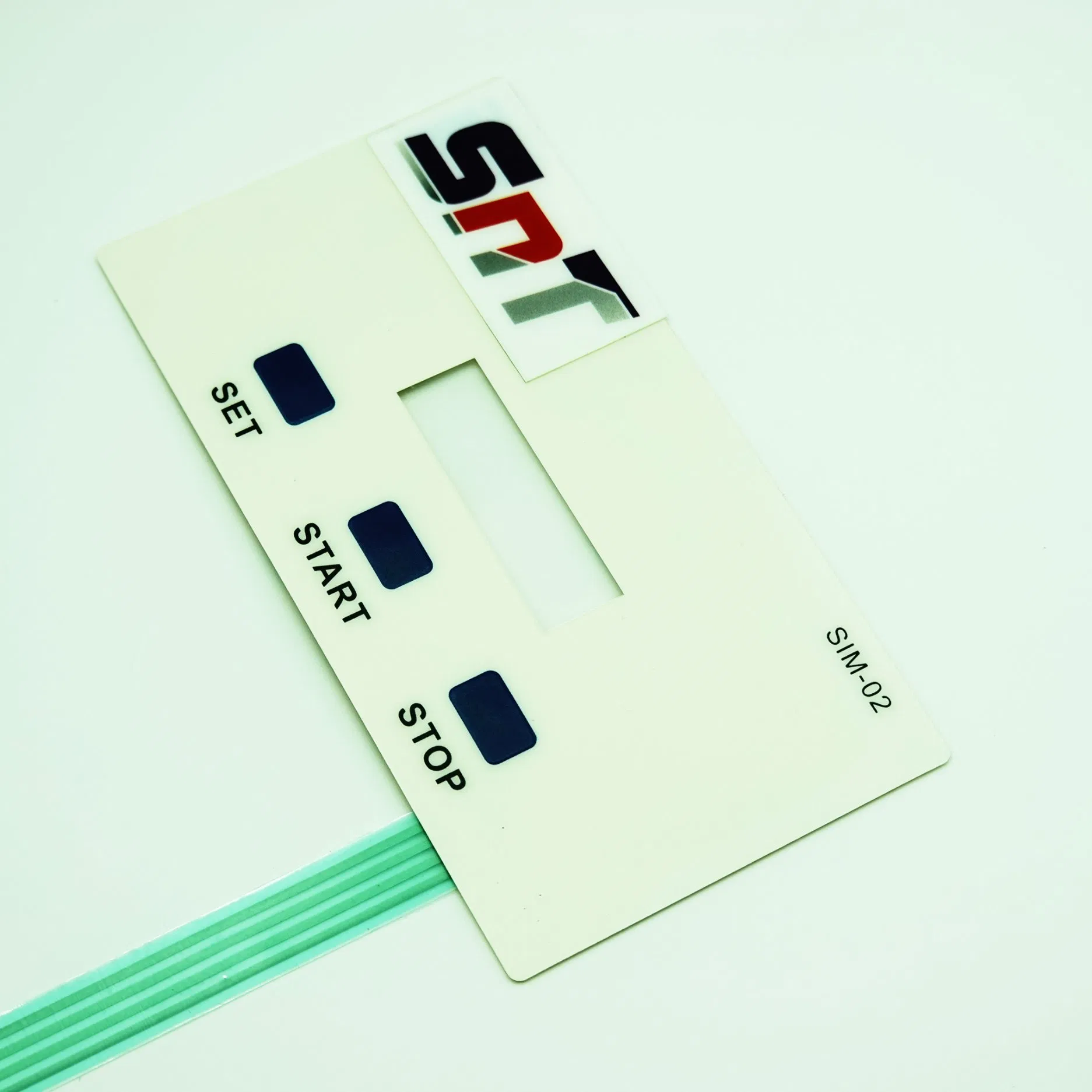

| Model NO. | SNT-002 |
| Material | Pet/PVC/Rubber/Glass/Acrylic/Polycarbonate/Metal |
| Usage | Playback Switch, Disconnector, Change-over Switch, Control Switch |
| Application | Home Appliance, Telecommunication Equipment, Remote Control, Calculator, Camera |
| Contact Type | FPC Terminal Connector |
| Number of Switch | Multi Control Switch |
| Function | Durable, Waterproof, Dustproof, UV Resistant |
| Color | Pantone, Ral, Cmyk |
| Certification | RoHS, CE, REACH |
| Package Size | 10.00cm * 30.00cm * 20.00cm |
| Package Gross Weight | 2.000kg |
| Transport Package | Carton |
| Characteristics | Touch/ Deadfront, Backlight, Waterproof, Anti-UV, Anti-ESD, Anti-RFI |

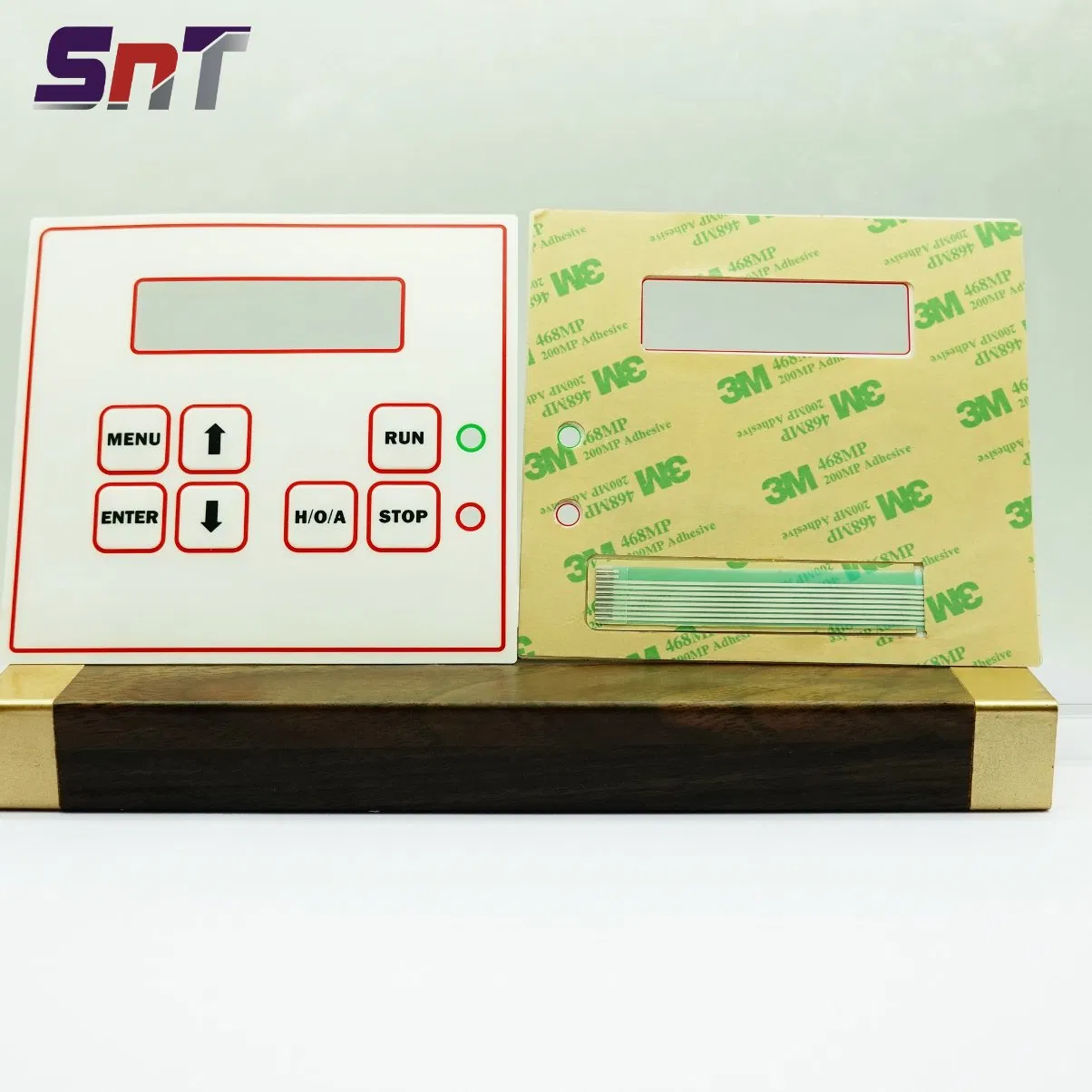

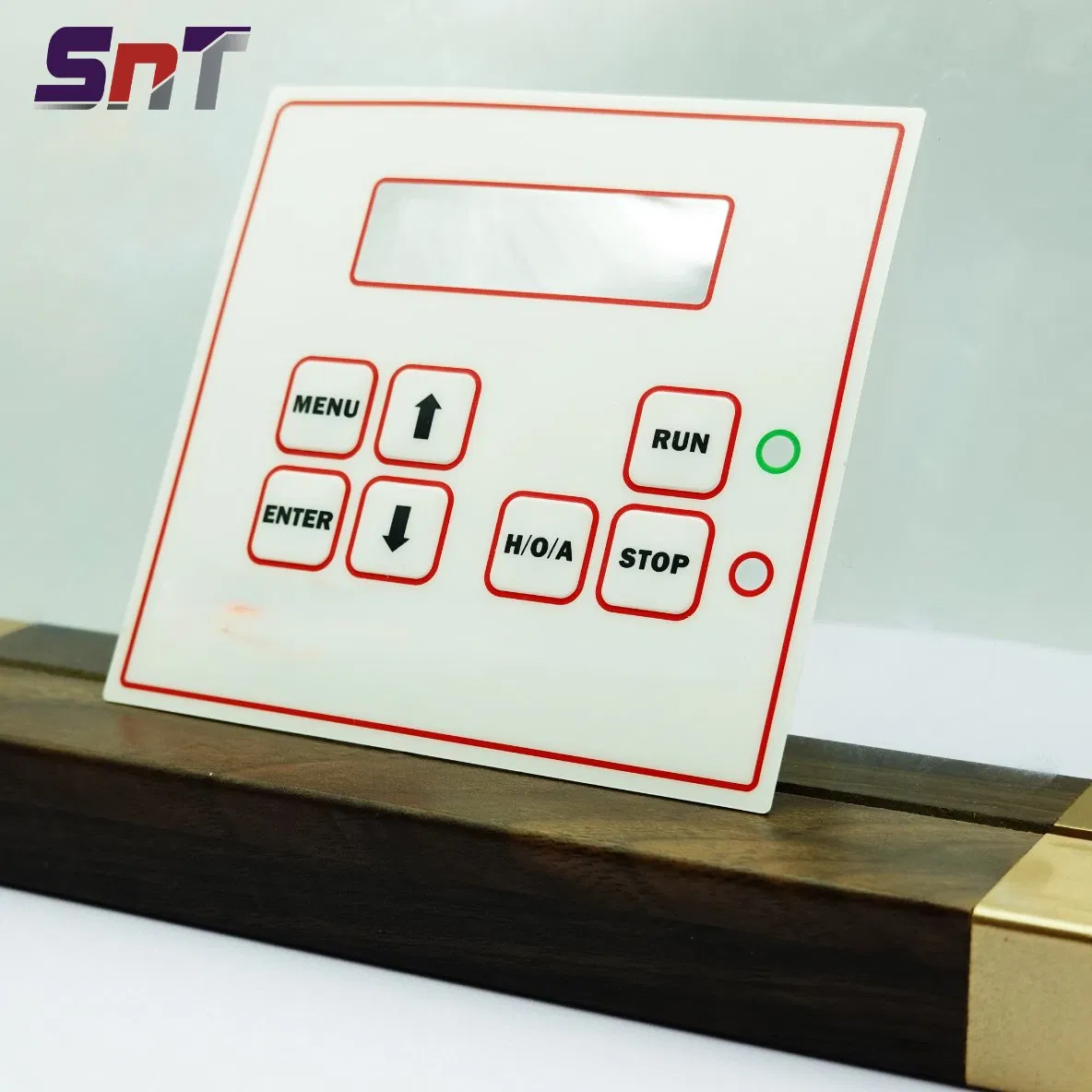

| Overlay Material | PET/PC/Rubber/Glass/Acrylic(PMMA)/Polycarbonate/Metal |
| Surface | Matt/Glossy/Anti-UV/Anti-biotics/ Anti-scratch Surface |
| Ink Printing | Silkscreen, Digital |
| Display Window | Clear/Transparent/Color Window |
| Display | TFT/OLED/LCD Display, Touch screen(OCA) |
| Tactile Button | Metal dome, Poly dome, Silicone rubber button |
| Circuit | FPC (Kapton polyimide), PCB, PET Conductive silver ink printed |
| Adhesive | 3M, Lukxing, Soken, Four Pillars, etc. |
| Circuit Rating | 35V(DC), 100mA, 1W |
| Contact Resistance | 10Ω~ 500Ω (Varies by length/material) |
| Insulation Resistance | 100MΩ 100V |
| Dielectric | 250 Vrms (50~60Hz 1min) |
| Life (Flat) | ≥5 million times |
| Life (Tactile) | ≥1 million times |
| Actuation Force | Flat: 57~284g | Tactile: 170~397g |
| Operating Temp | -40 to +80 Degree Centigrade |
| Humidity | 90%~95%, 240 hours |
| Vibration | 20G, max (10~200Hz) |
Our facility delivers mission-critical HMI components through a fusion of advanced engineering and production scalability. The 4000 m² ISO9001-certified manufacturing complex features a Class 1000 cleanroom for high-precision assembly.
