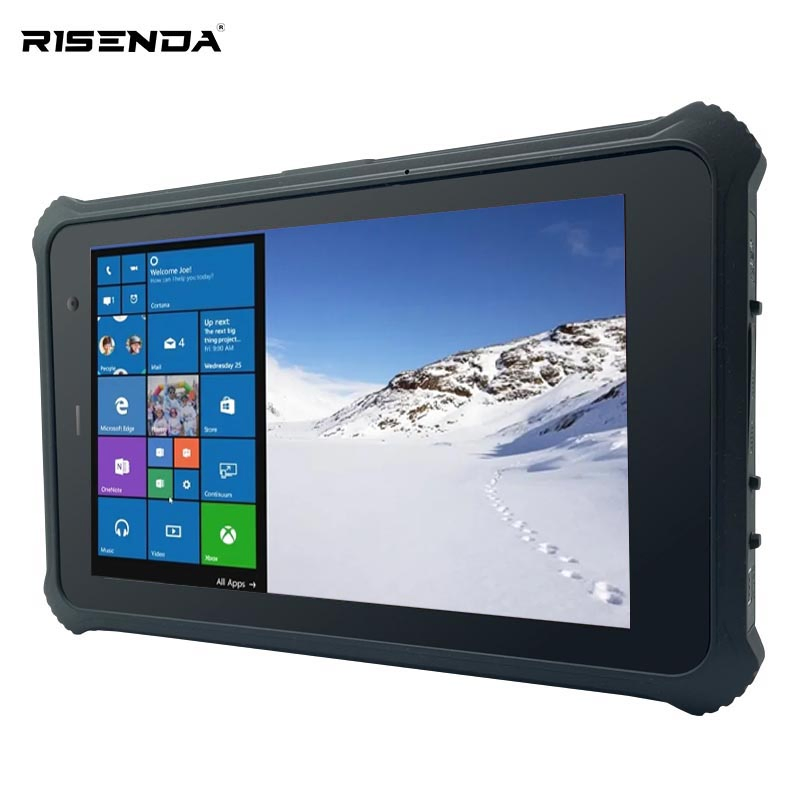

Three-Proof 10 Inch Tablet PC 1280X800 IP67 Waterproof 4G Industrial Rugged Tablet

1 / 5

Three-Proof 10 Inch Tablet PC 1280X800 IP67 Waterproof 4G Industrial Rugged Tablet

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.RSD-10Z

DurabilityWaterproof (IP67)

Operating SystemWindows

Screen Size≥10.1"

Resolution1280X800 / 1900X1200

Memory/Hard Disk4GB / 64GB

Network3G, 4G, WiFi

Battery10000mAh

Brightness800 / 1000 (CD/M2)

CameraFront 2MP / Rear 5MP

Product Description

Three-Proof 10 Inch Tablet PC 1280X800 IP67 Waterproof 4G Industrial Rugged Tablet. Built for extreme environments, providing high reliability and performance.

Product Parameters

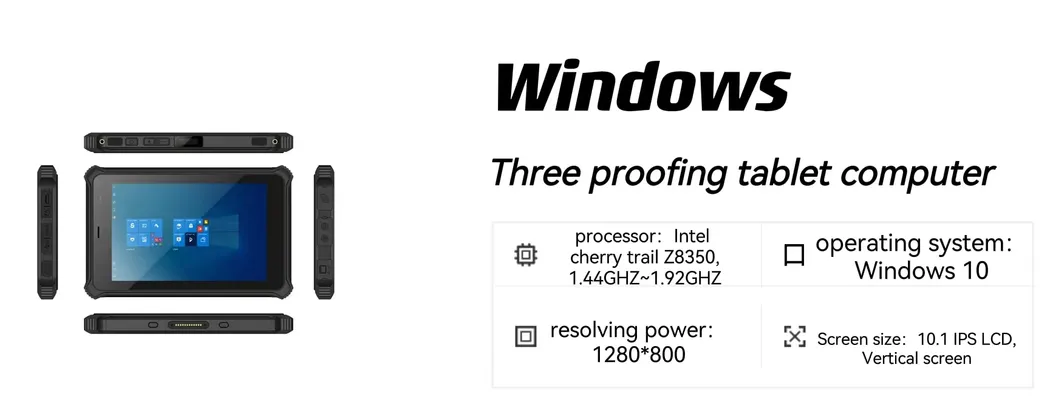

Specification	Standard Configuration	Optional Features
CPU	Intel cherry trail Z8350, 1.44GHZ~1.92GHZ	-
RAM / ROM	4GB / 64GB	2GB, 6GB / 32GB, 128GB
Display	10.1" IPS 1280*800 (450cd/m²)	1200*1920 (800-1000cd/m²)
Touch Panel	5-10 Points Capacitive Touch	Wet hand/Glove touch, Active pen
Connectivity	4G LTE, WiFi 2.4G+5.8G, BT 4.0	-

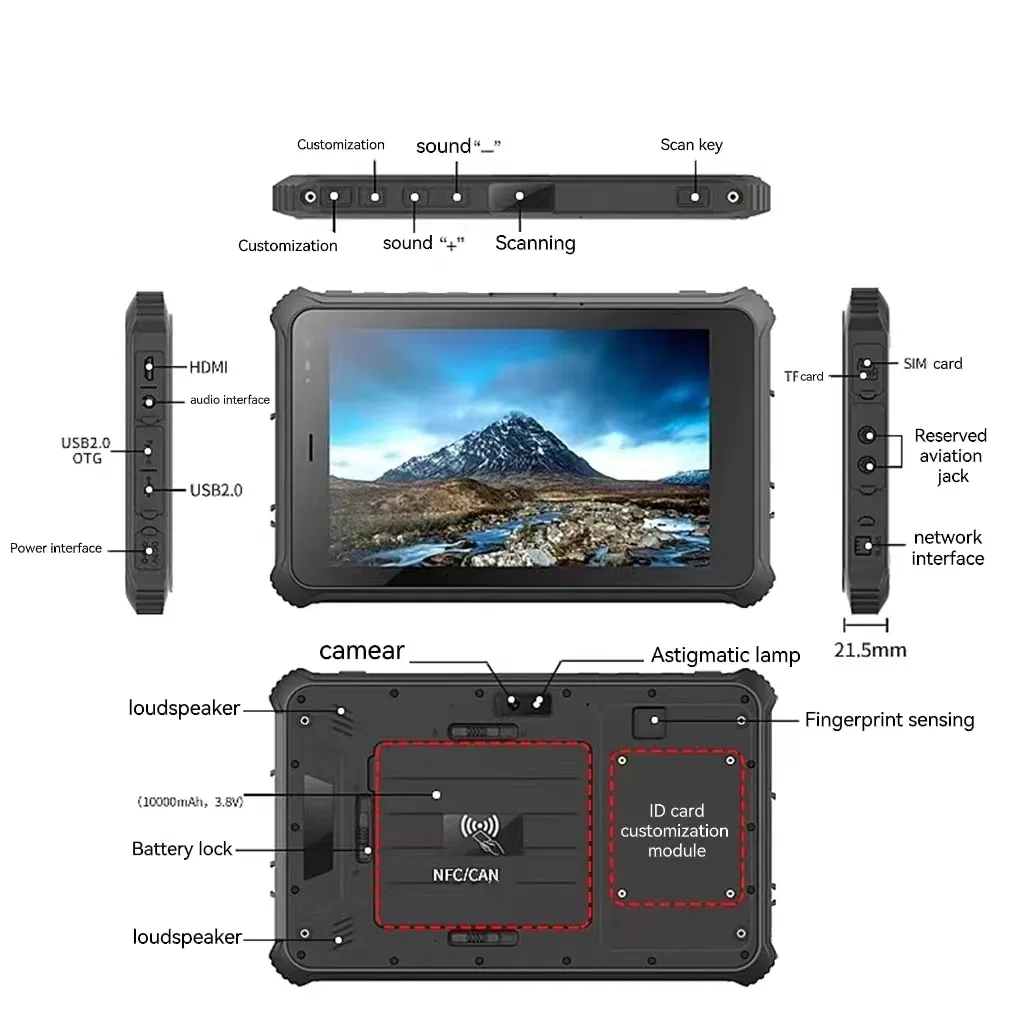

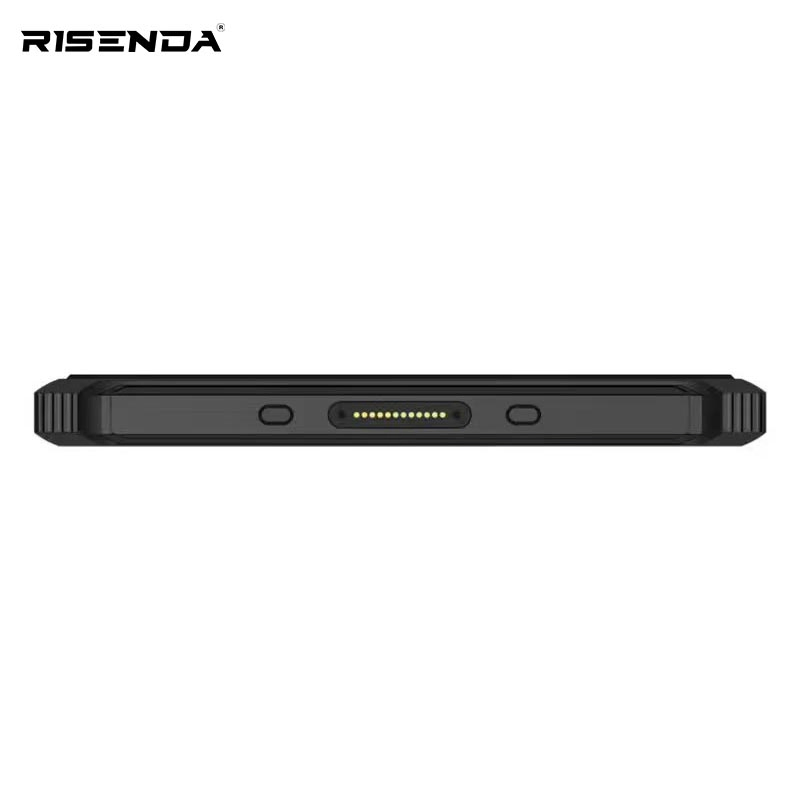

I/O Ports	Type-C, USB 2.0, RJ45 (100Mbps), Mini HDMI, DC, SIM/TF Slot	RS232, CAN BUS, Pogo Pin
Special Modules	-	NFC, HF/UHF RFID, Fingerprint, 1D/2D Scanner

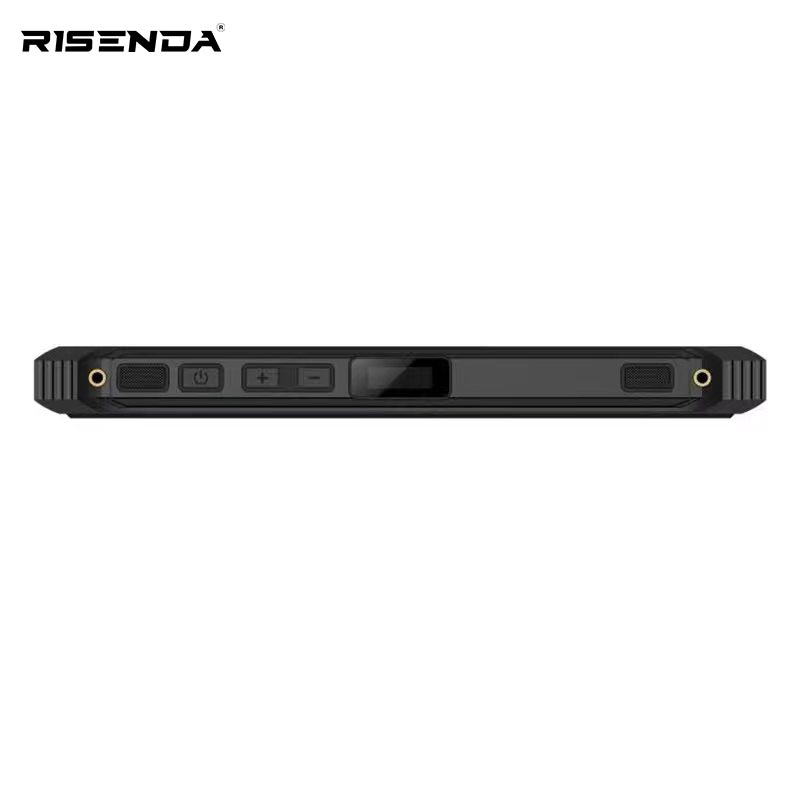

Detailed Photos

Application Fields

1. Warehousing & LogisticsForklift intelligent management, inventory tracking, and picking systems.

2. Surveying & EngineeringOutdoor surveying, mapping, and engineering construction solutions.

3. TransportationFleet management, vehicle diagnosis, and railway maintenance inspection.

4. ManufacturingProduction process management, CNC manufacturing, and paperless factory solutions.

5. Energy & UtilitiesOilfield equipment patrol, power grid inspection, and fire control management.

6. Medical IndustryRemote ECG monitoring, ultrasonic diagnosis systems, and rehabilitation device management.

Frequently Asked Questions

Q1: What is the protection level of this tablet? A: This tablet is rated IP67, meaning it is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. It also passes a 1.2M drop test on cement floors.

Q2: Does the screen support operation with gloves? A: Yes, the capacitive touch screen supports wet hand touch and glove touch, making it ideal for industrial and outdoor environments.

Q3: Is the battery removable? A: Yes, the 10000mAh high-capacity lithium-ion battery is removable, allowing for easy replacement and extended field use.

Q4: What operating systems are supported? A: The tablet standardly runs on Windows 10 Home, with options for Windows 10 Pro or IoT versions depending on your software requirements.

Q5: Can I integrate barcode scanning or RFID? A: Absolutely. This model supports optional 1D/2D Zebra scanners, as well as HF, UHF RFID, and NFC modules for data collection.

Q6: What is the sunlight readability like? A: The tablet offers high-brightness options of 800 to 1000 cd/m², ensuring the screen remains clearly visible even under direct sunlight.
