| Model NO. | Hx1011847 |
| Type | LCM / TFT |
| Response Time | 5ms |
| Viewing Angle | 85/85/85/85 |

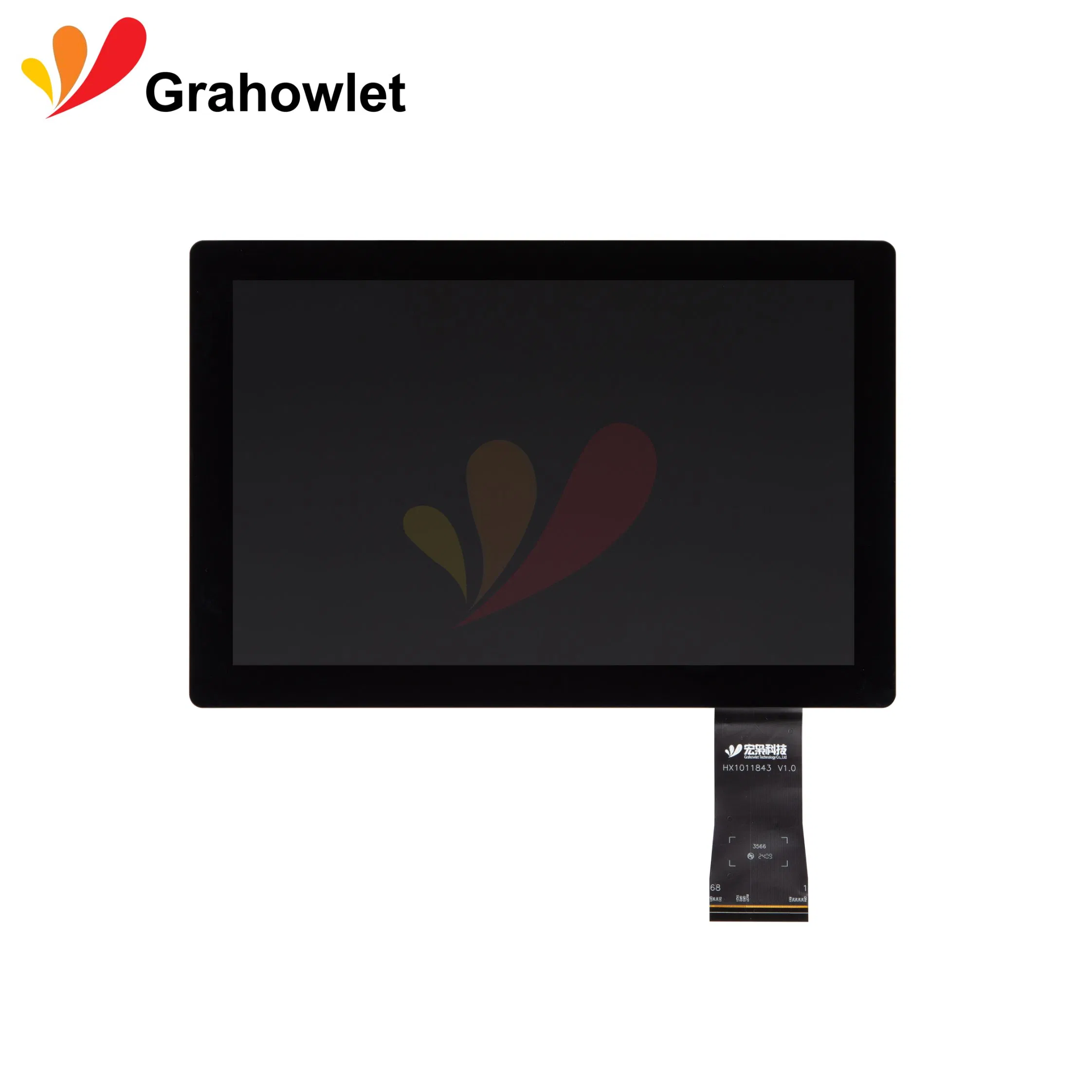

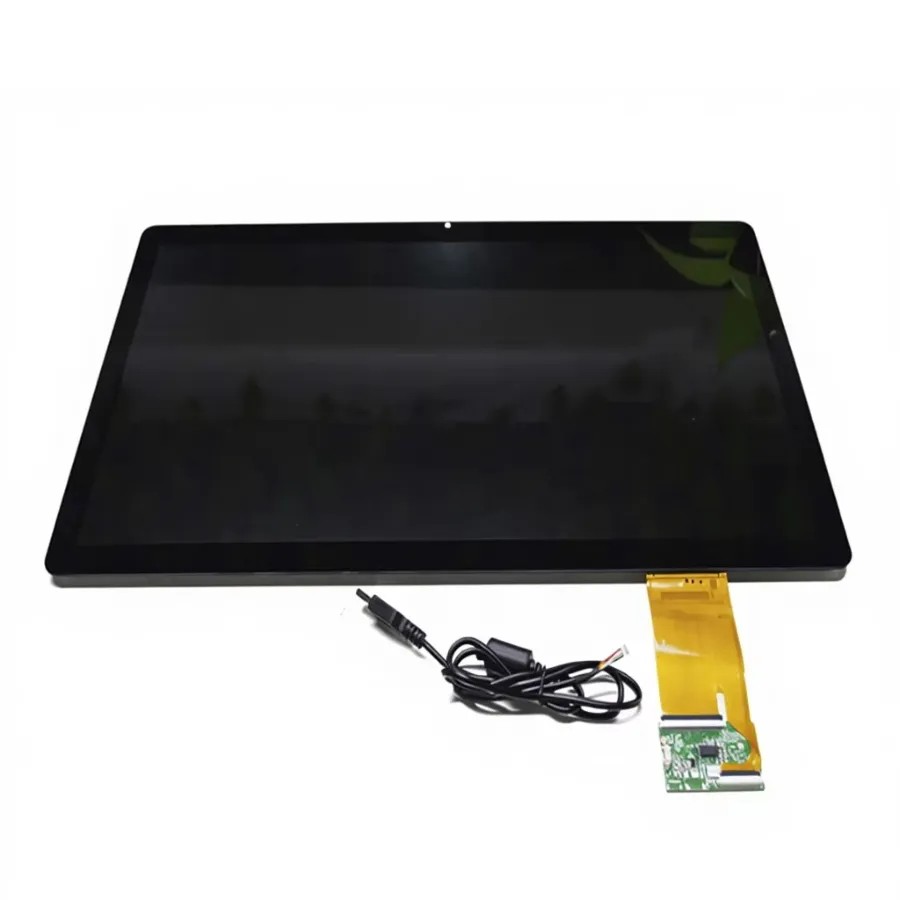

| Product Name | Capacitive Touch Display Module |
| Size | 10.1 Inch |
| Operating Temperature | -20℃~70℃ |

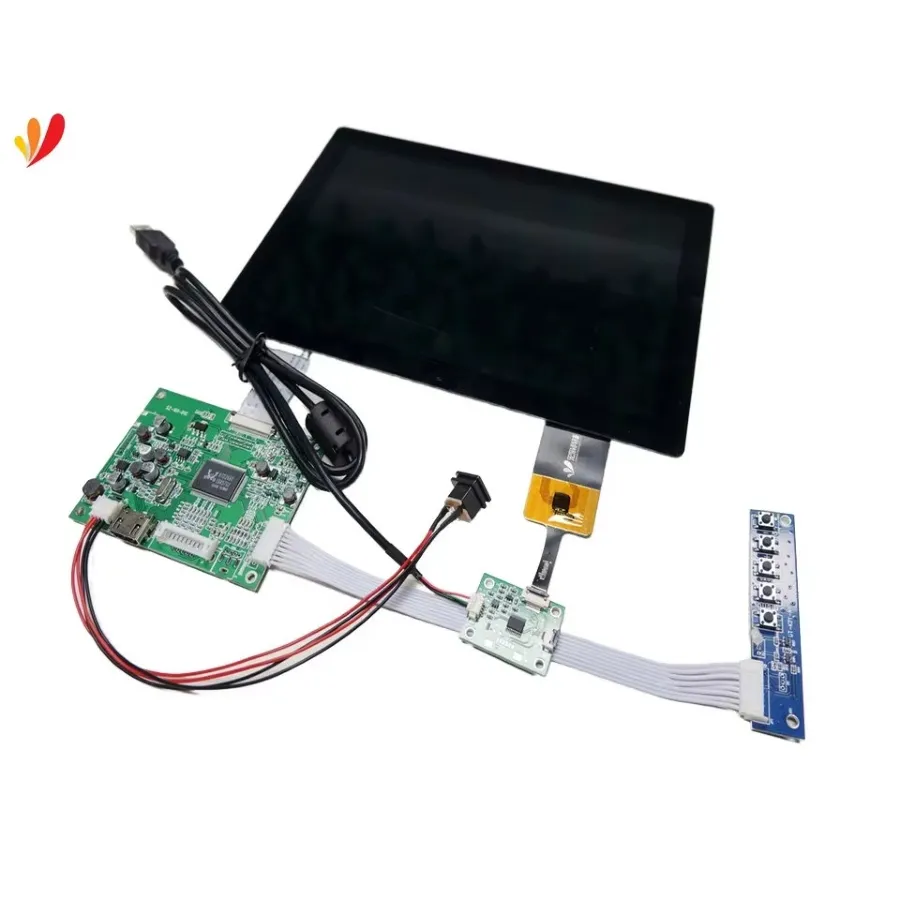

| Interface Type | Iic / USB / LVDS / HDMI |
| Structure | Glass + Glass |
Engineered for demanding environments, this high-performance capacitive touch display module delivers precise 10-point multi-touch response with exceptional durability.
Featuring advanced touch-through-glove capability, water and saltwater-resistant touch functionality, and explosion-proof cover glass up to 8mm thick. It is the ideal solution for industrial, marine, medical, and outdoor applications.

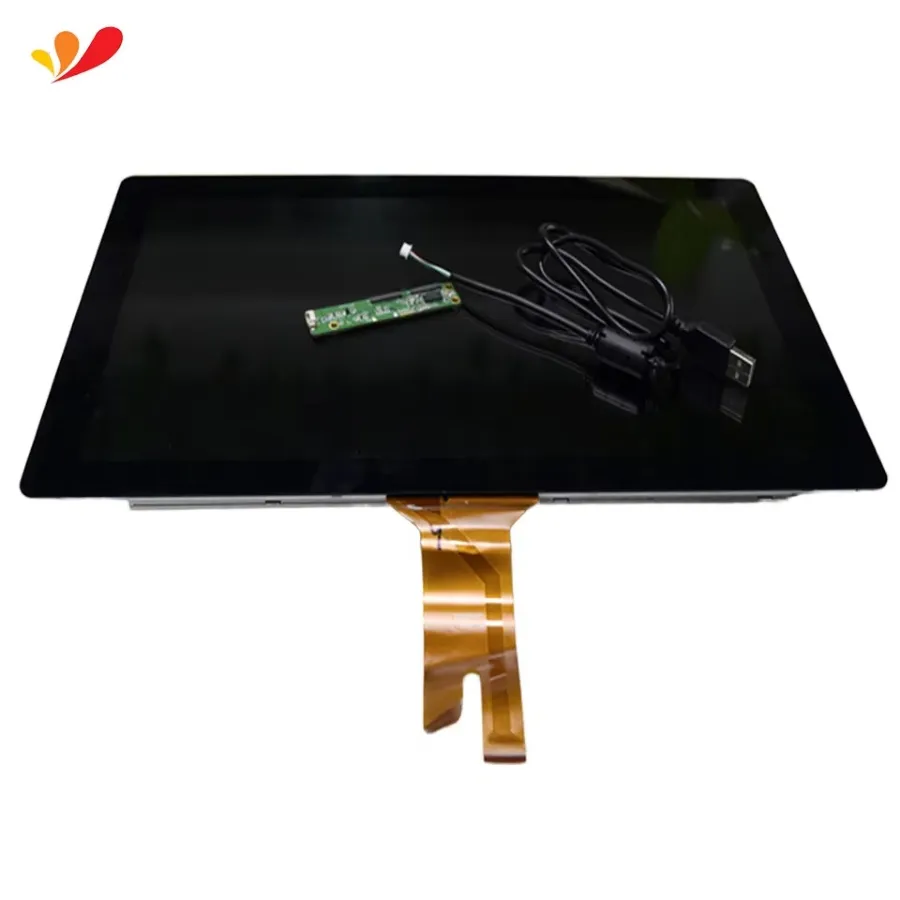

Enhanced with AG, AR, and AF surface treatments for superior visibility in any lighting condition, ensuring ≥85% transparency and ≥6H surface hardness.
Factory HMI panels, machinery control systems, and production line interfaces requiring glove operation.
Public information terminals, ticketing machines, and wayfinding displays in all weather conditions.
Sanitary environments where gloved touch and easy-clean surfaces are essential.
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| Model Name | HX1011847 | PCAP Number | HX1011847-CTP |
| Touch Points | 10 Points | Controller IC | Cypress |
| Resolution | 1920 x 1200 | Luminance | 500 Cd/M² |
| Outline Dimension | 247.96(W) × 166.60(H) × 4.88(H)mm | ||
| Active Area | 216.96(W) × 135.60(H)mm | ||
| Support Systems | Windows / Android / Linux etc. | ||
| Package Size | 42.00cm * 30.00cm * 10.00cm |
| Package Gross Weight | 2.000kg |
| Transport Package | Standard Packaging or Customized |
