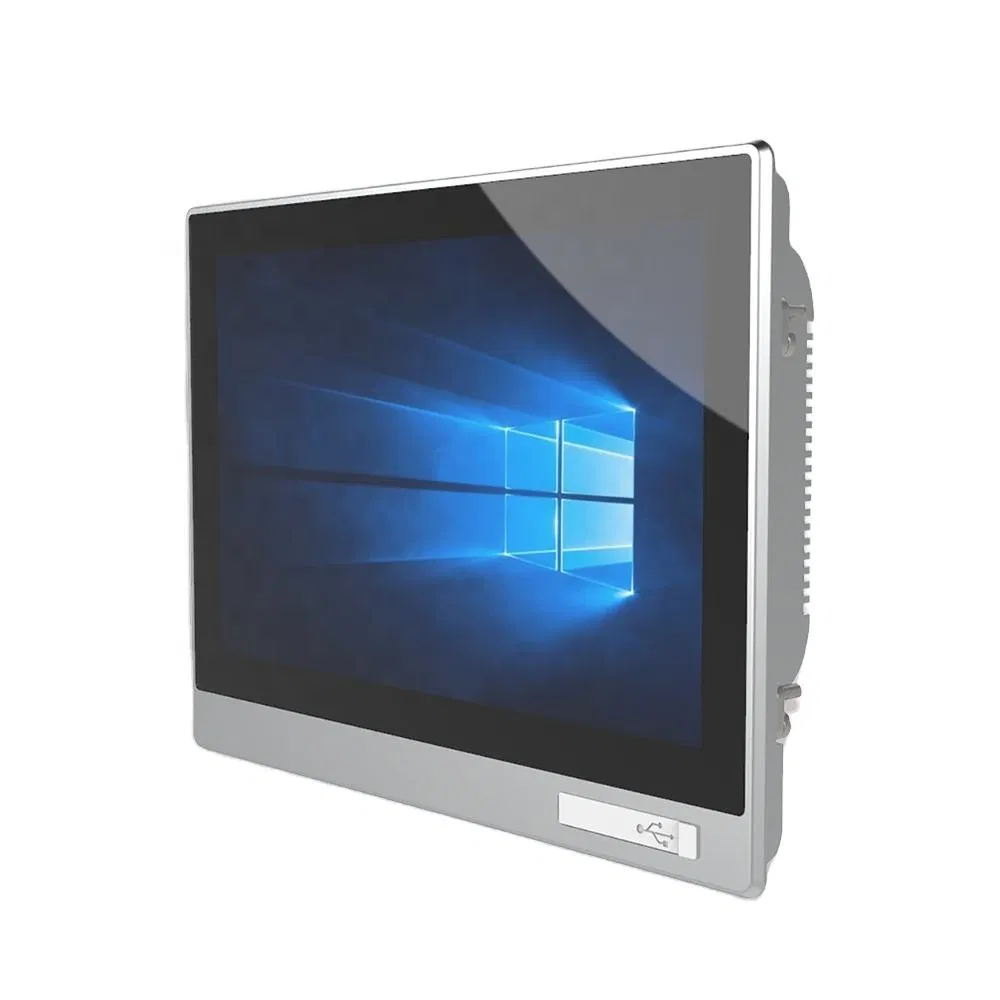

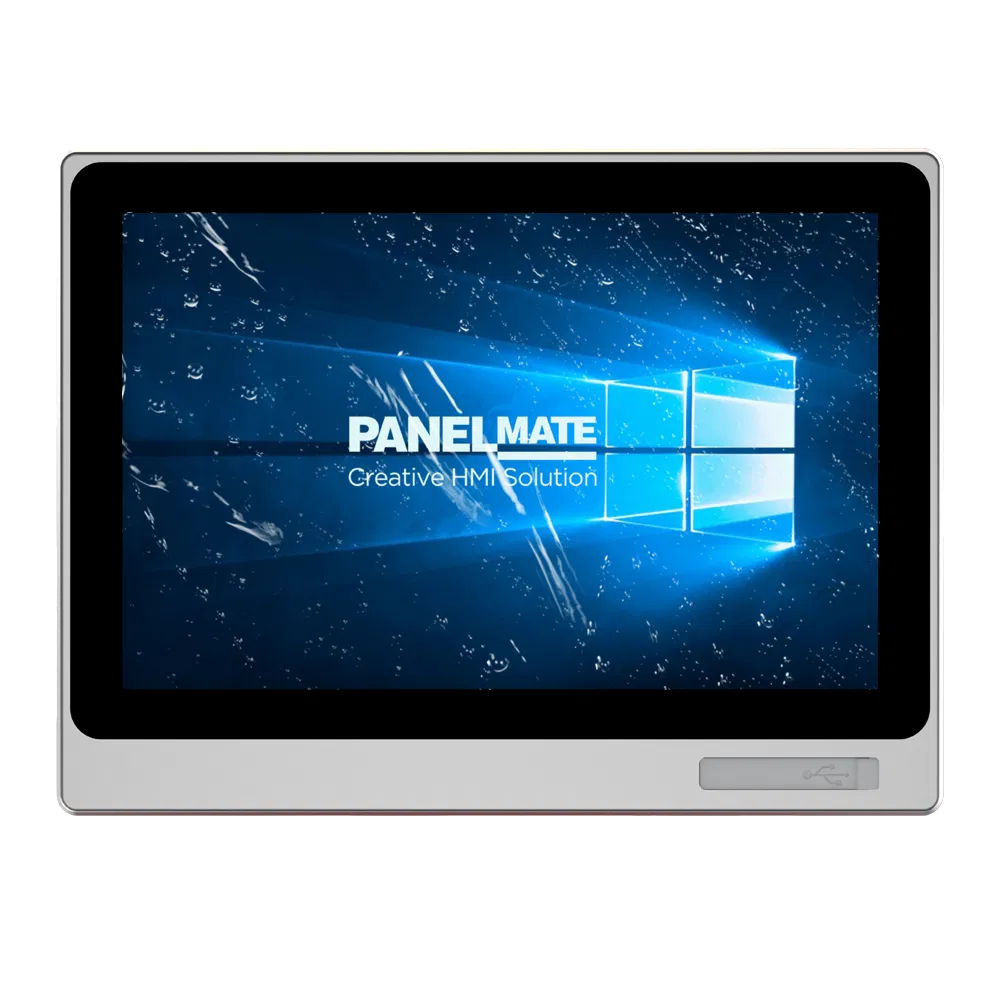

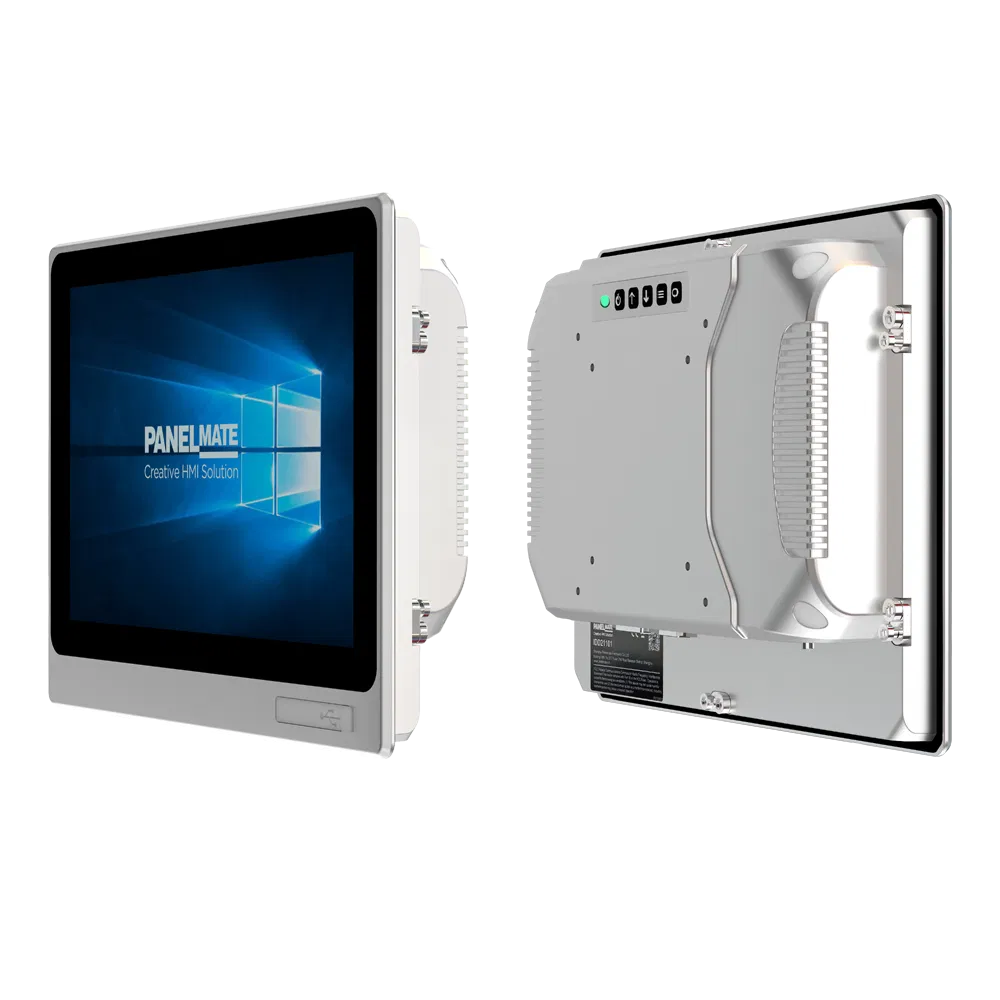

10.4 Inch Capacitive Touch Screen IP65 Touchscreen RJ45 Port Ethercat Industrial LCD Display

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
IDD22104-R2
Aspect ratio
4:3
Feature
Touch Display
Resolution
800X600
Type
Capacitive
Response Time
3ms
Interface Type
USB, Idd-Link4
LCD Type
10.4 SVGA TFT
Warranty
2-Year
Brightness
230CD/M2
Material
Aluminum Magnesium Frame
Power Supply
9V-36V DC
Touch Type
Pcap 10 Points
OS Support
Win7/8/10/XP/Linux/CE
Dimensions
264 x 221.6 x 57.5mm
Origin
China

Packaging & Delivery

Package Size
39.40cm * 28.40cm * 10.50cm
Gross Weight
3.100kg
Package Type
Carton Box
Capacity
1000 Pieces/Month

Product Gallery

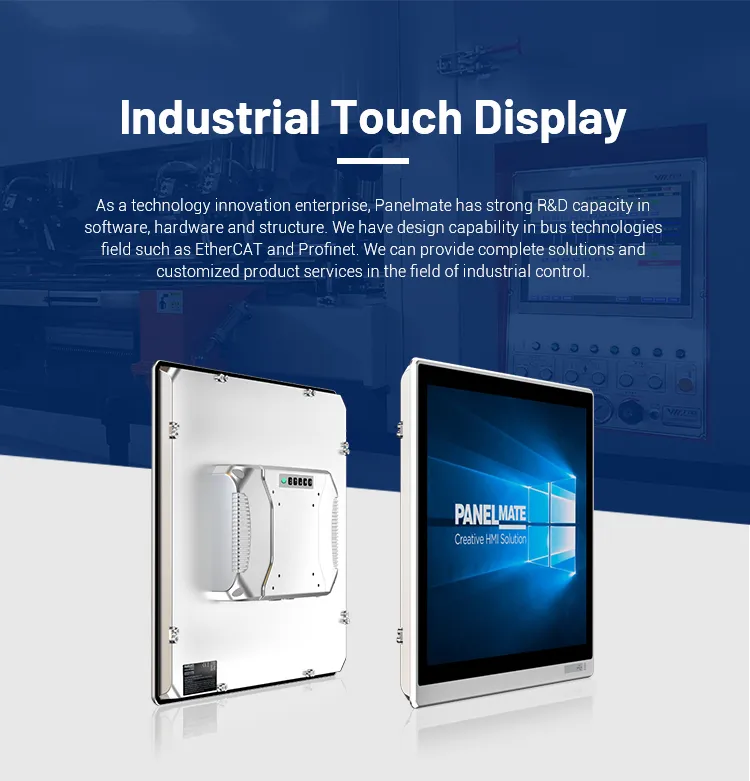

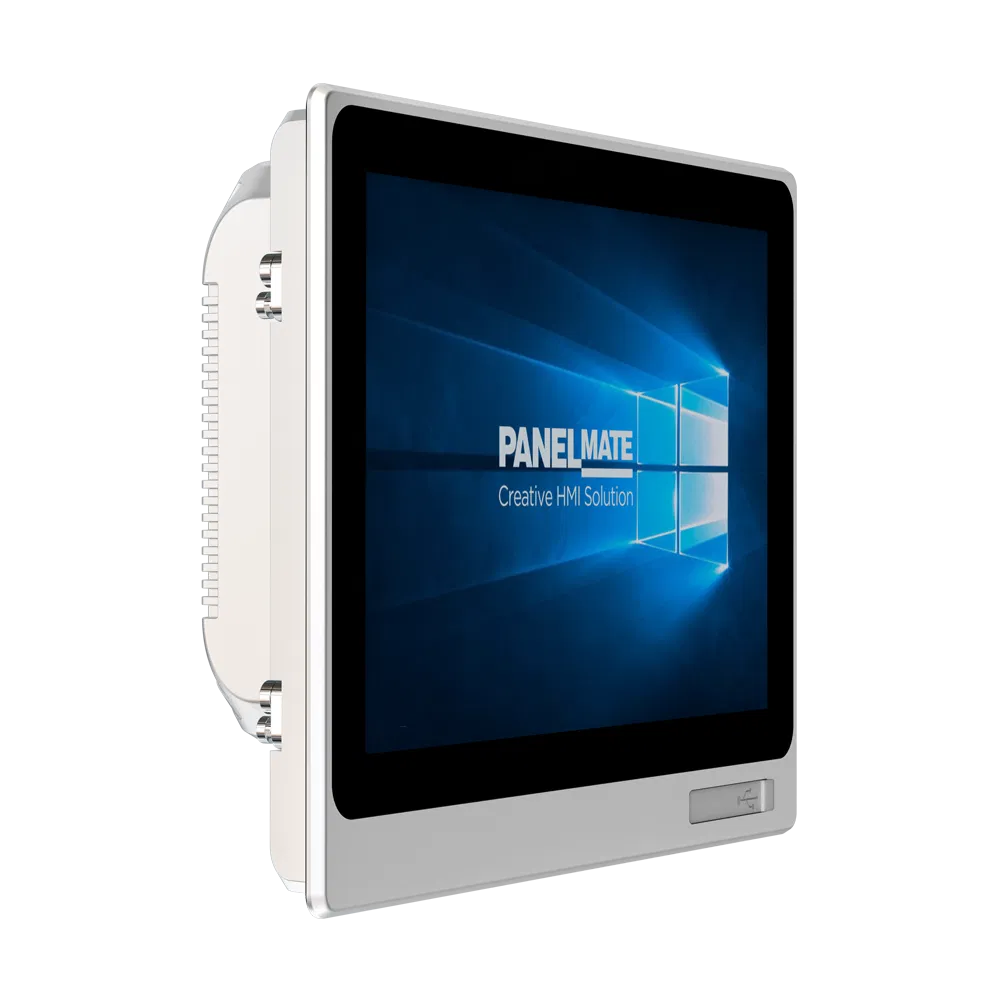

Industrial Display Front

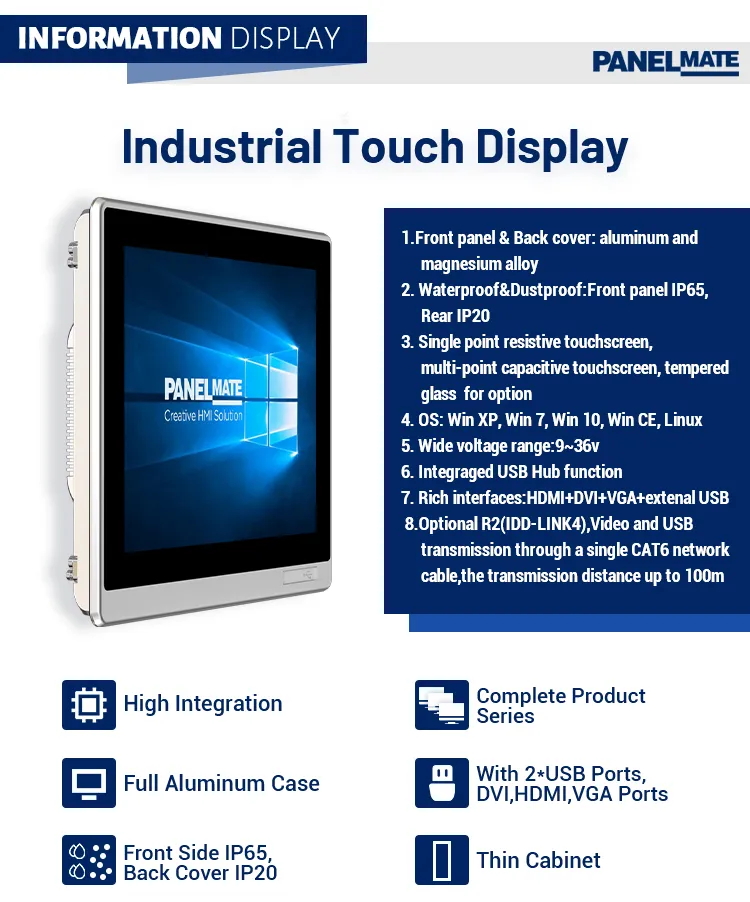

Industrial Display Angle

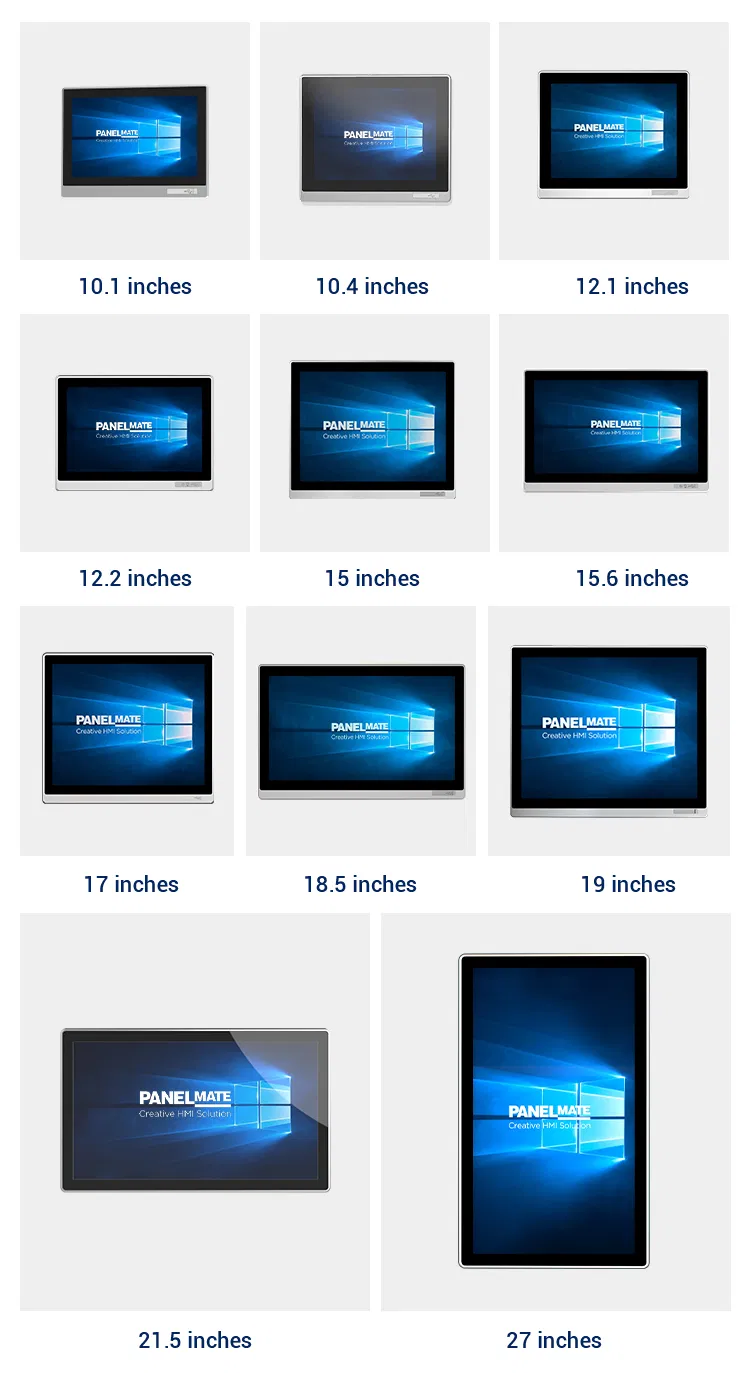

Product Details

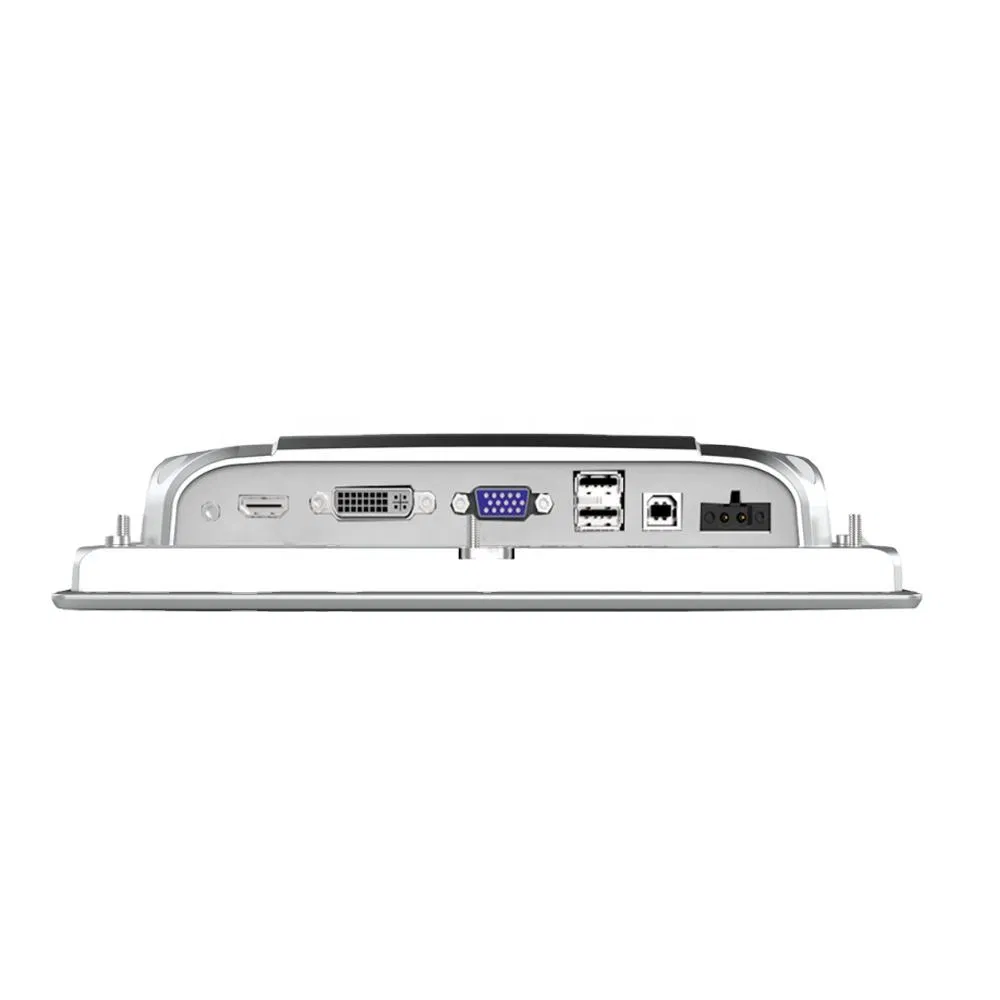

Interface Header

Technical Comparison

Model IDD2X101-R2 IDD2X104-R2 IDD2X121-R2 IDD2X122-R2 IDD2X150-R2 IDD2X156-R2 IDD2X156H-R2
Screen Size 10.1" 10.4" 12.1" 12.2" 15" 15.6" 15.6"
Resolution 1280x800 800x600 1024x768 1280x800 1024x768 1366x768 1920x1080
Size (mm) 256.5 x 193 x 54 264 x 221.6 x 57.5 306 x 259 x 57.5 308.3 x 226.8 x 57.5 353 x 296 x 57.5 396 x 263 x 62.5 396 x 263 x 62.5

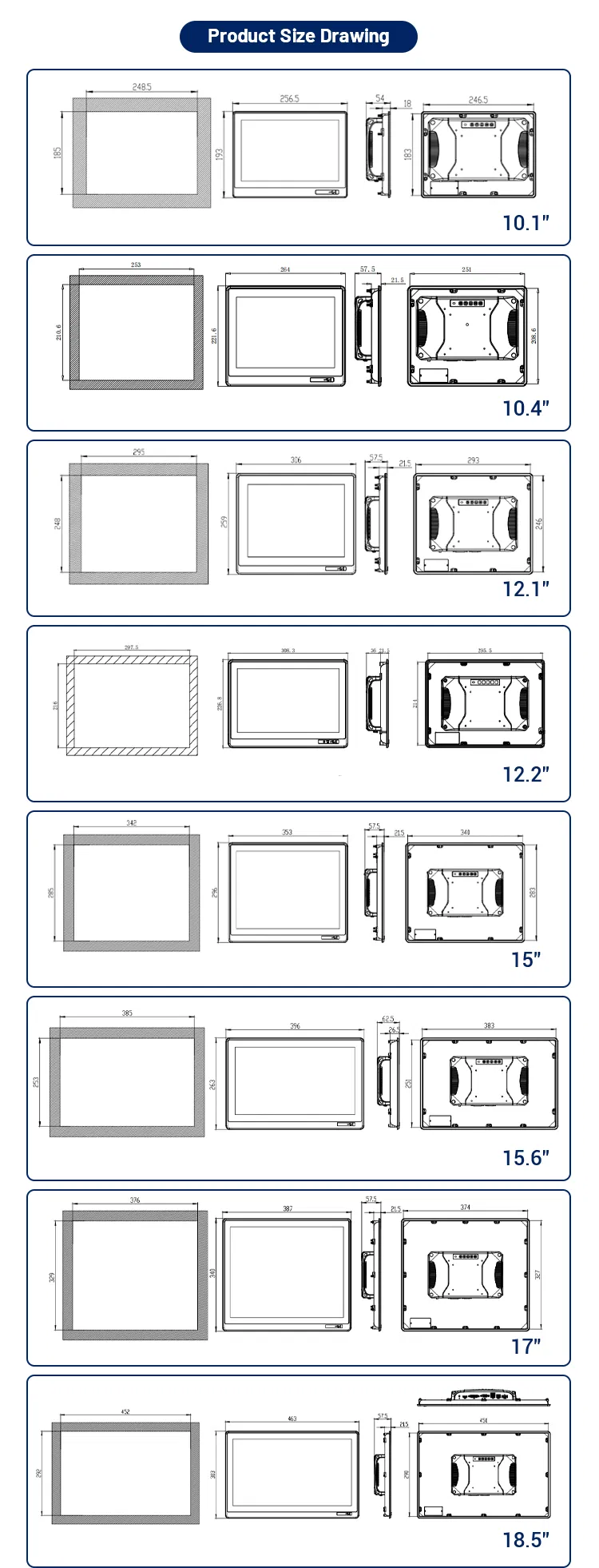

Structure Image

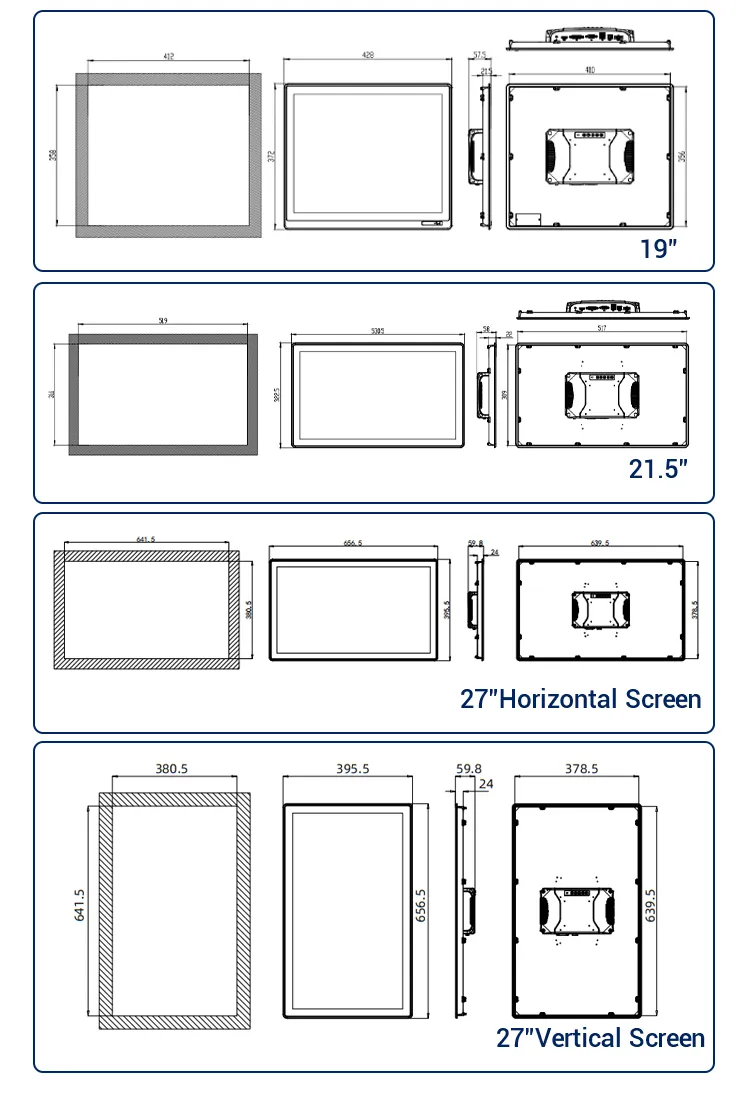

Installation Image
Application Image
Feature Overview
Dimension Diagram

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a professional manufacturer engaged in R&D and production of HMI products for over 13 years. Our advanced technology and efficient management ensure excellent quality and competitive pricing.
Can I order samples for testing?
Yes, we can provide samples according to your requirements. Sample and shipping fees will apply.
How do you handle customized product development?
You can specify requirements for performance, RAM, storage (HDD/SSD), display size, and interfaces. We support both Windows and Linux configurations based on your technical specifications.
What is the lead time for orders?
Standard products typically take 5-7 working days. For customized solutions, the lead time is approximately 20-30 days, or as negotiated.
What are your payment terms?
For sample orders, 100% T/T in advance is required. For bulk orders, we require a 30% deposit in advance and 70% balance before shipment or L/C at sight.
What kind of warranty do you provide?
Our products come with a standard 2-year product warranty along with professional technical support.
