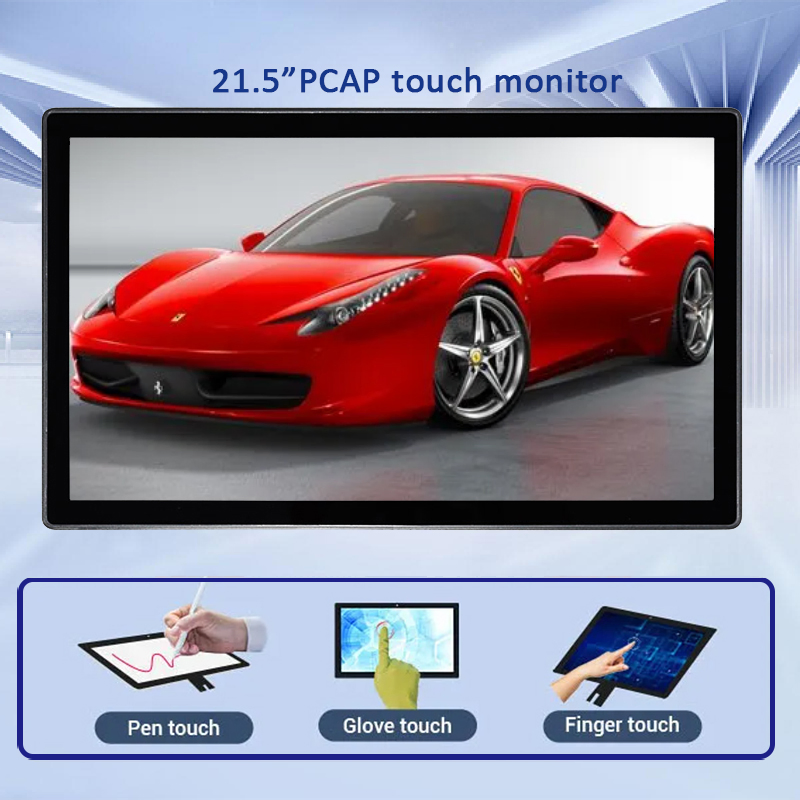

HD Touch Monitor 21.5" Medical Industrial Panel PC 21.5inch LCD Display Open Frame Vending Machine Computer Products Self Service Kiosk 4K Touchscreen
HD Touch Monitor 21.5" Medical Industrial Panel PC 21.5inch LCD Display Open Frame Vending Machine Computer Products Self Service Kiosk 4K Touchscreen
HD Touch Monitor 21.5" Medical Industrial Panel PC 21.5inch LCD Display Open Frame Vending Machine Computer Products Self Service Kiosk 4K Touchscreen
HD Touch Monitor 21.5" Medical Industrial Panel PC 21.5inch LCD Display Open Frame Vending Machine Computer Products Self Service Kiosk 4K Touchscreen
HD Touch Monitor 21.5" Medical Industrial Panel PC 21.5inch LCD Display Open Frame Vending Machine Computer Products Self Service Kiosk 4K Touchscreen
1 / 5
HD Touch Monitor 21.5" Medical Industrial Panel PC 21.5inch LCD Display Open Frame Vending Machine Computer Products Self Service Kiosk 4K Touchscreen
HD Touch Monitor 21.5" Medical Industrial Panel PC 21.5inch LCD Display Open Frame Vending Machine Computer Products Self Service Kiosk 4K Touchscreen
HD Touch Monitor 21.5" Medical Industrial Panel PC 21.5inch LCD Display Open Frame Vending Machine Computer Products Self Service Kiosk 4K Touchscreen
HD Touch Monitor 21.5" Medical Industrial Panel PC 21.5inch LCD Display Open Frame Vending Machine Computer Products Self Service Kiosk 4K Touchscreen
HD Touch Monitor 21.5" Medical Industrial Panel PC 21.5inch LCD Display Open Frame Vending Machine Computer Products Self Service Kiosk 4K Touchscreen

HD Touch Monitor 21.5" Medical Industrial Panel PC 21.5inch LCD Display Open Frame Vending Machine Computer Products Self Service Kiosk 4K Touchscreen

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
COT215-CFK-03
Aspect ratio
16:9
Optimum Resolution
1920x1080 / 2560x1080
Touch Points
1/2/4/6/10 Points Touch
Response Time
2ms
Brightness
300 Nits (Optional up to 2500)
Interface Type
USB, RS232, VGA, DVI, HDMI, DP
Operating System
Windows, Linux, Android, iMac, Raspberry Pi
LCD Panel
Brand New A+ Original LCD Panel
Protection
IP66 Waterproof, Vandalproof, Anti Glare
Product Overview
Professional Touch Solutions: 7-98 inch Openframe, Embedded, and Wall-mounted Displays
  • ✓ SAW, IR, Resistive, and Capacitive (PCAP) touch technologies.
  • ✓ Industrial-grade design for Indoor & Outdoor KIOSK applications.
  • ✓ High Brightness options: 350nits to 2500nits for sunlight readability.
  • ✓ Rugged Protection: IP65 Vandalproof, IP66 Waterproof, and Anti-UV coating.
  • ✓ Multi-touch interactive Multimedia support (Up to 16 points).

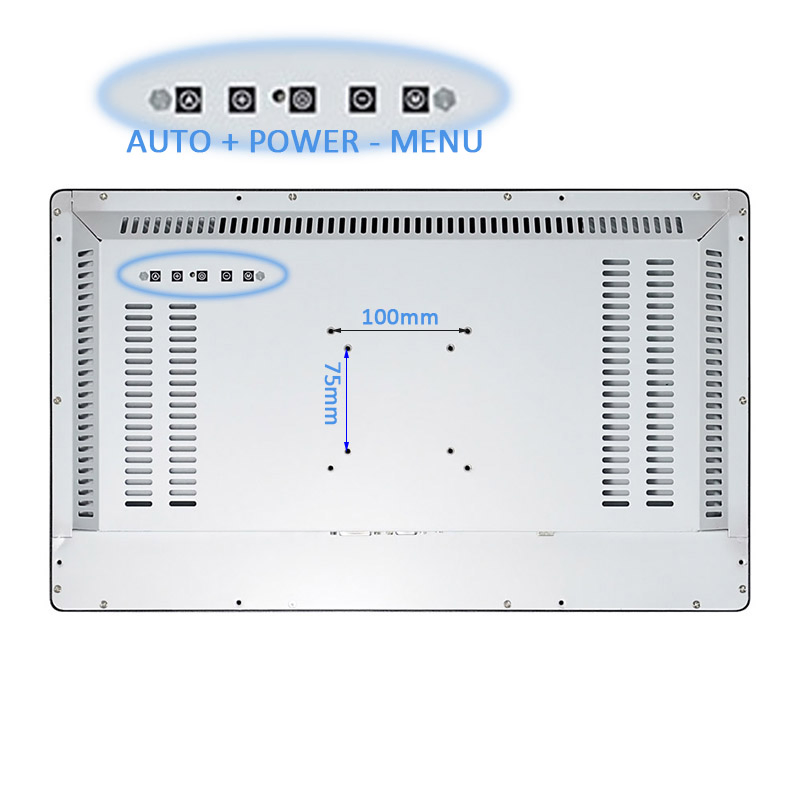

  • ✓ Versatile Mounting: VESA 75/100mm and Rear Mounting brackets.
Touch Monitor Display

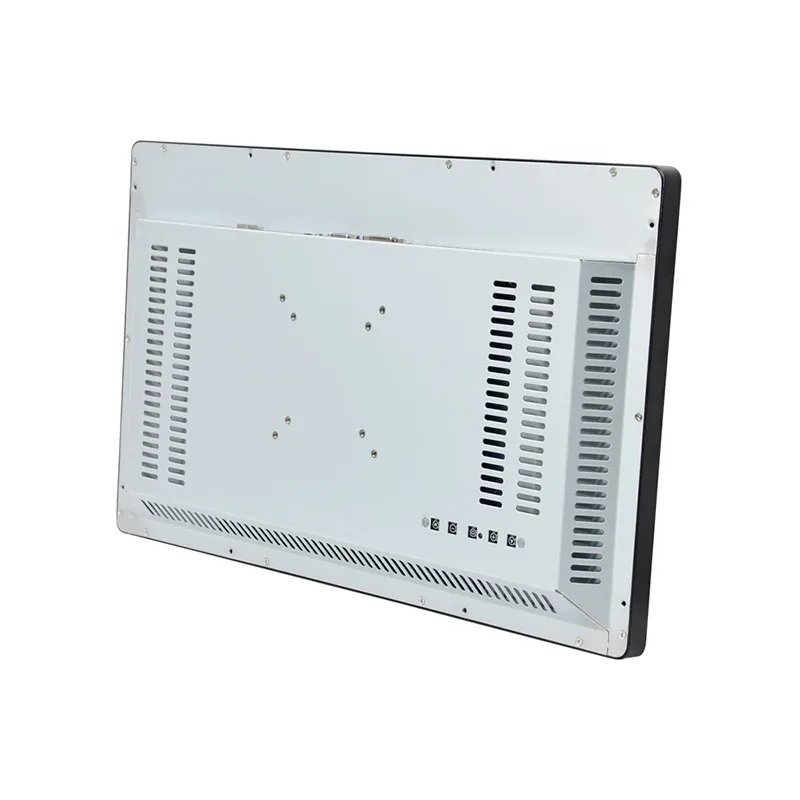

Medical Industrial Panel PC

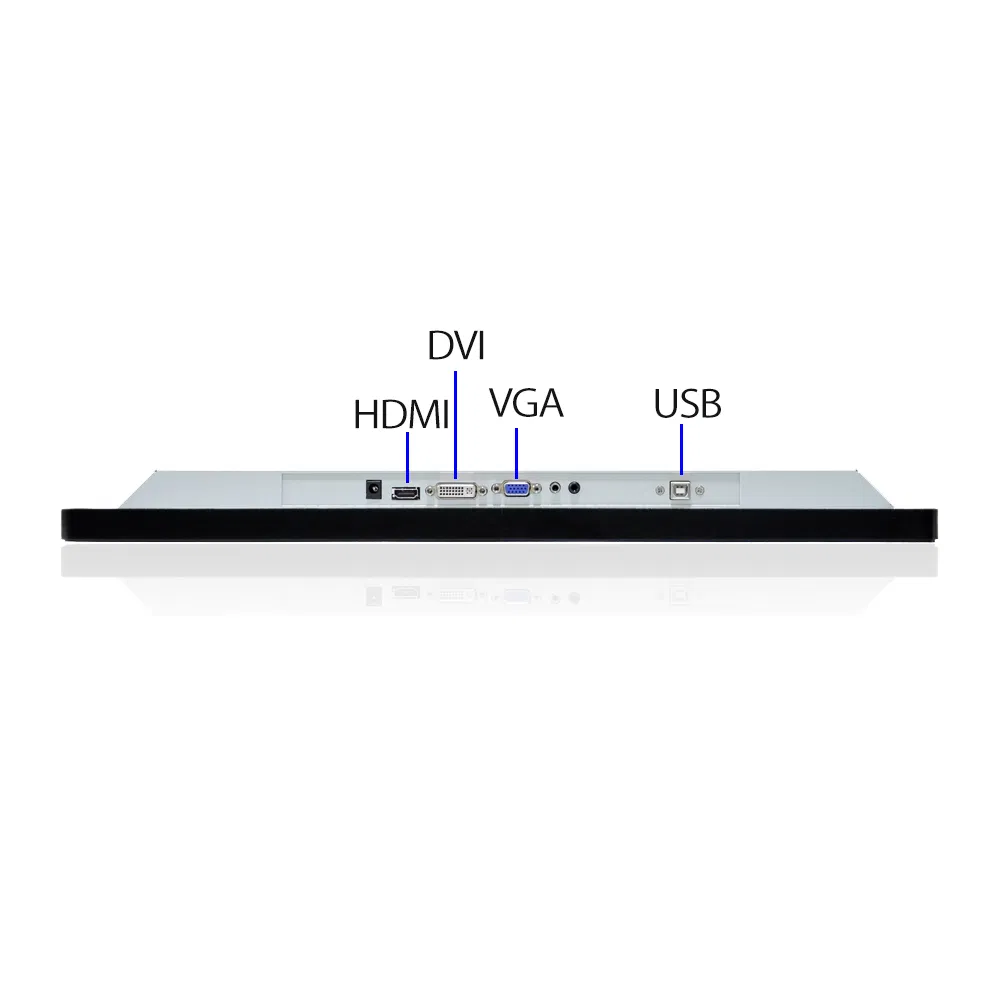

Open Frame Vending Machine Computer
Industrial Touchscreen Monitor
Technical Specifications
LCD Specification
ModelCOT215-CFK03
SeriesOpen Frame, IP65 Waterproof & Vandal Proof
LCD Type21.5" a-Si TFT-LCD
Active Area476.64(H) × 268.11(V) mm
Resolution1920 × 1080 (60Hz)
Contrast Ratio1000:1
Viewing Angle89°/89°/89°/89°
Luminance250 cd/m2 (Higher options available)
Response Time3.6ms / 1.4ms
Touch TechnologyCapacitive with 3mm Vandal Proof Glass
Touch InterfaceUSB (Plug and Play)
Power SupplyExternal Brick DC 12V / 4A
Operating Temperature-10°C to 55°C
Technical Drawing & Accessories

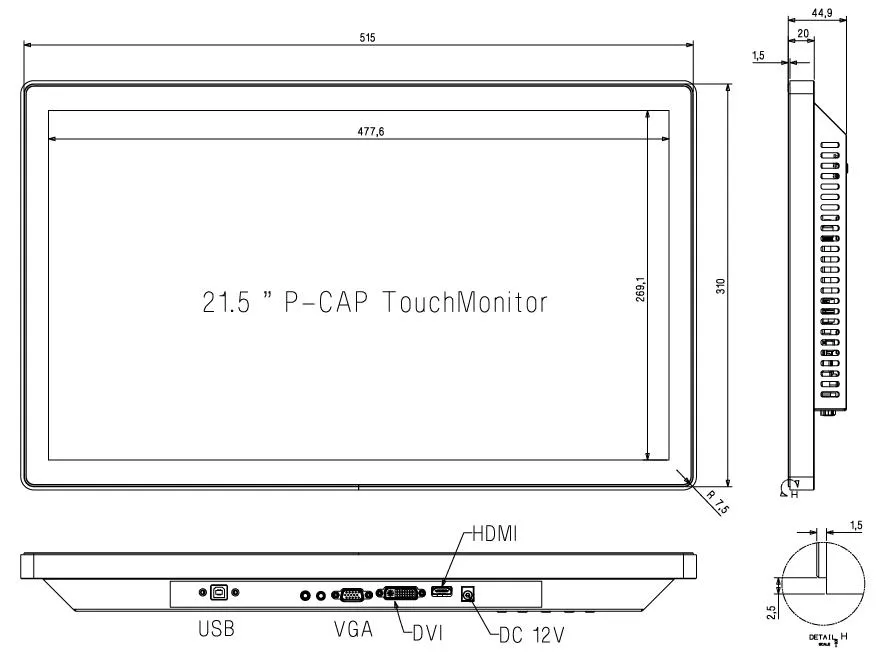

Monitor Drawing

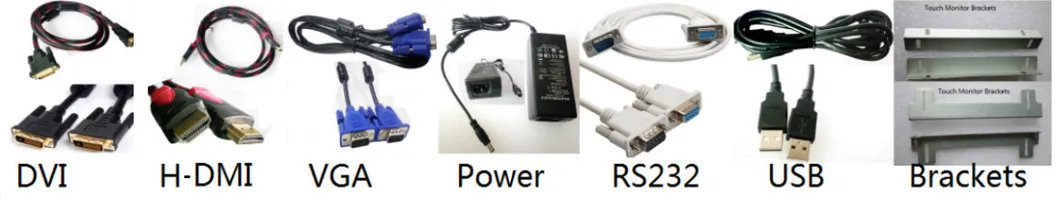

Standard Package Includes:
• USB Cable *1 Pcs
• VGA Cable *1 Pcs
• Power Cord with Switching Adapter *1 Pcs
• Mounting Brackets *2 Pcs
* RS232 and DVI cables available separately.
Components
Industry Applications
  • 1 Business: Department stores, hotels, restaurants.
  • 2 Financial: Banks, stock markets, insurance terminals.
  • 3 Public Service: Hospitals, schools, telecom halls.
  • 4 Transport: Subways, airports, ticket agencies.
  • 5 Entertainment: Cinemas, gyms, gaming, internet cafes.

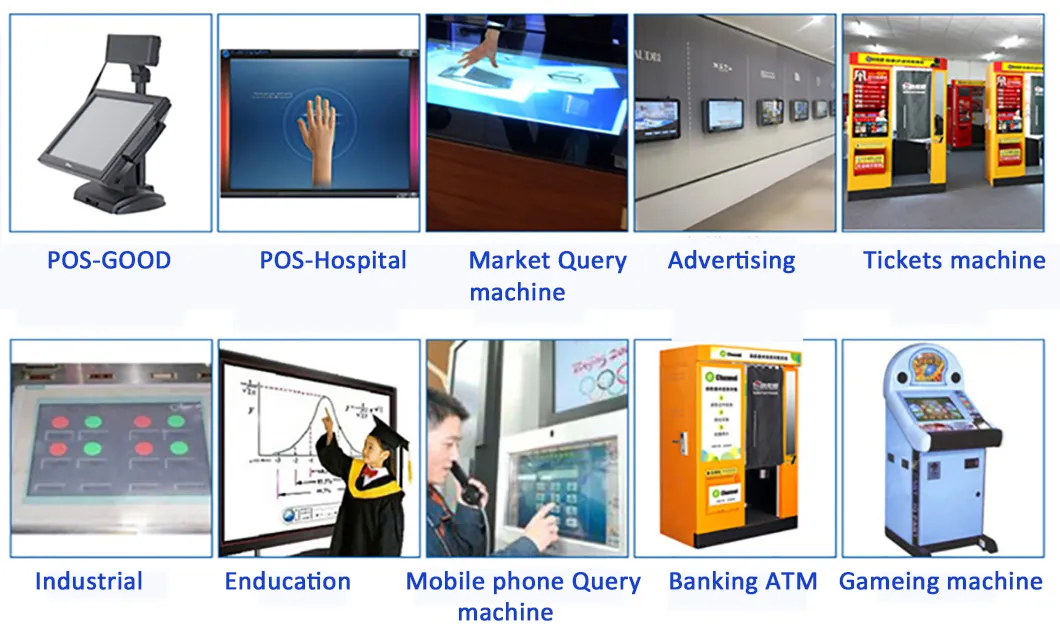

Application Scenarios
Packing & Logistics

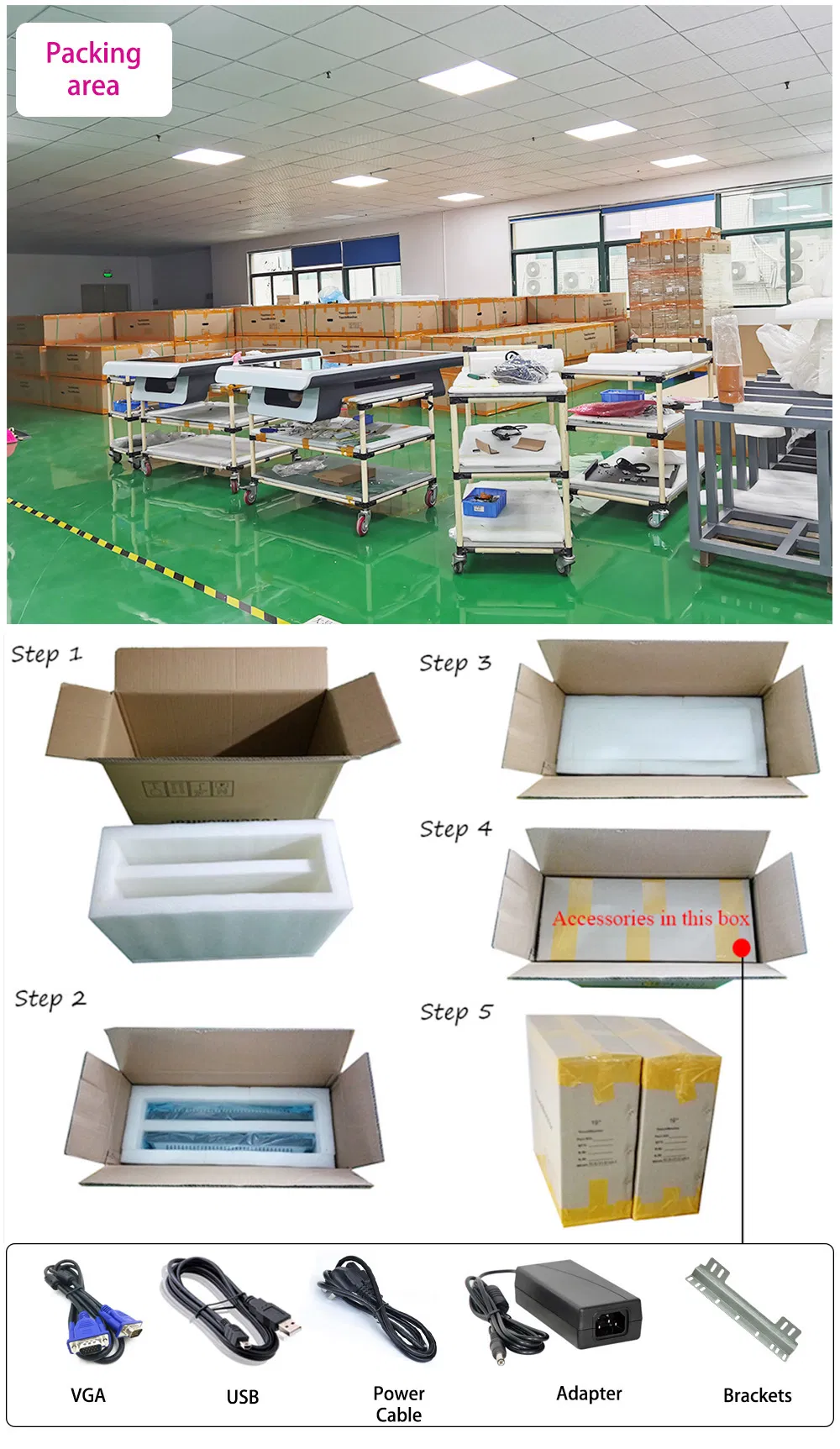

Packing 1
Packing 2
Manufacturing Excellence
Production Facility

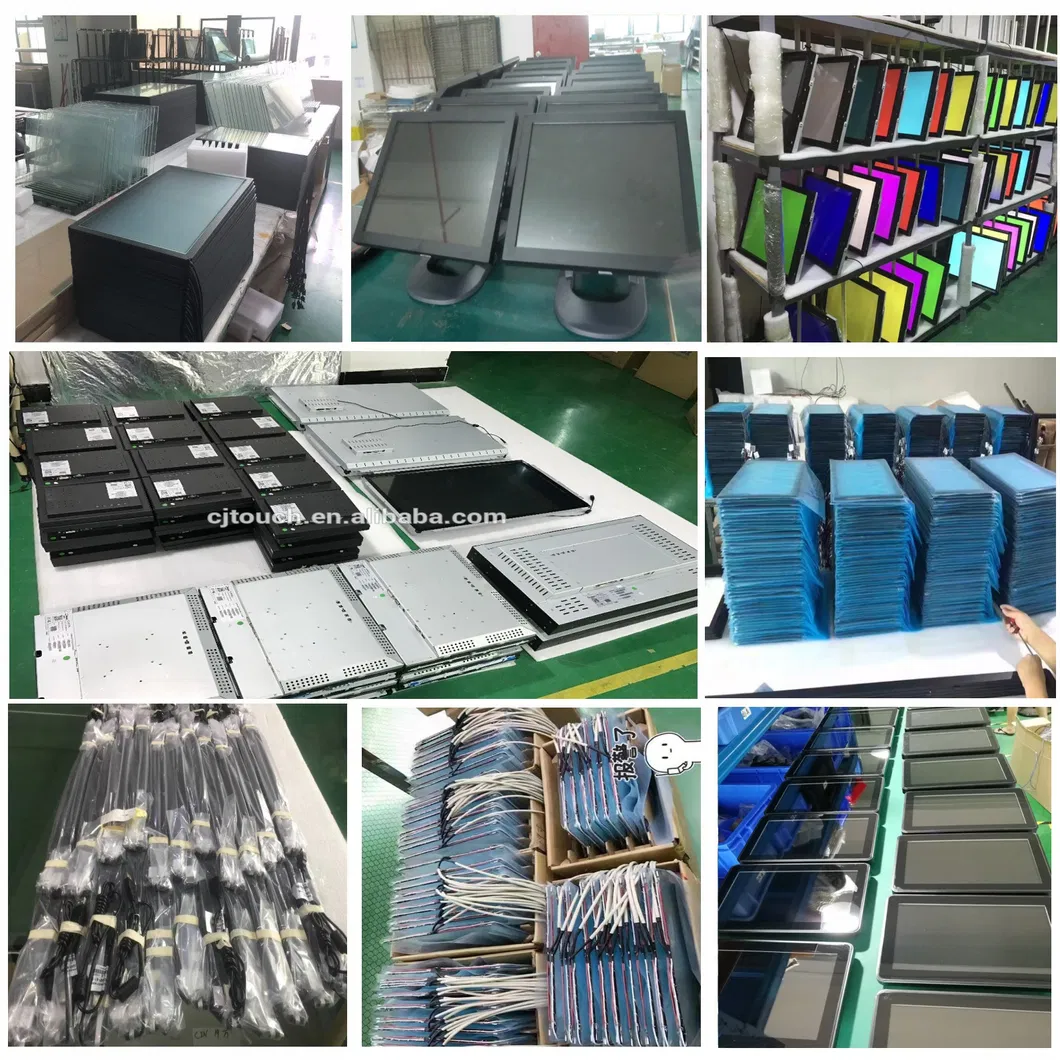

Quality Control

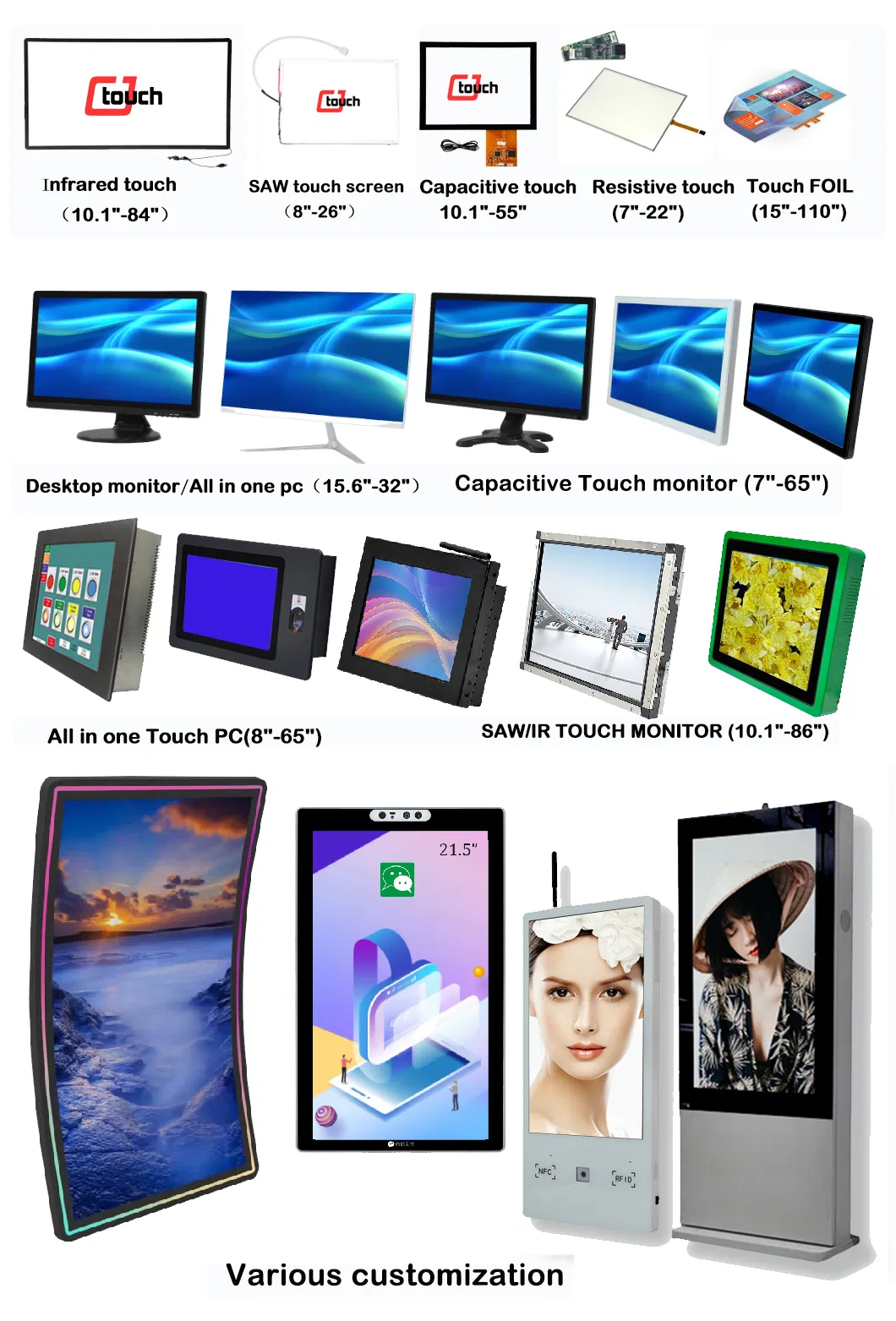

Assembly Line
Testing Area
Frequently Asked Questions (FAQ)
What touch technologies are available for these monitors?
We offer a wide range of touch technologies including Capacitive (PCAP), Infrared (IR), SAW, and Resistive touchscreens to suit different environment requirements.
Are these monitors compatible with Linux and Raspberry Pi?
Yes, our touch monitors are plug-and-play and support multiple operating systems including Windows, Linux, Android, iMac, and Raspberry Pi.
Can I use this monitor in an outdoor, high-brightness environment?
Absolutely. We provide high-brightness options ranging from 1000nits to 2500nits with Anti-Glare and Anti-UV treatments, specifically designed for outdoor sunlight readability.
What are the mounting options for the Open Frame series?
The monitors support standard VESA 75mm and 100mm mounting, as well as rear-mounting brackets for easy integration into Kiosks and industrial equipment.
How rugged are these displays?
Our industrial monitors feature IP65/IP66 waterproof ratings and are built with 3mm enhanced vandal-proof glass, making them shockproof and resistant to harsh environments.
What is the warranty period for the products?
We provide a standard 1-year to 3-year warranty (depending on the model) covering the monitor and all internal components.
