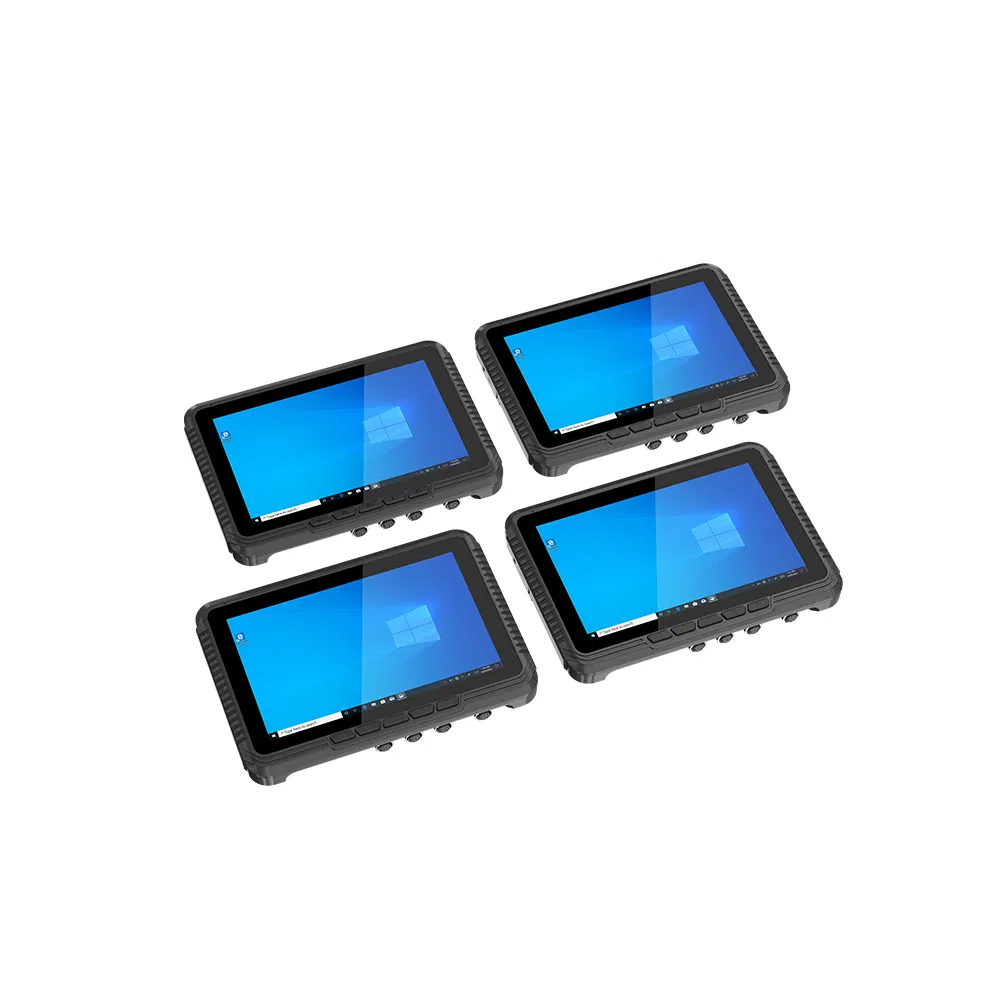

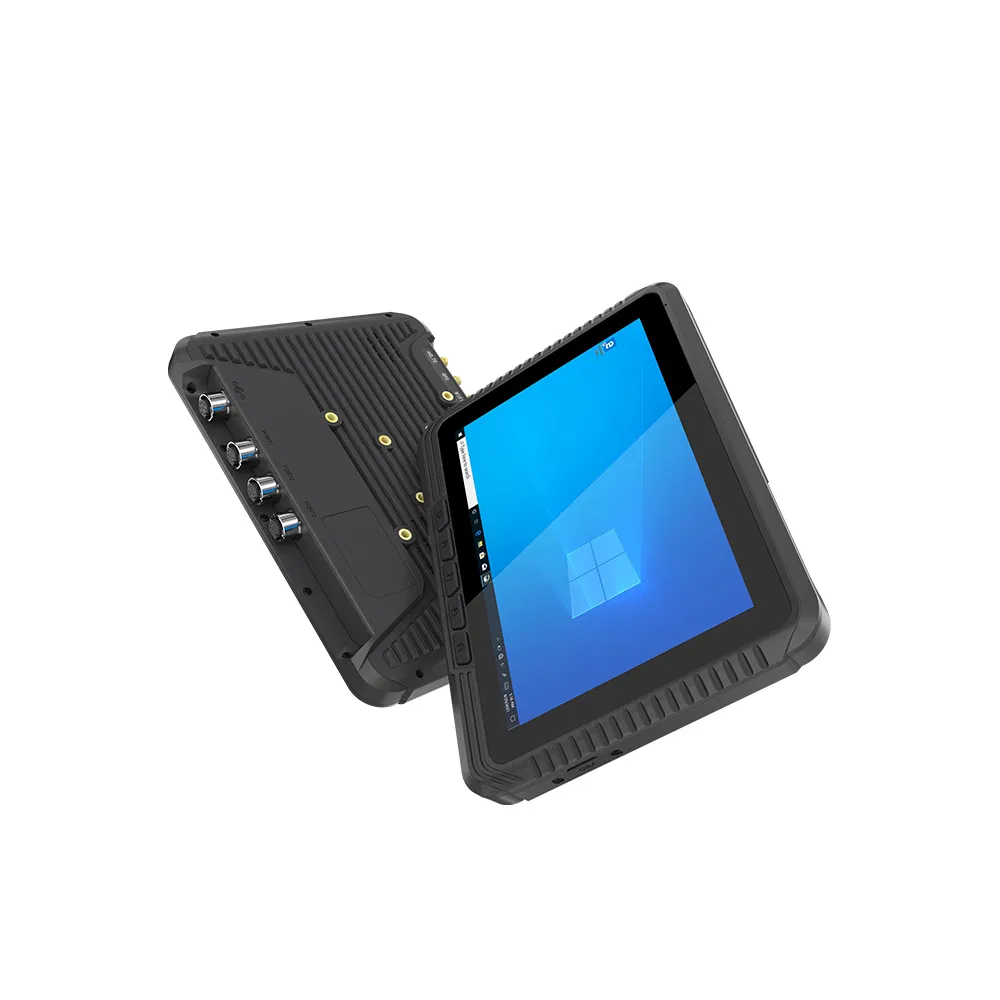

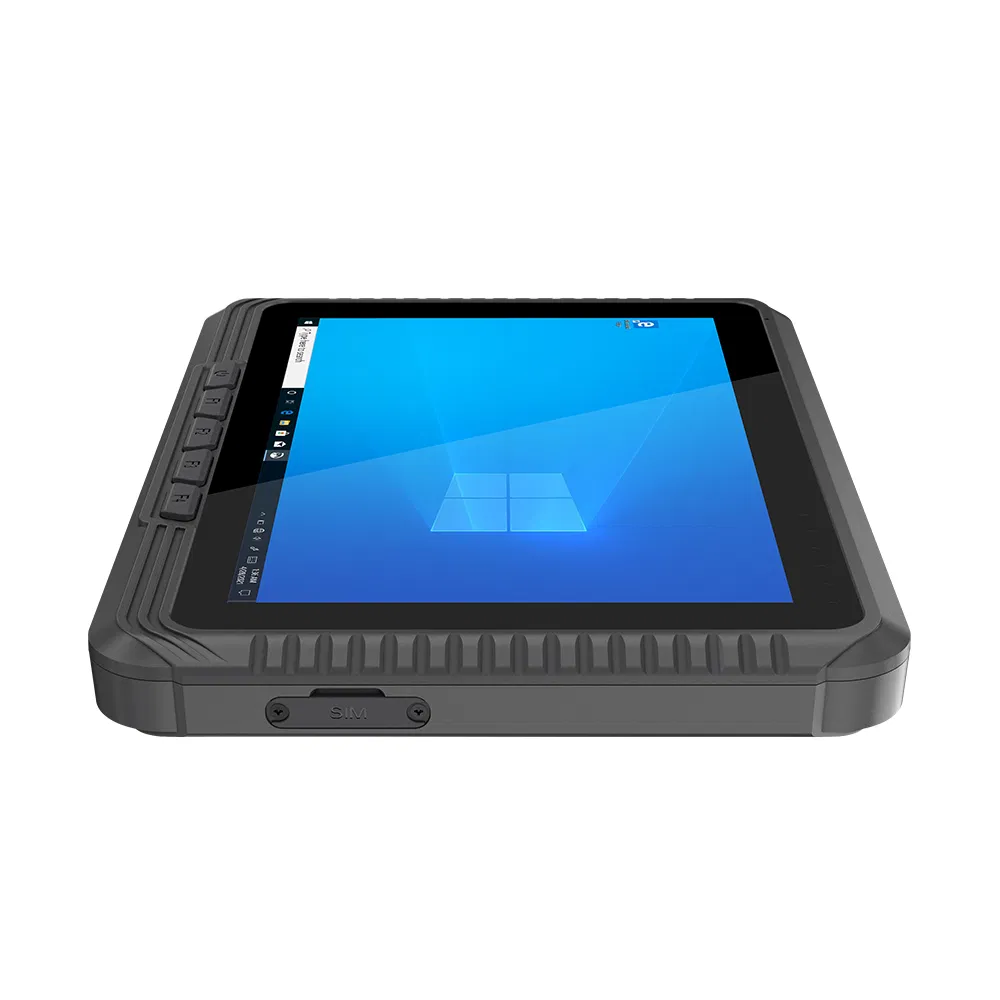

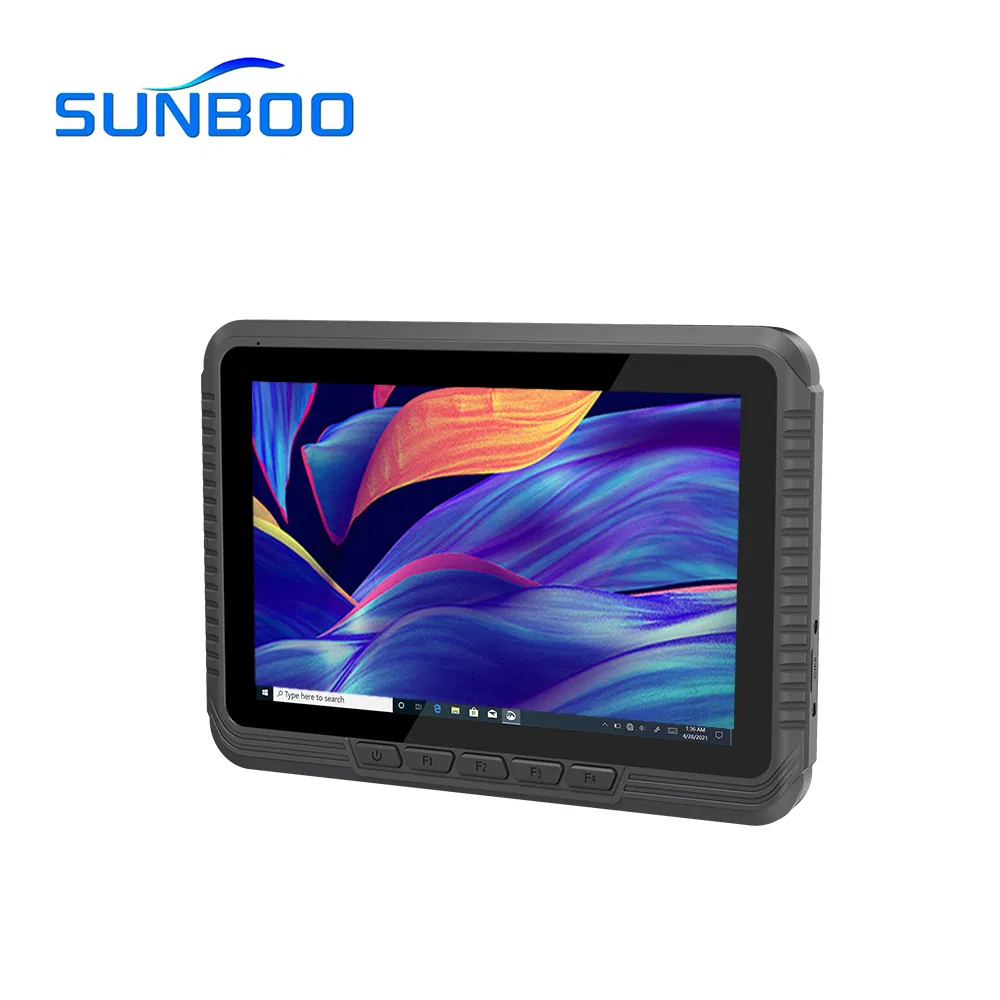

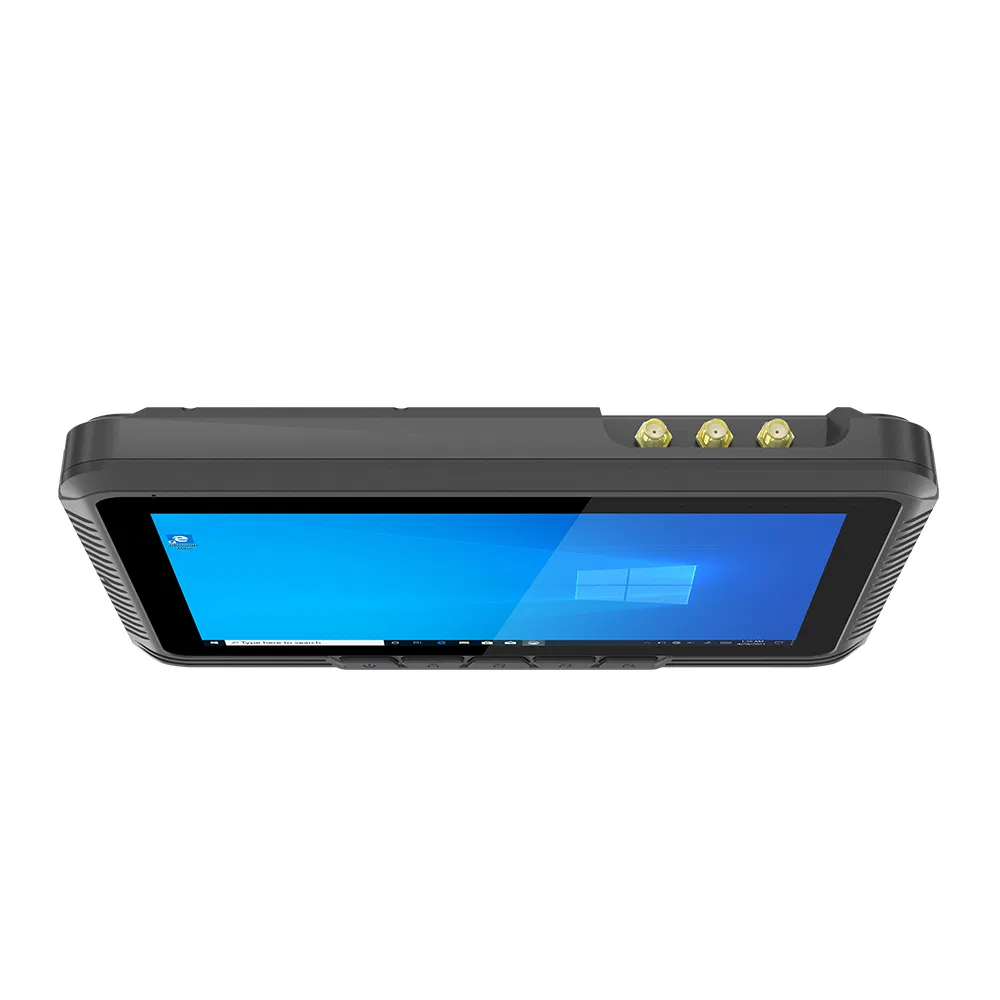

8 Inch Vehicle Bus All in One Panel PC Computer Touch Screen

📋

Basic Information

Model NO.

VPC80J-5

Rack Unit

3U

System Expansion

14 Slot

Size

264.5*184.1* 23mm

Color

Black

Certificate

CE/RoHS/FCC

Application

Medical, Commercial, Industrial

CPU Card Size

Full-size Card

Screen Size

8 inch

Touch Screen

5 Point

Origin

China

Capacity

10000PCS/Month

📦

Packaging & Delivery

Package Size

60.00cm * 50.00cm * 40.00cm

Gross Weight

2.850kg

🚀

Product Highlights

Performance

• Intel Jasper Lake processor Celeron N5100

• Windows 10 OS, Up to 16GB+512GB

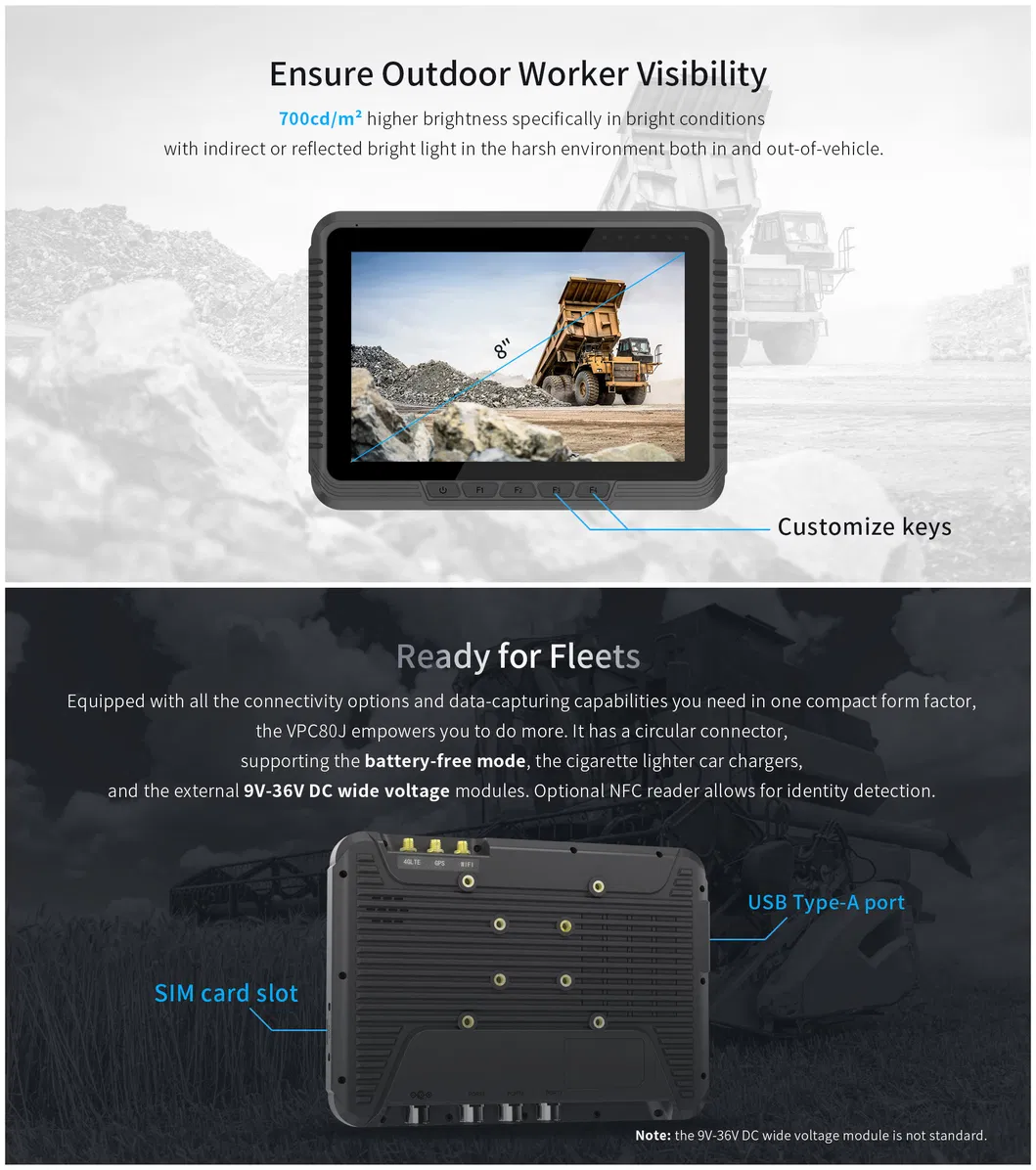

• 8 inch IPS screen, 700nit

Communication

• 2.4G/5.8G Dual band WIFI

• Optional high speed 4G LTE

• BT 5.0 fast transmission

Reliability

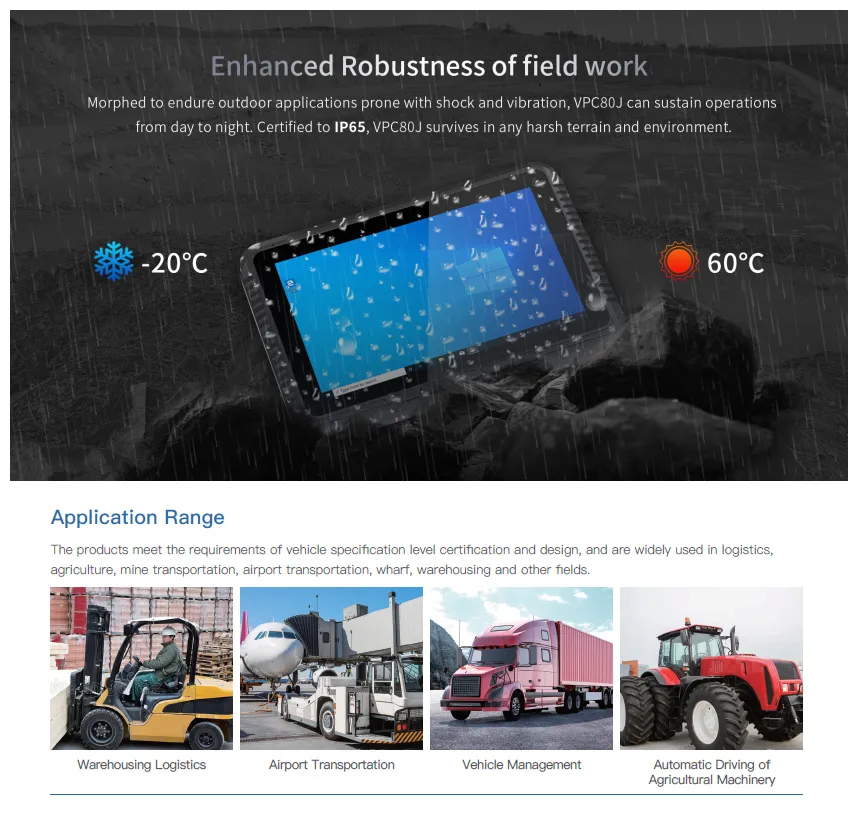

• IP65 Waterproof and Dustproof

• Wide temperature: -20ºC ~ 60ºC

• ±8kV Contact / ±15kV Air Discharge

🛠️

Technical Specification

Tech Spec

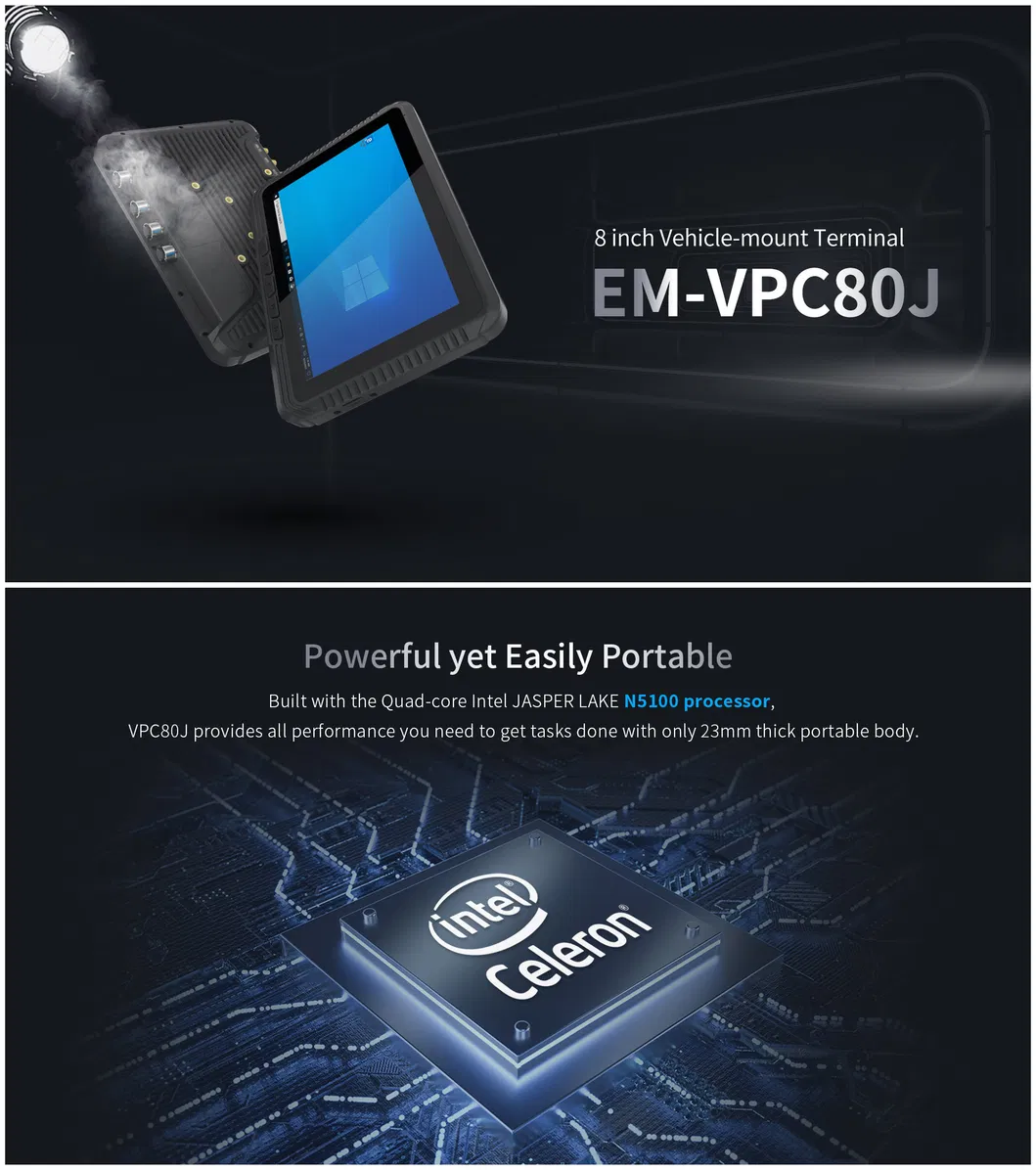

Product Form	8 inch Vehicle-mount Terminal
Dimension	218.1154.523.0 mm
Weight	620g
CPU	Intel JASPER LAKE N5100 Max 2.8GHz
GPU	Intel® HD Graphics Gen 11 LP
Memory	RAM 4GB (Opt: 8GB-16GB) / ROM 64GB (Opt: 128GB-512GB)

Operating System	Windows 10 Home (Optional: IOT / Pro)
Display	10.1 inch 16:10, 800*1280 IPS, 700cd/㎡
Touch Panel	5-point tempered glass capacitive screen G+G, 7H hardness

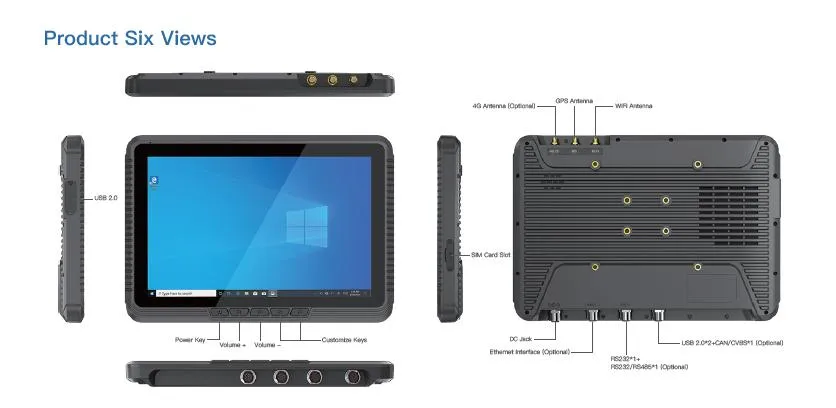

Buttons	Power, Volume (+/-), Customizable Keys (F1-F3)
Speaker	1.5W *1 (Max 2W)
Battery (Tablet)	Optional, 1000mAh/7.4V (for data protection)

Wireless	WIFI 802.11 a/b/g/n/ac (2.4G+5.8G), BT5.0
GPS	Built-in Ublox 7 (GPS, GLONASS)
NFC	Optional, NXP300

🖼️

Product Gallery

❓

Frequently Asked Questions

What are the primary applications for this terminal?

The device is specifically designed for Medical, Commercial, and Industrial environments, making it ideal for vehicle-mounted operations.

Does the screen support outdoor use?

Yes, it features a high-brightness 700-nit IPS display, ensuring excellent visibility even in bright environments.

How rugged is this vehicle-mount PC?

It is IP65 rated for water and dust resistance and can operate in wide temperature ranges from -20ºC to 60ºC.

What communication modules are integrated?

It comes standard with dual-band WIFI (2.4G/5.8G), Bluetooth 5.0, and GPS/GLONASS. Optional high-speed 4G LTE is also available.

Can the RAM and Storage be upgraded?

While the standard is 4GB RAM and 64GB ROM, it is customizable up to 16GB RAM and 512GB storage capacity.

Does it have a backup battery?

An optional 1000mAh internal battery is available to support normal power-off procedures and protect user data during power fluctuations.
