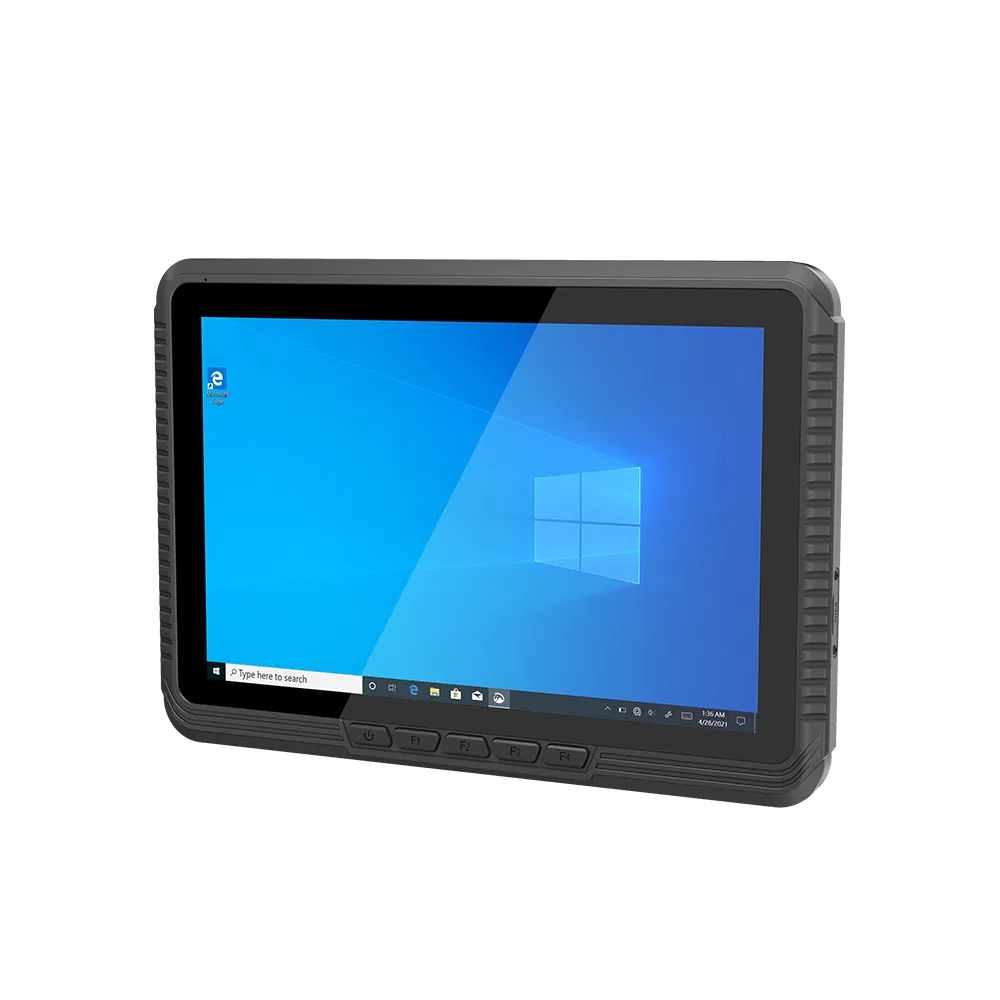

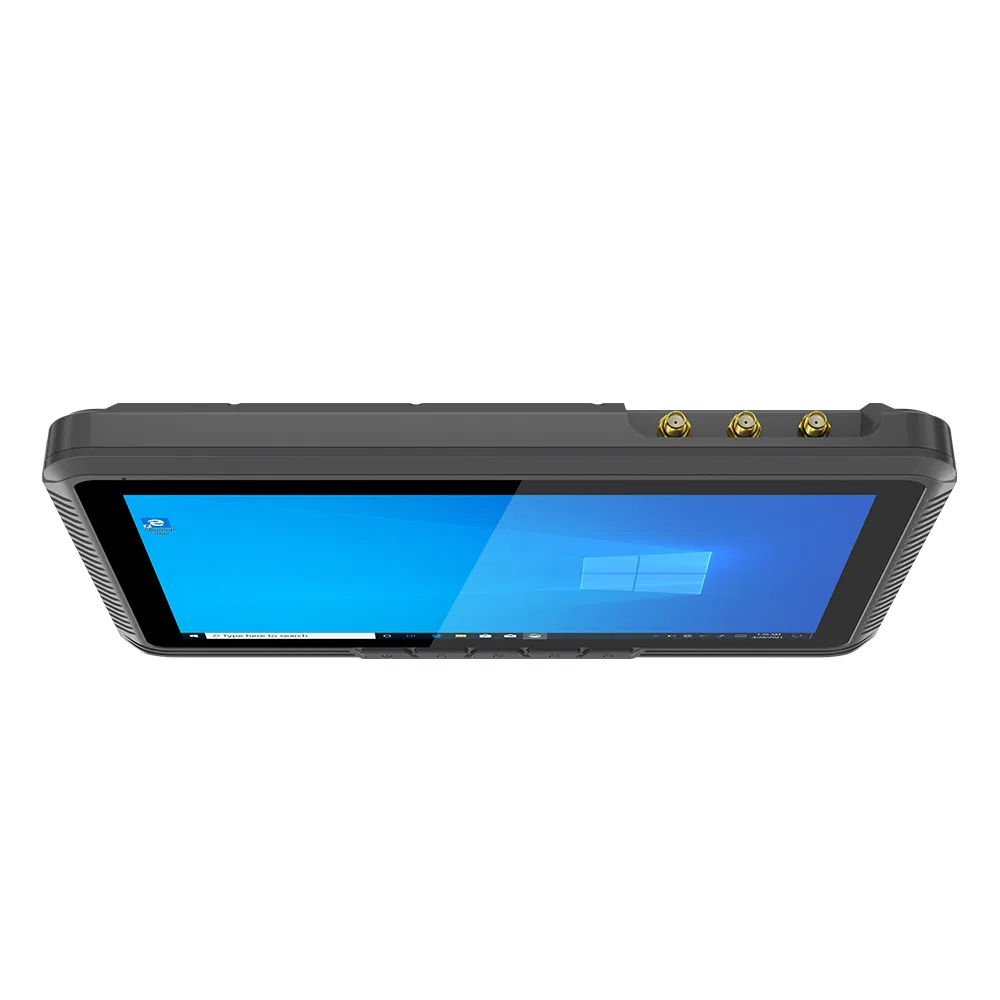

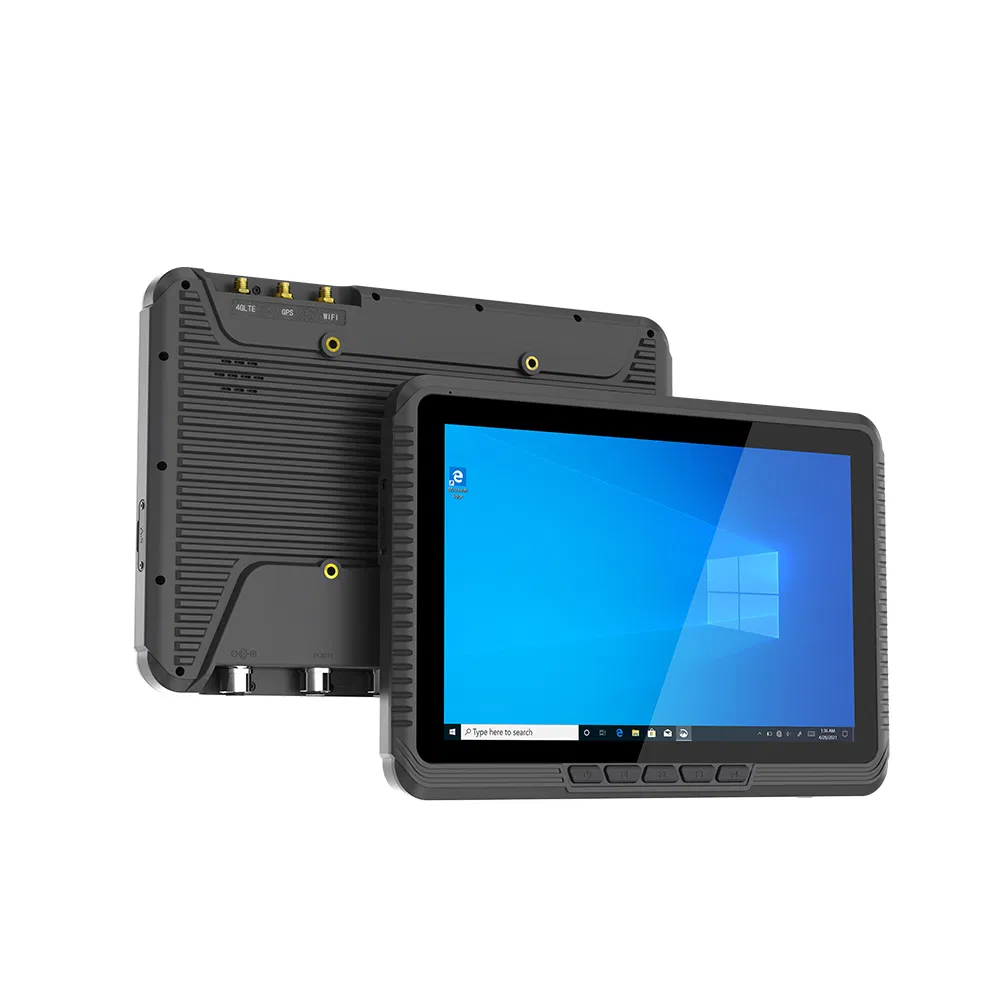

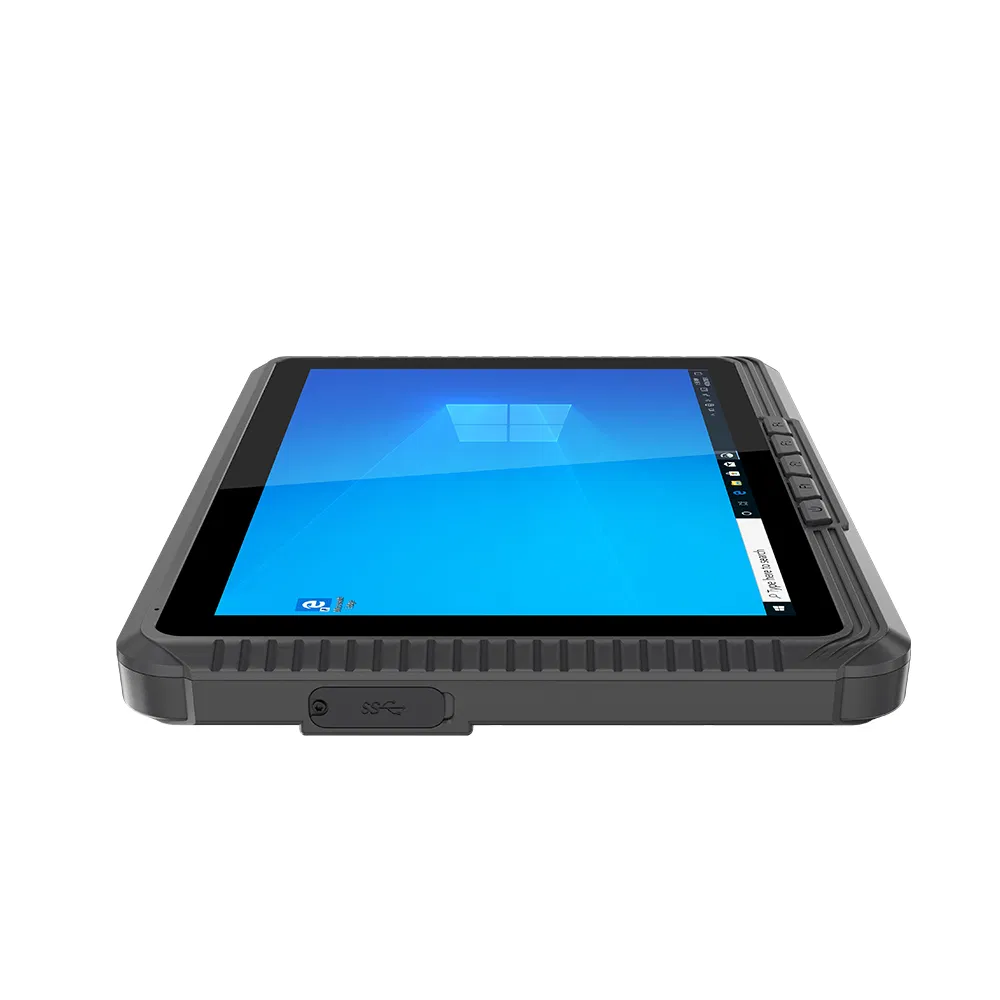

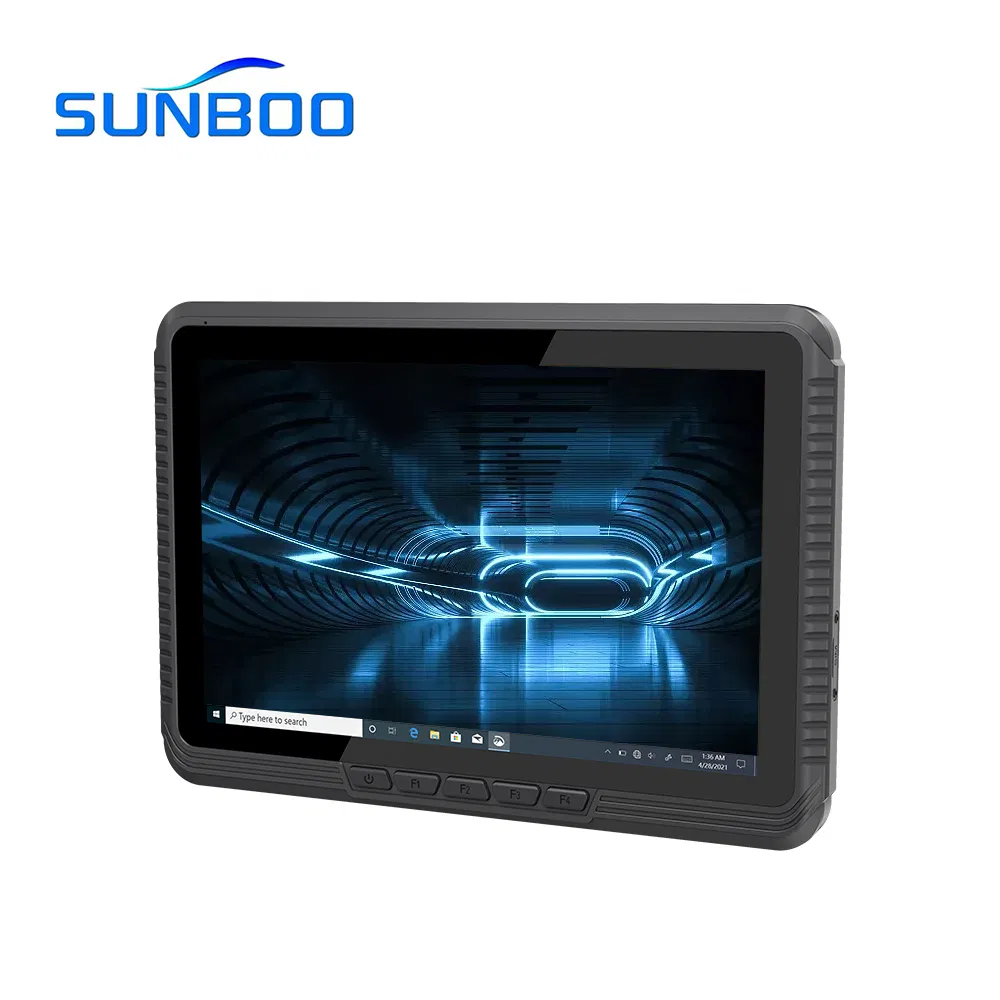

Industrial Rugged Android Tablet PC Vehicle Mounted Computer Waterproof Tablet

Basic Information

Model NO.

VPC10J-15

Durability

Waterproof

Operating System

Windows

Screen Size

10.1 inch

Memory/Hard Disk

4GB / 64G

Network Mode

4G / WIFI 2.4G+5.8G

Certificate

CE/RoHS/FCC

CPU Type

Intel Celeron N5100 Quad Core

Product Overview & Performance

High Performance

• Intel Jasper Lake processor Celeron N5100
• Windows 10 OS, Up to 16GB+512GB
• 8 inch IPS screen, 700nit high brightness

Advanced Communication

• 2.4G/5.8G Dual band WIFI
• Optional high speed 4G LTE
• BT 5.0 fast transmission

Rugged Reliability

• IP65 Waterproof and Dustproof
• Wide temperature operation: -20ºC to 60ºC
• ±8kV Contact Discharge, ±15kV Air Discharge

Special Features

• Optional NFC fast recognition
• Support GPS, BDS and GLONASS

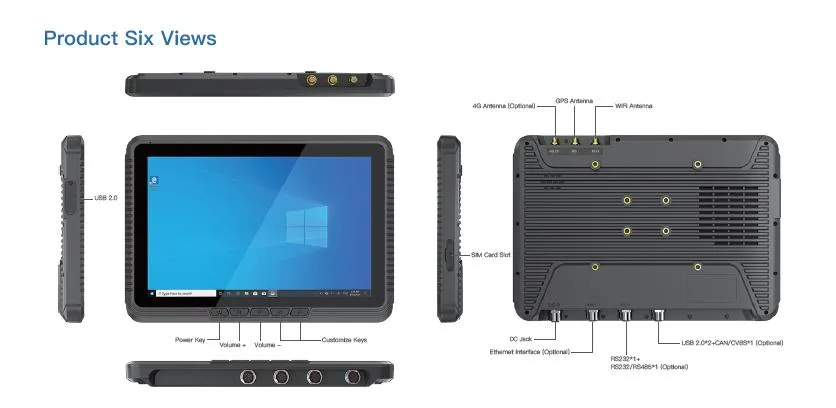

• Flexible expansion of multiple aviation plugs

Technical Specifications

Tech Spec
Product Form	8 inch Vehicle-mount Terminal
Dimension	218.1 * 154.5 * 23.0 mm
Weight	620g
CPU	Intel JASPER LAKE N5100 Max 2.8GHz
Memory	RAM 4GB (Opt: 8GB/16GB) / ROM 64GB (Opt: 128GB/512GB)
Display	10.1 inch 16:10, 800*1280 IPS, 700cd/㎡
Touch Panel	5-point tempered glass capacitive screen G+G, 7H hardness
Audio	1.5W Single horn, Single MIC
Battery (Tablet)	Optional 1000mAh/7.4V (Used for data protection during power off)
Navigation	Built-in Ublox 7 (GPS, GLONASS); Optional Huada Beidou

Product Display

Frequently Asked Questions

What operating system does this vehicle terminal use?

It supports Windows 10 Home by default, with options for Windows 10 IoT and Windows 10 Pro.

Is the device suitable for outdoor or harsh environments?

Yes, it features an IP65 waterproof and dustproof rating and can operate in wide temperatures ranging from -20ºC to 60ºC.

What are the screen specifications?

The terminal features a 10.1-inch IPS screen with a resolution of 800*1280 and a high brightness of 700 nits for better visibility.

Does it support mobile data and GPS?

Yes, it has built-in Dual-band WIFI and Bluetooth 5.0. Optional 4G LTE and high-precision GPS/GLONASS/Beidou modules are also available.

Can the memory and storage be expanded?

The standard configuration is 4GB RAM and 64GB ROM, but it can be optionally upgraded up to 16GB RAM and 512GB ROM.

What is the purpose of the built-in battery?

The optional 1000mAh internal battery is designed to provide approximately 30 minutes of power to support normal shutdown and protect user data during power interruptions.

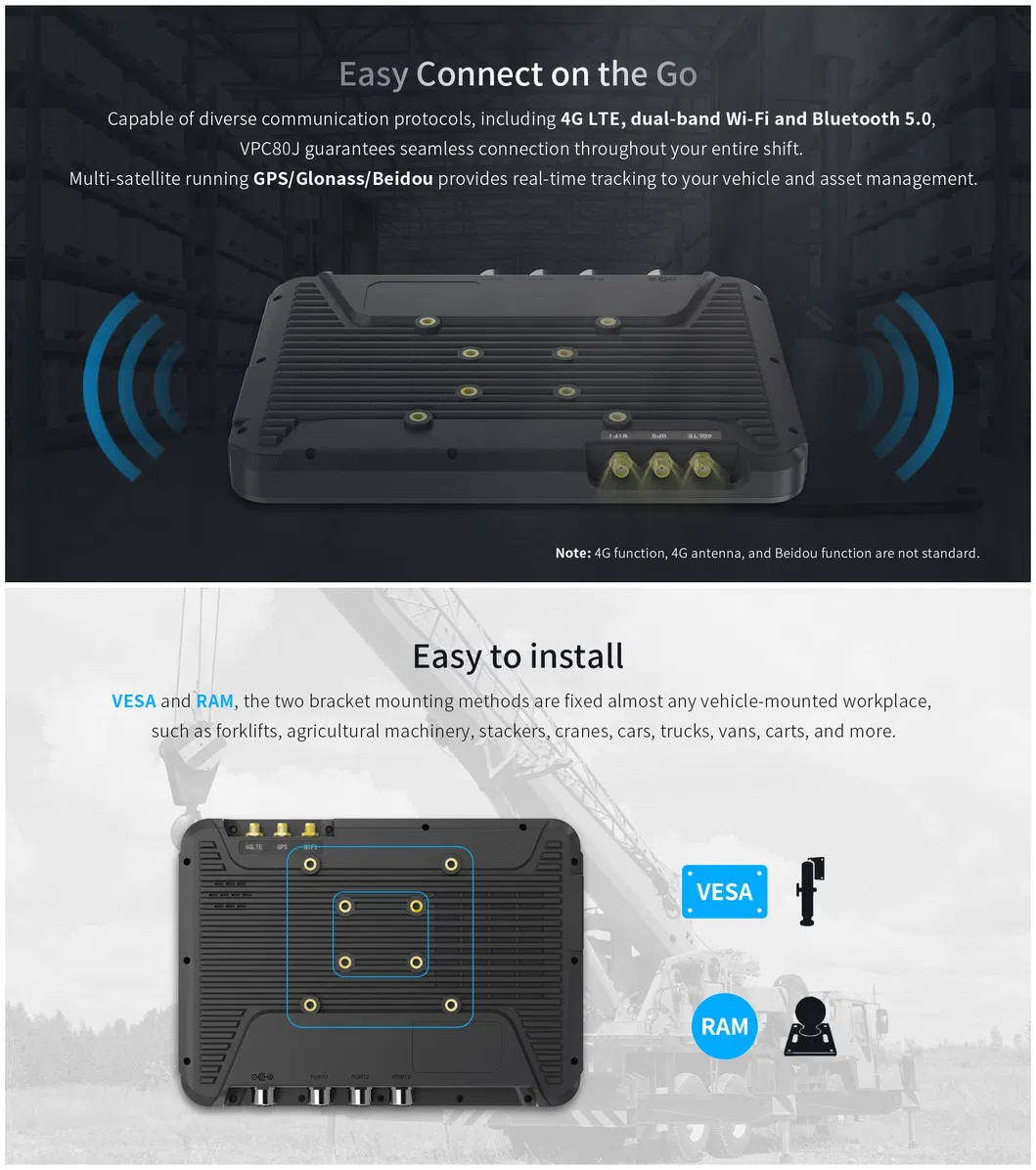

Product Detail
