| Model NO. | VPC80J-9 |
| Size | 264.5*184.1* 23mm |
| Color | Black |
| Certificate | CE/RoHS/FCC |
| Installation | Wall-Mounted |
| CPU Type | Quad Core |
| Display Type | IPS Panel |
| Power Supply | 12V 3A |
| Package Size | 60.00cm * 50.00cm * 40.00cm |
| Gross Weight | 2.850kg |
| Origin | China |
| HS Code | 8517130000 |
| Production Capacity | 10000PCS/Month |
· Intel Jasper Lake processor Celeron N5100
· Windows 10 OS, Up to 16GB+512GB

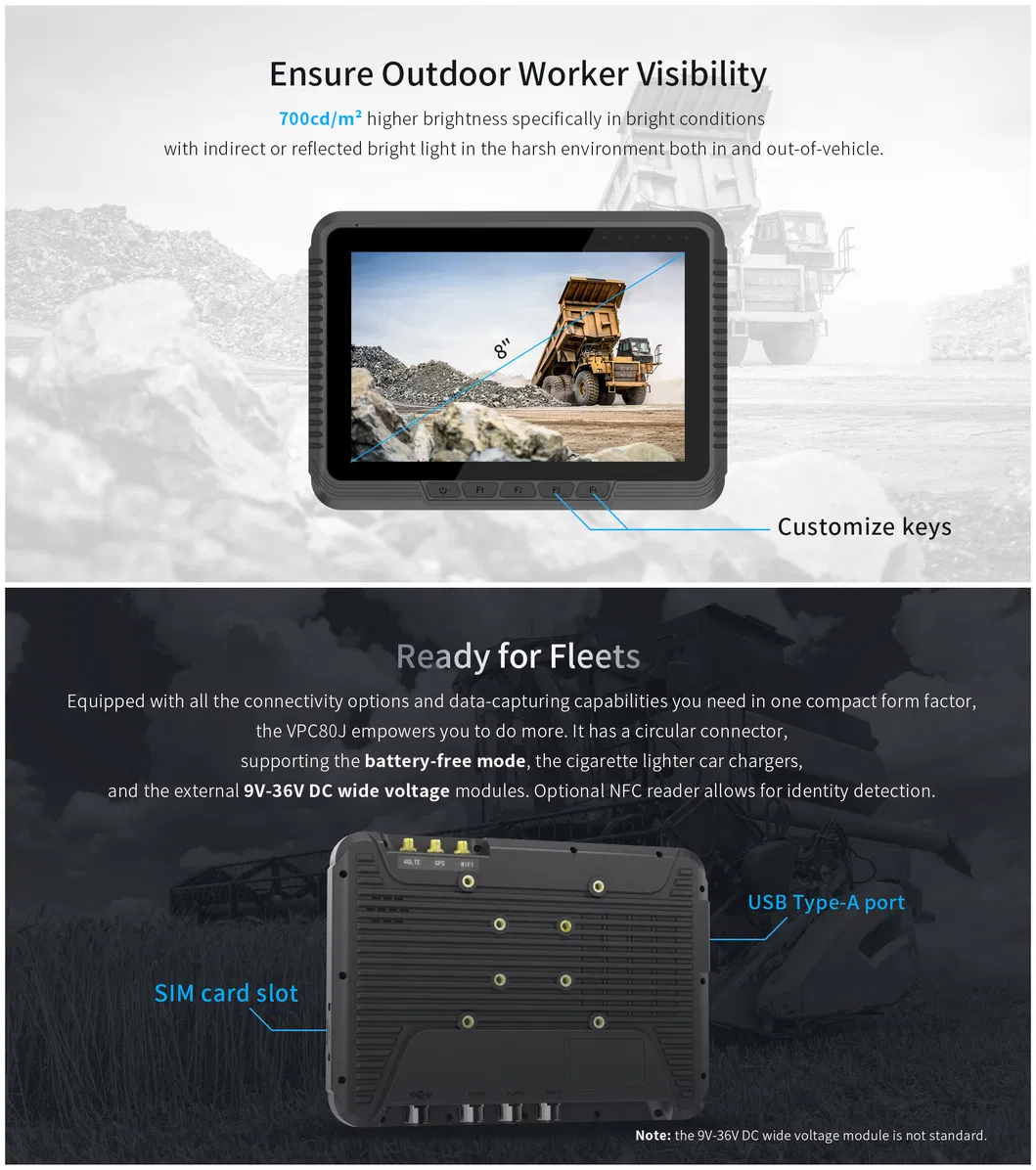

· 8 inch IPS screen, 700nit

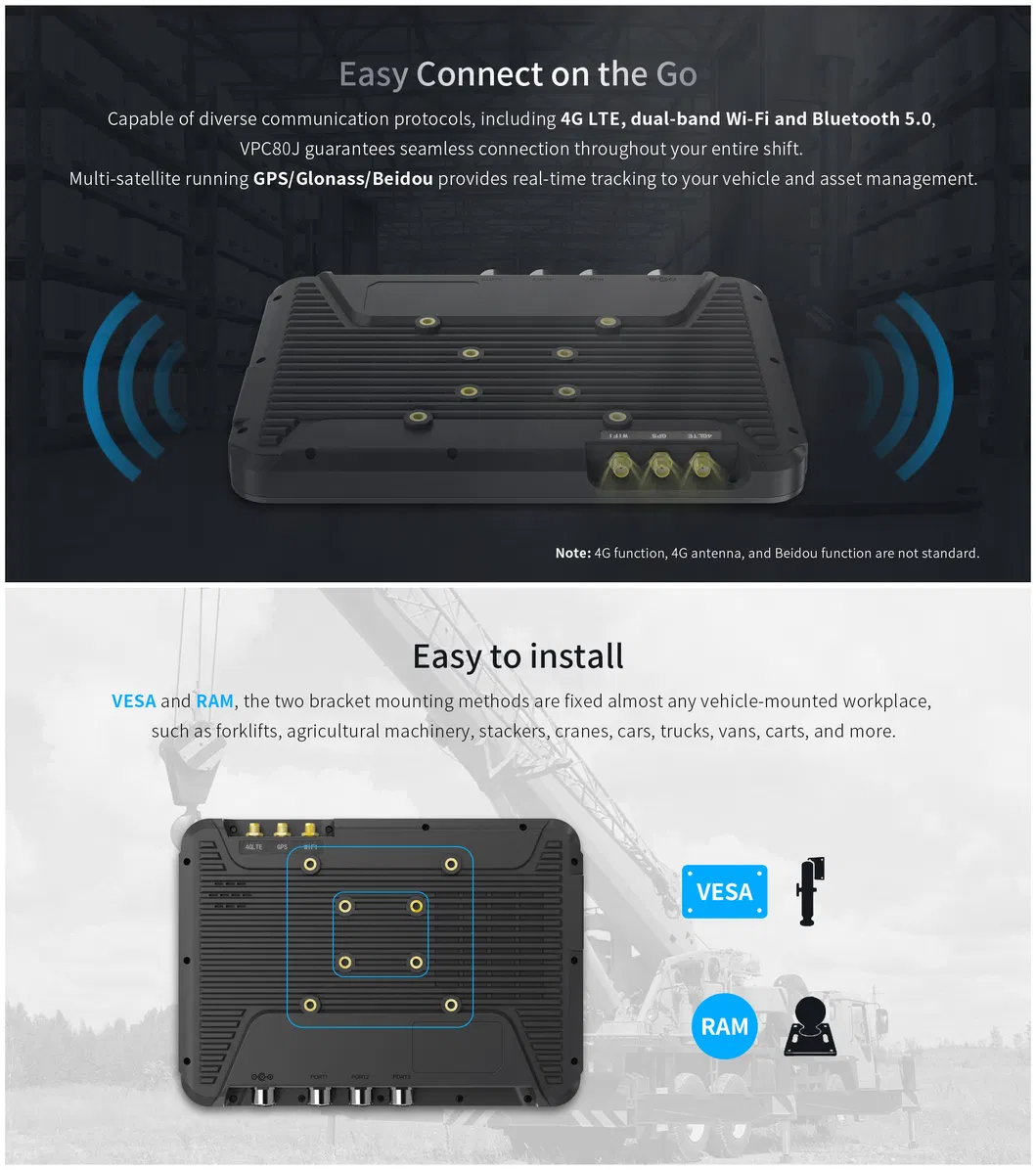

· 2.4G/5.8G Dual band WIFI
· Optional high speed 4G LTE
· BT 5.0 fast transmission
· Optional NFC fast recognition
· Support GPS, BDS and GLONASS

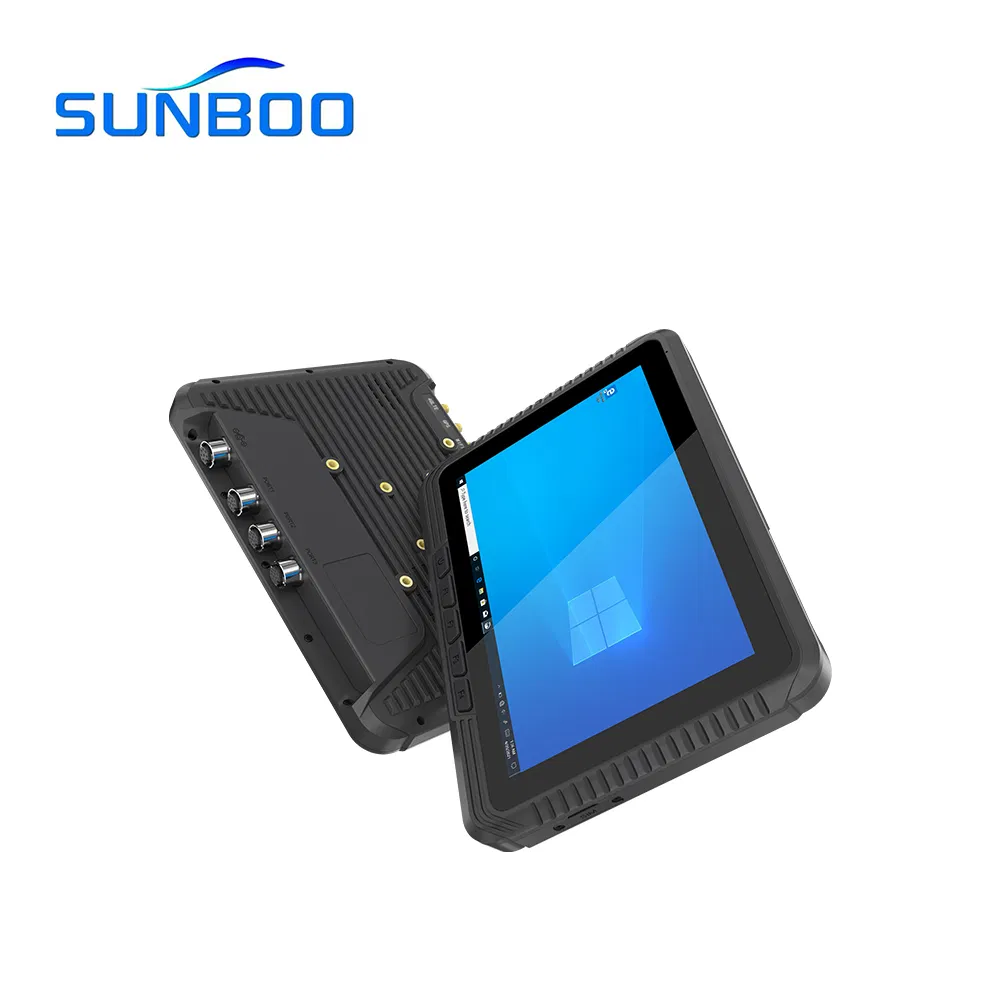

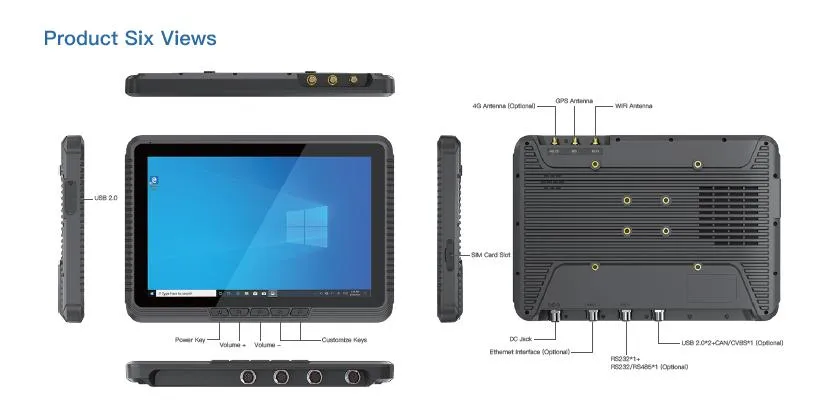

· Flexible expansion of aviation plugs
· IP65 Waterproof and Dustproof
· Operation: -20ºC~60ºC
· ±8kV Contact / ±15kV Air Discharge
| Detailed Tech Spec | |
|---|---|

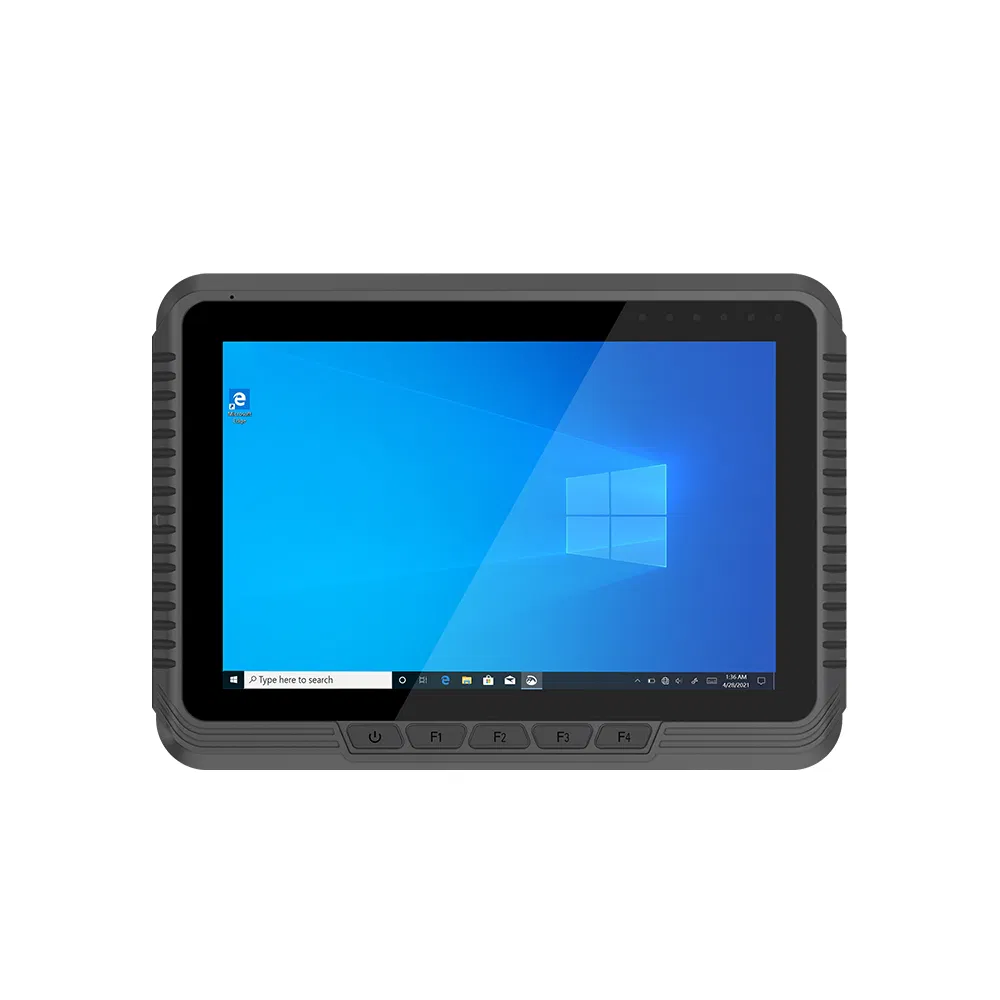

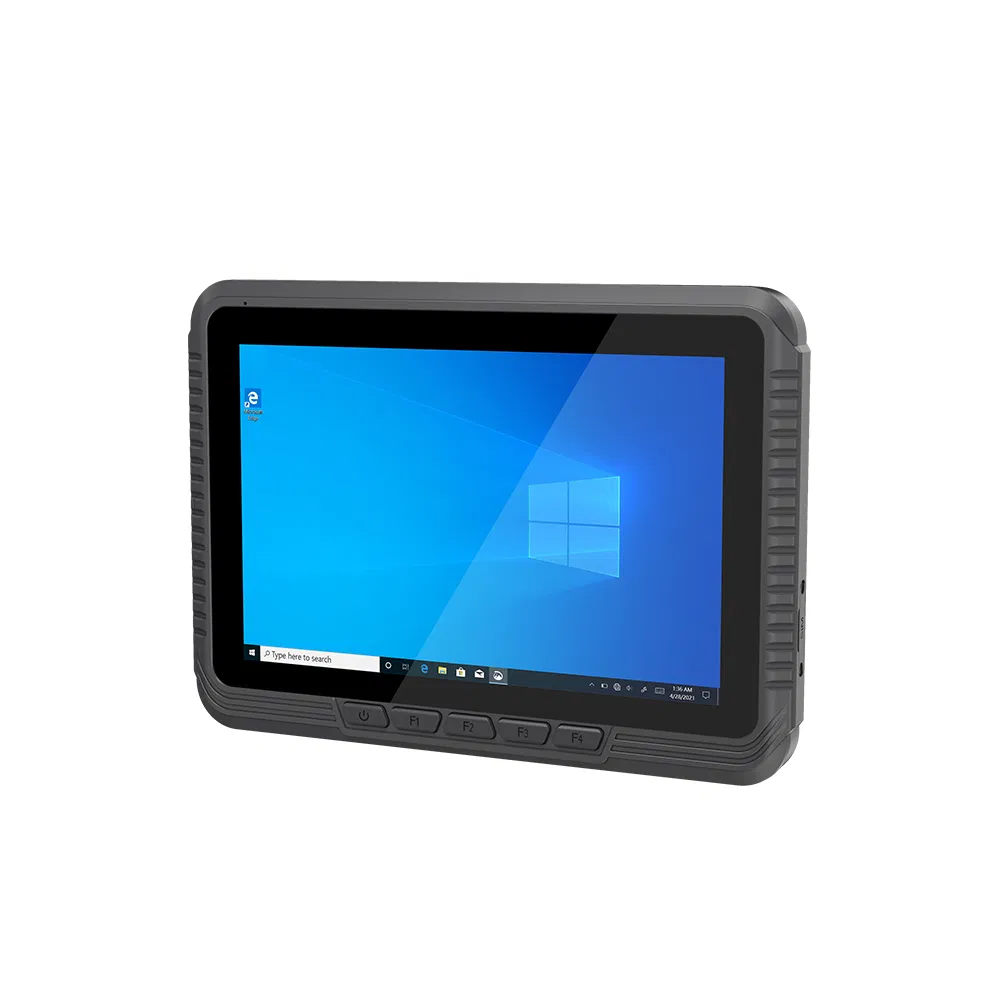

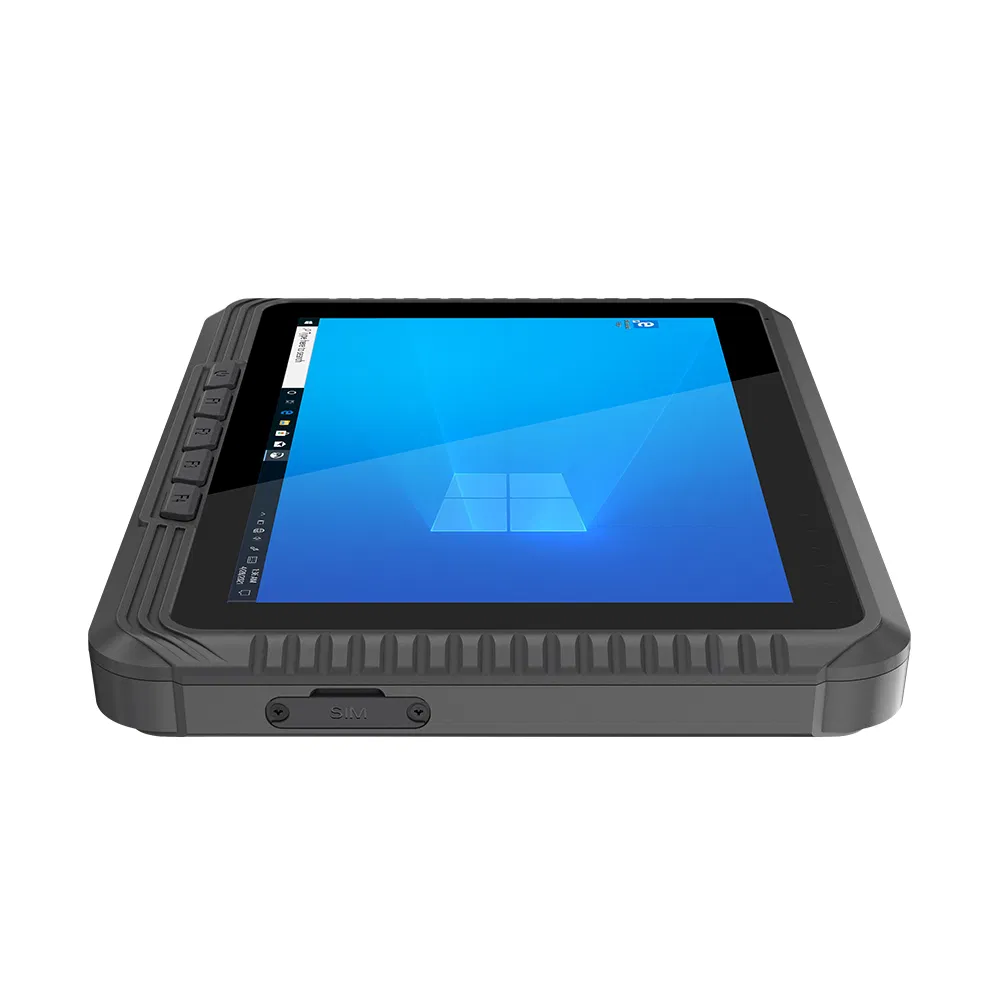

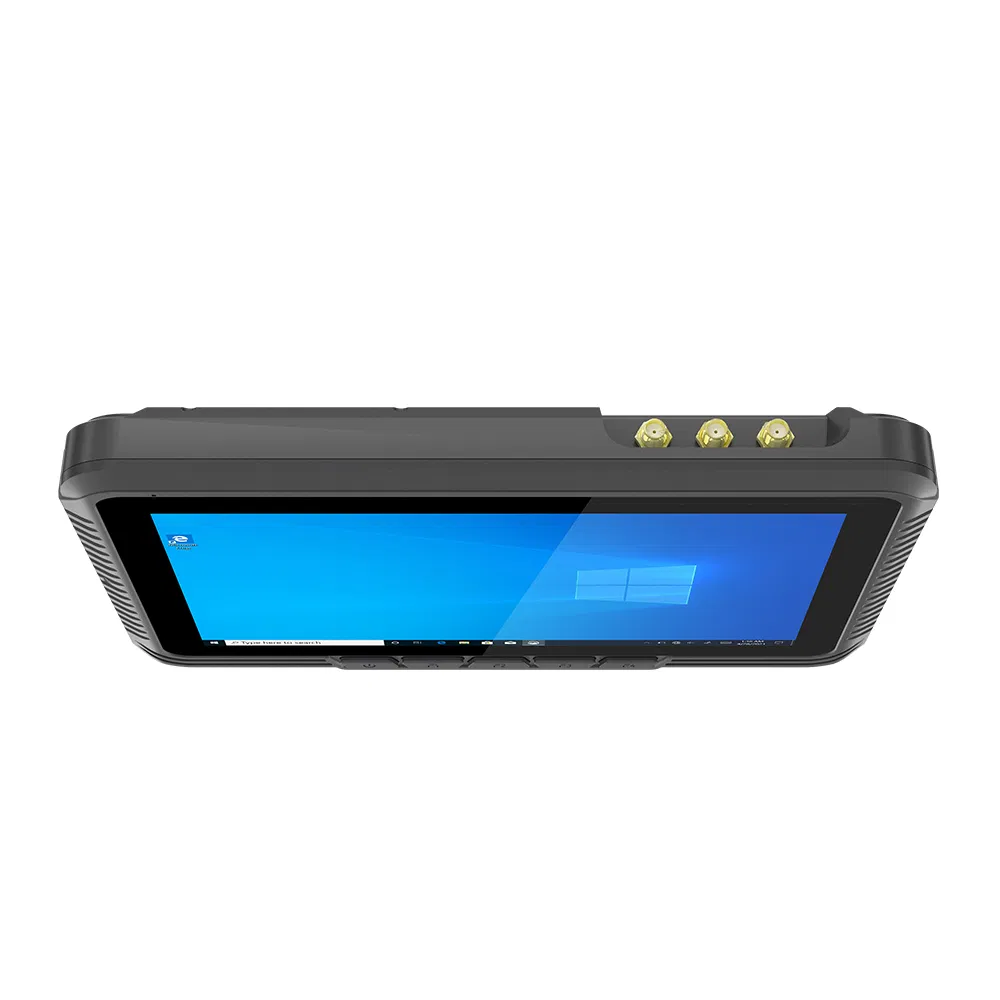

| Product Form | 8 inch Vehicle-mount Terminal |
| Dimension | 218.1*154.5*23.0 mm |
| Weight | 620g |
| CPU | Intel JASPER LAKE N5100 Max 2.8GHz |
| GPU | Intel® HD Graphics Gen 11 LP |
| Memory | RAM 4GB LPDDR3 (Opt. up to 16GB) | ROM 64GB EMMC (Opt. up to 512GB) |
| Operating System | Windows 10 Home (Optional: IOT / Pro) |
| Display | 10.1 inch 16:10 LCD, 800*1280 IPS, 700cd/㎡ |
| Touch Panel | 5-point tempered glass capacitive screen G+G, hardness 7H |
| Battery (Tablet) | Optional 1000mAh/7.4V (Supports normal power off) |
| WIFI | 802.11(a/b/g/n/ac) 2.4G+5.8G |
| GPS | Built-in Ublox 7 (Supports GPS, GLONASS) |
