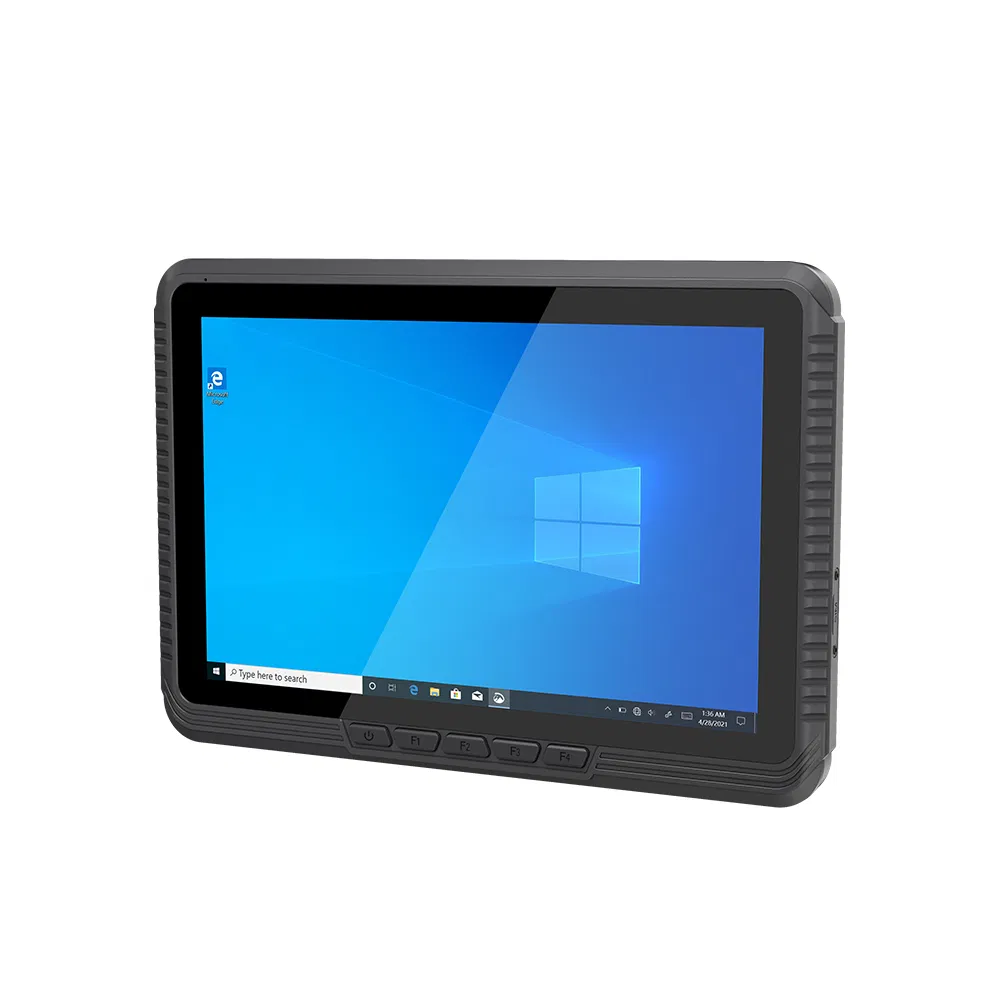

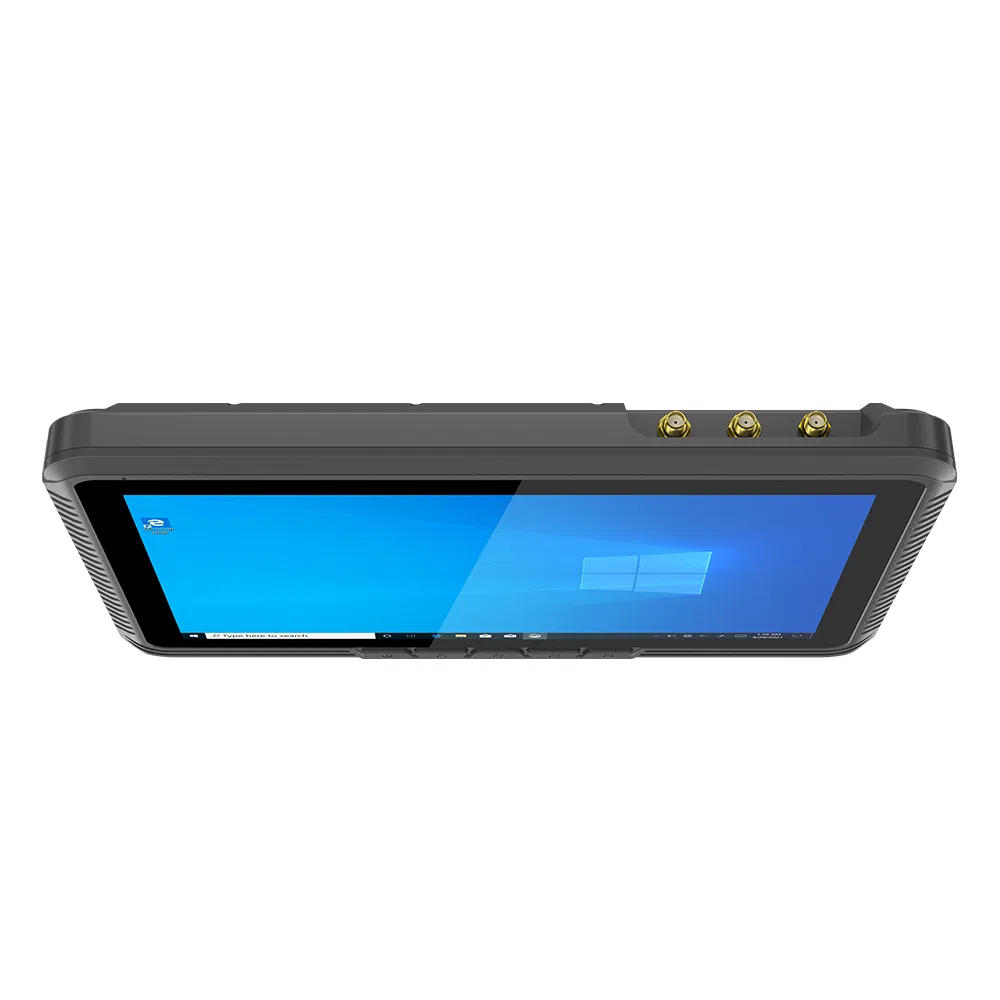

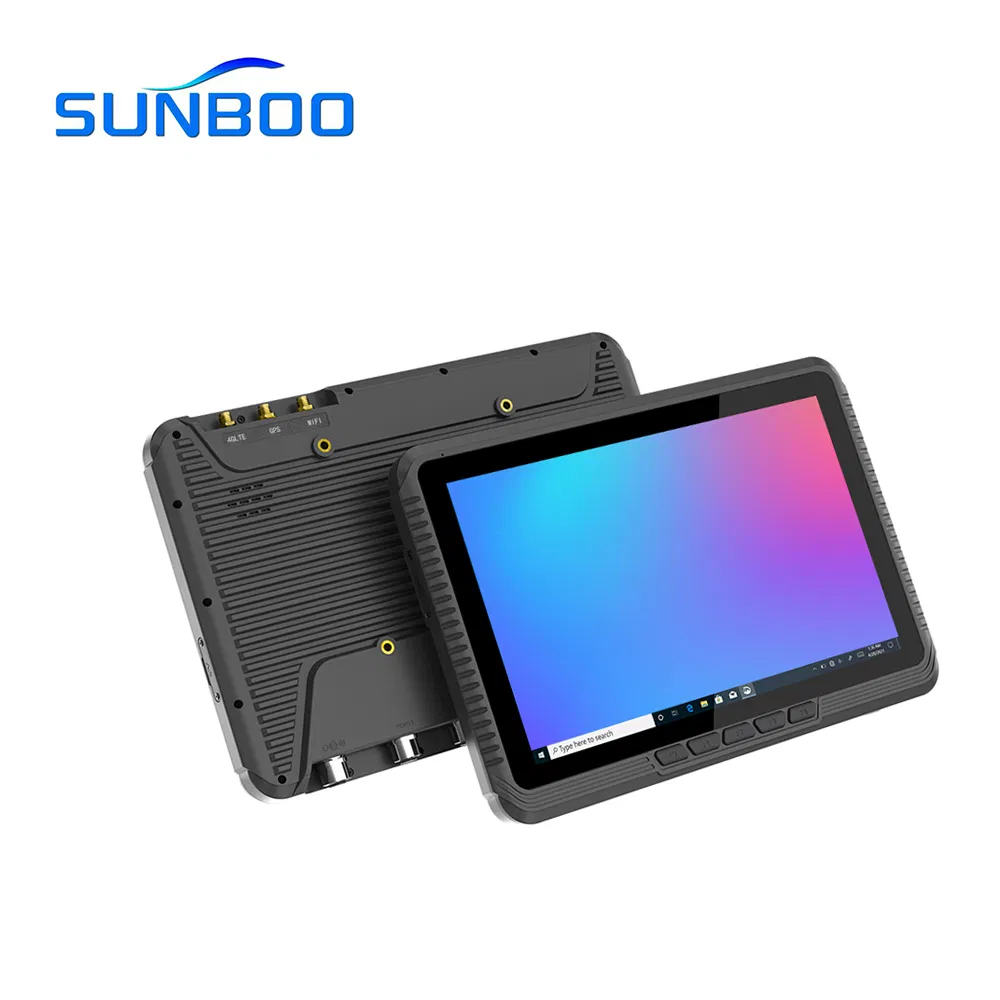

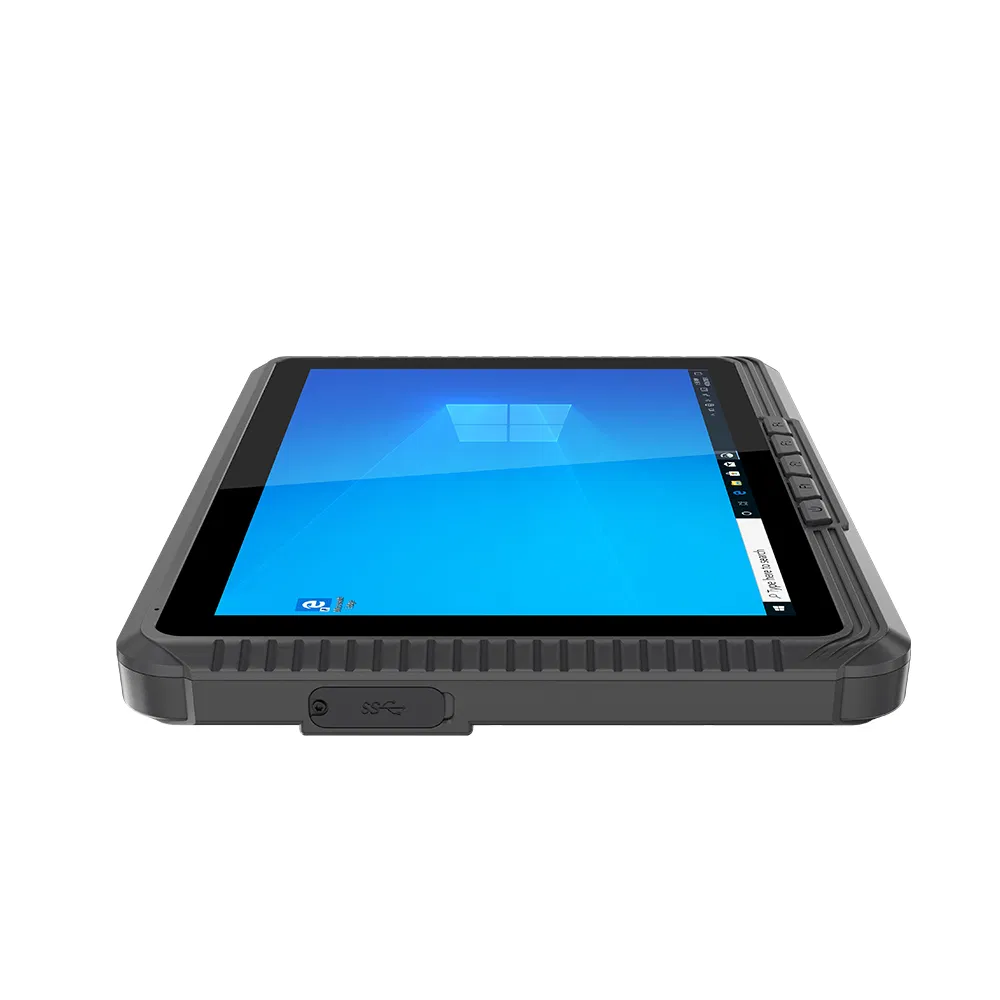

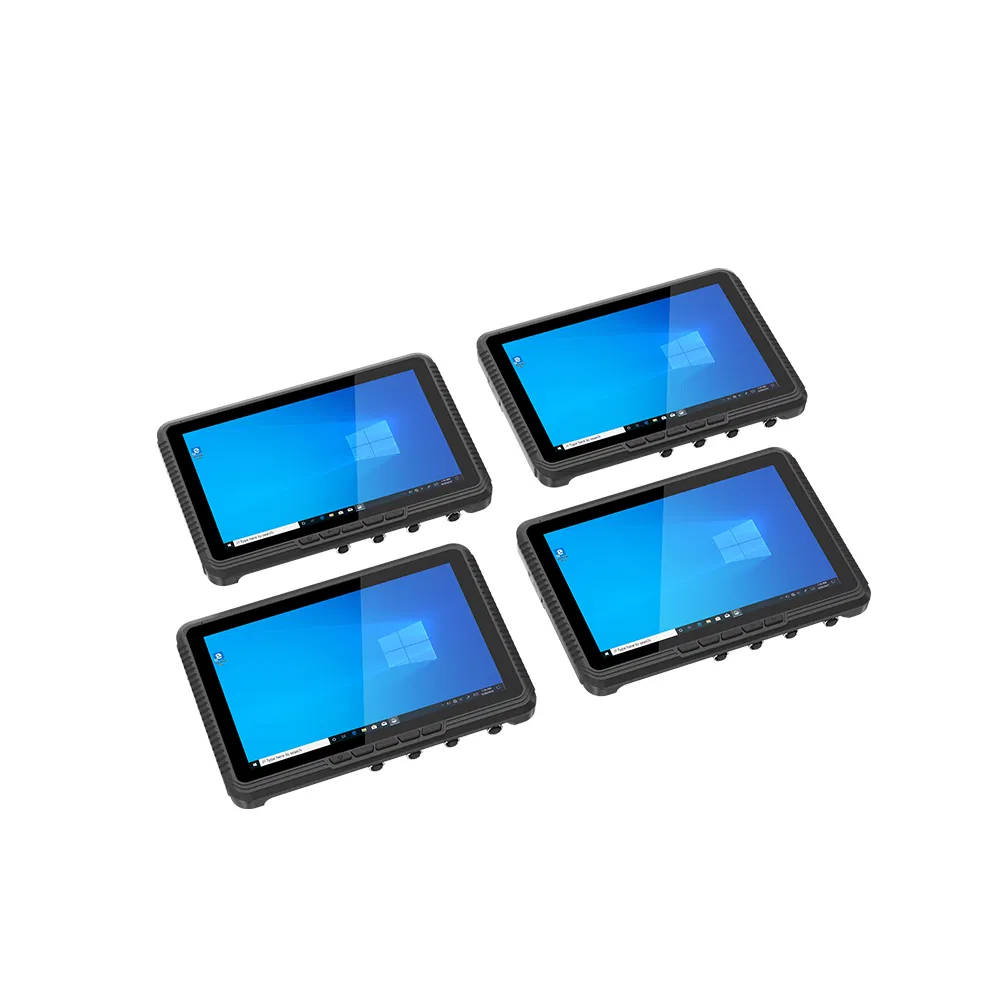

Embedded All in One Panel PC Computer Interactive Vehicle TV Bus Player

Basic Specifications

Model NO.

VPC10J-9

Rack Unit

3U

Expansion Slot

14 Slot

Screen Size

10.1 inch IPS

CPU Type

Intel Quad Core

Bluetooth

5.0

Protection

IP65 Waterproof

Operating Temp

-20ºC ~ 60ºC

Product Performance

High Performance

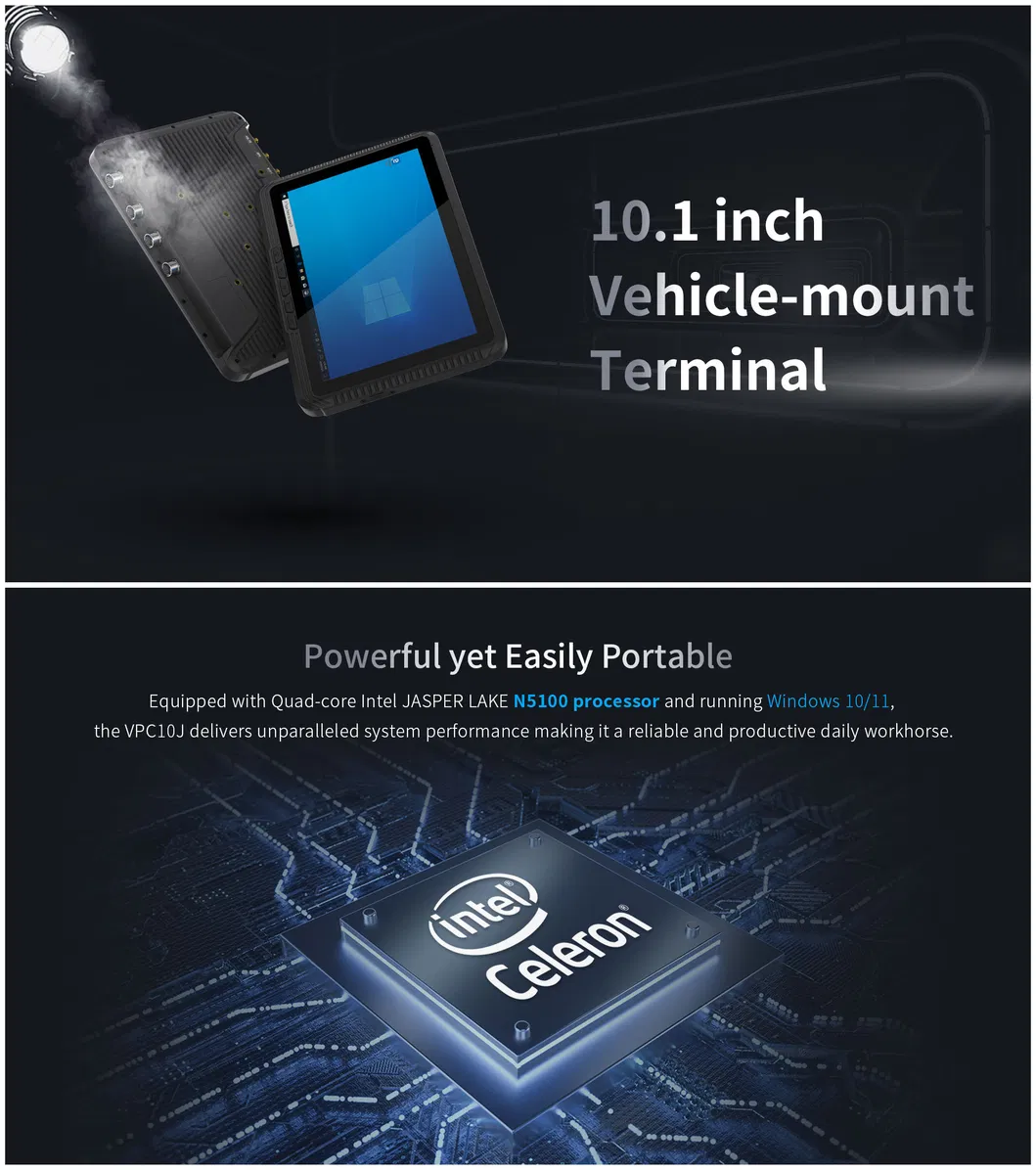

· Intel Jasper Lake processor Celeron N5100

· Windows 10/11 OS, Up to 16GB+512GB

· 10.1 inch IPS screen, 700nit High Brightness

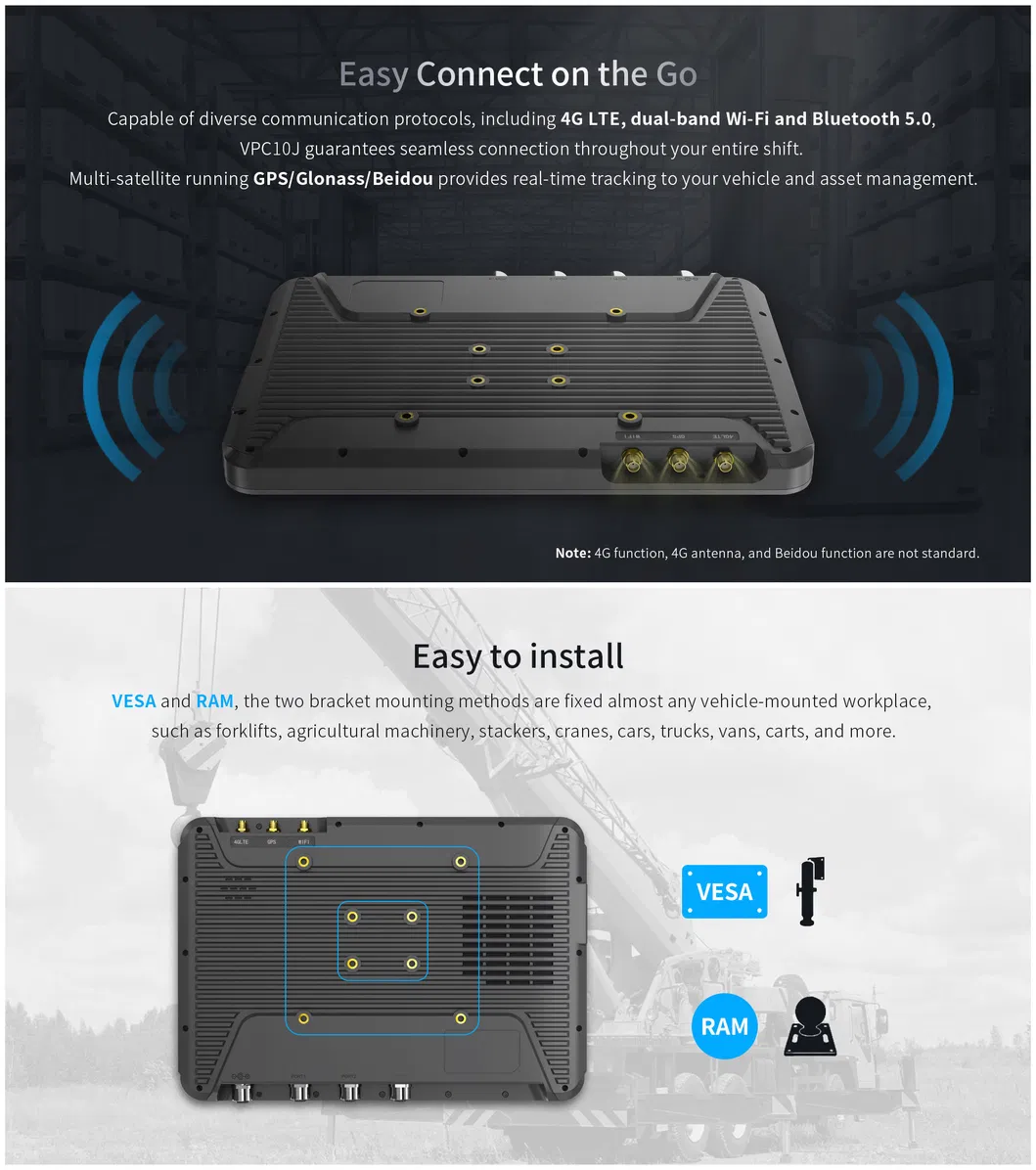

Communication

· 2.4G/5.8G Dual band WIFI

· Optional high speed 4G LTE

· BT 5.0 fast transmission

Advanced Features

· Optional NFC fast recognition

· Support GPS, BDS and GLONASS

· Multiple aviation plugs expansion

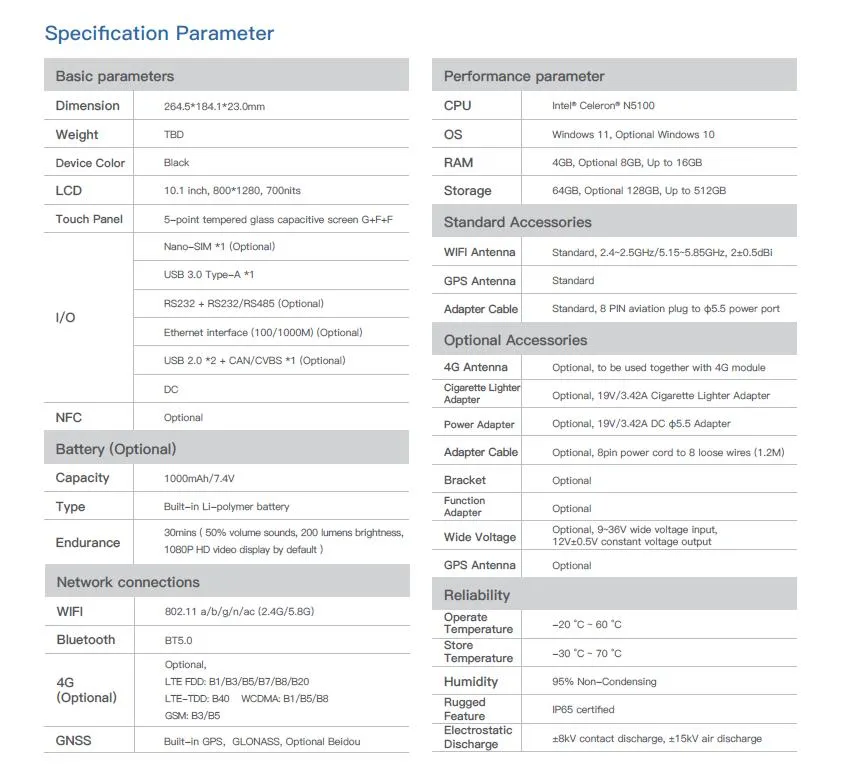

Technical Specifications

Tech Spec Details
Product Form	10.1 inch Vehicle-mount Terminal
Dimension	264.5184.123.0 mm
Weight	834g
CPU	Intel JASPER LAKE N5100 Max 2.8GHz
GPU	Intel® HD Graphics Gen 11 LP
Memory	RAM 4GB (Up to 16GB) \| ROM 64GB (Up to 512GB)
Display	10.1" 16:10 IPS, 800*1280, 700cd/㎡
Touch Panel	5-point tempered glass capacitive screen, 7H hardness
Audio	1.5W Speaker, Single MIC
Indicators	Power (Blue), Charging (Red), Full (Green)

Application Range

Designed to meet vehicle specification level certifications. This terminal is widely utilized in:

Logistics
Agriculture
Mine Transportation
Airport Operations
Wharf & Docking
Warehousing

Frequently Asked Questions

What operating systems are supported by the VPC10J-9?

The device supports Windows 11 PRO as standard, with options for Windows 10 Home/Pro/IOT and Windows 11 Home/IOT.

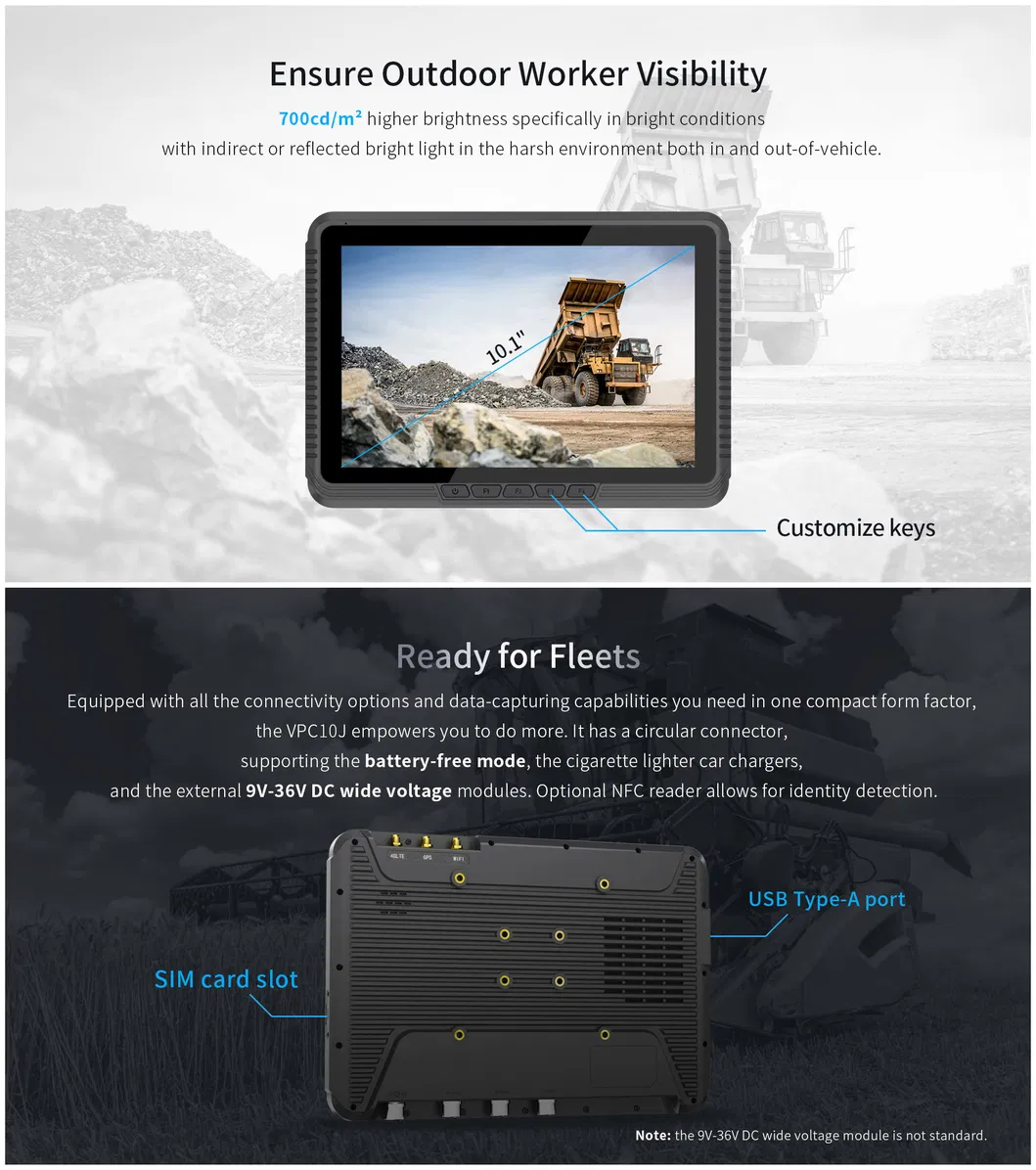

Is the display sunlight-readable?

Yes, the 10.1-inch IPS screen features a high brightness level of 700 nits, making it suitable for outdoor and vehicle environments.

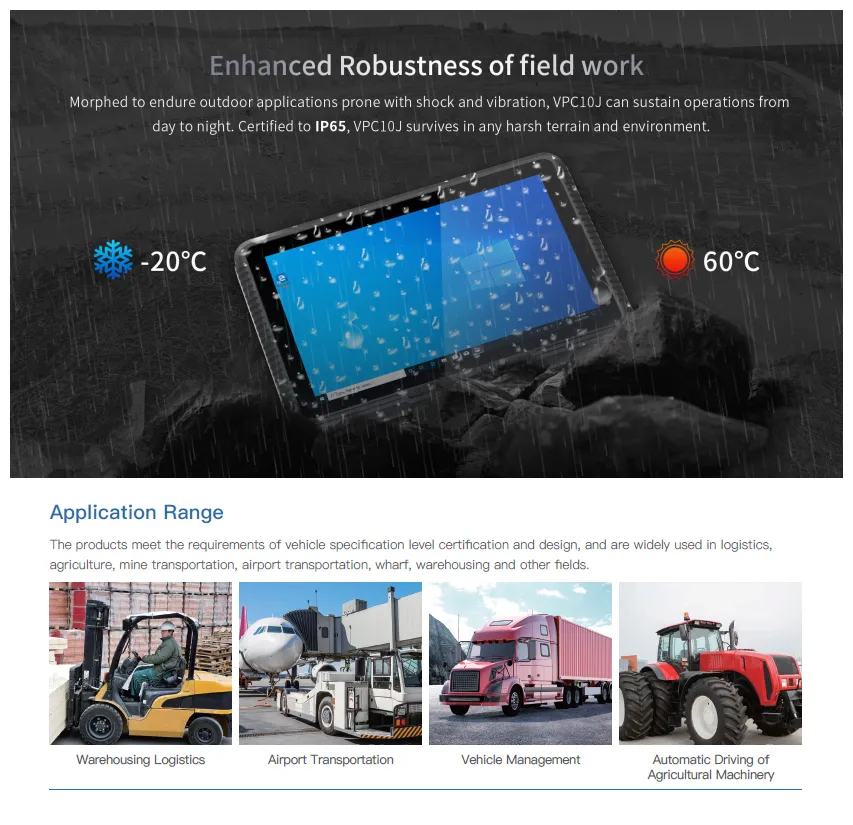

What is the ruggedness rating for this terminal?

It is IP65 waterproof and dustproof, and designed to operate in a wide temperature range from -20ºC to 60ºC.

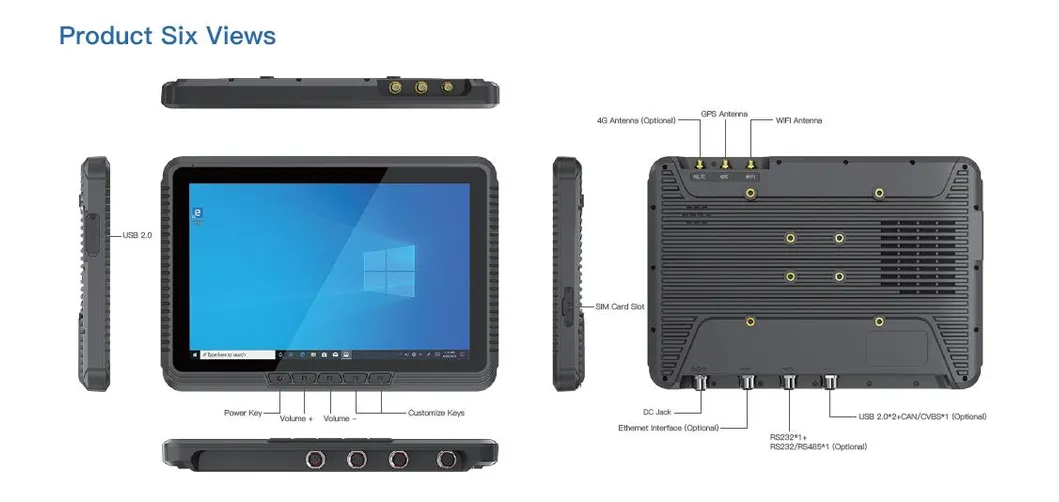

What are the available expansion options?

The terminal supports flexible expansion via multiple aviation plugs, optional NFC recognition, and 4G LTE modules.

What navigation systems does it support?

The device supports global positioning including GPS, BDS (Beidou), and GLONASS for accurate tracking.

Can the internal storage be upgraded?

Yes, while the standard configuration is 4GB RAM and 64GB ROM, it can be optionally configured up to 16GB RAM and 512GB ROM.

Product Detail

Embedded All in One Panel PC Computer Interactive Vehicle TV Bus Player
