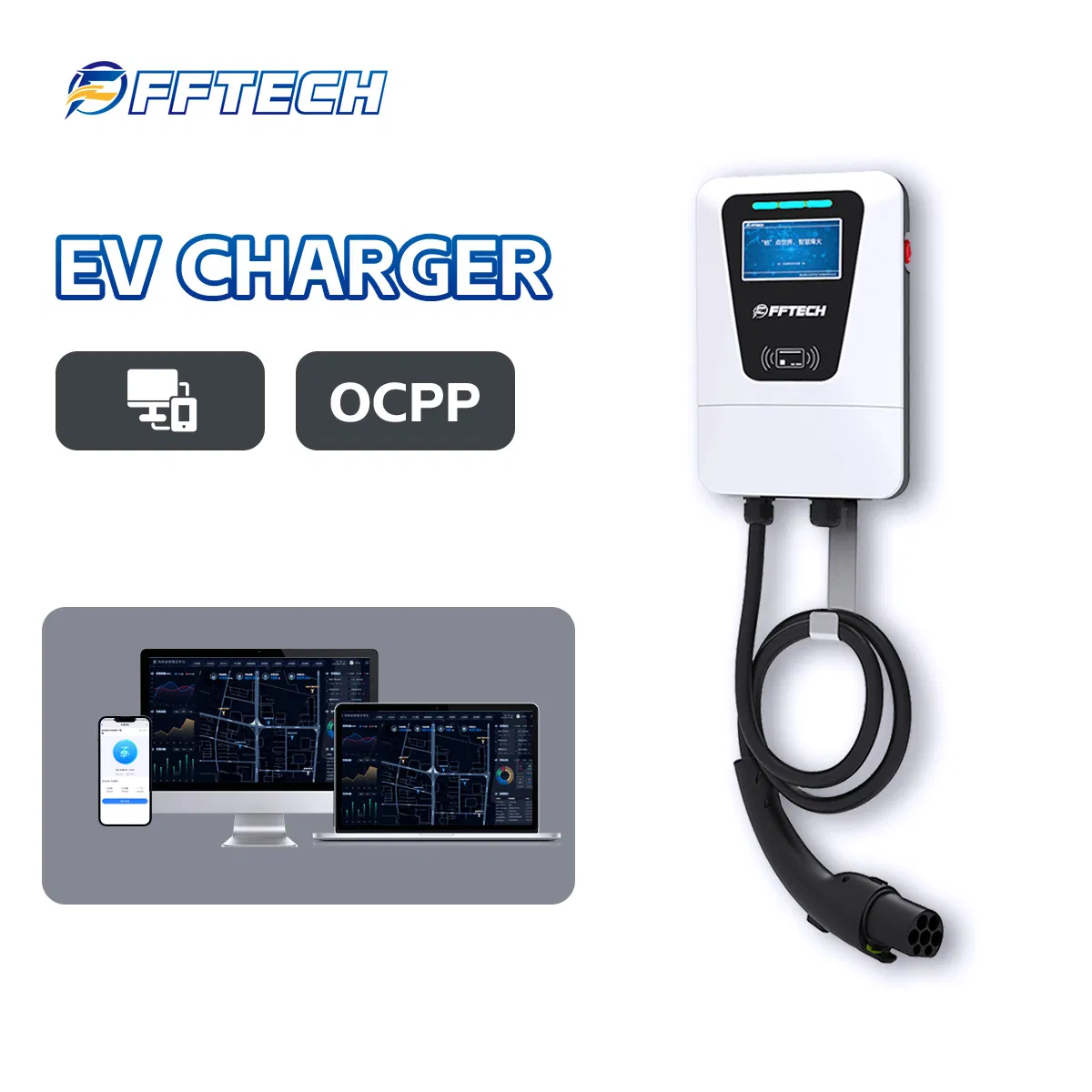

Discover the future of electric vehicle charging with our Wholesale 7kW, 11kW, and 22kW AC EV Charger. It supports 16A and 32A currents and features the OCPP1.6J protocol. This state-of-the-art charging station is CE certified and compatible with TYPE1 and CCS1 connectors, ensuring reliable and efficient performance.
Basic Specifications
Model NO.
FH-EA-7kW, FH-EA-11kW, FH-EA-22kW
Interfaces
One Pile with One Charge
Location
Private and Public
AC Input Voltage
230VAC /Single Phase; 400VAC/Three Phase
Output Power
7kw, 11kw, 22kw
Cable Length
Rated 5m, Customized 10m Max
Authentication
4G, Ethernet, WiFi, Bluetooth
Certification
EMC Class B, TUV CE, Cqm, ISO and UL
Support
OCPP 1.6 Protocols
Key Advantages

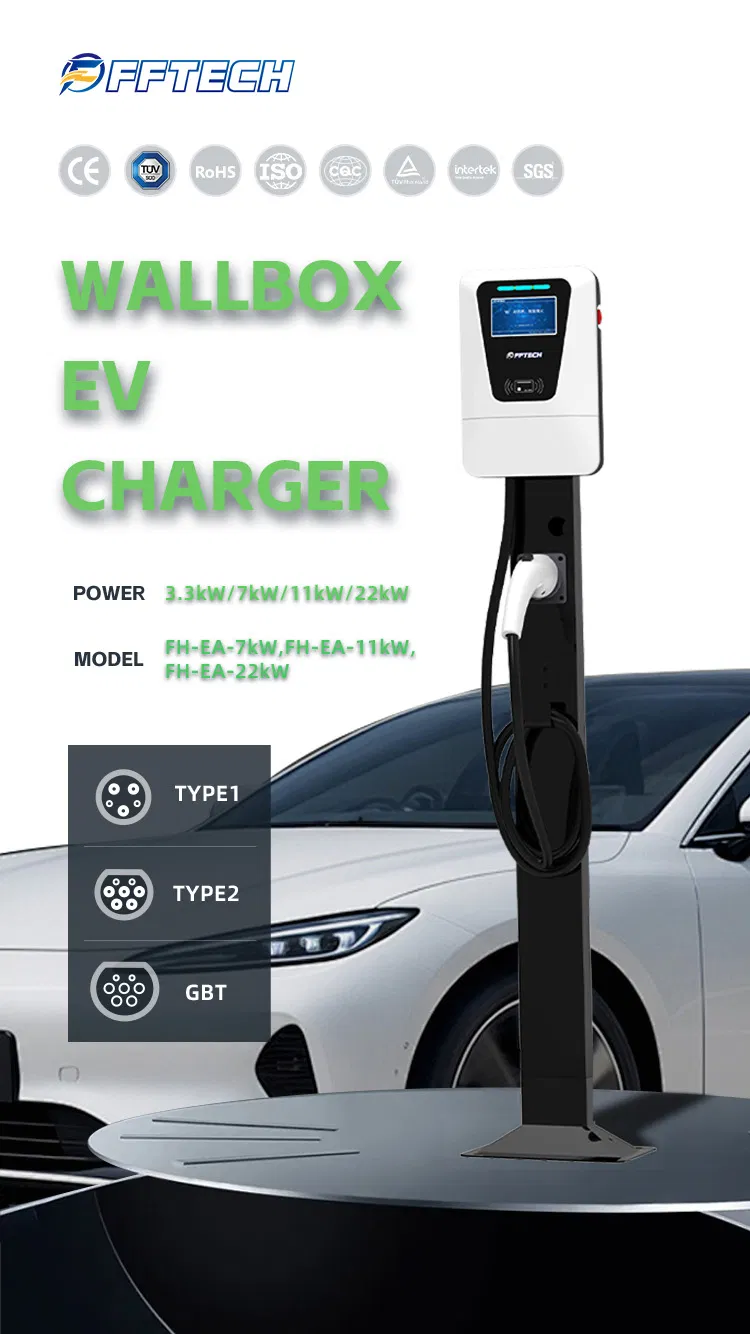

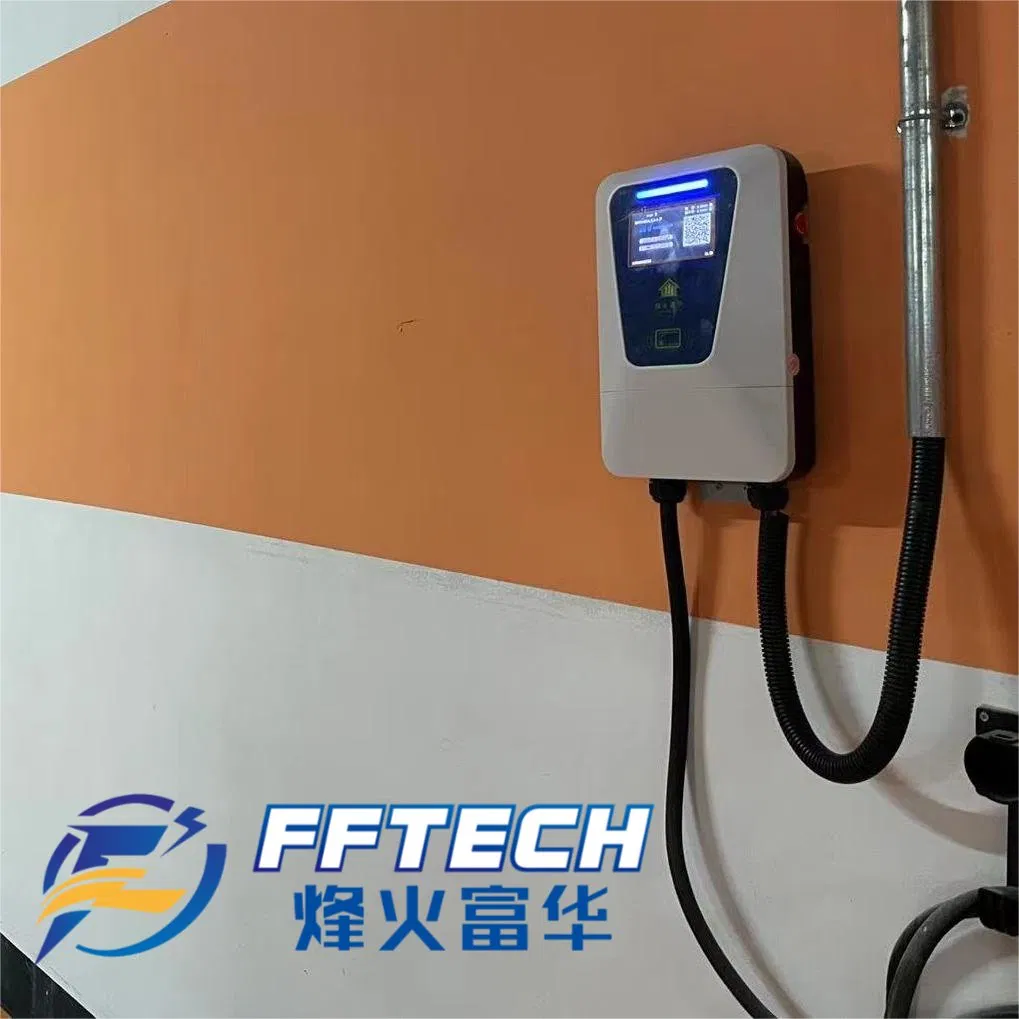

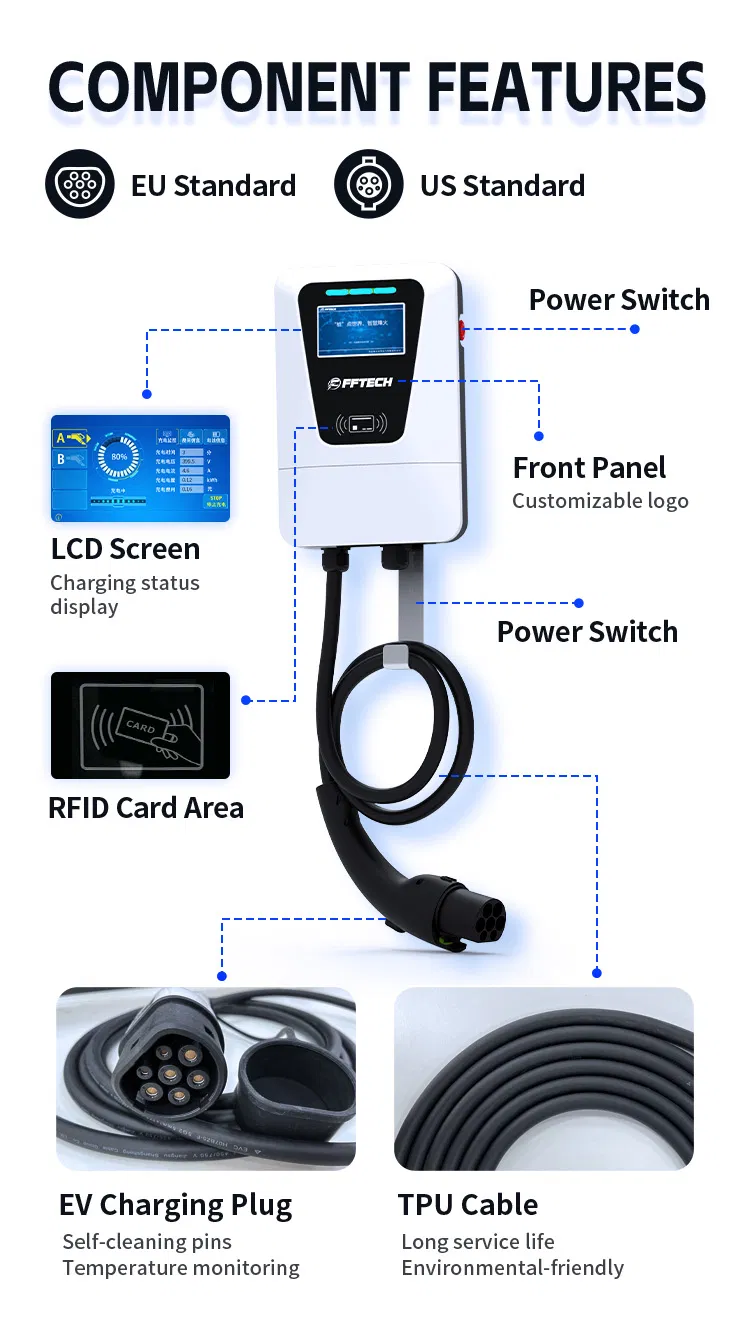

This EV charging station boasts a classic wall-mounted design (with optional stand column installation), IP54 protection, and a protective glass 7" LCD touch screen. It supports multiple charging modes and offers LAN, 4G, and optional LTE wireless communication.

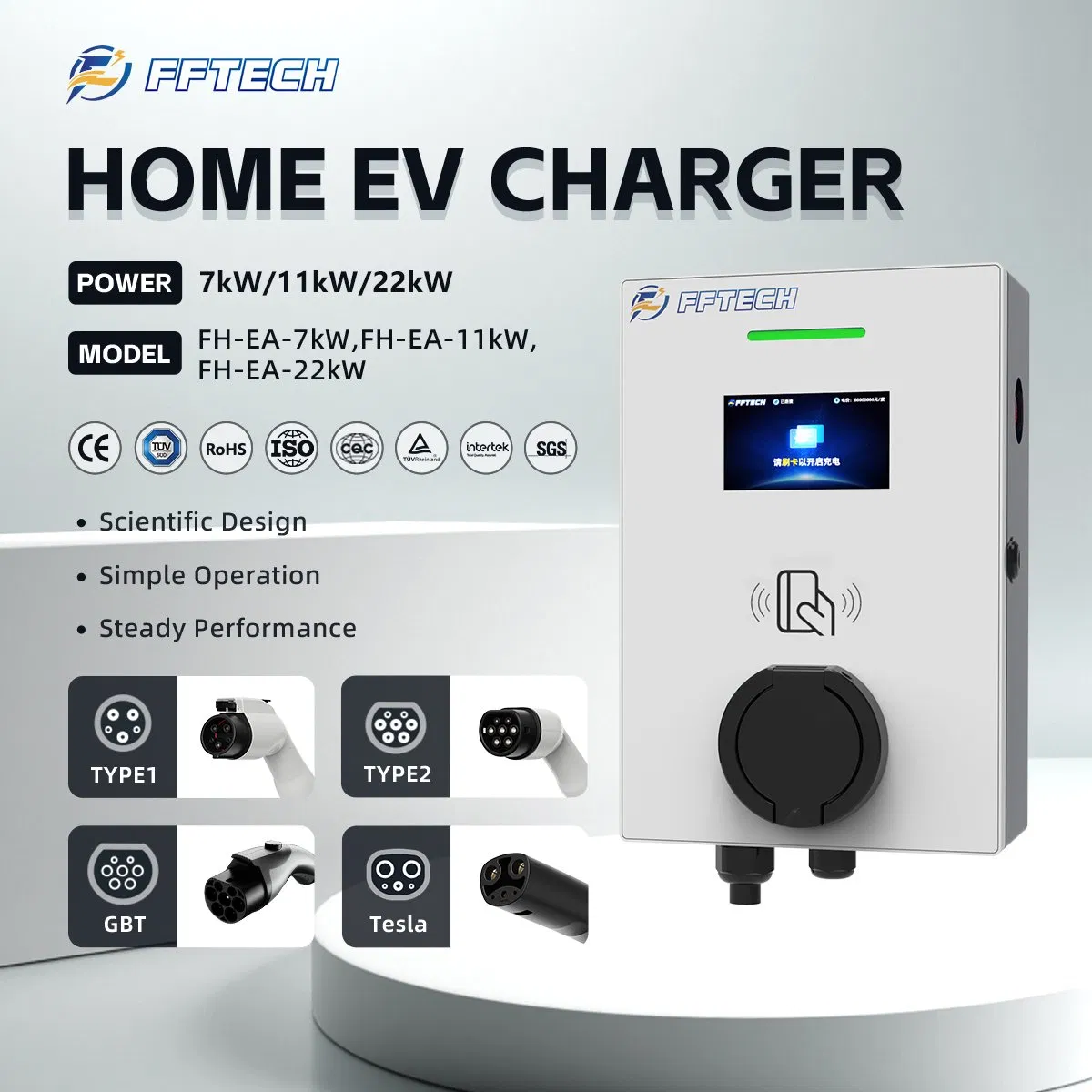

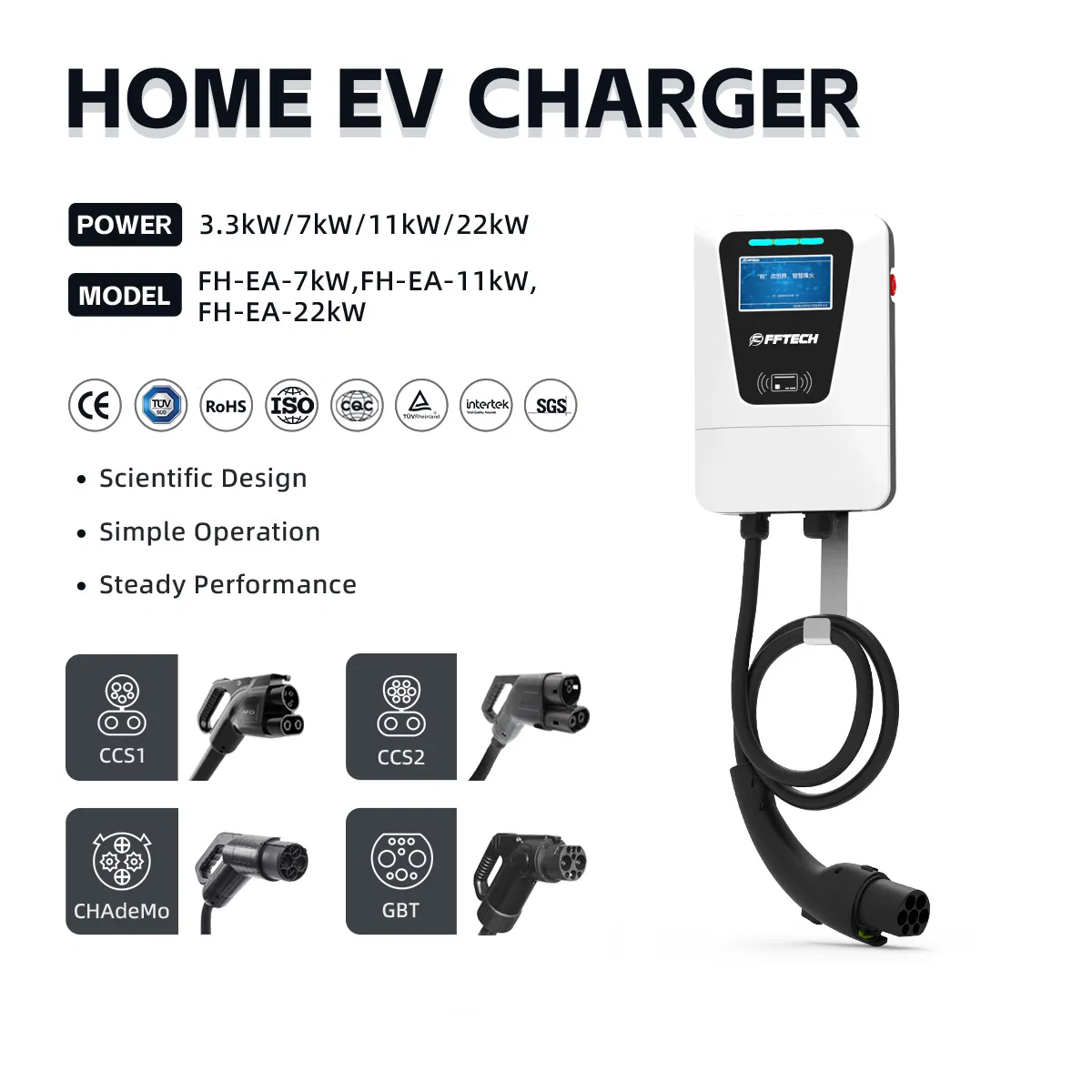

- Supports TYPE1, TYPE2, or GBT connectors.

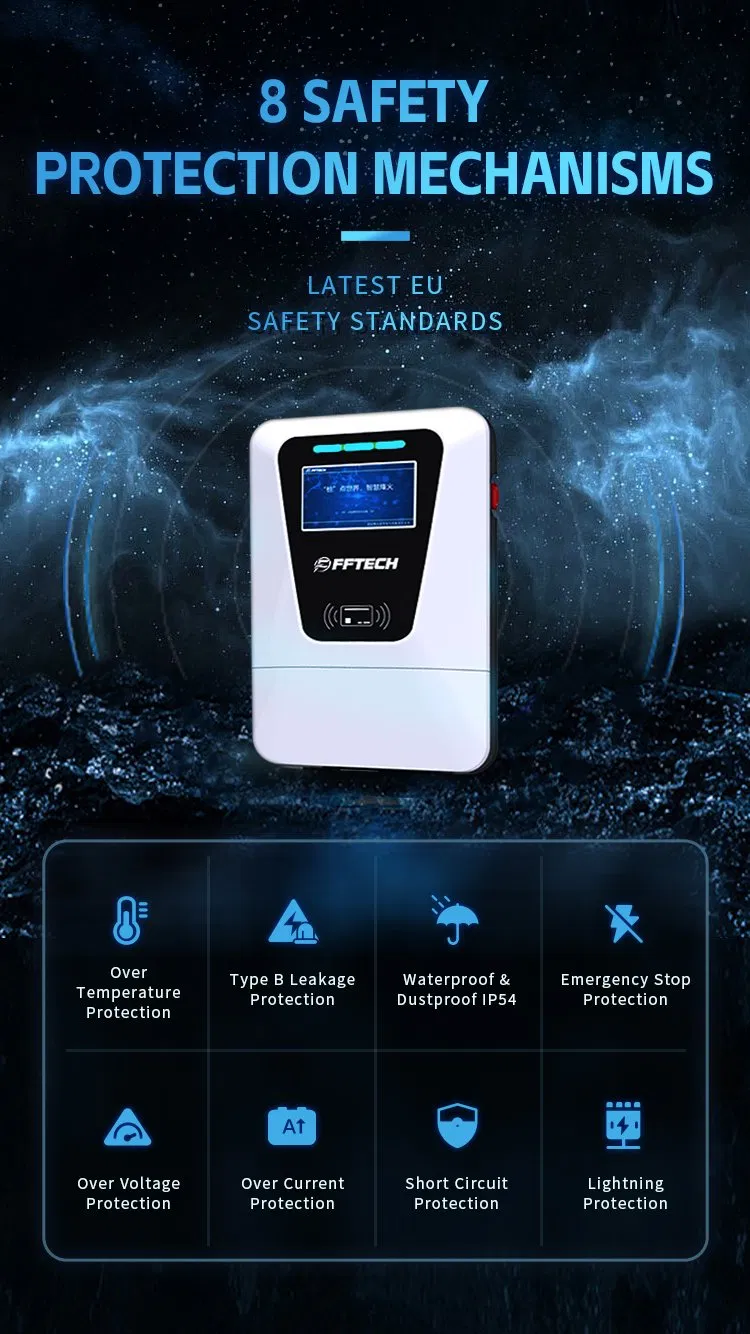

- Engineered with IP54 design for high protection in harsh environments.

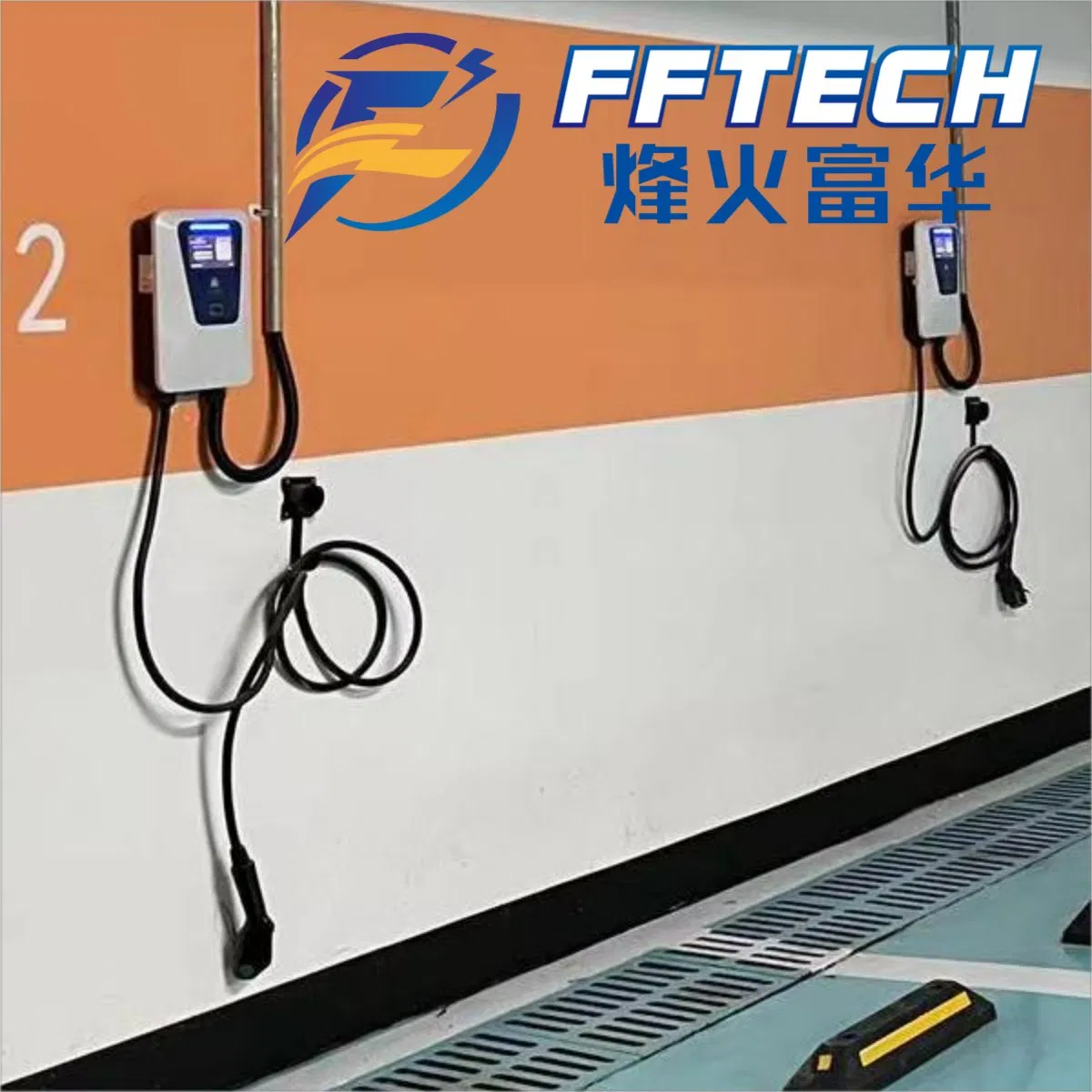

- Flexible installation: wall-mounted or optional pile-type.
- AC charging capacity: 7kW, 11kW, 19kW, or 22kW.
- Communication protocols: CAN, RS485, WIFI, LAN, LTE.
- 7'' TFT capacitive touch screen LCD with tempered glass.
- Multiple charging modes: Auto, Amount, Energy, SOC basis.
- Equipped with high-precision AC and DC energy meters.
Technical Parameters
| Category |
7kW AC |
11kW AC |
22kW AC |
| Model No. |
FH-EA-7kW |
FH-EA-11kW |
FH-EA-22kW |
| Input Voltage |
220VAC±15% |
380VAC±15% |
| Input Current |
32A |
16A |
32A |
| Grid Connection |
L+N+PE |
3P+N+PE |
| Output Power |
7kW |
11kW |
22kW |
| Startup Method |
Local start/card start/plug and charge/App start |
| Protection Rating |
IP54 |
| Dimensions |
234*312*90mm |
250*250*1271mm |
300*315*120mm |
300*315*1300mm |
300*315*120mm |
300*315*1300mm |
Manufacturing & Excellence

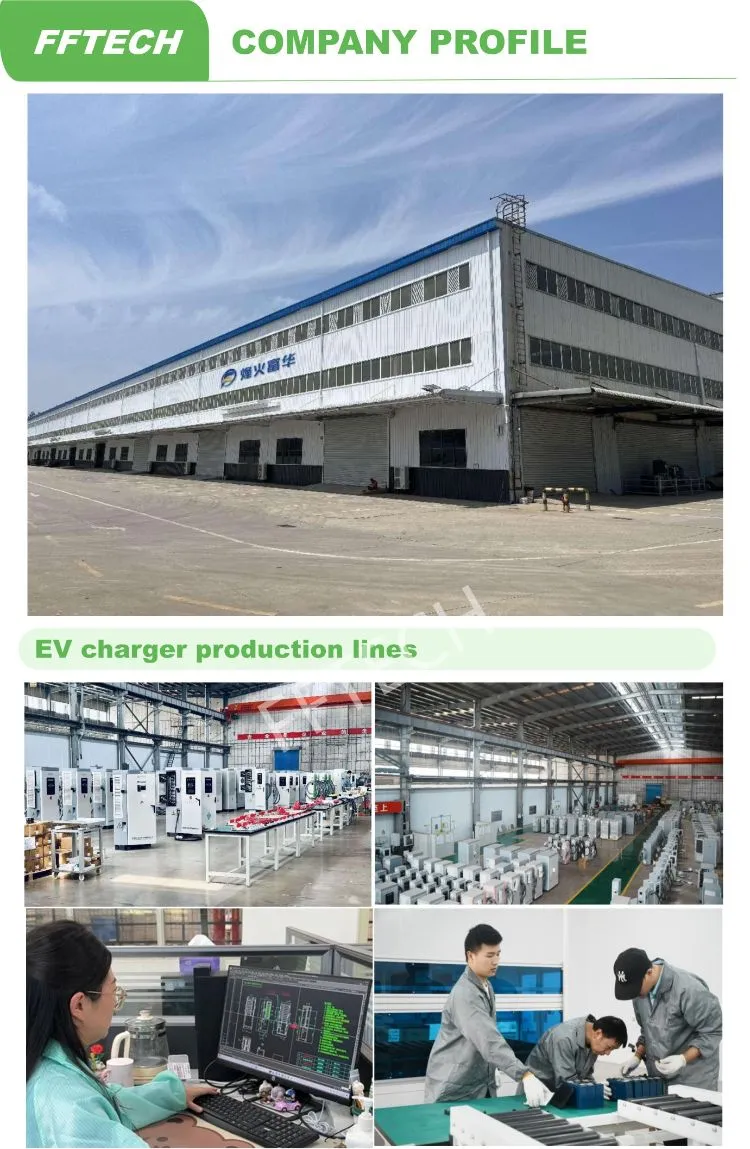

Established in 2008, we are a leading manufacturer and solution provider in Smart Energy and Smart City innovations. We offer a diverse range of power-related products, including EV charging stations, portable power stations, energy storage systems (ESS), UPS, and lithium batteries.
With over a decade of dedication to continuous innovation, we have established a strong presence in R&D and product design. Our team comprises experts in electricity, AI, cloud computing, and big data, committed to delivering cutting-edge products that contribute to a sustainable future.
Frequently Asked Questions
What are the available power options for these chargers?
We provide three standard power output options: 7kW (Single Phase), 11kW (Three Phase), and 22kW (Three Phase) to meet different charging speed requirements.
Is this EV charger waterproof and suitable for outdoor use?
Yes, the charger is engineered with an IP54 protection rating, making it resistant to dust and water splashes, ensuring reliable performance in harsh outdoor environments.
Which communication protocols does the station support?
The station supports OCPP 1.6J, 4G, Ethernet, WiFi, and Bluetooth, allowing for seamless integration with various management platforms and mobile apps.
What types of connectors are compatible with this charger?
Our chargers are versatile and support multiple connector standards including TYPE1, TYPE2, and GBT, making them compatible with most electric vehicles globally.
How can users authenticate and start the charging process?
Users can start charging through several methods: RFID card authentication, mobile app, plug-and-charge mode, or local manual start.
What is the standard lead time for orders?
For small quantities (1-5 pieces), the lead time is approximately 15 days. Larger orders are subject to negotiation based on production capacity.
