Integrated Industrial Wireless Bridge (Model: WD-G40A-5G / WD-G40C-5G)
The WD-G40-5G series is a newly developed industrial-grade outdoor waterproof integrated wireless access network device. The transmission power is up to 30dBm, the integrated directional antenna gain is up to 13dBi, and the protection level is IP68. It adopts industrial-grade material selection design to ensure stable communication in harsh industrial environments.
It can work in the coverage transmission mode of AP or Client, with high transmission power and high sensitivity. Supporting IEEE 802.11ac wave2 technology, it offers a data transmission rate of up to 867Mbps. Designed for reliability, it includes surge, ESD, and anti-vibration protection, with dual redundant power input (DC and PoE) for flexible deployment. Applications include industrial vision, crane systems, MEC, and industrial field services.
| Interface | 1*10/100/1000Mbps RJ45 Port (PoE support), 1*DC power supply port |
| Protocol Standard | IEEE802.3, IEEE802.3x, IEEE802.3u, IEEE802.3 AT, IEEE802.11a/b/g/n/ac wave2 |
| Wireless Speed | 5G: 867Mbps |
| Working Mode | AP, Client (Supports up to 64 clients) |
| Antenna | Built-in integrated dual-polarization 13dBi high-gain directional antenna |
| Transmission Distance | Elevated barrier-free transmission up to 5 km |
| Working Environment | Temp: -40ºC to 75ºC; Humidity: 10%-90%RH |
| Protection & Warranty | IP68 Protection Level; 5 Years Warranty |

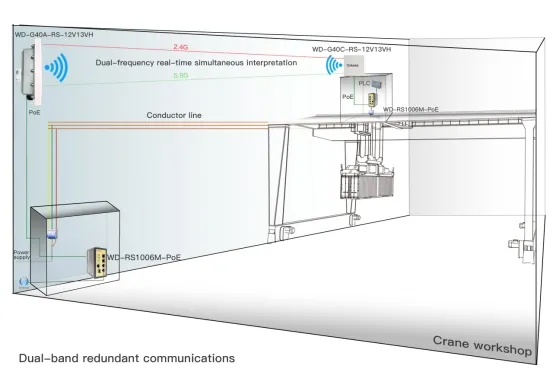

Topology Diagram:

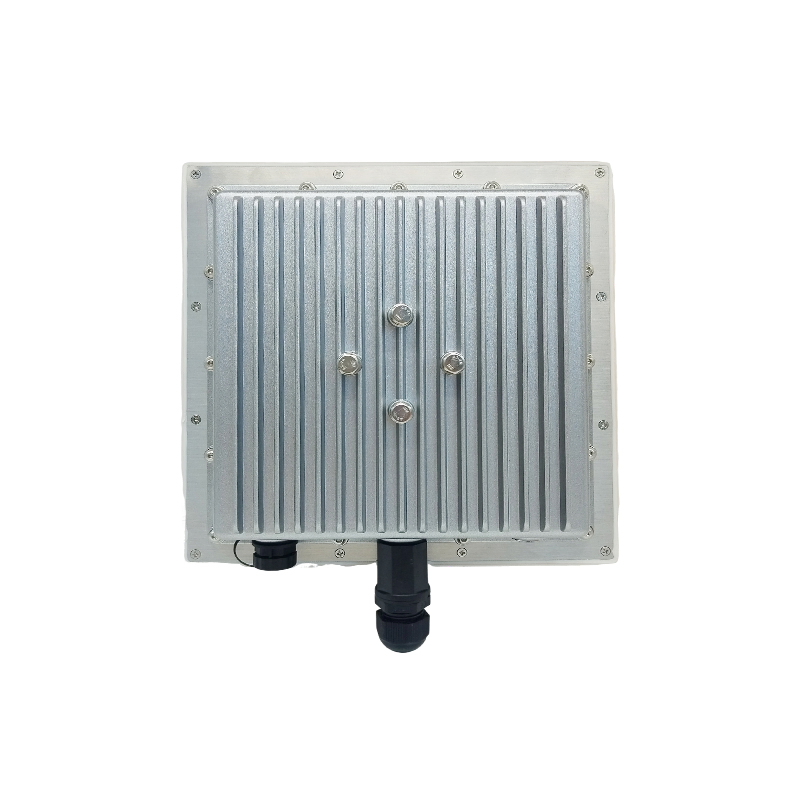

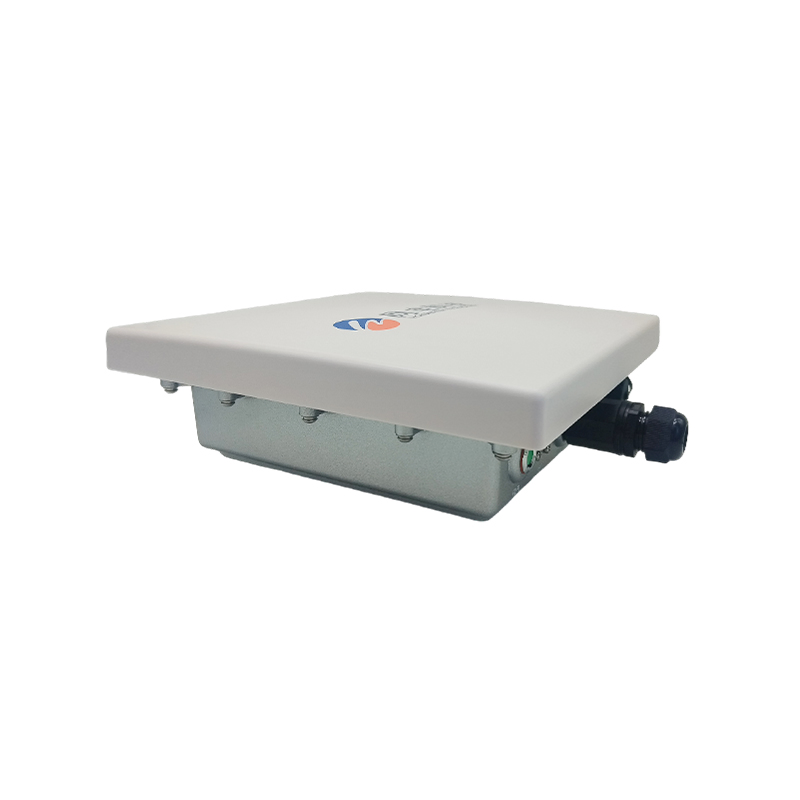

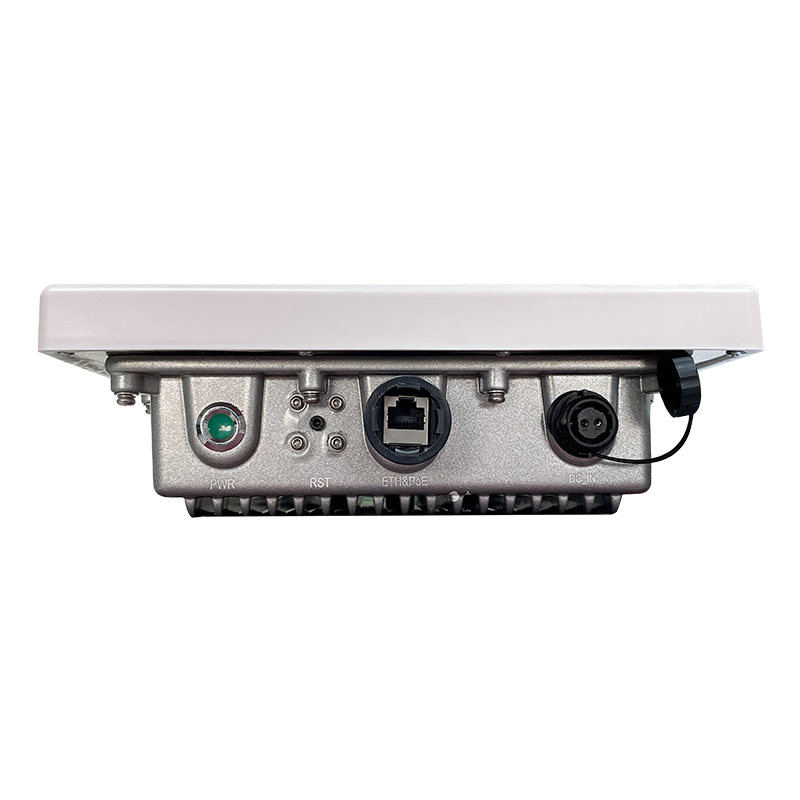

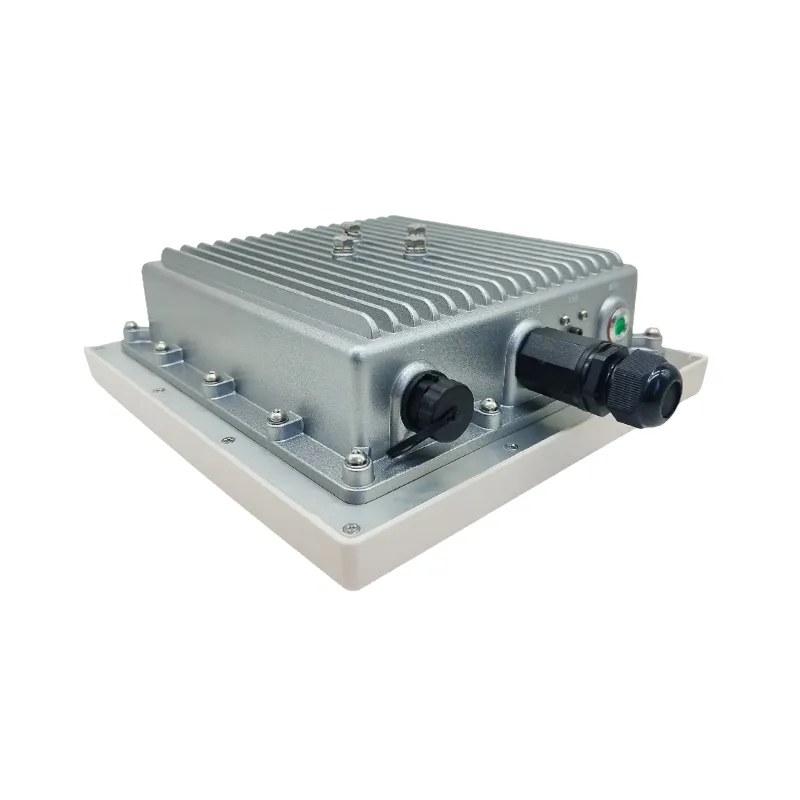

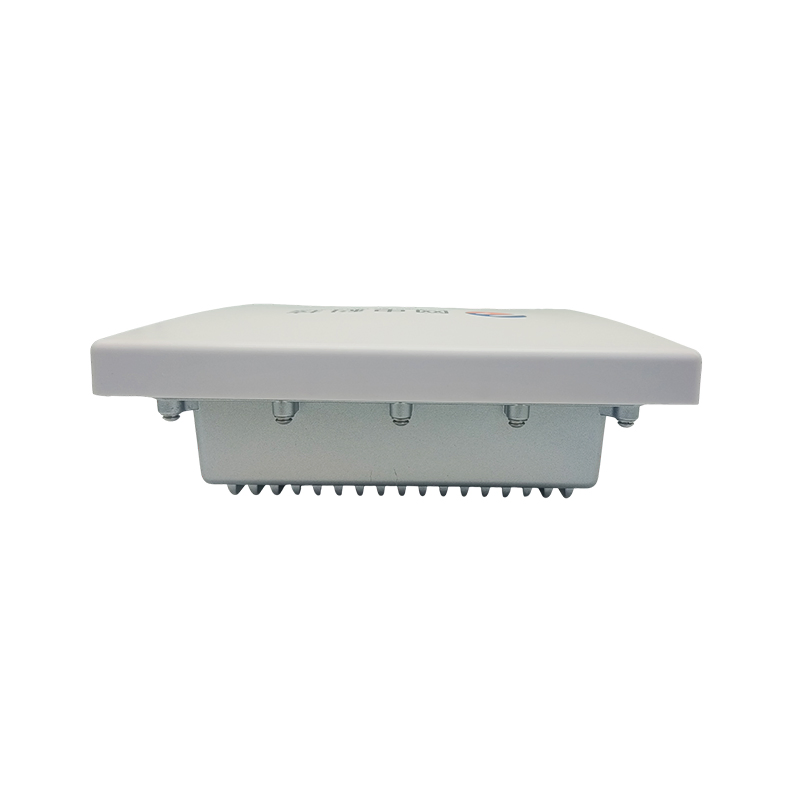

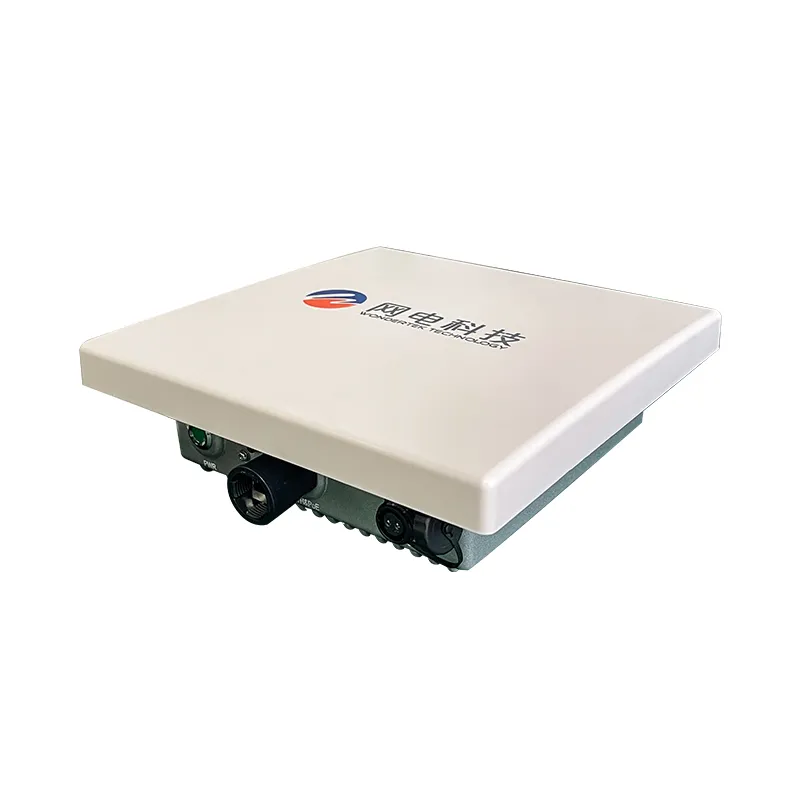

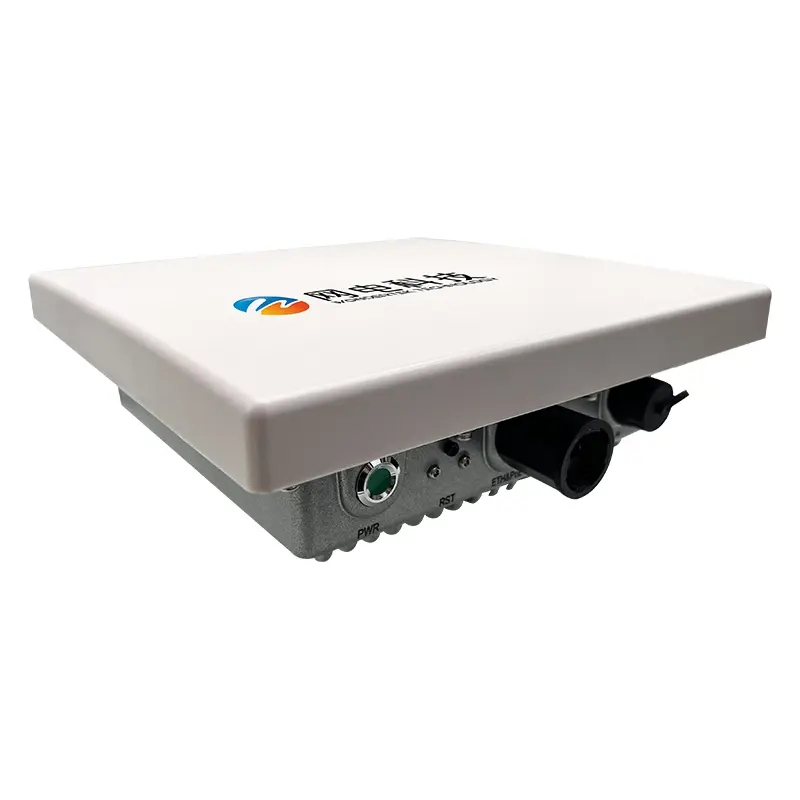

Product Photos:
Terms & Conditions:
