Basic Specifications
Touch Screen
Capacitive Touch Screen
CPU
Quad-Core I5-6360u (Up to 3.1GHz)
Memory
8GB DDR4L (Up to 32G)
OS
Windows 7 / Windows 10
Protection Degree
IP65 (Front Panel)
Installation
Embedded / Wall Mount
Product Overview

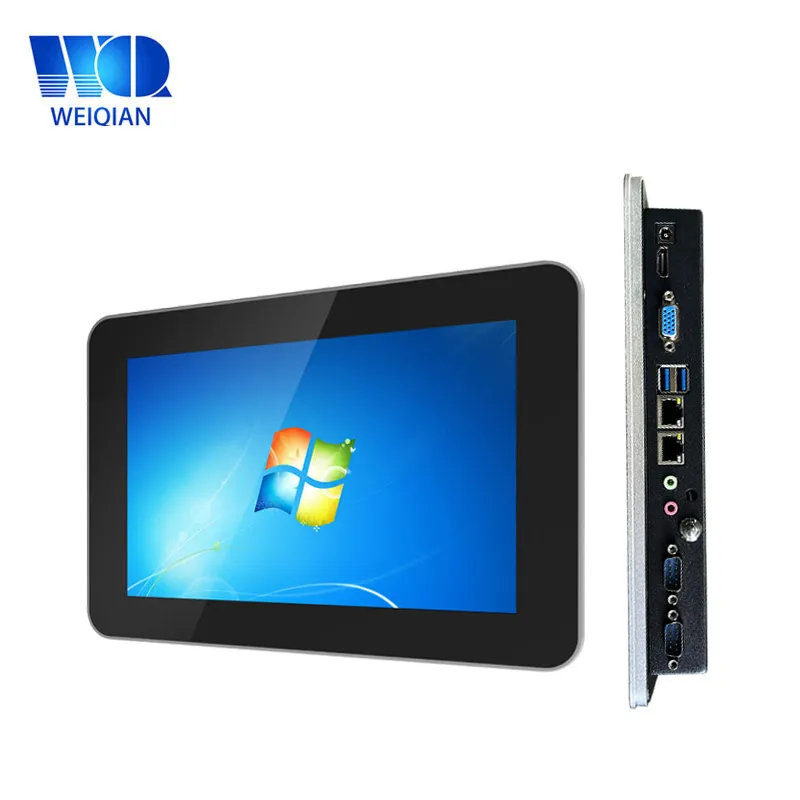

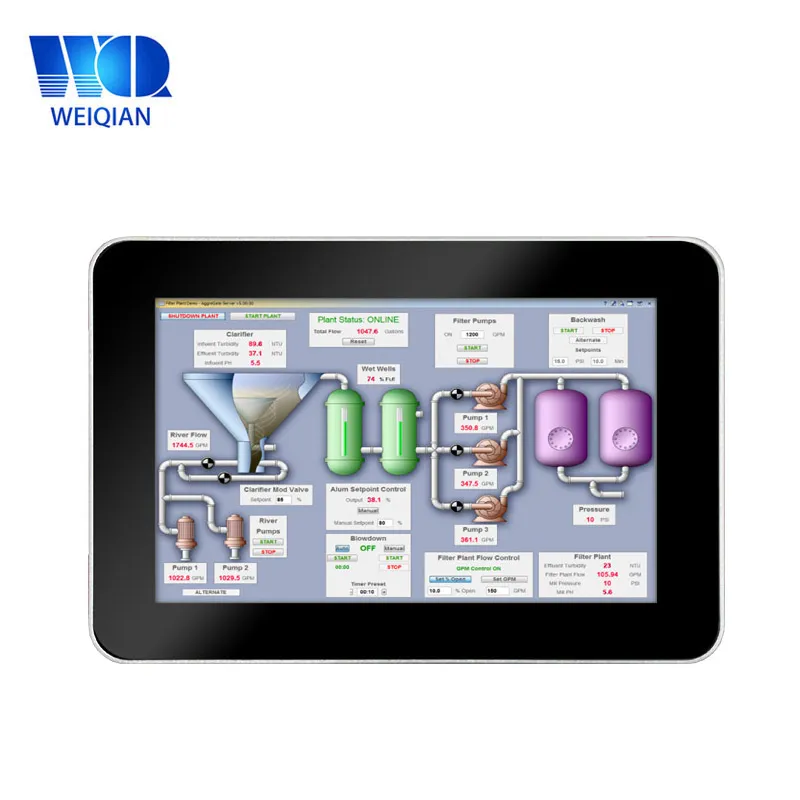

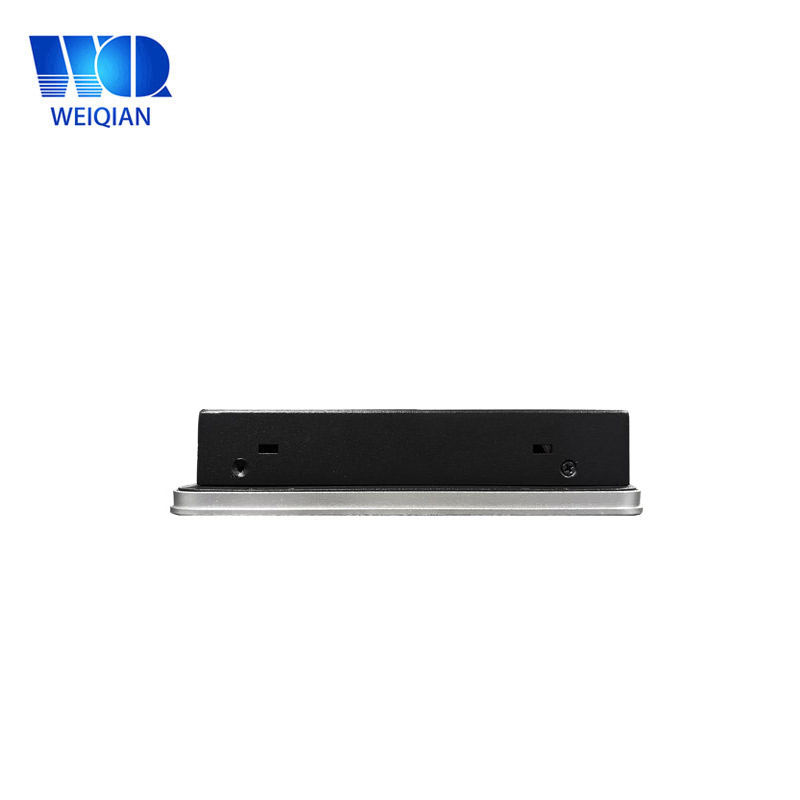

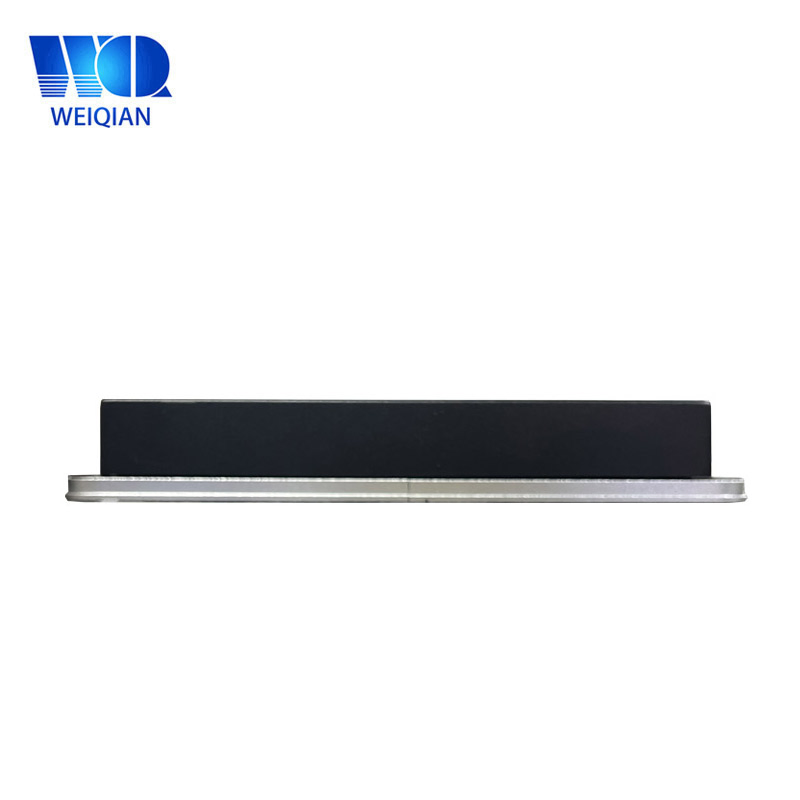

IP65 Industrial Marine LCD Display Vehicle-Mount Computer 10.1 Inch LED Waterproof Panel PC Touchscreen Monitors
Technical Parameters
| Feature |
Specification Details |
| CPU & Graphics |
Intel Iris 540; Quad-core i5-6360U, Frequency 2.0GHz, Max 3.1GHz |
| Display |
10.1 inch, 800×1280, LED backlight (Lifetime >25,000 hours), 24-bit true colors |
| Hardware Interface |

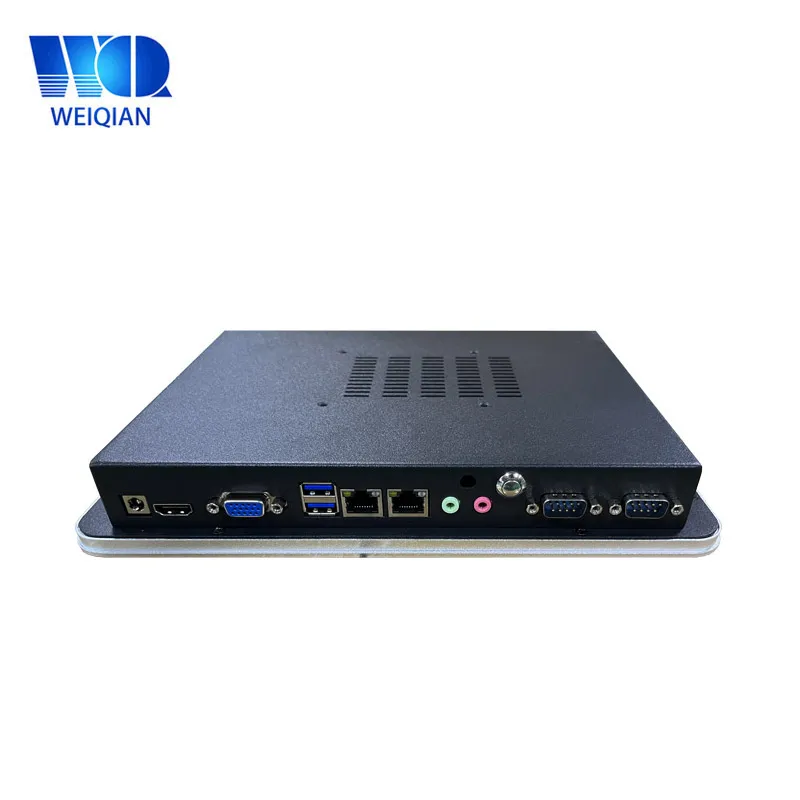

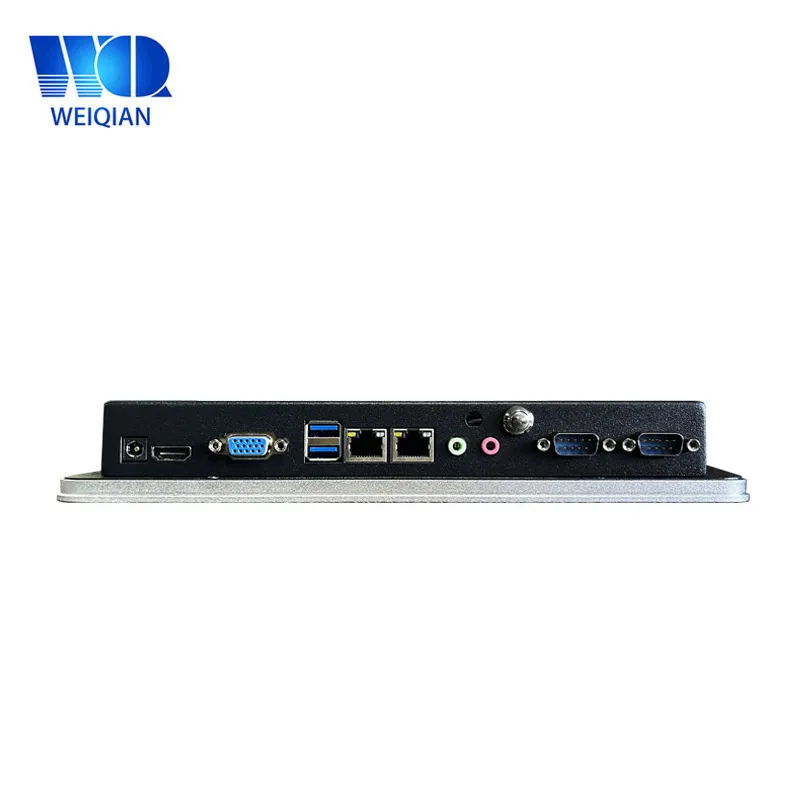

1x VGA, 1x HDMI, 2x RS-232 (COM1, COM2), 2x USB 2.0 Host, 2x 1000M Ethernet, 3.5 Audio/MIC, WiFi (Optional) |
| Environment |
Power: DC 12V/5A; Working Temp: -10 to 50ºC; Humidity: 10~90%RH |
| Structure |
Metal Shell; Panel: 275.6x187.6mm; Trepanning size: 273.5x185.5mm |
| Applications |
Industrial control, security monitoring, medical apparatus, intelligent terminals, smart factory |

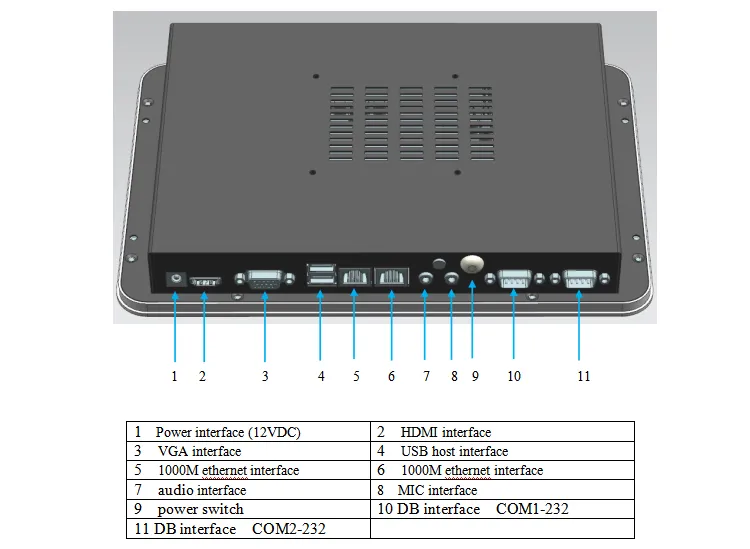

Interface & Dimension
RS-232 Interface: 2 channel RS-232 serial ports supporting baud rates up to 115200bps, corresponding to COM1 and COM2 in Windows.

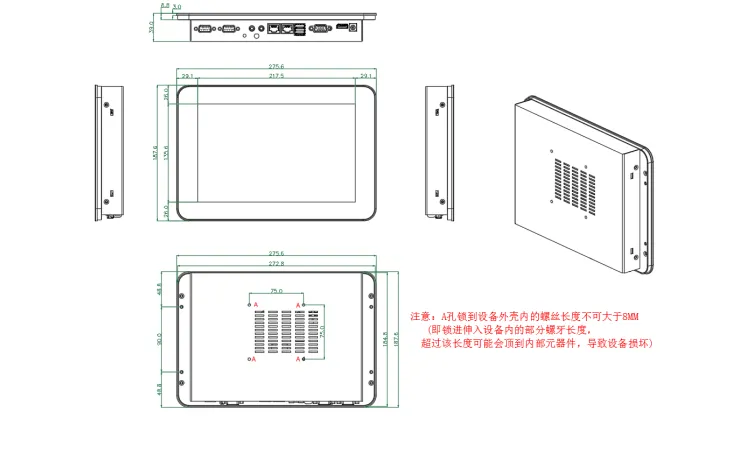

Exterior Dimensions: 275.6 x 187.6 x 39 (mm)

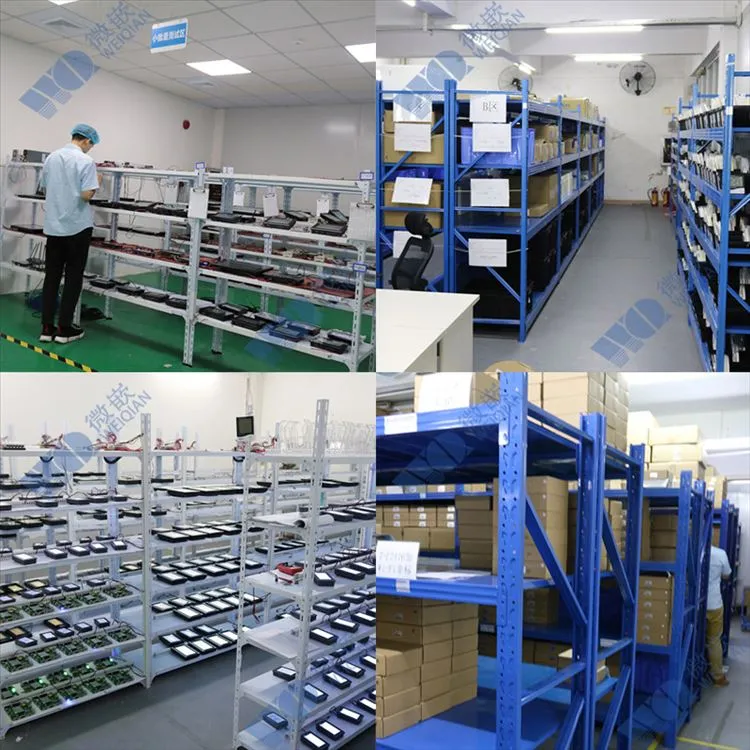

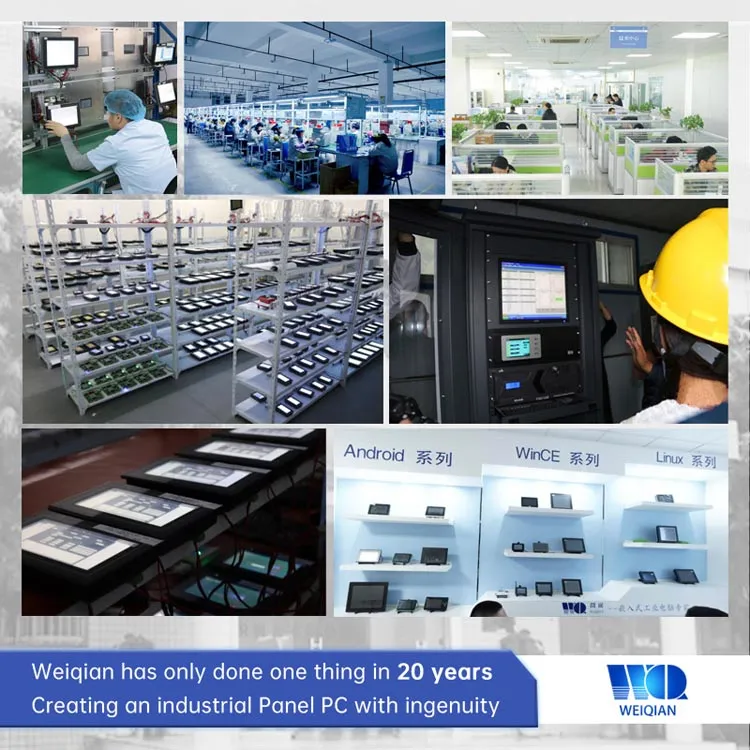

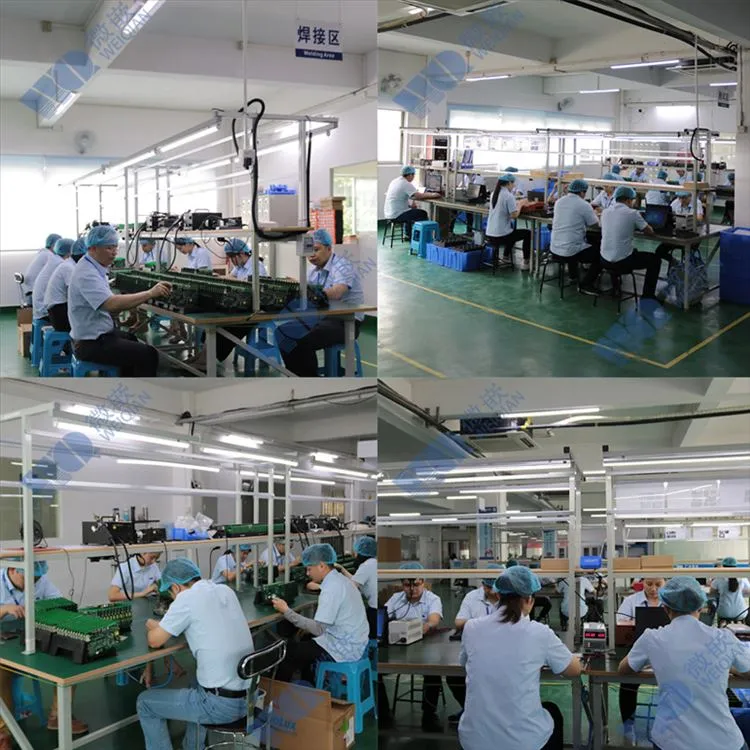

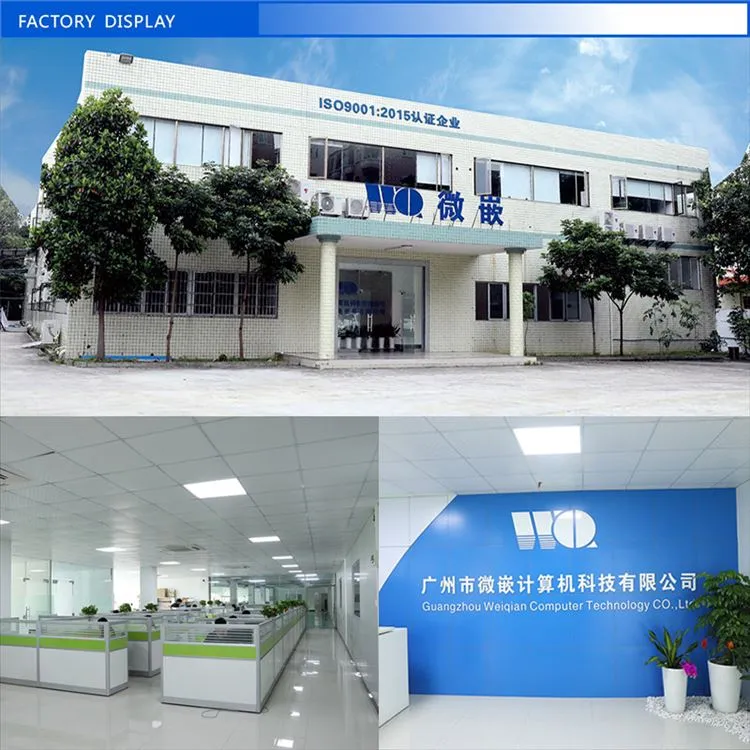

Production & Quality Control
Frequently Asked Questions
What kind of all-in-one industrial panel PCs do you manufacture?
We provide Windows CE / Android / Linux Industrial Panel PCs based on ARM Architecture, and Windows 7 / Windows 10 based on X86 Architecture.
What are the main sizes available for your panel PCs?
Main sizes include 4.3", 5", 7", 8", 10.1", 12", 15", 17", 19", 21.5", and 32". Customized sizes and widescreen options are also supported.
Does this industrial panel PC support secondary development?
Yes, our industrial panel PCs are designed to support secondary development for various professional applications.
What industries are these panel PCs typically used in?
They are widely applied in Medical Equipment, Industrial Automation, Smart Factories, Smart Warehousing, Intelligent Parking, and Environmental Monitoring.
Do you support OEM / ODM customization?
Yes, we support extensive customization including size, functional features, appearance, resolution, and boot interface branding.
What is the standard warranty period?
We offer a 1-year warranty period along with lifetime technical support for all our industrial computing products.
