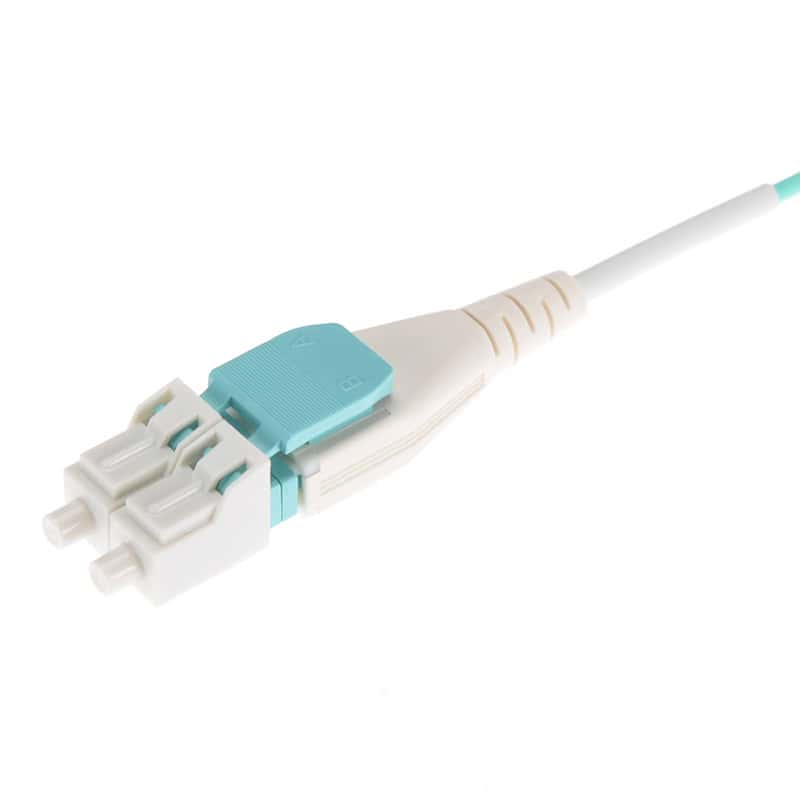

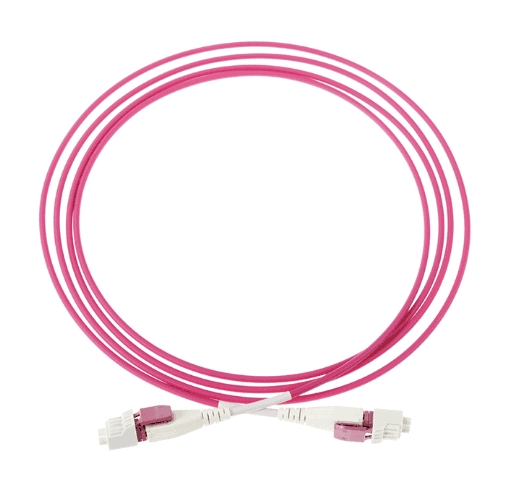

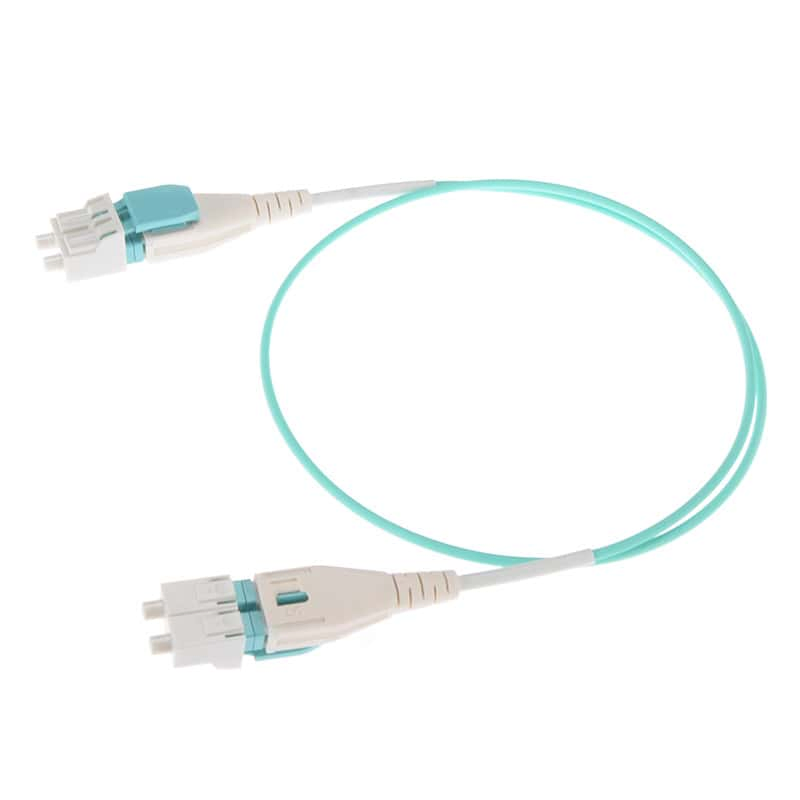

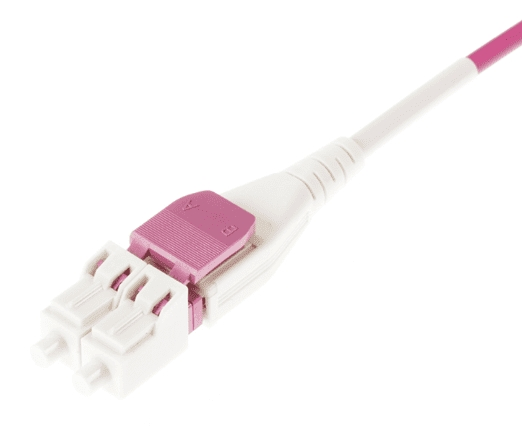

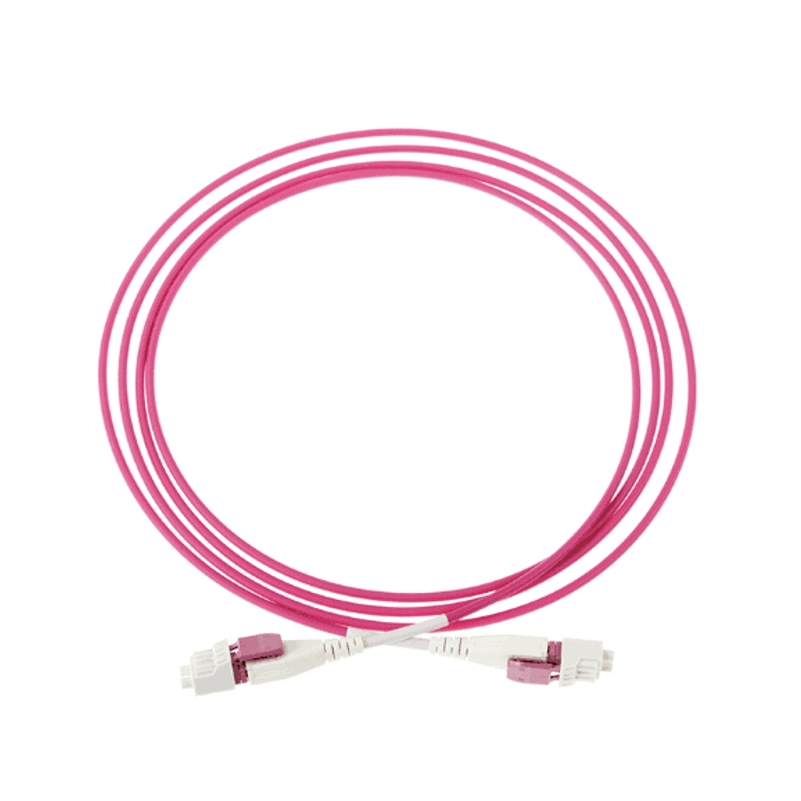

LC/Upc to LC/Upc Polarity Reversible Om3 Om4 Uniboot Duplex Patch Cord
LC/Upc to LC/Upc Polarity Reversible Om3 Om4 Uniboot Duplex Patch Cord
LC/Upc to LC/Upc Polarity Reversible Om3 Om4 Uniboot Duplex Patch Cord
LC/Upc to LC/Upc Polarity Reversible Om3 Om4 Uniboot Duplex Patch Cord
LC/Upc to LC/Upc Polarity Reversible Om3 Om4 Uniboot Duplex Patch Cord
1 / 5
LC/Upc to LC/Upc Polarity Reversible Om3 Om4 Uniboot Duplex Patch Cord
LC/Upc to LC/Upc Polarity Reversible Om3 Om4 Uniboot Duplex Patch Cord
LC/Upc to LC/Upc Polarity Reversible Om3 Om4 Uniboot Duplex Patch Cord
LC/Upc to LC/Upc Polarity Reversible Om3 Om4 Uniboot Duplex Patch Cord
LC/Upc to LC/Upc Polarity Reversible Om3 Om4 Uniboot Duplex Patch Cord

LC/Upc to LC/Upc Polarity Reversible Om3 Om4 Uniboot Duplex Patch Cord

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
Uniboot
Connection Structure
LC to LC
Material Shape
Round Wire
Core
Duplex
Certification
RoHS, CE, ISO9001
Sheath Material
LSZH / PVC / OFNP
Fiber Mode
OM3 / OM4 Multimode
Insertion Loss
≤ 0.3 dB
Return Loss
≥ 30 dB
Operating Temp
-40°c to +85°c
Origin
China
Package Size
20.00cm * 20.00cm * 15.00cm

Product Description

The LC UPC to LC UPC Polarity Reversible OM3 & OM4 Uniboot Duplex Fiber Optic Patch Cable is a compact and efficient cabling solution designed for modern high-speed networks. This cable is ideal for applications requiring space-saving and flexible cabling in data centers and enterprise networks. Its uniboot design and reversible polarity feature simplify installation and maintenance, ensuring a reliable and scalable network infrastructure.

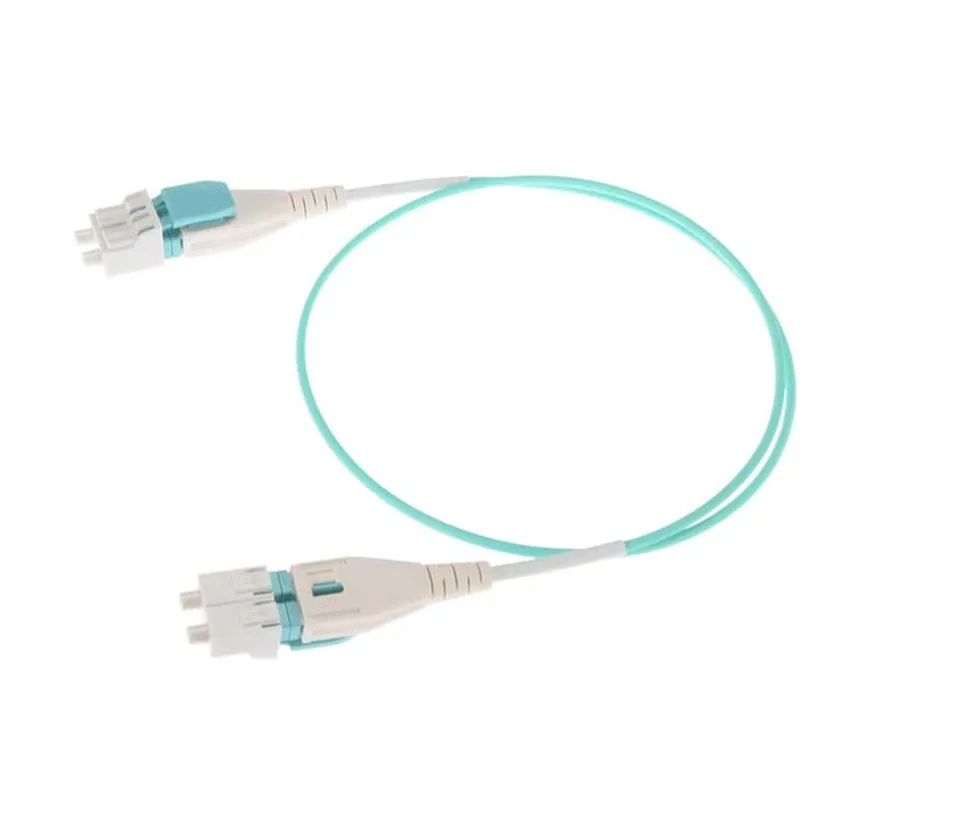

Uniboot Duplex Fiber Optic Patch Cable

Key Applications & Features

Applications:
  • ✔ Data centers and server rooms with high-density requirements.
  • ✔ Backbone connections for 10G, 40G, and 100G Ethernet.
  • ✔ High-performance computing and SANs.
  • ✔ Indoor short-reach multimode fiber applications.
Core Features:
  • ★ Polarity Reversible: Quick switching without tools.
  • ★ Uniboot Connector: Reduces cable bulk significantly.
  • ★ High Speed: Supports up to 100Gbps transmission.
  • ★ Durable: Minimum bend radius of 7.5mm-30mm.

Technical Parameters

Parameter Specification
Connector TypeLC UPC to LC UPC (Duplex Uniboot)
Fiber ModeMultimode OM3 / OM4
Outer Diameter3.0mm round uniboot
Jacket MaterialLSZH / PVC / OFNP
Insertion Loss≤ 0.3 dB
Return Loss≥ 30 dB
Polish TypeUPC
Operating Temp-20°C to +70°C
PolarityReversible (A-B/B-A)
Cable Length1m / 2m / 3m / 5m / 10m / Custom

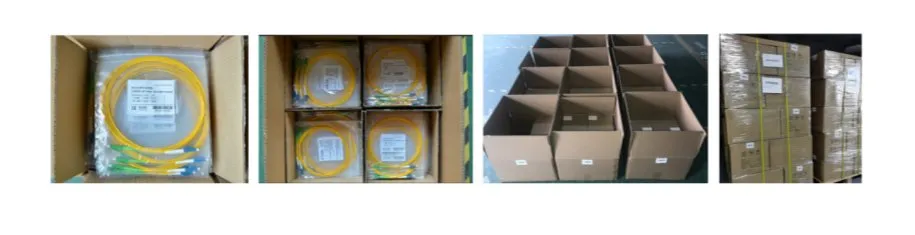

Feature Details 1

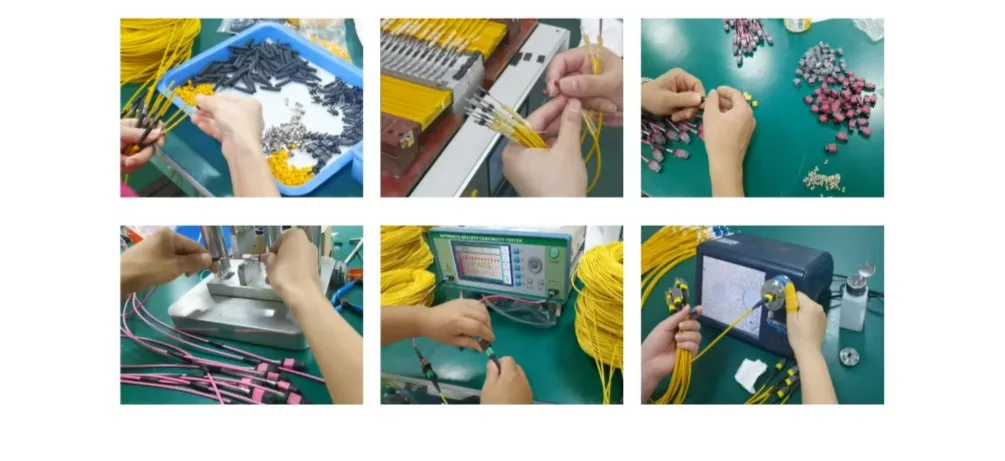

Feature Details 2

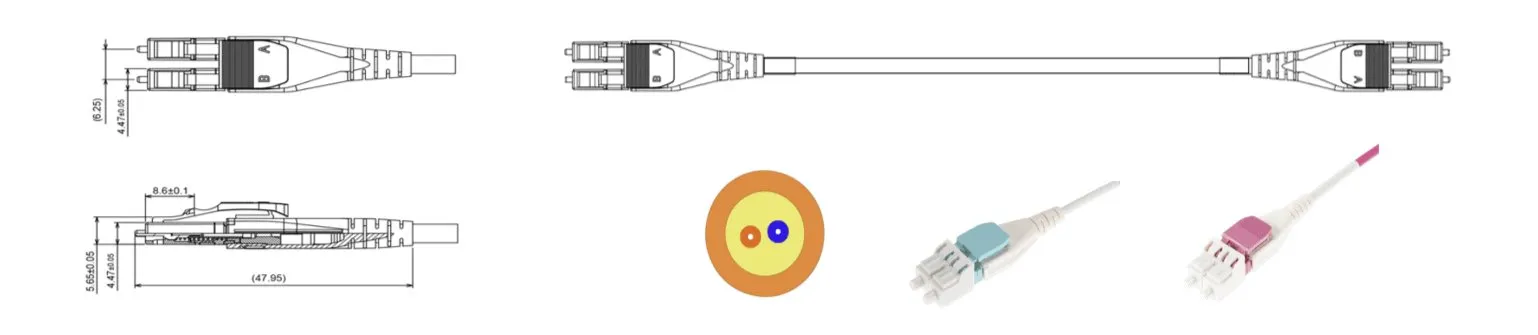

Feature Details 3

Customization Options

Jacket Color
Aqua, Erika Violet, Custom
Connector Type
LC, SC, FC, Hybrid
Cable Length
0.5m–30m
Lead Time
6–9 working days

Global Presence

Participated in major industry exhibitions including: ICT Poland, Cairo ICT, TechEXPO USA, LEAP Saudi Arabia, and Expo ISP Peru.

Packing Info
Quality Control

Frequently Asked Questions

Q1: Can I get different connector combinations? A1: Absolutely. SC, LC, FC, and hybrid configurations are available.
Q2: What's the typical lead time for bulk orders? A2: 7–9 working days for quantities under 10,000 pcs.
Q3: Do you support OEM with logo and packaging? A3: Yes, OEM/ODM services including labeling, packaging, and printing are supported.
Q4: What test reports are provided? A4: Each cord comes with IL/RL test reports and is CE/RoHS/ISO9001 certified.
Q5: What's the MOQ for custom lengths? A5: We support MOQ as low as 50 pcs for custom specifications.
Q6: Are samples available before bulk orders? A6: Yes, free samples are available. Shipping charges may apply.
