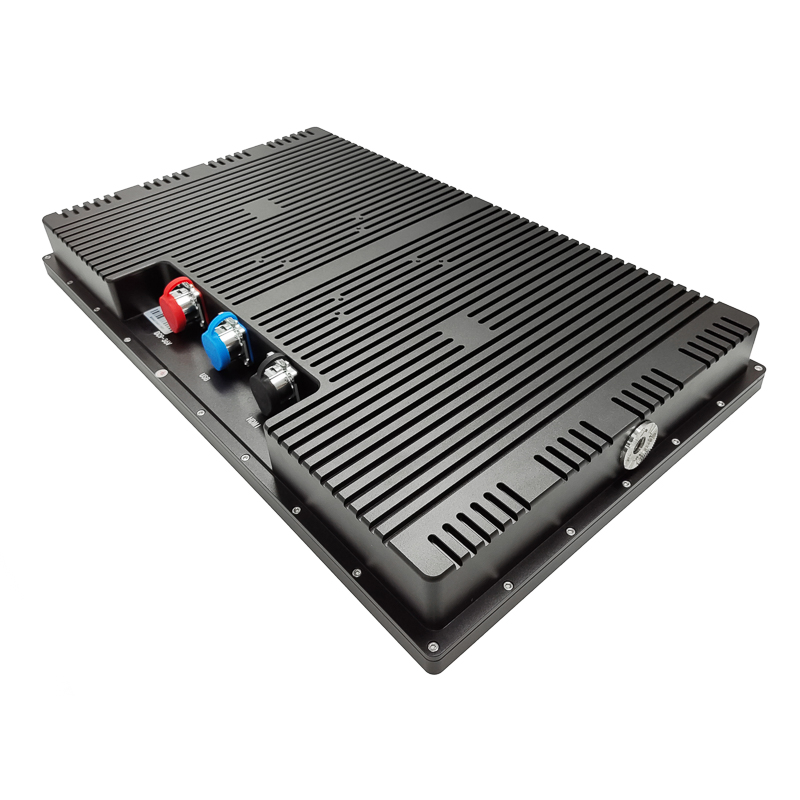

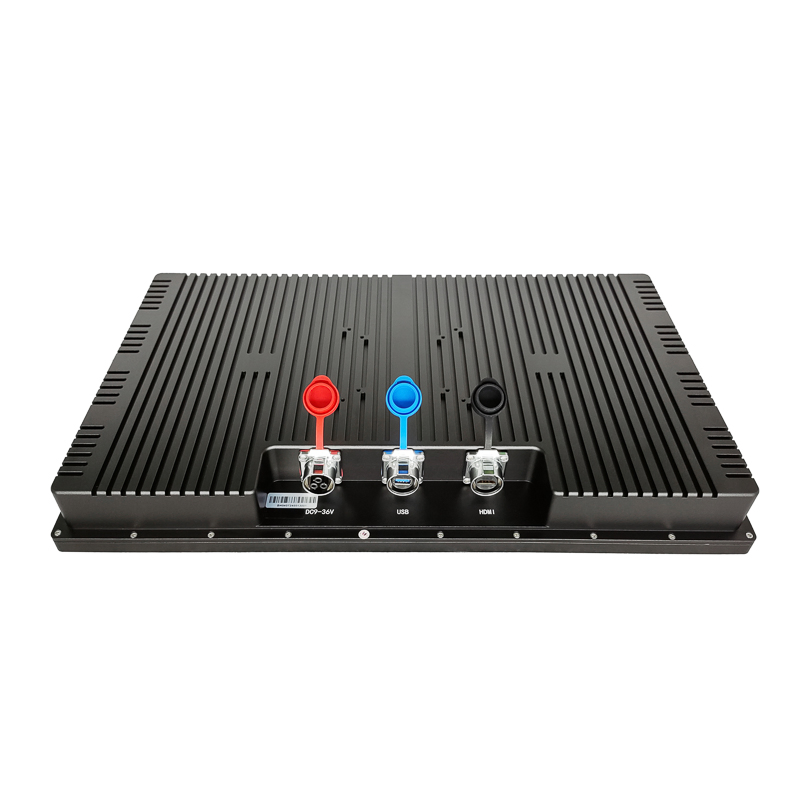

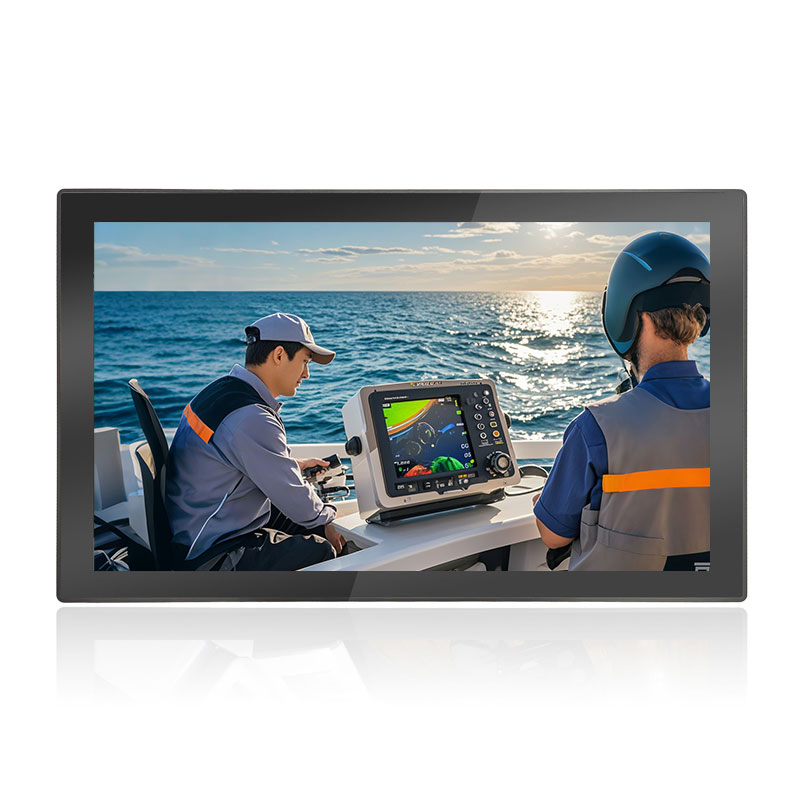

OEM IP67 Industrial Waterproof Marine 21.5 Inch Outdoor LCD Industrial Touchscreen Display

Customization:	Available
Screen Size:	21.5"
Application:	Indoor, Computer, Advertising, Outdoor

Introducing the cutting-edge 21.5 Inch LCD Display, masterfully crafted for superior performance and visibility. With an impressive 1000 nits brightness, this sunlight-readable, industrial touch monitor is fully IP67 certified, with a robust optical bonding to ensure unmatched durability and functionality.

Basic Info.

Model NO.

SL215W

Aspect ratio

16:9

Feature

Touch Display, IP67 Waterproof

Optimum Resolution

1920x1080

Type

TFT

Response Time

5ms

Interface Type

HDMI

Touchscreen Type

Project Capacitive Touch

IP Grade

Full IP67 Waterproof

Temperature

-20 to 70 Celsius

Main Products

Core Features

🛡️ Full IP67 Protection: Aluminum alloy bezel with sandblasting and hard anodizing. UV-protection and anti-discoloration treatment for harsh environments.

☀️ Sunlight Readable: Industrial LCD panel with 1000 nits brightness and auto-dimming light sensor for perfect visibility.

👆 Precise Touch: 10-point PCAP touch panel with 2mm tempered glass, 7H hardness, and anti-glare treatment.

💧 Waterproof Solution: Advanced EETI touch solution ensures functionality even with water droplets on the screen.

🌡️ Industrial Durability: Supports 24/7 continuous operation in temperatures ranging from -20°C to 70°C.

🔗 Optical Bonding: Full bonding between touchscreen and LCD for superior clarity and responsiveness.

Product Details & Feedback

Technical Specification

LCD Panel
Panel Size	21.5"
Resolution	1920*1080
Brightness	1000 nits sunlight readable
Contrast Ratio	1000:1
View Angle	89°/89°/89°/89° (R/L/U/D)
Backlight	WLED, 50K hours
Touch Panel
Touchscreen Type	Projected Capacitive Touch (10 points)
Surface Hardness	7H
Surface Treatment	Anti-glare (chemical etching)
Touch Bonding	Optical bonding
Environmental & Power
Working Voltage	DC 9-36V
IP Rating	Full IP67 waterproof
Operating Temp	-20 °C ~ 70°C

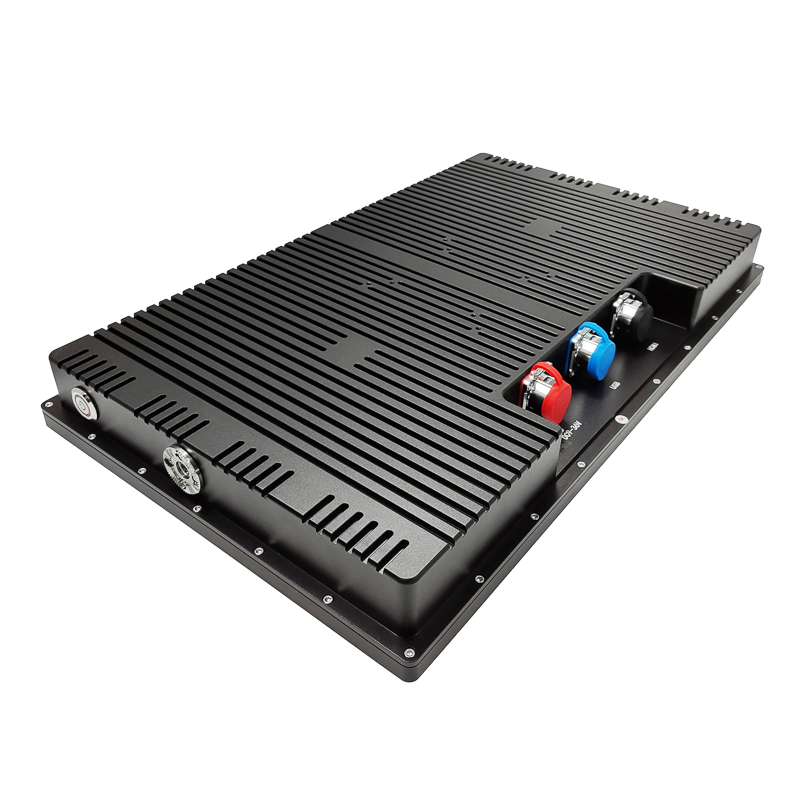

Material	Aluminium alloy bezel + Housing

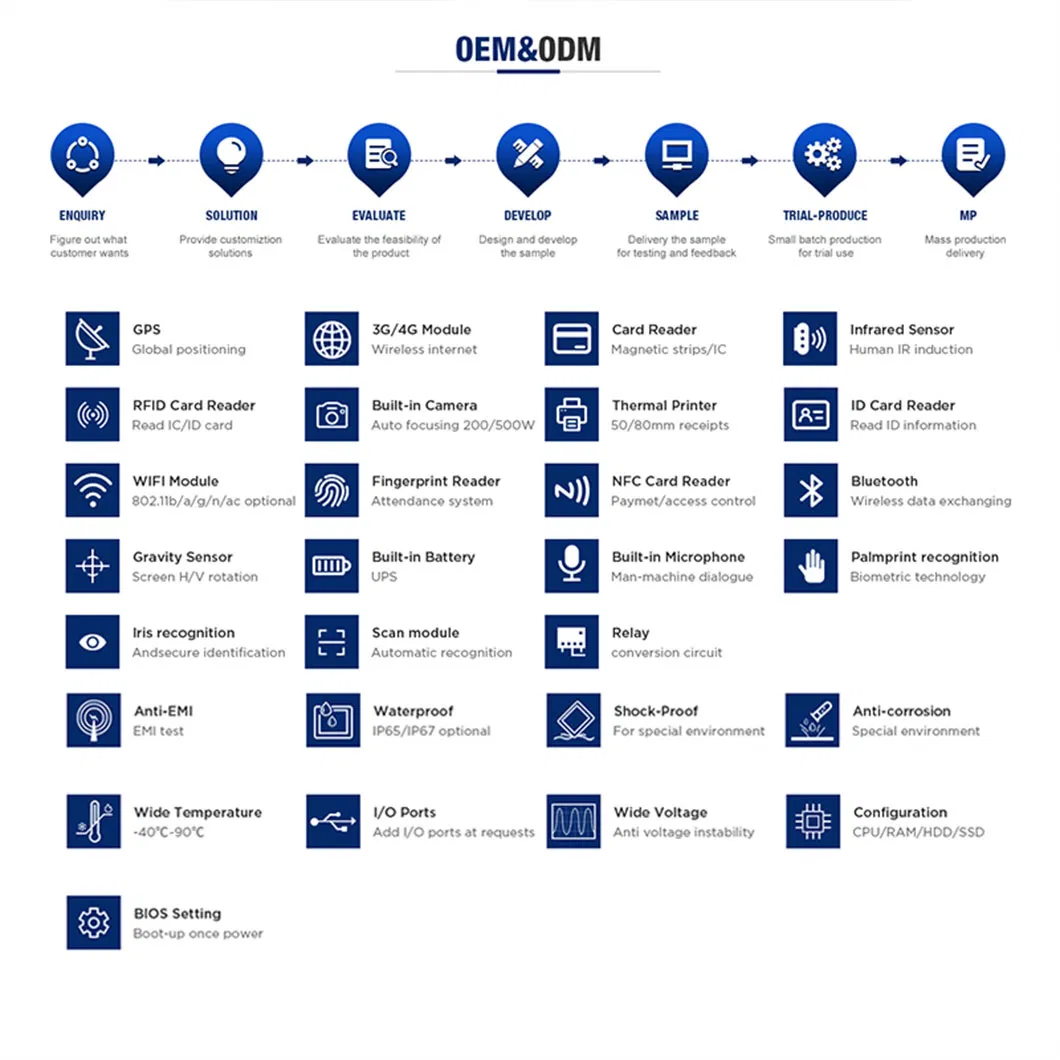

Customization & Quality

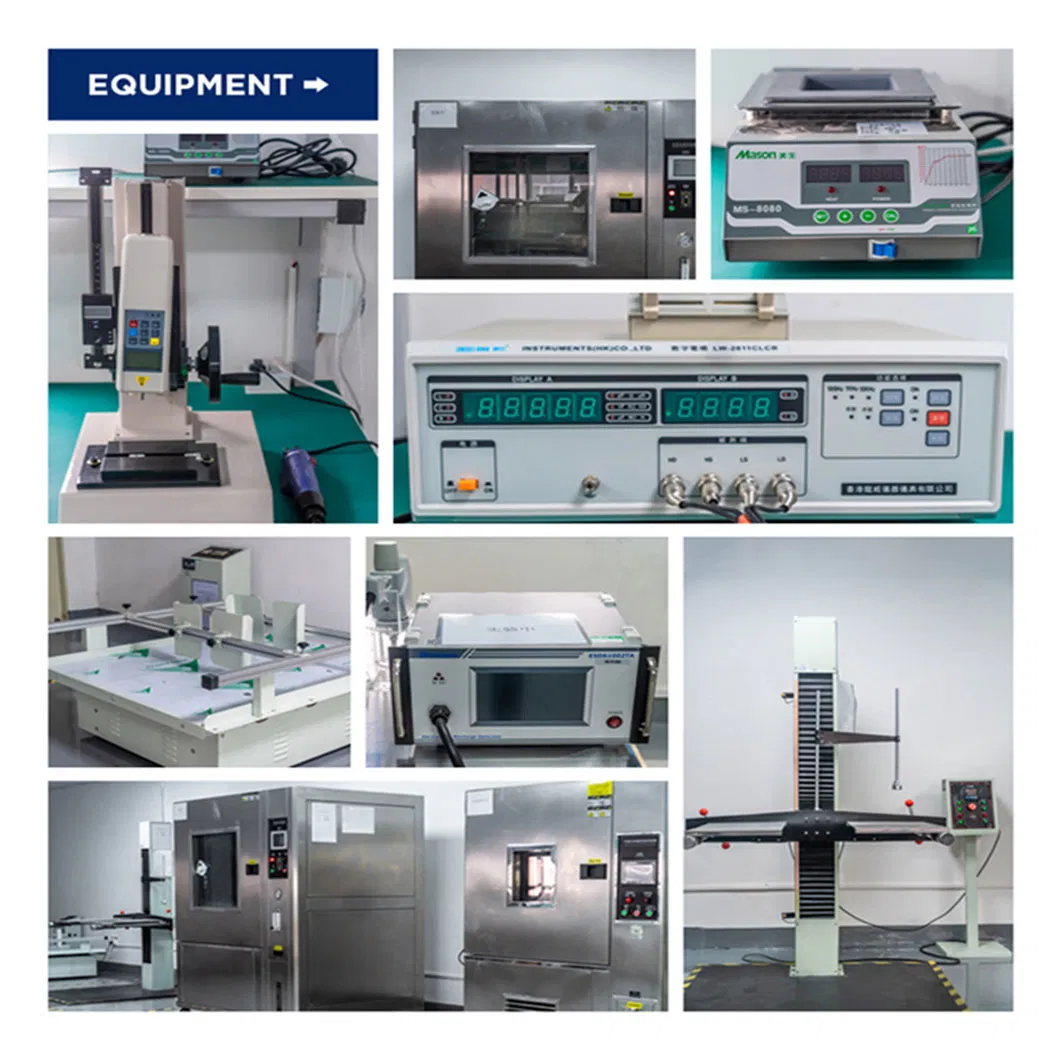

Production Excellence

Frequently Asked Questions

What does Full IP67 waterproof rating mean for this monitor?

It means the entire unit, including the front, back, and all I/O ports (when using the provided waterproof cables), is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.

Is the screen visible under direct sunlight?

Yes, the monitor features a high-brightness 1000 nits LCD panel and optical bonding technology, specifically designed for sunlight readability and outdoor applications.

Does the touch screen work if there is water on it?

Yes, the monitor utilizes an advanced EETI waterproof touch solution, allowing the 10-point PCAP touch functionality to remain responsive even when the screen surface is wet.

What is the operating temperature range for this industrial display?

The monitor is built with industrial-grade components to operate reliably in a wide temperature range from -20°C to 70°C (-4°F to 158°F).

What are the benefits of optical bonding used in this model?

Optical bonding eliminates the air gap between the touch screen and the LCD, which reduces internal reflections, increases contrast, prevents internal condensation (fogging), and improves overall durability.

What kind of mounting options are supported?

The monitor supports standard VESA mount 75x75mm and 100x100mm, has M10 screw holes on the sides, and supports gimble mount installations.
