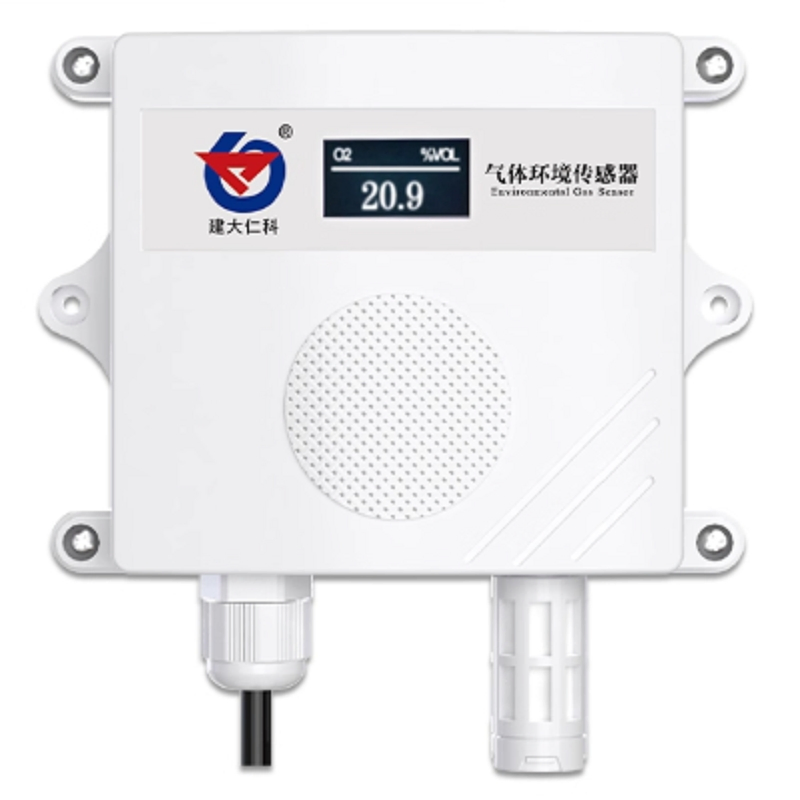

Renke Environmental Gas Transmitter RS485 4-20mA Oxygen Sensor O2
Renke Environmental Gas Transmitter RS485 4-20mA Oxygen Sensor O2
Renke Environmental Gas Transmitter RS485 4-20mA Oxygen Sensor O2
Renke Environmental Gas Transmitter RS485 4-20mA Oxygen Sensor O2
Renke Environmental Gas Transmitter RS485 4-20mA Oxygen Sensor O2
1 / 5
Renke Environmental Gas Transmitter RS485 4-20mA Oxygen Sensor O2
Renke Environmental Gas Transmitter RS485 4-20mA Oxygen Sensor O2
Renke Environmental Gas Transmitter RS485 4-20mA Oxygen Sensor O2
Renke Environmental Gas Transmitter RS485 4-20mA Oxygen Sensor O2
Renke Environmental Gas Transmitter RS485 4-20mA Oxygen Sensor O2

Renke Environmental Gas Transmitter RS485 4-20mA Oxygen Sensor O2

Customization: Available
Type: SemiConductor Gas Sensor
Conductivity Type: Non-conductivity Type
Send Inquiry

Product Description

Basic Information
Model NO.
RS-O2-*-2-*-EX
Output Signal
RS485/4-20mA/0-5V/0-10V
Process
SemiConductor Integrated
Material
Plastic
IP Rating
IP65
Power Supply
10~30V DC
Accuracy
±2%Fs
Resolution
0.1%Vol
Pressure Range
90~110kpa
Stability
≤5% Signal Value/Year
Product Description
Our oxygen sensor has the characteristics of rapid response and strong anti-interference ability. Utilizing unique compensation algorithms and multi-stage standard gas calibration, it offers high accuracy, sensitive response, and strong stability. It is widely used in warehouses, workshops, chemical plants, greenhouses, farms, and other environments requiring real-time oxygen monitoring.

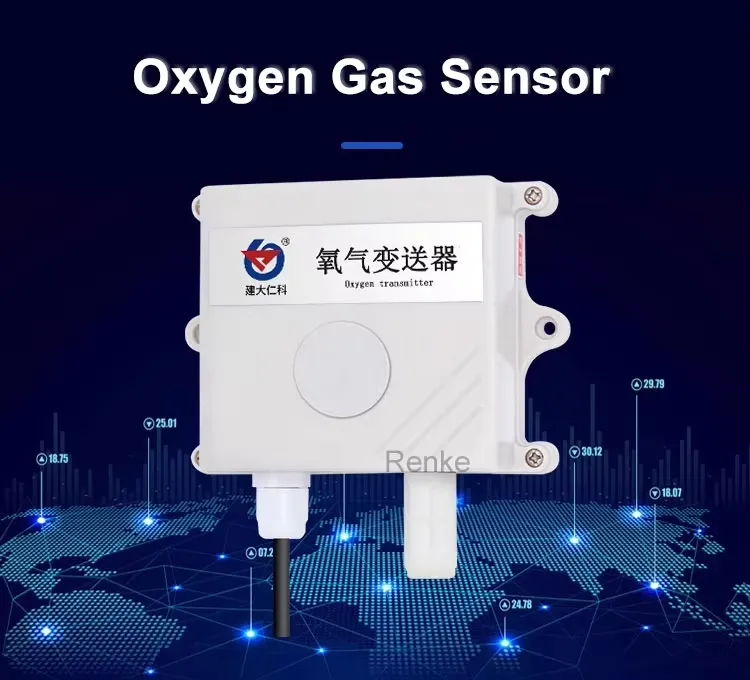

Oxygen Sensor Diagram

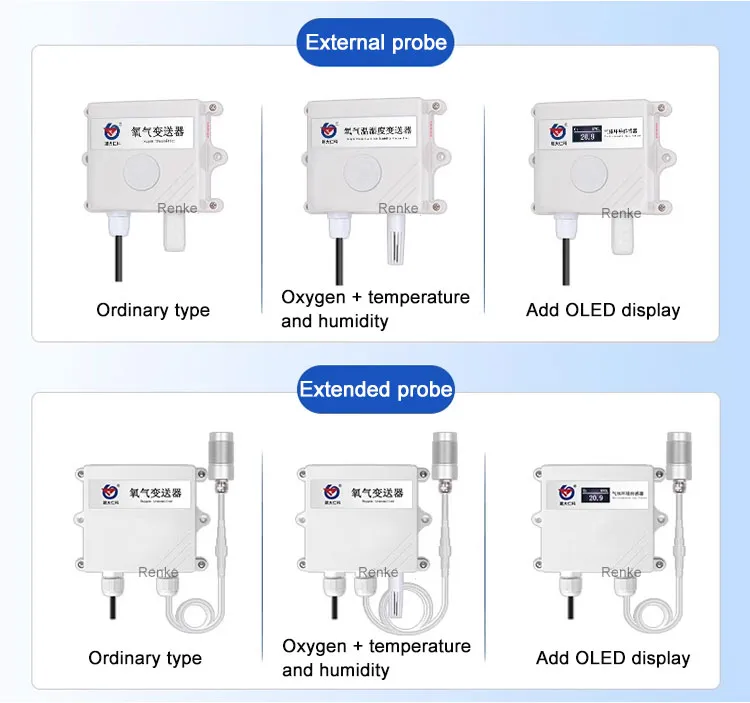

Oxygen Sensor Appearance
Technical Specifications
Parameters RS485 Output Analog (0-5V/0-10V/4-20mA)
Power consumption0.12W0.25W
Measure range0~30%VOL0~25%VOL
Accuracy±2%FS
Working environment-20~50℃, 5~95%RH non-condensing
Response time≤10s
Repeatability≤1%
Zero drift±0.3%VOL
Key Features
✔
Customizable measurement ranges (Analog 0-25%VOL, RS485 0-30%VOL default).
✔
High accuracy up to ±2%FS with repeatability within 1%.
✔
Optional high-quality OLED display for real-time on-site viewing, even at night.
✔
Wide voltage power supply (10~30V DC) adaptable to various on-site power sources.
✔
Wall-mounted waterproof shell with high protection level for harsh environments.

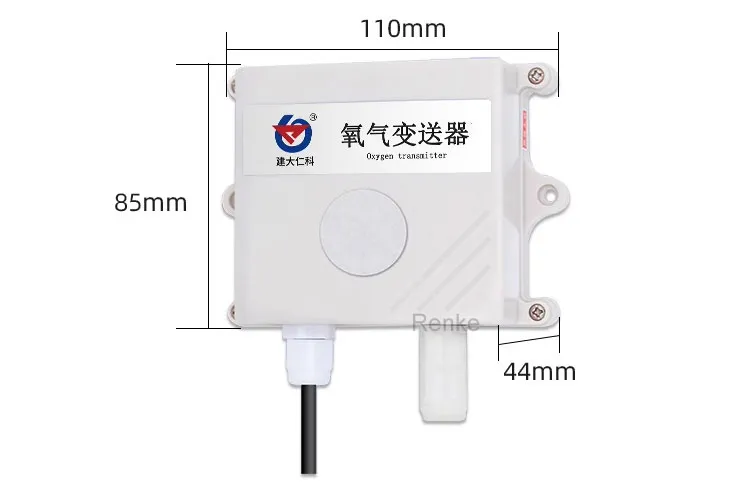

Oxygen Sensor Detail

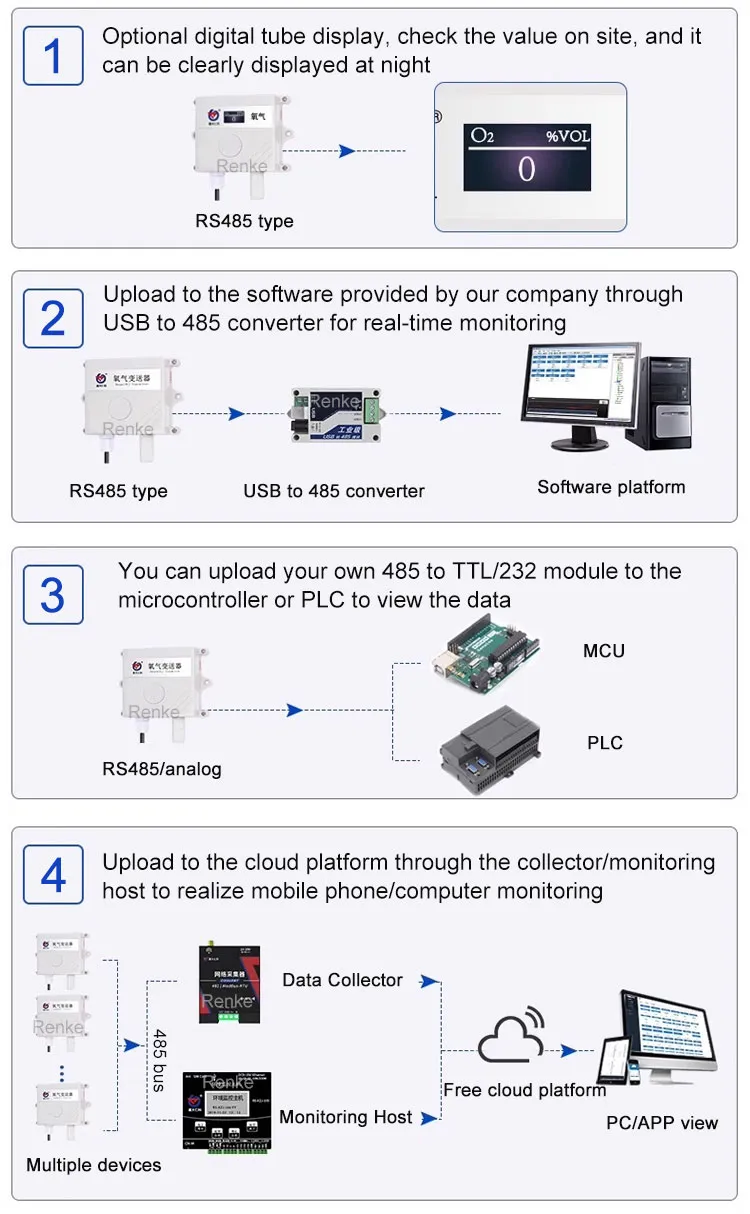

Data View and Dimensions
Frequently Asked Questions
Q1: Are you the original manufacturer?
Yes, we are a leading sensor manufacturer with over 15 years of industry experience.
Q2: Do you provide OEM services?
Yes, we offer professional OEM services, including custom logo marking and design.
Q3: What is the typical lead time for orders?
Orders are typically processed within 24 hours of payment confirmation. For bulk orders over 100 pieces, an additional 1-2 working days may be required.
Q4: What are the available payment and shipping methods?
We accept T/T, PayPal, and online payments. Shipping is typically handled via DHL, FEDEX, UPS, or TNT.
Q5: What is the warranty policy for the sensors?
We provide a 24-month quality guarantee and free exchange service within the first month for quality-related issues.
Q6: Can the measurement range be customized?
Yes, while our standard ranges are 0-25%VOL for analog and 0-30%VOL for RS485, other specific ranges can be customized to your requirements.
