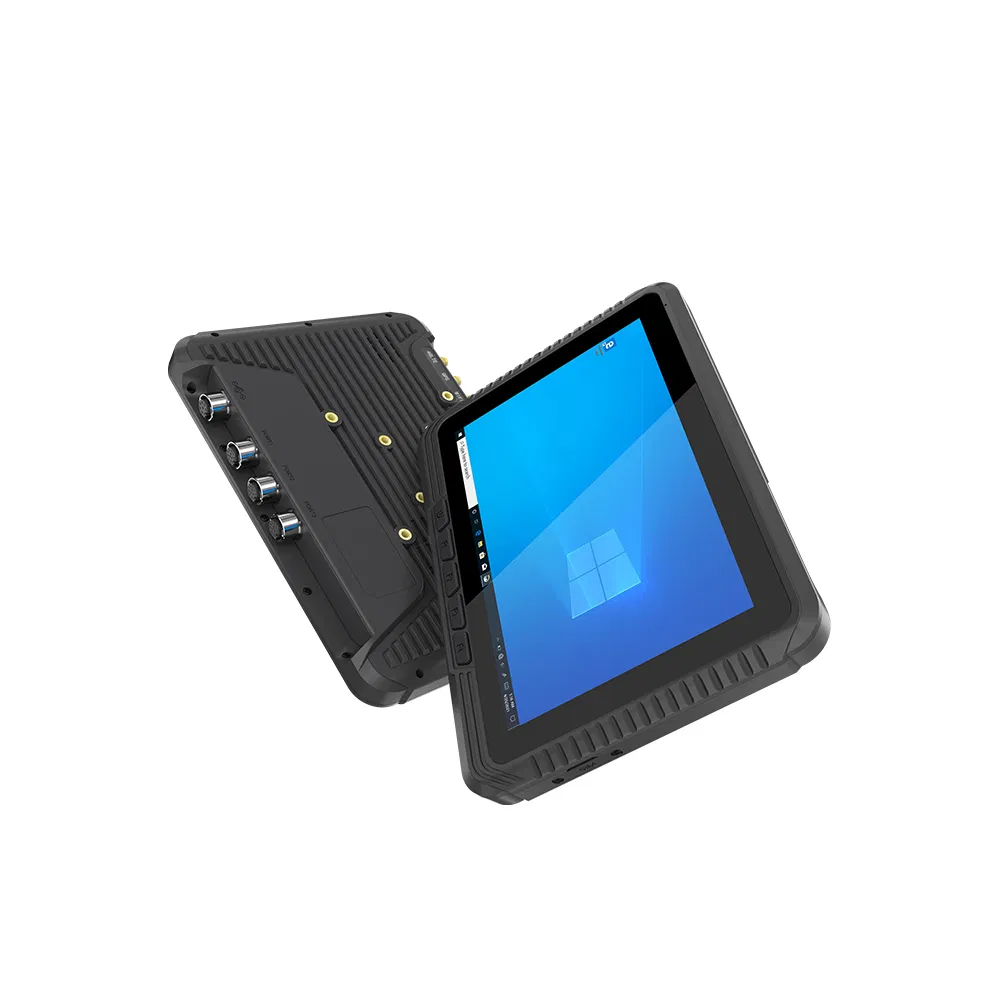

Touch Panel Vehicle HDMI PC Monitor Computer with Desktop Wall Embedded
Touch Panel Vehicle HDMI PC Monitor Computer with Desktop Wall Embedded
Touch Panel Vehicle HDMI PC Monitor Computer with Desktop Wall Embedded
Touch Panel Vehicle HDMI PC Monitor Computer with Desktop Wall Embedded
Touch Panel Vehicle HDMI PC Monitor Computer with Desktop Wall Embedded
1 / 5
Touch Panel Vehicle HDMI PC Monitor Computer with Desktop Wall Embedded
Touch Panel Vehicle HDMI PC Monitor Computer with Desktop Wall Embedded
Touch Panel Vehicle HDMI PC Monitor Computer with Desktop Wall Embedded
Touch Panel Vehicle HDMI PC Monitor Computer with Desktop Wall Embedded
Touch Panel Vehicle HDMI PC Monitor Computer with Desktop Wall Embedded

Touch Panel Vehicle HDMI PC Monitor Computer with Desktop Wall Embedded

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
VPC80J-6
Type
IPS Panel
Size
264.5*184.1* 23mm
Color
Black
Certificate
CE/RoHS/FCC
Installation
Wall-Mounted
Application
Medical, Commercial, Industrial
Touch Screen
5 Point
CPU Type
Quad Core
Power Supply
12V 3A
Production Capacity
10000PCS/Month
Origin
China
Product Highlights
💻 High Performance

Intel Jasper Lake processor Celeron N5100
Windows 10 OS, Up to 16GB+512GB
8 inch IPS screen, 700nit brightness

📡 Communication

2.4G/5.8G Dual band WIFI
Optional high speed 4G LTE
BT 5.0 fast transmission

🛡️ Reliability

IP65 Waterproof and Dustproof
Wide temperature: -20ºC to 60ºC
±8kV Contact / ±15kV Air Discharge

⚙️ Advanced Features

Optional NFC recognition
Support GPS, BDS and GLONASS
Flexible expansion aviation plugs

Technical Specifications
Tech Spec
Product Form8 inch Vehicle-mount Terminal
Dimension218.1*154.5*23.0 mm
Weight620g
Hardware Configuration
CPUIntel JASPER LAKE N5100 Max 2.8GHz
GPUIntel® HD Graphics Gen 11 LP
MemoryRAM 4GB (Optional up to 16GB) / ROM 64GB (Optional up to 512GB)
Operating SystemWindows 10 Home (Optional IOT/Pro)
Display & Touch
Display10.1 inch 16:10, 800*1280 IPS, 700cd/㎡
Touch Panel5-point tempered glass capacitive screen G+G, 7H hardness
Audio & Power
Speaker/Mic1.5W Speaker / Single MIC
Battery (Tablet)Optional 1000mAh/7.4V (Used for data protection during power off)
Wireless Connectivity
WIFI / BTDual frequency 2.4G+5.8G / BT5.0 (BLE) class1
4G / GPSOptional 4G LTE / Built-in GPS & GLONASS
Product Gallery

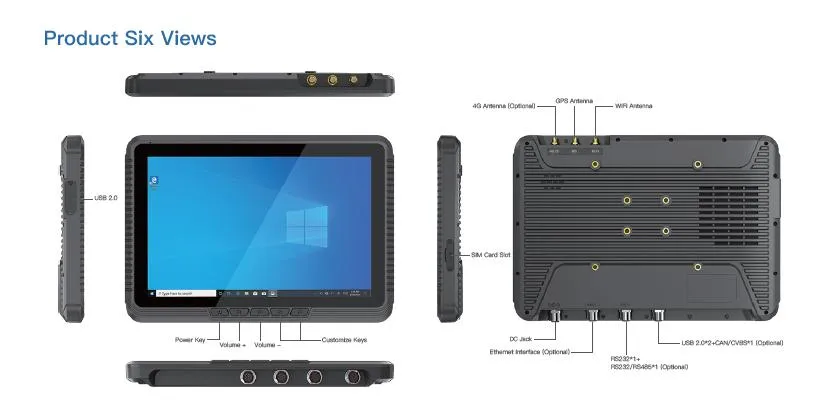

Vehicle Monitor Display

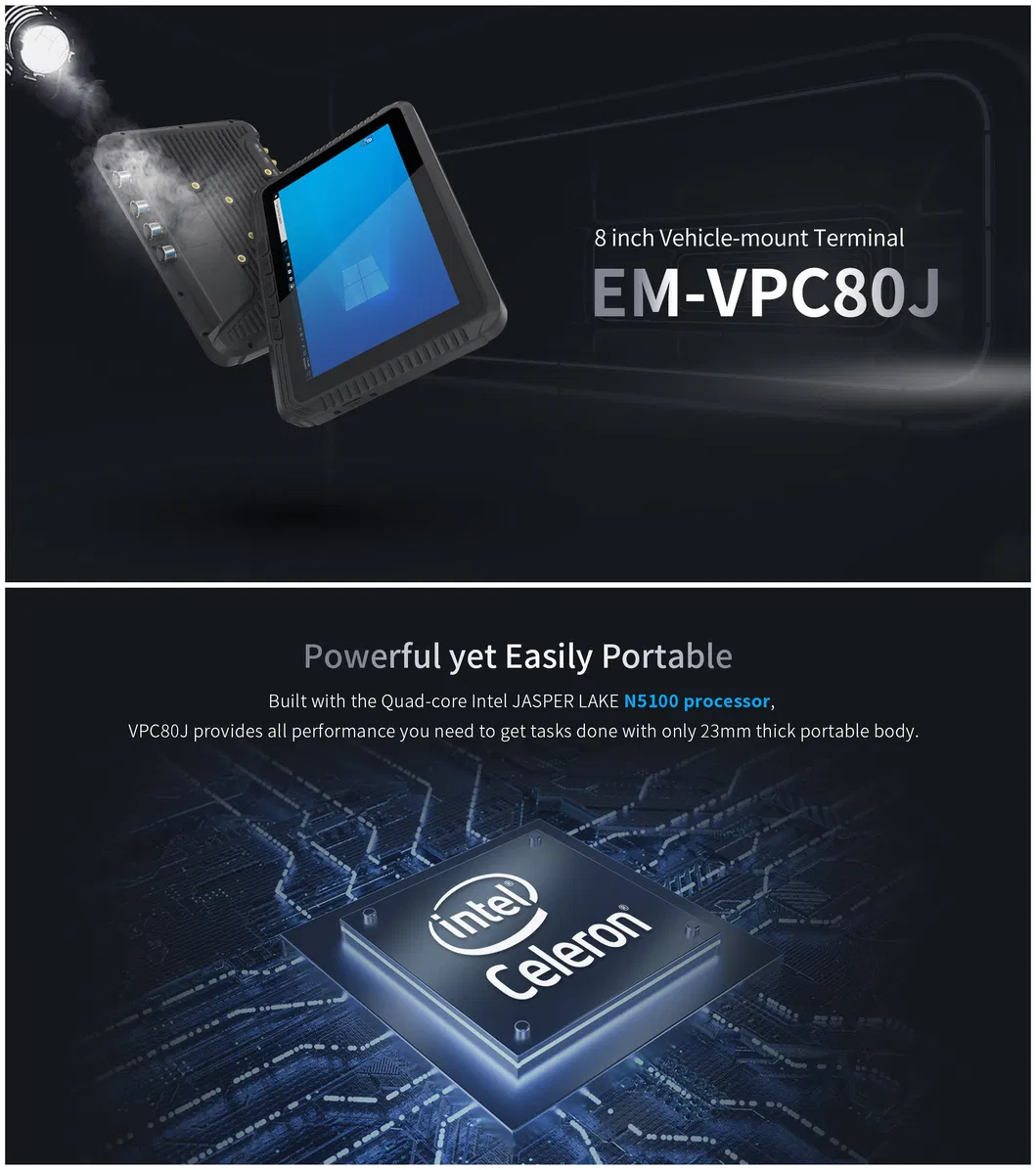

Embedded PC View 1
Embedded PC View 2

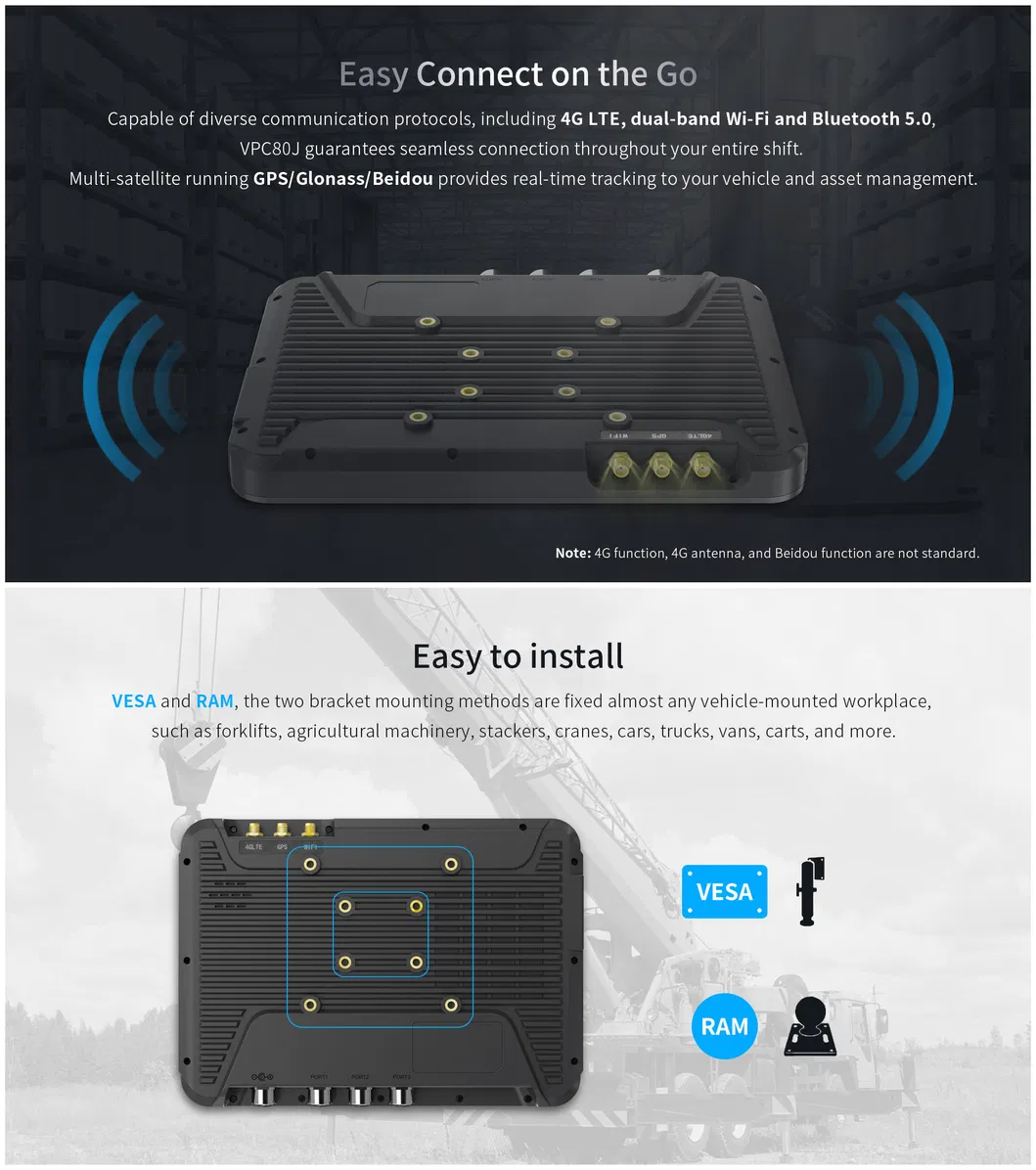

Embedded PC View 3
Vehicle Mounting Detail

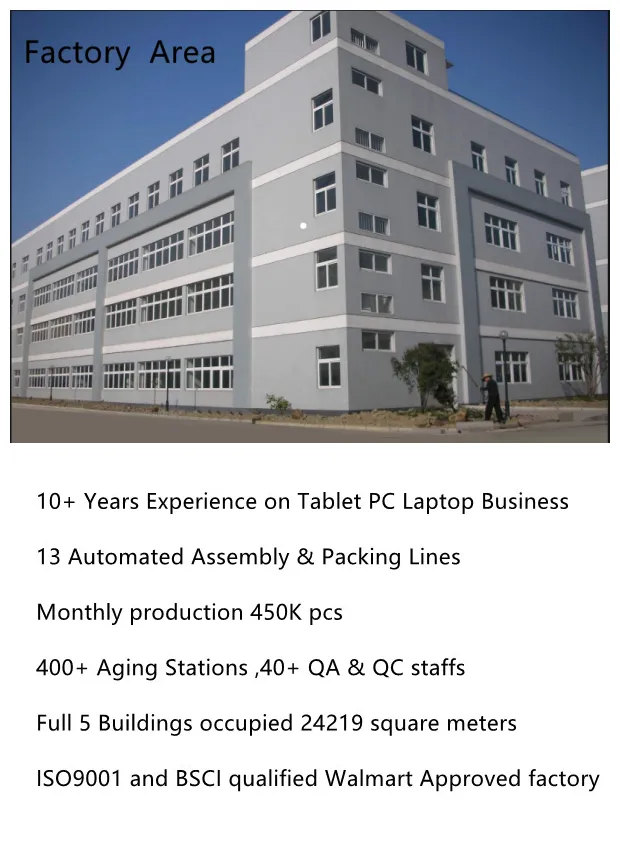

Industrial Application

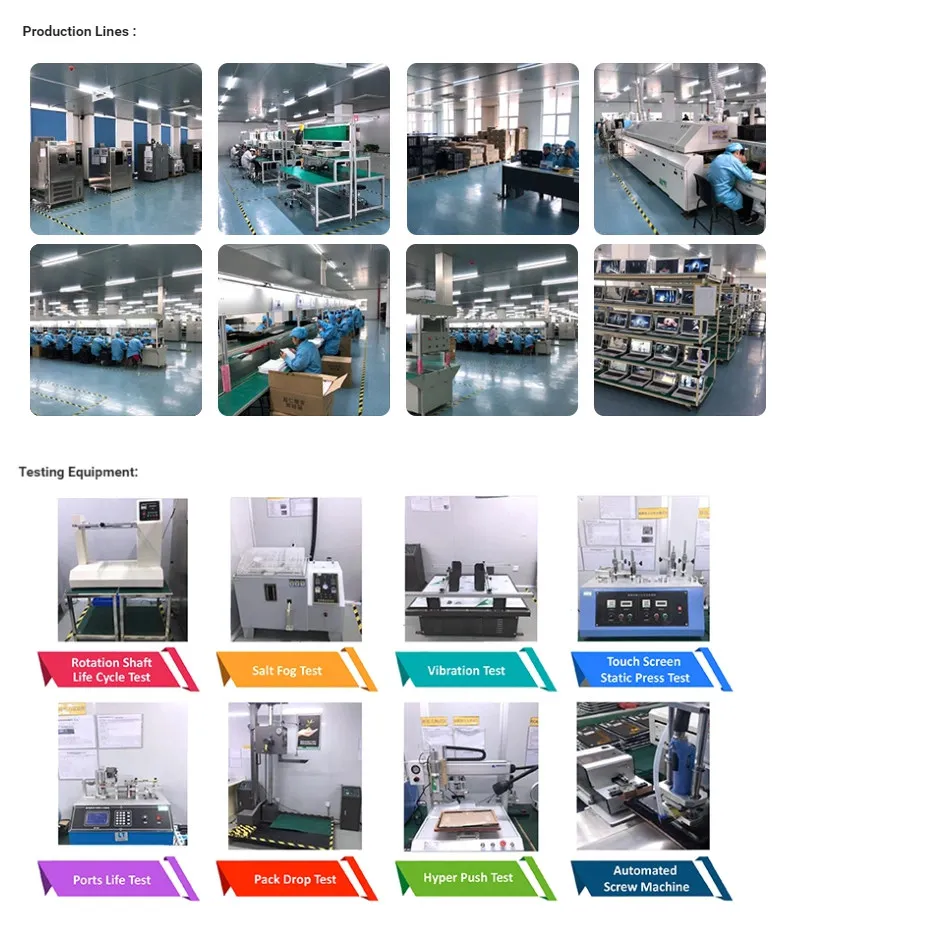

Quality Testing
Hardware Certification
Frequently Asked Questions
Q1: What operating systems are supported on this terminal? The device comes standard with Windows 10 Home, with options for Windows 10 IOT and Windows 10 Pro versions.
Q2: How readable is the screen in outdoor or bright environments? The 8-inch IPS screen features a high brightness of 700 nits, ensuring excellent visibility even in bright commercial or industrial conditions.
Q3: Is this device suitable for harsh industrial environments? Yes, it is rated IP65 for waterproof and dustproof protection and can operate in wide temperatures ranging from -20ºC to 60ºC.
Q4: What are the wireless connectivity options? It supports 2.4G/5.8G Dual band WIFI, Bluetooth 5.0, and has an option for high-speed 4G LTE communication.
Q5: Does the terminal have an internal battery? An optional 1000mAh/7.4V polymer lithium-ion battery is available to support normal power-off procedures and protect user data during power interruptions.
Q6: What mounting methods are available for installation? The device is designed for vehicle-mount and wall-mounted installations, making it versatile for medical, commercial, and industrial applications.
