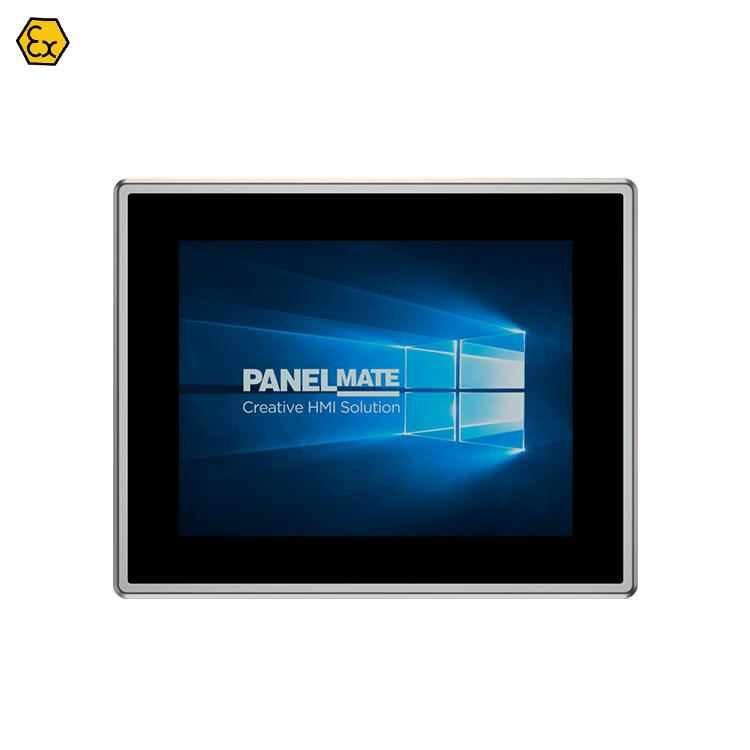

📘 Basic Specifications
Model NO.
IPC22121EX-i3-4G-128G
Storage
128g, Support up to 512GB
Operating System
Win7/8/10/Linux/Wes 7/Vxworks
LAN
2xintel I210 1000Mbps RJ45 LAN
CPU Type
Intel Celeron 3855u/3865u
Installation
Wall-Mounted, Desktop and Vesa Mounting
Housing
Aluminum-Magnesium Alloy

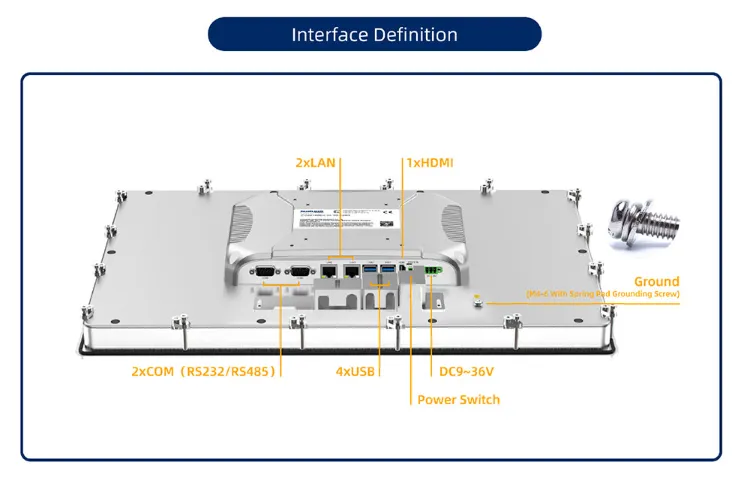

Expansion Slot
2*COM, 2*LAN, 4*USB2.0, DC Power, HDMI

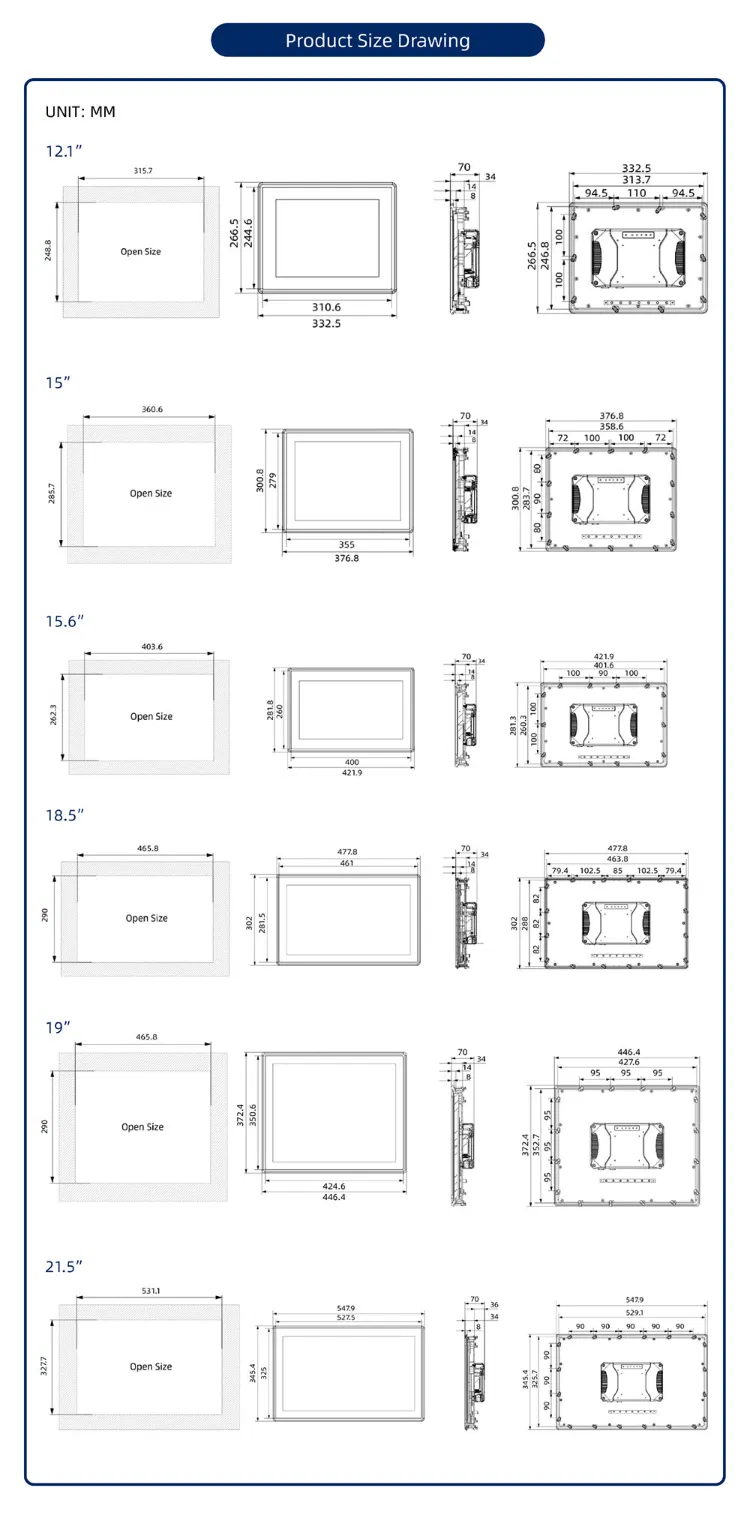

Dimensions
332.5*266.5*69mm
📦 Packaging & Delivery
Package Size
39.10cm * 32.10cm * 10.50cm
🔍 Product Description & Technical Table
| Model |
IPC2X121EX |
IPC2X150EX |
IPC2X156EX |
IPC2X185EX |
IPC2X190EX |
IPC2X215EX |

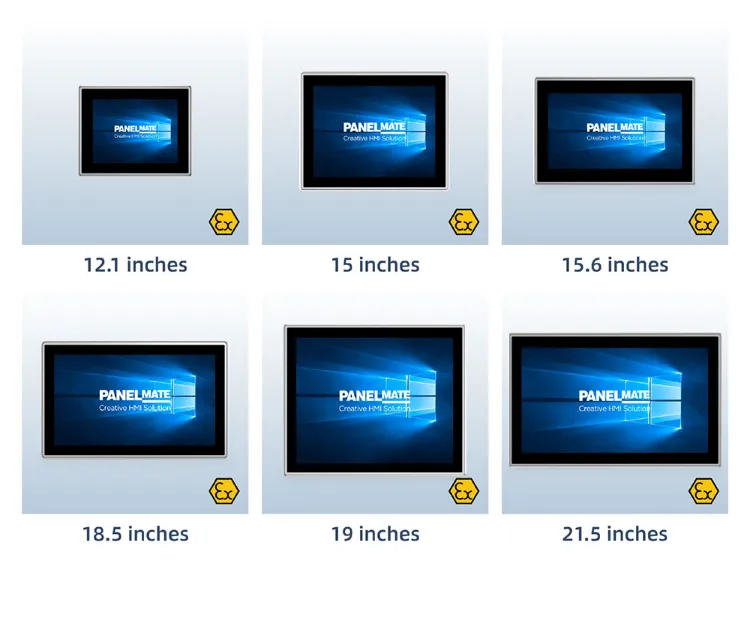

| Display Size | 12.1" | 15" | 15.6" | 18.5" | 19" | 21.5" |
| Resolution | 1024x768 | 1024x768 | 1366x768 | 1366x768 | 1280x1024 | 1920x1080 |
| Proportion | 4:3 | 4:3 | 16:9 | 16:9 | 5:4 | 16:9 |
| Contrast Ratio | 800:1 | 800:1 | 500:1 | 1000:1 | 1000:1 | 500:1 |
| Luminance (cd/㎡) | 350 | 420 | 250 | 500 | 250 | 300 |
| Power (w) | 34 | 36 | 43 | 41 | 39 | 50 |
❓ Frequently Asked Questions

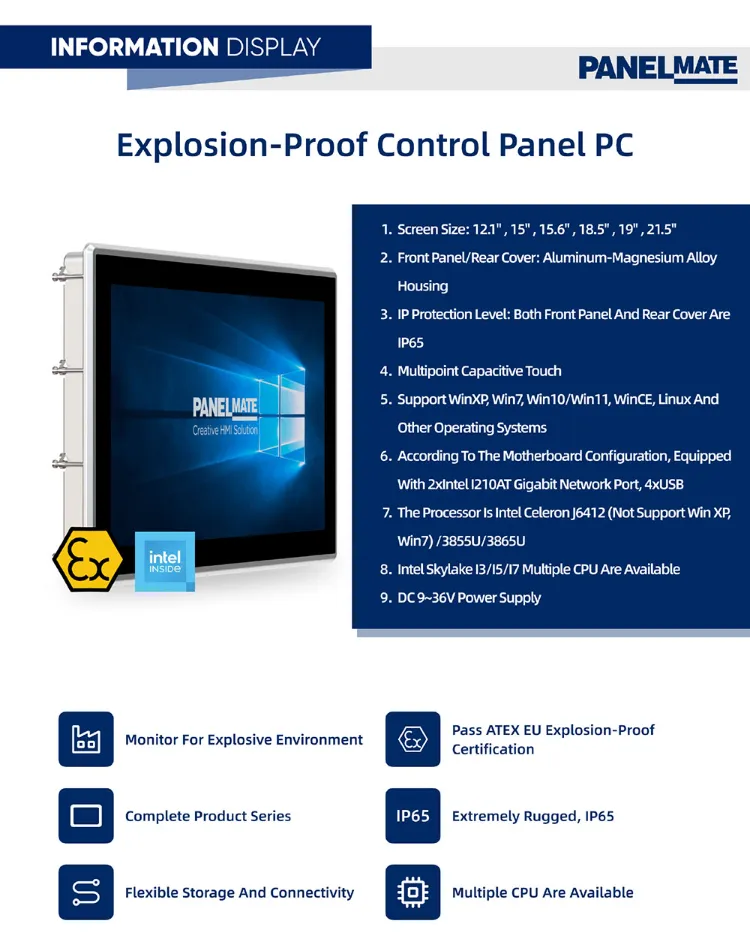

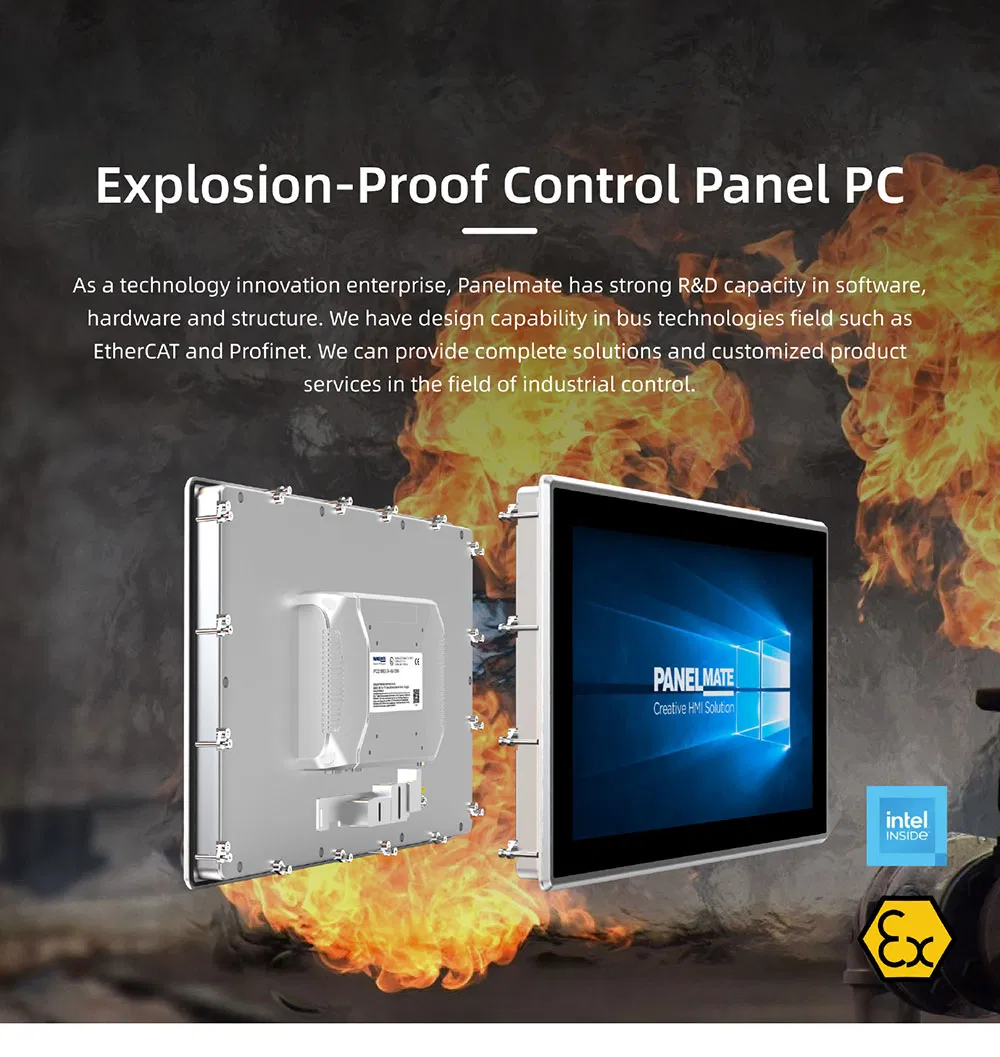

1. Does this Industrial Panel PC support ATEX certification?
Yes, this model is ATEX certified, making it suitable for explosion-proof environments and hazardous industrial applications.
2. What are the available mounting options for this device?
The device is versatile and supports Wall-Mounted, Desktop, and standard VESA Mounting installations.
3. Can the RAM and storage capacity be upgraded?
The system comes with 4GB RAM (expandable up to 8GB) and 128GB storage (support up to 512GB).
4. What type of touch screen technology is used?
This panel PC utilizes high-quality capacitive touch screen technology for precise and responsive interaction.
5. What is the power input range for the IPC22121EX?
The system supports a wide range DC power supply from 9V to 36V, ensuring stability in industrial power environments.
6. Which operating systems are compatible with this device?
It supports multiple operating systems including Windows 7, 8, 10, Linux, Wes 7, and Vxworks.
