Product Description

📋

Basic Information

Model NO.SK-K15DR
Protection RatingIP65 Waterproof
Screen Type10.4", 12.1", 15", 17", 19" LED Screen
Contrast Ratio700:1
Screen Ratio4:3

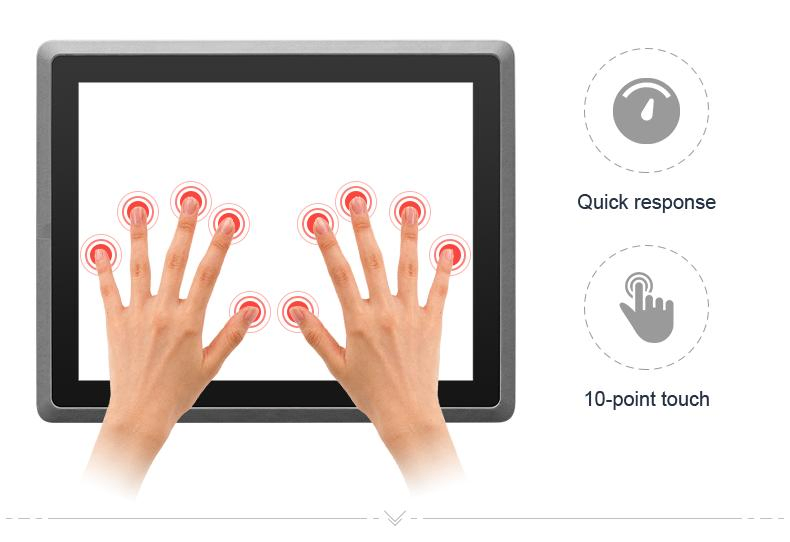

Touch Point10 Point Touch
Response TimeLess Than 5ms
Heat DissipationFanless Aluminum Fin
InstallationWall Mounted, Desktop, Embedded
HS Code8521909090
📦

Packaging & Delivery

Package Size33.00cm * 13.00cm * 34.00cm
Gross Weight4.500kg
Transport PackageFoam Carton or Custom Wooden Case
🔍

Product Description

Sunlight readable 1000nits IP65 rated all in one PC touchscreen explosion proof fanless industrial panel PC windows 10

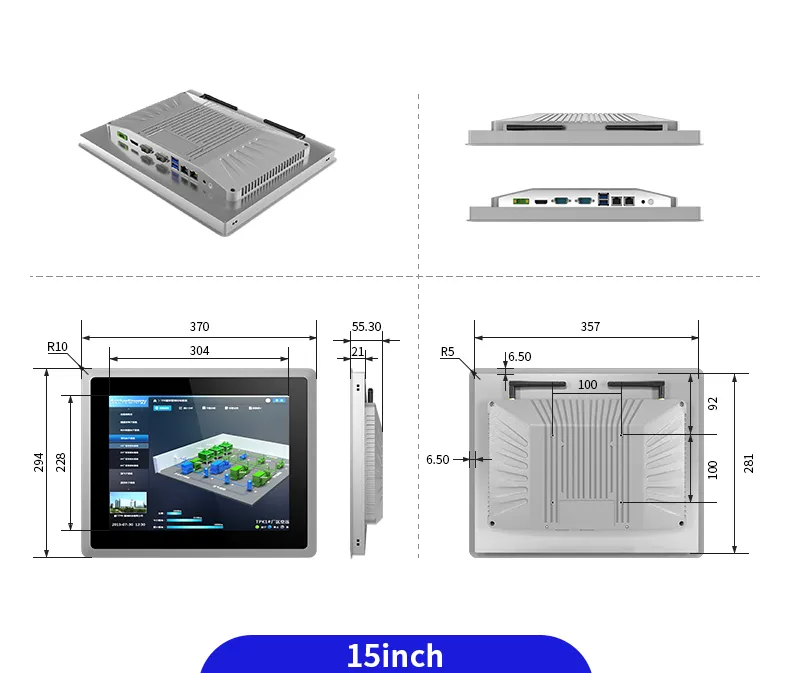

Industrial PC Display
Industrial Panel Features

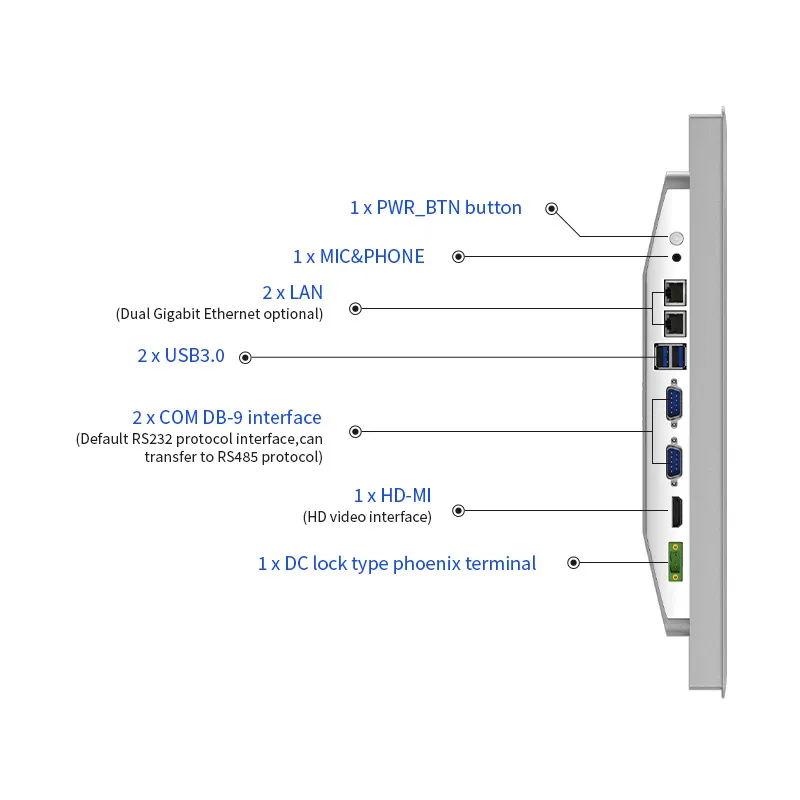

Touchscreen PC Detail
Explosion Proof Design

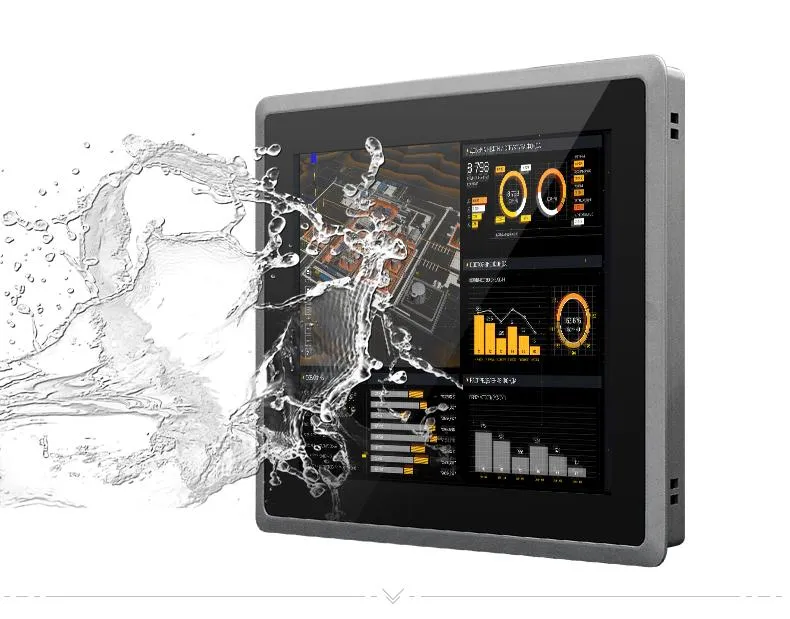

Fanless Cooling System
Hardware Interfaces

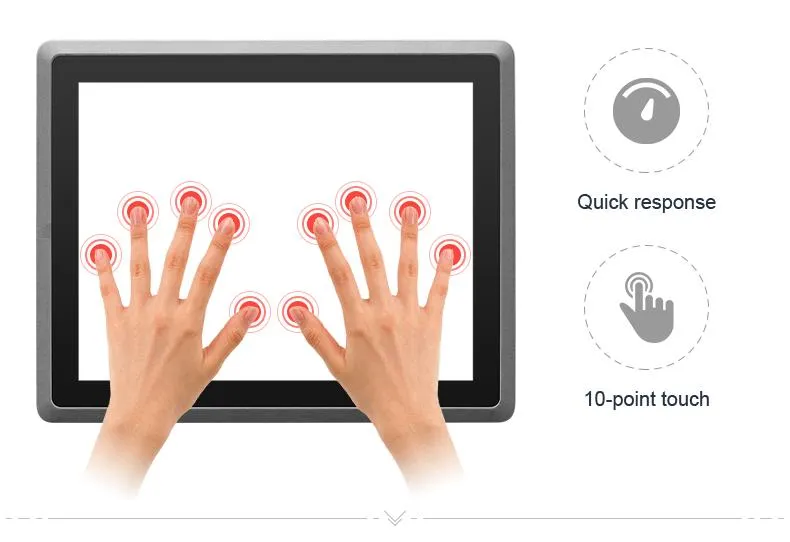

Mounting Solutions
📊

Technical Parameters

Feature Specifications 10.4" - 19" Options
Motherboard Intel® 4th gen Pentium 3558U DDR3-4G, SSD-64G
Interface Connectivity WiFi 802.11b/g/n, 3G/4G (Optional) 2*RJ45 100 Base-T
I/O Ports 1*HDMI Output, 4*USB 3.0 2*COM (RS485)
Audio & GPIO 1*3.5mm Audio 8*GPIO (Optional)
Power Supply 9-36V DC lock phoenix terminal -
Display Resolution 1024*768 up to 1280*1024 Aspect Ratio 4:3 / 5:4
Brightness 200cd/m² - 250cd/m² (Customizable) Contrast 500:1 - 900:1
Touch Screen Projected Capacitive (10 point) Transparency ≥90%
Structure Material Aluminum Alloy Case Fanless Heat Dissipation
Environment Work: -20ºC to 70ºC Storage: -40ºC to 80ºC
❓

Frequently Asked Questions

What is the protection level of this industrial PC?
The device features an IP65 rated waterproof and dustproof front panel, making it suitable for harsh industrial environments.
Does the screen support multi-touch functionality?
Yes, it is equipped with a projected capacitive touch screen that supports 10-point multi-touch with a response time of less than 5ms.
Is this PC suitable for outdoor use under direct sunlight?
Yes, the product is designed to be sunlight readable with a high brightness of up to 1000 nits.
What type of cooling system does it use?
It utilizes a fanless design with aluminum fin heat dissipation, ensuring silent operation and preventing dust inhalation.
What are the power requirements for this industrial panel PC?
The PC supports a wide voltage input range of 9V to 36V DC via a lockable phoenix terminal.
What mounting options are available?
The PC can be installed using various methods including embedded mounting, wall-mounted brackets, or desktop stands (VESA 100*100mm).
