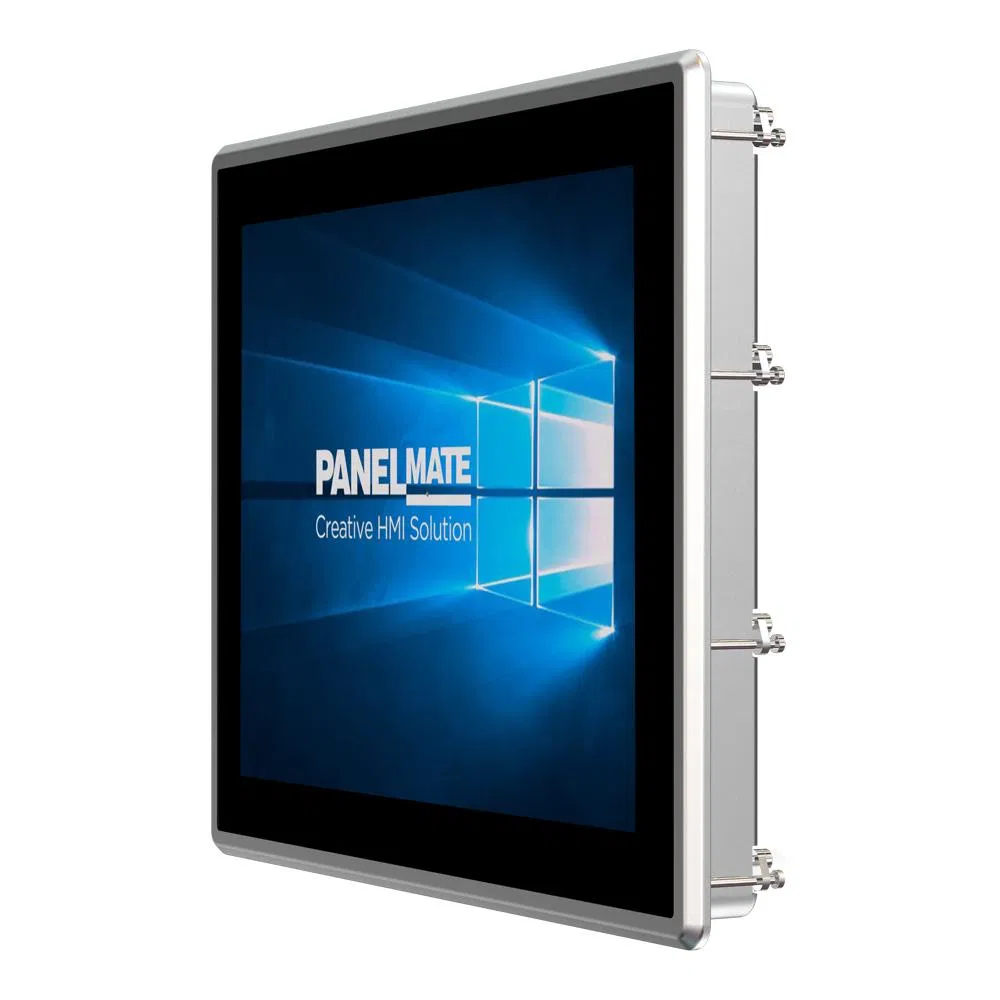

15 Inch IP65 Rugged Explosion-Proof Industrial Control Panel PC HMI PLC Kvm Extender Atex-Ex Control Panel PC Industrial PC All-in-One PC
15 Inch IP65 Rugged Explosion-Proof Industrial Control Panel PC HMI PLC Kvm Extender Atex-Ex Control Panel PC Industrial PC All-in-One PC
15 Inch IP65 Rugged Explosion-Proof Industrial Control Panel PC HMI PLC Kvm Extender Atex-Ex Control Panel PC Industrial PC All-in-One PC
15 Inch IP65 Rugged Explosion-Proof Industrial Control Panel PC HMI PLC Kvm Extender Atex-Ex Control Panel PC Industrial PC All-in-One PC
15 Inch IP65 Rugged Explosion-Proof Industrial Control Panel PC HMI PLC Kvm Extender Atex-Ex Control Panel PC Industrial PC All-in-One PC
1 / 5
15 Inch IP65 Rugged Explosion-Proof Industrial Control Panel PC HMI PLC Kvm Extender Atex-Ex Control Panel PC Industrial PC All-in-One PC
15 Inch IP65 Rugged Explosion-Proof Industrial Control Panel PC HMI PLC Kvm Extender Atex-Ex Control Panel PC Industrial PC All-in-One PC
15 Inch IP65 Rugged Explosion-Proof Industrial Control Panel PC HMI PLC Kvm Extender Atex-Ex Control Panel PC Industrial PC All-in-One PC
15 Inch IP65 Rugged Explosion-Proof Industrial Control Panel PC HMI PLC Kvm Extender Atex-Ex Control Panel PC Industrial PC All-in-One PC
15 Inch IP65 Rugged Explosion-Proof Industrial Control Panel PC HMI PLC Kvm Extender Atex-Ex Control Panel PC Industrial PC All-in-One PC

15 Inch IP65 Rugged Explosion-Proof Industrial Control Panel PC HMI PLC Kvm Extender Atex-Ex Control Panel PC Industrial PC All-in-One PC

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
IPC22150EX-3800K-4G-128G
CPU Type
Intel Celeron 3855u/3865u
Hard Disk
HDD
RAM
4G (Support up to 8GB)
Screen Size
15"
Touch Screen
Capacitive Touch
Resolution
1024*768 (4:3)
Storage
128G (Support up to 512GB)
Operating System
Win7/8/10/Linux/Wes 7/Vxworks
LAN
2x Intel I210 1000Mbps RJ45
Power Supply
9-36V DC
Certification
Atex
Installation
Wall-Mounted, Desktop, VESA
Housing
Aluminum-Magnesium Alloy
Dimensions
376.8*300.8*69mm
Expansion Slots
2*COM, 2*LAN, 4*USB2.0, HDMI
📦 Packaging & Delivery
Package Size
43.80cm * 35.80cm * 10.50cm
Gross Weight
5.000kg
Transport Package
Carton
Capacity
5000 PCS/Month
🖼️ Product Showcase

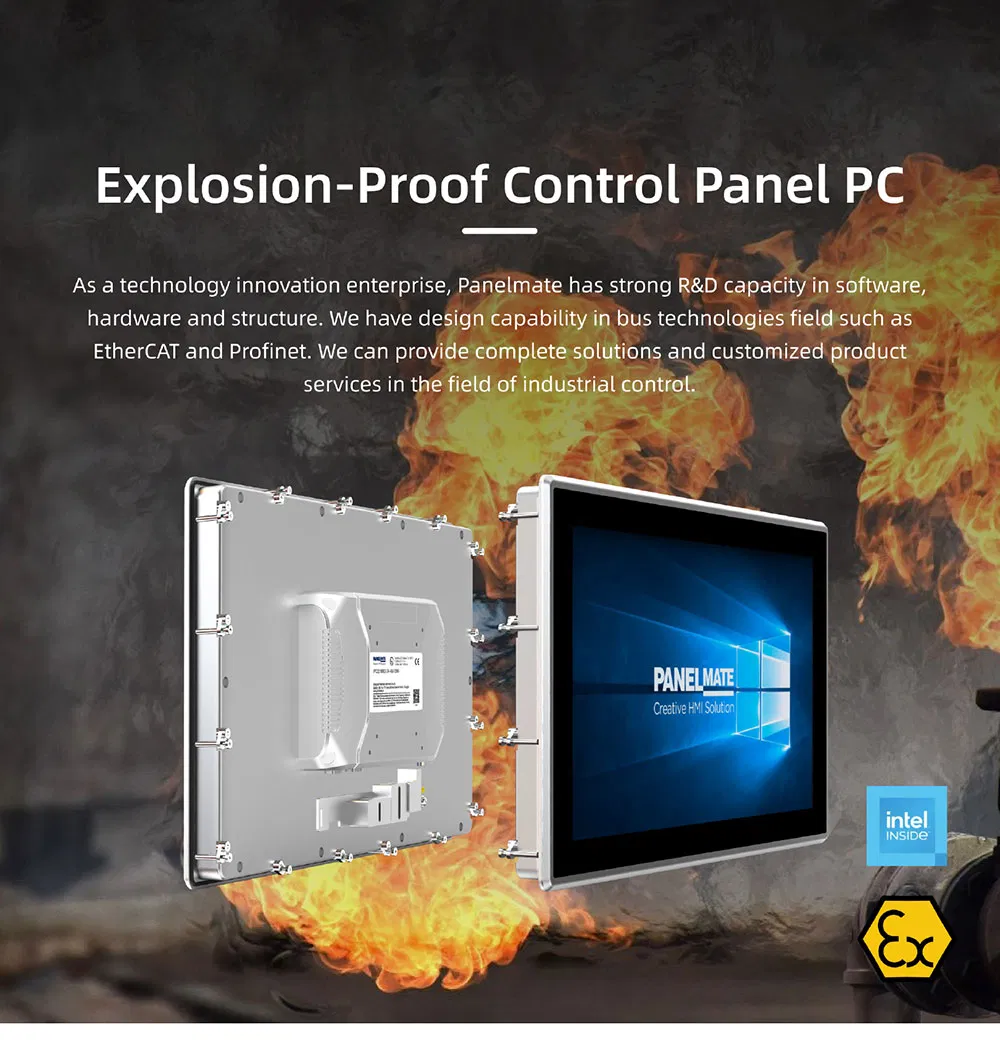

Industrial Panel PC 1

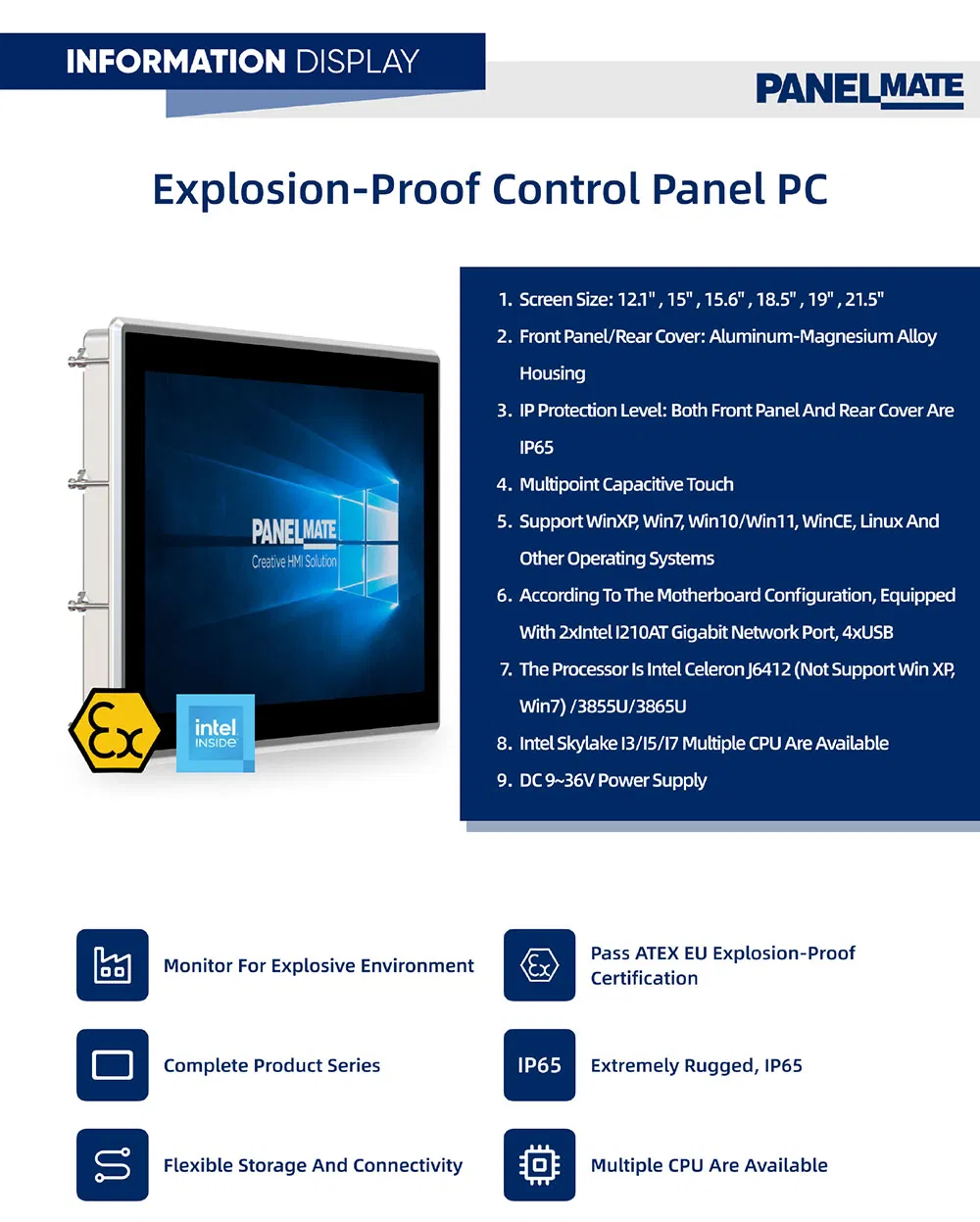

Industrial Panel PC 2

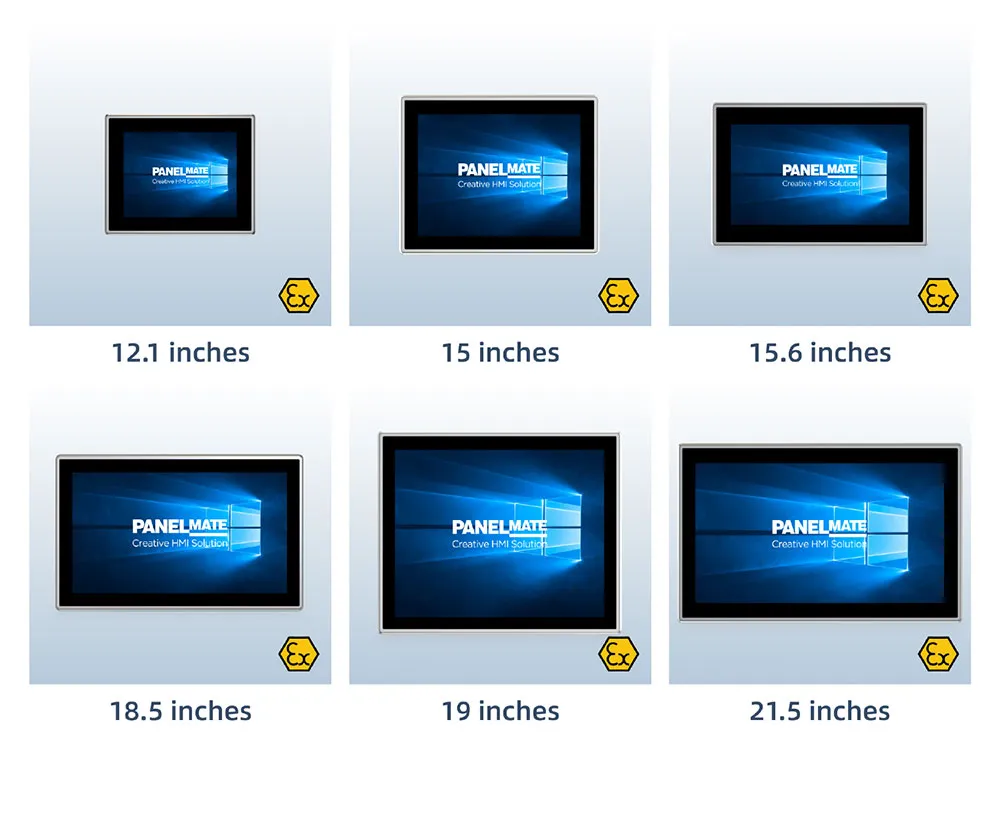

Industrial Panel PC 3
Industrial PC Design

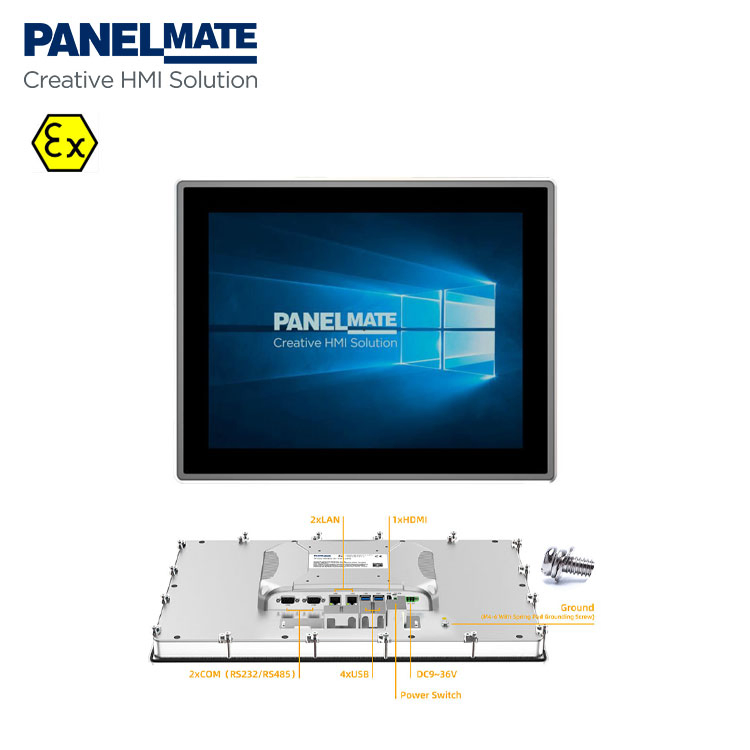

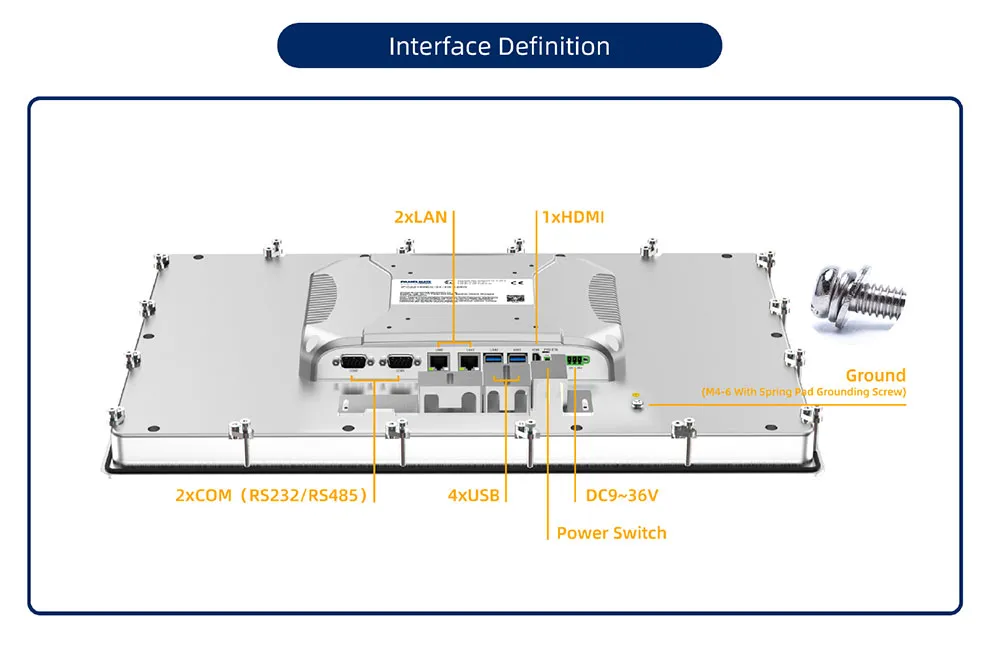

Interface Details
📊 Model Comparison Specifications
Model IPC2X121EX IPC2X150EX IPC2X156EX IPC2X185EX IPC2X190EX IPC2X215EX
Display Size 12.1" 15" 15.6" 18.5" 19" 21.5"
Resolution 1024x768 1024x768 1366x768 1366x768 1280x1024 1920x1080
Proportion 4:3 4:3 16:9 16:9 5:4 16:9
Contrast Ratio 800:1 800:1 500:1 1000:1 1000:1 500:1
Luminance(cd/㎡) 350 420 250 500 250 300
Power(w) 34 36 43 41 39 50

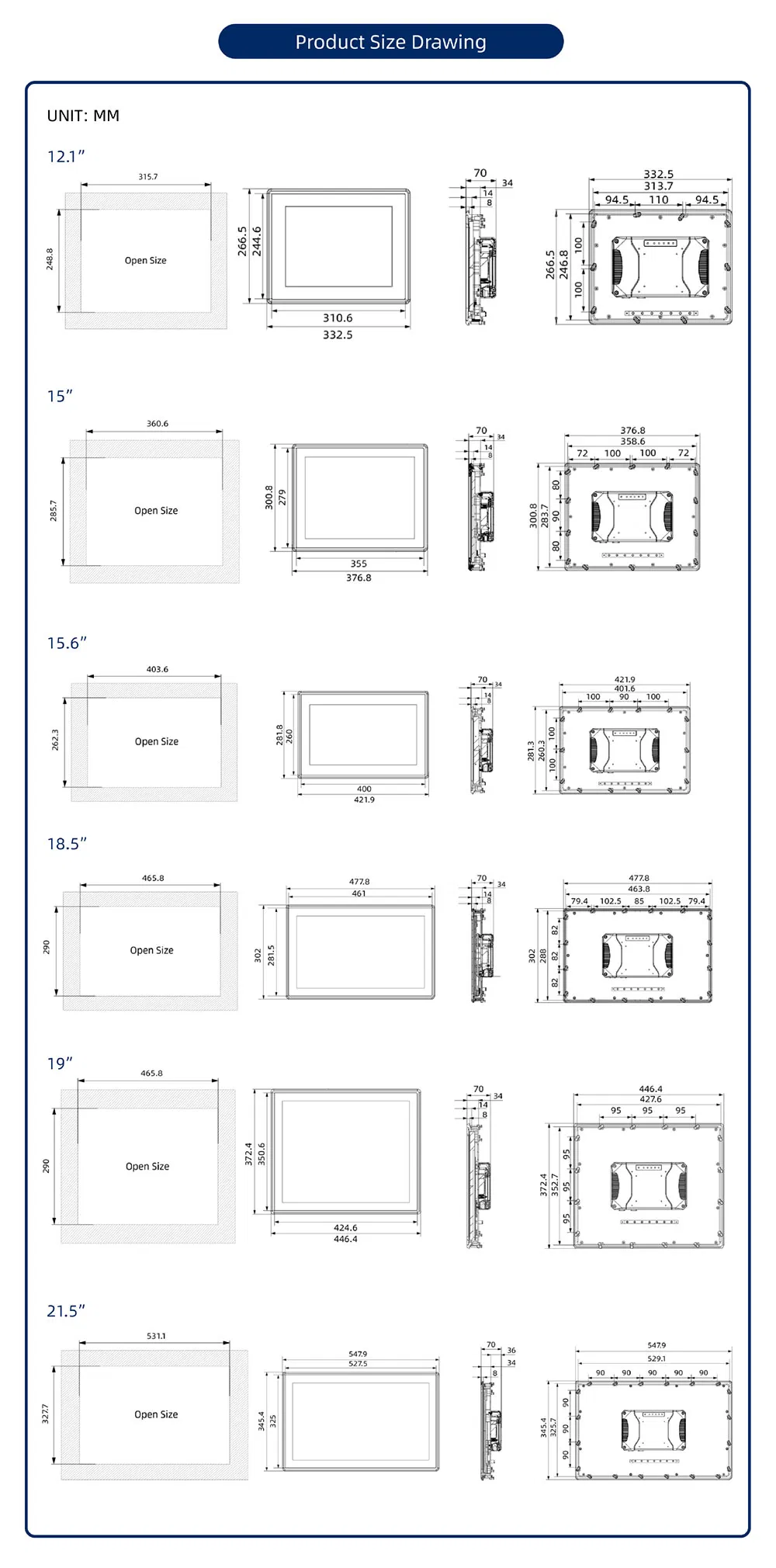

Explosion Proof Detail
Mounting Options
Certifications
❓ Frequently Asked Questions
What is the explosion-proof rating of this Panel PC?
This industrial panel PC comes with Atex certification, making it suitable for hazardous environments requiring rugged explosion-proof hardware.
Which operating systems can be installed?
It supports a wide range of systems including Windows 7, 8, 10, Linux, Wes 7, Vxworks, and other Linux-based distributions.
What are the available mounting methods?
The device is versatile and can be installed via Wall-Mounted, Desktop, or VESA Mounting standards to fit various industrial setups.
Does the screen support touch functionality?
Yes, it features a high-quality capacitive touch screen for responsive and precise user interaction in industrial conditions.
What is the power input requirement?
The system supports a wide voltage DC input range from 9V to 36V, ensuring compatibility with most industrial power systems.
Is the RAM and storage upgradeable?
The PC comes with 4GB RAM (expandable up to 8GB) and 128GB storage (expandable up to 512GB) to meet different application requirements.
