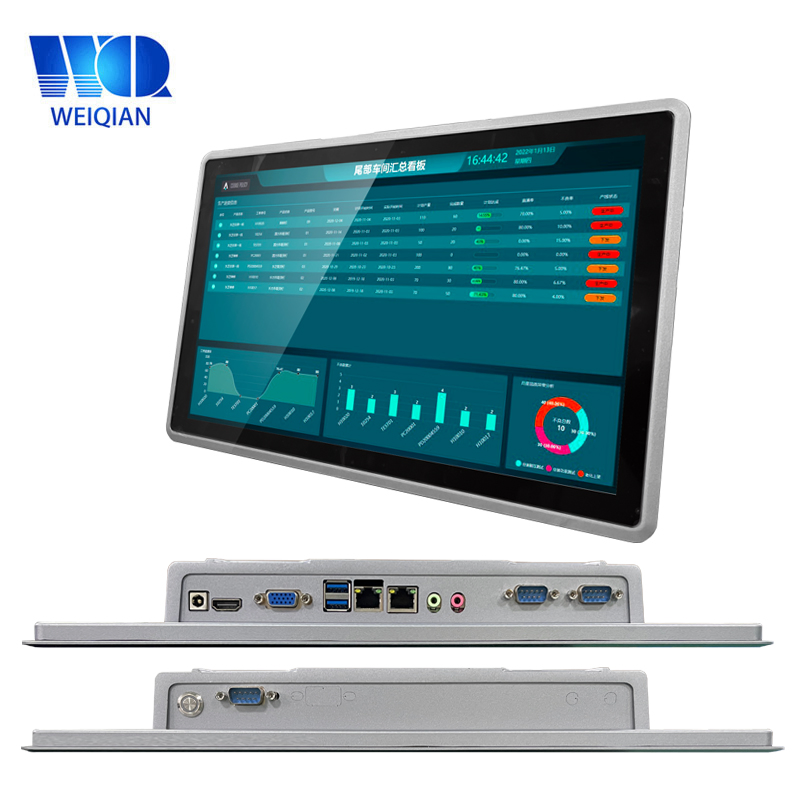

15.6 Inch Industrial HMI Touch Panel All in One PC Codesys Fanless Ethercat Capacitive Touch Panel Explosion Proof Display Panel PC
15.6 Inch Industrial HMI Touch Panel All in One PC Codesys Fanless Ethercat Capacitive Touch Panel Explosion Proof Display Panel PC
15.6 Inch Industrial HMI Touch Panel All in One PC Codesys Fanless Ethercat Capacitive Touch Panel Explosion Proof Display Panel PC
15.6 Inch Industrial HMI Touch Panel All in One PC Codesys Fanless Ethercat Capacitive Touch Panel Explosion Proof Display Panel PC
15.6 Inch Industrial HMI Touch Panel All in One PC Codesys Fanless Ethercat Capacitive Touch Panel Explosion Proof Display Panel PC
1 / 5
15.6 Inch Industrial HMI Touch Panel All in One PC Codesys Fanless Ethercat Capacitive Touch Panel Explosion Proof Display Panel PC
15.6 Inch Industrial HMI Touch Panel All in One PC Codesys Fanless Ethercat Capacitive Touch Panel Explosion Proof Display Panel PC
15.6 Inch Industrial HMI Touch Panel All in One PC Codesys Fanless Ethercat Capacitive Touch Panel Explosion Proof Display Panel PC
15.6 Inch Industrial HMI Touch Panel All in One PC Codesys Fanless Ethercat Capacitive Touch Panel Explosion Proof Display Panel PC
15.6 Inch Industrial HMI Touch Panel All in One PC Codesys Fanless Ethercat Capacitive Touch Panel Explosion Proof Display Panel PC

15.6 Inch Industrial HMI Touch Panel All in One PC Codesys Fanless Ethercat Capacitive Touch Panel Explosion Proof Display Panel PC

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
WPC-156C-LM20
CPU
Quad-Core i5-1135G7
Screen Size
15.6 Inch
Resolution
1920X1080
RAM
Up to 64GB
Storage
256GB SSD
Touch Type
Capacitive Touch
OS Support
Windows 10
Operating Temp
-20℃ to 60℃
Protection
IP65 Front Panel
Industrial HMI Panel PC
Industrial Touch Panel

Technical Parameters

Product Model WPC-156C-LM20
CPU & Graphics Quad-core i5-1135G7, Frequency 2.4GHz (Max 4.2GHz); Intel Iris Xe Graphics
Memory & Storage 8GB DDR4L (Expandable to 64GB); 256GB SSD
Display Screen 15.6 inch, 1920×1080 Resolution, LED backlight (lifetime >25,000 hours)

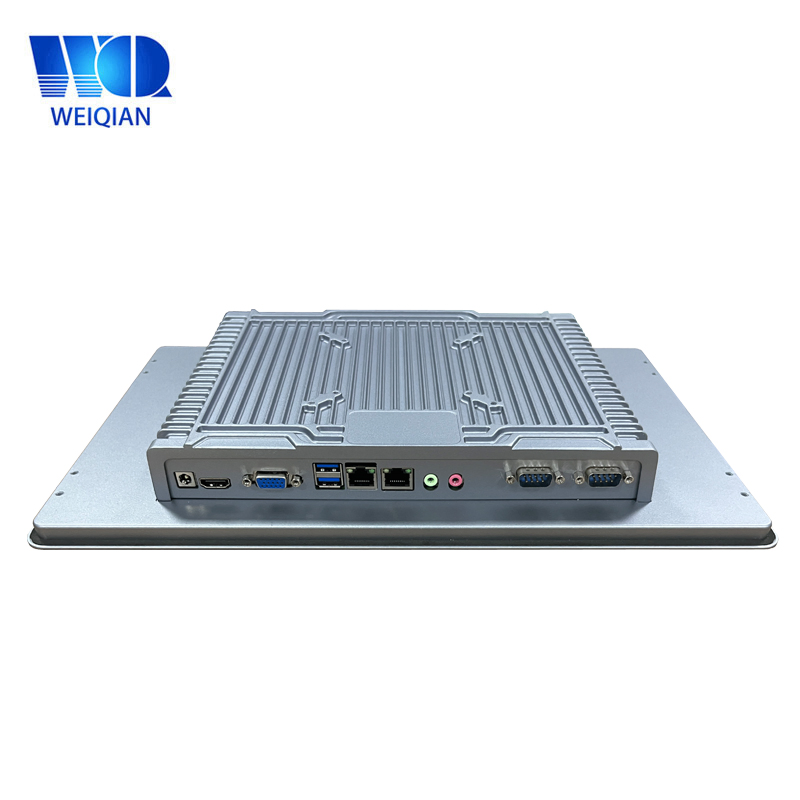

Hardware Interface 1x VGA, 1x HDMI, 3x RS-232 (COM3/4/5), 2x USB 2.0, 2x 1000M Ethernet, Audio/MIC, DC12V Input
Environment Working Temp: -10~50ºC; Storage Temp: -20~80ºC; Humidity: 10~90%RH
Physical Specs Metal Shell; Panel Size: 387.5x237.5mm; Cut-out Size: 377.2x227.2mm

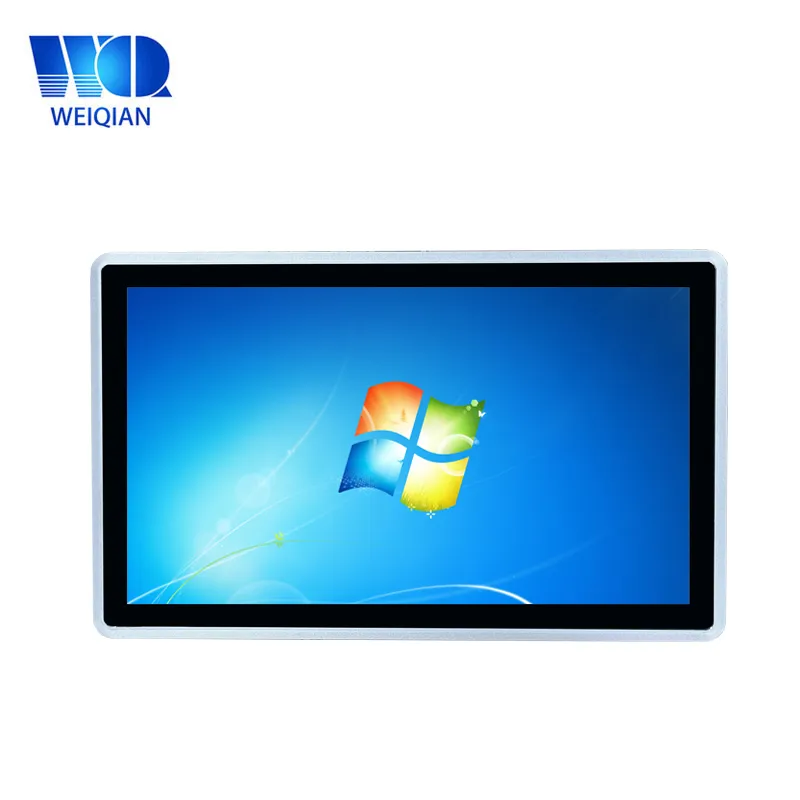

Feature 1
Feature 2
Feature 3

Interface Definition

RS-232 Interface: 3 channel serial ports supporting baud rates up to 115200bps. Mapped as COM3, COM4, and COM5 in Windows systems.

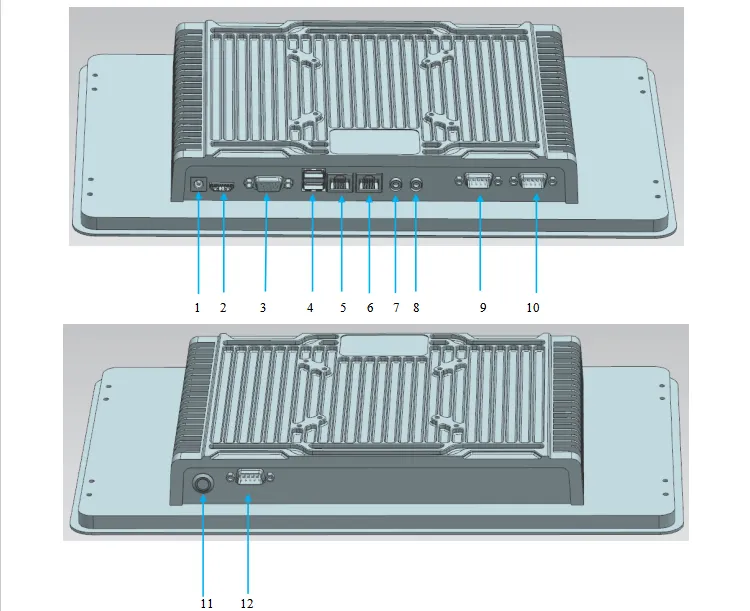

Interface Diagram

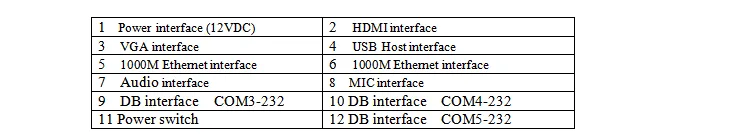

Interface Detail

Dimensions

Exterior Size: 387.5 x 237.5 x 46.1 mm

Trepanning (Cut-out) Size: 377.2 x 227.2 mm

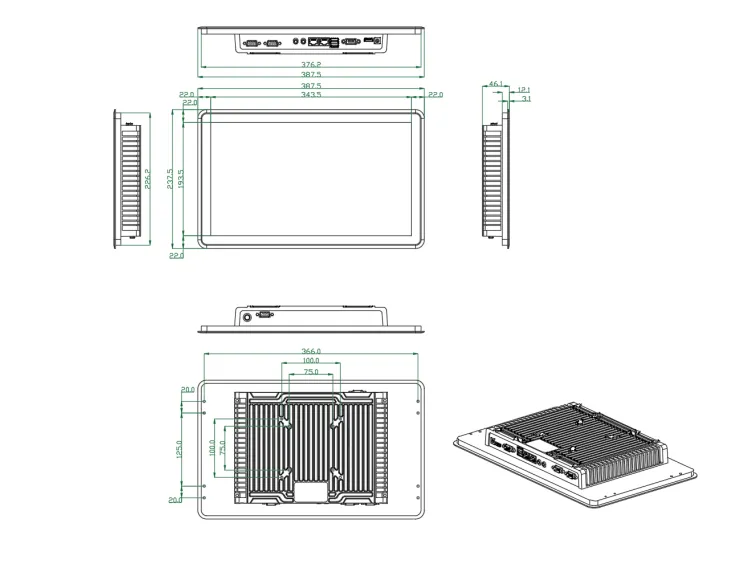

Dimensions Drawing

Production Environment

Production 1

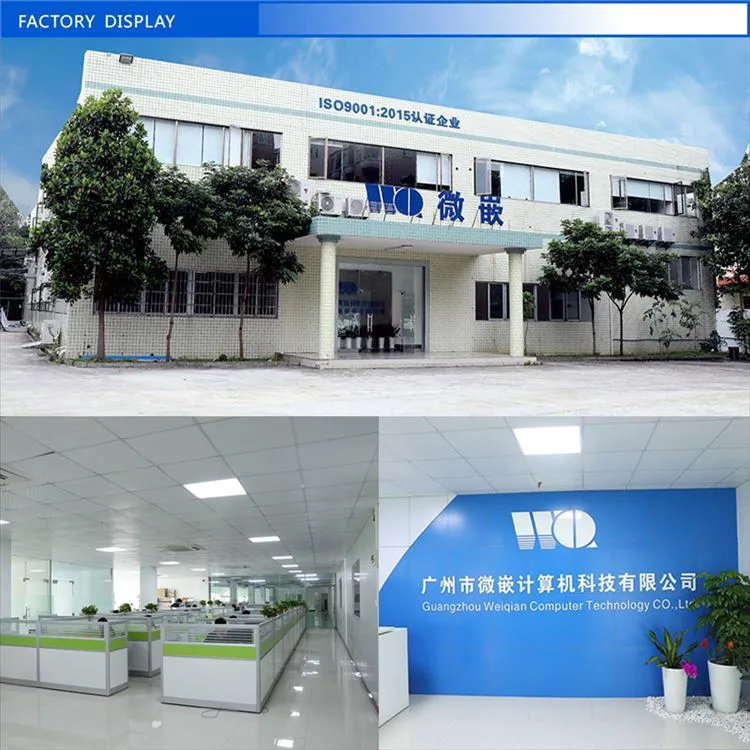

Production 2

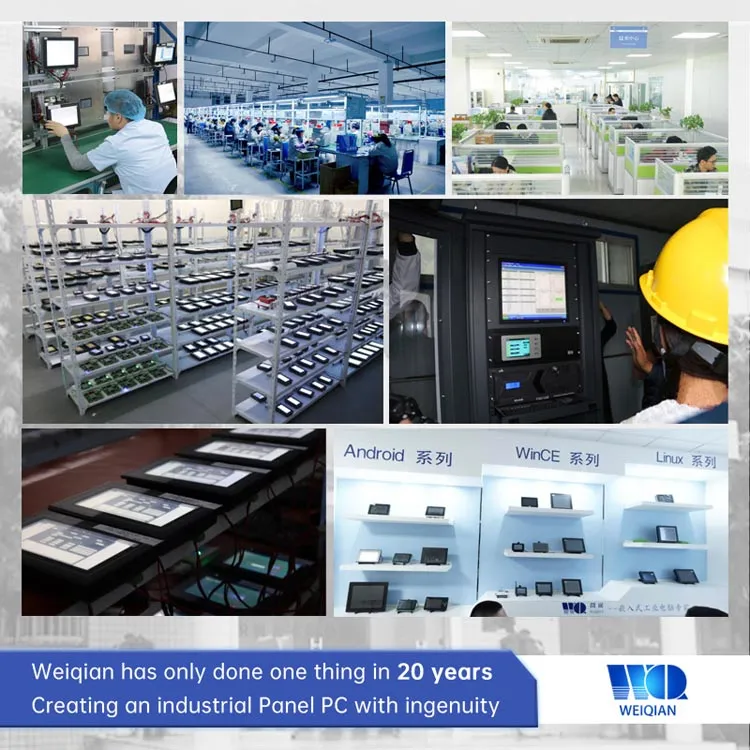

Production 3

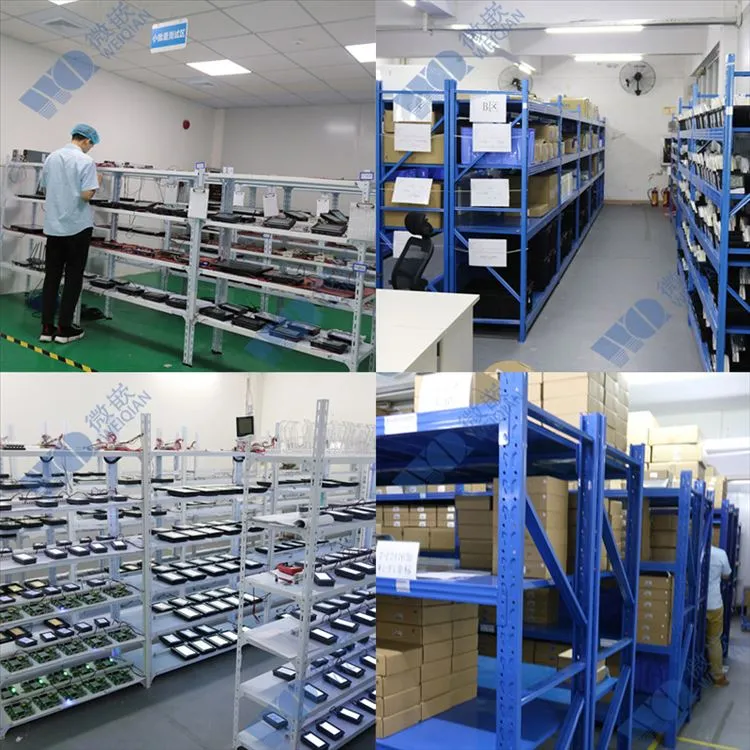

Production 4

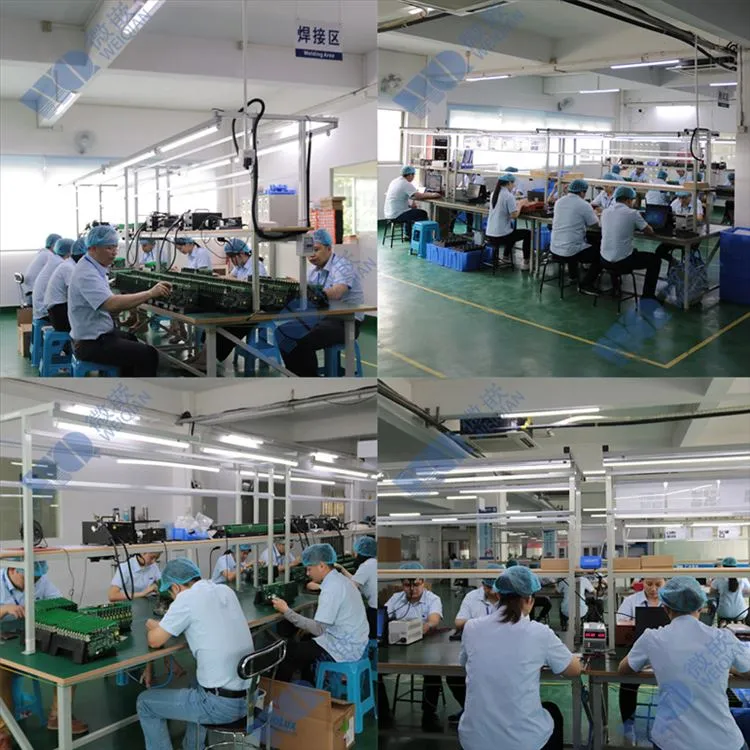

Production 5

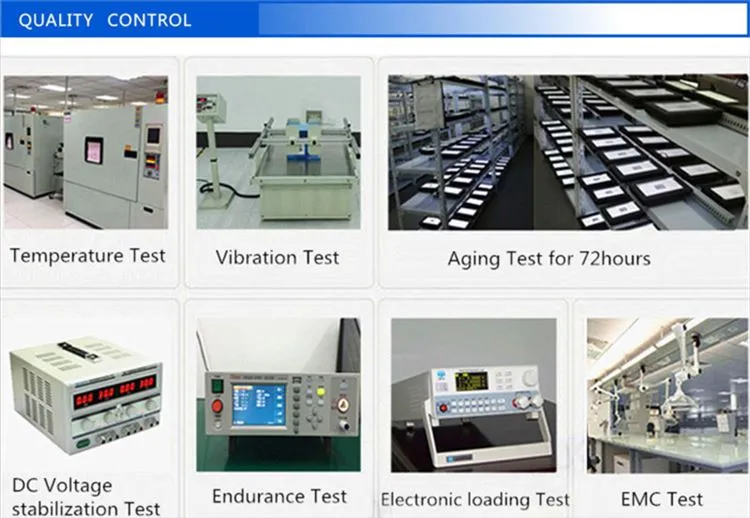

Production 6

Frequently Asked Questions

What kind of industrial panel PCs do you manufacture?
We manufacture ARM-based Windows CE, Android, and Linux Industrial Panel PCs, as well as X86-based Windows 7 and Windows 10 solutions.
What screen sizes are available?
Standard sizes include 4.3", 5", 7", 8", 10.1", 12", 15", 15.6", 17", 19", and 21.5". We also support customized sizes.
Does the hardware support secondary development?
Yes, our industrial panel PCs are designed to support extensive secondary development for various applications.
Which industries are these PCs applied in?
Common applications include Medical Equipment, Power Systems, Industrial Automation, Smart Factories, Environmental Monitoring, and Intelligent Transportation.
Do you support OEM/ODM services?
Yes, we provide customization for size, functionality, appearance, resolution, and high-brightness requirements.
What is the warranty period?
We offer a 1-year warranty period along with lifetime technical support for all our industrial hardware.
