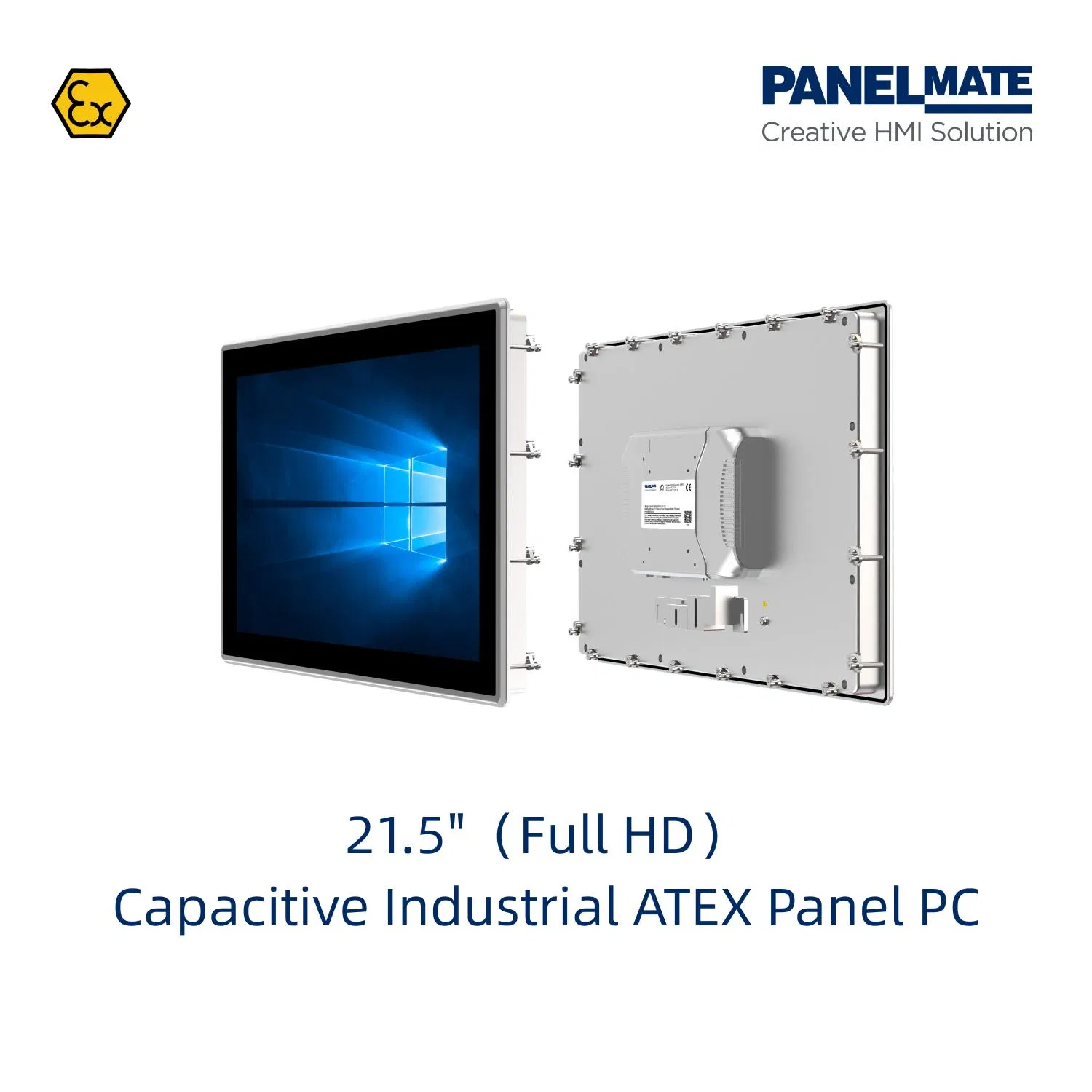

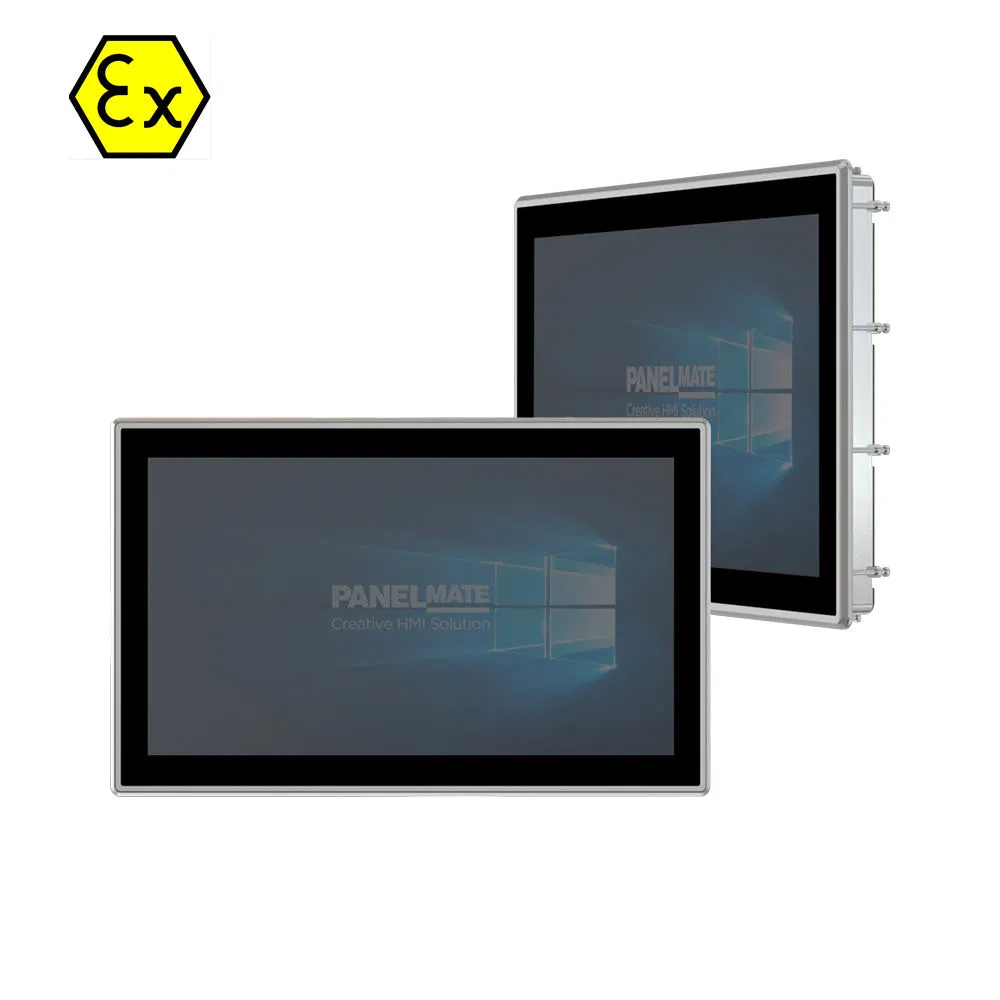

21.5 Inch IP65 Rugged Touch Screen 3855u Industrial Embedded Atex HMI Operation Panel PC
21.5 Inch IP65 Rugged Touch Screen 3855u Industrial Embedded Atex HMI Operation Panel PC
21.5 Inch IP65 Rugged Touch Screen 3855u Industrial Embedded Atex HMI Operation Panel PC
21.5 Inch IP65 Rugged Touch Screen 3855u Industrial Embedded Atex HMI Operation Panel PC
21.5 Inch IP65 Rugged Touch Screen 3855u Industrial Embedded Atex HMI Operation Panel PC
1 / 5
21.5 Inch IP65 Rugged Touch Screen 3855u Industrial Embedded Atex HMI Operation Panel PC
21.5 Inch IP65 Rugged Touch Screen 3855u Industrial Embedded Atex HMI Operation Panel PC
21.5 Inch IP65 Rugged Touch Screen 3855u Industrial Embedded Atex HMI Operation Panel PC
21.5 Inch IP65 Rugged Touch Screen 3855u Industrial Embedded Atex HMI Operation Panel PC
21.5 Inch IP65 Rugged Touch Screen 3855u Industrial Embedded Atex HMI Operation Panel PC

21.5 Inch IP65 Rugged Touch Screen 3855u Industrial Embedded Atex HMI Operation Panel PC

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
IPC22215EX-4G-128G
CPU Type
Intel Celeron 3855u/3865u
RAM
4G (Support up to 8GB)
Storage
128G (Support up to 512GB)
Screen Size
21.5"
Resolution
1920*1080 (16:9)
Touch Type
Capacitive Touch Screen
System Slot
2*COM/RS-232/485, 2*LAN, 4*USB2.0, DC Power, HDMI
Operating System
Win7/8/10/Linux/Wes 7/Vxworks
LAN
2x Intel I210 1000Mbps RJ45
Power Supply
9-36V DC
Certification
Atex
Housing Material
Aluminum-Magnesium Alloy
Installation
Wall-Mounted, Desktop, Vesa Mounting
Specification
547.9*345.4*69mm
📦 Packaging & Delivery
Package Size
67.00cm * 42.00cm * 11.00cm
Gross Weight
6.700kg
Package Type
Carton
📷 Product Description

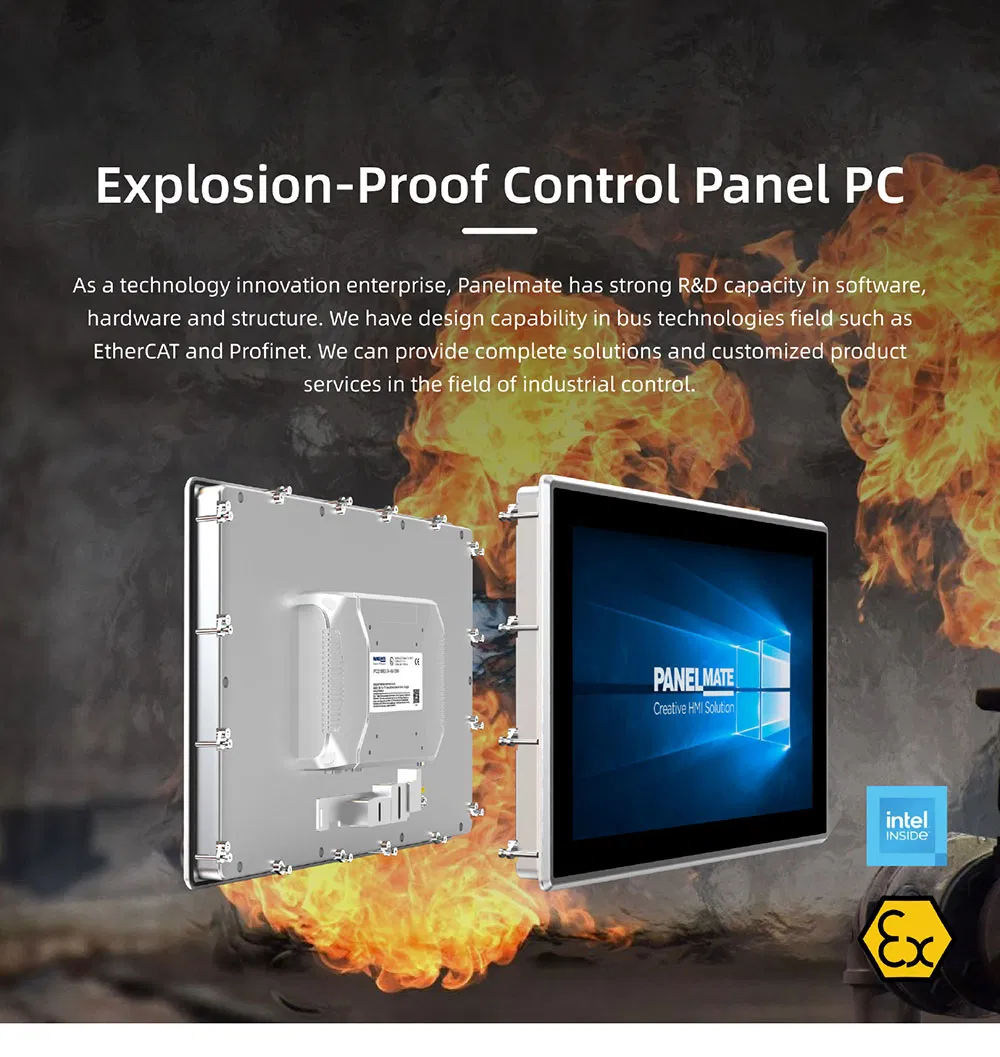

21.5 Inch IP65 Rugged Touch Screen

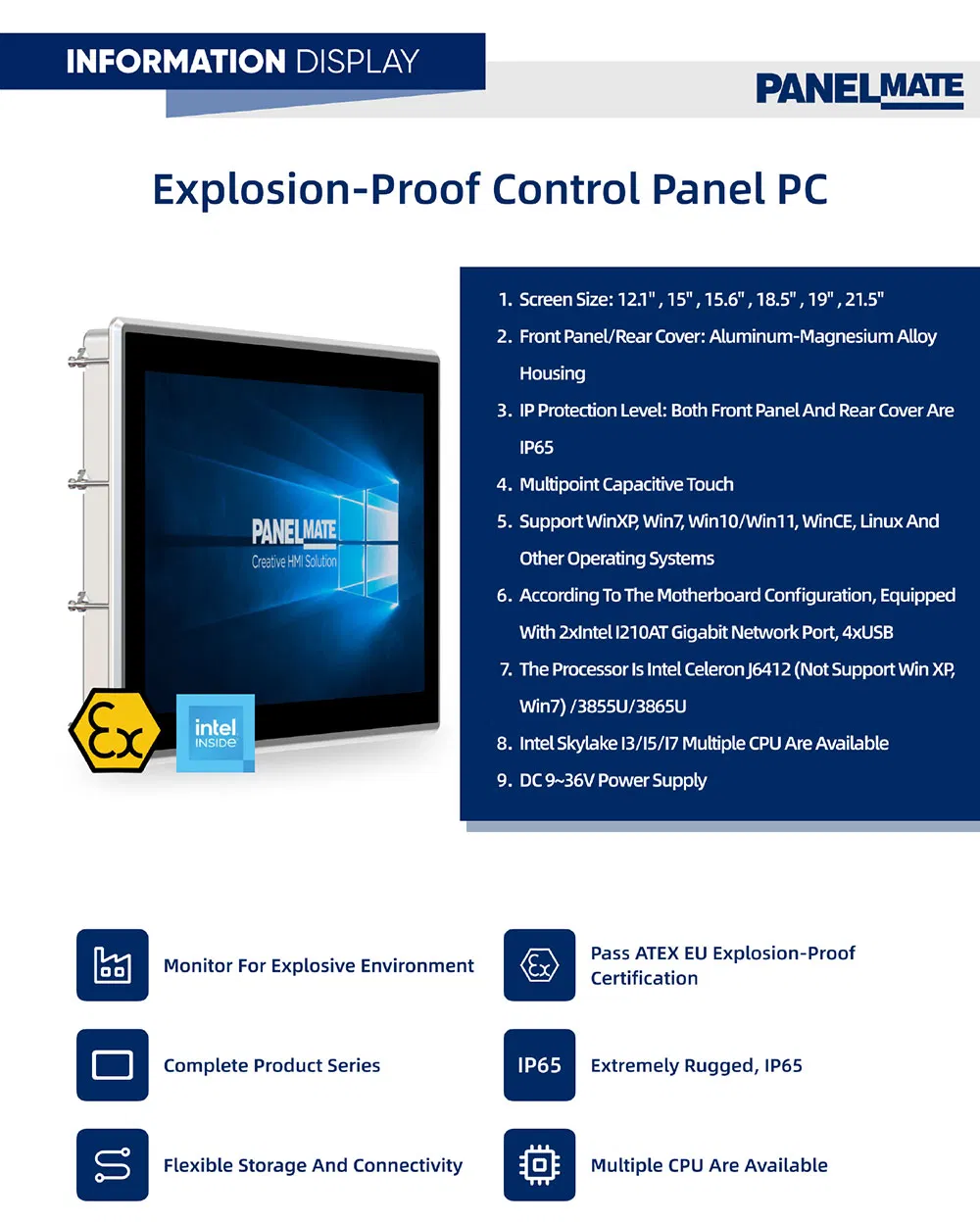

Industrial Panel PC Detail

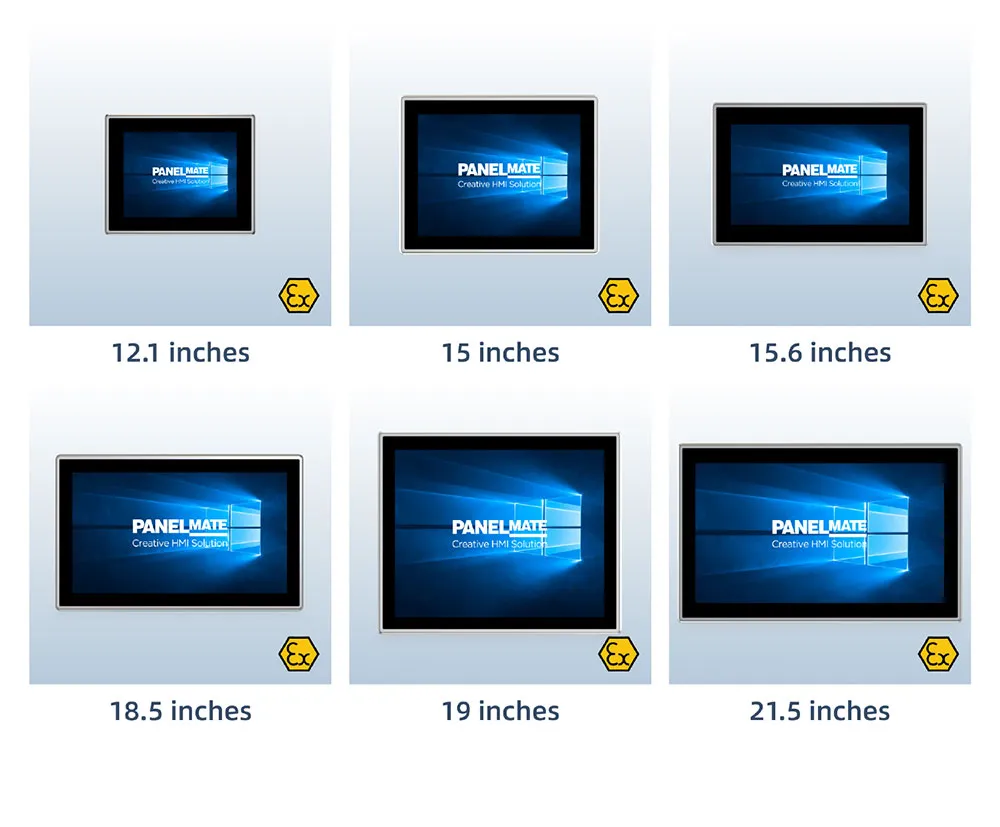

Embedded HMI Panel
Atex HMI Operation Panel
Model IPC2X121EX IPC2X150EX IPC2X156EX IPC2X185EX IPC2X190EX IPC2X215EX
Display Size 12.1" 15" 15.6" 18.5" 19" 21.5"
Resolution 1024x768 1024x768 1366x768 1366x768 1280x1024 1920x1080
Proportion 4:3 4:3 16:9 16:9 5:4 16:9
Contrast Ratio 800:1 800:1 500:1 1000:1 1000:1 500:1
Luminance(cd/㎡) 350 420 250 500 250 300
Power(w) 34 36 43 41 39 50
Industrial PC Mounting

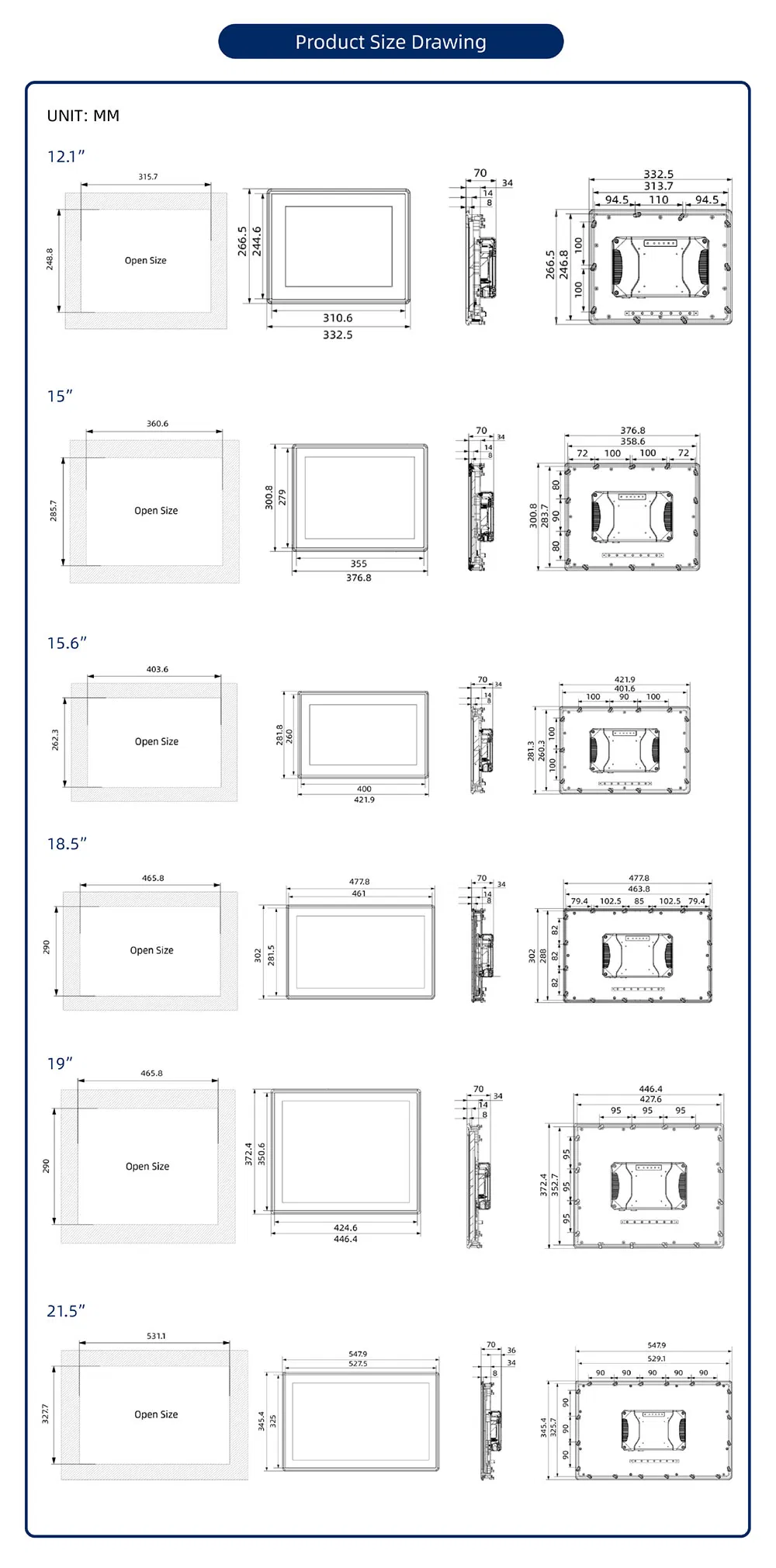

System Dimensions

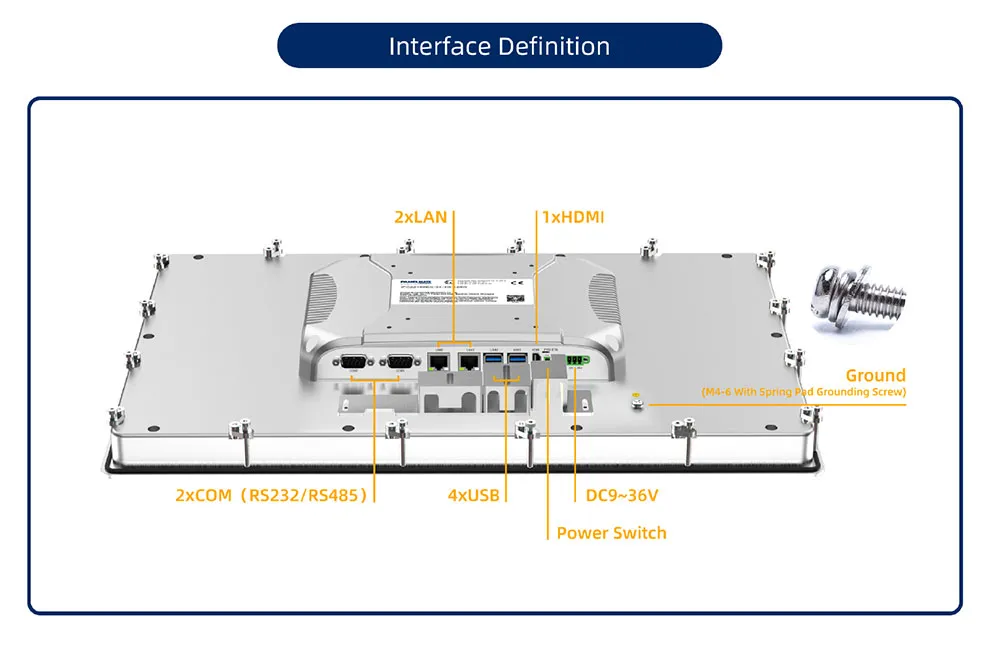

Interface View
Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
Product View 6
Certification Showcase
❓ Frequently Asked Questions
Q1: What is the screen size and display resolution of this Industrial PC?
A: The device features a 21.5-inch capacitive touch screen with a Full HD resolution of 1920*1080 and a 16:9 aspect ratio.
Q2: Which operating systems are compatible with this device?
A: It supports a wide range of operating systems, including Windows 7, 8, 10, Linux, Wes 7, Vxworks, and other Linux distributions.
Q3: What kind of environment is this HMI panel designed for?
A: This is a ruggedized industrial-grade PC with Atex certification, making it suitable for demanding and potentially hazardous industrial environments.
Q4: What are the power supply requirements?
A: The system supports a wide range DC power input of 9-36V, which is ideal for various industrial power stability requirements.
Q5: What mounting options are available for installation?
A: It supports multiple installation methods, including Wall-Mounted, Desktop, and standard VESA mounting for maximum flexibility.
Q6: How much RAM and storage can this system support?
A: The standard configuration comes with 4GB RAM (upgradable to 8GB) and a 128GB SSD (upgradable to 512GB).
