24 inch 1000cd/m2 LCD Capacitive Touch Screen RK3399 Rugged Android Tablet Computer
📊 Basic Specifications
Memory/Storage
4G / Emmc 16GB
Operation System
Android 9
RFID / Barcode
Built-in Reader Supported
Temperature
-20 to 70 Celsius
Installation
Wall-Mounted / VESA

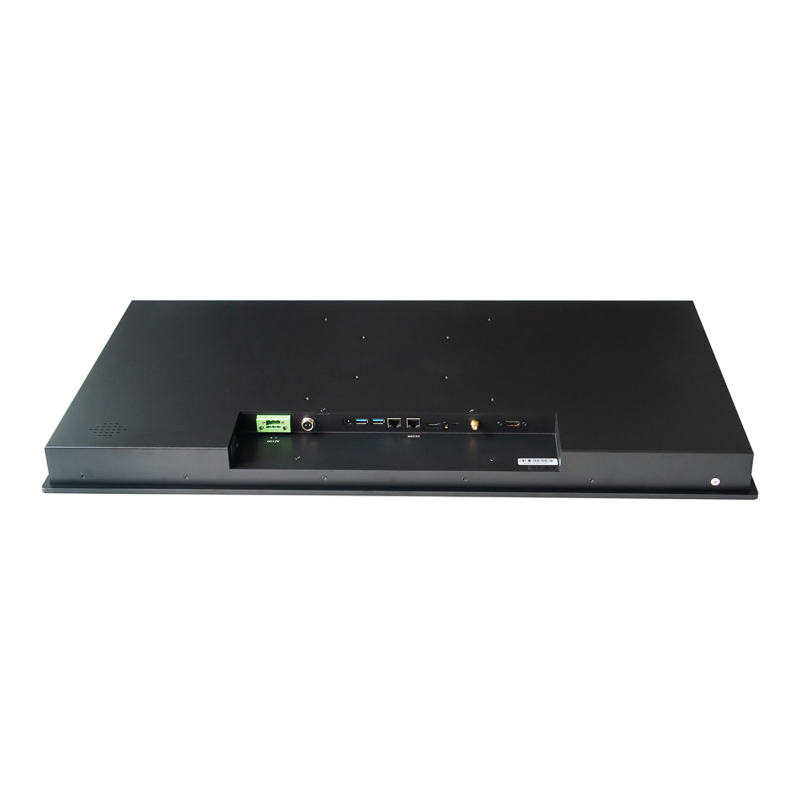

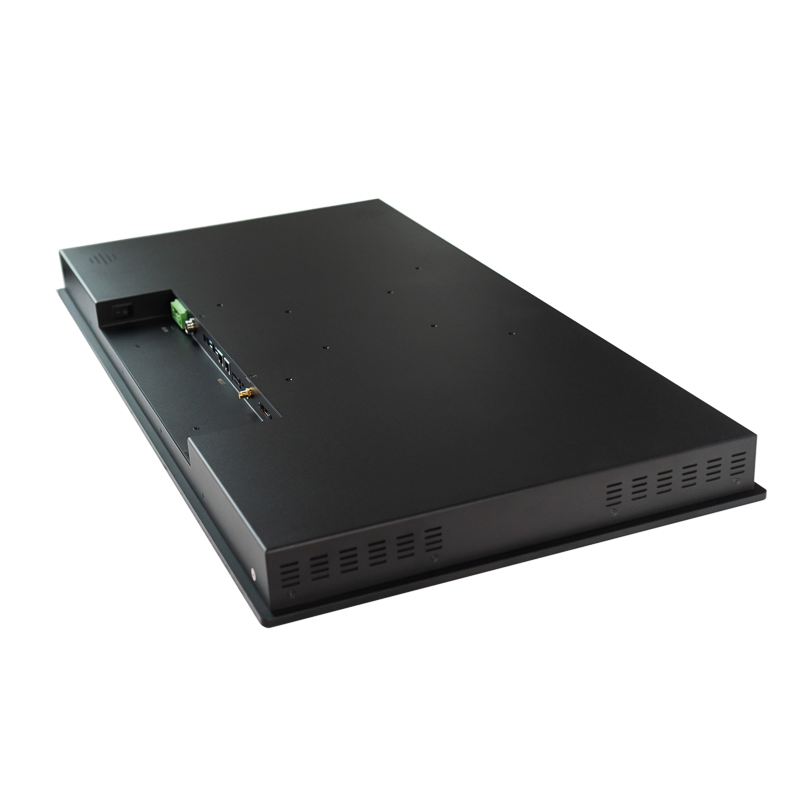

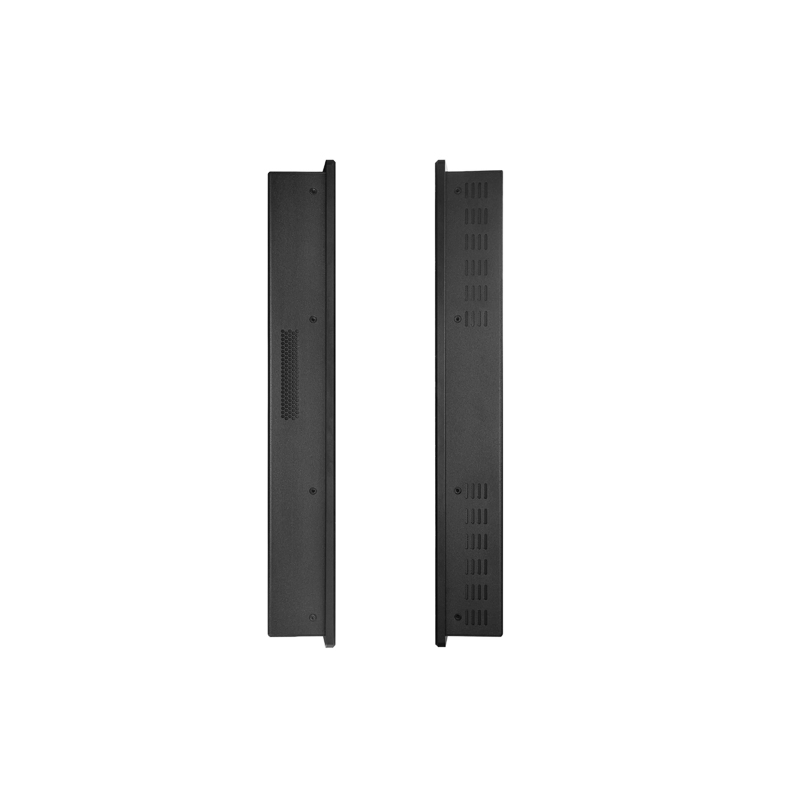

🖼️ Product Display
🚀 Key Features
🛡️
Rugged Design: Front bezel aluminum alloy brushed metal craft, seamless design with IP65 waterproof rating.
☀️
High Brightness: 1000cd/m2 sunlight readable display with light sensor for auto-dimming.
👆
PCAP Touch: Multi-point capacitive touch panel with 2mm AR glass, anti-glare and anti-UV.
⚙️
High Performance: RK3399 Motherboard designed for 7x24 continuous industrial operation.
📋 Technical Specification
| Computing System |
|---|
| CPU | RK3399, Dual Cortex-A72 + Quad Cortex-A53, 2.0GHz |
| Memory | 4GB DDR3 |
| Storage | 16GB EMMC |
| OS | Android 9 |
| Network | RJ45, WIFI, Bluetooth (Optional 3G/4G) |
| Display & Touch |
|---|
| Panel Size | 24" (16:9 Aspect Ratio) |
| Resolution | 1920*1080 |
| Brightness | 1000 cd/m², sunlight readable |
| View Angle | 89°/89°/89°/89° (Full Viewing Angle) |
| Touch Type | 10 point capacitive touch with 2mm AR Glass |
| Physical Characteristics |
|---|
| Material | Full Aluminum Alloy Enclosure |

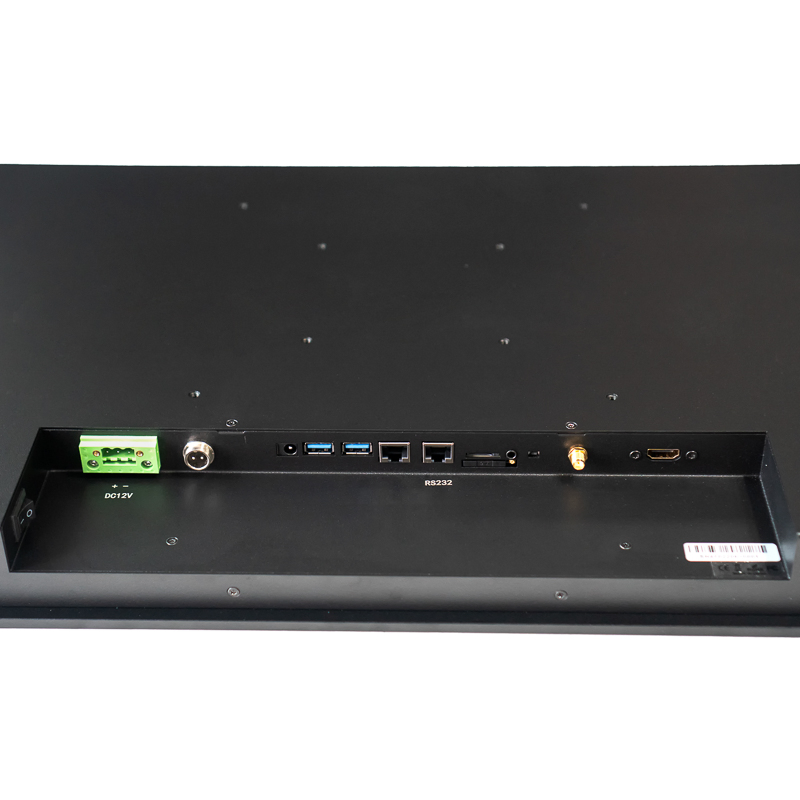

| I/O Ports | 2xUSB, 1xRJ45, 1xHDMI, 1xTF Slot, 1xSIM Slot, Phoenix Terminal |
| Environment | Operating: -20°C to 70°C; Storage: -30°C to 80°C |
| Mounting | VESA 75x75mm / 100x100mm |

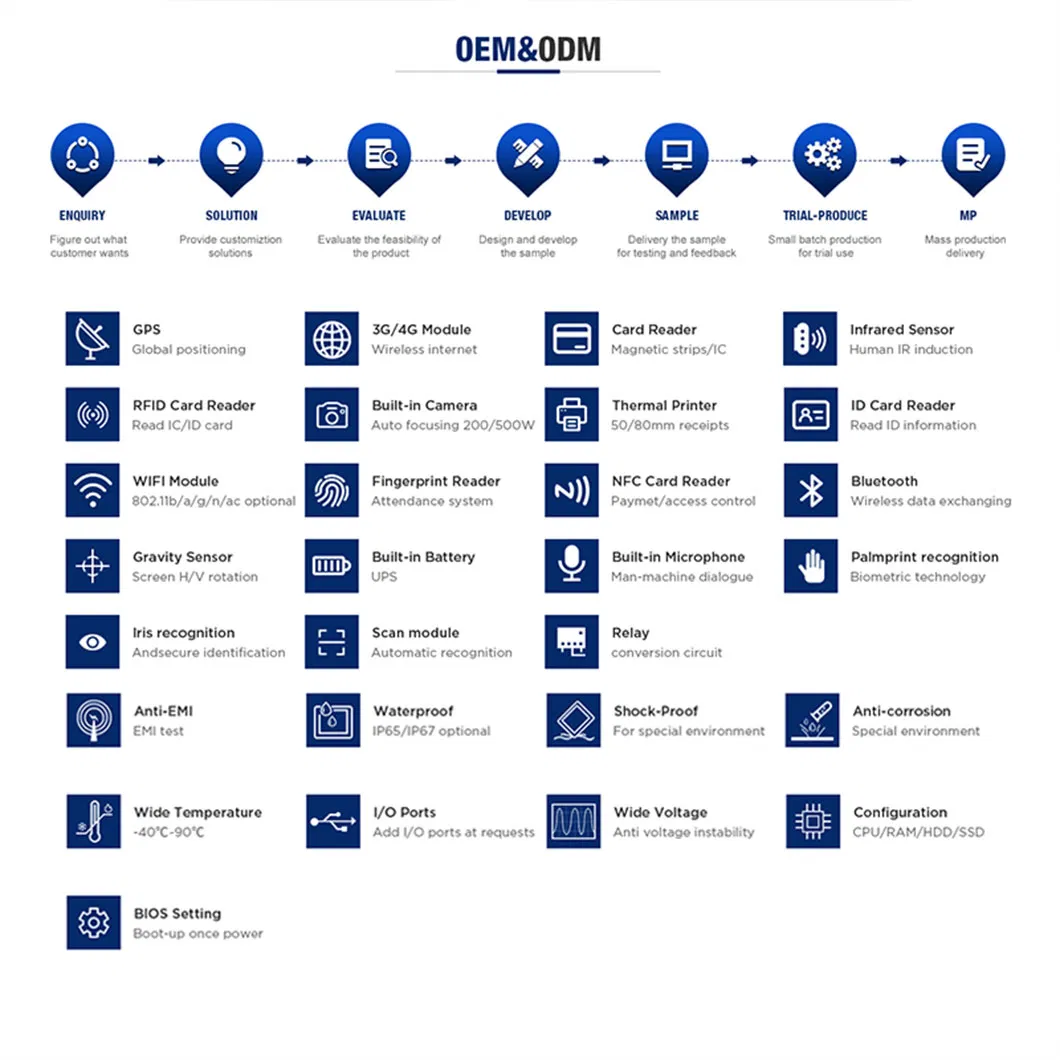

🛠️ Customization & Feedback

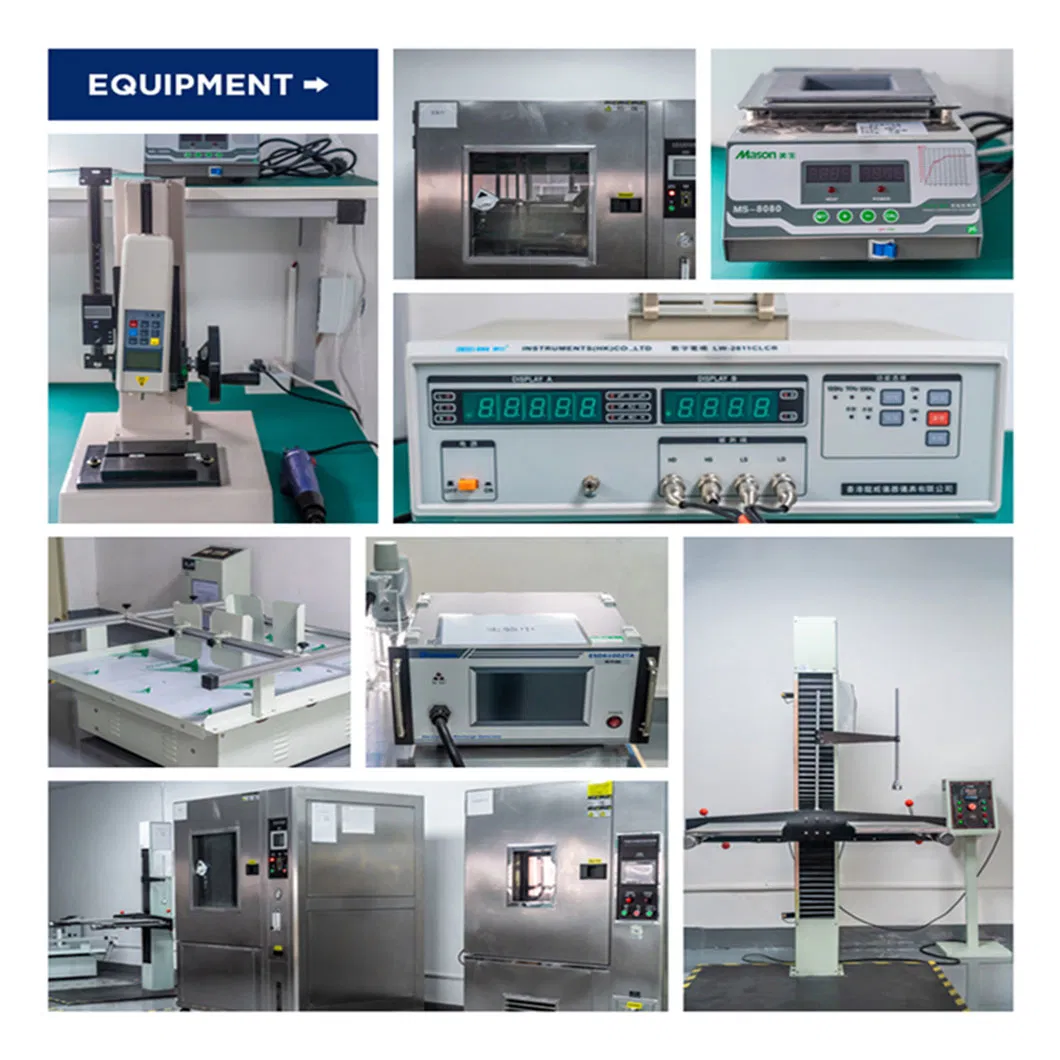

📜 Certifications & Manufacturing
🙋 Frequently Asked Questions
Is this tablet suitable for outdoor use?
Yes, with 1000 nits high brightness and sunlight readable technology, plus an IP65 waterproof front panel, it is ideal for outdoor or semi-outdoor applications.
Does the screen support glove or wet-hand operation?
It uses a high-sensitivity multi-point PCAP touch panel. While specifically optimized for clarity with AR glass, it supports fast-response industrial touch requirements.
What are the built-in peripheral options?

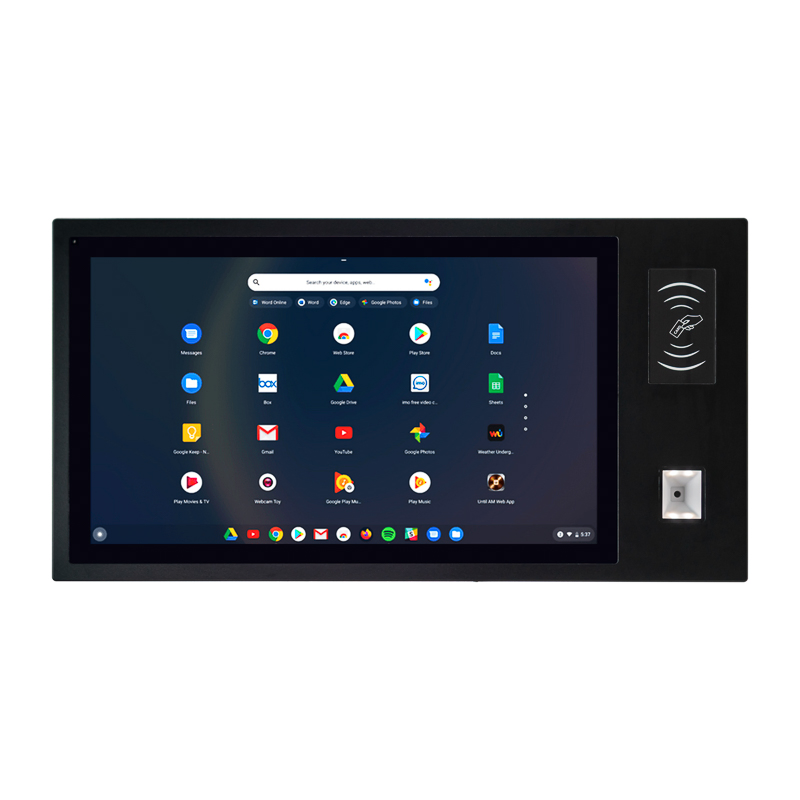

This model can be factory-equipped with built-in RFID readers, QR/Barcode scanners, and 4G LTE modules based on your specific project needs.
What is the operating temperature range?
The device is designed for industrial environments, operating reliably between -20°C and 70°C.
What mounting options are available?
The tablet supports standard VESA 75/100mm mounting, and can be configured for wall-mounting, embedded mounting, or desk stand installation.
Does it support automatic brightness adjustment?
Yes, it includes a light sensor that allows for auto-dimming to save power and ensure comfortable viewing in changing light conditions.
