| Basic Parameters | |

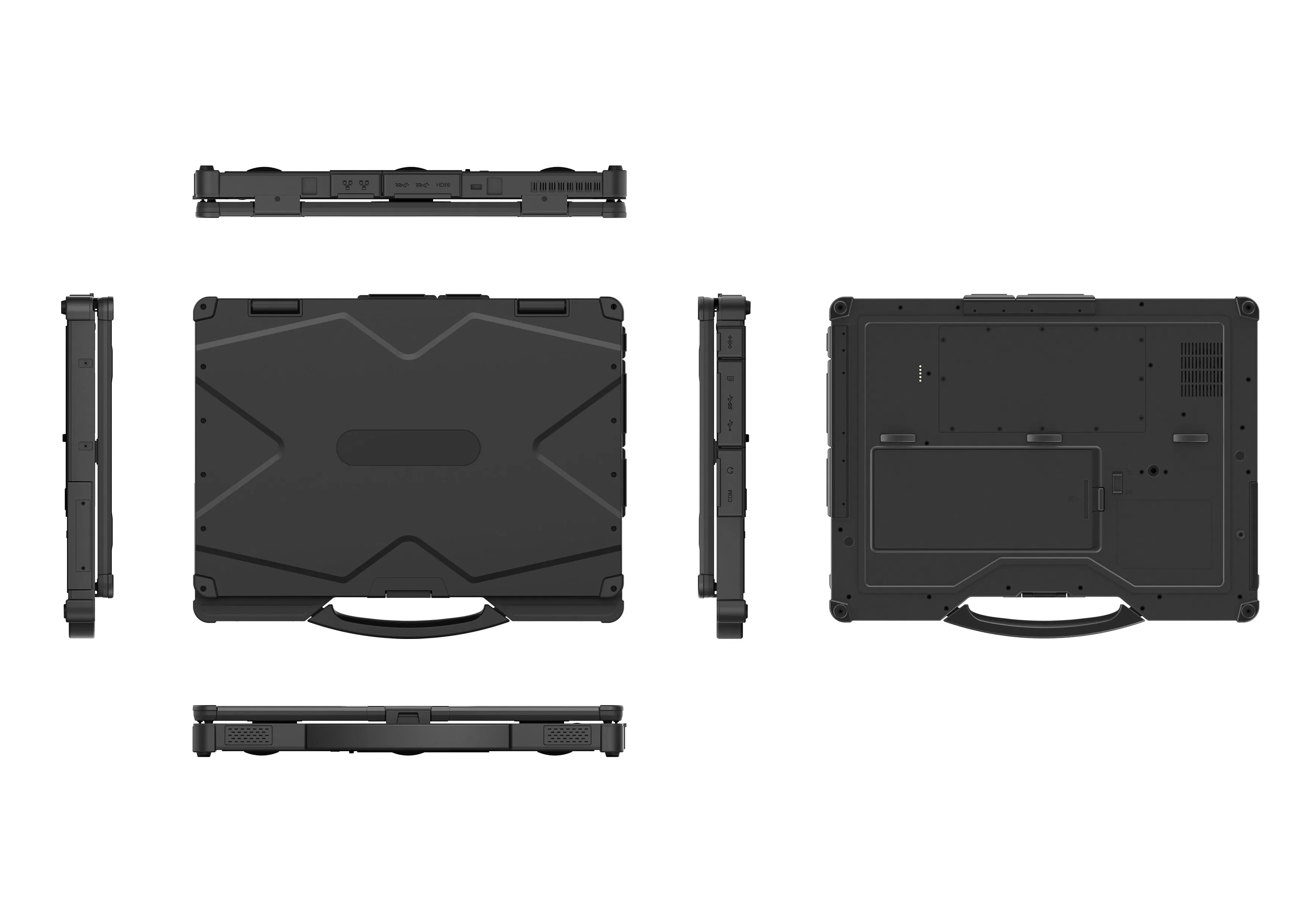

| Dimension | 363.2 x 287.4 x 42.1mm |
| Weight | Device unit 2850g |

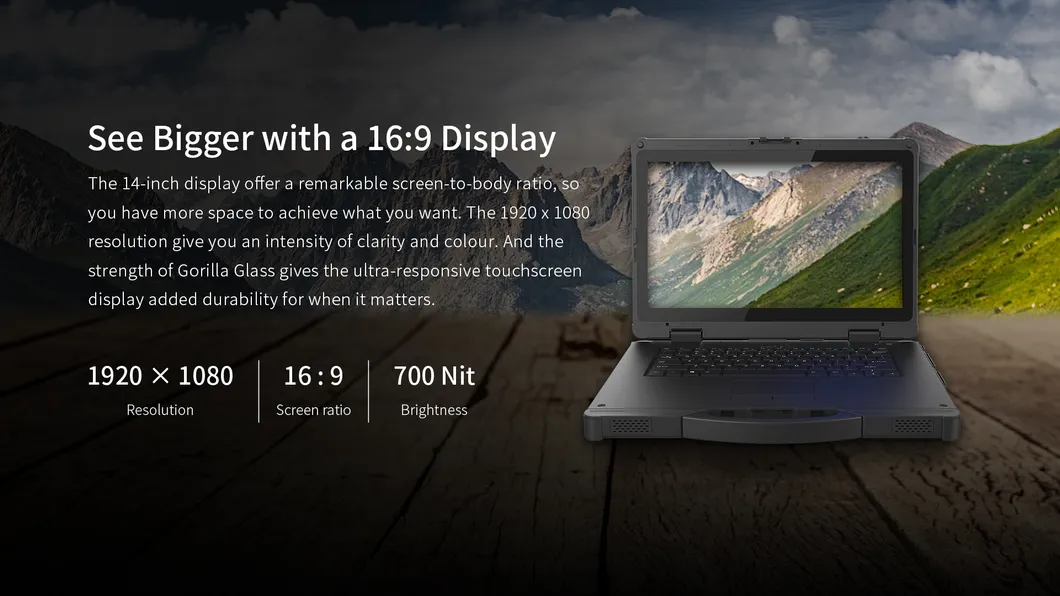

| LCD | 14 inch FHD 16:9, 1920x1080, 700nits |
| Touch Panel | Optional 10 point G+G capacitive touch screen Corning® Gorilla® Glass |
| Camera | Front 2.0MP |
| I/O Ports | HDMI x 1, POGO 5pin x 1, USB 2.0 x 1, USB 3.0 x 3, SIM x 1, SD x 1, DB9 RS232 x 1, RJ45 x 2, DC 19V |

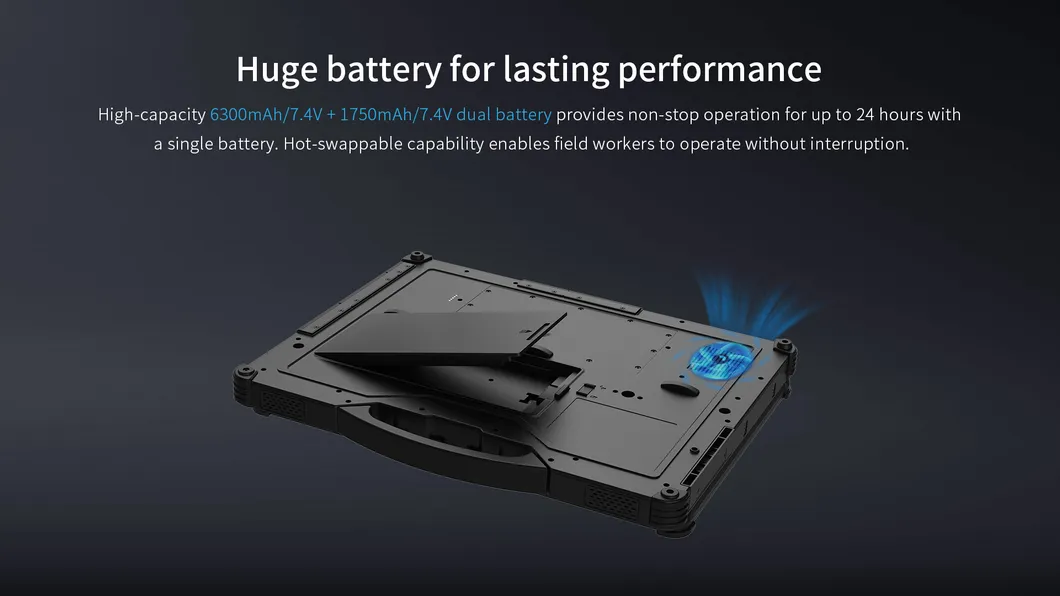

| Battery System (Dual) | |
| Built-in Capacity | 7.4V/1750mAh (Li-polymer) |
| Hot-swappable Capacity | 7.4V/6300mAh (Removable) |
| Endurance | Up to 6.5 hours (1080P video playback) |
| Communication | |

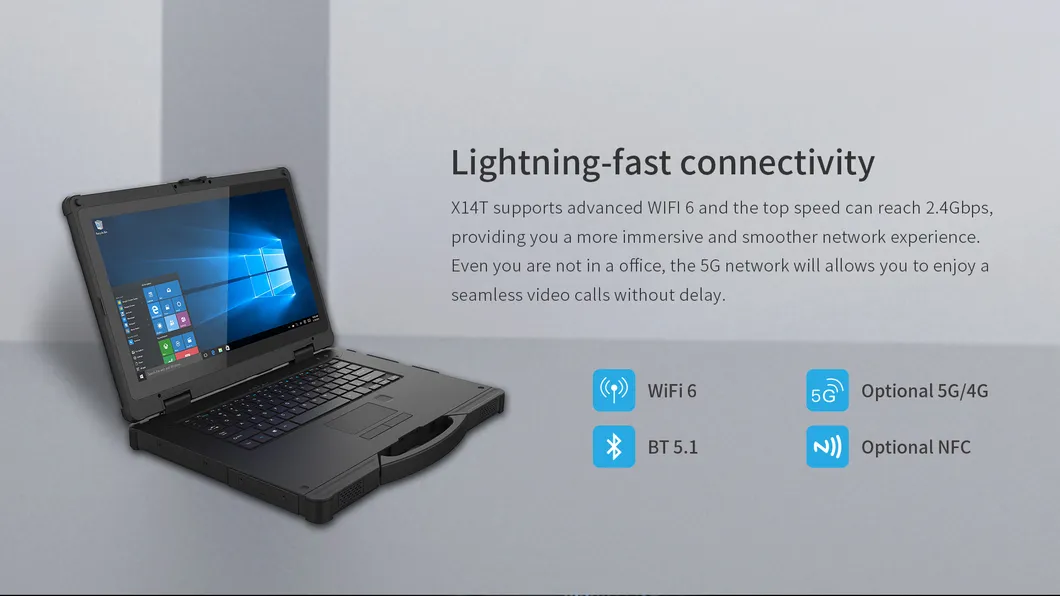

| WIFI / BT | WiFi 6 (802.11ax), Bluetooth 5.1 |
| 4G LTE (Optional) | LTE-FDD: B1/B3/B5/B7/B8/B20, LTE-TDD: B40, WCDMA, GSM |
| 5G NR (Optional) | Support for extensive N bands (n1/n2/n3/n5/n7/n8/n28/n41/n77/n78/n79 etc.) |
| GNSS | Built-in GPS, Optional GPS+Beidou |
| Reliability | |
| Operating Temp | -20 °C ~ 60 °C |
| Storage Temp | -30 °C ~ 70 °C |
| Rugged Feature | IP65 certified, MIL-STD-810H certified, 1.22m Drop height |
