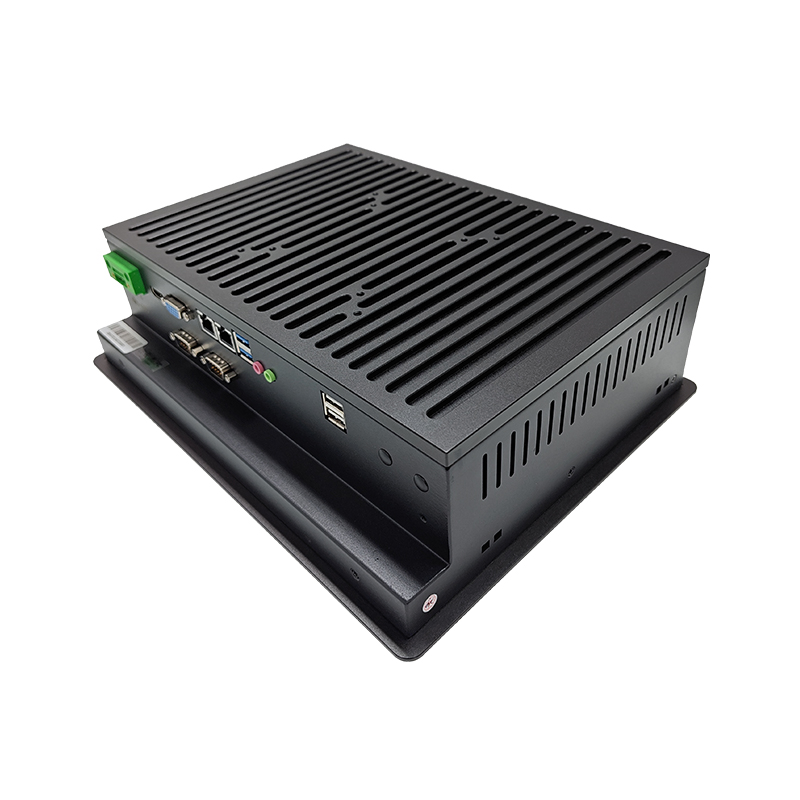

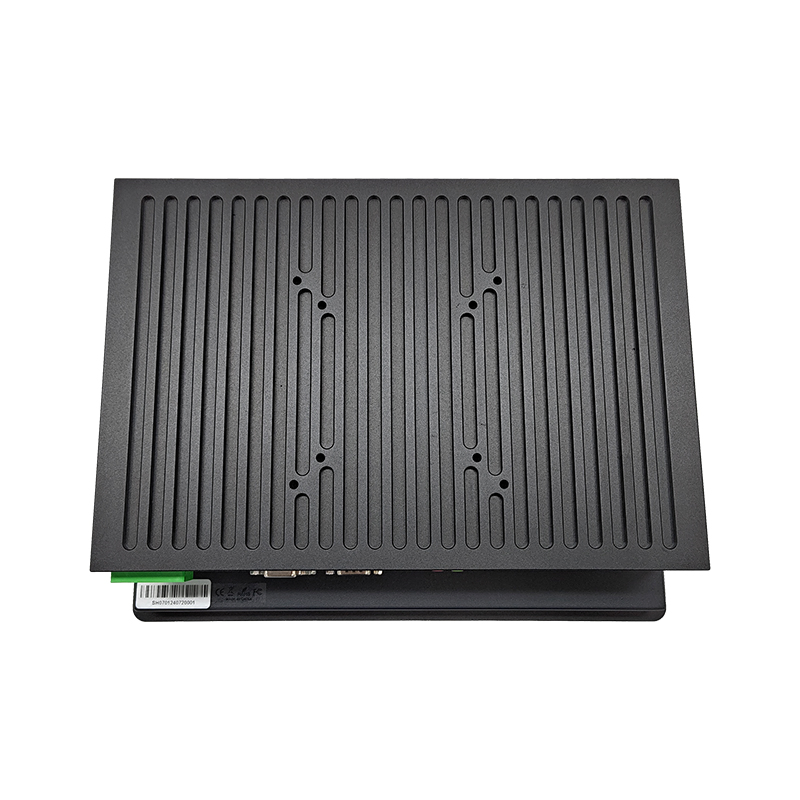

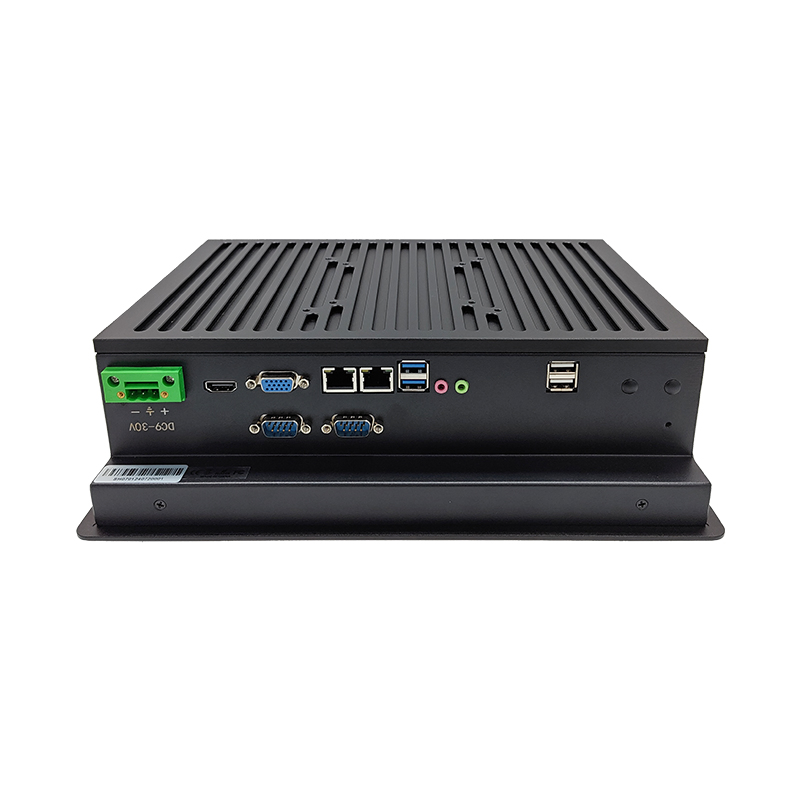

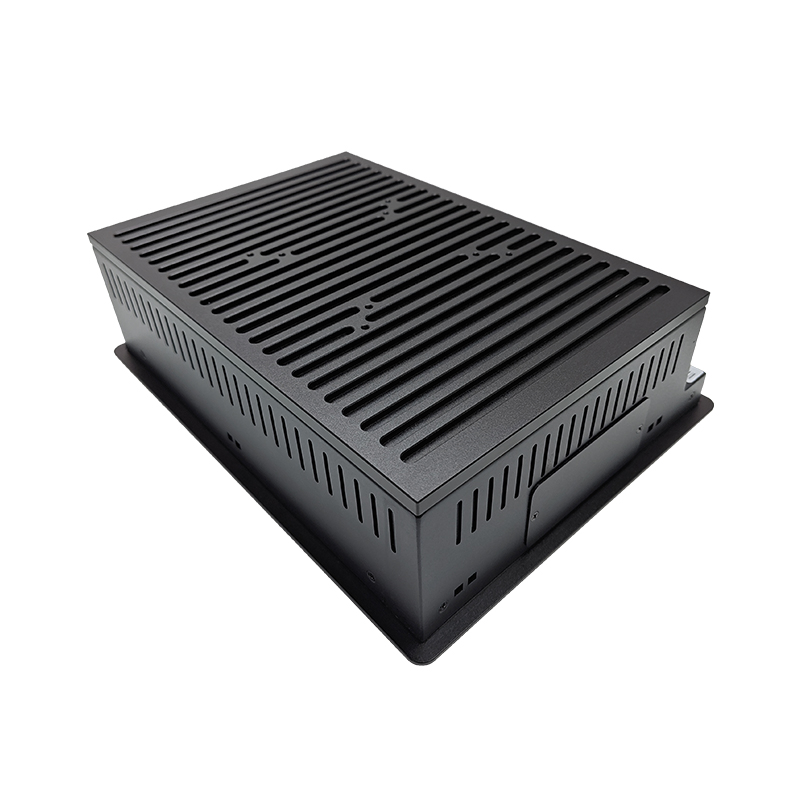

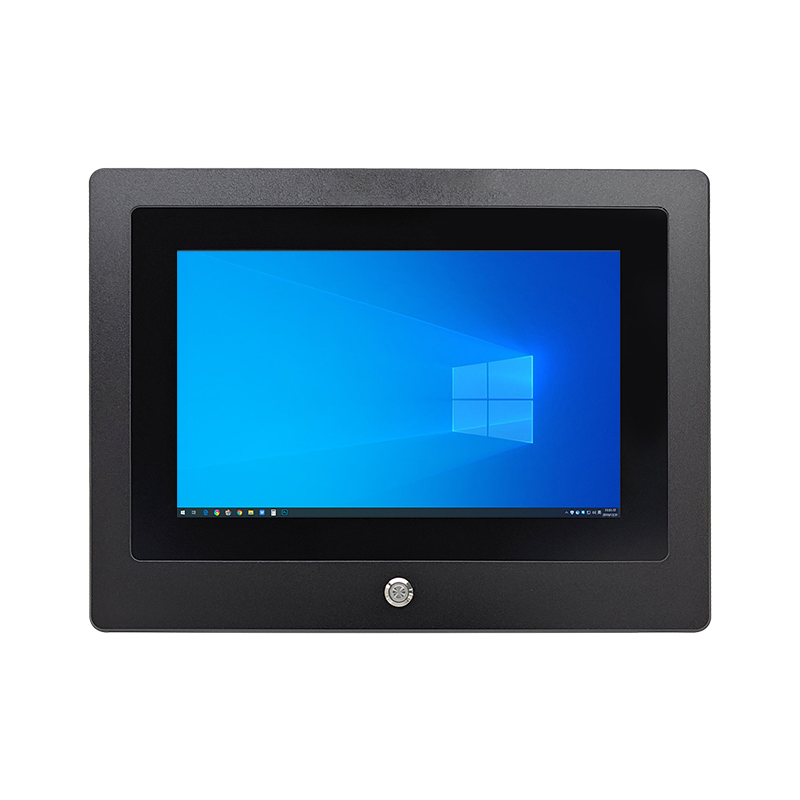

Rugged 10.1" Touch Screen Industrial Computer with 1000 CD/M2 Brightness
Rugged 10.1" Touch Screen Industrial Computer with 1000 CD/M2 Brightness
Rugged 10.1" Touch Screen Industrial Computer with 1000 CD/M2 Brightness
Rugged 10.1" Touch Screen Industrial Computer with 1000 CD/M2 Brightness
Rugged 10.1" Touch Screen Industrial Computer with 1000 CD/M2 Brightness
1 / 5
Rugged 10.1" Touch Screen Industrial Computer with 1000 CD/M2 Brightness
Rugged 10.1" Touch Screen Industrial Computer with 1000 CD/M2 Brightness
Rugged 10.1" Touch Screen Industrial Computer with 1000 CD/M2 Brightness
Rugged 10.1" Touch Screen Industrial Computer with 1000 CD/M2 Brightness
Rugged 10.1" Touch Screen Industrial Computer with 1000 CD/M2 Brightness

Rugged 10.1" Touch Screen Industrial Computer with 1000 CD/M2 Brightness

Customization: Available
Accessories: Industrial Power Supply
Application: Industrial
Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.
SC101
CPU Type
Intel Core i5
RAM
8GB
Screen Size
10.1"
Storage
128GB SSD
Touch Screen
Project Capacitive Touch
Brightness
1000 CD/M2
Operating Temp
-20℃ to 60℃
Certificate
CE, FCC, RoHS
Production Capacity
5000piece/Month
📋

Product Overview

Introducing the powerful and versatile 10.1" inch Core i5-10210U Industrial Panel PC, featuring a stunning 10-point capacitive touch screen and an impressive built-in 25000 mAh battery for extended use.
Industrial Computer Banner
Product Display
⭐

Key Features

Features Header
  • Robust construction with an aluminum alloy face frame and heat sink, treated for UV resistance and anti-discoloration. IP65 waterproof front shell.
  • Equipped with a 25000 mAh rechargeable lithium battery: 7-8 hours charging, 11-12 hours standby, and 8-9 hours working time.
  • Battery low voltage emergency device ensures a seamless and safe shutdown.
  • Supports DC12-36V wide voltage charging input.
  • Industrial-grade LCD screen with 1000 cd/m2 brightness, sunlight-readable with PWM brightness adjustments.
  • 10-point capacitive touch screen with 1.8mm chemically strengthened tempered glass (6H hardness) and AG anti-glare treatment.
  • EETI touch control maintains functionality even with water droplets on the screen.
  • Built with industrial-grade components for reliable 24/7 operation from -20 to 70ºC.
⚙

Technical Specifications

System Configuration
CPUIntel® Core i5-10210U, 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 4.2 GHz, Fanless
Memory2*DDR4 SO-DIMM, Max 64GB
Storage1x MSATA, 2x SATA 3.0
GraphicsIntel® UHD Graphics for 10th Gen
Network2x Intel i211/i210; WIFI + Bluetooth (4G/GPS Optional)
OS SupportWindows 10/11, Linux, Ubuntu, Debian etc.
Display & Touch
Resolution1280*800 (16:10)
Brightness1000 nits (Sunlight Readable)
Touch TypeProjected Capacitive (10 points)
Surface7H Hardness, Anti-glare (chemical etching)
Mechanical & Environmental
MaterialAluminium alloy bezel + Zinc Plating cold rolled steel
IP GradeFront panel IP65 waterproof
Power InputDC 12-36V
Operating Temp-20 to 70°C
Product Size305×235×88mm
📷

Visual Gallery

Feedback Display
Customization Services
Product Details
📜

Certifications & Quality

Certificates
🏭

Manufacturing Capability

Factory Profile

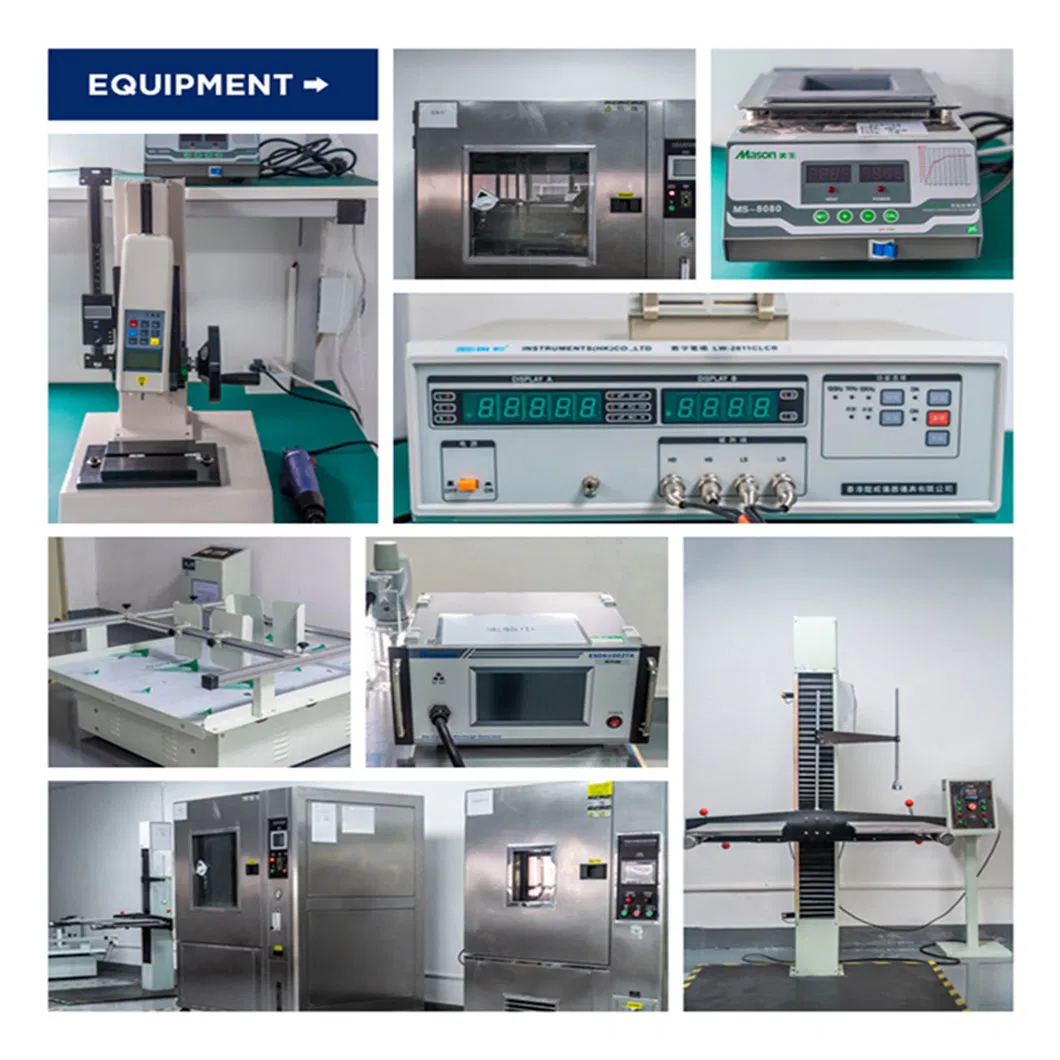

Production Line
Quality Control
❓

Frequently Asked Questions

What is the battery life of this industrial PC?
The built-in 25000 mAh battery provides approximately 8-9 hours of active working time and 11-12 hours of standby time.
Is the display readable in direct sunlight?
Yes, the industrial LCD screen features 1000 nits high brightness and anti-glare (AG) treatment, making it clearly visible in sunlight.
Does the touch screen work if it gets wet?
Yes, the device utilizes an EETI touch control solution that allows the capacitive touch screen to remain functional even in the presence of water droplets.
What is the protection rating for harsh environments?
The front panel is IP65 waterproof rated, and the device is built with an aluminum alloy frame designed for UV resistance and anti-discoloration.
What power inputs does the system support?
The system supports a wide voltage charging input range of DC 12V to 36V, making it versatile for various industrial power sources.
Can the brightness be adjusted?
Yes, the PC supports PWM software for precise brightness adjustments to suit different lighting environments.

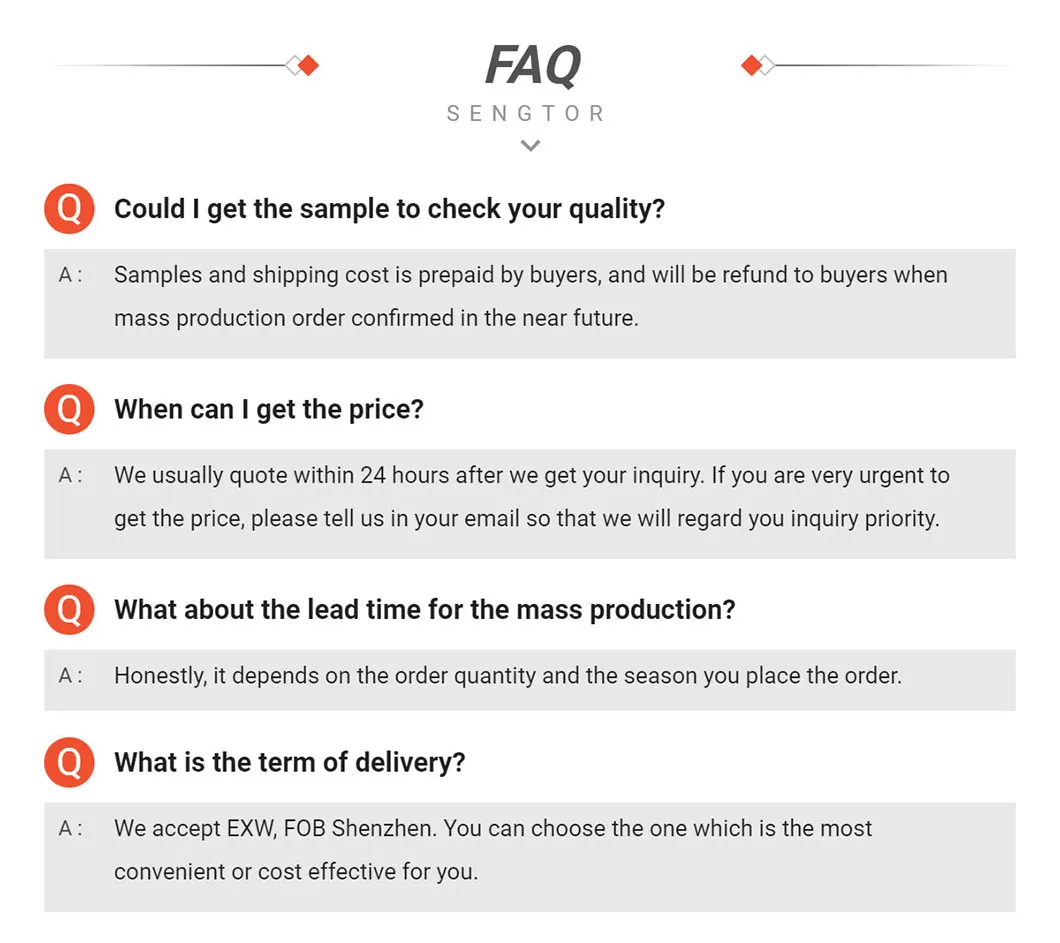

FAQ Summary
