Custom 8inch HMI LCD Touchscreen Module Factory Human Machine Interface Touch Panel
Custom 8inch HMI LCD Touchscreen Module Factory Human Machine Interface Touch Panel
Custom 8inch HMI LCD Touchscreen Module Factory Human Machine Interface Touch Panel
Custom 8inch HMI LCD Touchscreen Module Factory Human Machine Interface Touch Panel
Custom 8inch HMI LCD Touchscreen Module Factory Human Machine Interface Touch Panel
1 / 5
Custom 8inch HMI LCD Touchscreen Module Factory Human Machine Interface Touch Panel
Custom 8inch HMI LCD Touchscreen Module Factory Human Machine Interface Touch Panel
Custom 8inch HMI LCD Touchscreen Module Factory Human Machine Interface Touch Panel
Custom 8inch HMI LCD Touchscreen Module Factory Human Machine Interface Touch Panel
Custom 8inch HMI LCD Touchscreen Module Factory Human Machine Interface Touch Panel

Custom 8inch HMI LCD Touchscreen Module Factory Human Machine Interface Touch Panel

Customization: Available
Task: Program
Structure: Combination
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
FT-HMI
Model Type
Linear
Function
Control, Protection, Monitoring
Certification
ISO: 9001
Material
Stainless Steel
LCD Size
185mm L * 143mm W
Resolution
800 * 600 Pixels
Touch Type
Capacitive Touch
Backlight
LED
Net Weight
490g
Trademark
ODM OEM
★

Product Description

Custom 8inch HMI LCD TouchScreen Module Factory Human Machine Interface Touch Panel

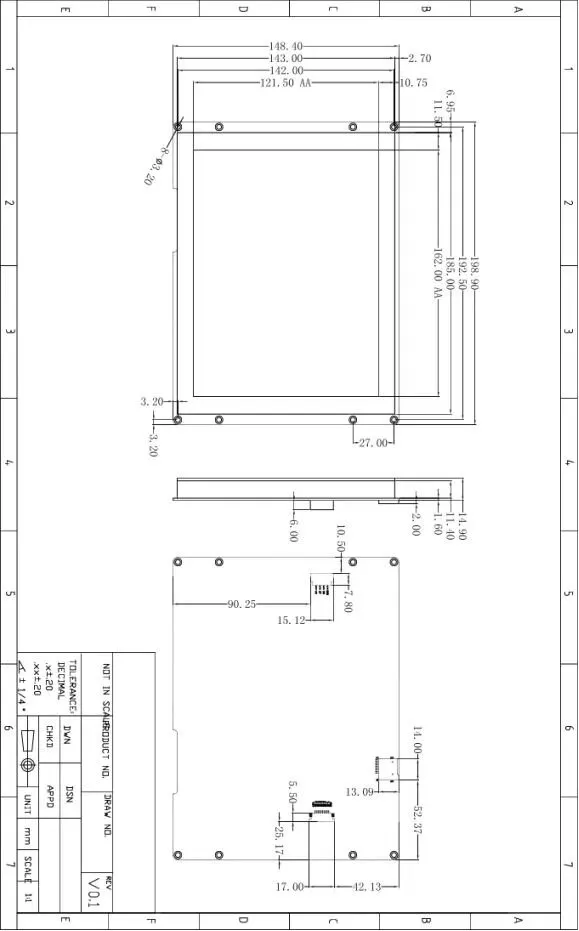

Technical Drawing:

HMI Drawing
Outline Parameters Data Explanation
Product Model FT8060X580_011C Capacitive Touch Screen
Diagonal Size 8.0 inch VA Area
Color 65K (65536) color 16 bit palette 5R6G5B
Dimensions 198.9 × 148.4 × 14.9 mm L × W × H
Visible Size (A.A.) 162 × 121.5 mm 800×600 pixel mode
Brightness 300 nit 100-levels adjustable
Backlight Life >30,000 hrs Average life span
Electrical Performance
Operating Voltage 5V (4.65V - 6.5V) Working Current 630mA (Max Brightness)
Interface Level 3.3V/5V TTL / 232 SD Interface Max 32G MicroTF/SD
✔

Applications & Advantages

Core Applications: Widely used in financial terminals, consumer electronics, self-service terminals, and industrial human-machine interfaces (HMI).

  • Experienced Team: Over 11 years of field knowledge to provide optimized solutions.
  • OEM & ODM: Full customization support to meet specific project requirements.
  • Strict Quality Control: Process-oriented management following ISO9001 standards.
  • High Productivity: Equipped with automated production lines and dust-free workshops.
📜

Honor and Certifications

Certification 1 Certification 2
?

Frequently Asked Questions

What is your delivery method?
We ship via DHL, UPS, FEDEX, TNT, by Air, or according to specific customer requests.
Are you a factory or a trading company?
We are a professional OEM/ODM factory specializing in touch screen and HMI solutions.
How do you ensure product quality?
Our production follows a strict ISO9001 quality management system, including incoming quality checks, in-process monitoring, and final product inspections.
Does this HMI support external storage?
Yes, it features an SD interface that supports FAT32 file formats and a maximum of 32G MicroTF/SD cards.
Can the display brightness be adjusted?
Yes, the 300nit brightness is adjustable through 100 levels to suit different lighting environments.
What is the expected lifespan of the backlight?
The LED backlight has an average life span of over 30,000 hours.
