Desktop Bracket / Wall Mount / Embedded 3558u I3 I5 I7 All in One PC Touch Screen Fanless Industrial Computer
Desktop Bracket / Wall Mount / Embedded 3558u I3 I5 I7 All in One PC Touch Screen Fanless Industrial Computer
Desktop Bracket / Wall Mount / Embedded 3558u I3 I5 I7 All in One PC Touch Screen Fanless Industrial Computer
Desktop Bracket / Wall Mount / Embedded 3558u I3 I5 I7 All in One PC Touch Screen Fanless Industrial Computer
Desktop Bracket / Wall Mount / Embedded 3558u I3 I5 I7 All in One PC Touch Screen Fanless Industrial Computer
1 / 5
Desktop Bracket / Wall Mount / Embedded 3558u I3 I5 I7 All in One PC Touch Screen Fanless Industrial Computer
Desktop Bracket / Wall Mount / Embedded 3558u I3 I5 I7 All in One PC Touch Screen Fanless Industrial Computer
Desktop Bracket / Wall Mount / Embedded 3558u I3 I5 I7 All in One PC Touch Screen Fanless Industrial Computer
Desktop Bracket / Wall Mount / Embedded 3558u I3 I5 I7 All in One PC Touch Screen Fanless Industrial Computer
Desktop Bracket / Wall Mount / Embedded 3558u I3 I5 I7 All in One PC Touch Screen Fanless Industrial Computer

Desktop Bracket / Wall Mount / Embedded 3558u I3 I5 I7 All in One PC Touch Screen Fanless Industrial Computer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Specifications
Model NO.
SK-K15DR
Touch Screen
10 Point Capacitive Touch
Type
IPC (Industrial PC)
Waterproof
IP65 Waterproof Rating
Screen Type
10.4", 12.1", 15", 17", 19" LED
Contrast Ratio
700:1
Brightness
250cd/m2
Screen Ratio
4:3 / 5:4
Response Time
Less Than 5ms
Heat Dissipation
Fanless Aluminum Fin System
Installation
Wall Mounted, Desktop, Embedded
HS Code
8521909090
Product Description
Desktop Bracket / Wall Mount / Embedded 3558u I3 I5 I7 All in One PC Touch Screen Fanless Industrial Computer

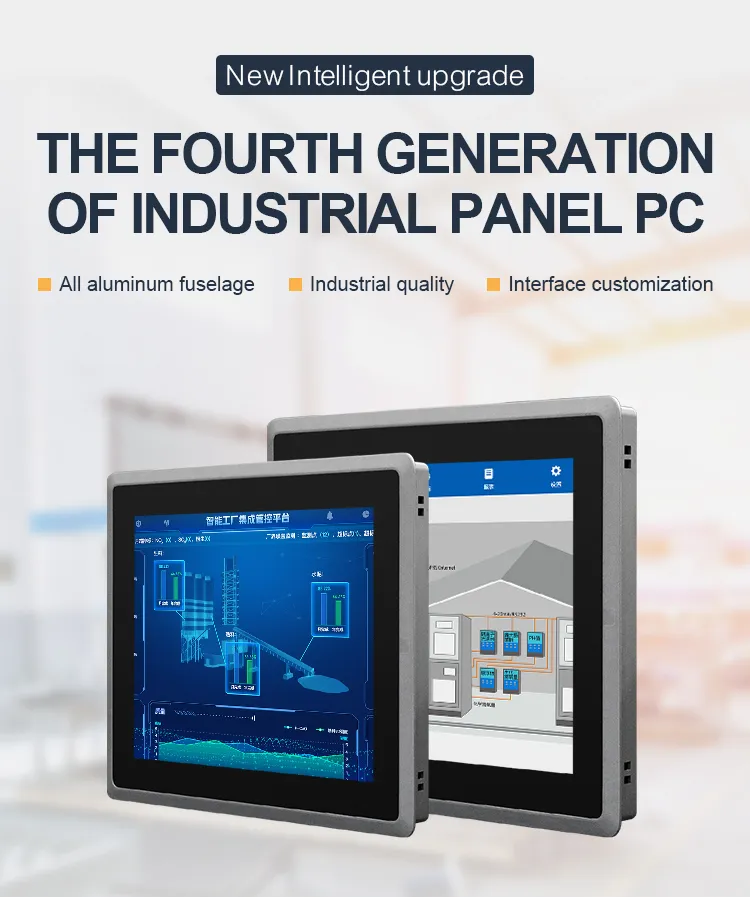

Industrial PC Design

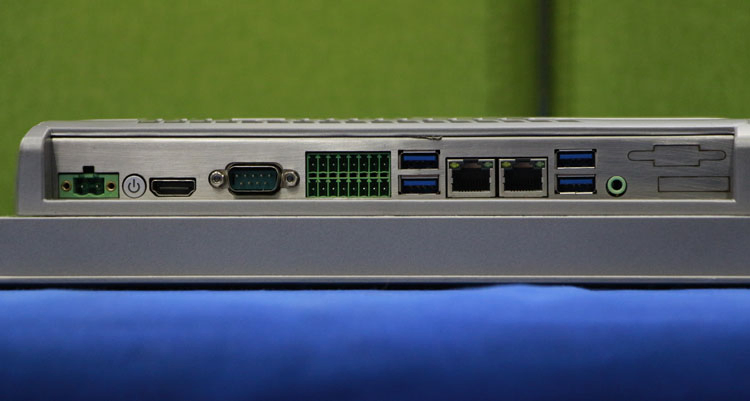

Interface View
Industrial PC Dimensions

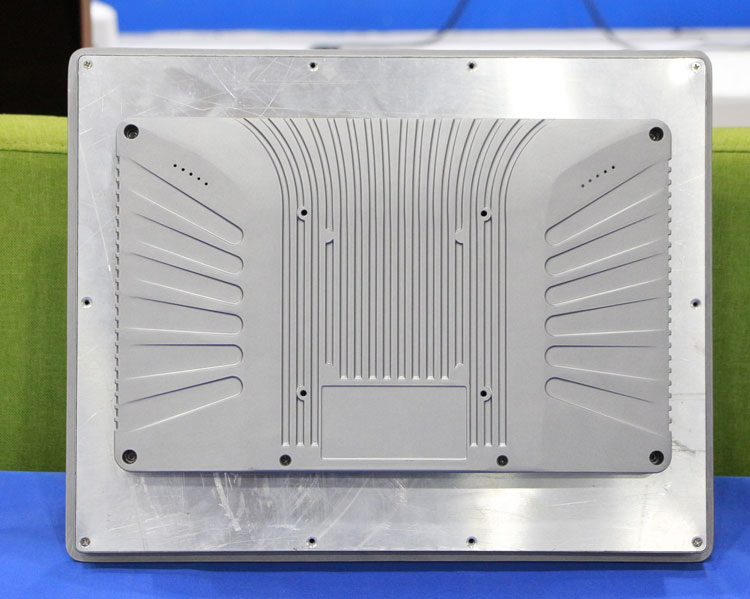

Fanless Cooling System
IP65 Protection
Touch Screen Performance
Multi-installation Options
Hardened Glass Panel
Industrial Reliability
Component Details

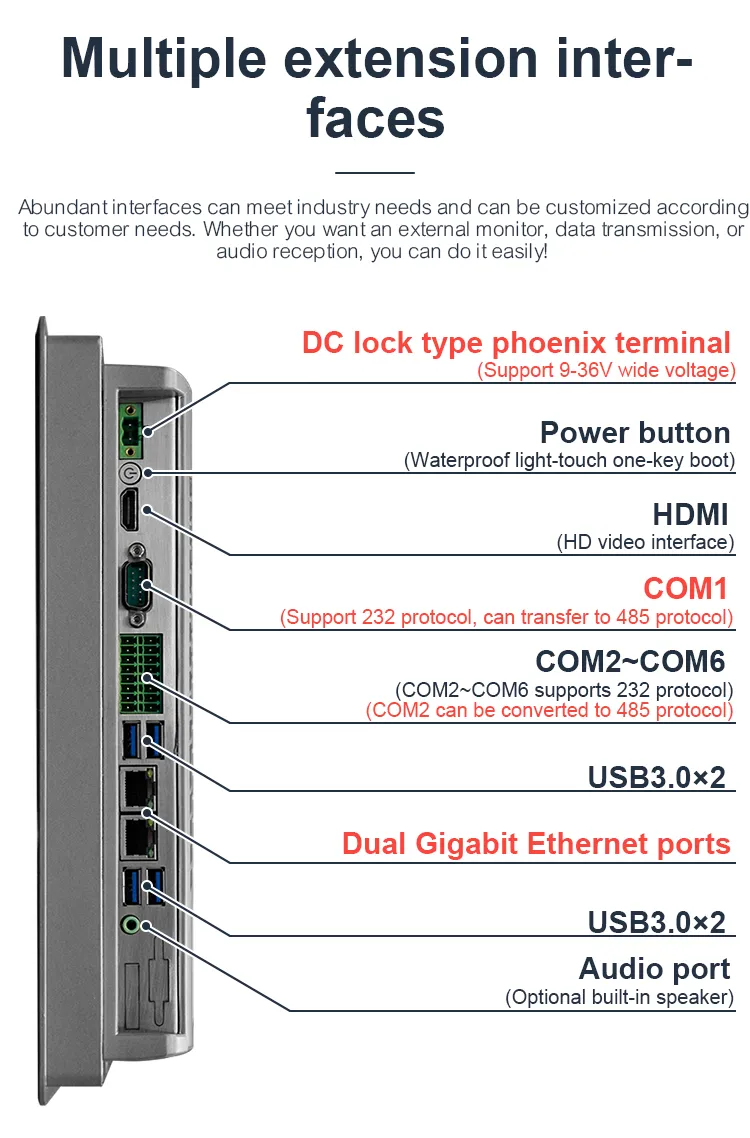

System Interface

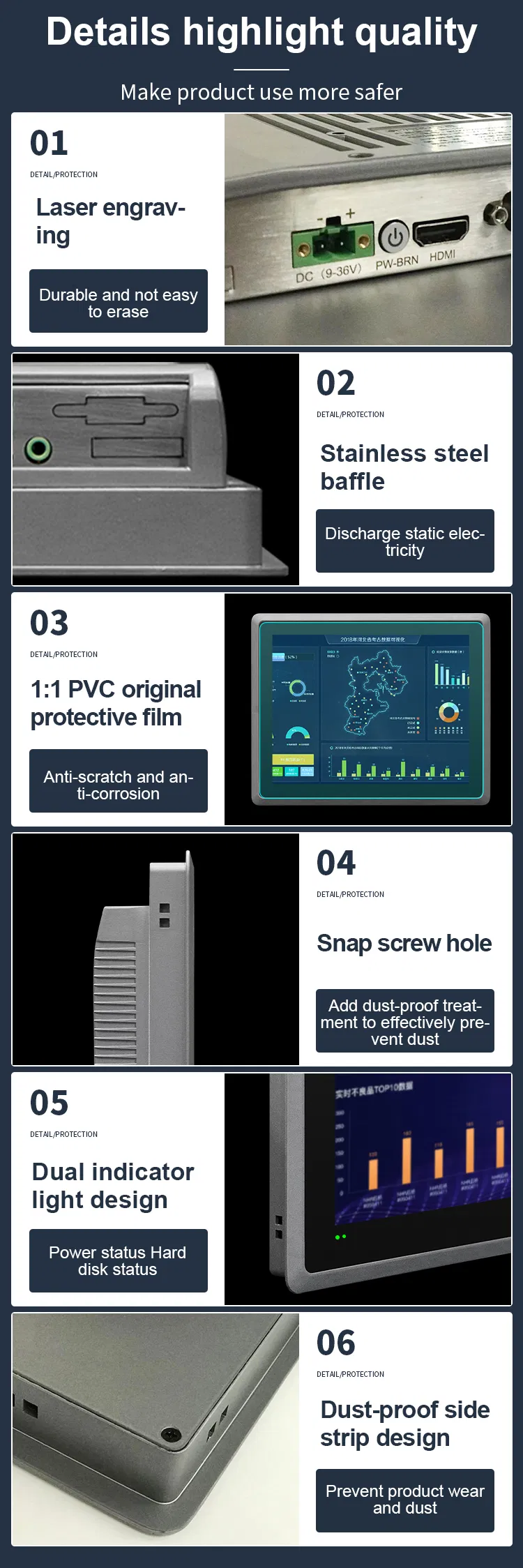

Full Product Overview
Detailed Technical Parameters
Feature 10.4" Model 12.1" Model 15" Model 17" Model 19" Model
CPU Configuration Intel® 4th Gen Pentium 3558U (Options for I3/I5/I7), DDR3-4G, SSD-64G
Interface Network 2*RJ45 1000 Base-T, WiFi 802.11b/g/n, Support 3G/4G (Optional)
USB / HDMI 4*USB 3.0, 1*HDMI Output
Serial Port 2*COM (RS485)
Power 9-36V DC Phoenix Terminal
Display Resolution 1024*768 1024*768 1024*768 1280*1024 1280*1024
Brightness 200cd/m2 200cd/m2 250cd/m2 250cd/m2 250cd/m2
Contrast 500:1 500:1 700:1 900:1 900:1
Structure Material Aluminum Die Casting, Fanless Heat Dissipation
Dimensions 281*228*56.8mm 315*254*56.8mm 304*294*55.3mm 404*341*56.3mm 445*375*59.3mm
Frequently Asked Questions
Q1: What installation methods are supported?
A: This industrial PC supports multiple installation methods including wall-mounted, desktop stand, and embedded (VESA 100*100mm) configurations to suit different industrial environments.
Q2: Is the front panel waterproof?

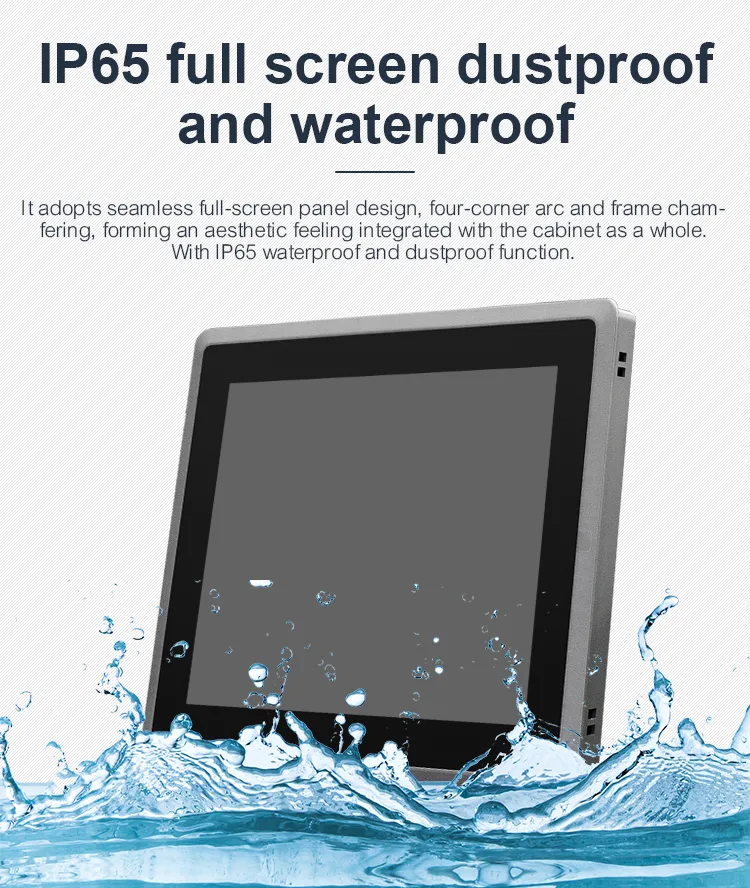

A: Yes, the unit features an IP65 waterproof and dustproof front panel, making it ideal for harsh industrial settings where exposure to liquids or dust is common.

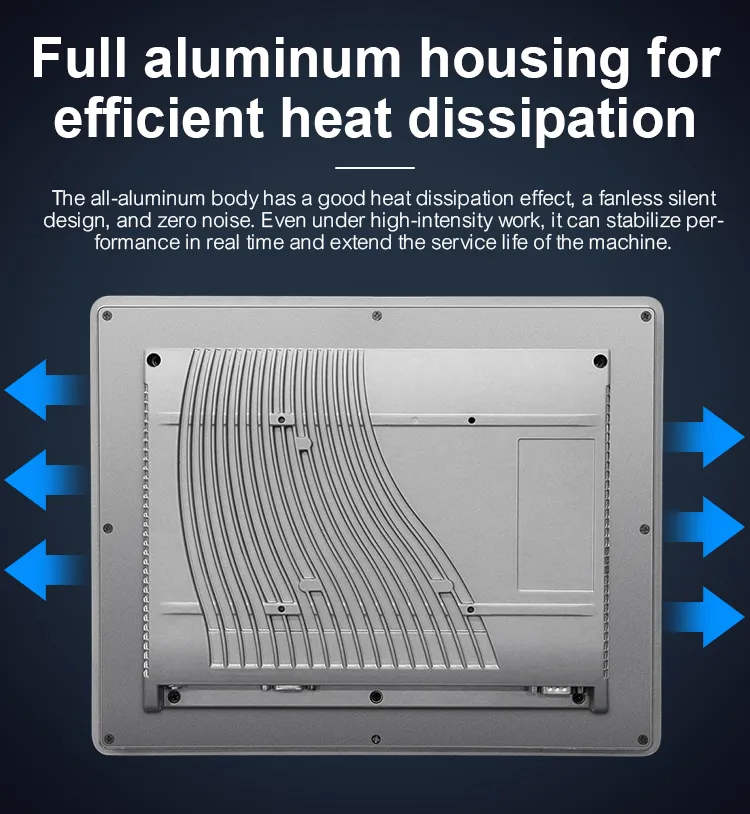

Q3: How does the fanless cooling system work?

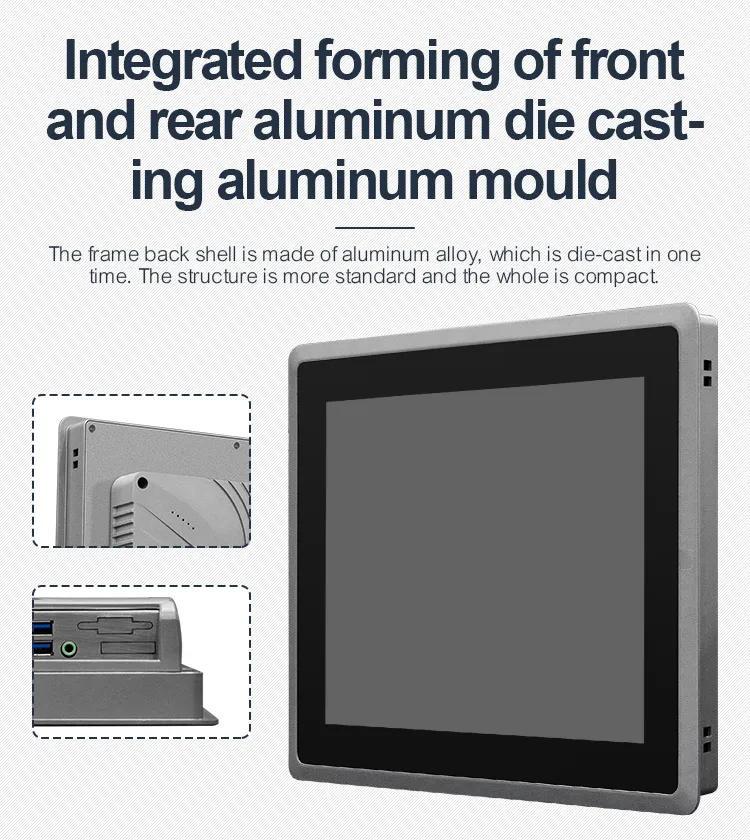

A: The PC utilizes an aluminum die-casting shell with high-efficiency cooling fins. This fanless design ensures silent operation and prevents dust from being drawn into the internal components.
Q4: What are the touch screen capabilities?
A: It is equipped with a high-precision projected capacitive touch screen that supports 10-point multi-touch with a response time of less than 5ms.
Q5: Can the hardware configuration be customized?
A: Yes, while the standard configuration uses an Intel 3558U, it can be customized with I3, I5, or I7 processors, along with various RAM and SSD storage options.
Q6: What is the operating temperature range?
A: Designed for industrial use, it operates reliably in temperatures ranging from -20ºC to 70ºC with humidity levels between 10% and 90%.
