| Industrial PC Series | SK-K10DR | SK-K12DR | SK-K15DR | SK-K17DR | SK-K19DR | |
| Motherboard | Configuration | Intel® 4th Gen Pentium 3558U, DDR3-4G, SSD-64G | ||||
| Interface | WiFi / 3G / 4G | 802.11b/g/n, Support 3G/4G (Optional) | ||||

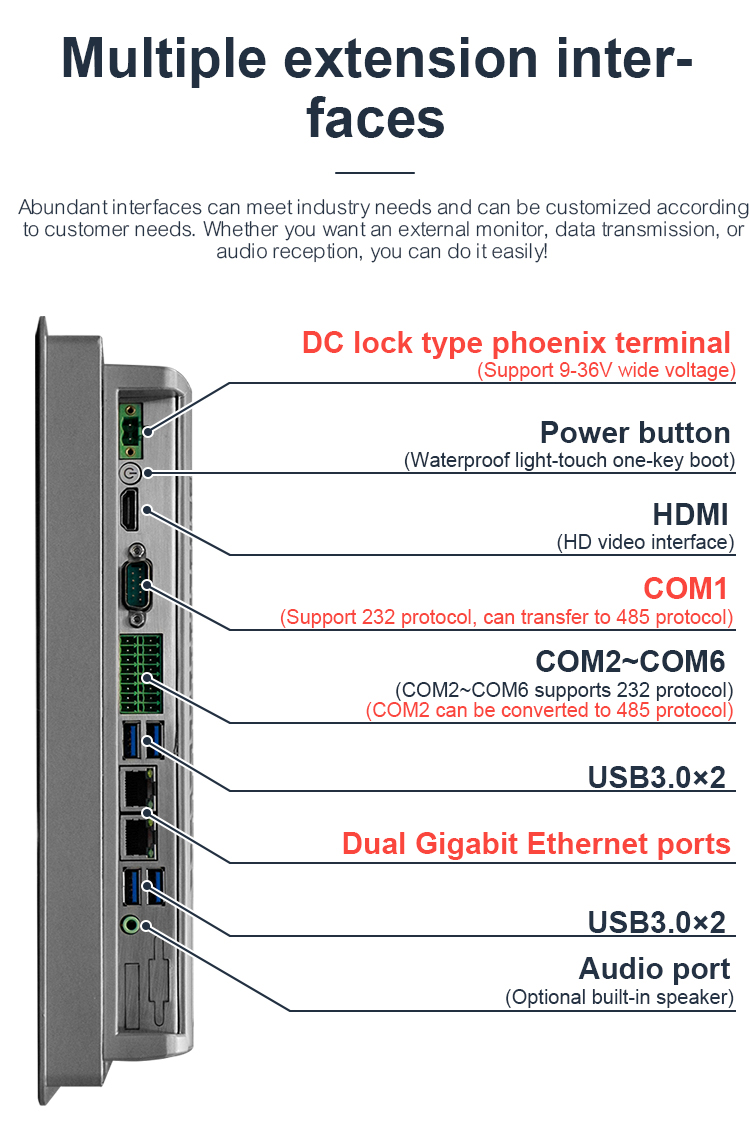

| I/O Ports | 1*HDMI Output, 4*USB 3.0, 2*RJ45 (1000 Base-T) | |||||

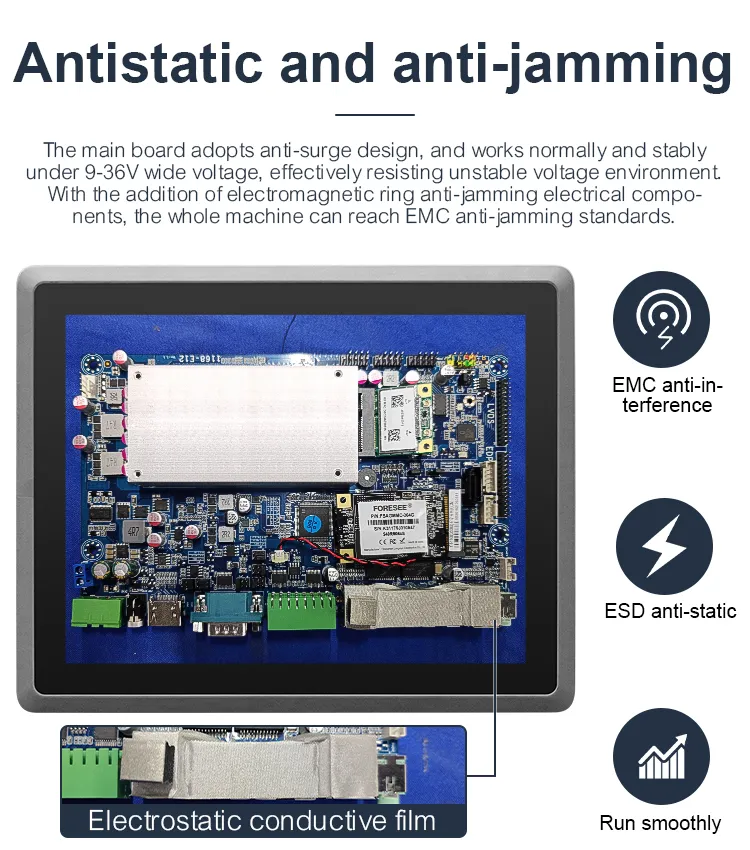

| COM / Power | 2*RS485, 1*DC Lock Phoenix Terminal (Support 9-36V) | |||||
| Audio / GPIO | 1*3.5mm Audio Output, 8*GPIO (Optional) | |||||
| Display | Screen Type | 10.4" LED | 12.1" LED | 15" LED | 17" LED | 19" LED |
| Resolution | 1024*768 | 1024*768 | 1024*768 | 1280*1024 | 1280*1024 | |
| Contrast / Bright | 500:1 / 200cd | 500:1 / 200cd | 700:1 / 250cd | 900:1 / 250cd | 900:1 / 250cd | |

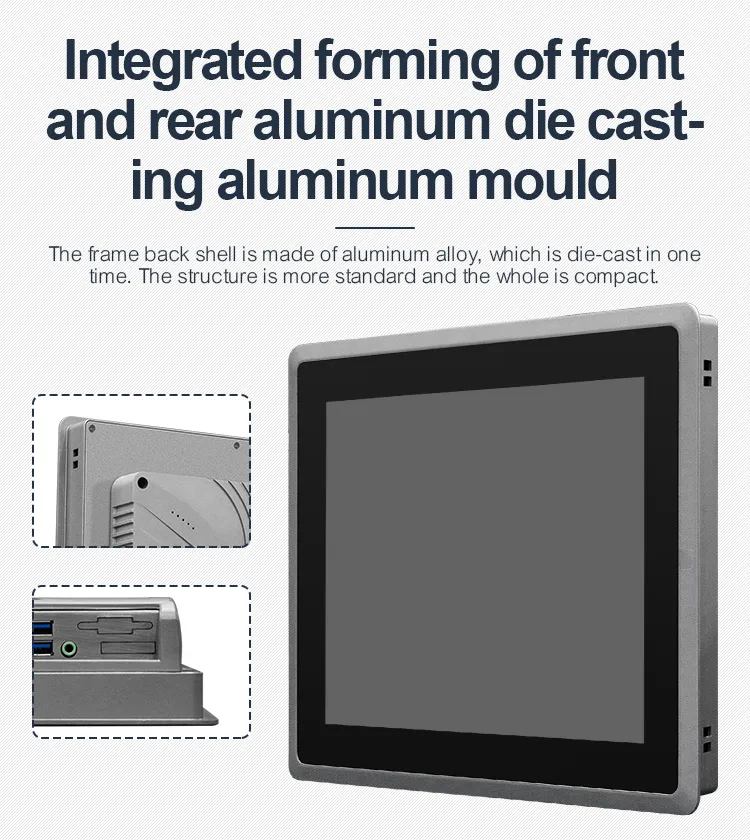

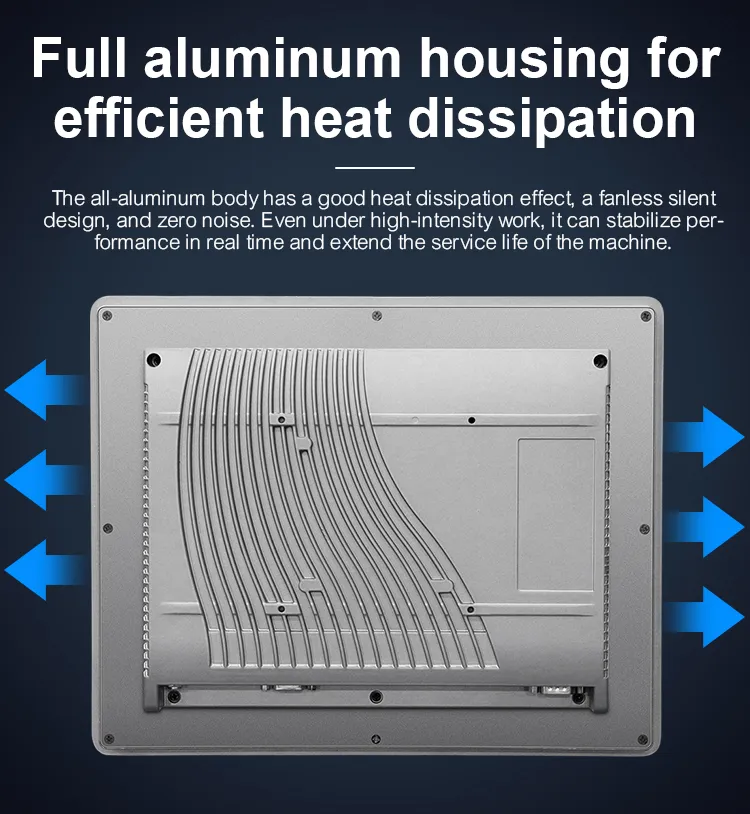

| Structure | Material / Cooling | Aluminum Die Casting, Fanless Aluminum Fin Heat Dissipation | ||||

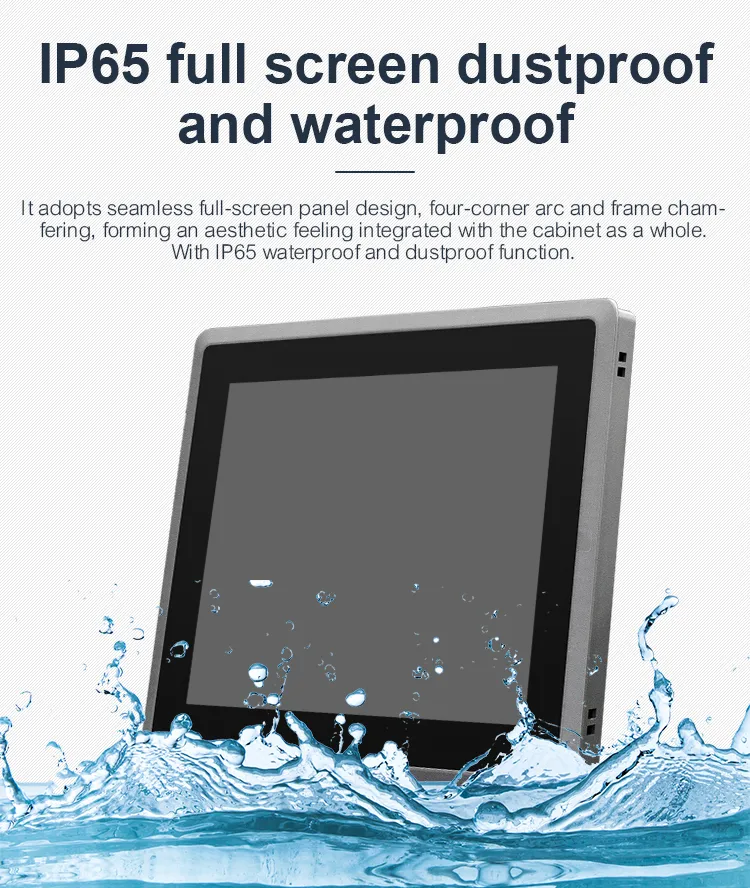

| Protection | IP65 Waterproof Front Panel, Black/Grey Finish | |||||

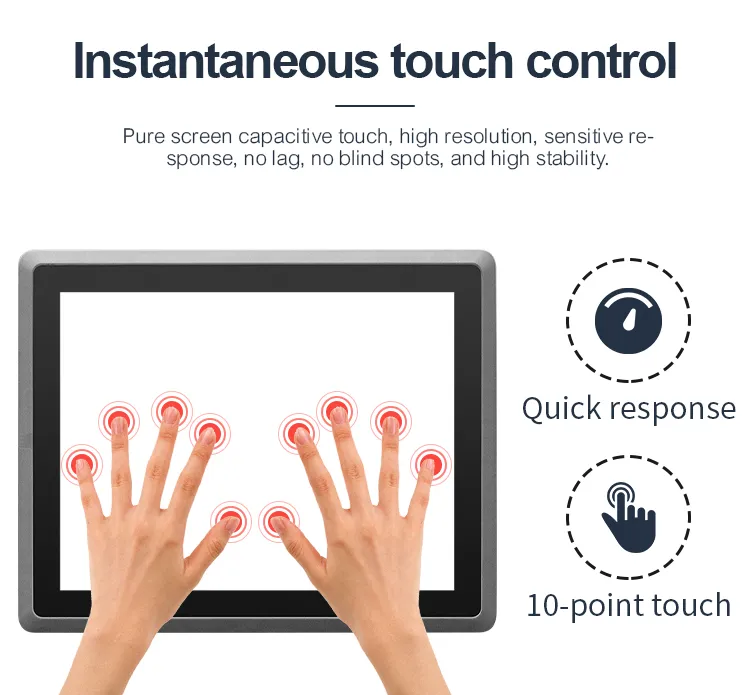

| Touch | Type | Projected Capacitive Touch Screen (10 Points), >90% Transparency | ||||
| Environment | Operating Temp | -20ºC ~ 70ºC; Humidity: 10% ~ 90% | ||||
