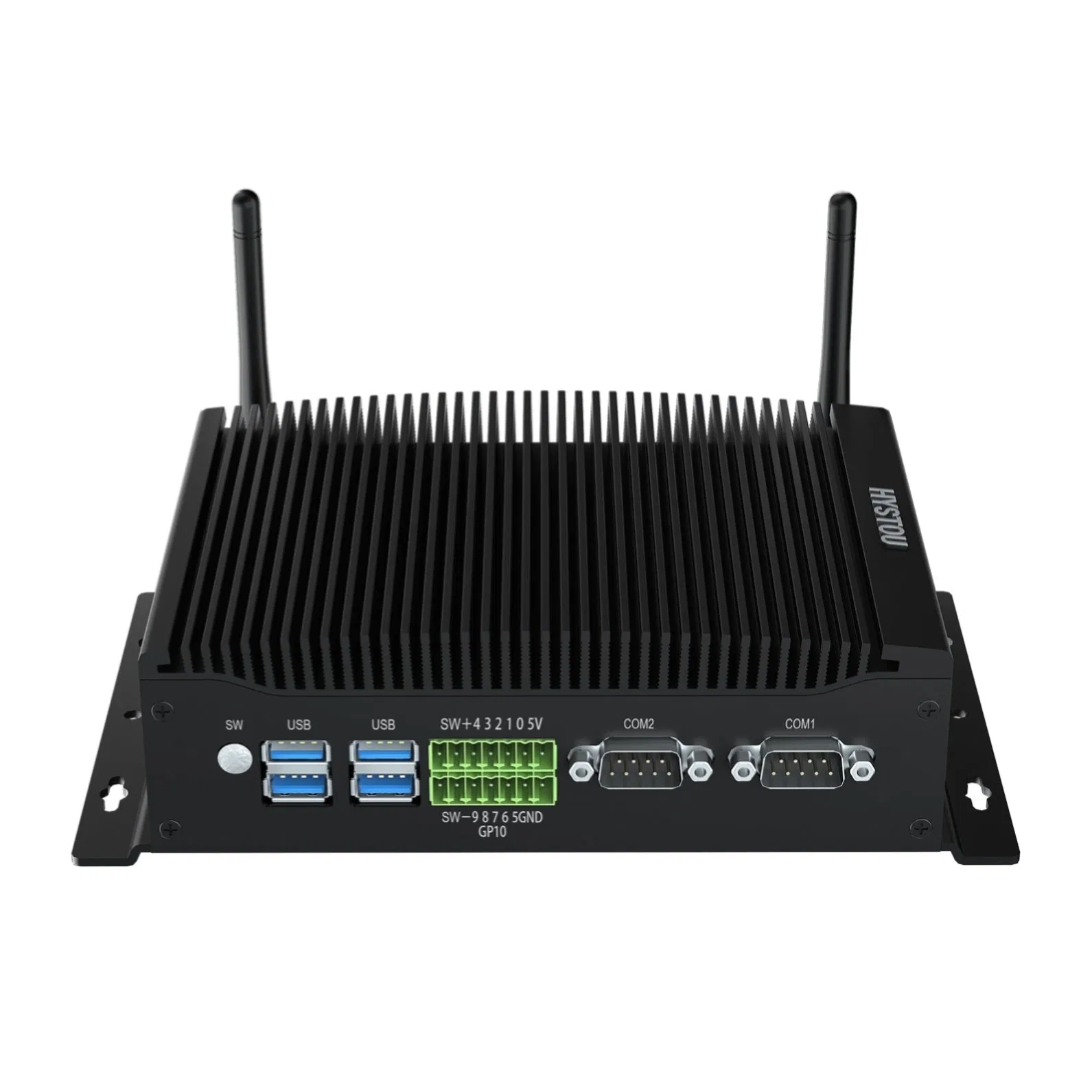

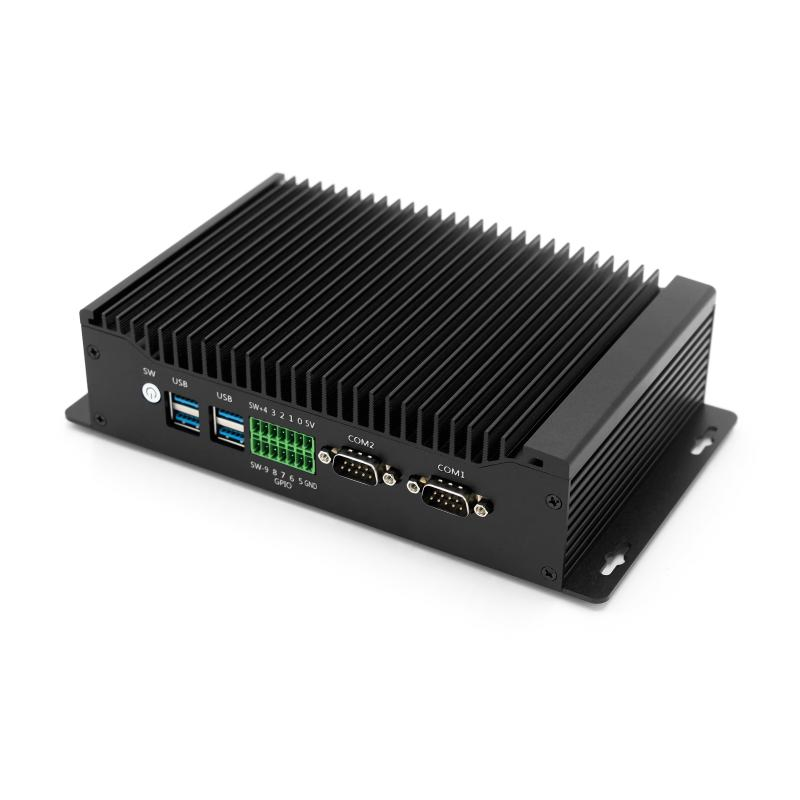

Hystou Gpio Intel Corei5 8th for Factory Use Pocket Mini PC DDR4 M. 2SSD Embedded Triple Display HD-Mi LAN COM Industrial Fanless Desktop Computer

Still deciding? Get samples of $ !
Order Sample

Product Description

!

Basic Information

Model NO.: H6 i5-8260U
CPU Type: Intel Core i5
Operating Temperature: -20℃ to 60℃
RAM: 64GB
Storage Capacity: 512GB SSD
Touch Screen: Without Touch Screen
LAN Port: 2*RJ45 LAN Gigabit Ethernet Controller
Memory Types: 2*DDR4 So-DIMM 262 Pin
USB Port: 2*USB 2.0 Port, 4*USB 3.0 Port
PC Size: 205*125*53mm
Industrial Fanless Desktop Computer
Fanless Mini PC View

Product Description

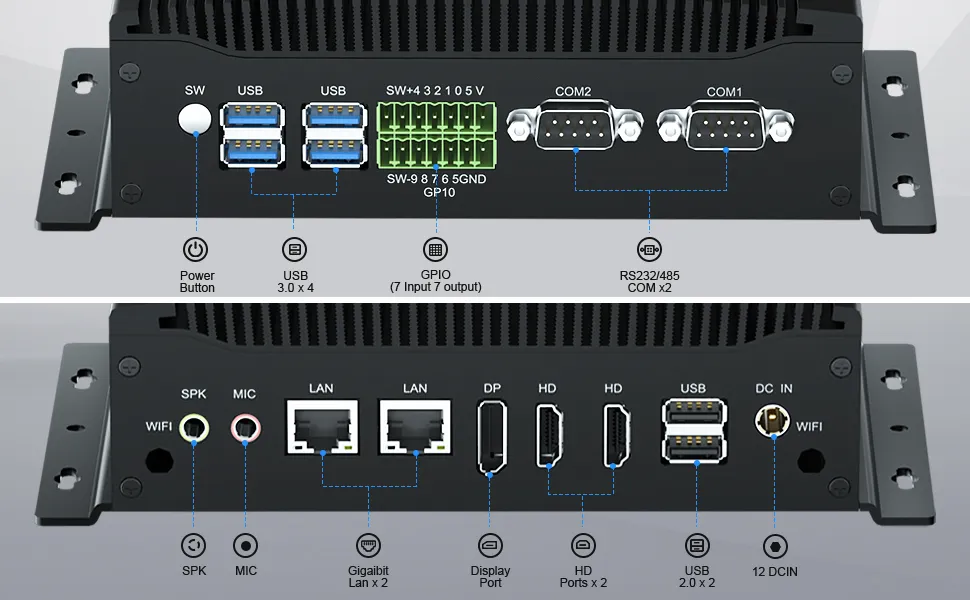

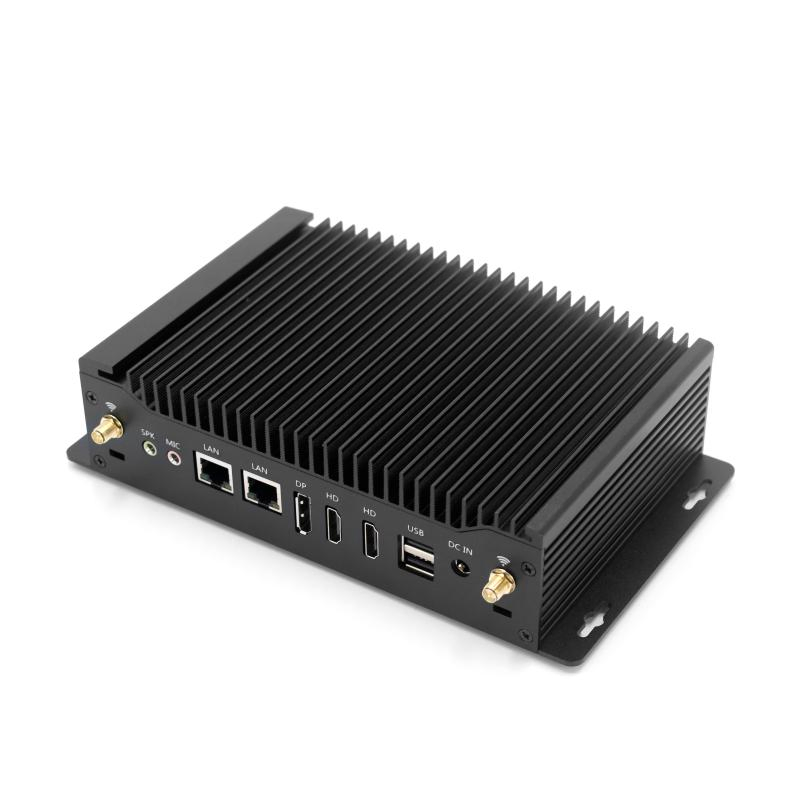

Rich Interface

The H6 fanless industrial computer comes equipped with an array of connectivity options, including 6 USB ports, 2 COM ports, 2 LAN ports, 1 DisplayPort, and 2 HD-MI ports. With USB 3.0 support, you can experience rapid data transfer speeds, enhancing productivity and saving valuable time. This versatile system supports a wide range of peripherals, including TVs, monitors, scanners, receipt printers, projectors, office equipment, monitoring devices, and more.

Rich Interface Details

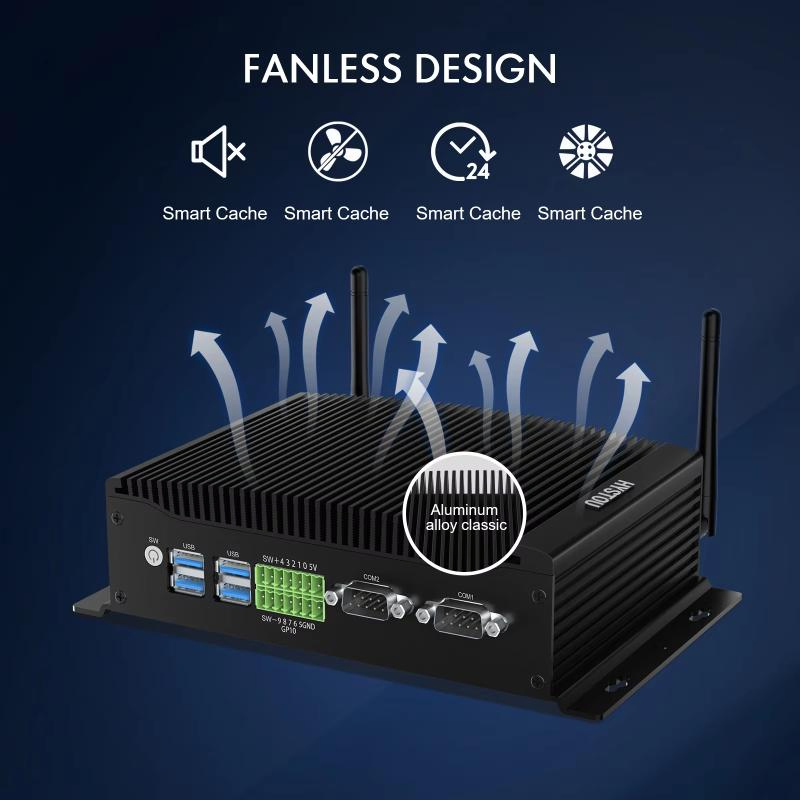

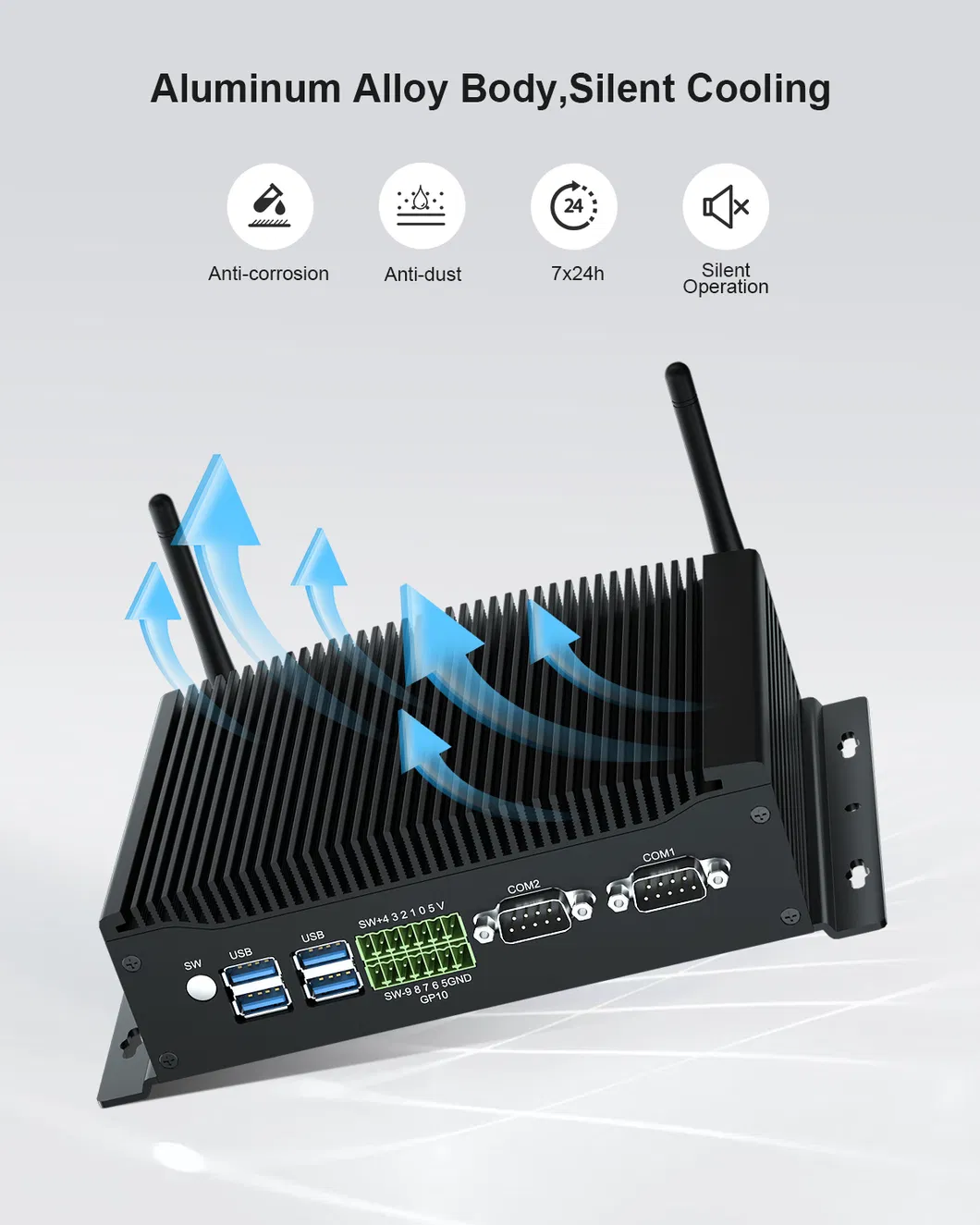

Effective Heat Dissipation

Boasting a noise-free, fanless design and a durable brushed aluminum shell, this mini computer offers excellent heat dissipation, alleviating concerns about overheating. With Windows 10 Pro (64-bit) pre-installed, its compact size conceals a remarkable amount of power. Seamlessly running essential office software like Microsoft Office, OneDrive, and Outlook, it streamlines your workflow, making tasks effortless.

Heat Dissipation Design

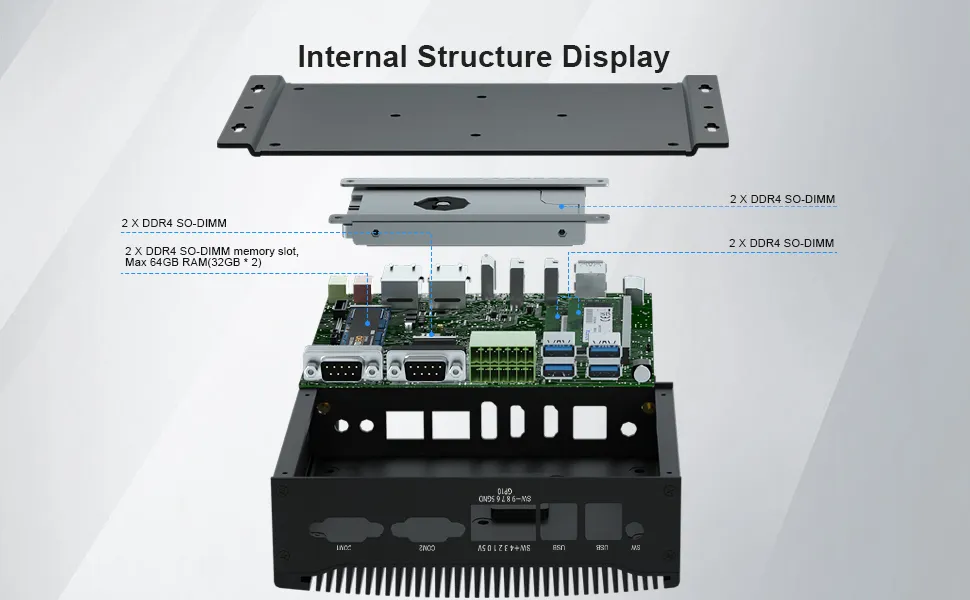

Ample Memory and Storage

Featuring a robust 64GB of high-speed DDR4 RAM and an integrated M.2 2280 SSD, the Mini PC guarantees swift and responsive computing performance. With such ample RAM capacity, your system effortlessly manages memory-intensive tasks like opening large graphic files seamlessly. Should you need additional storage space, you have the flexibility to supplement with a 2.5-inch SSD, effectively expanding your memory and creating a secure data repository tailored to your requirements.

Memory and Storage Slots

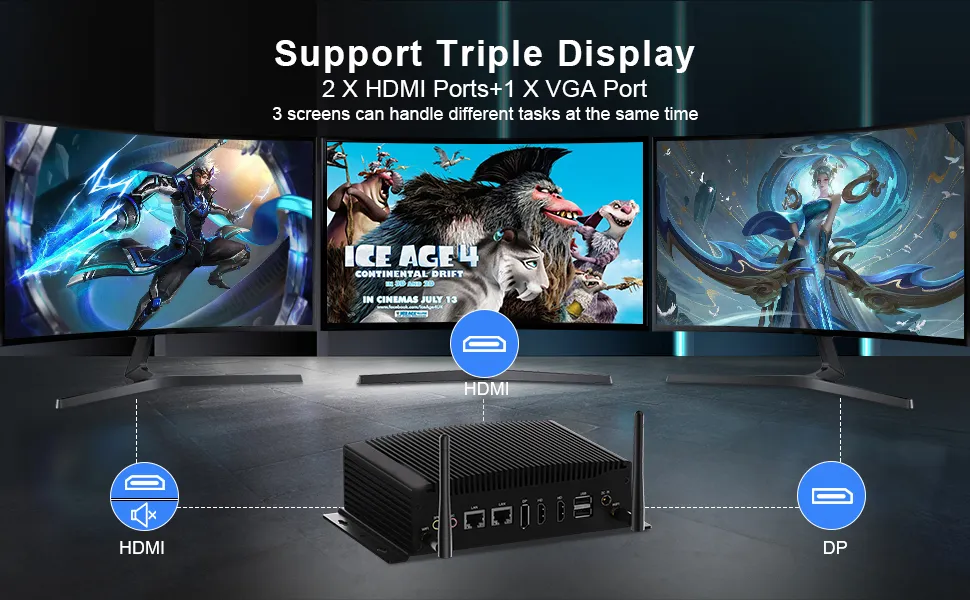

4K Triple-Screen Display

Featuring Intel UHD Graphics, the microcomputer delivers rapid image processing capabilities and seamless support for stunning 4K UHD video playback at resolutions of 4096x2160@60Hz. Its three-screen display setup capability not only boosts productivity but also ensures a seamless 4K UHD video experience, offering an exceptional home TV viewing experience. Perfect for visual home entertainment, home office tasks, and conference room applications.

4K Display Support
Triple Screen Setup
i

Technical Specifications

Processor Options
CPU Intel Core i5-8260U / i3-10110U / i5-10210U / i7-10510U / i7-10810U
TDP 15W
Memory & Storage
Max Memory 64GB DDR4 SO-DIMM (Dual Channel)
m.2 SSD 1*M.2 2280 M KEY PCIE3.0
SATA 1*SATA3.0 Slot for 2.5 inch HDD/SSD
Graphics & Video
Graphics Intel UHD Graphics 620 / Intel UHD Graphics
Output 2*HD-MI (4K@30Hz/60Hz) + 1*DP (4K@60Hz)
I/O Interfaces
Ports 2*USB 2.0, 4*USB 3.0, 2*RJ45 LAN, 2*COM (RS232/RS422/RS485)
GPIO 1*14pin GPIO Phoenix Terminal
Physical & Environment
Material Aluminum Alloy Case
Weight Net 1.2kg; Gross 1.9kg
!

Manufacturer Overview

We are a reliable manufacturer and exporter of fanless Mini PCs, industrial PCs, all-in-one PCs, and industrial panel PCs. Our products are exported to the EU, America, and Asia, enjoying a great reputation globally. Our facilities maintain strict quality standards with certifications including CE, FCC, RoHS, SGS, and ISO9001. Our core goal remains "Innovation First, Quality First, Customer First, and Service First."

Production Facility

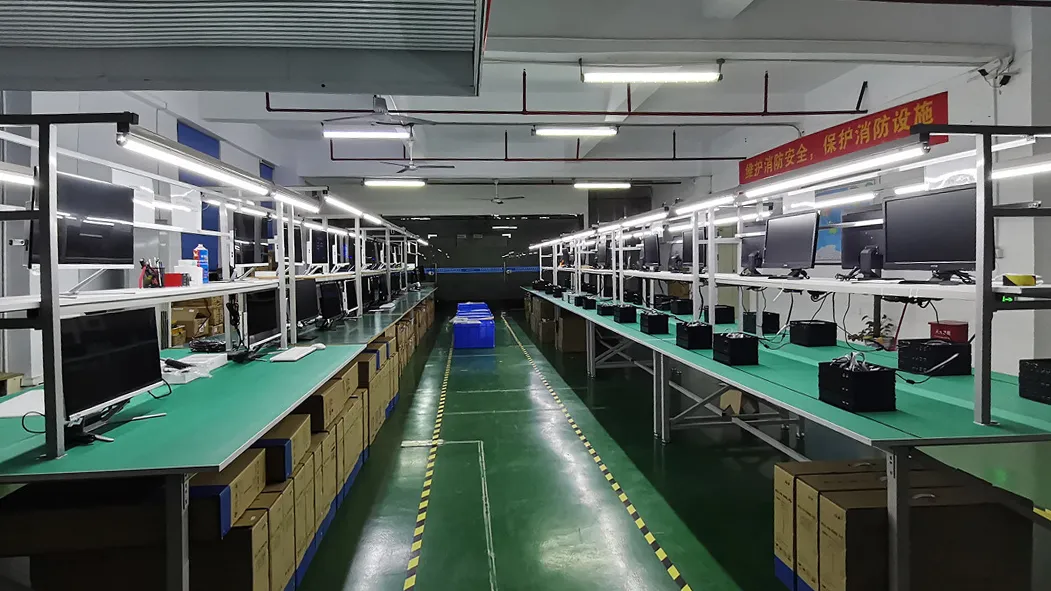

Quality Control
📦

Packing & Shipping

Standard Package Includes:

  • 1 x Mini PC
  • 1 x Power adapter (Appropriate plug based on country)
  • 1 x WiFi module with dual antennas
  • 1 x VESA bracket
  • 1 x Sata power and data cable
  • 1 x Warranty card & user manual
Product Packaging
?

Frequently Asked Questions

What are the benefits of a fanless design in an industrial PC?
Fanless designs provide a noise-free environment, reduce dust accumulation inside the chassis, and improve overall reliability by eliminating moving parts that can fail over time.
Does this PC support triple monitor display?
Yes, it features 2 HD-MI ports and 1 DisplayPort, supporting up to three screens simultaneously with 4K UHD resolution.
Is the RAM and storage upgradeable?
Absolutely. The system supports up to 64GB of DDR4 RAM via two SO-DIMM slots, and features an M.2 2280 SSD slot plus an additional 2.5-inch SATA slot for HDD/SSD expansion.
What operating systems can I run on this machine?
This industrial computer supports Windows 10, Windows 11, and various Linux distributions.
Can this PC turn on automatically after a power failure?
Yes, the BIOS supports the Auto Power On function, which is essential for industrial and remote applications.
What is the operating temperature range?
The device is designed to operate reliably in environments ranging from -10°C to 60°C (14°F to 140°F).
