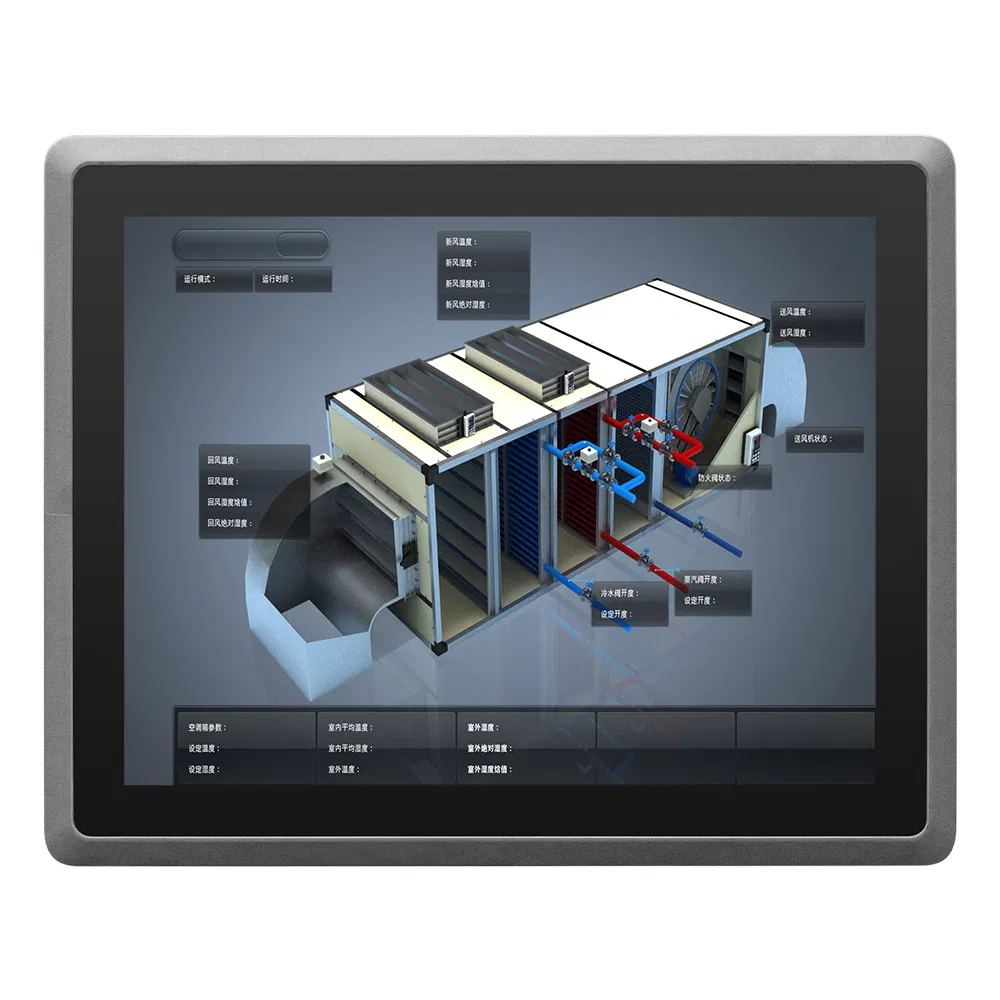

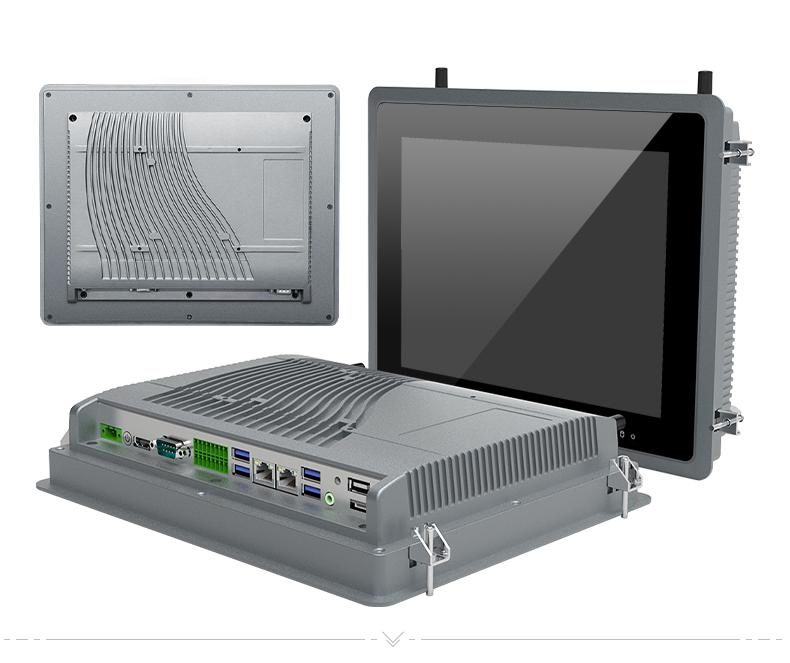

Resistive touch screen 1024*768 resolution all-in-one pc fanless embedded industrial tablet computer
This Industrial PC offers high efficiency and reliability with its sealed and fanless design. It adopts a variety of specifications and supports operating systems such as Android, Window 7/8/10, Linux, and more.
Product Features:

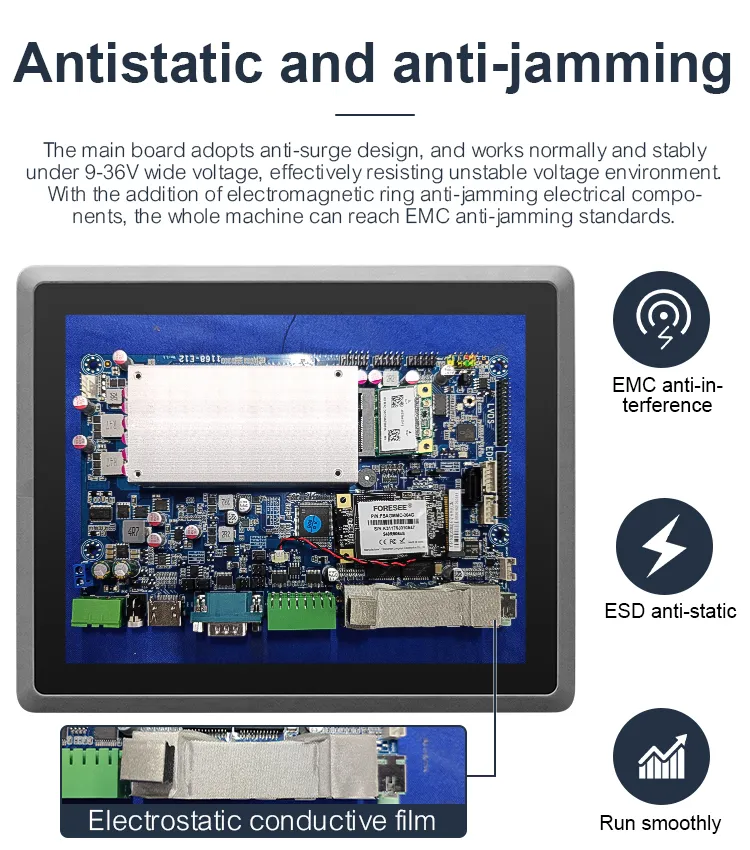

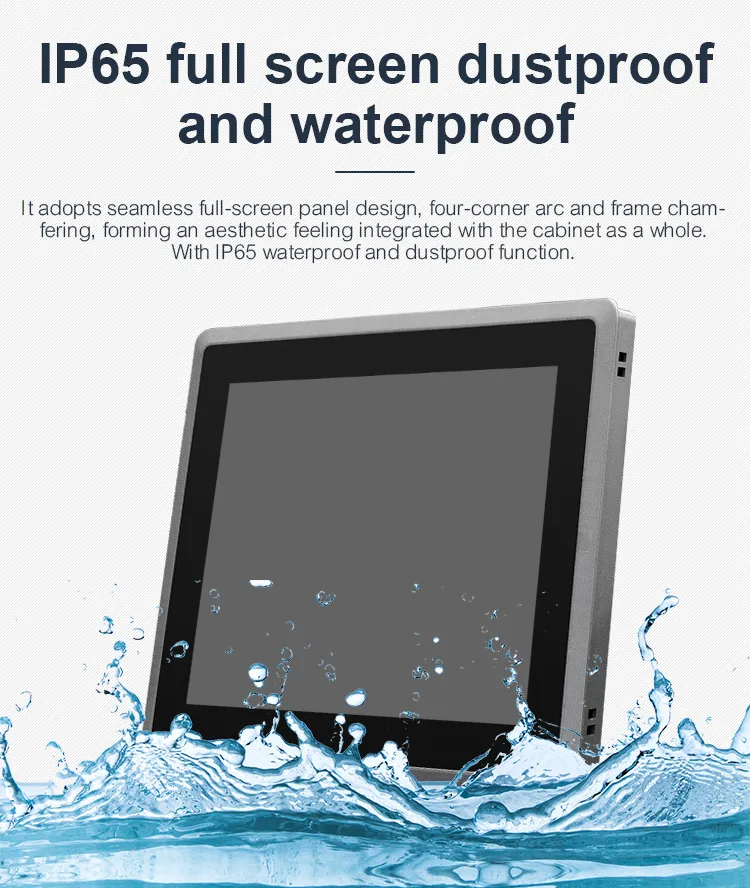

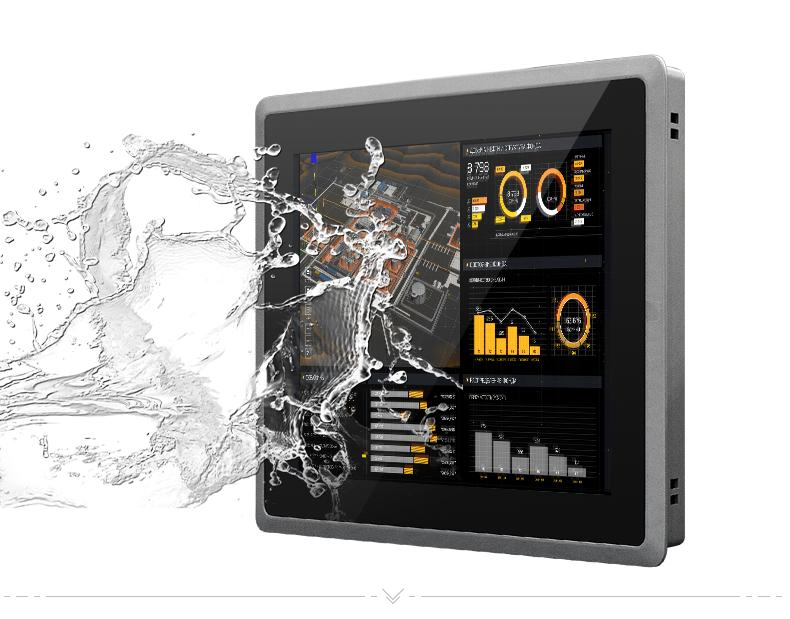

Industrial embedded fanless panel PC featuring a 10.4-inch LCD screen with 10-point projection capacitive touch, IP65 waterproof and dustproof for the front panel. It provides EMC anti-interference and ESD anti-static design, making it ideal for smart industrial manufacturing lines, HMI equipment, and factory automation.

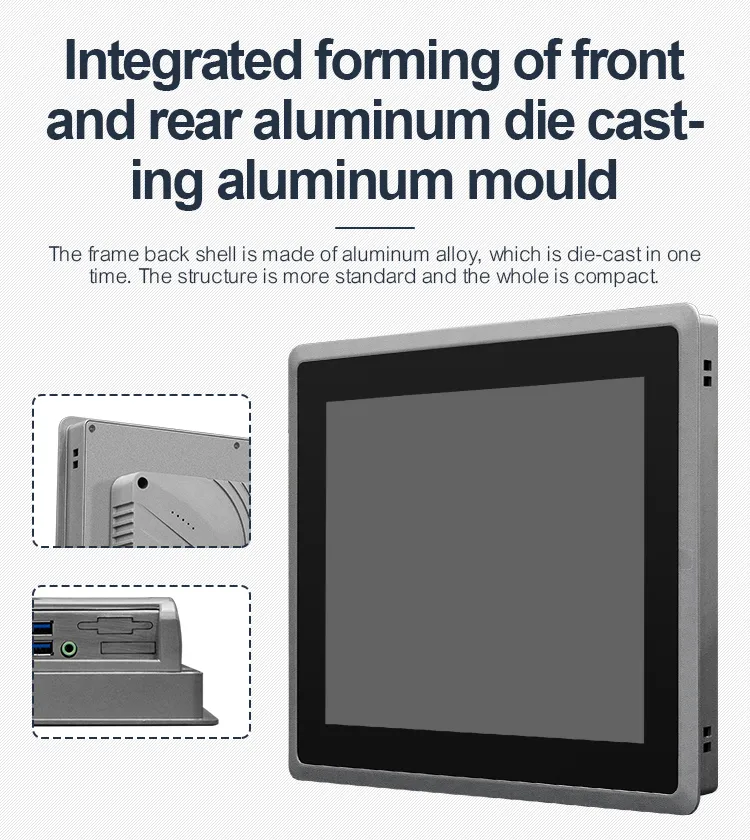

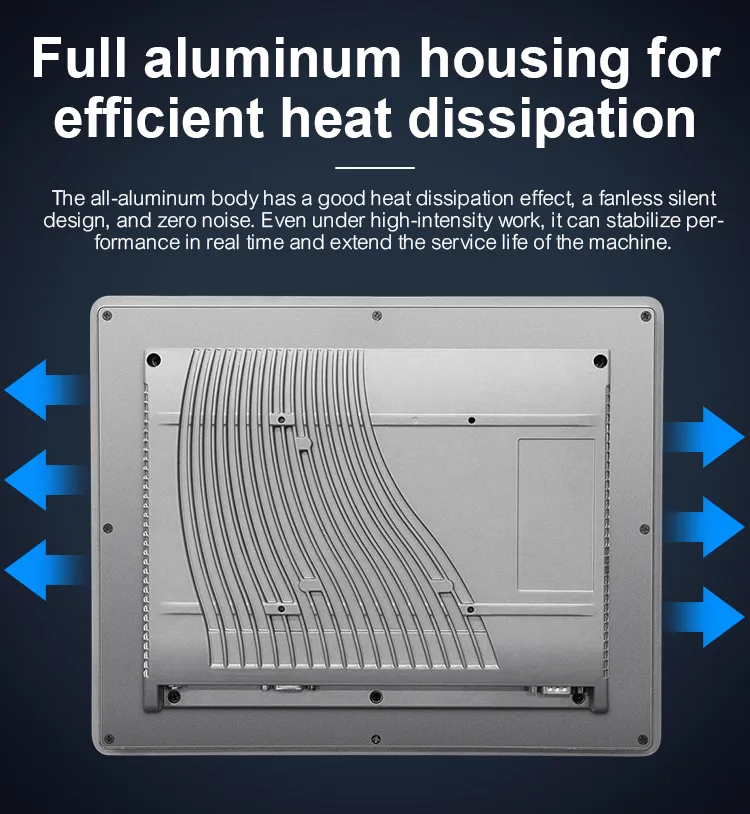

Advanced all-aluminum housing and fanless design maximizes heat dissipation, ensuring all operations are conducted in absolute silence.
| Specification Item | Details / Configurations | |
|---|---|---|
| Core System | Motherboard | Intel® 4th Gen Pentium 3558U, DDR3-4G, SSD-64G |
| Network | WiFi 802.11b/g/n, Support 3G/4G (Optional) | |

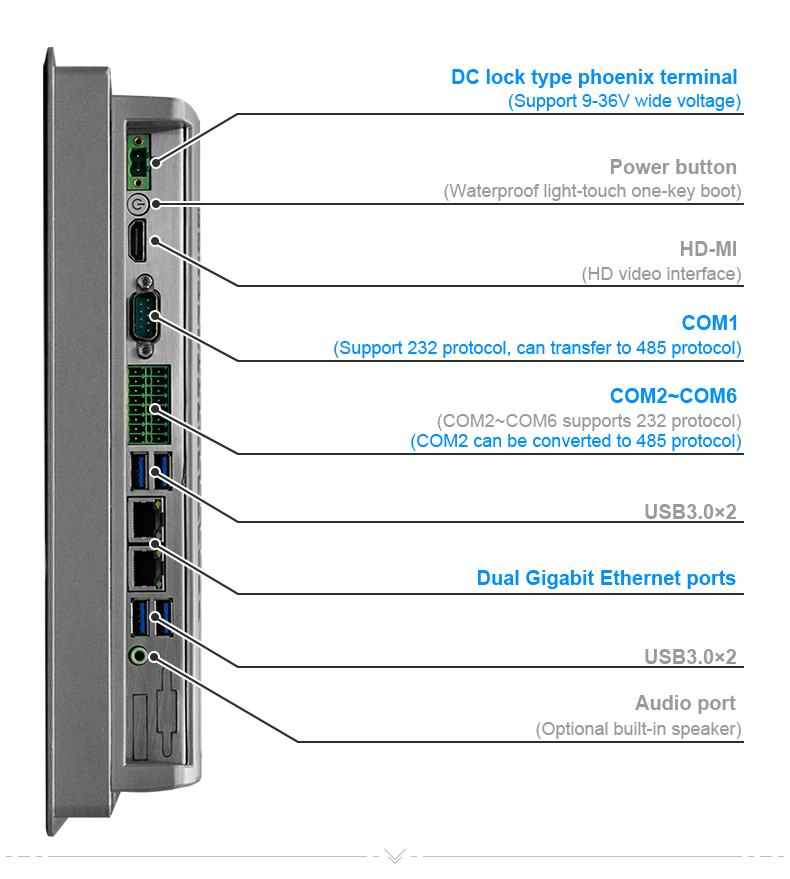

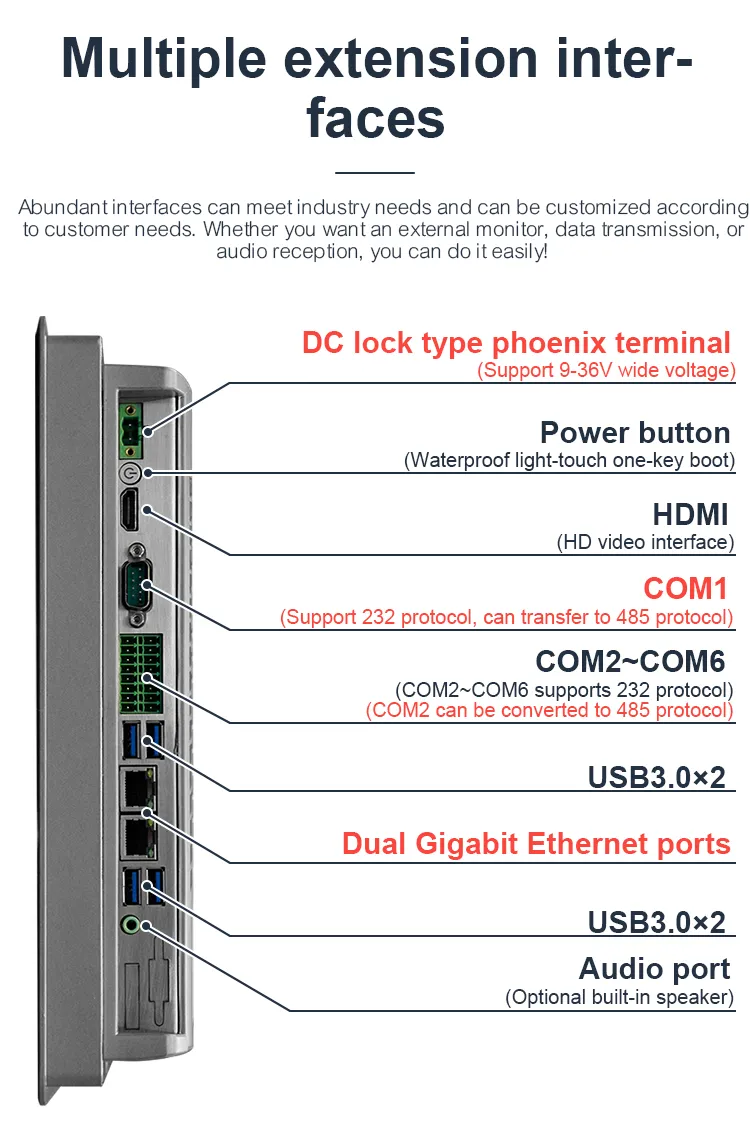

| Interface | Display & USB | 1*HDMI Output, 4*USB 3.0 |
| Ethernet | 2*RJ45 with 1000 Base-T | |
| Communication | 2*COM (RS485) | |
| Power & Audio | DC Phoenix Terminal (9-36V), 3.5mm Audio Output | |
| Display | Resolution | 10.4" to 15" (1024*768), 17" to 19" (1280*1024) |
| Luminance | 200-250 cd/m2 | |
| Contrast | 500:1 to 900:1 | |

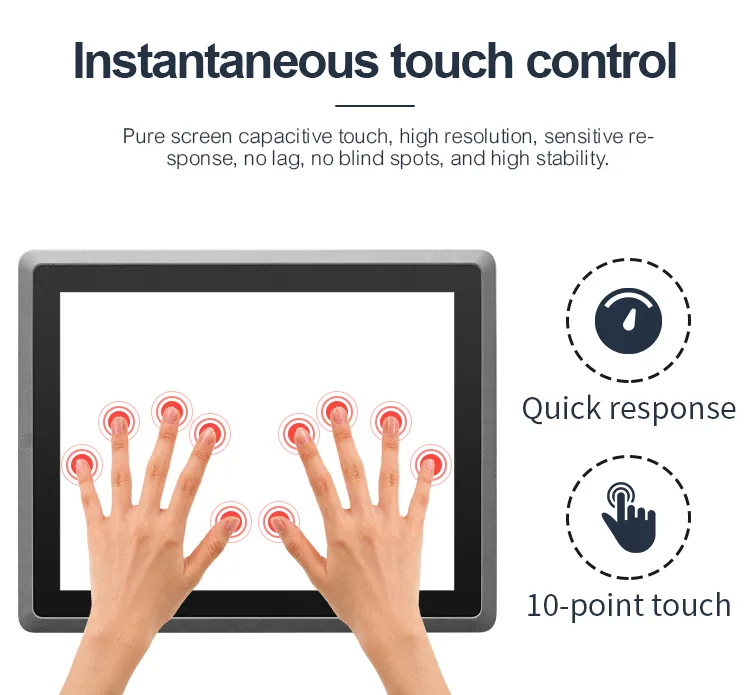

| Touch | Type | Projected Capacitive / 10 Point Touch |
| Performance | Response <5ms, Accuracy <2.5mm, Transparency ≥90% | |

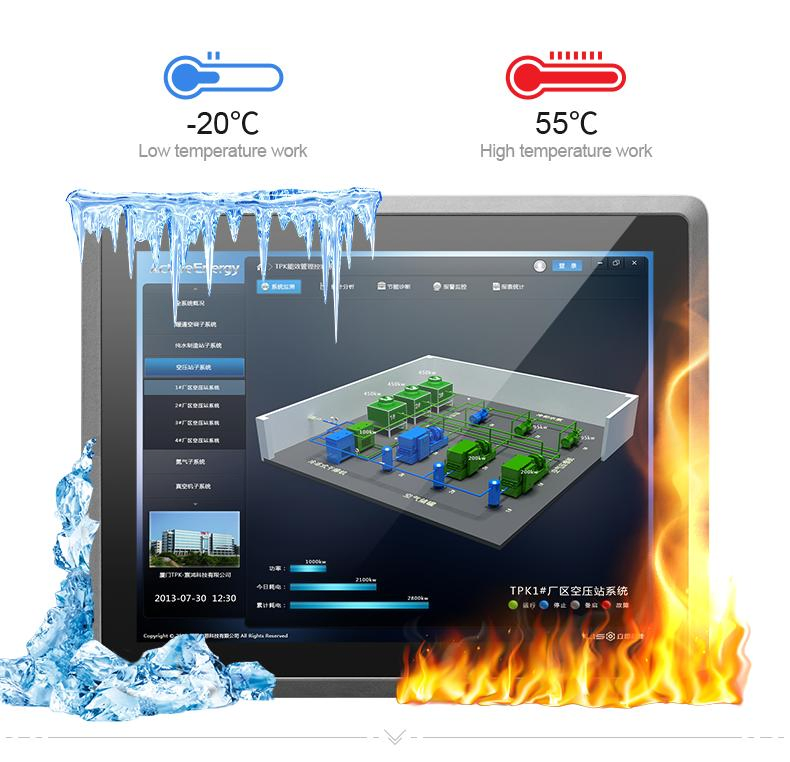

| Environment | Conditions | Working: -20ºC~70ºC; Storage: -40ºC~80ºC; Humidity: 10%-90% |
