Industrial Computer Fanless Mini PC with Embedded Computer ODM and CE/FCC/RoHS Certification
Industrial Computer Fanless Mini PC with Embedded Computer ODM and CE/FCC/RoHS Certification
Industrial Computer Fanless Mini PC with Embedded Computer ODM and CE/FCC/RoHS Certification
Industrial Computer Fanless Mini PC with Embedded Computer ODM and CE/FCC/RoHS Certification
1 / 4
Industrial Computer Fanless Mini PC with Embedded Computer ODM and CE/FCC/RoHS Certification
Industrial Computer Fanless Mini PC with Embedded Computer ODM and CE/FCC/RoHS Certification
Industrial Computer Fanless Mini PC with Embedded Computer ODM and CE/FCC/RoHS Certification
Industrial Computer Fanless Mini PC with Embedded Computer ODM and CE/FCC/RoHS Certification

Industrial Computer Fanless Mini PC with Embedded Computer ODM and CE/FCC/RoHS Certification

Customization: Available
Accessories: Industrial Power Supply
Application: Industrial
Send Inquiry

Product Description

Discover the unparalleled performance of our Industrial Computer Fanless Mini PC! Expertly crafted with fanless technology, this Embedded Computer is designed to meet the rigorous demands of industrial applications.

Basic Information
Model NO.
SM706
CPU Type
Intel Core i5
Operating Temp.
-20℃ to 60℃
RAM
8GB
Storage
128GB SSD
System Slot
Mini PCIe
Type
IPC
Warranty
1 Year
Certificate
CE, FCC, RoHS
Production Capacity
5000piece/Month
Key Product Features
  • Robust All-Aluminum Alloy Structure coupled with a Fanless Design for optimal cooling and durability.
  • Powered by advanced Core i5 and i7 processors (7th, 8th, and 10th generations).
  • Supports high-speed DDR4 memory, expandable up to 16GB.
  • Equipped with 1x MSATA and 1x SATA for versatile storage options.
  • Integrated support for WIFI/3G/4G modules ensuring seamless connectivity.
  • Wide voltage input range of DC 9~36V with reverse polarity protection.
  • Features 1*PCI 32-bit and 1*PCI-E 4X slots, supporting expansion cards up to 195mm.
  • Operational in a broad temperature range from -20ºC to 70ºC.

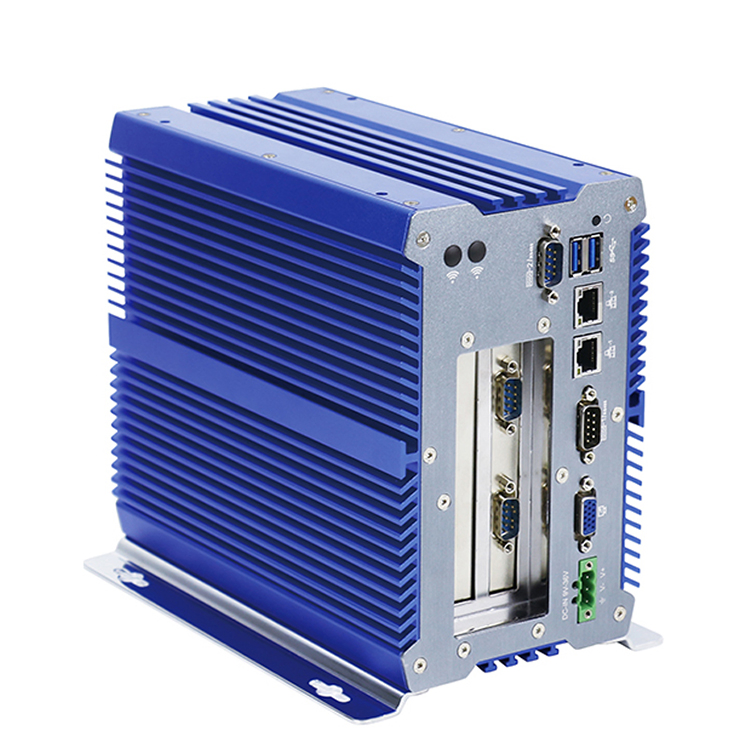

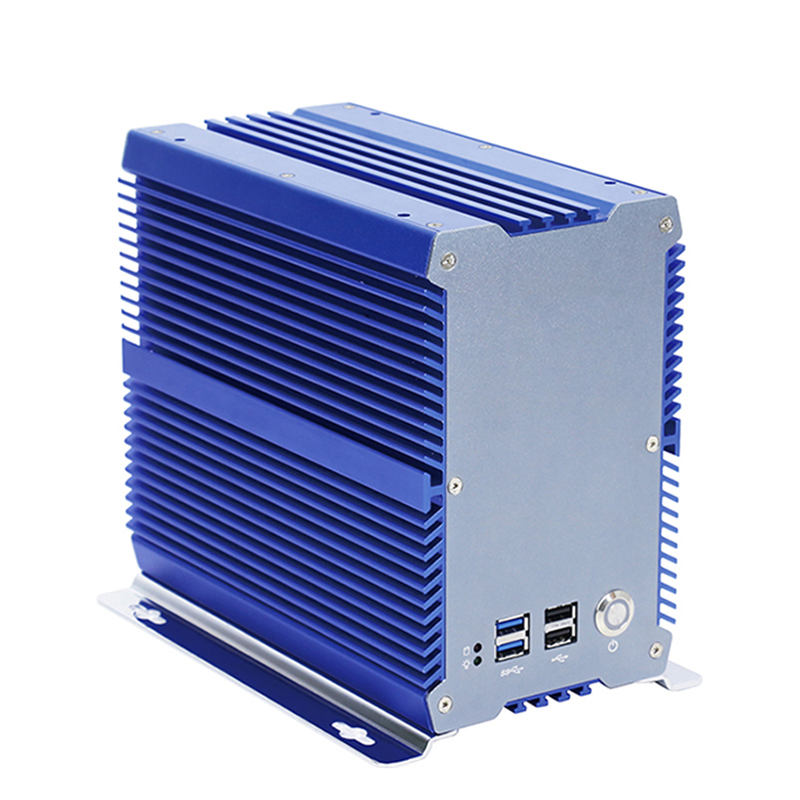

Main Product View
Detailed Product Layout
Detailed Specifications
System Hardware
CPUIntel®Core i5-7200U CPU 2.50GHz, Fanless (Other CPU Optional)
ChipsetIntel Kaby Lake
Memory8GB (Max 16GB)
Storage128GB SSD
GraphicsIntel(R) HD Graphics 620
Network2*Intel(R) Ethernet controller I226-V
WirelessIntel(R) Wi-Fi 6 AX200 / Bluetooth 4.0
I/O Interfaces

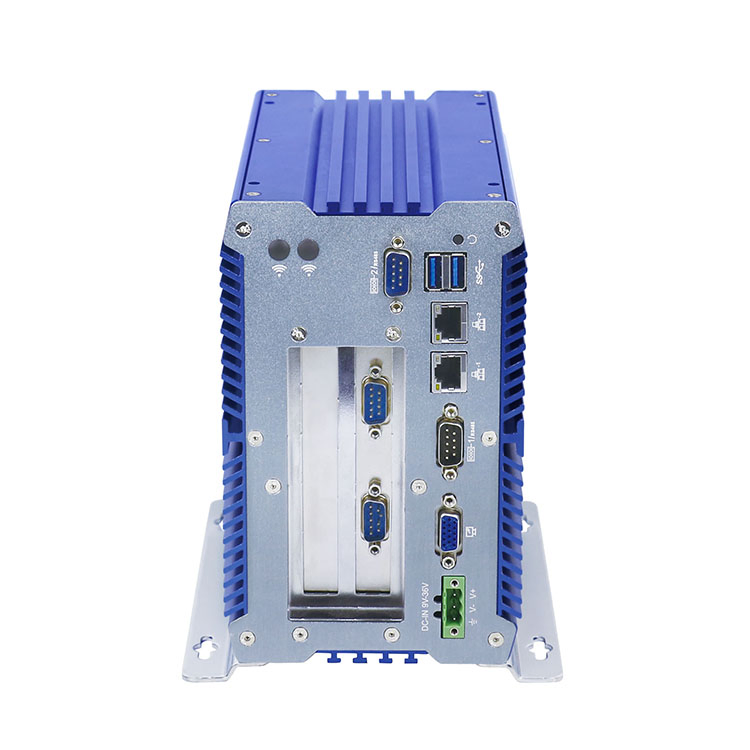

Front I/O2*USB3.0, 2*RJ45, Line-out, MIC, VGA, HDMI, 9-36V Terminal, PCIe_X4 & PCI slots

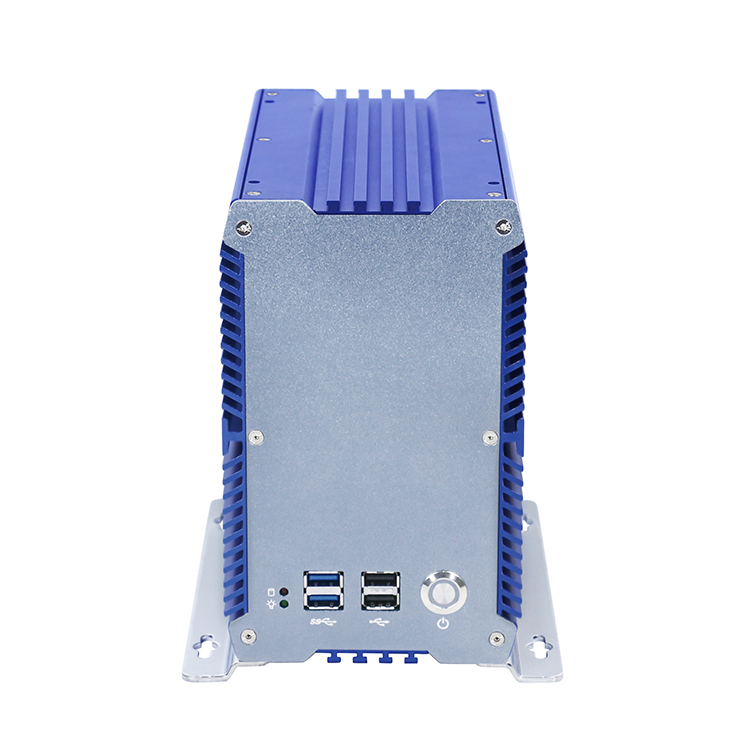

Rear I/O4*COM (Support RS422/485/232), 4*USB2.0, Power LED, On/Off Button, Antenna Jacks
Physical & Environmental
MaterialAluminum alloy shell + galvanized cold-rolled plate baffle
MountingWall mount + Rail bracket installation
CoolingPassive - Fanless
TemperatureOperating: -20 to 70°C; Storage: -30 to 80°C
Dimensions217*215*122.2mm
Product Feedback
Description Banner
Customization & Certification
Customization Options

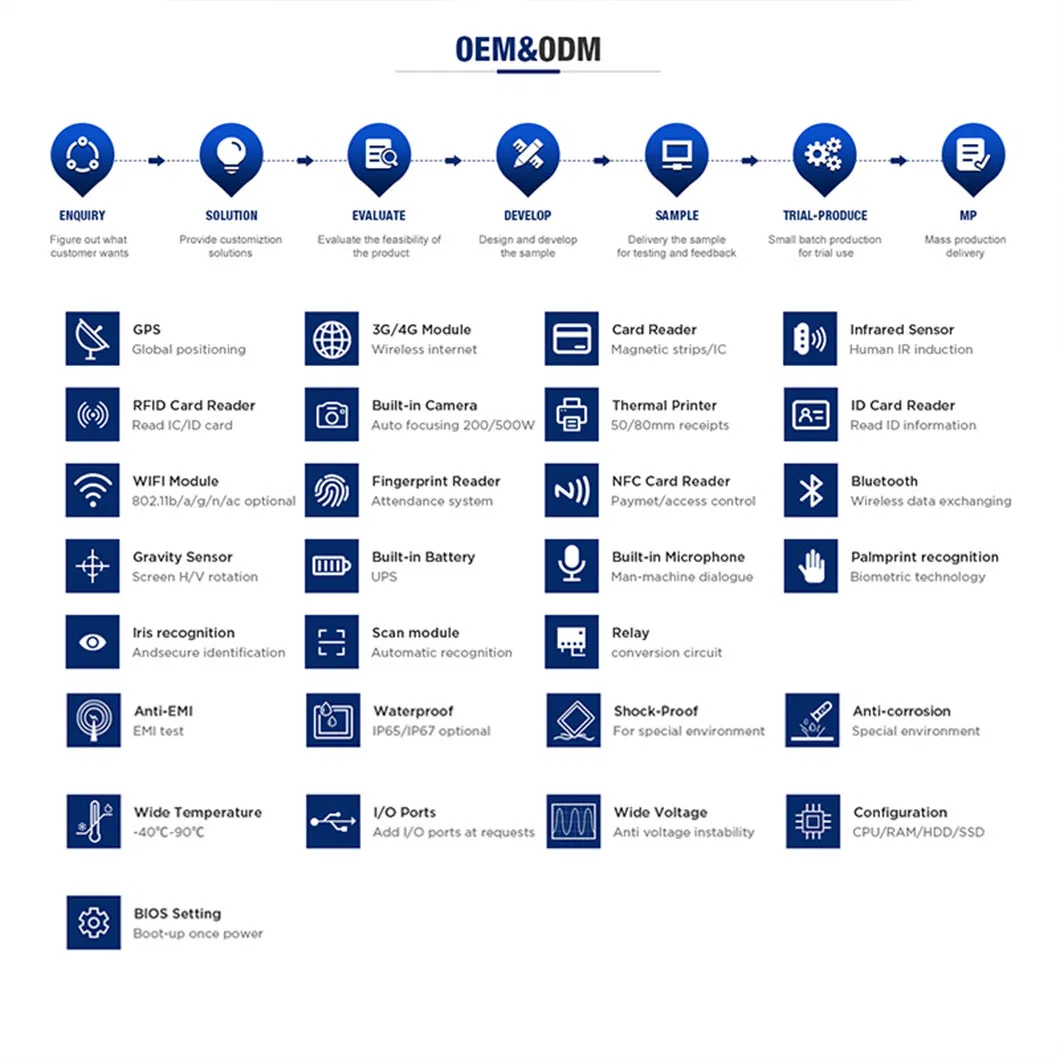

Customization View
Certifications Display
Manufacturing Excellence

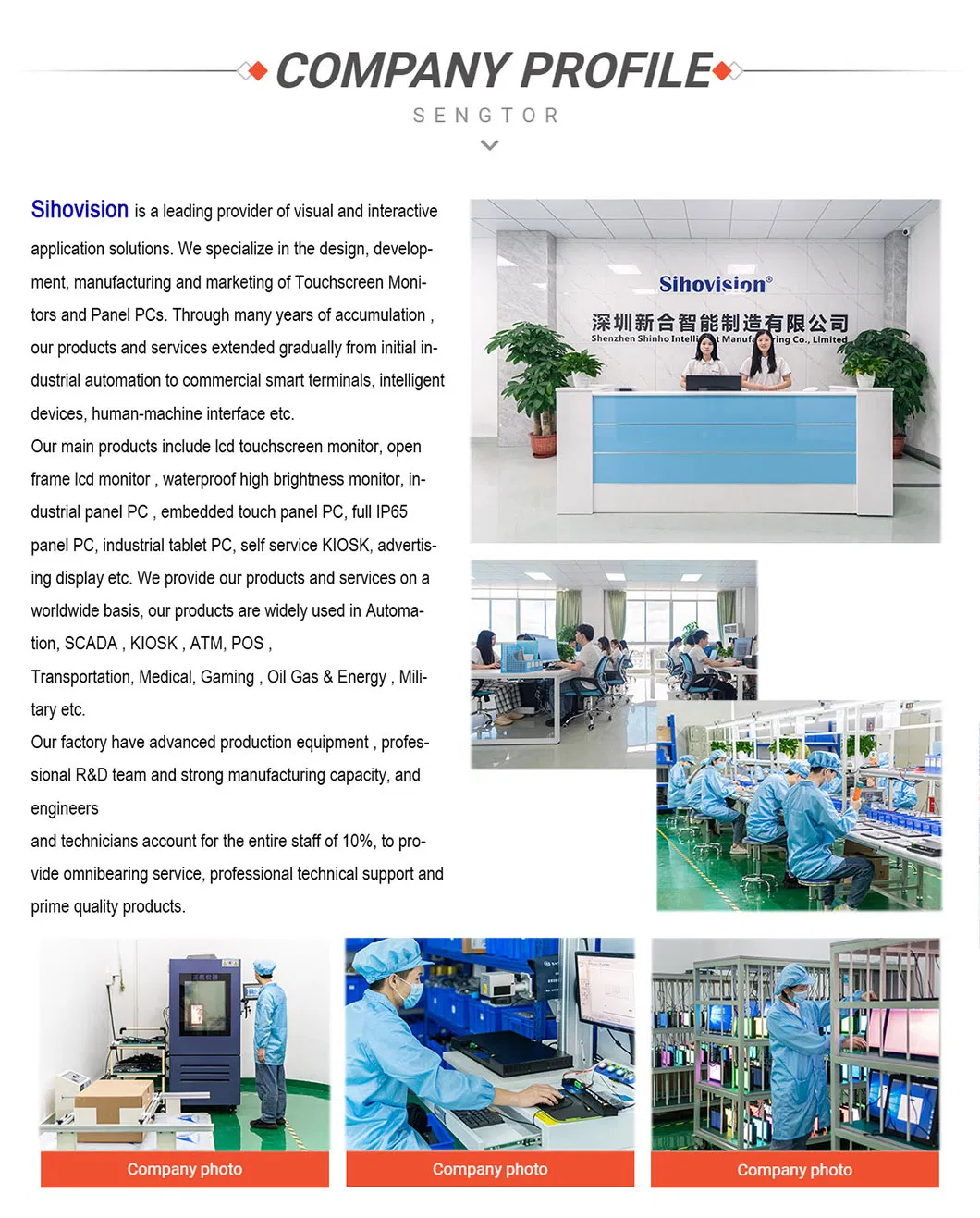

Production Facility

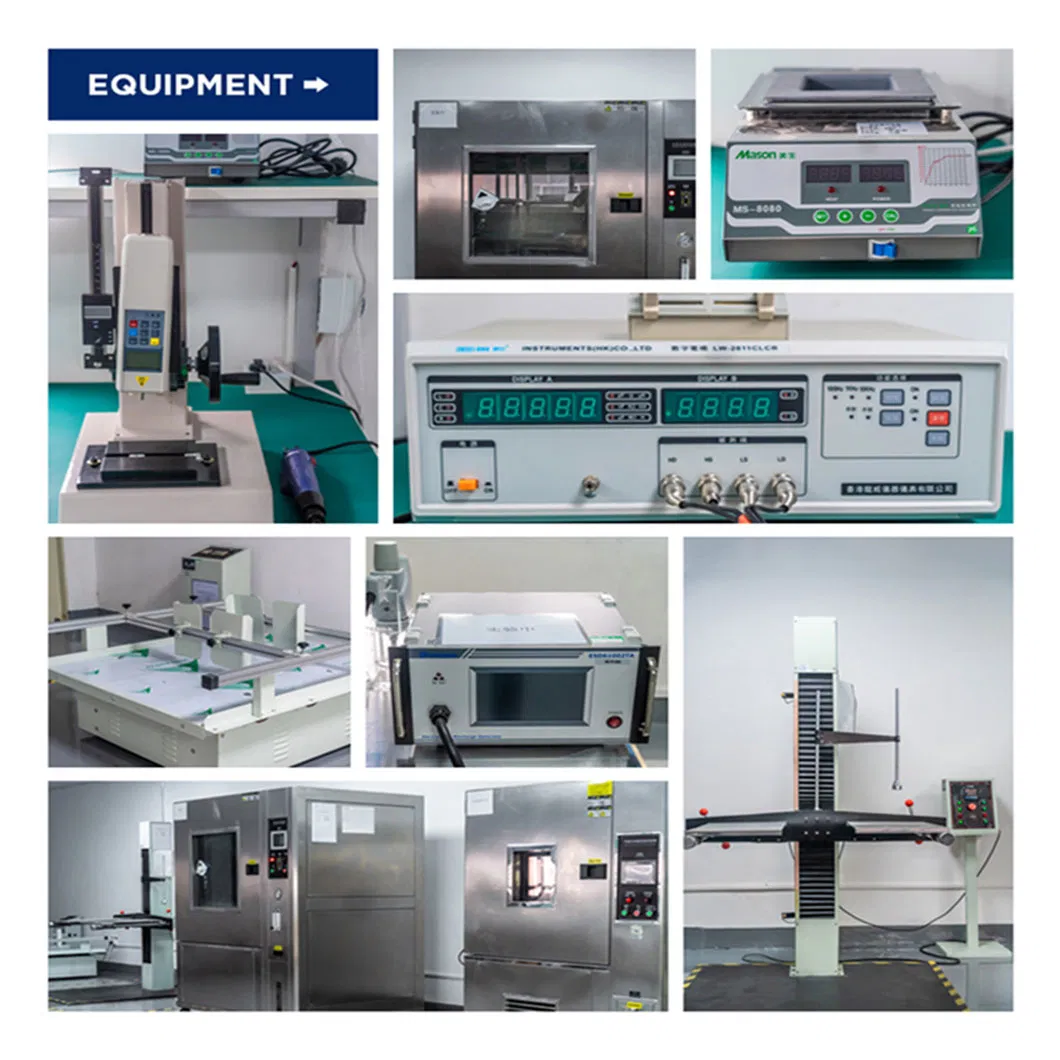

Testing Lab
Product Assembly
Packaging & FAQ
Packaging Details
What are the primary applications for this fanless industrial PC?
It is designed for demanding industrial environments including factory automation, IoT gateways, digital signage, medical equipment, and harsh outdoor monitoring systems.
Which operating systems are supported by the SM706 model?
The system fully supports Windows 7, 8, 10, as well as various Linux distributions like Ubuntu and Debian.
Does the device support wide voltage inputs?
Yes, it supports a wide voltage range of DC 9V to 36V, making it ideal for unstable power environments or vehicular applications.
Can I expand the internal hardware of this Mini PC?
Absolutely. The unit features expansion slots for 1*PCIe_X4 and 1*PCI, and memory can be upgraded up to 16GB DDR4.
How does the fanless design benefit the hardware?
The fanless design eliminates moving parts, reducing noise and preventing dust accumulation inside the chassis, which significantly increases the MTBF (Mean Time Between Failures).
What certifications does this industrial computer have?
The product is fully certified with CE, FCC, and RoHS standards, ensuring global compliance and safety.
Offering global marketing support and seeking long-term partnerships with local distributors worldwide.
