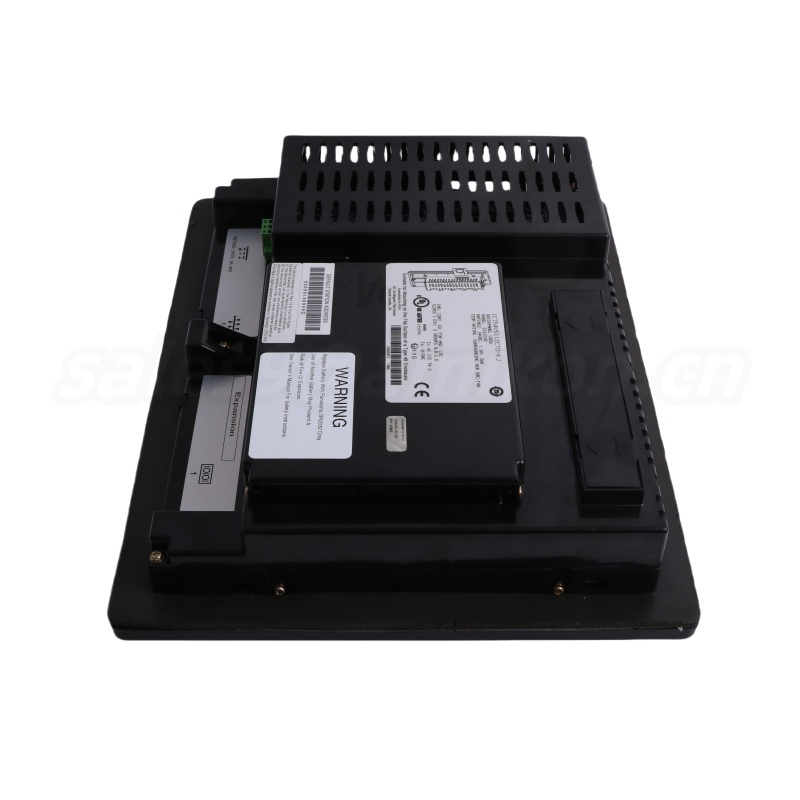

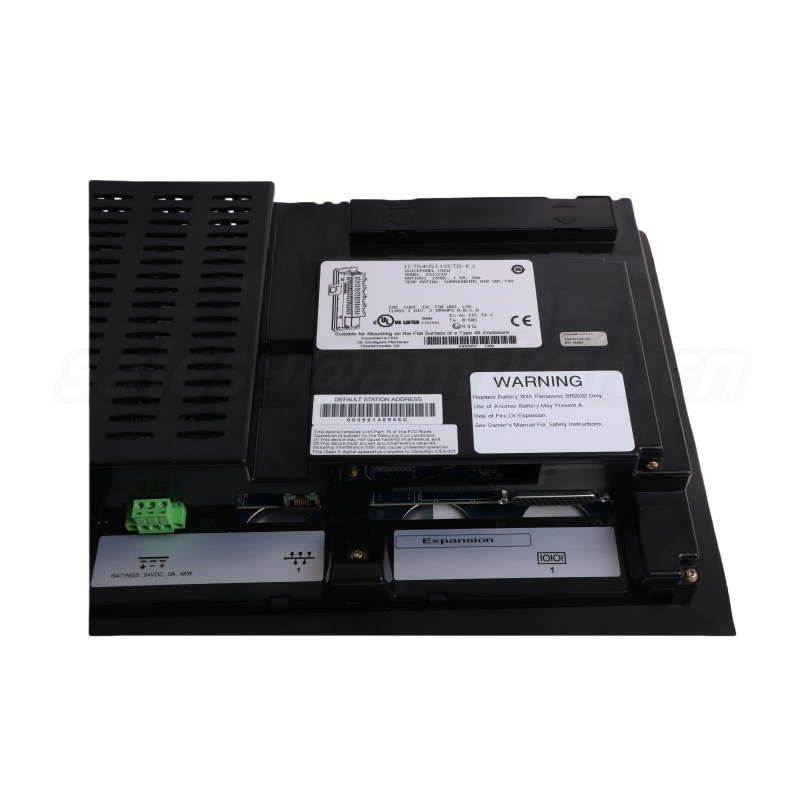

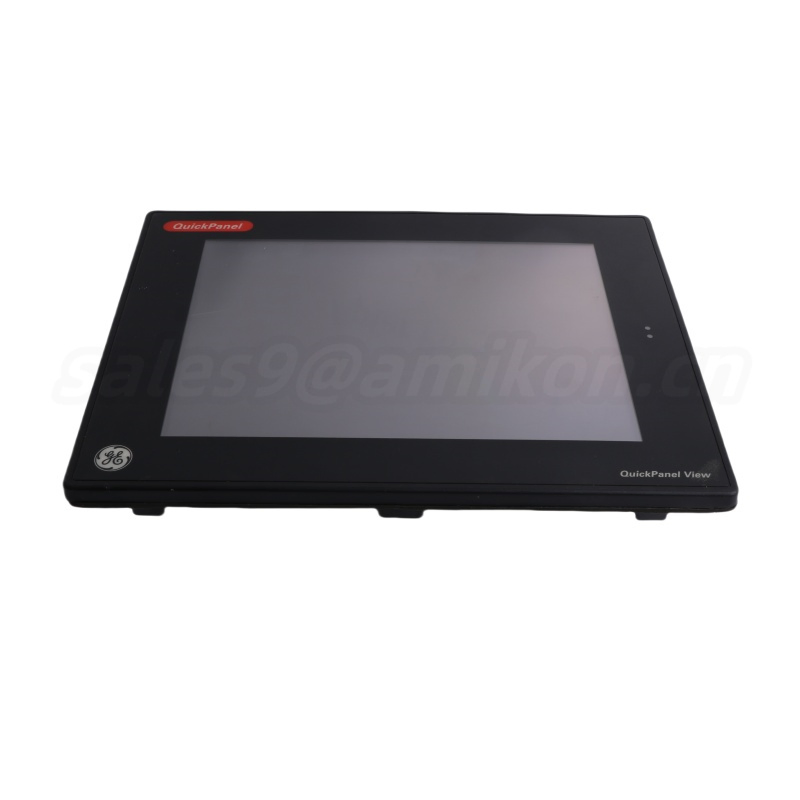

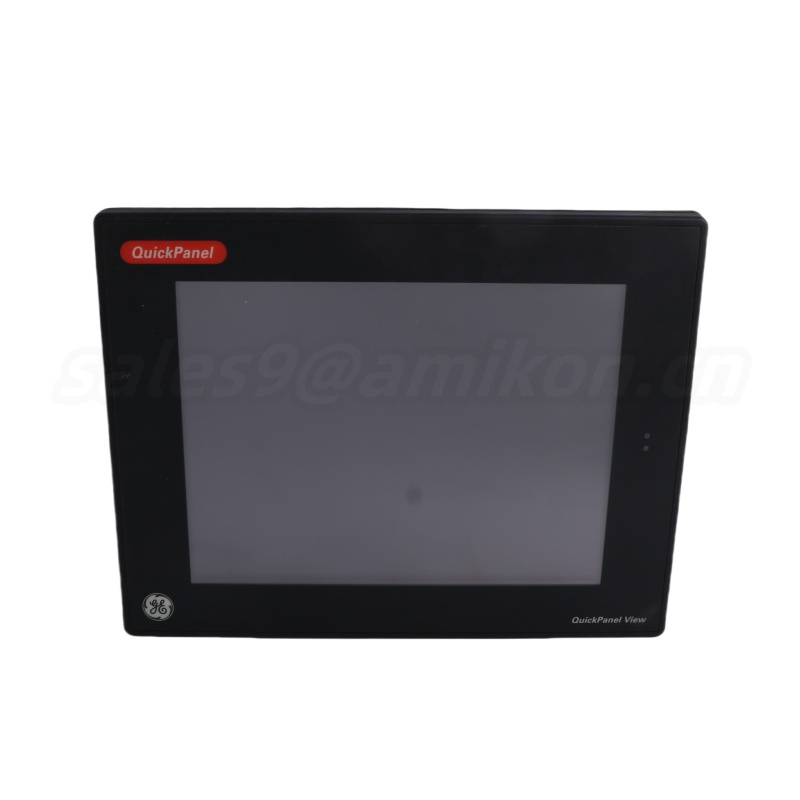

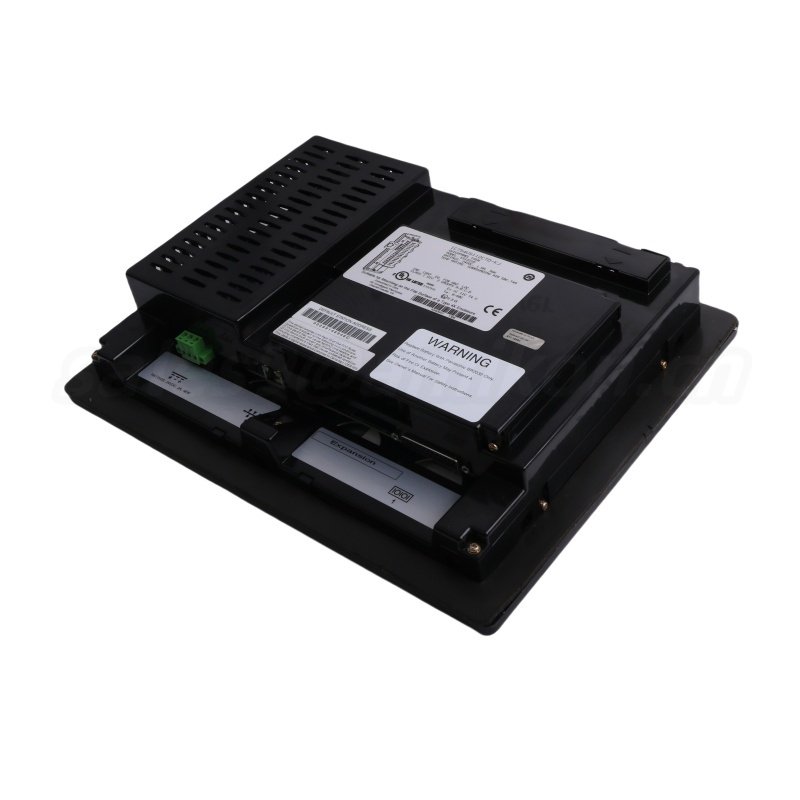

GE PLC Module IC754VSI12CTD HMI Operator Panel
The IC754VSI12CTD is a General Electric (GE) Fanuc Automation manufactured operator panel, part of the QuickPanel Human Machine Interface (HMI) series. This device is pre-installed with Microsoft Windows Compact Embedded (CE), providing a familiar configuration and maintenance interface. It supports standard Windows capabilities such as FTP, Pocket Internet Explorer, PDF viewing, and Remote Access.
Communication is versatile, offering RS232/RS485 combo ports for point-to-point topology and an Ethernet interface (10/100 Mbps) for multi-node networking. The unit operates on a 24VDC external supply with consumption under 48W.

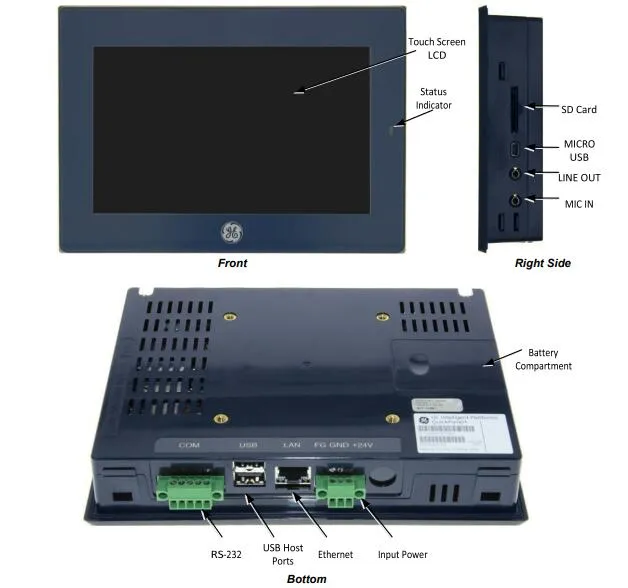

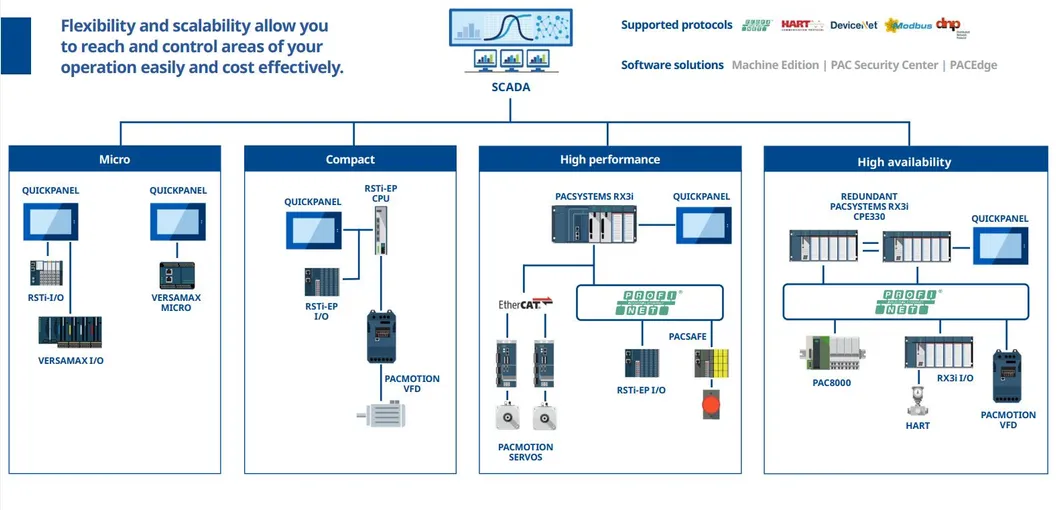

The QuickPanel+ is an all-in-one microcomputer designed for flexibility, based on an advanced ARM core microprocessor. It combines high-resolution touch-screen capabilities with diverse communication options.
| Feature | Description | |
|---|---|---|
| Processor | Freescale 1.MX535 (1GHz ARM Cortex A8) | |
| Memory | RAM | DDR2 SDRAM 512MB |
| ROM | SLC NAND 256MB | |
| SRAM | 512 KB (with Battery backup) | |
| Operating System | Microsoft Windows Embedded Compact 7 | |
| Display | Type | 7" Widescreen TFT LCD |
| Resolution | 800 x 480 pixels WVGA | |
| Backlight | LED | |
| Touch Screen | Type | Projected Capacitive |
| Multi-touch | Two-point | |
| I/O Ports | Ethernet | 1x 10/100BaseT (RJ-45) |
| USB | 2x USB 2.0 Host (Type-A), 1x USB 2.0 Device (Mini-B) | |
| Power Input | +24VDC ±20%, 15W Max | |
| IC697MEM715 | IC697CHS790 | IC695CPE310 | IC693MDL752 |
| IC697MDL940 | IC697CHS750 | IC695ACC400 | IC693MDL740 |
| IC697CGR935 | IC695CMM004 | IC694PWR321 | IC693CPU364 |
| IC698RMX016 | IC698PSA350 | IC698ETM001 | IC698CRE030 |
