High Brightness Outdoor LED Screen with Video Wall Billboards Display for Media Facade Advertising
We focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display, stadium sport led display screen, led sign, led display board and led billboard.
| Feature | Specifications |
|---|---|
| Pixel Pitch | P4.44 P5.33 P6.67 P10mm |
| Brightness | > 6500nits |
| Cabinet Size | 960x960mm | 1280x1280mm(optional) |
| Max. Power Consumption | 720W/panel |
| Refresh Rate | > 3840HZ |

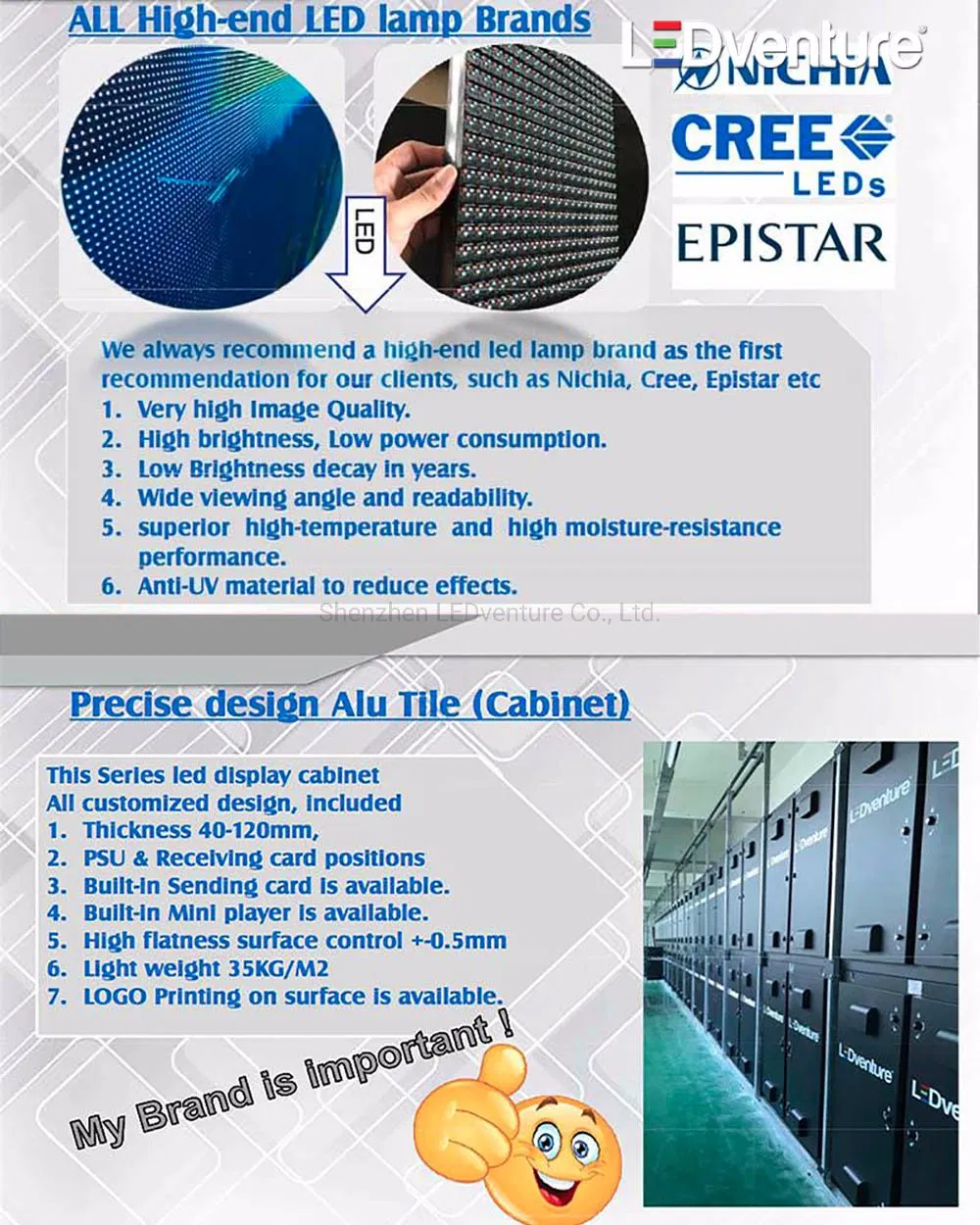

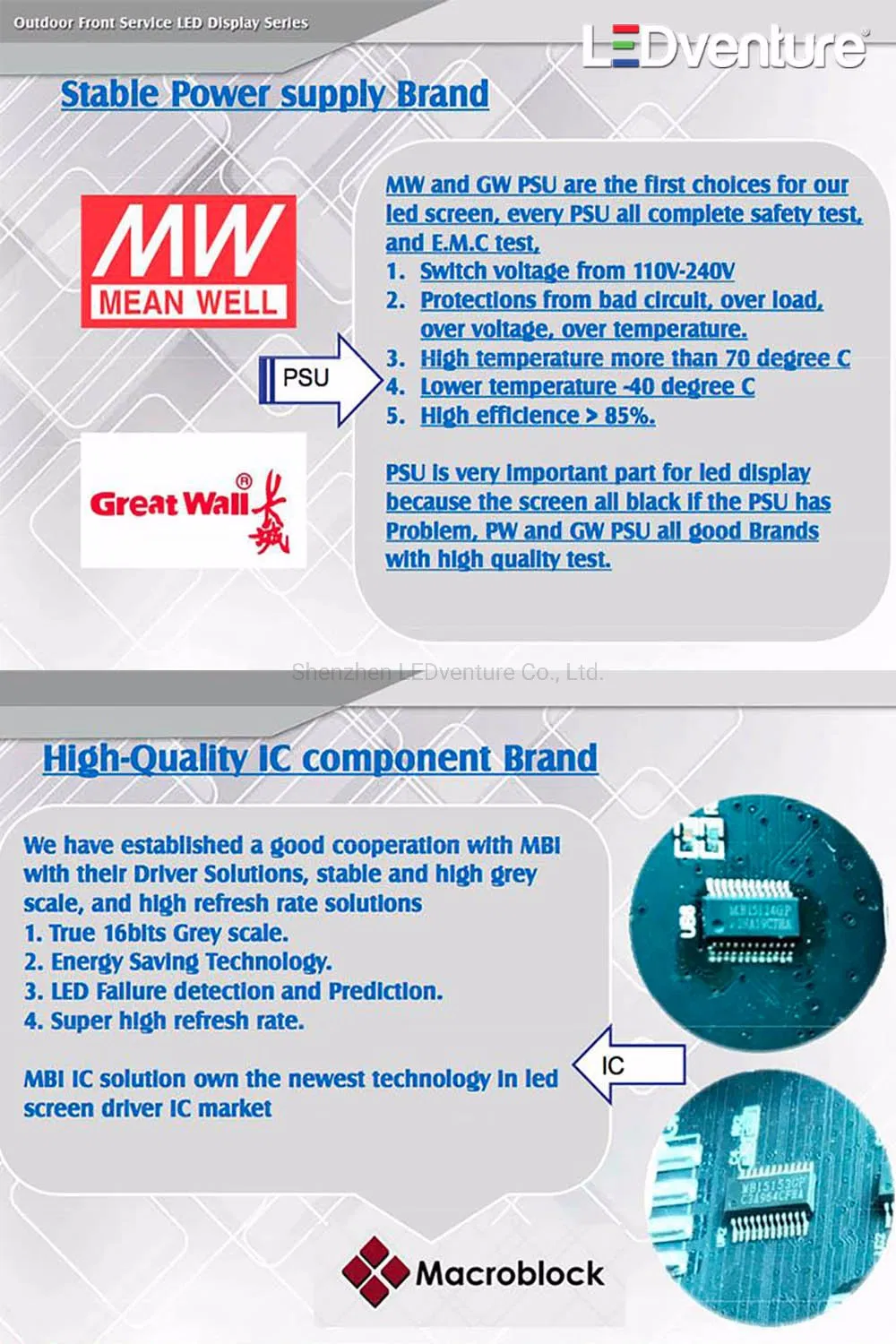

All materials chosen are of top quality levels, including SMD, IC components, PCB, and PSU brands. This ensures high stability and reduces after-sale service costs.
| Pixel Configuration | SMD 3 IN 1 |
| Module Size | 320x320mm (options) |
| Viewing Distance | 4-10m |
| Protection Level | IP65/IP54 |
| Input Voltage | AC110-240V, 50Hz/60Hz |
| Gray Scale | 16 bits |
| Environment Temp | Storage: -40°C~+85°C, Operation: -20°C~+45°C |

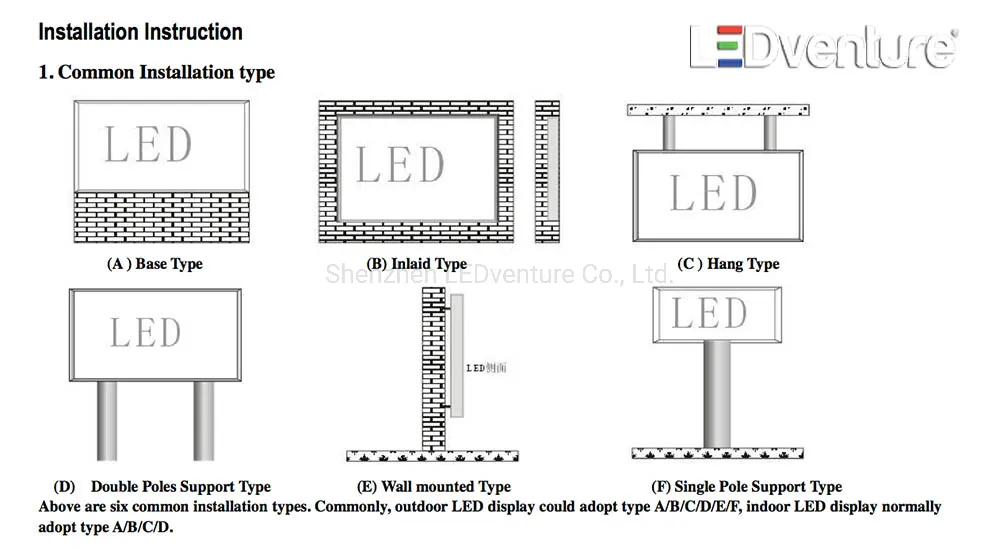

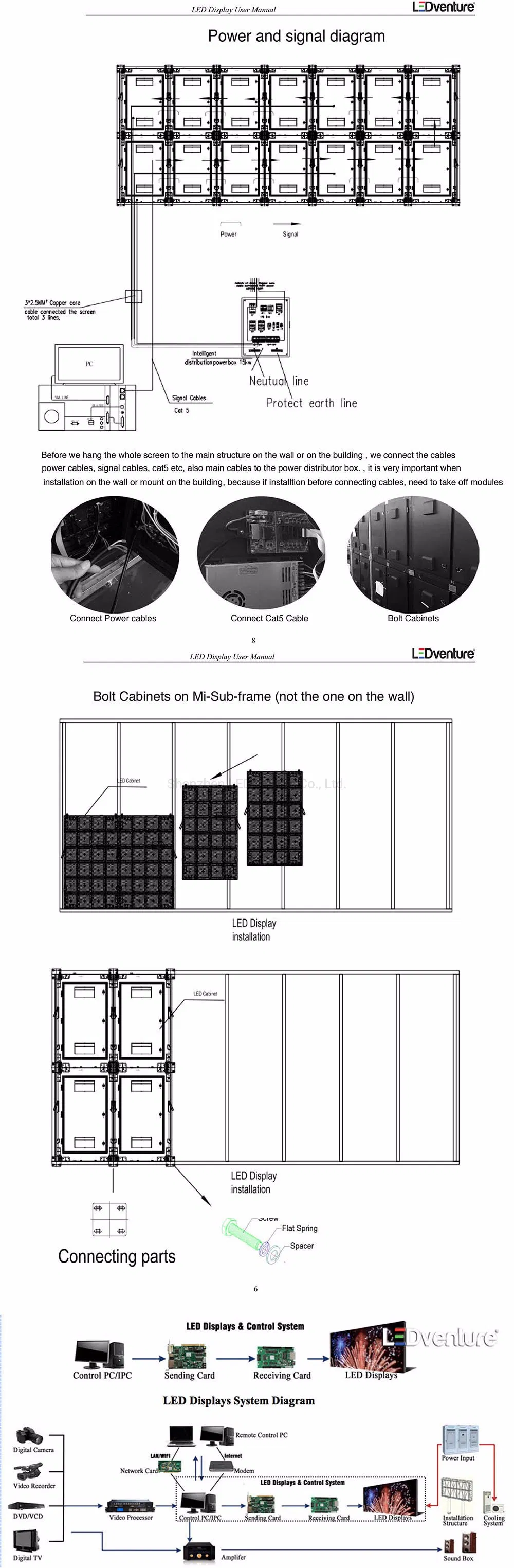

Support for various installation methods: wall-mounted, pillar-mounted, or standing. Hardware includes sending cards, processor, and receiving cards.

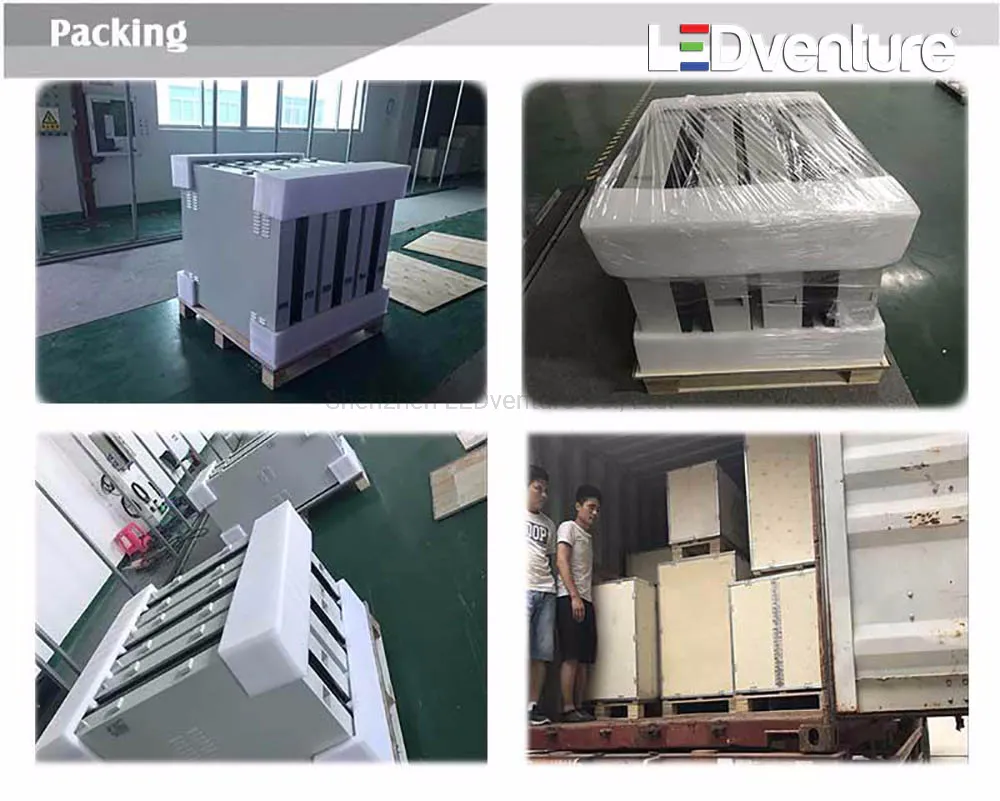

Packing information: Plywood cases for secure transport and easy loading.
Products passed CE, EMC, FCC, UL, and other security tests to meet international market standards.
