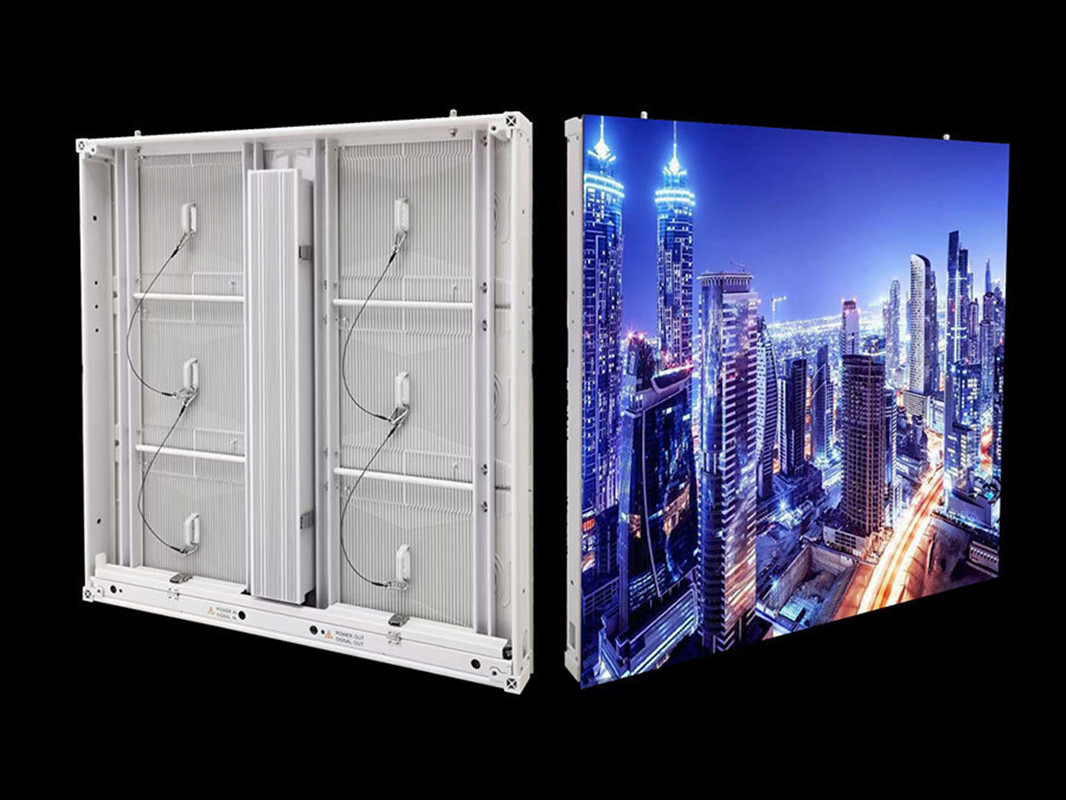

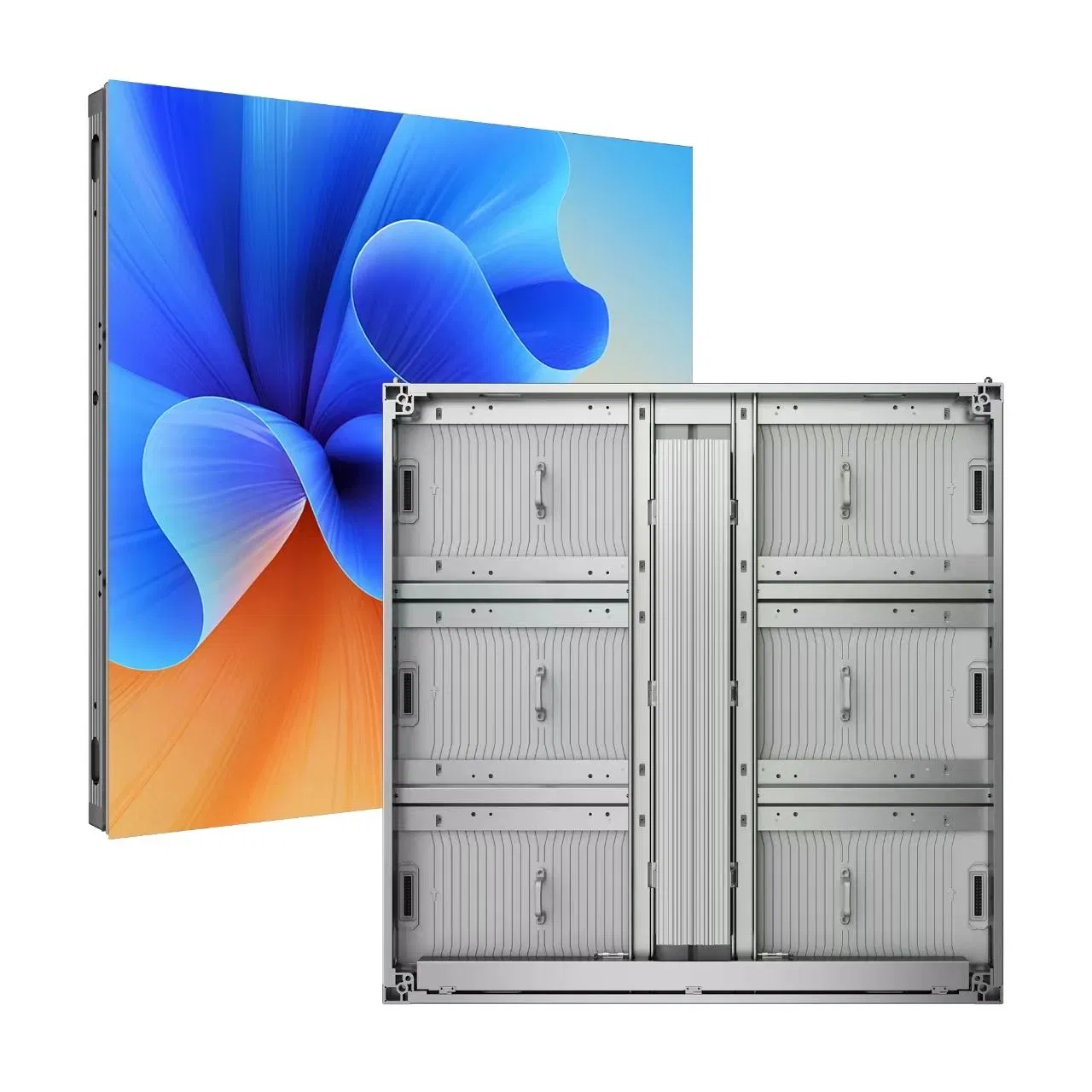

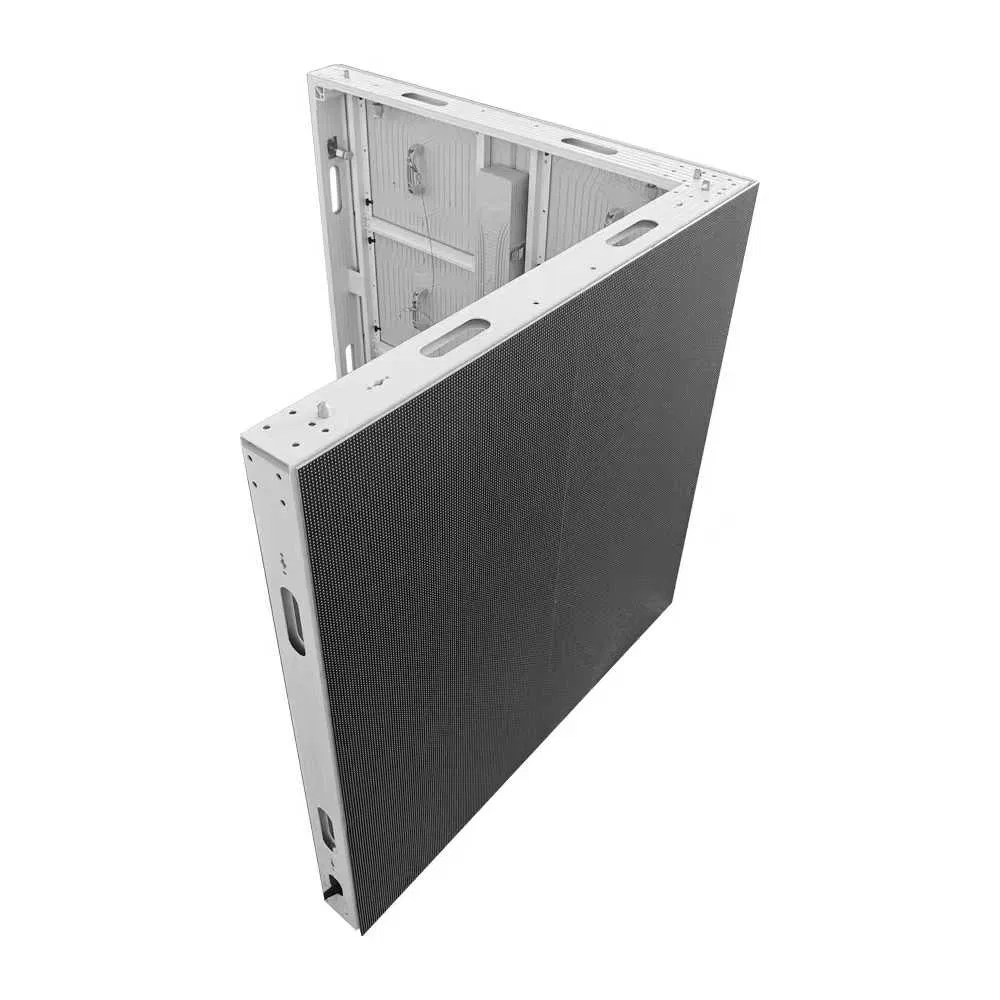

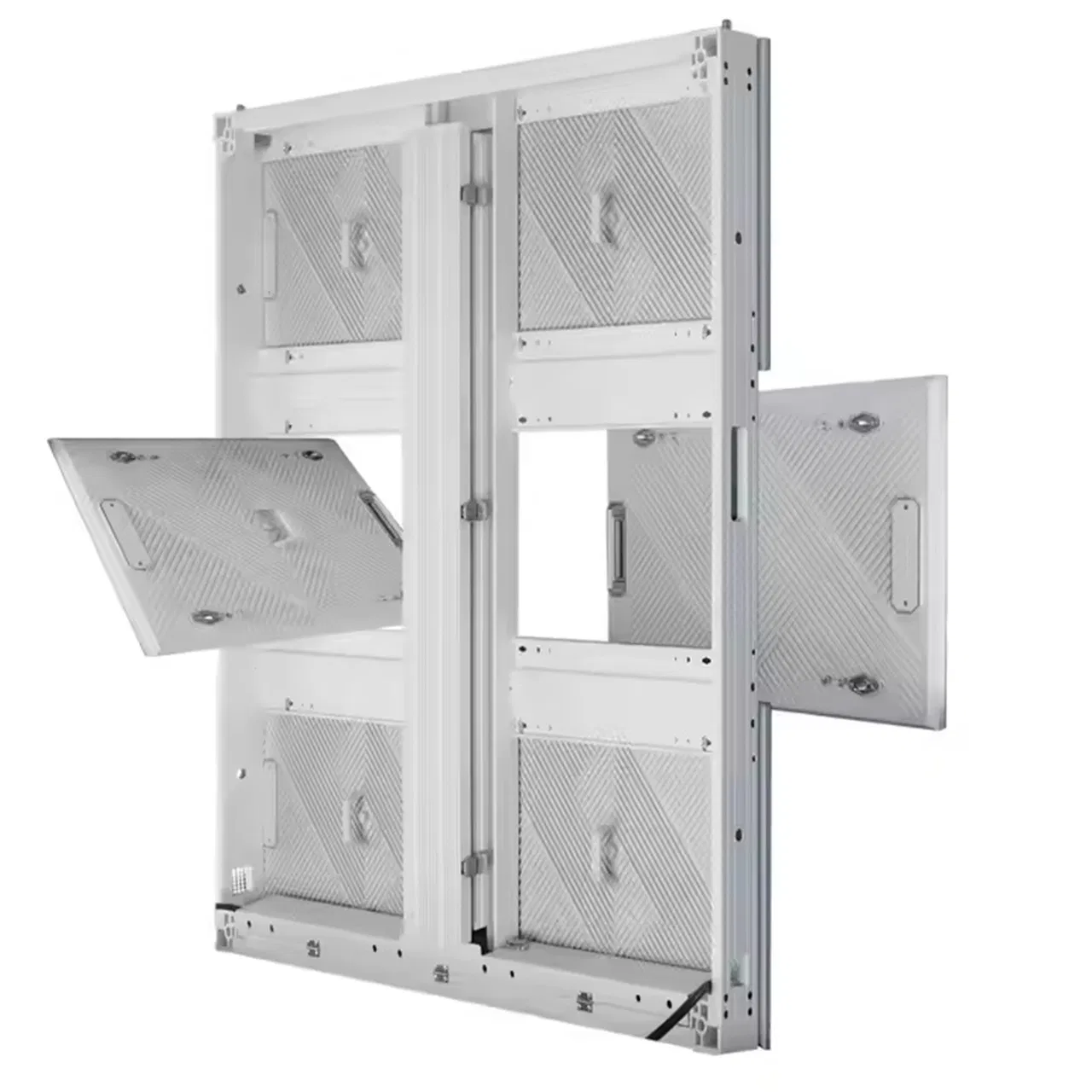

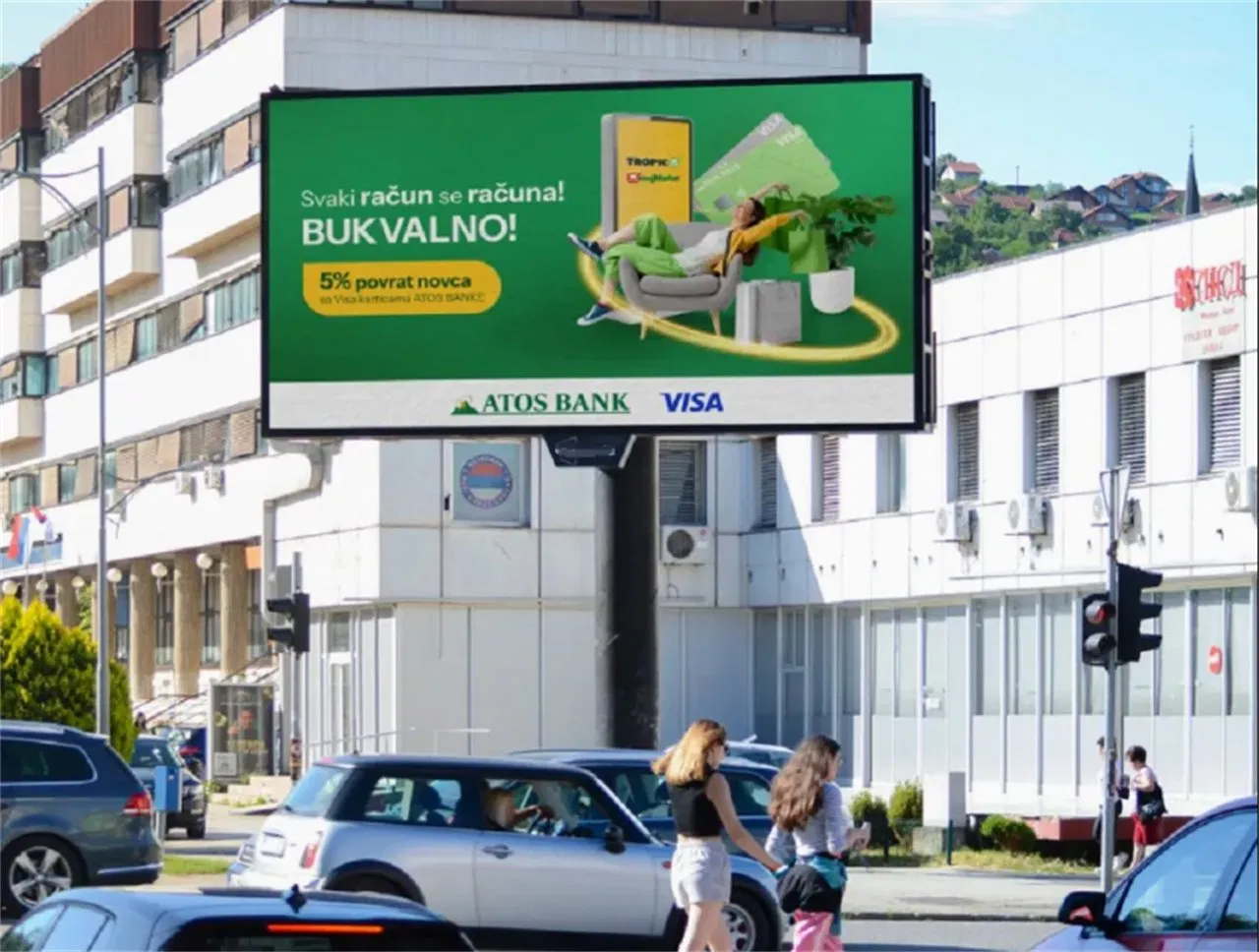

Waterproof IP65 Energy-Saving Outdoor LED Billboard High Brightness P4.4 P5.7 P8 P6.67 P10 LED Display

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
Energy-saving Outdoor LED Display
Pixel Pitch
4.44, 5.7, 6.67, 8, 10mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image, Text, Market Display
Avg. Power Consumption
220W / m²
Pixel Density
10000~50630 DOT/M²
Scanning Mode
1/7s
Protection Level
IP65
Brightness
6000-10000 nits
Operating Temperature
-30~80°C
Module Size
480*320mm
Panel Size
960*960mm
Maintenance
Front and Rear Maintenance
Life Time
More than 100,000 Hours
Control System
Novastar
Control Method
APP / USB / PC
Package
Wooden Box Packaging
Production Capacity
5000 PCS/Month

Core Product Features

☀️
Ultra-high Brightness Luminosity surpassing 5000 nits, up to 10000 nits+, ensuring clear visibility even under direct sunlight.
🛡️
High Protection Level (IP65) Waterproof and dustproof, resilient against rain, dust, and sand in adverse weather conditions.
🌊
Anti-Corrosion Resistant to salt spray and corrosion, ideal for coastal areas and industrial sectors.
👁️
Wide Viewing Angle Exceeding 140° (horizontal/vertical) and up to 160°, ensuring clarity from any direction.
🌡️
Extreme Temperature Resilience Operates reliably from -30°C to +80°C with integrated sophisticated temperature control systems.
🔄
High Refresh Rate ≥3840Hz refresh rate diminishes flicker and scan lines, perfect for live sports and dynamic scenes.
🎨
High Contrast & Grayscale Delivers deep blacks and vibrant colors with an exceptional range of expression.
🧩
Modular Design Standard size boxes for effortless transport, installation, maintenance, and future upgrades.

Product Showcase

Outdoor LED Display Feature 1

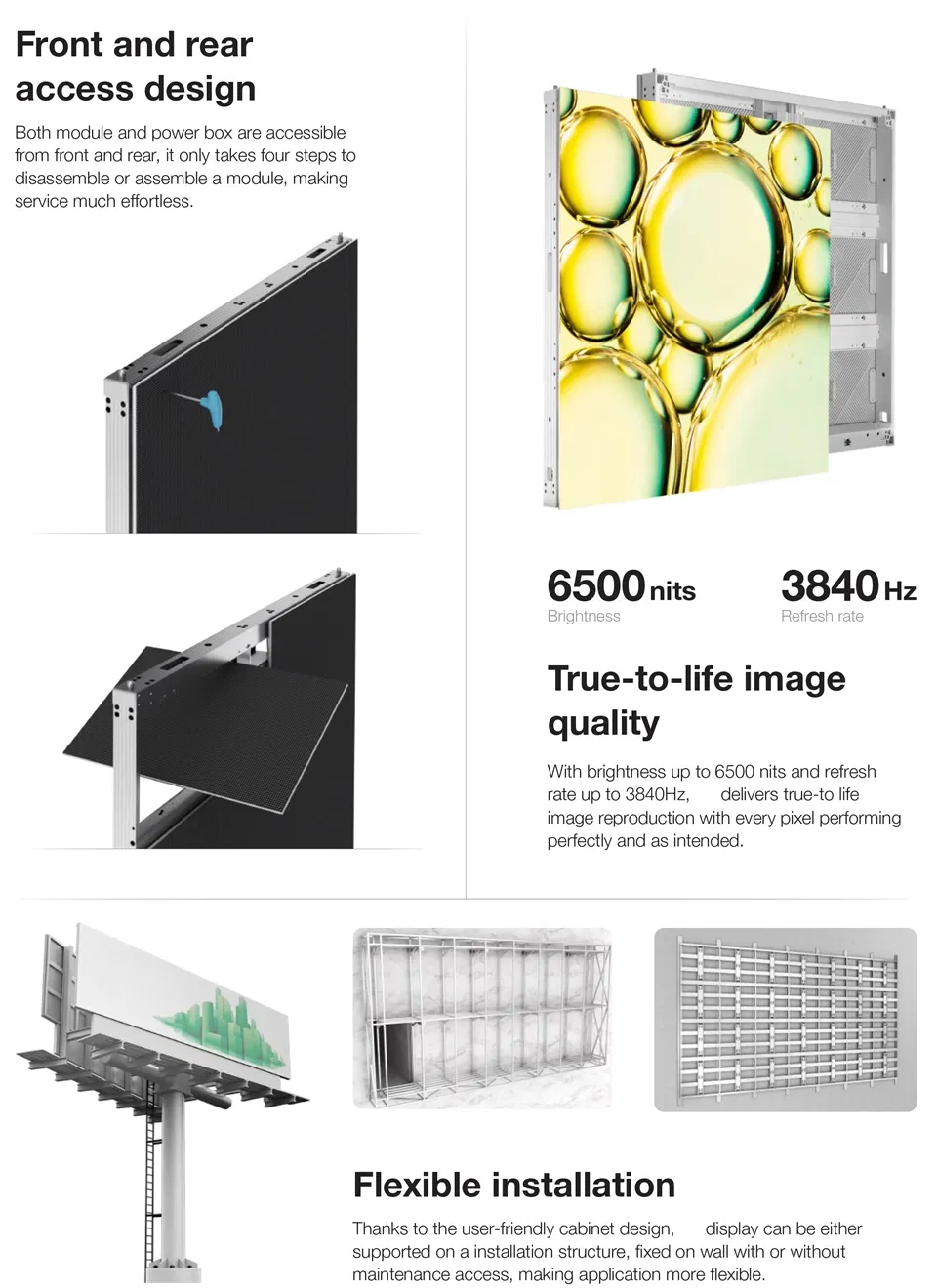

Outdoor LED Display Feature 2

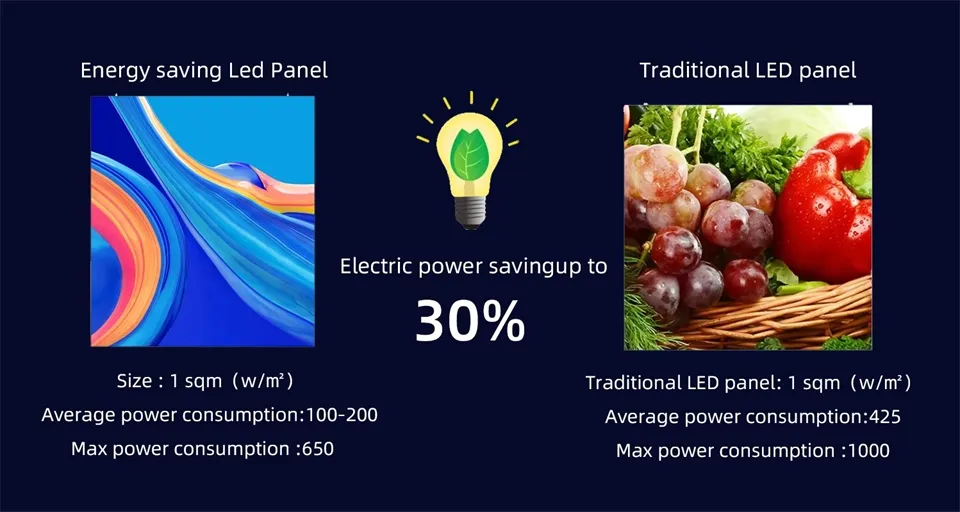

Outdoor LED Display Detail

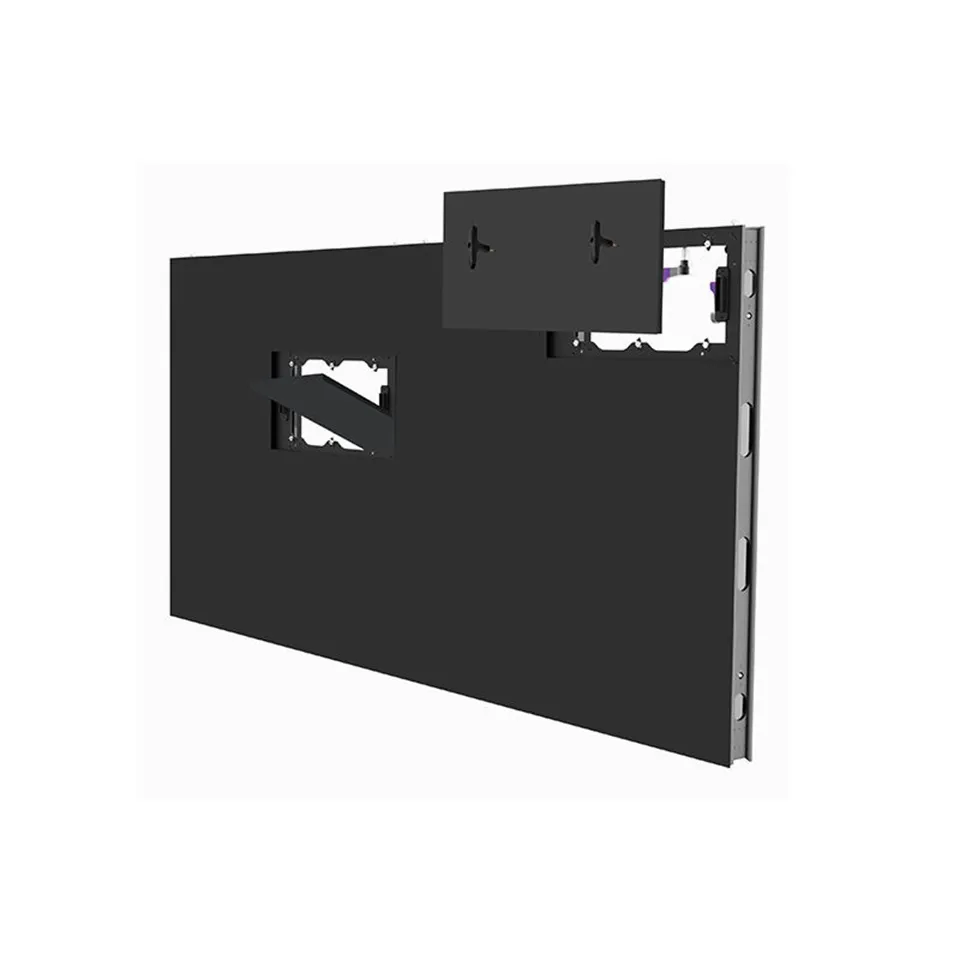

LED Panel Front View

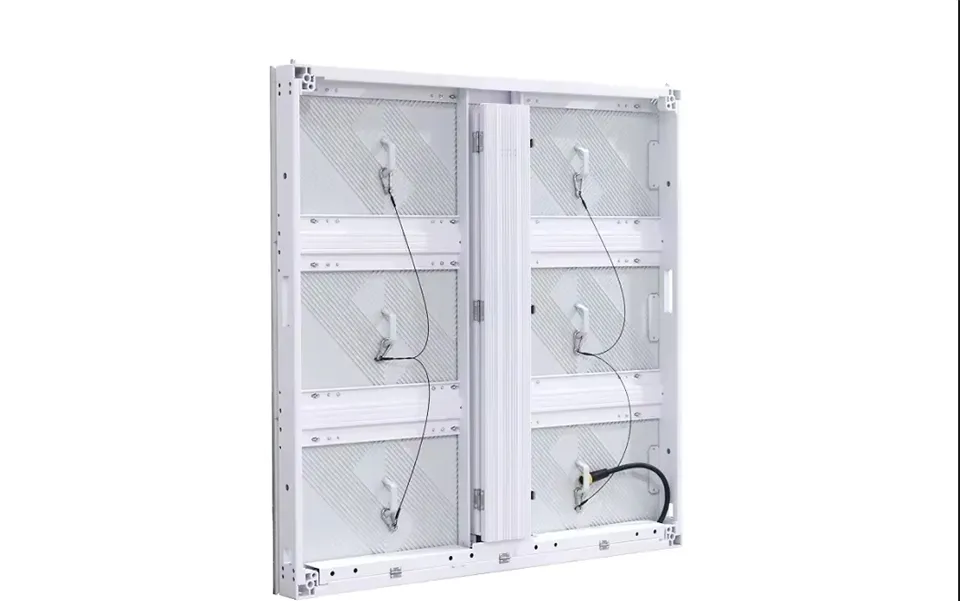

LED Panel Maintenance

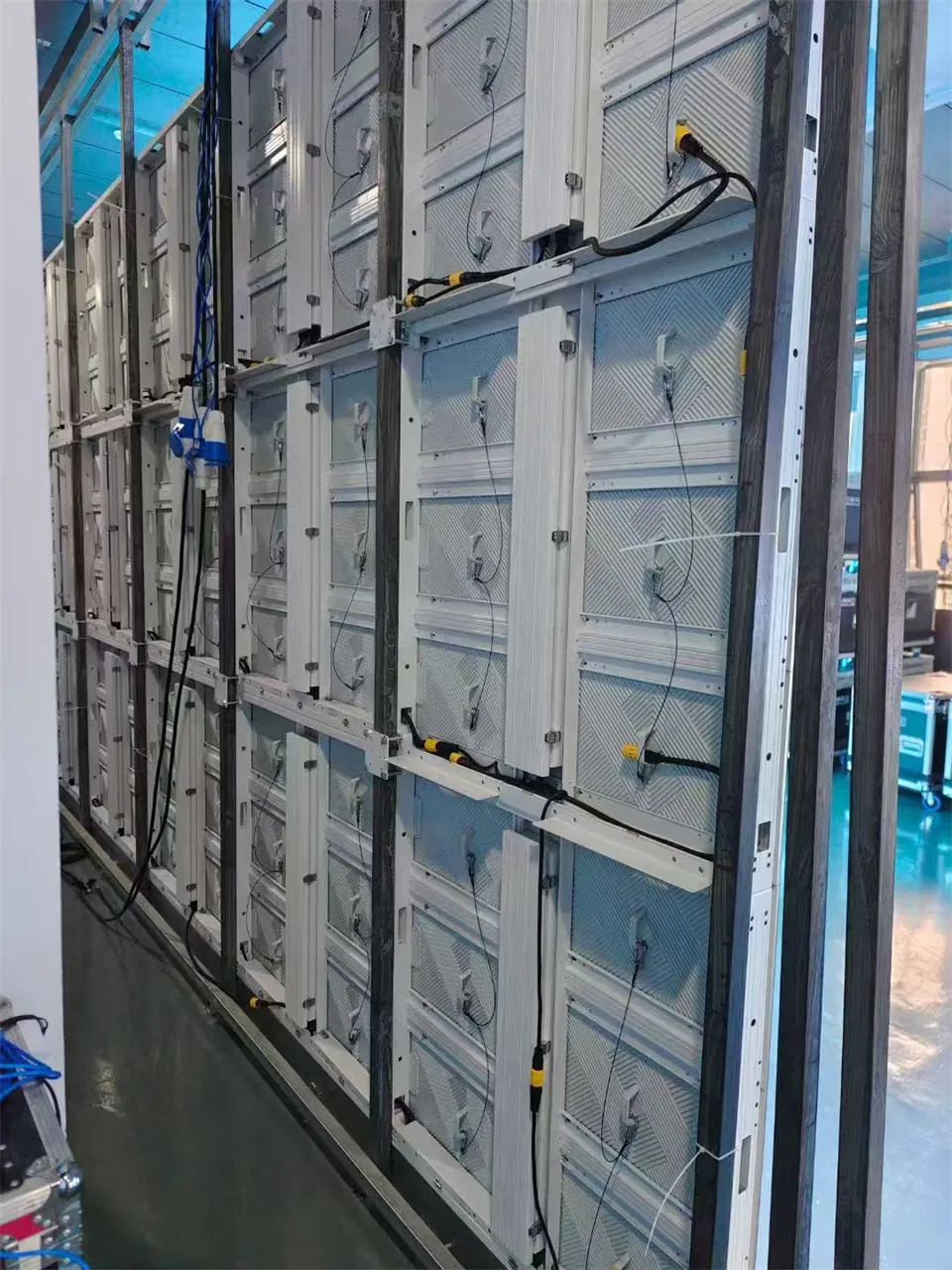

Outdoor Installation

Technical Parameters

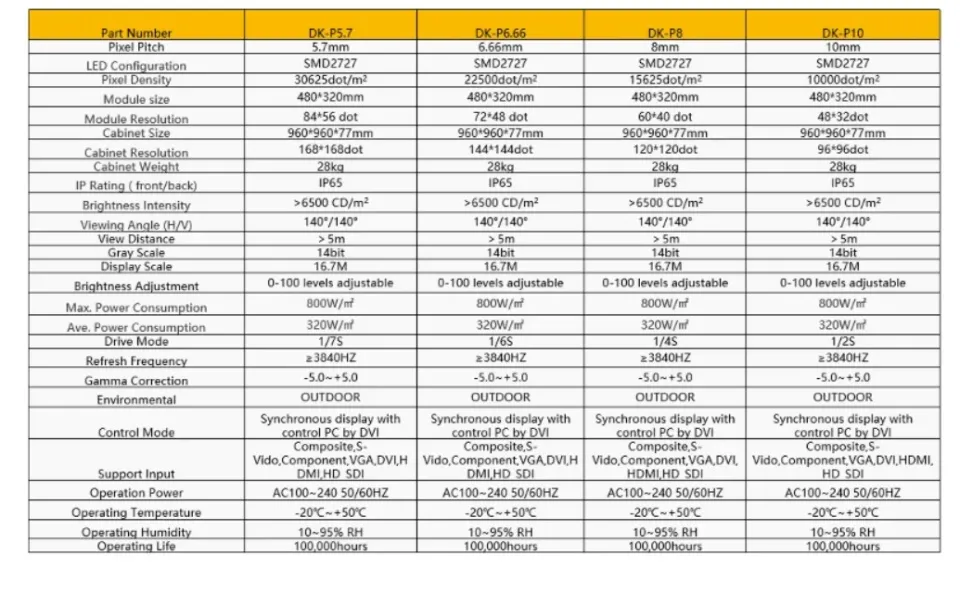

Technical Parameters Table

Project Cases

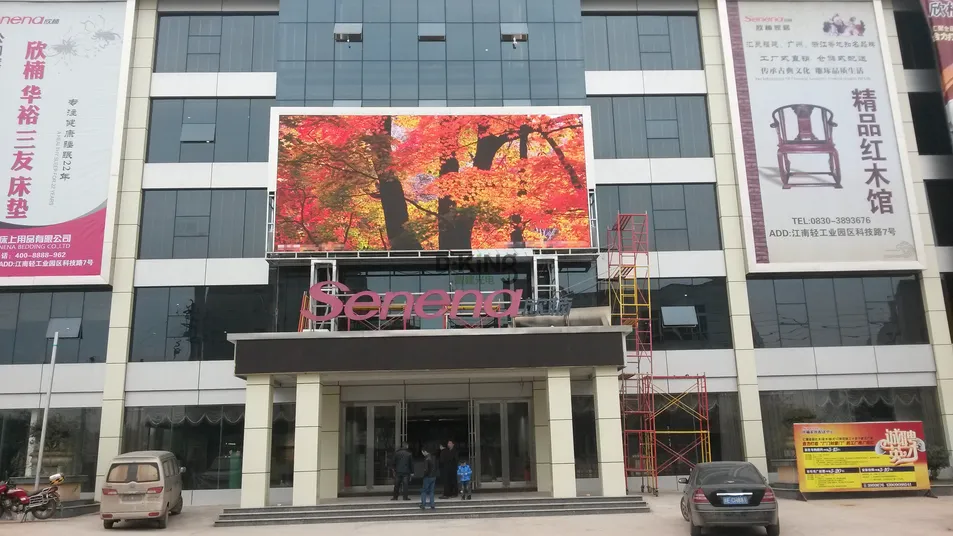

Case Study 1

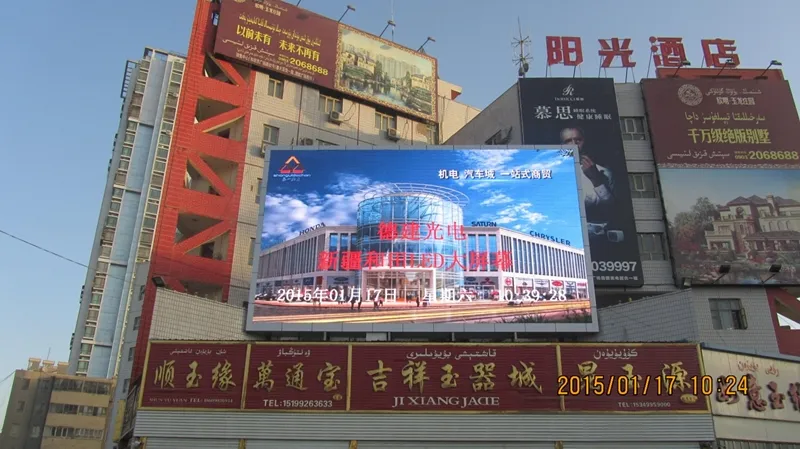

Case Study 2

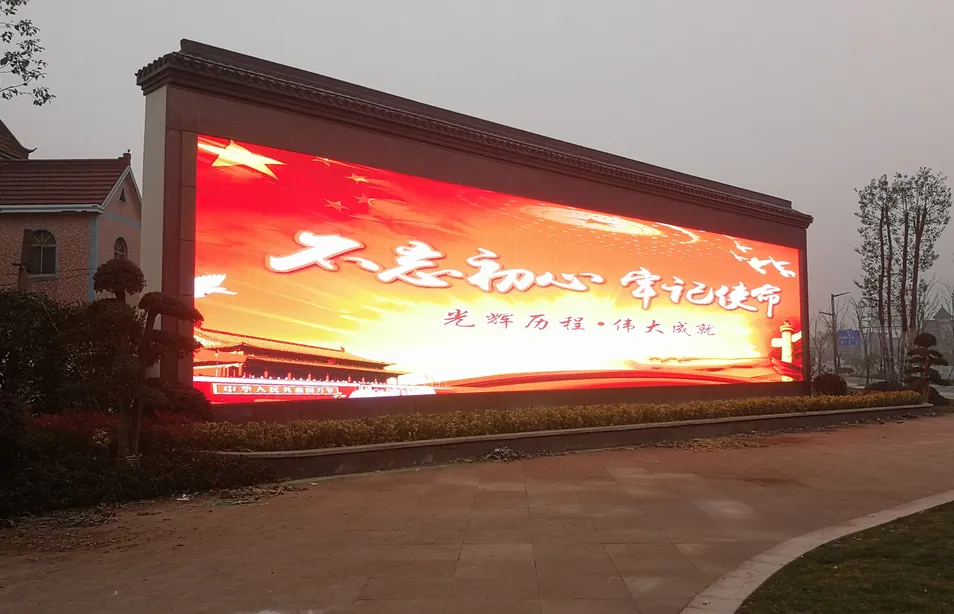

Case Study 3

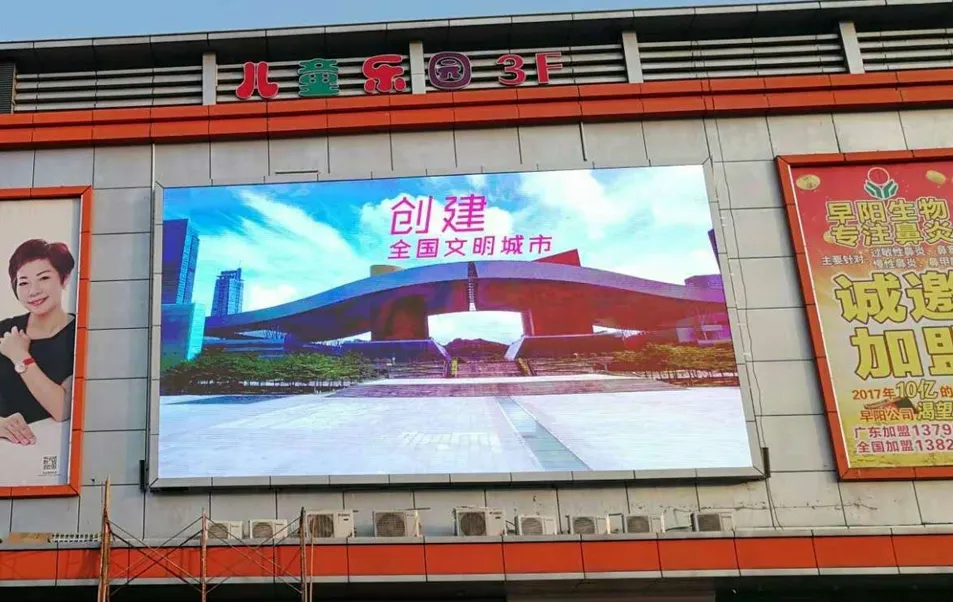

Case Study 4
Case Study 5
Case Study 6

Frequently Asked Questions

Is this LED display visible in direct sunlight?
Yes. With a brightness rating of 6000-10000 nits, our outdoor LED displays are designed to provide clear visibility even under the strongest direct sunlight.
How does the screen handle rain and dust?
The display features an IP65 protection level, making it completely waterproof and dustproof, suitable for all-weather outdoor environments.
What is the expected lifespan of the LED panels?
The system uses high-quality LED lamp beads with a rated lifespan of over 100,000 hours, ensuring long-term stability and minimal maintenance.
Can it operate in extreme cold or hot climates?
Yes, the operating temperature range is -30°C to +80°C, and it includes sophisticated temperature control systems to maintain stability in extreme fluctuations.
Is the display easy to maintain?
Absolutely. It supports both front and rear maintenance, allowing for quick and efficient servicing depending on the installation requirements.
What control methods are supported?
The display is compatible with Novastar control systems and can be managed via PC, USB, or a dedicated smartphone APP.
