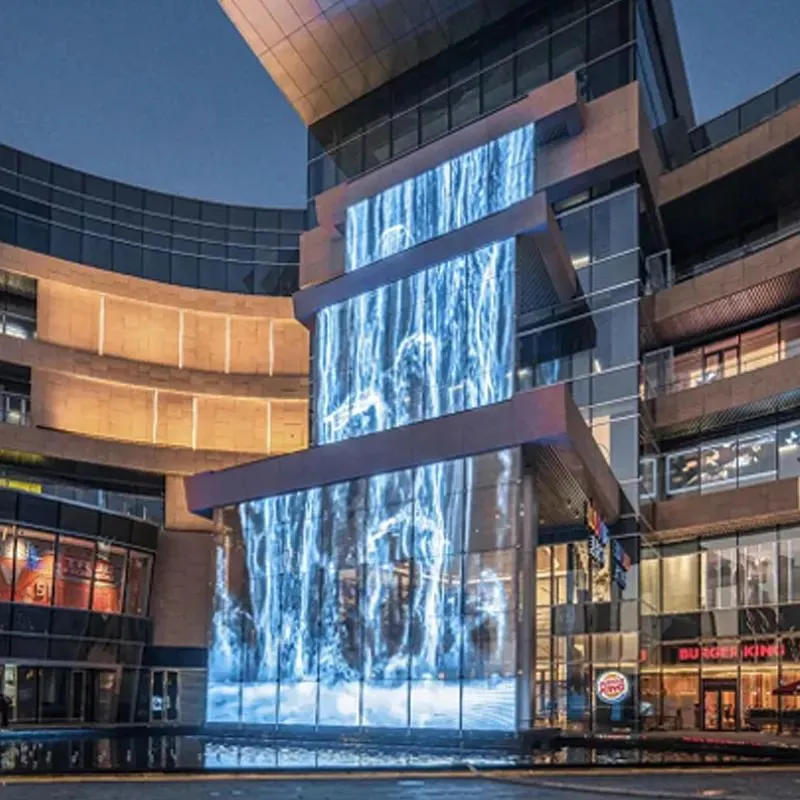

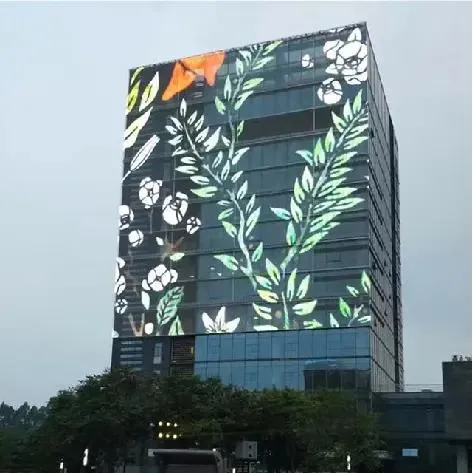

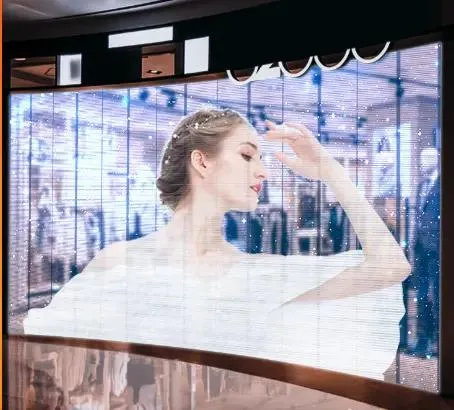

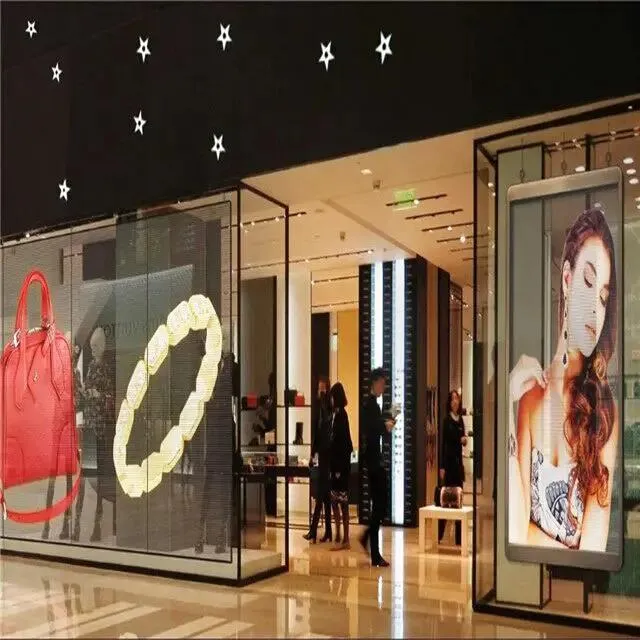

Product Introduction: LED side light box screen adopts modular design, with transparent display, fast installation, energy saving and environmental protection, etc.; it can be installed by hanging and vertical installation. Widely used in glass curtain walls, large shopping malls, floor-to-ceiling windows, TV parties, large entertainment programs and other scenes.

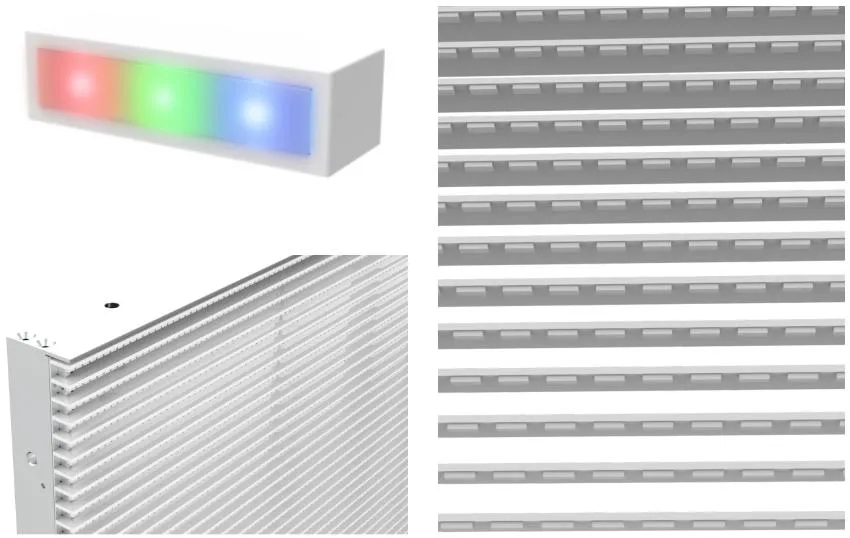

Technical Characteristics: LED side luminous transparent screen adopts special lamp beads. When the screen is working, the lamp beads are luminous on one side of the light board. The case structure is high-quality aluminum alloy.
| Model Number | AC3.91 | AC7.81 | AC10.42 | AC15.6 |
|---|---|---|---|---|
| Pixel Pitch (W*H) | 3.91mm*7.81mm | 7.81mm*7.81mm | 10.42mm*10.42mm | 15.625mm*15.625mm |
| Optimal Sight Distance | 4M-12M | 8M-24M | 10M-30M | 15M-45M |
| Screen Transparency | 80% | 75% | 80% | 60% |
| Pixel Density (dots/㎡) | 32768 | 16384 | 9216 | 4096 |
| Max Power Consumption | 800W | 800W | 700W | 600W |

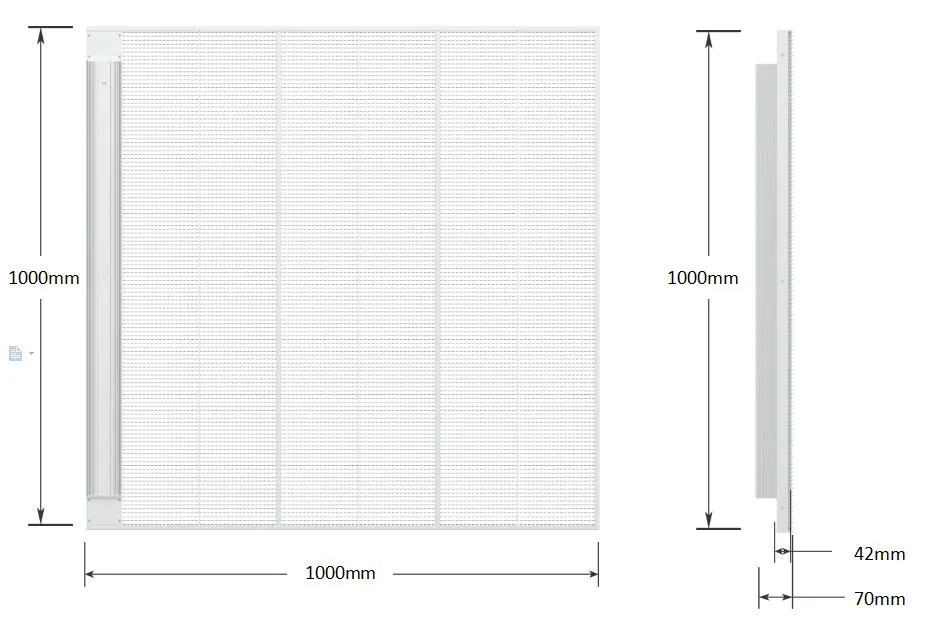

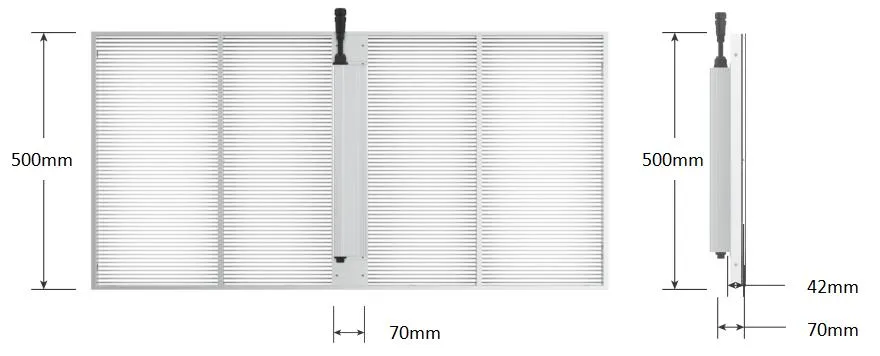

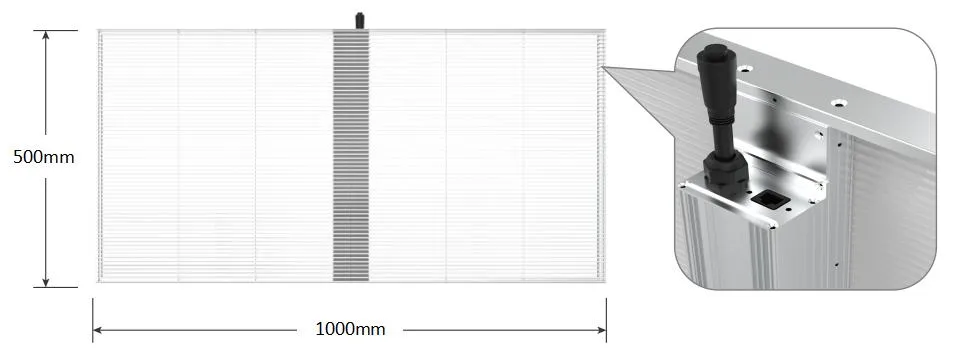

| Cabinet Size (W*H*D) | 1000*500*70mm | 1000*500*70mm | 1000*500*70mm | 1000*500*70mm |
| Brightness | ≥5500CD | ≥5500CD | ≥5500CD | ≥5500CD |
| Refresh Frequency | ≥3840Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| IP Rating | IP30 | IP30 | IP30 | IP67 |

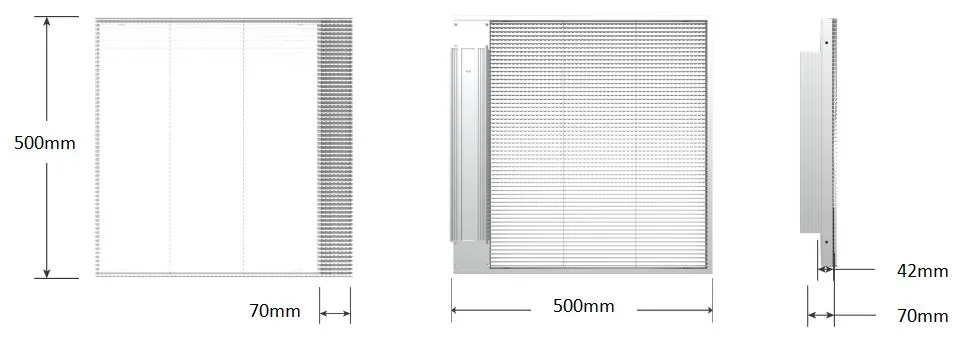

Cabinet Size: 500mm*500mm
