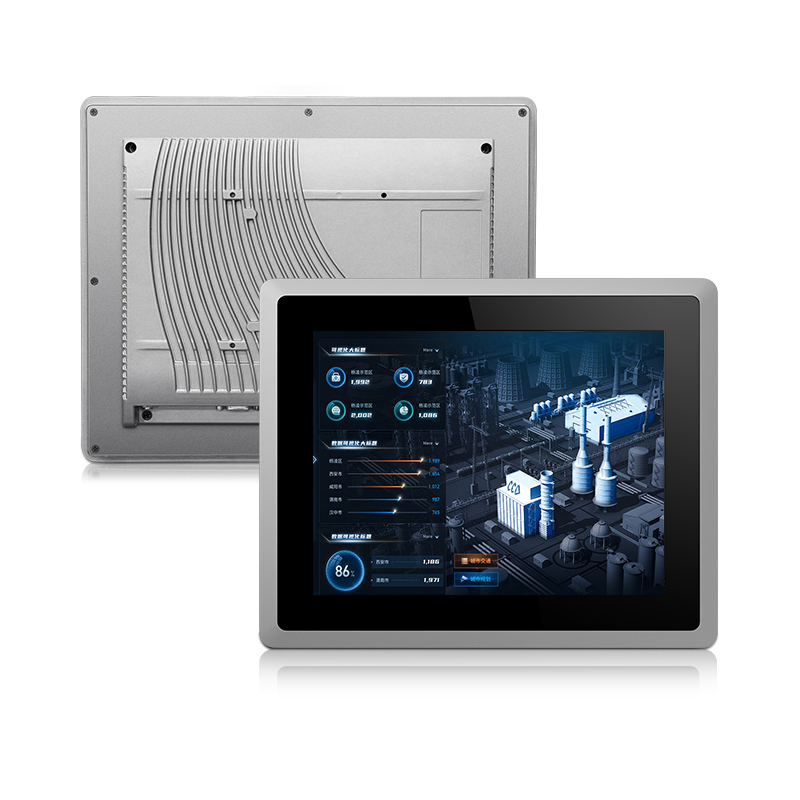

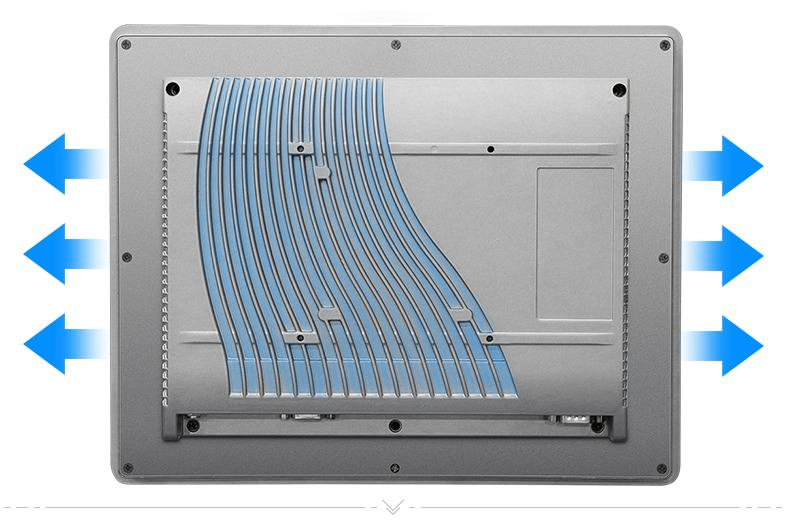

Industrial HMI Panel PC: High-performance IP65 waterproof front bezel solution featuring Windows 10 support. Equipped with an Intel i3 processor, 4G RAM, and 64G SSD for stable industrial operations. The fanless design ensures longevity in harsh environments.
| Category | Specifications | |
|---|---|---|
| System | Configuration | Intel® 4th Gen Pentium 3558U, DDR3-4G, SSD-64G |
| Network | 2*RJ45 100 Base-T, WiFi 802.11b/g/n (optional), Support 3G/4G | |

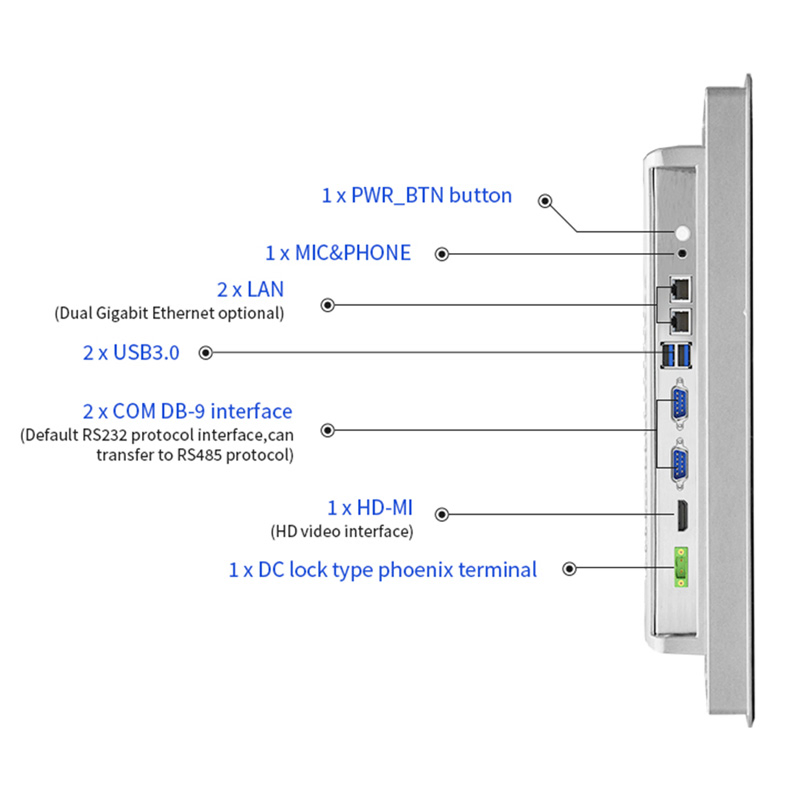

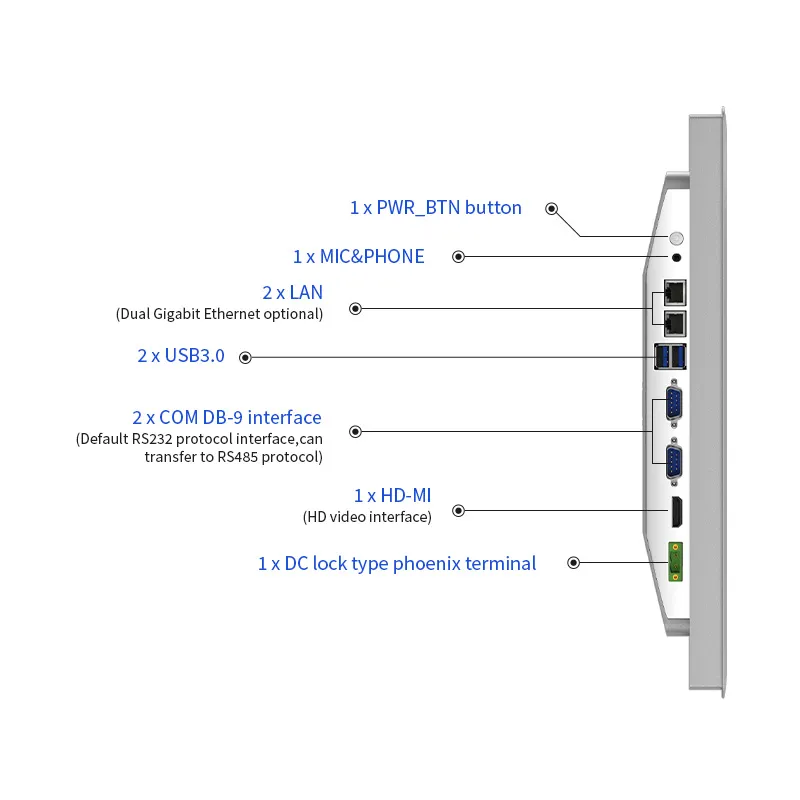

| Interface | I/O Ports | 1*HDMI output, 4*USB 3.0, 2*COM (RS485) |
| Power | 1*DC lock phoenix terminal, Support 9-36V | |
| Audio | 1*3.5mm audio | |
| GPIO | 8*GPIO (optional) | |
| Display | Resolution | 1024*768 (10.4"-15") / 1280*1024 (17"-19") |
| Contrast | Up to 900:1 | |
| Brightness | 200-250cd/m2 | |
| Touch | Type | Projected capacitive 10 point touch |
| Response | < 5ms | |
| Structure | Material | Aluminum die casting, Glass frame paste |
| Environment | Temperature | Working: -20ºC ~ 70ºC; Storage: -40ºC ~ 80ºC |
