Mochuan HMI Ethernet Modbus Rj485 Human Machine Interface Touch Screen Panel

1 / 5

Mochuan HMI Ethernet Modbus Rj485 Human Machine Interface Touch Screen Panel

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.M010

CertificationRoHS, CCC, ISO: 9001, CE

ConditionNew

MaterialAluminum Alloy + Engineering Plastics

TypeMulti Touch Capacitive HMI

Size9.7 inch

Resolution1024X768

EthernetSupport

Serial Port2xrs232, 2xrs485, 1xrs422

Panel Cutout230X180mm

HS Code8537109090

Production Capacity5000PCS/Month

Packaging & Delivery

Package Size29.00cm * 24.00cm * 10.00cm

Package Gross Weight2.000kg

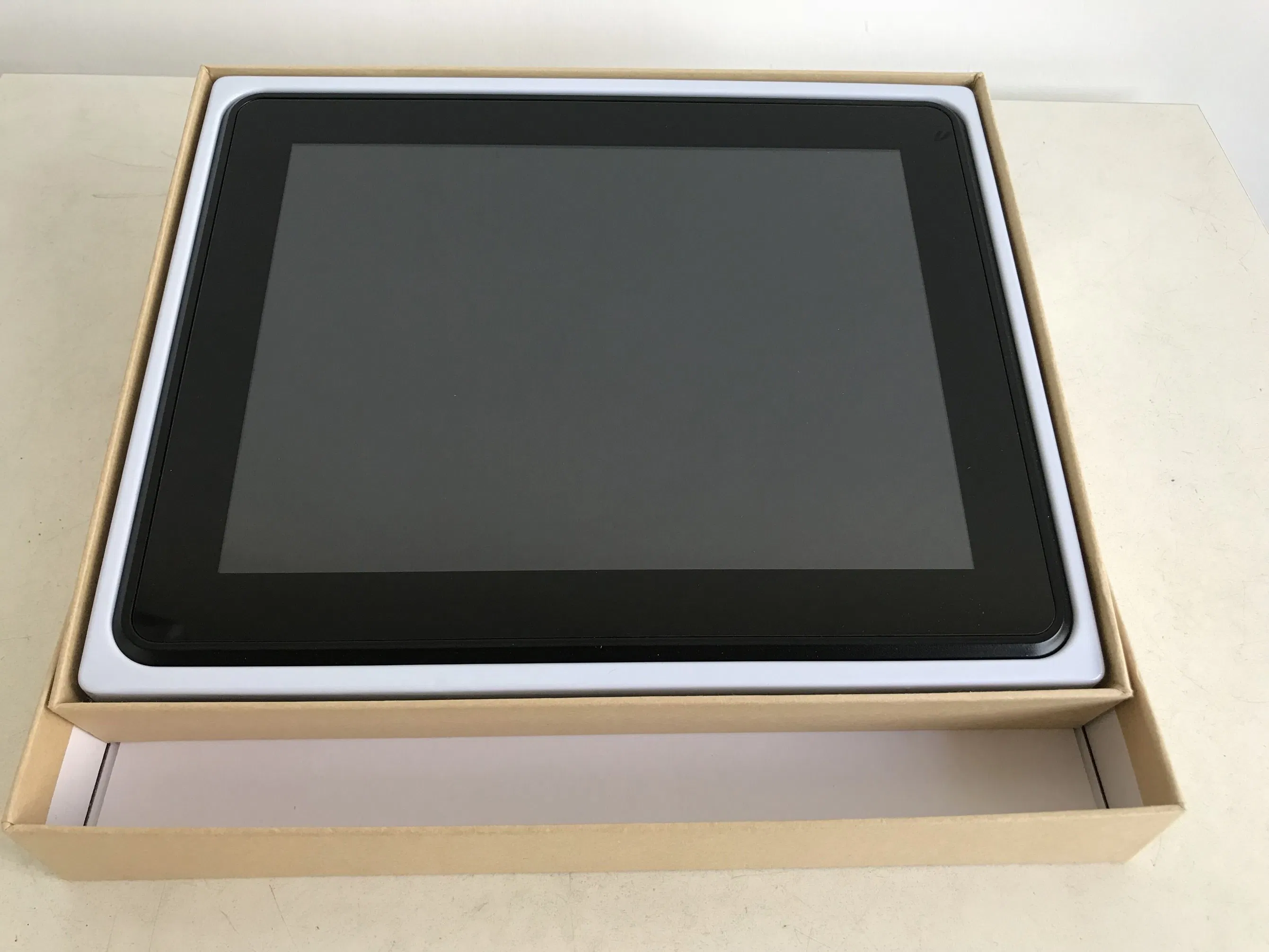

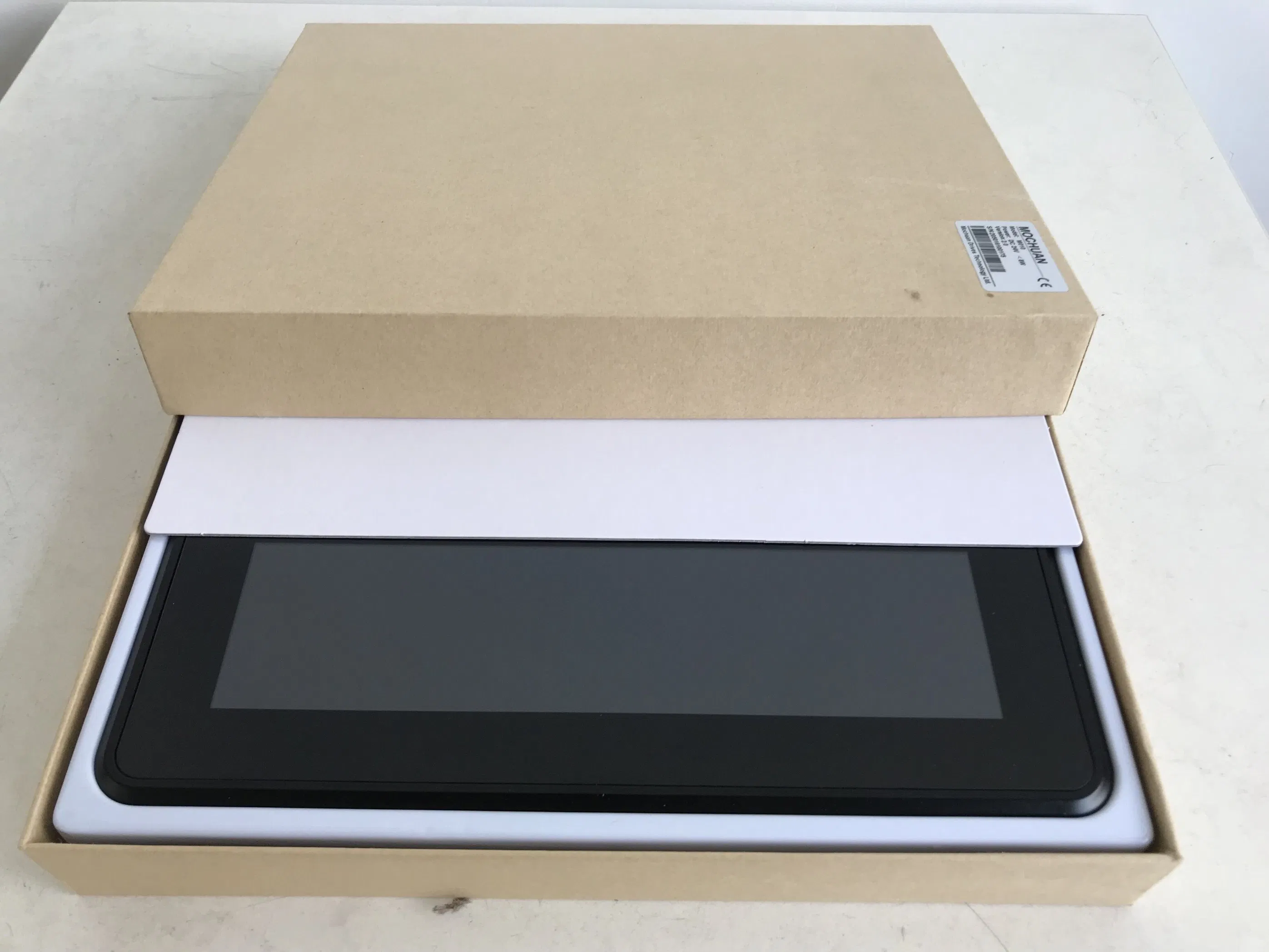

Transport PackageFoam Fixed Individual Packaging

Product Description

Warranty & Services

NO MOQ, 1pcs is available.
36 months warranty for all HMI models.
Free software and Demo provided for technical support.
Economic plastic shell HMI (4.3" to 15.6") with Ethernet options.
Capacitive multi-touch HMI (7" to 32") with Ethernet.
Metal shell wide-temperature HMI (-20°C to +70°C) available.

Our Advantages

Independent R&T team.
7 days no reasons to refund policy.
24/7 technical service availability.
Custom DEMO creation based on customer requirements.
Multi-currency payment support (USD, RMB, Euro, etc.).

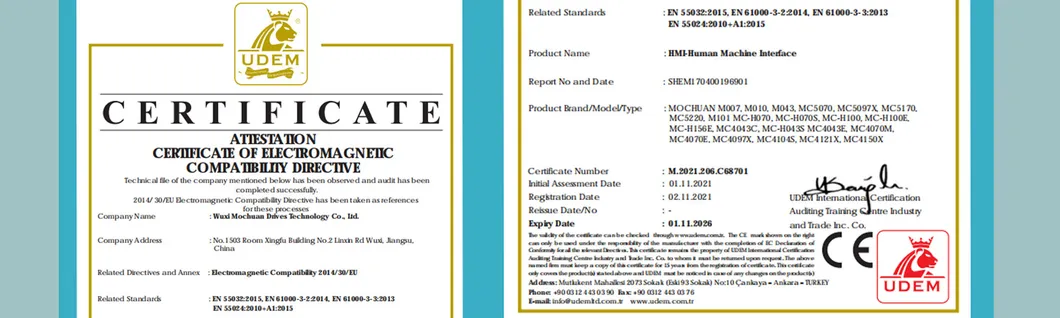

Certifications

Certificate Number: M.2021.206.C68701.
Directives: Electromagnetic compatibility 2014/30/EU.
Standards: EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A12015.

Model Comparison

Model	M007	M010	MC5097X	MC5170	MC5220
CPU	4Core 1.2GHz ARM Cortex-A7			Cortex-A8 800MHz
Touch Screen	Glass+Glass Projective multi-touch capacitive HMI
Screen Size	7'' 16:9 TFT LCD	9.7'' 4:3 TFT LCD		17'' 4:3 TFT LCD	22'' 16:9 TFT LCD
Resolution	1024x600	1024x768		1280x1024	1920x1080
Brightness	350cd/m2	350cd/m2			250cd/m2
Flash+RAM	4G eMMC + 256M DDR3			256MB Flash + 256MB DDR3
Serial Port	COM1:RS232/485/422; COM2/4:RS485; COM3:RS232		COM1/2:RS232/485/422; COM3/4:RS232	COM1/2:RS232/485/422; COM3:RS232
Working Temp	-10~60ºC				0~50ºC
Protection Level	Front IP65 (with NEMA panel), Back IP20

Advanced Features

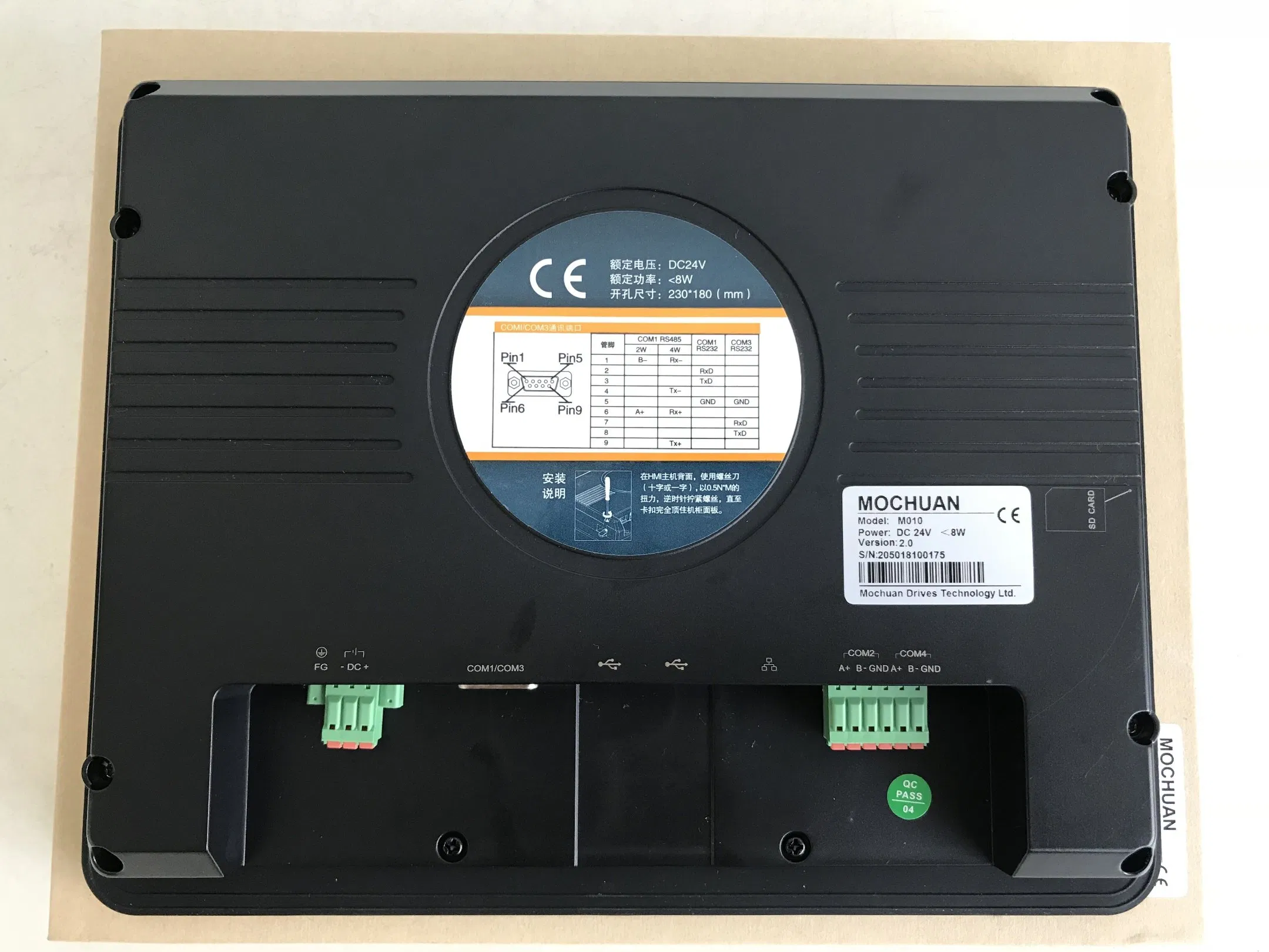

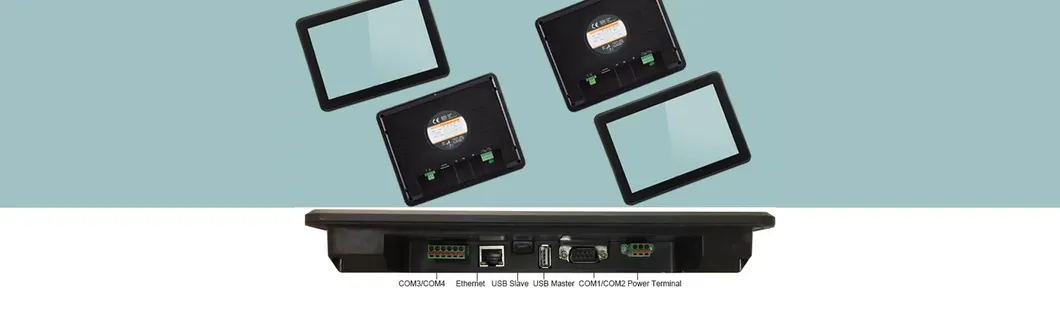

Multi-serial Connectivity: M010 features COM1/COM2/COM3/COM4, including three RS485 ports to meet diverse market requirements.

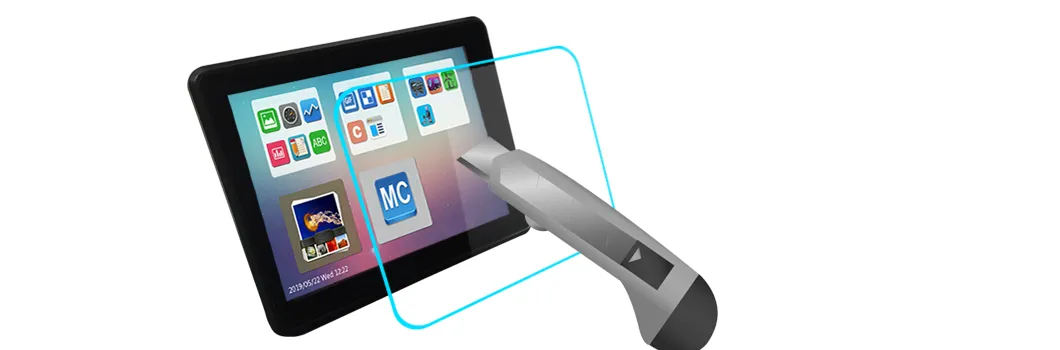

Capacitive Touch Screen: Projected capacitive multi-touch Glass+Glass panel, featuring high light transmittance, anti-scratching, and drift-free operation.

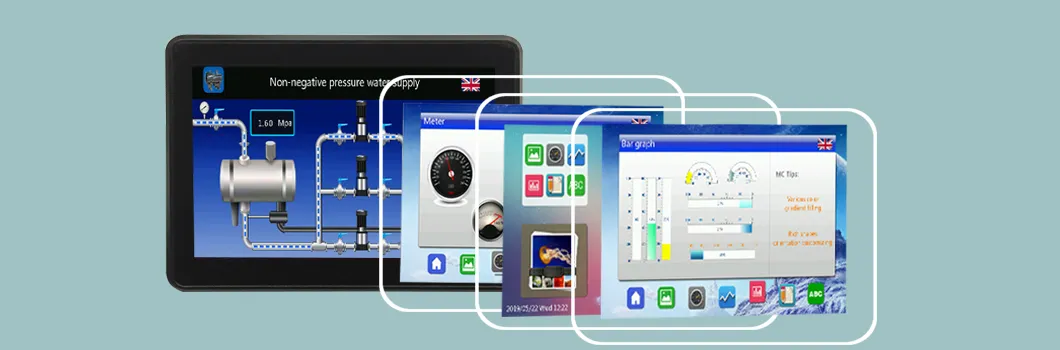

Powerful CPU: ARM Cortex processor ensures high speed and easy flow, supporting animation formats (BMP, JPG, GIF, PNG) for direct display.

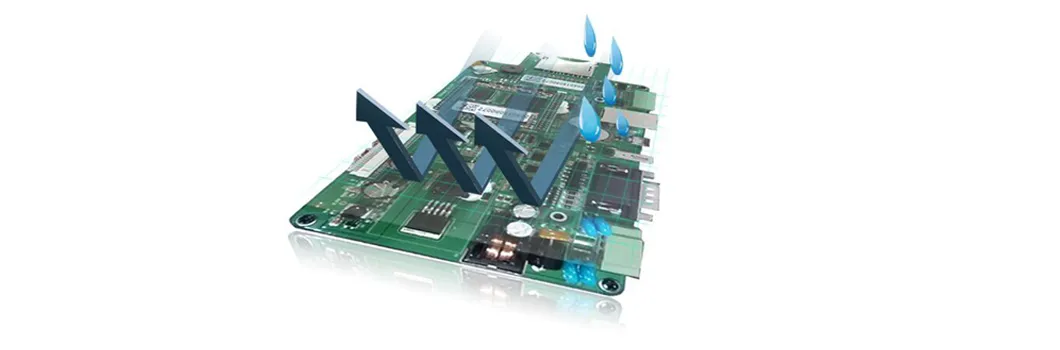

Durable Protection: PCB coating enhances resistance against dampness, dust, and corrosion in harsh environments with three-anti-paint protection.

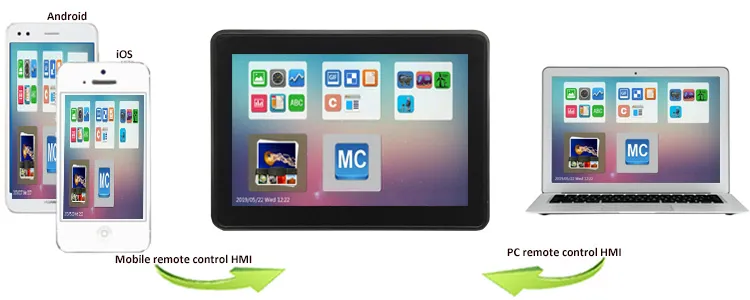

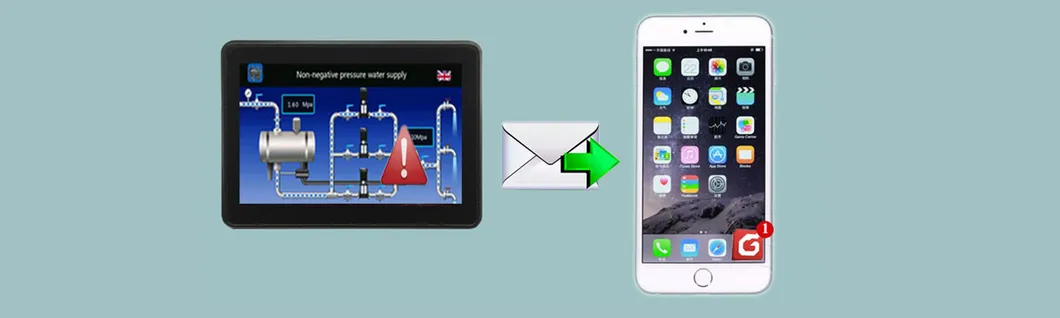

Email Alert & VNC: Supports runtime error notifications via email and VNC control through PC or Mobile Apps for remote monitoring.

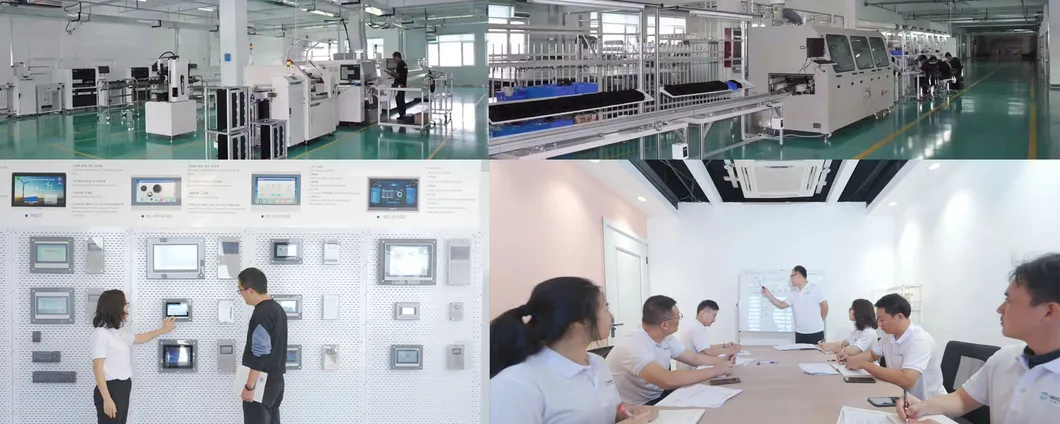

Capabilities and Quality

With over 15 years of market development, we provide integrated manufacturing and engineering for PLC, HMI Panels, VFD, and switching power supplies. Our equipment is largely imported from Japan and Germany to ensure competitive product quality.

Related Industrial Products

PLC Temperature Control: RS485 models with PID self-tuning algorithms.

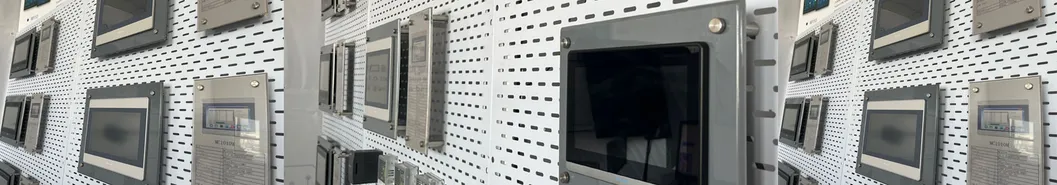

Economic HMI: Sizes from 4.3" to 15.6" with multiple configurations.

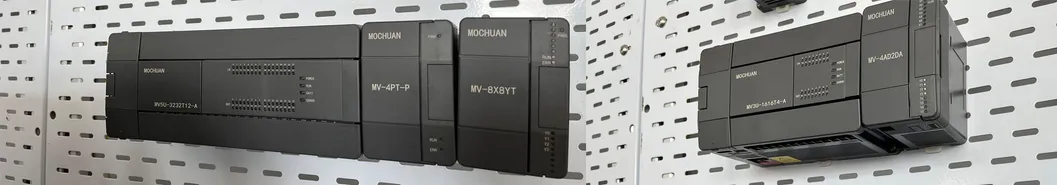

PLC Controllers: Supporting various I/O configurations (16/16, 32/32).

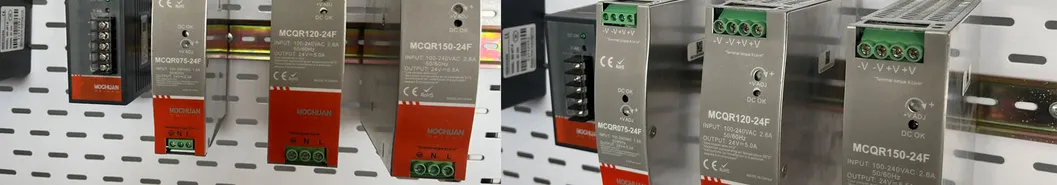

DIN-Rail Power Supply: Up to 960W with 36 months warranty.

Frequently Asked Questions

Q1: What is the warranty period for the HMI? A: All HMI products come with a 36-month warranty.

Q2: Is there a minimum order quantity (MOQ)? A: No, there is no MOQ. A single unit (1pcs) order is accepted.

Q3: Which operating systems are compatible with the programming software? A: The HMI software is compatible with Windows 7, Windows 10, and Windows XP.

Q4: Can the HMI operate in harsh temperatures? A: Yes, standard models operate from -10 to 60ºC, while metal shell wide-temperature versions support -20 to +70ºC.

Q5: Does the HMI support remote monitoring? A: Yes, it supports VNC control for PC and mobile app access, as well as Gmail alert functions.

Q6: What communication ports are available on the M010 model? A: It is equipped with multiple serial ports including COM1 (RS232/485/422), COM2/COM4 (RS485), and COM3 (RS232), plus Ethernet support.
