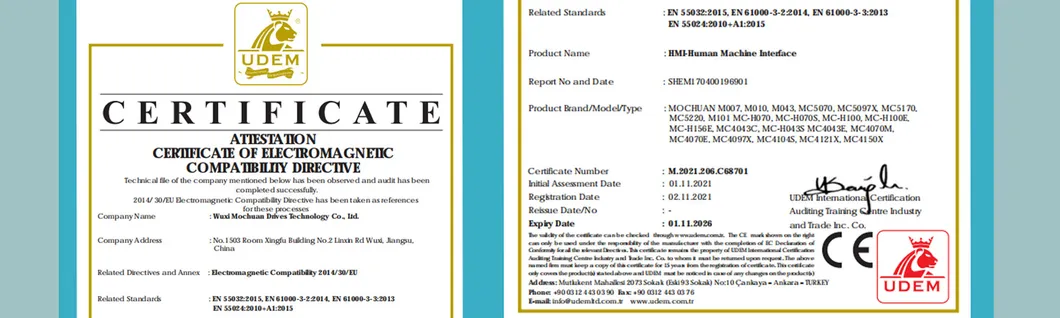

Certificate Number: M.2021.206.C68701
Related Directives: Electromagnetic compatibility 2014/30/EU
Standards: EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A12015
| Model | M007 | M010 | MC5097X | MC5170 | MC5220 |
|---|---|---|---|---|---|
| CPU | 4Core 1.2GHz ARM Cortex-A7 | Cortex-A8 800MHz | |||
| Touch Screen | Glass+Glass Projective multi-touch capacitive HMI | ||||
| Screen Size | 7'' 16:9 | 9.7'' 4:3 | 17'' 4:3 | 22'' 16:9 | |
| Resolution | 1024x600 | 1024x768 | 1280x1024 | 1920x1080 | |
| Flash + RAM | 4G eMMC + 256M DDR3 | 256MB Flash + 256MB DDR3 | |||
| Ethernet | Supporting | ||||
| Serial Ports | COM1:RS232/485/422; COM2/4:RS485; COM3:RS232 | COM1/2:RS232/485/422; COM3/4:RS232 | COM1/2:RS232/485/422; COM3:RS232 | ||
| Protection | Front IP65 (with NEMA panel), Back IP20 | ||||

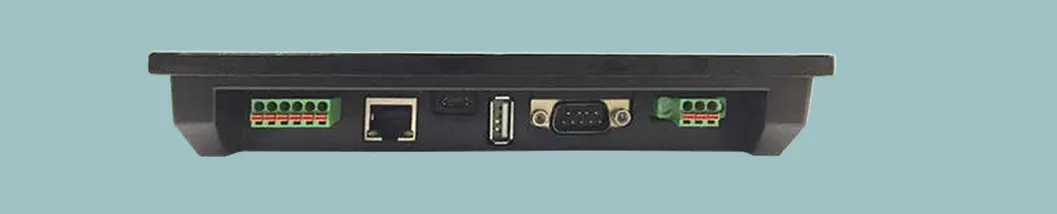

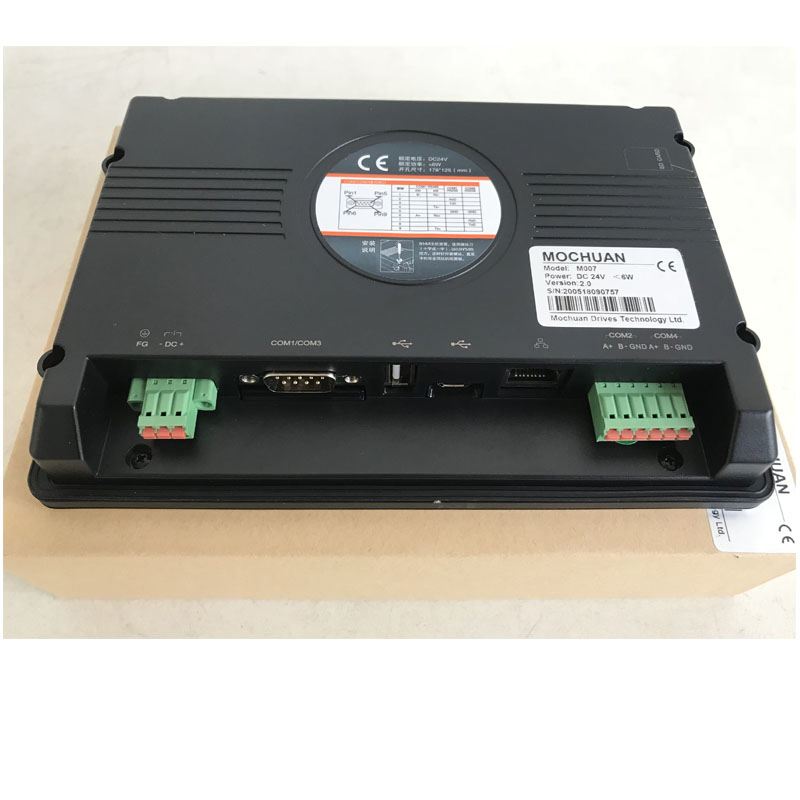

Multi-serial Support: M007 features multiple serial ports (COM1/COM2/COM3/COM4) including three RS485 ports to meet diverse market requirements.

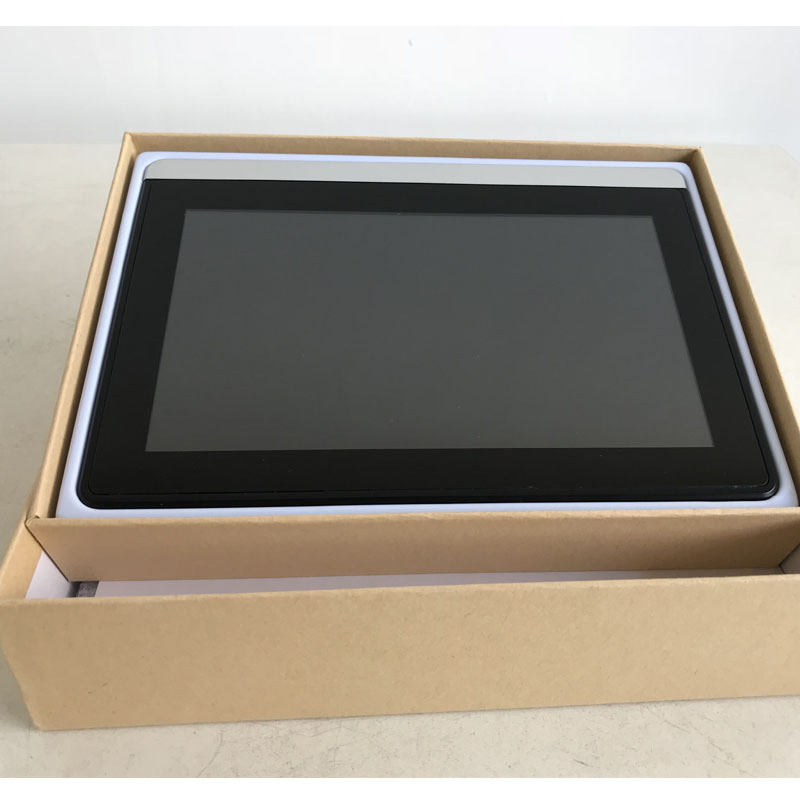

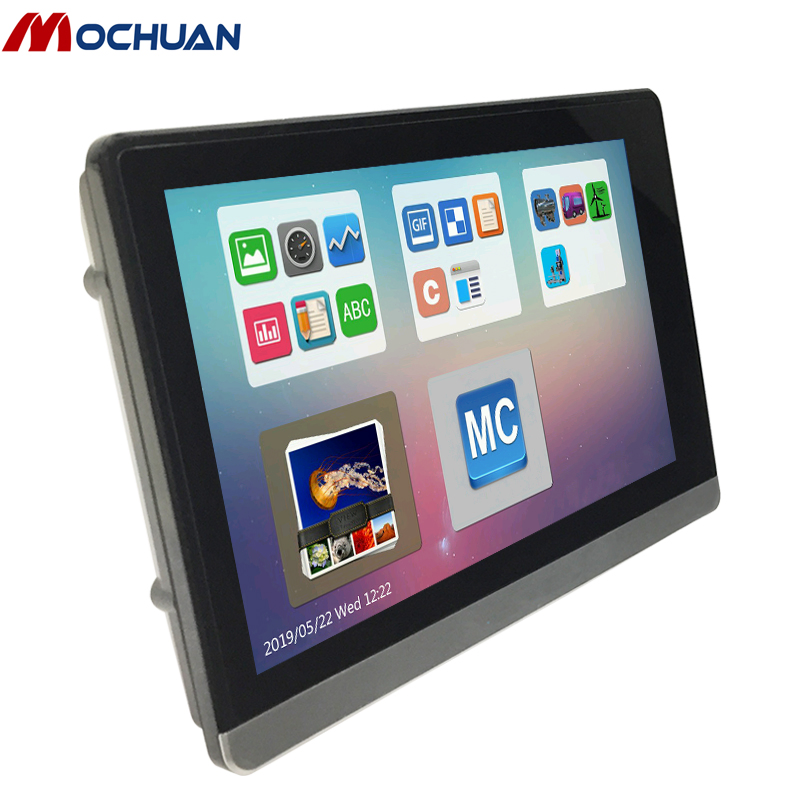

HMI Panel Screen: Projected capacitive multi-touch Glass+Glass construction. Features high light transmittance, anti-scratching, and zero drifting.
Strong CPU: ARM Cortex A7 processor ensures high speed and easy flow. Supports animation formats including BMP, JPG, GIF, and PNG.

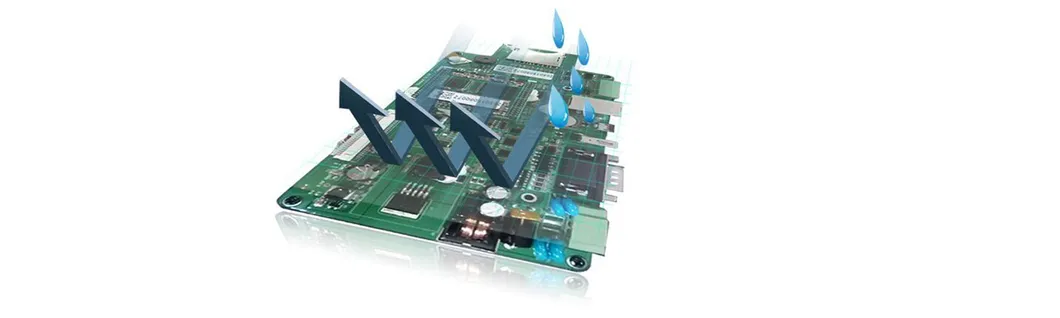

PCB Coating Protection: Enhances resistance against moisture, dust, and corrosion in harsh environments with three anti-paint layers.

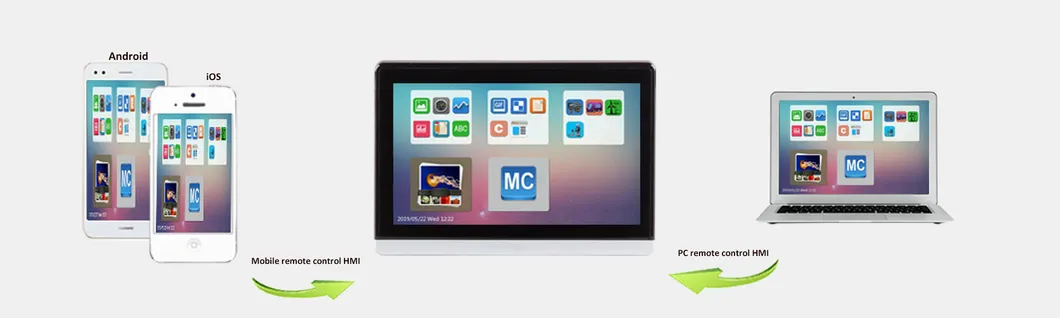

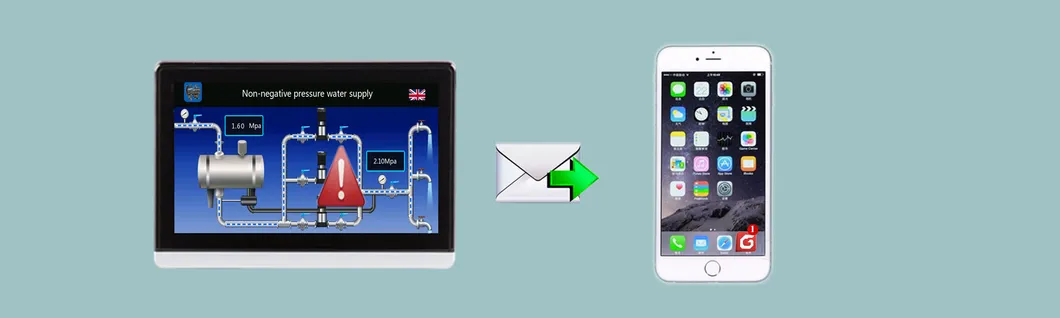

Remote Control: Supports VNC control via PC or Mobile App for intuitive and convenient real-time operation.

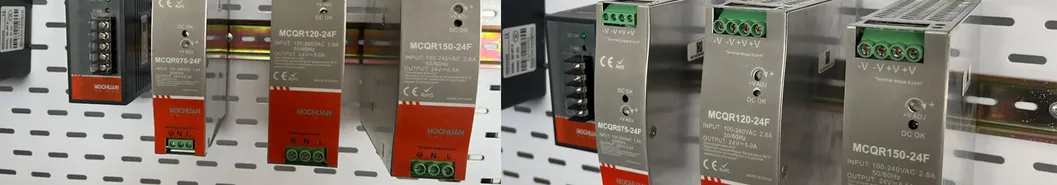

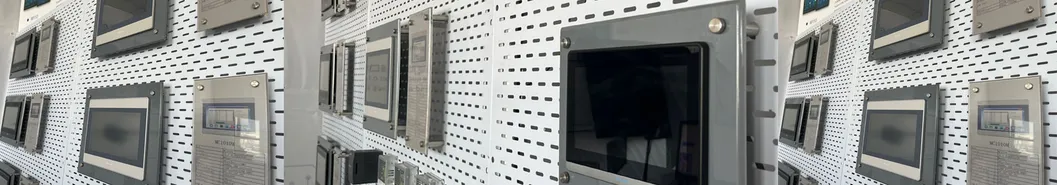

Beyond HMI, we support PLC controllers, VFDs, and Switching Power Supplies with no minimum order requirements.
