📋 Basic Info.
Display Function
Video, Image, Text, Market Display
Pixel Density
15625 Dots/M2
Application
Outdoor Stage Performance
Certification
CE, RoHS, CCC

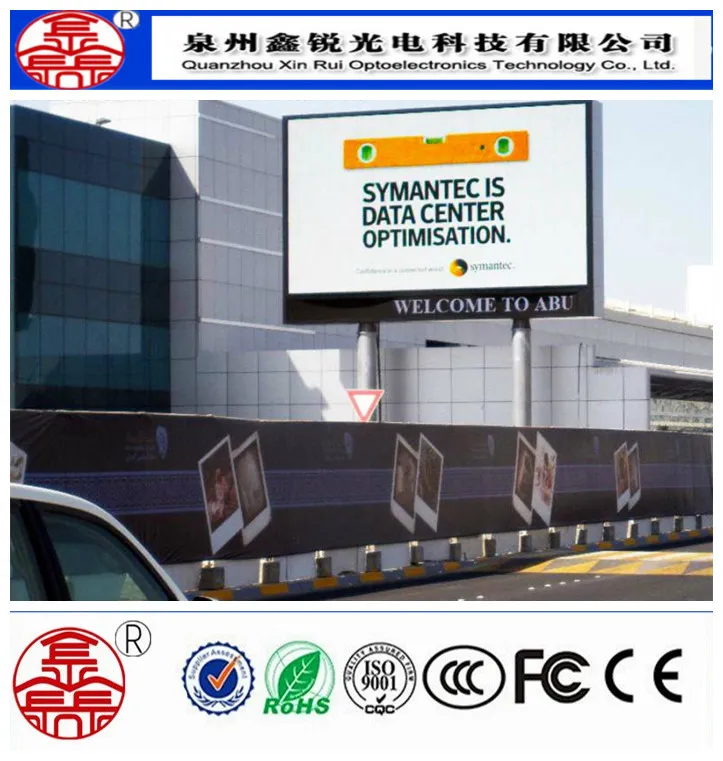

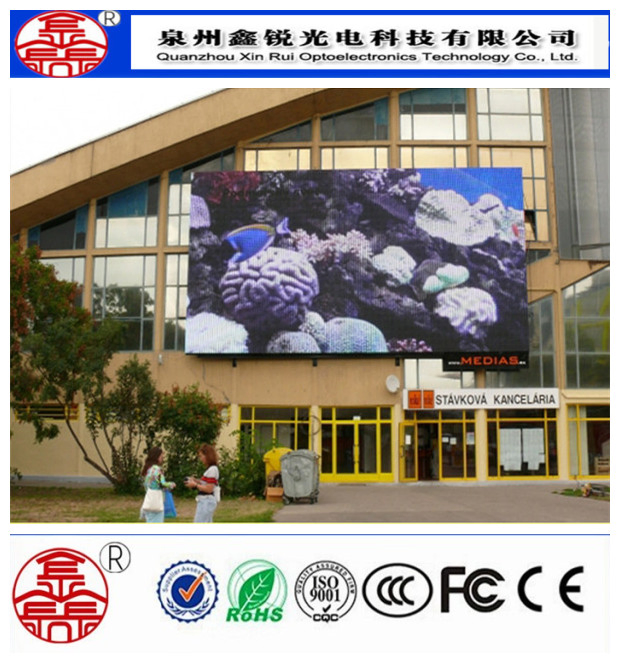

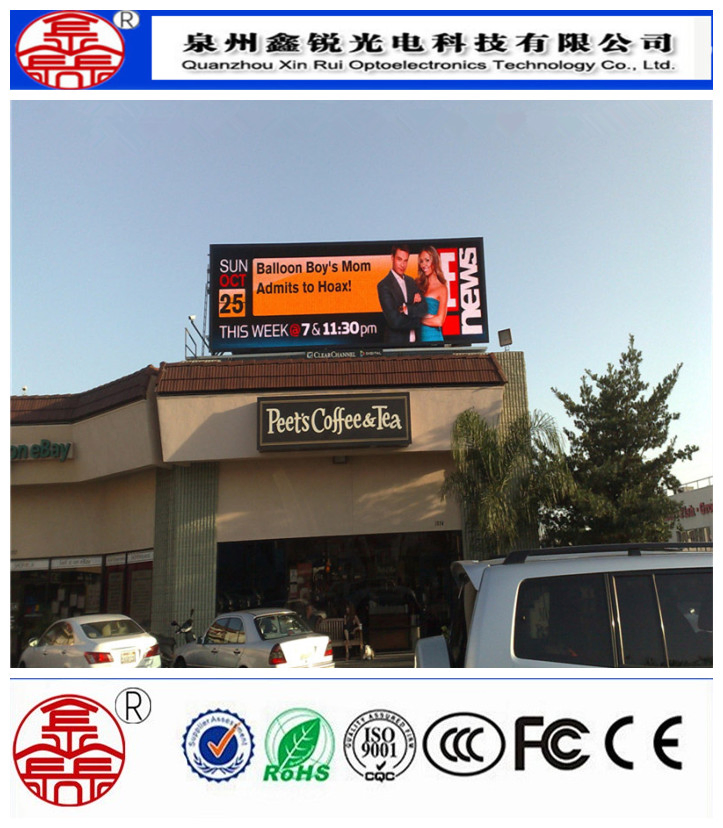

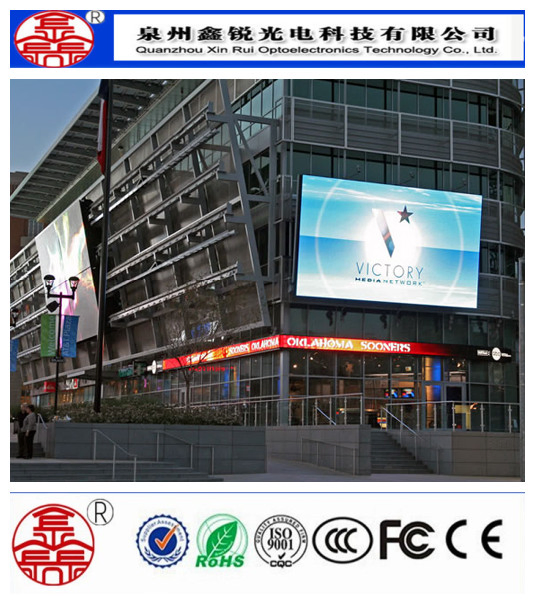

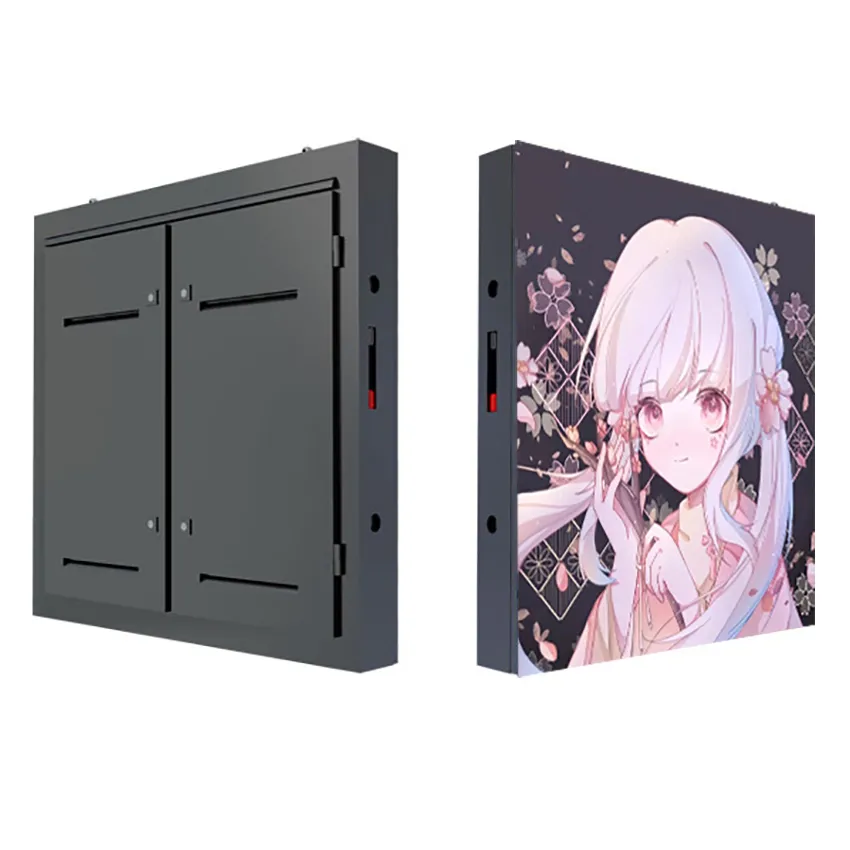

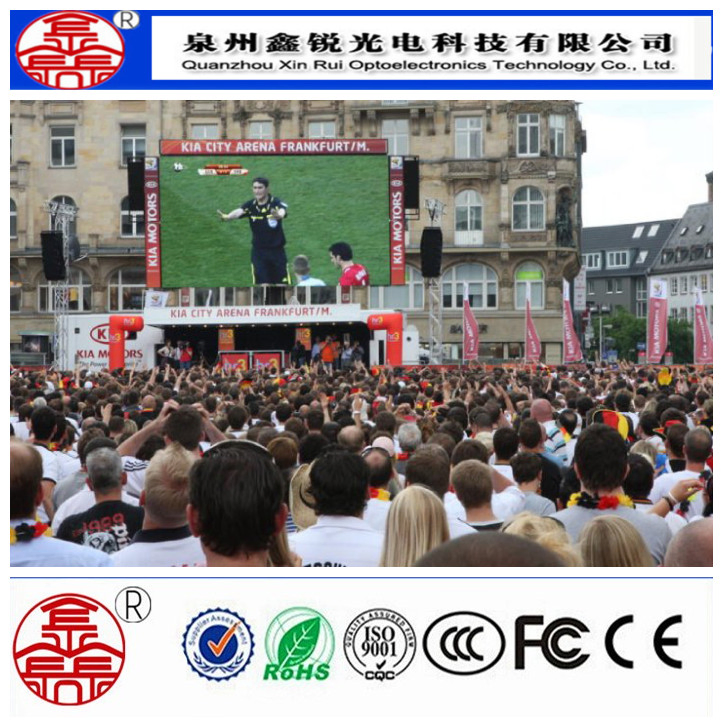

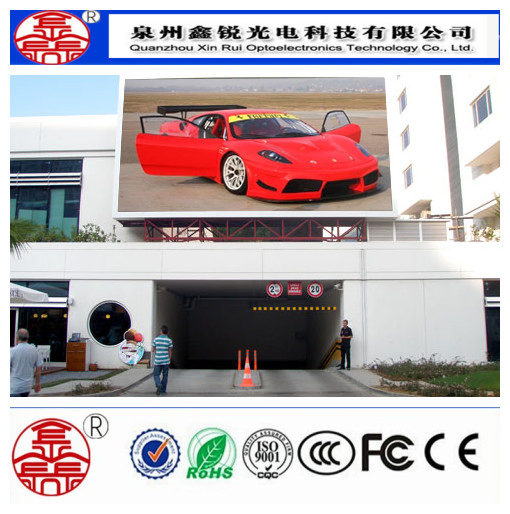

🖼️ Product Display
⚙️ Technical Specifications
| Items |
Parameter |
| Module Specifications |
| Product Model | P8 Full Color Led Module |
| Module size | 320mm*160mm |
| Pixel density | 15625dots/m2 |
| Module resolution | 32dots(W)*16dots |
| Brightness | ≥5000cd/m2 |
| Cabinet Specifications |
| Cabinet size | 960mm*960mm |
| Optimal viewing distance | 8M~100M |
| Optimal viewing angle | 160°(W) 120°(H) |
| Power & Technical Parameters |
| Average power consumption | 380W/H |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256 (16.7M colors) |
| MTBF | ≥9000hours |
⭐ Functions and Advantages
- Slim and light design, supporting front maintenance with zero noise operation.
- High density, high contrast, high brightness, and high refresh rate for superior visuals.
- High precision seamless stitching with a wide viewing angle and low power consumption.
- Ideal replacement for traditional mosaic walls and DLP projection products.
- Versatile application: monitoring commands, advertising, TV stations, conferences, cinemas, and malls.

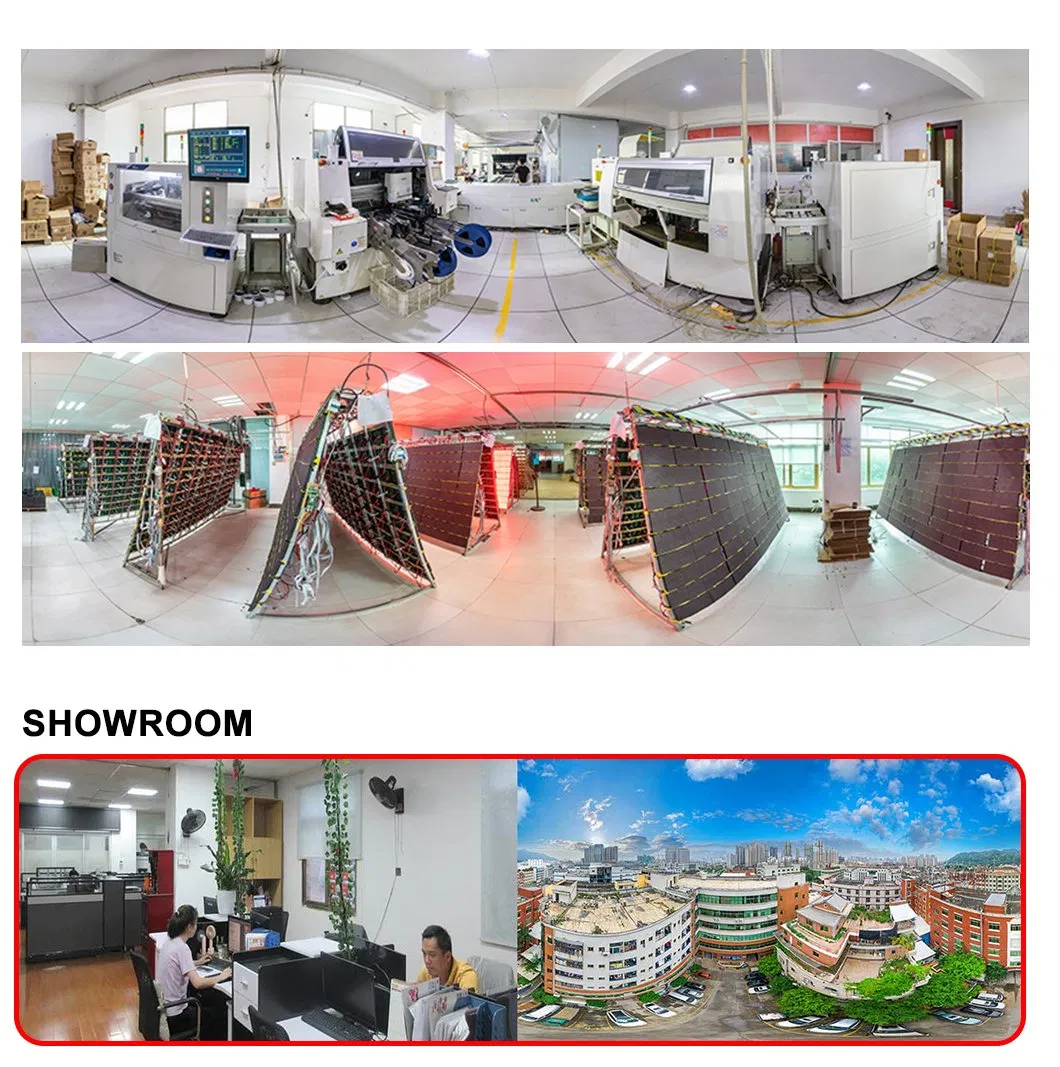

🏭 Production & Facilities
Specializing in the research, development, and production of high-tech LED screens, including outdoor & indoor full color displays, unit boards, and various stage screen accessories.
📦 Packing and Shipping
- Package: Flight case / Anti-shaking wooden case / Carton box.
- Leadtime: 15-25 days normally.
- Shipping: 25-35 Days by sea, 7-10 Days by air, 3-5 Days by express.
🤝 Our Service
- 24-hour rapid inquiry response.
- Full OEM & ODM customization services for unique lighting designs.
- Protection of sales areas and private design information.
- Comprehensive solutions: stage displays, outdoor video walls, and large full-color screens.
❓ Frequently Asked Questions
1. What is the pixel pitch and density of the P8 LED display?
The pixel pitch is 8mm, resulting in a pixel density of 15,625 dots per square meter, providing clear visuals for outdoor viewing.
2. Is this LED screen suitable for outdoor use in bright sunlight?
Yes, with a brightness level exceeding 6000 nits, it ensures high visibility even under direct outdoor sunlight.
3. What are the available packaging options for transport?
We offer three main packaging types: professional flight cases for rental use, anti-shaking wooden cases, and standard carton boxes.
4. Can I customize the LED screen for specific stage requirements?
Absolutely. We provide OEM and ODM services to help design and implement customized LED solutions tailored to your specific project needs.
5. What is the typical lead time for an order?
The standard lead time is generally between 15 to 25 days, depending on the order volume and customization requirements.
6. Does the module support easy maintenance?
Yes, the P8 module is designed to be slim and light, supporting efficient front maintenance to minimize downtime.
