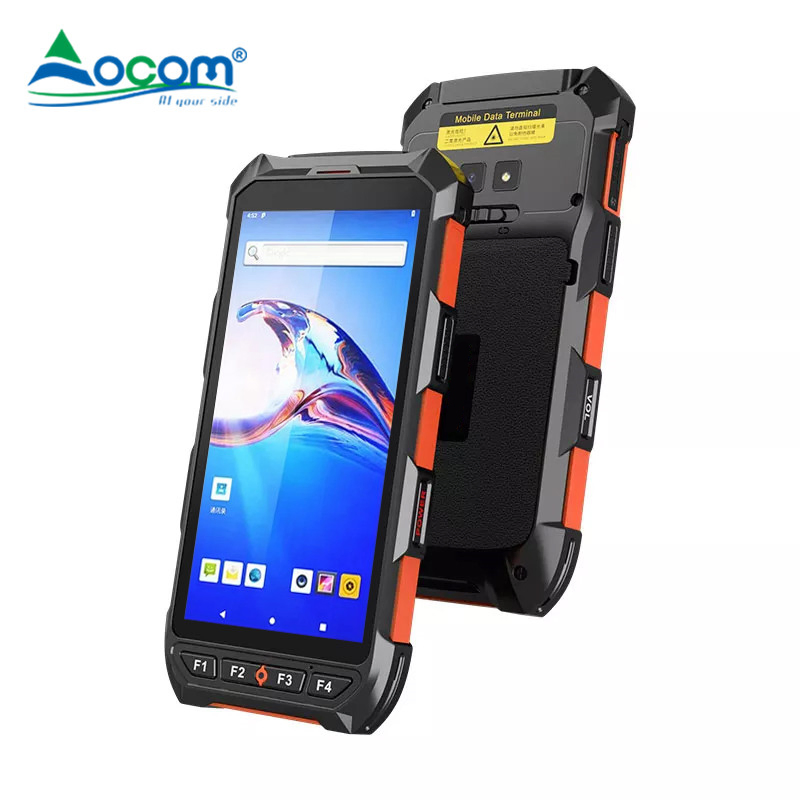

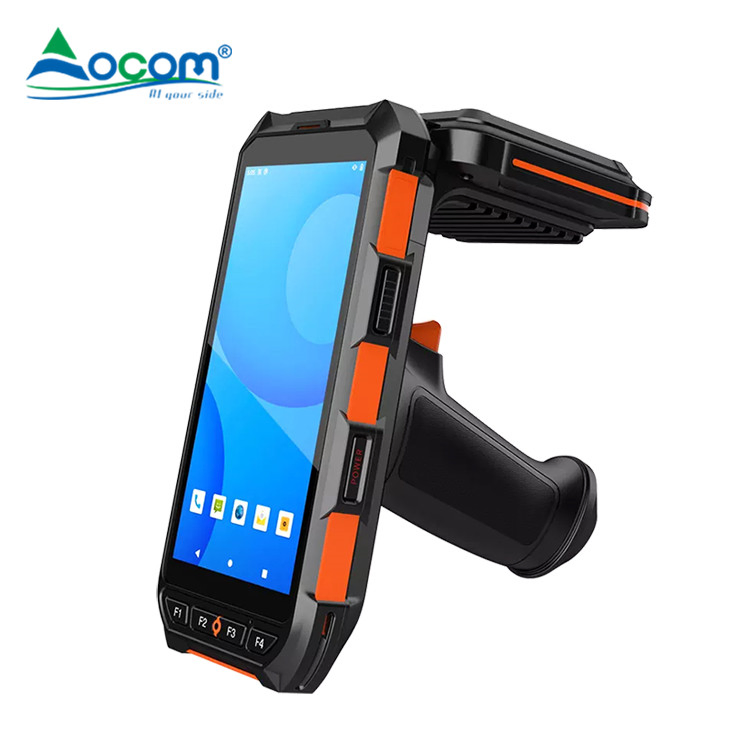

Android 10 IP65 Rugged PDA Smartphone Industrial NFC Handheld 1d 2D Barcode Scanner Inventory Mobile Data Terminal

1 / 5

Android 10 IP65 Rugged PDA Smartphone Industrial NFC Handheld 1d 2D Barcode Scanner Inventory Mobile Data Terminal

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.OCBS-C6

Operating SystemAndroid 10.0

Memory4GB RAM + 64GB ROM

CPUOcta-Core 2.0GHz

Display5.5" TFT-LCD (720x1440)

Battery4800mAh Li-ion

ClassificationUltra High Frequency / IP65

Expansion2*PSAM, 1*SIM, 1*TF

Product Overview

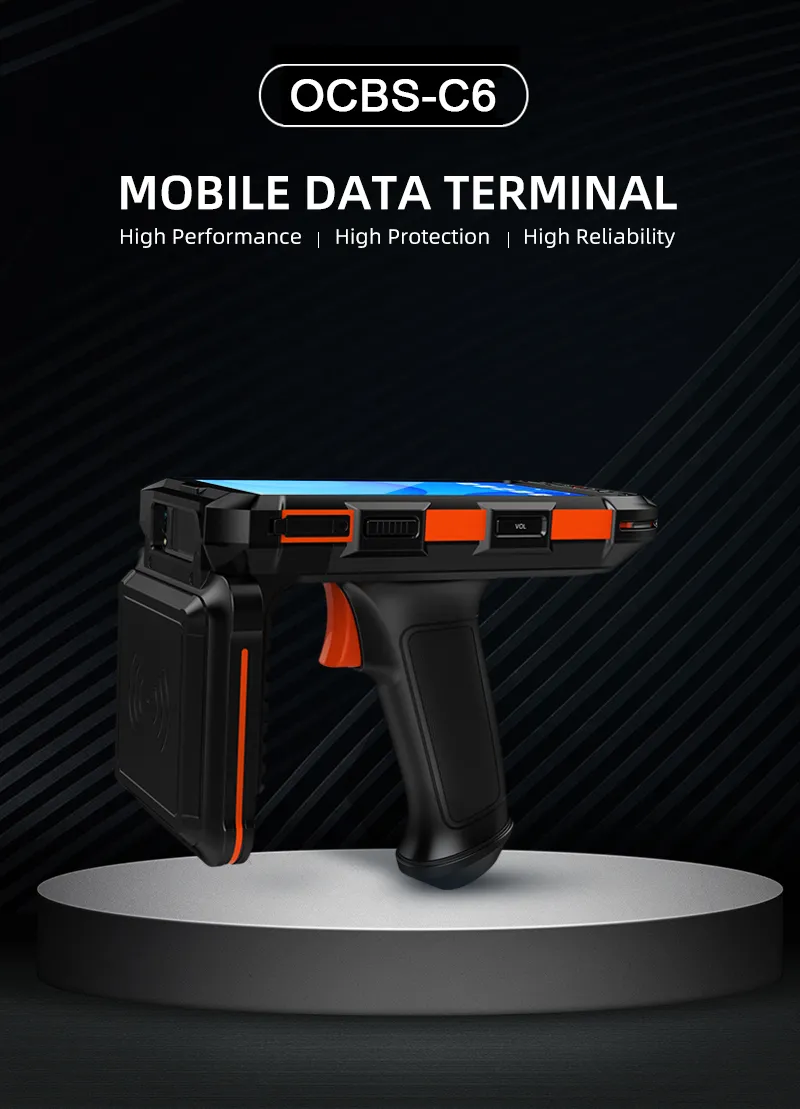

Handheld Android Industrial Data Terminal

Model: OCBS-C6

Detailed Specifications

Physical Characteristics
Dimension	170.8mm(H) x 81mm(W) x 20.4mm(D) ± 2 mm
Weight	Net Weight: 380g (including battery & strap)

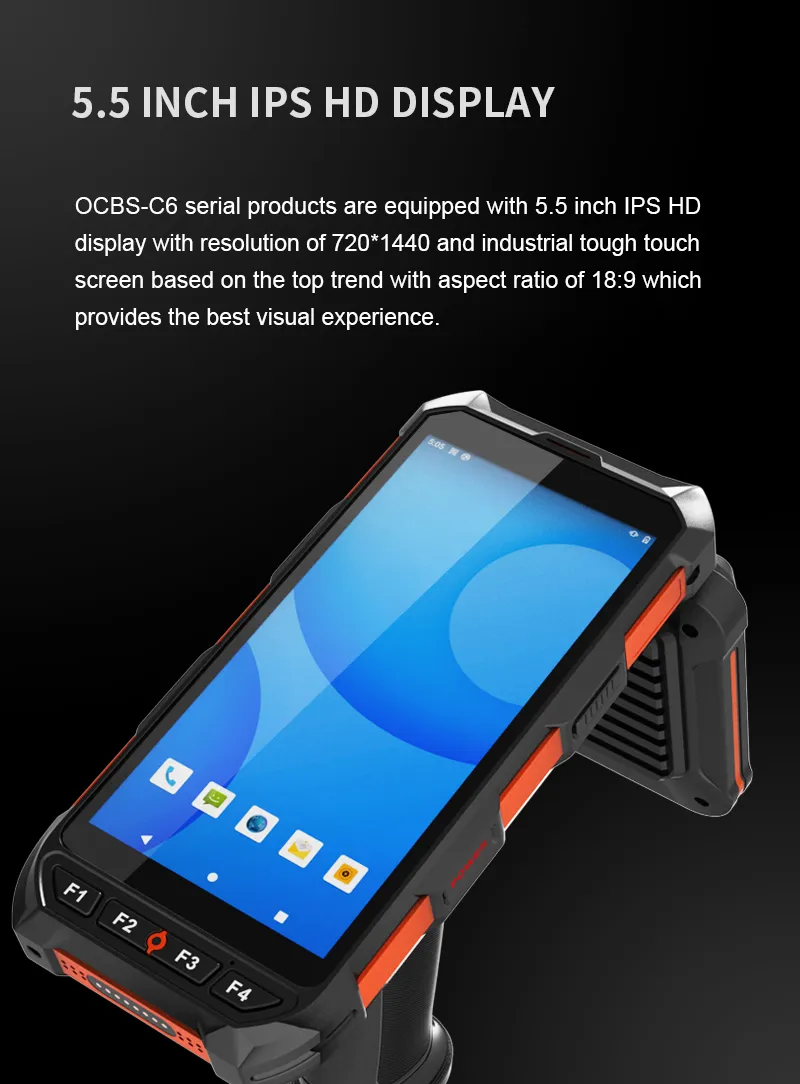

Display	5.5 inch TFT-LCD (720x1440) touch screen with backlight
Keypads	3 TP keys, 4 function keys, 4 side buttons
Battery	Rechargeable li-ion polymer, 3.8V, 4800mAh
Performance Characteristics
CPU	Cortex A73 2.0GHz Octa-core
OS	Android 10.0
Storage	4GB RAM, 64GB ROM, Micro SD up to 256GB
User Environment
Operating Temp.	-20ºC to 50ºC

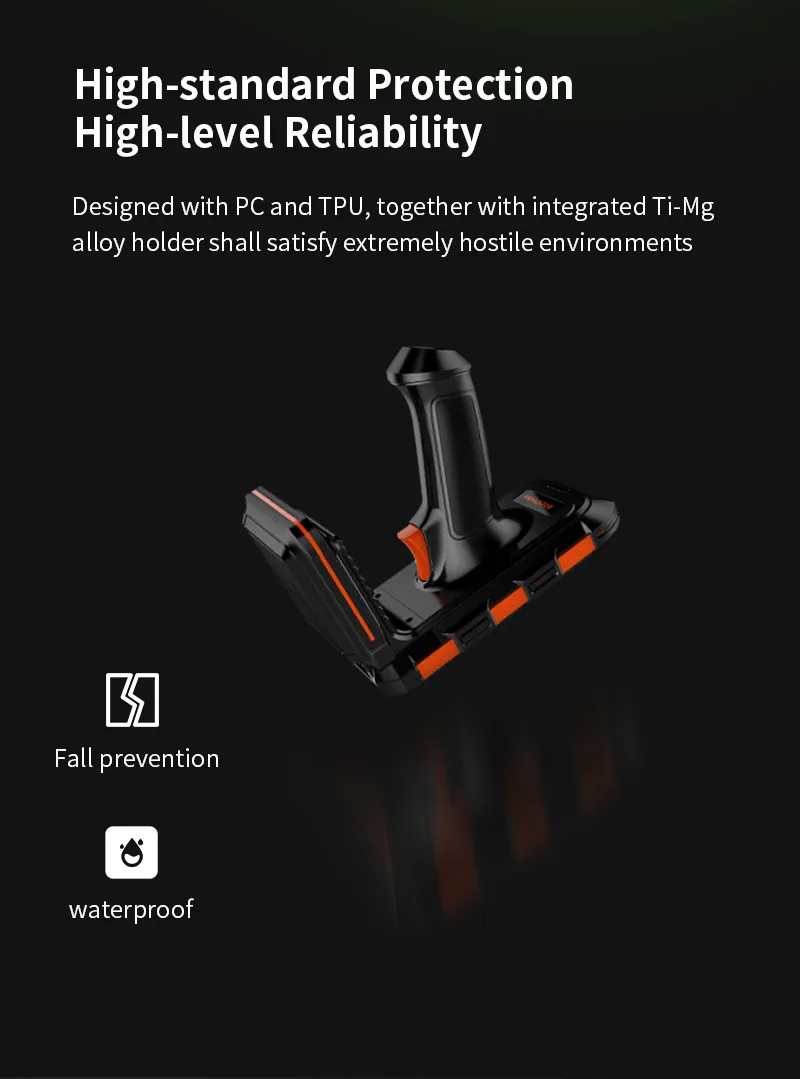

Sealing	IP65, IEC compliance
Drop Spec	1.5m drop to concrete
Data Communication
WWAN	4G TDD-LTE/FDD-LTE, WCDMA, GSM/GPRS/Edge

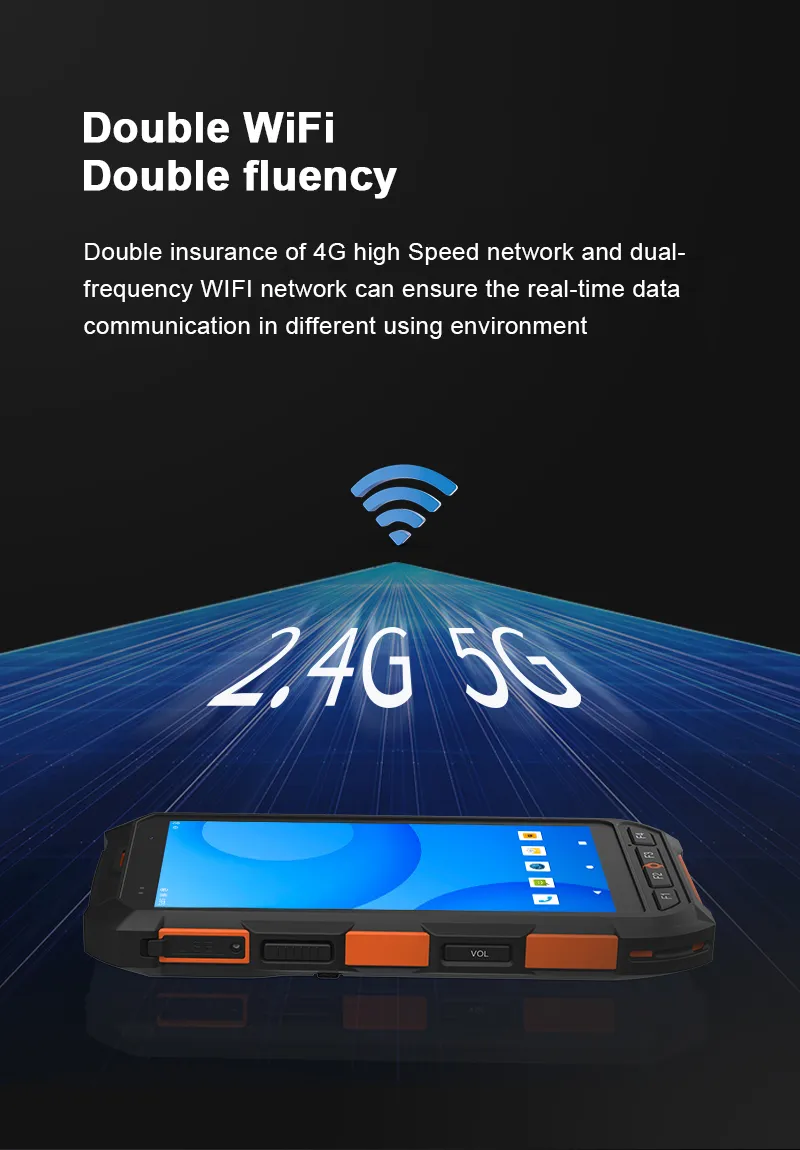

WLAN	2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
Bluetooth	v2.1+EDR, v3.0+HS, v4.2
Data Capture

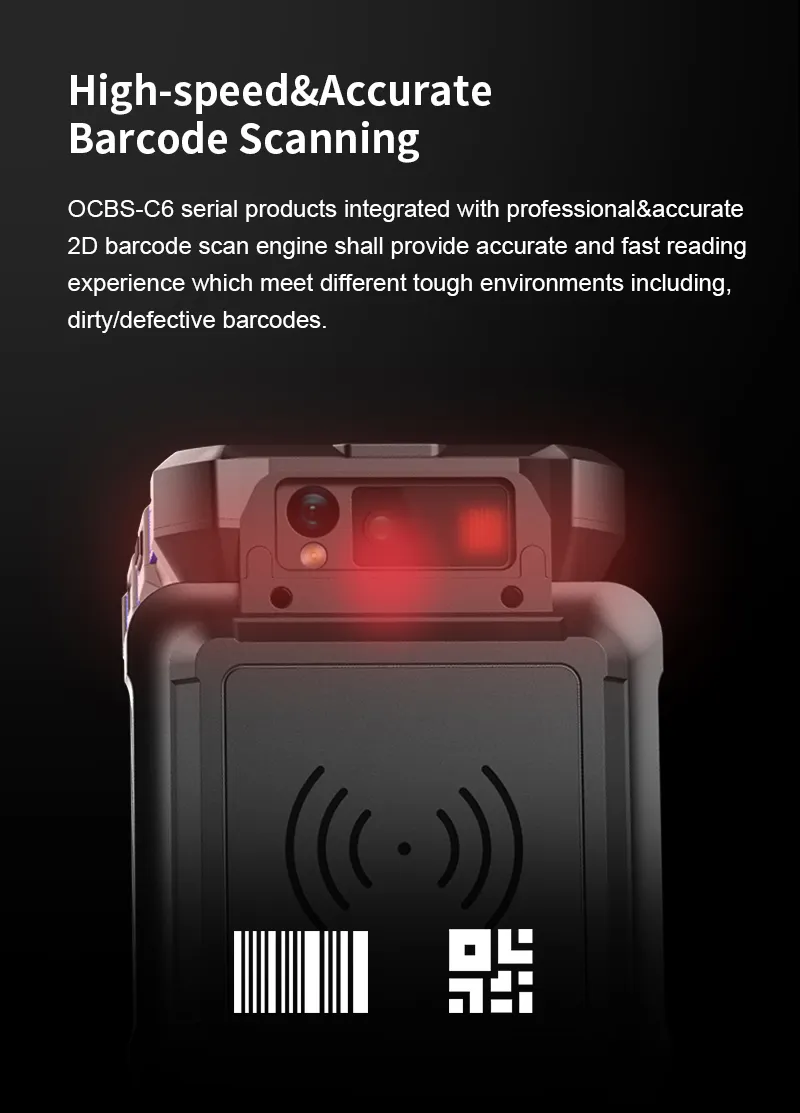

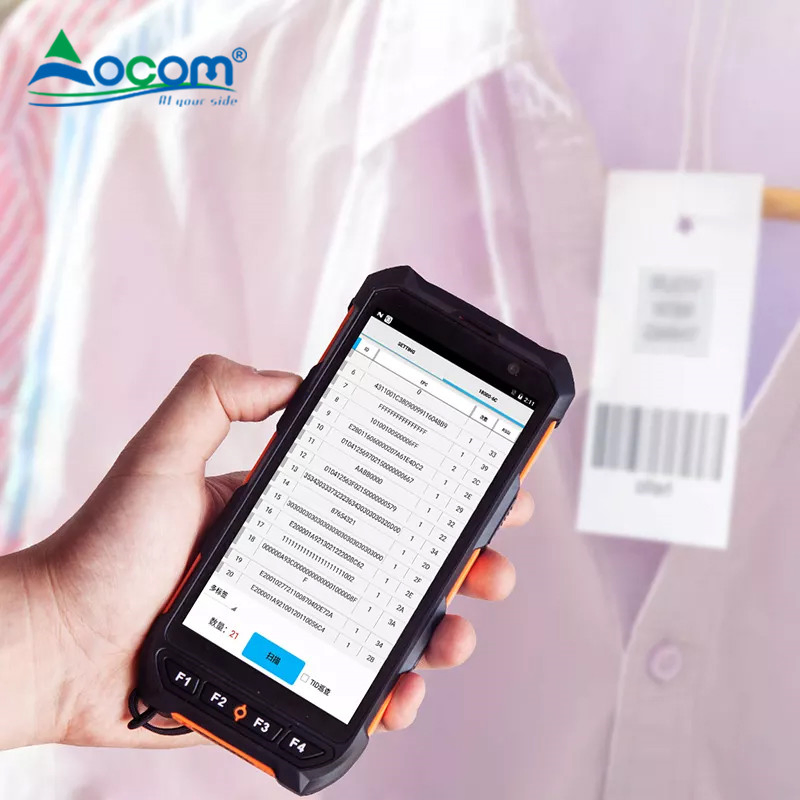

Barcode	Newland NLS 2D Scan Engine or Honeywell 2D Engine
Camera	Rear 13MP, Front 5MP with LED flash
RFID/NFC	13.56MHz, ISO 14443A&15693, 2cm-5cm range

Frequently Asked Questions

1. What version of Android does the OCBS-C6 run?

The OCBS-C6 is powered by Android 10.0, providing a smooth and secure interface for industrial applications.

2. Is the device rugged enough for warehouse environments?

Yes, it features an IP65 sealing rating and is built to withstand drops of up to 1.5 meters onto concrete, making it ideal for tough industrial conditions.

3. What are the scanning capabilities of this handheld PDA?

The device comes equipped with a high-performance 2D scan engine (Newland or Honeywell options), capable of reading 1D and 2D barcodes including QR codes, DataMatrix, and PDF417.

4. How long does the battery last on a full charge?

The OCBS-C6 features a 4800mAh rechargeable Li-ion polymer battery, designed to support long shifts in professional environments.

5. Does it support wireless connectivity for real-time data sync?

Absolutely. It supports Dual-band WiFi (2.4GHz/5GHz), 4G LTE mobile data, Bluetooth 4.2, and GPS for accurate positioning and real-time communication.

6. Can I use NFC with this device?

Yes, the OCBS-C6 includes an optional RFID NFC reader operating at 13.56MHz, supporting ISO 14443A&15693 protocols with a range of 2cm to 5cm.
