Product Description

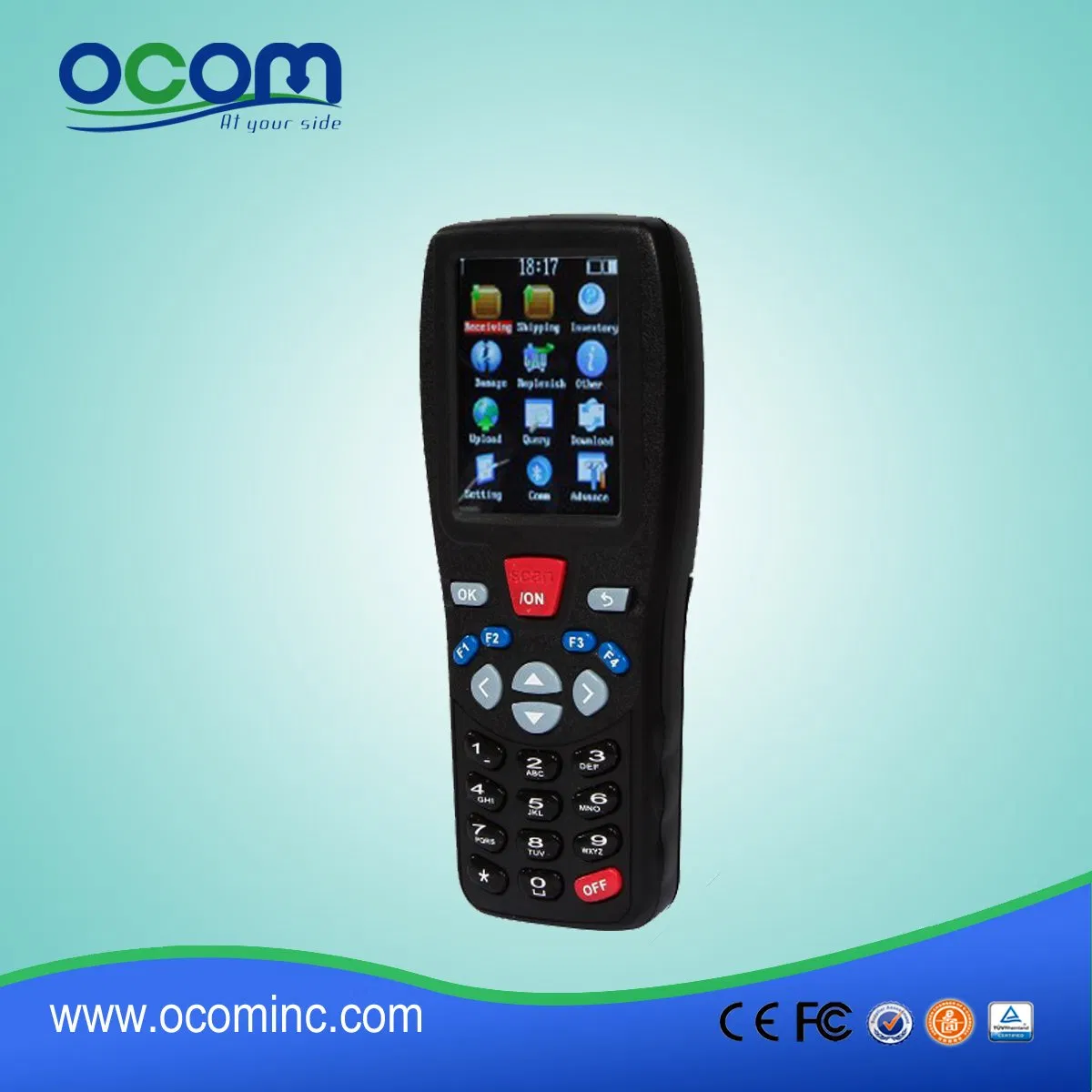

Handheld Industrial Data Terminal

Model: OCBS-D007 & OCBS-D107

Basic Information

Model NO.OCBS-D007 & OCBS-D107

Memory Capacity≤32MB / 16M RAM

ApplicationsIndustrial Grade PDA

Light Source650nm Laser

Scan ModelSingle Line

InterfaceMini USB / RS232 / PS2

Screen2.8 Inch, 320*240 Resolution

Frequency433MHz Wireless

DistanceMax 300 Meters (Visual)

Production1000PCS/Week

Core Features

✔ Optimized for overall commodity circulation: receiving, shipping, stocktaking, and replenishment.

✔ Automatic product matching: displays product names immediately after scanning.

✔ Advanced Wireless Technology: reliable storage and long-distance transmission without restriction.

✔ User-friendly 2.8" color display with an intuitive image-based menu system.

✔ High-capacity 2800mA battery ensuring extended operational performance.

Technical Specifications

Performance Characteristics
Scan Width & Field	220mm / 0~250mm (0.33mm, PCS 90%)
Scan Rate	48±2 scan/second
Error Rate	1/5,000,000
Supported Barcodes	EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Interleave 2of5, MSI, etc.
Physical & Electric
Dimensions	Terminal: 160x68x29mm; Receiver: 52x20x10mm
Material	High-durability ABS + Silica

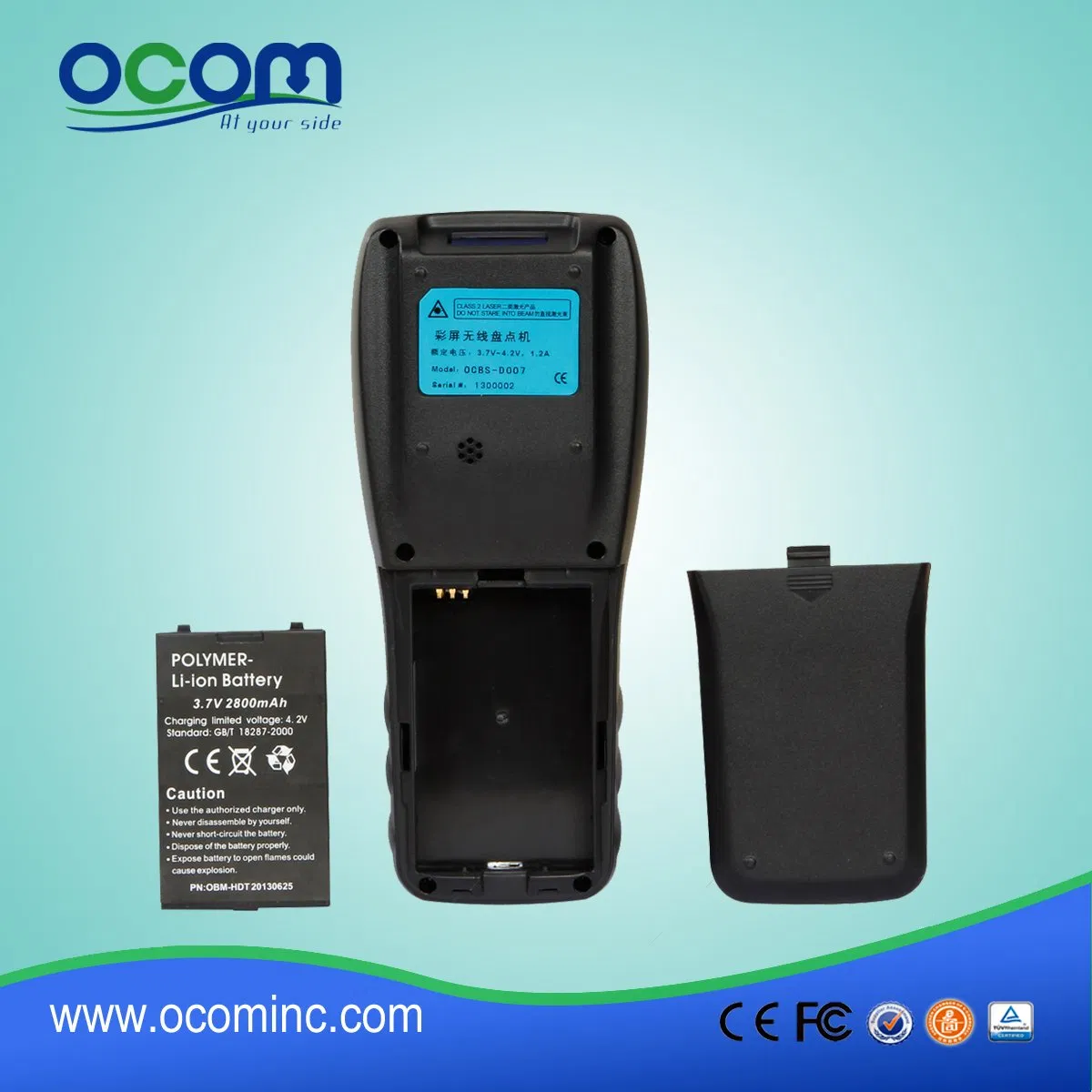

Battery	Li-Battery (3.7V, 2800mAh)
Working Current	50mA
Environmental
Operation Temp	0°C ~ 45°C
Relative Humidity	5%~95% (non-condensing)
Ambient Brightness	Max 5,000 Lux

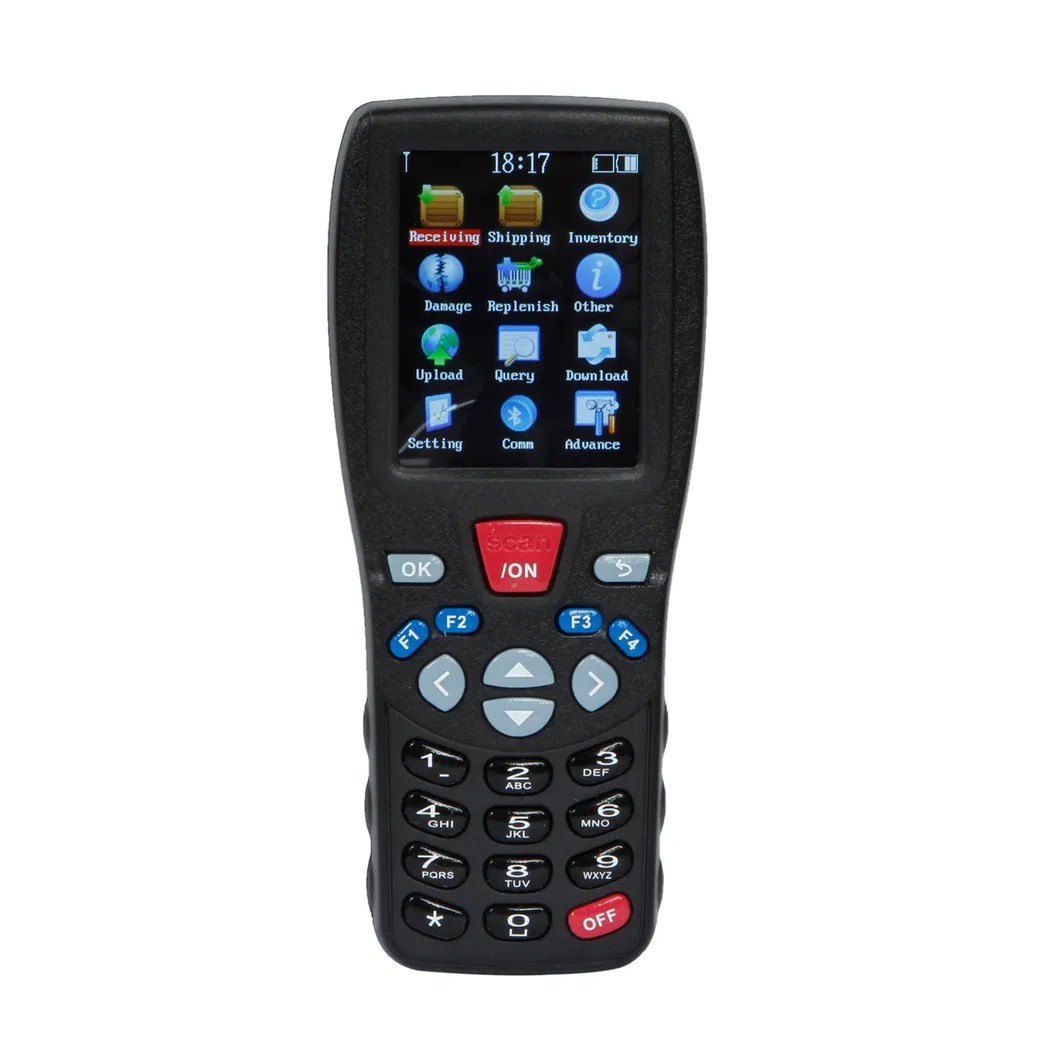

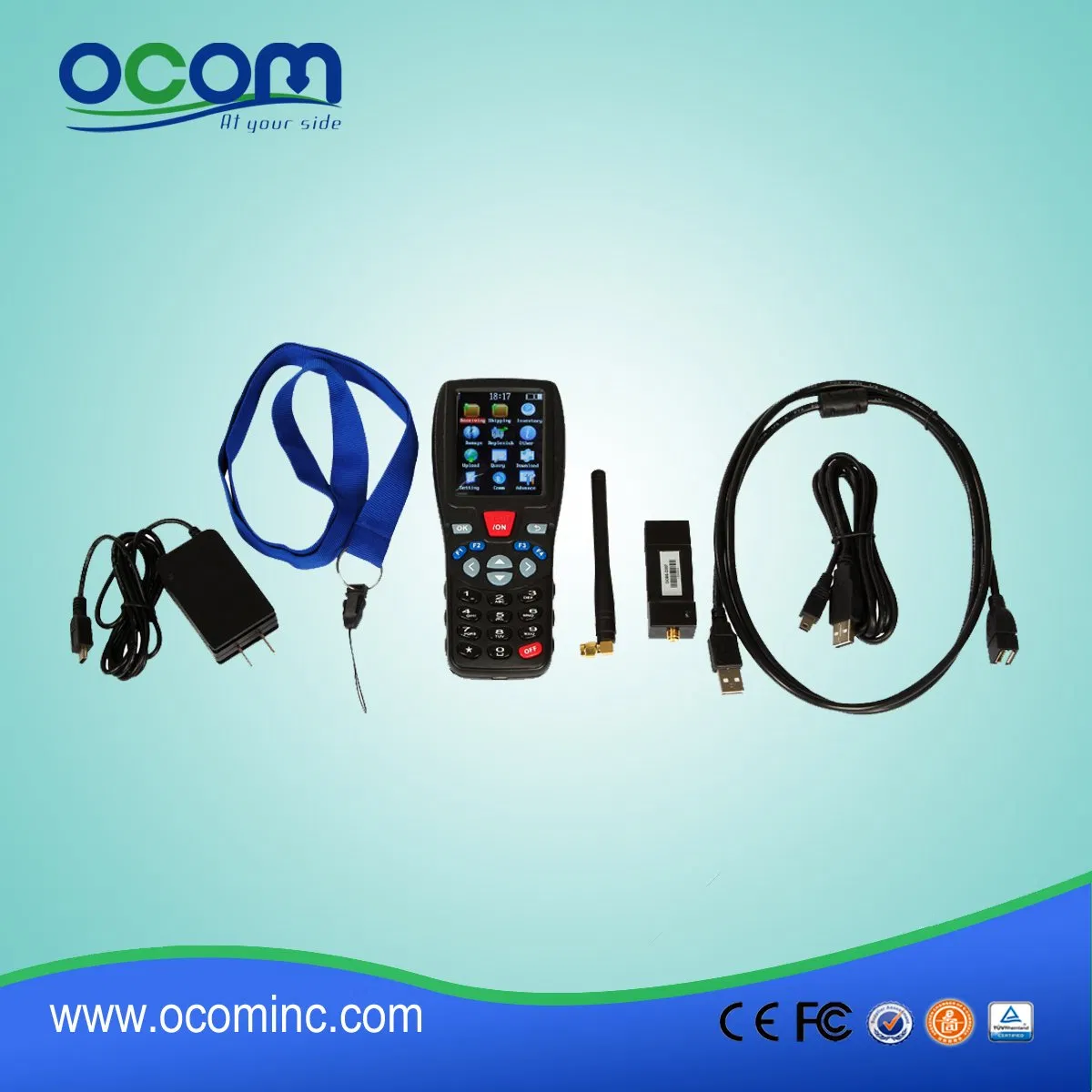

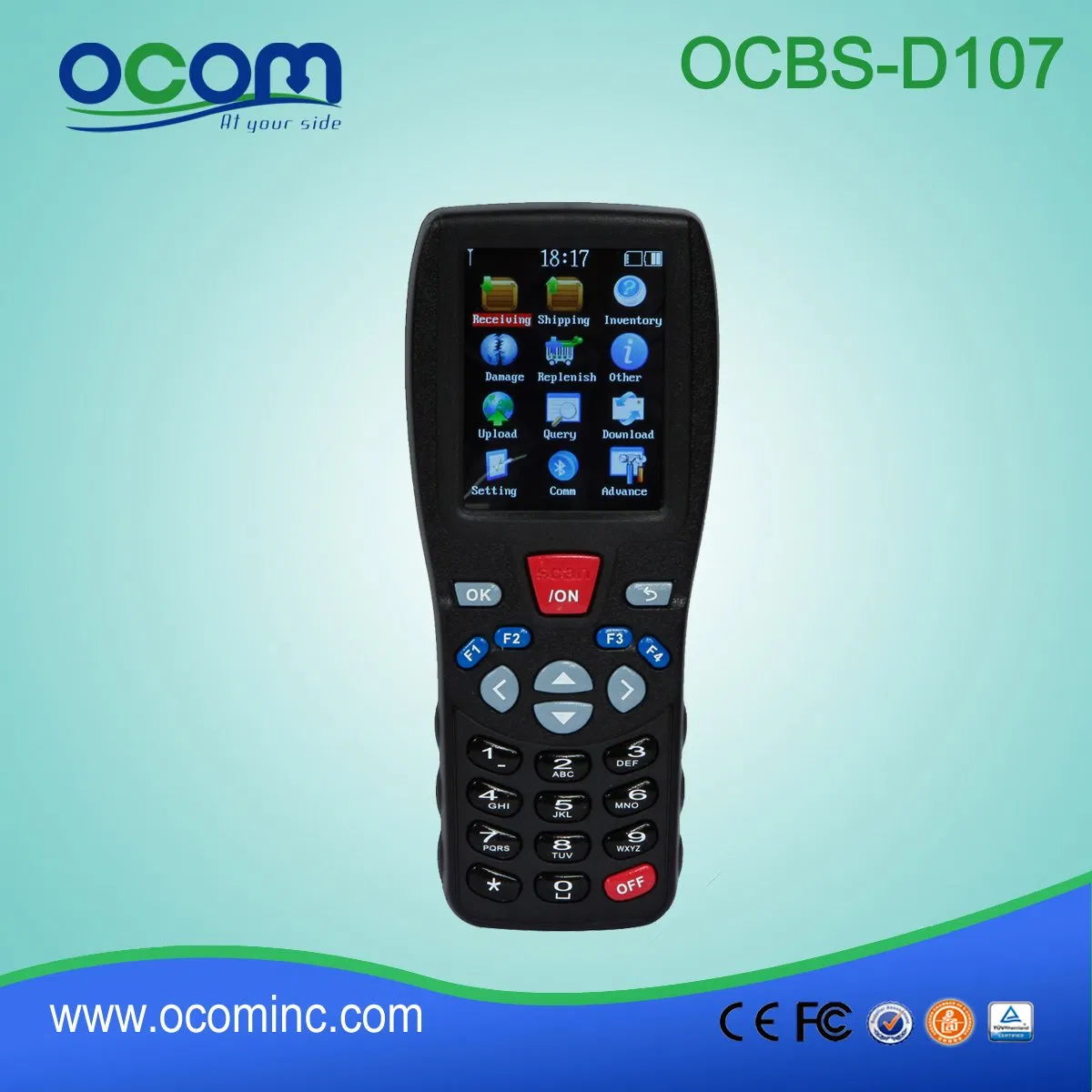

Detailed Product Views

Frequently Asked Questions

Q1: What is the maximum wireless transmission distance? The device utilizes 433MHz wireless technology, supporting a visual straight-line distance of up to 300 meters.

Q2: Can the device store barcodes when out of range? Yes, it features internal memory (up to 32MB) to store barcode data when disconnected, which can be uploaded later.

Q3: What type of battery is used and how long does it last? The terminal is equipped with a 2800mAh rechargeable lithium battery, designed for long working shifts in industrial environments.

Q4: Does it support both 1D and 2D barcodes? The OCBS-D007/D107 series is primarily a 650nm laser scanner designed for high-performance 1D barcode scanning.

Q5: Is the screen easy to read in different lighting? The device features a 2.8-inch color display with a 320*240 resolution, providing clear menus and product information.

Q6: What inventory tasks can this terminal perform? It is suitable for the entire commodity circulation process, including receiving, shipping, stocktaking, loss reporting, and replenishment.
