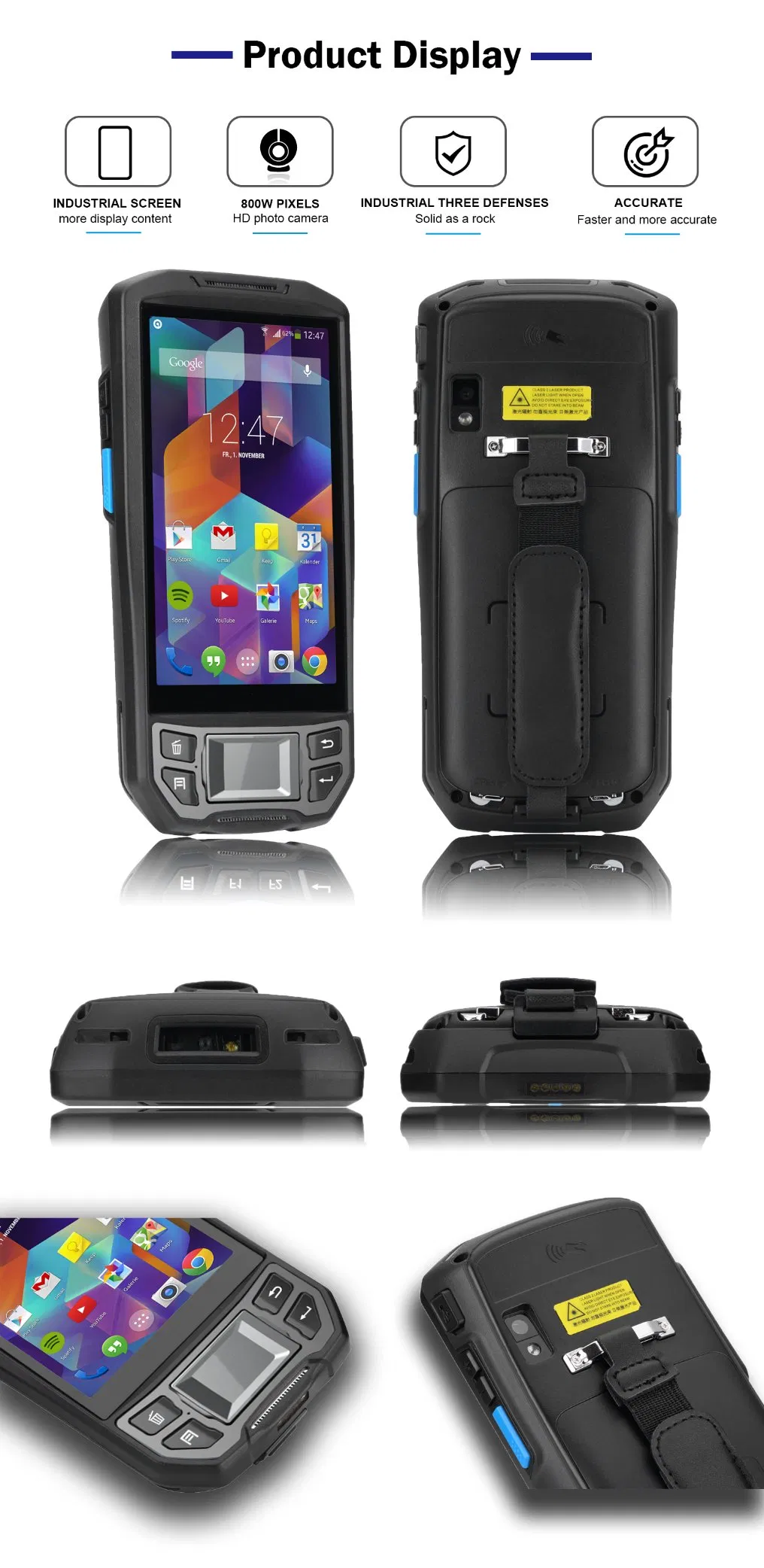

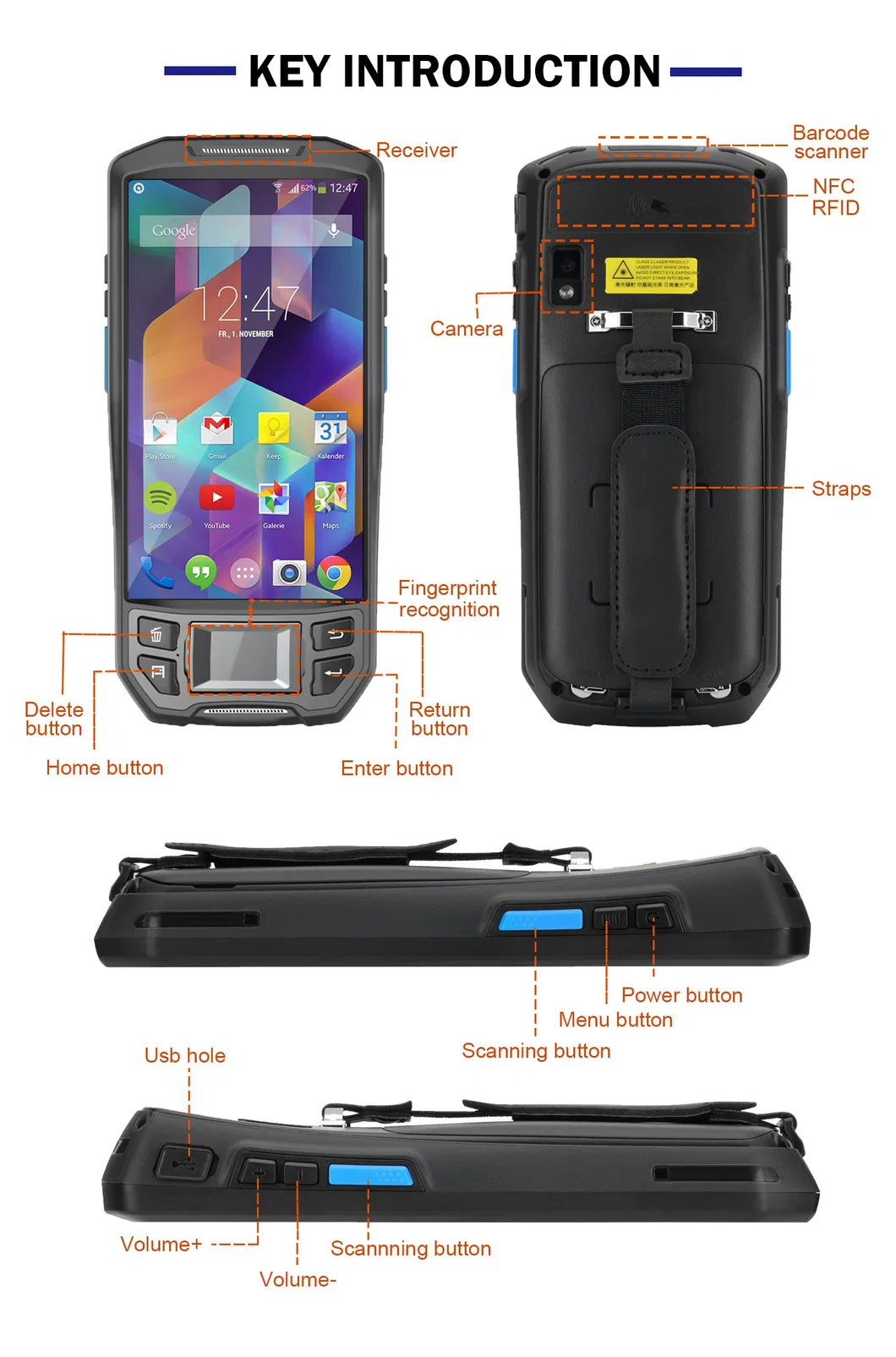

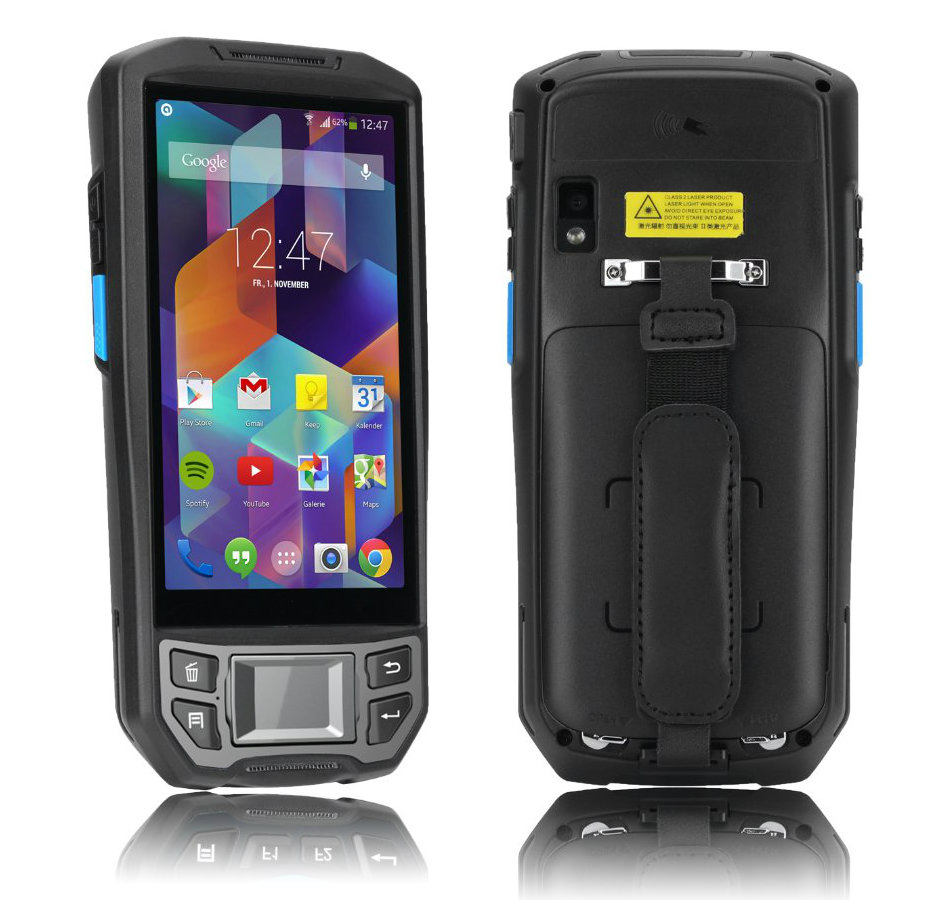

Portable Rugged Android Mobile Biometric Fingerprint Scanner Handheld Terminal

Customization:	Available
Type:	Handheld Computer
Screen Size:	5 Inch

Send Inquiry

Product Description

Basic Information

Android

Memory Capacity

2GB RAM + 16GB ROM

CPU Type

MTK6737 Quad-Core 1.3G

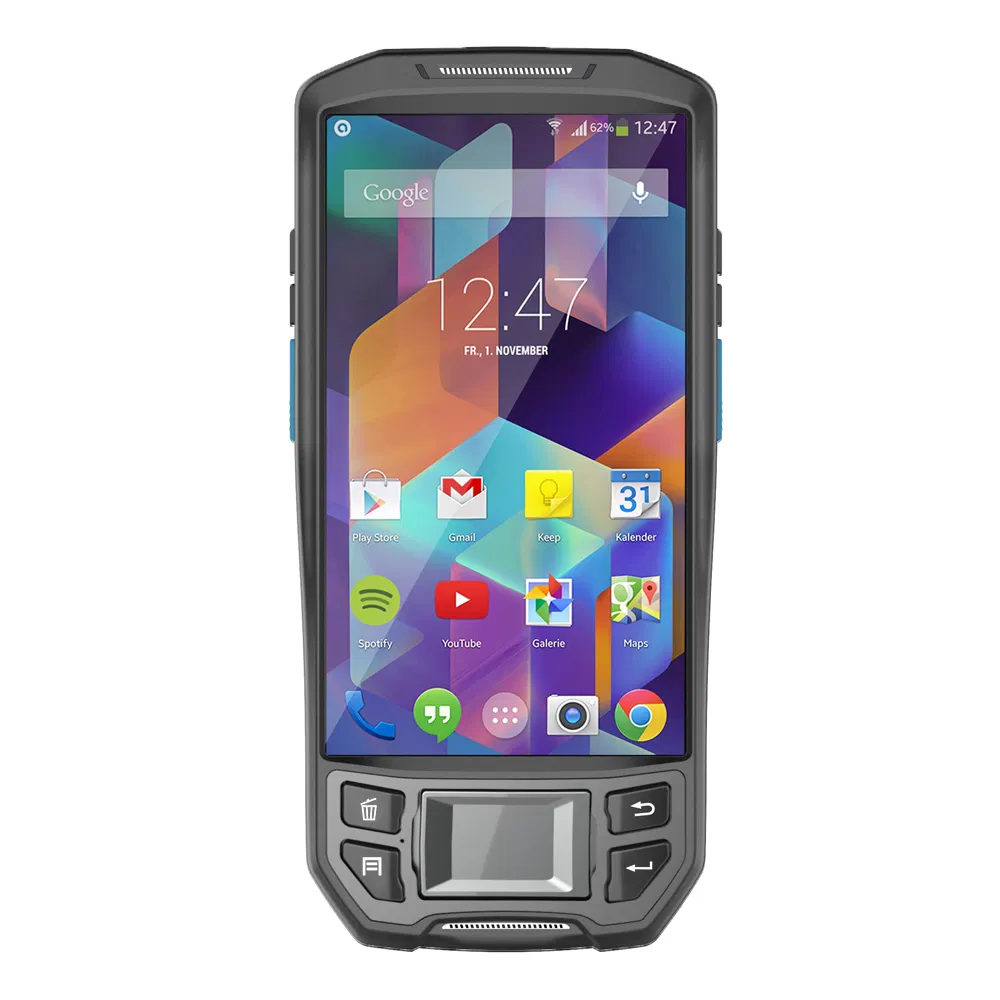

Display

5.0 inch IPS 720*1280 px

Battery

3.7V 4800mAh

Connection

WI-FI / 4G FDD-TDD / BT

Camera

8MP Autofocus with Flash

Protection

IP66 Industrial Rugged

Classification

Bar-code Scanner

Origin

China

Product Features

Full Connectivity: Wifi + BT + 4G LTE + GPS + Google Play Store.

Data Capture: 1D, 2D, LF (125K), NFC (13.56MHZ), UHF, and Fingerprint Options.

Ergonomic Design: Compact and portable with industrial-grade wrist strap.

Optimized OS: Safedroid OS (Android 7.0) for high performance.

Rugged Durability: IP66 Water-proof and dust-proof industrial protection.

Large Battery: 4800mAh high capacity for critical warehouse requirements.

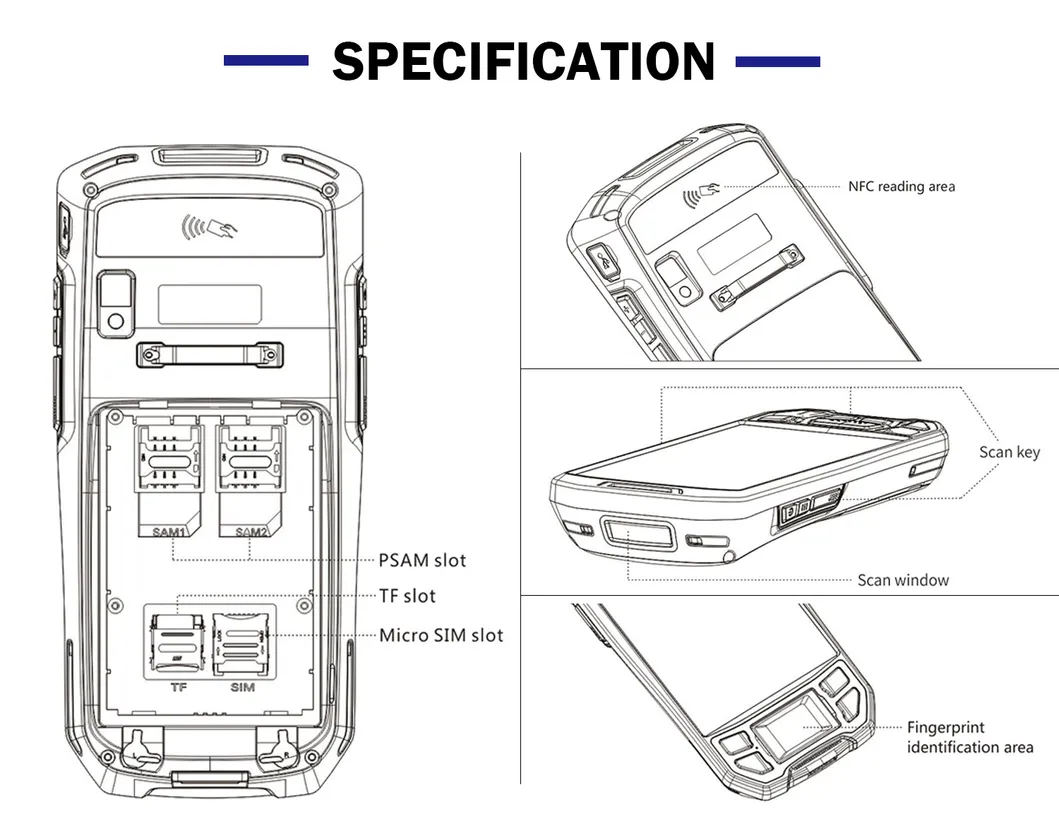

Technical Specifications

Structural Parameters
Dimensions	172mm(L) X 80mm(W) X 27mm(D)
Display Screen	5.0 inch IPS 720 * 1280 px with Multi-point touch capacitive screen
Battery Capacity	Rechargeable Li-polymer Battery 3.7V 5000mAh
Performance Parameters
OS / CPU	Android 7.0 / ARM CORTEX-A53 64bit Quad-Core 1.3G
RAM / ROM	2GB RAM / 16GB NAND Flash (Micro SD up to 32G)
Data Communication
WI-FI	IEEE802.11 a/b/g/n protocol
4G/3G/2G	FDD-LTE, TDD-LTE, WCDMA, GSM/GPRS/EDGE
Bluetooth	BT 2.0+EDR/3.0+HS/4.1+HS (5-10m)
Operating Environment
Operating Temp	-20°C to 50°C
Drop Spec	1.5m drop to cement floor (6 sides)
Sealing	IP65 Industrial Grade
Optional Modules
1D/2D Scanner	Symbol/Honeywell/NewLand Modules Optional
RFID/NFC	LF (125kHz), HF/NFC (13.56MHz), UHF (865-928MHz)
Biometric	Capacitive Fingerprint Sensor (508DPI)

High-speed Operation Performance: With Android 7.0 operating system and a 64-bit quad-core 1.3GHz processor, this device offers perfect compatibility and computing power for strict application requirements.

Industrial Grade Durability: The IP66 rated solid and light body can withstand 1.2m drops and 1,000 tumbles. It is waterproof and dustproof, ensuring long-term use without fatigue.

Advanced Identification: Fully supports 1D/2D barcode scanning and optional NFC/RFID/Fingerprint modules for diverse industrial data collection needs.

Frequently Asked Questions

What are the available payment terms?

We accept T/T, Western Union, PayPal, L/C, and other standard payment methods.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 PC for standard orders.

How long is the product warranty?

All products come with a 15-month warranty against non-man-made damage from the shipment date.

What is the delivery time for samples?

Samples are typically shipped within 3 to 5 days after receipt of payment.

Do you support OEM/ODM services?

Yes, we have a strong R&D team and our own factory to support full OEM and ODM customization.
