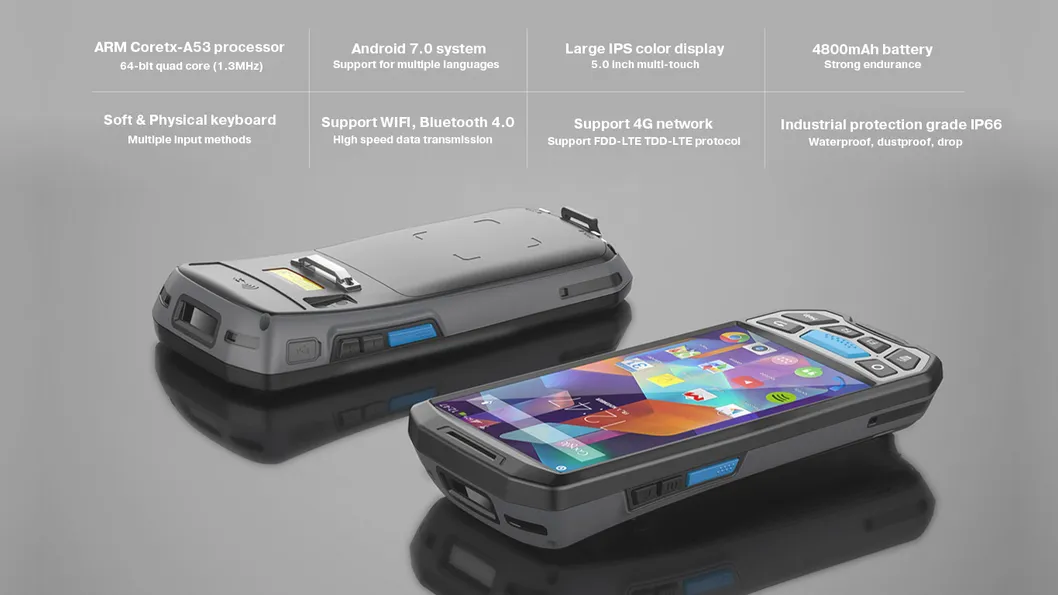

Android 7.0 OS with 64-bit quad-core 1.3GHz processor for strict application requirements.

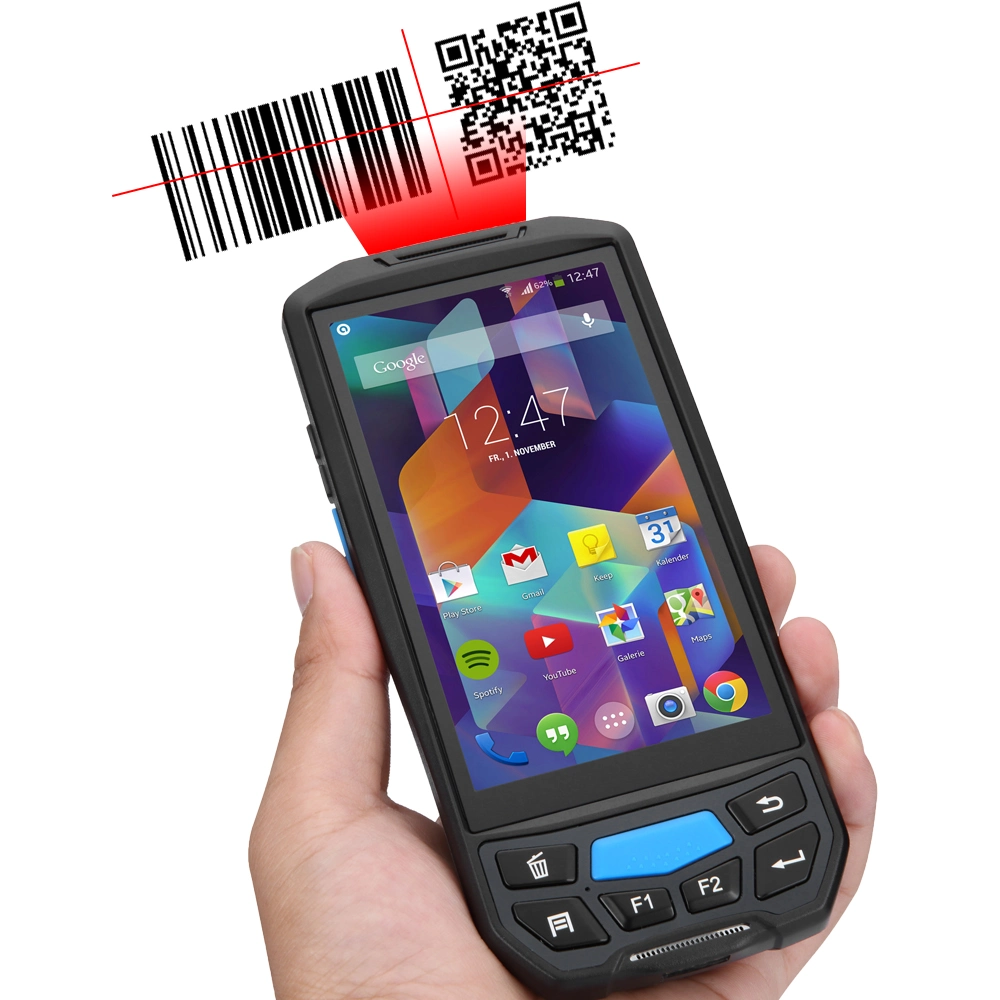

Fully support 1D and 2D barcode scanning with optional NFC/UHF RFID modules.
IP66 rated waterproof and dustproof. Can withstand 1.5m drops to concrete.
4800mAh high-capacity battery ensures long-lasting operation for critical tasks.
| Structural Parameters | |
| Dimensions | 172mm(L) X 80mm(W) X 27mm(D) |
| Weight | <500g |
| Display | 5.0 inch IPS 720 * 1280 px Multi-point touch |

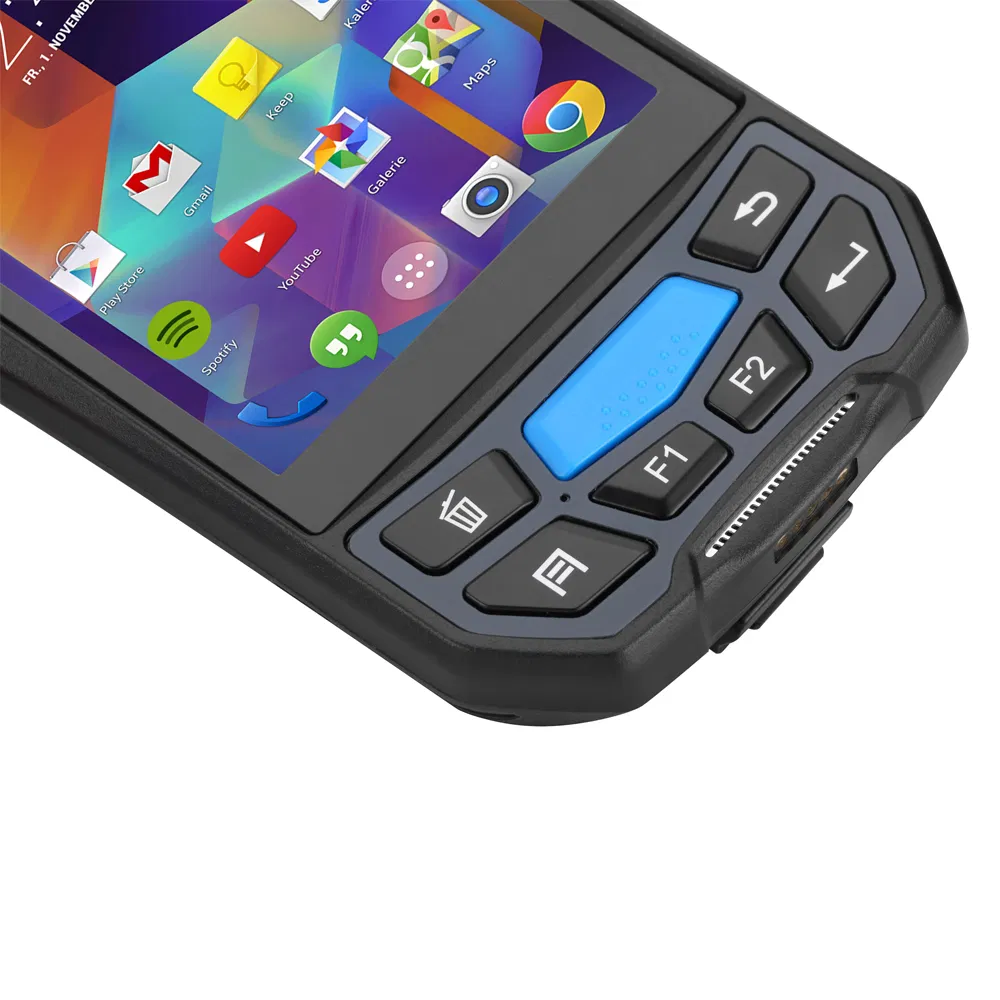

| Input Mode | Standard Stylus, Handwriting, Keyboard |
| Performance Parameters | |
| OS | Android 7.0 |
| CPU | ARM CORTEX-A53 64bit Quad-Core 1.3G |
| RAM/ROM | 2G RAM + 16G NAND Flash |
| Data Communication | |
| WI-FI | IEEE802.11 a/b/g/n |
| 4G LTE | FDD-LTE (B1, B3), TDD-LTE (B38, B39, B40, B41) |
| Bluetooth | BT 4.1+HS (5-10m distance) |
| Operating Environment | |
| Temp Range | -20°C to 50°C (Operating), -25°C to 70°C (Storage) |
| Sealing | IP65 Industrial Grade |
| Drop Spec | 1.5m drop to cement floor |

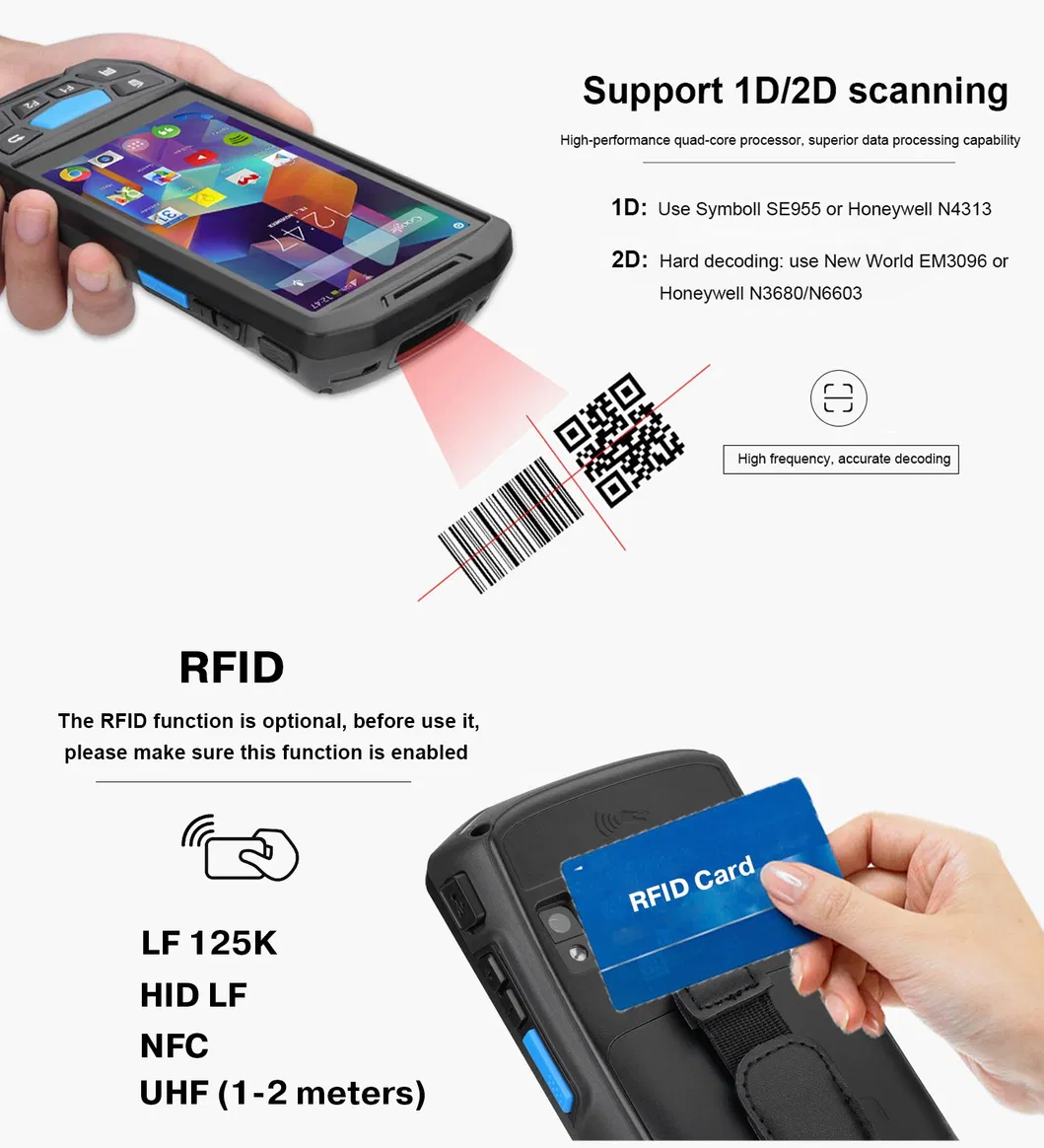

| Scanner & RFID Options | |
| 1D Laser | Symbol 955, Honeywell N4313 (Optional) |
| 2D CMOS | Honeywell N6603, NewLand 3096 (Optional) |
| UHF RFID | 865-868MHz / 902-928MHz, Range >1.5m |
| NFC/HF RFID | 13.56MHz, ISO14443A/B, ISO15693 |
| Fingerprint | Capacitive Sensor, 508DPI (Optional) |
A: The default configuration includes 1D+2D scanning, Wifi, Bluetooth, 4G (FDD/TDD-LTE), GPS, 8M Camera, and Google Play Store access.
A: Yes, we have strong R&D capabilities to support full OEM and ODM customization based on your specific requirements.
A: Samples are usually shipped within 3-7 days. For mass production, the lead time ranges from 20-40 days depending on the quantity.
A: We provide a 15-month warranty from the shipment date for all products (excluding consumable parts), provided there is no man-made damage.
A: We accept multiple payment methods including T/T, Western Union, PayPal, and L/C.
A: Yes. We usually ship via DHL, but buyers can choose their preferred express company or use their own shipping agents.
