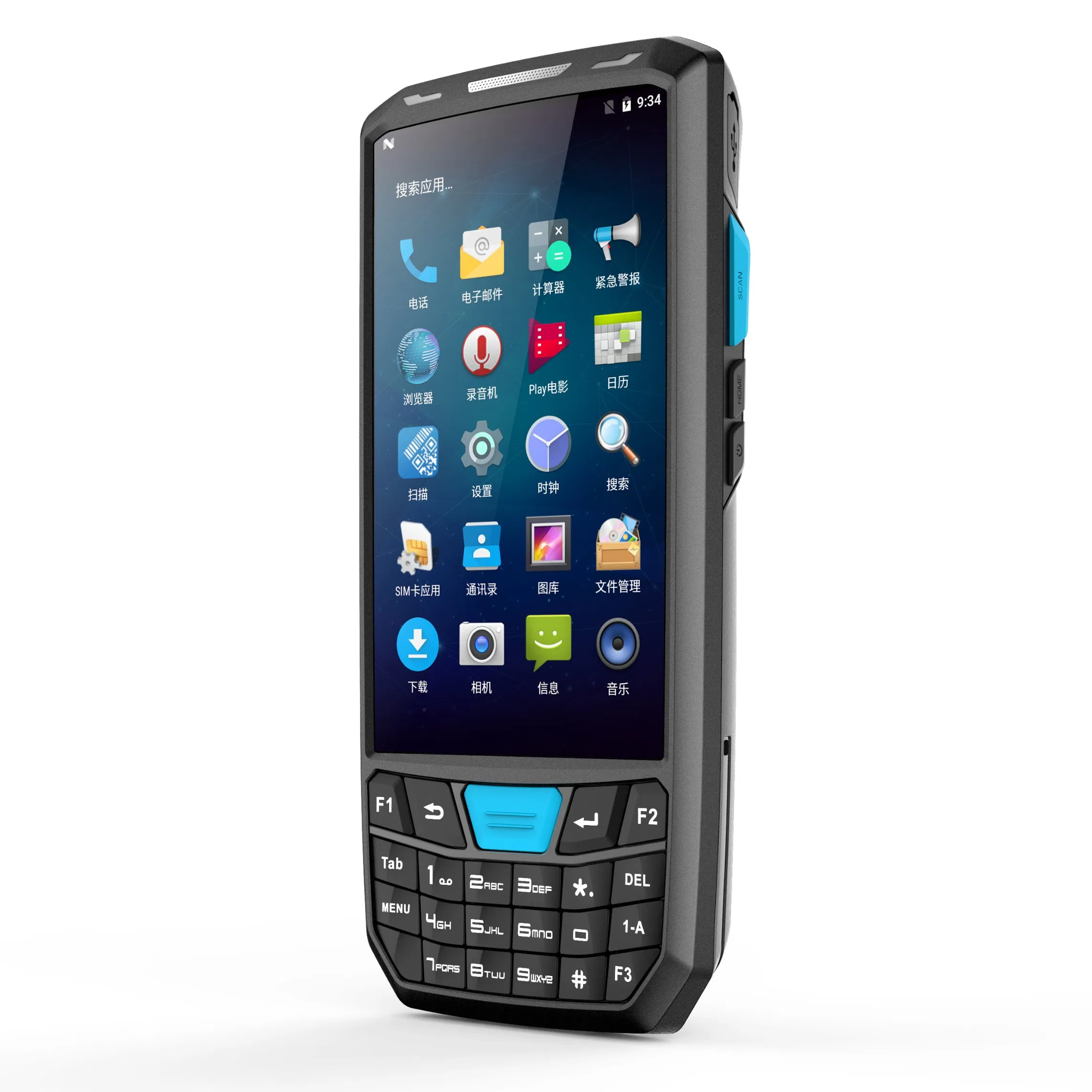

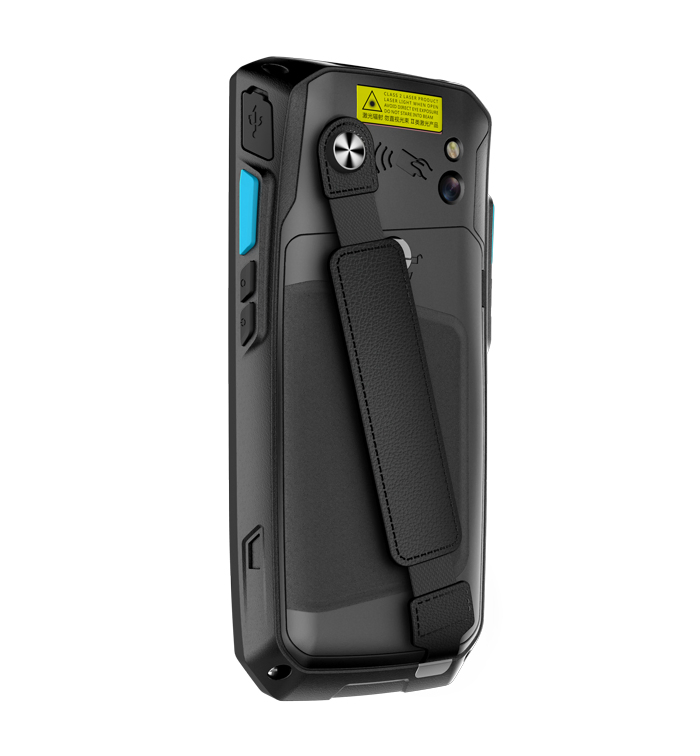

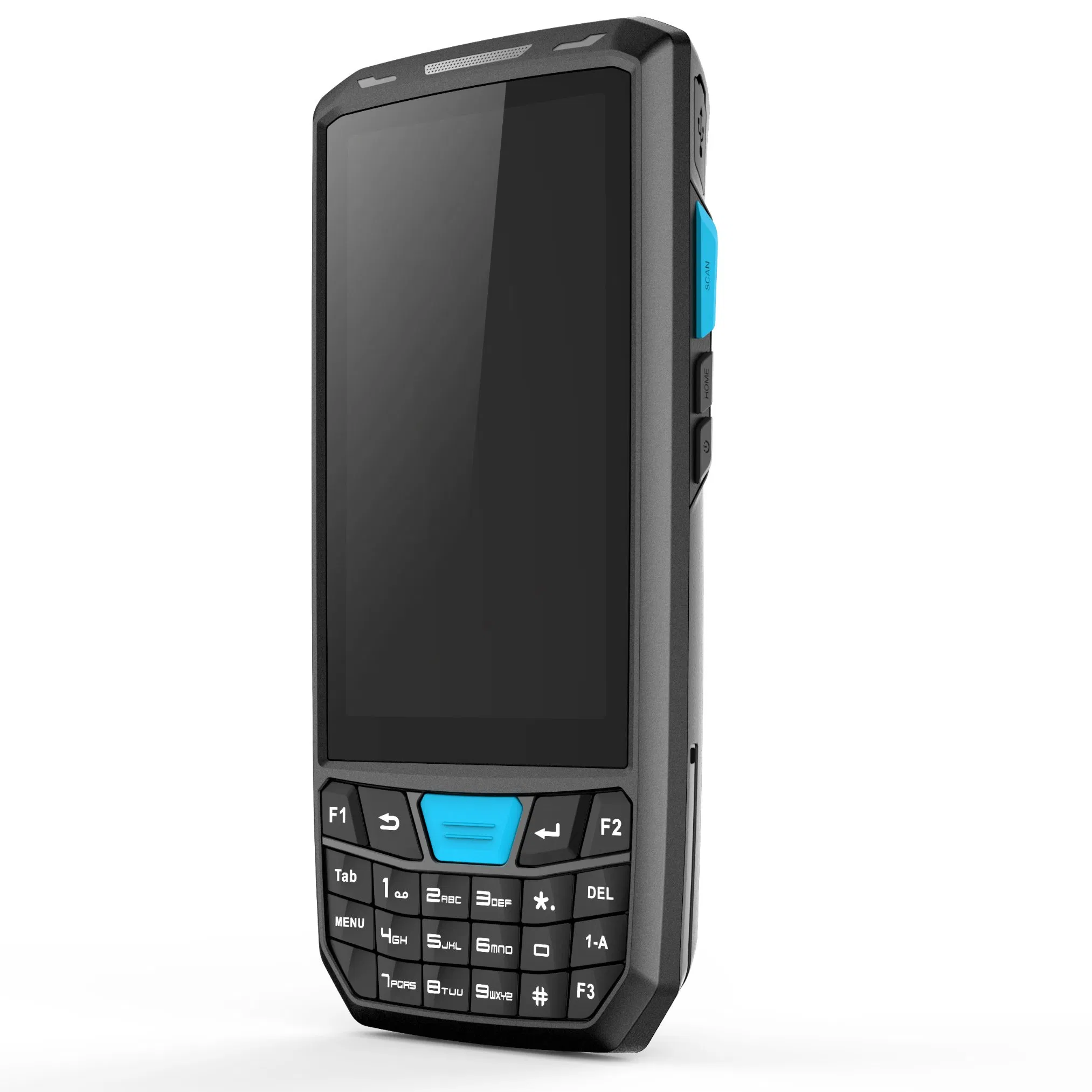

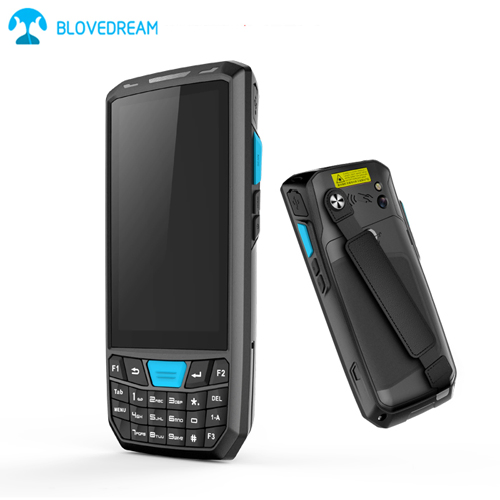

Android Portable Data Entry Terminal RFID Handheld Data Capture Device PDA
Android Portable Data Entry Terminal RFID Handheld Data Capture Device PDA
Android Portable Data Entry Terminal RFID Handheld Data Capture Device PDA
Android Portable Data Entry Terminal RFID Handheld Data Capture Device PDA
Android Portable Data Entry Terminal RFID Handheld Data Capture Device PDA
1 / 5
Android Portable Data Entry Terminal RFID Handheld Data Capture Device PDA
Android Portable Data Entry Terminal RFID Handheld Data Capture Device PDA
Android Portable Data Entry Terminal RFID Handheld Data Capture Device PDA
Android Portable Data Entry Terminal RFID Handheld Data Capture Device PDA
Android Portable Data Entry Terminal RFID Handheld Data Capture Device PDA

Android Portable Data Entry Terminal RFID Handheld Data Capture Device PDA

Customization: Available
Type: Handheld Computer
Screen Size: 5 Inch
Send Inquiry

Product Description

📋 Basic Information
Model NO.T80 pda
OSAndroid
Memory2GB ROM + 16GB RAM
CPU TypeMtk6737 Quad-Core 1.3G
Battery3.7V 4800mAh
Scanner1D or 2D Optional
ProtectionIP66 Rugged Design
Connection4G LTE / WI-FI / BT
⭐ Product Highlights
  • ✔ Default Configuration: 1D+2D + Wifi + BT + 4G + Phone + GPS + 8M Camera
  • ✔ Compact and Portable Ergonomic Design With Wrist Strap
  • ✔ Safedroid OS (Android 7.0) Highly Optimized Operating System
  • ✔ High Capacity 4800mAh Battery for Critical Requirements
  • ✔ Pogo Pin Interface for Convenient Charging
  • ✔ Industrial Rugged Design, Water-Proof (IP66)
🖼️ Product Showcase
Handheld PDA View 1

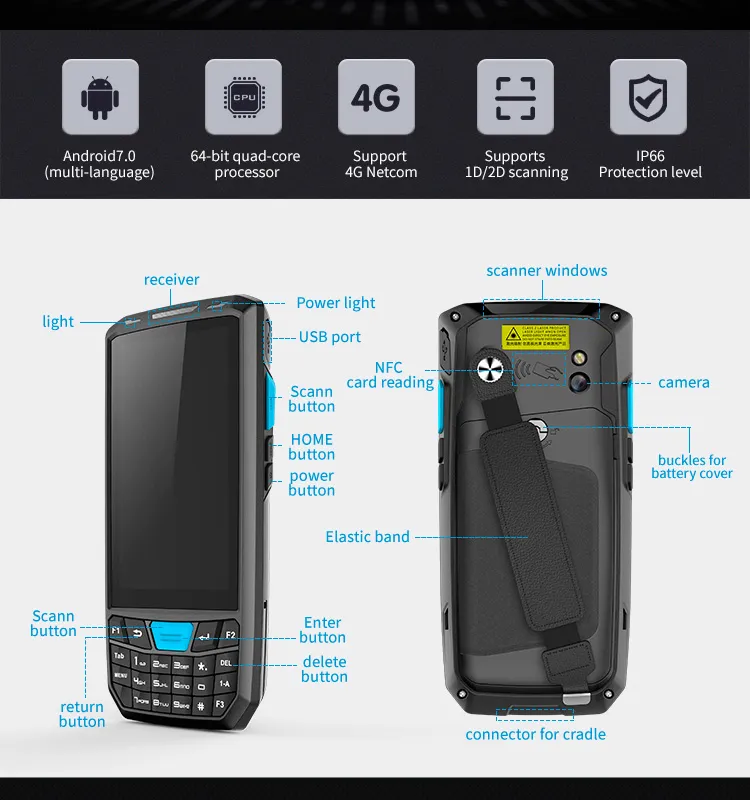

Handheld PDA View 2

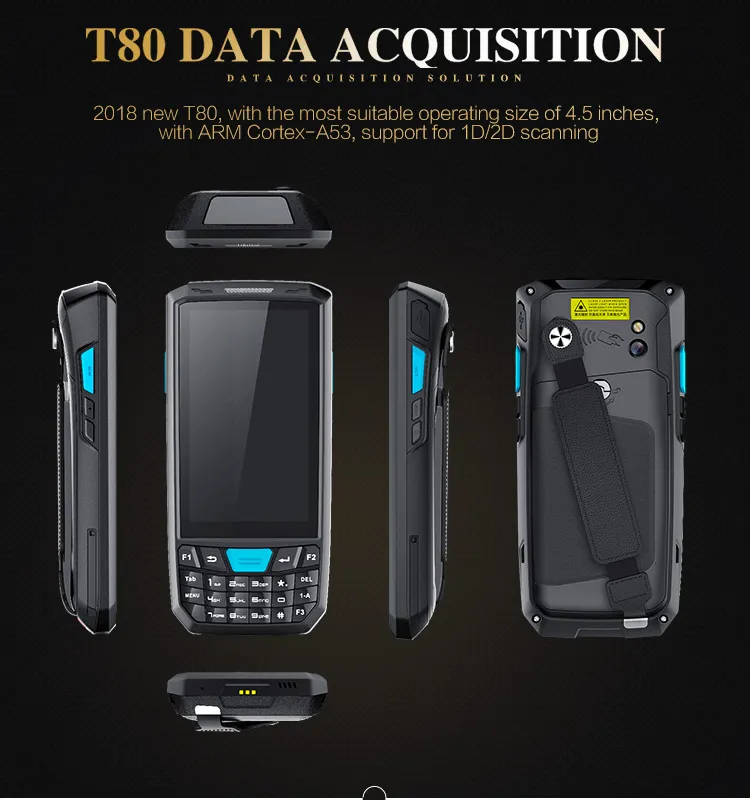

Handheld PDA View 3

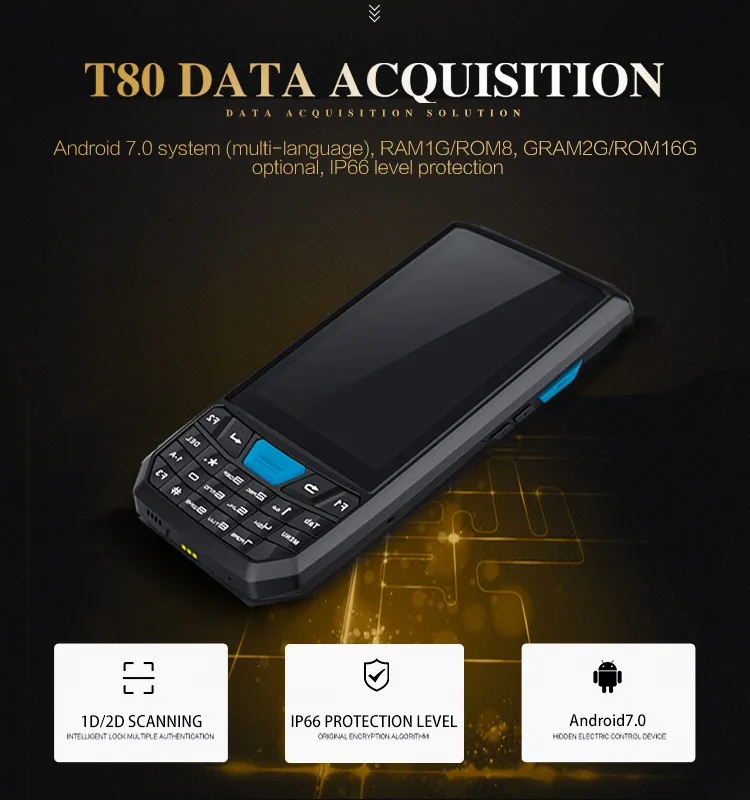

Handheld PDA View 4
Handheld PDA View 5

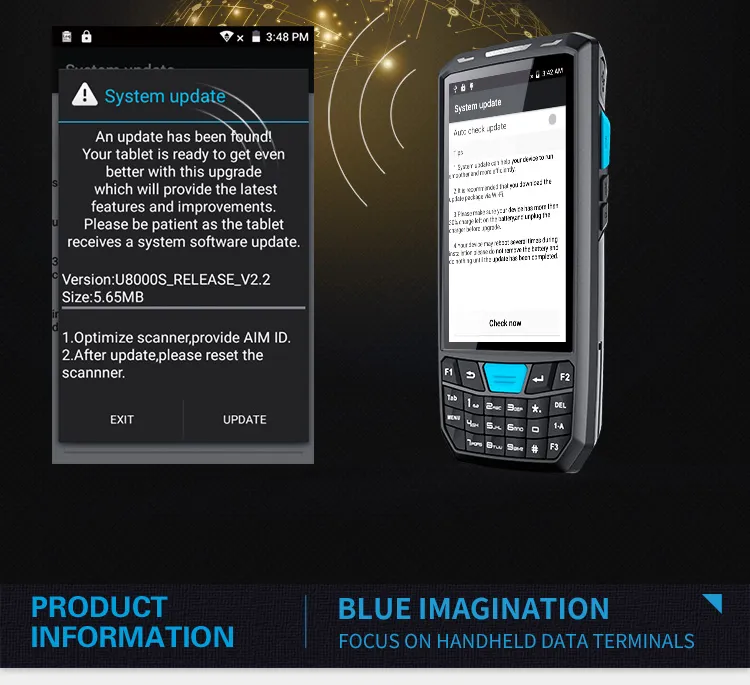

Handheld PDA View 6
⚙️ Technical Specifications
Structural Parameters
Dimensions166mm(L) x 77.5mm(W) x 22mm(D)
Display4.5 inch IPS 480*854 px Multi-touch capacitive
BatteryRechargeable Li-polymer 3.7V 4200mAh/4800mAh
Performance Parameters
OS / CPUAndroid 7.0 / ARM CORTEX-A53 Quad-Core 1.3G
Storage2G RAM + 16G NAND Flash (Micro SD up to 32G)
Data Communication
WWAN4G FDD/TDD-LTE, 3G WCDMA, 2G GSM
WLAN / BT802.11 a/b/g/n / Bluetooth 4.1+HS
Scanning Modules
1D Laser (Optional)Code128, Code39, UPC/EAN, etc.
2D CMOS (Optional)PDF417, QR Code, DataMatrix, Aztec, etc.
Environment
Protection ClassIP66 Waterproof & Dustproof
Drop Spec1.5m drop to cement floor
🚀 Professional Performance
High-speed operation performance: With Android 7.0 OS and 64-bit quad-core processor, it provides perfect compatibility and computing capability for strict application requirements.

Excellent identification ability: Fully supports 1D and 2D barcode scanning, and optional NFC for versatile data capture.

Industrial grade durability: IP66 rated, the solid body can withstand 1.2m drops and 1000 tumbles. Waterproof and dustproof design ensures long-term reliability.

Wireless Connectivity: Supports 4G, Wifi, and Bluetooth to maintain real-time connection with your systems.
❓ Frequently Asked Questions
Q: What barcode types does the PDA support? A: It supports both 1D Laser and 2D CMOS scanning (optional), including UPC/EAN, Code128, QR Code, PDF417, and DataMatrix.
Q: Is the device rugged enough for warehouse environments? A: Yes, it features an IP66 industrial grade rating and can withstand drops from 1.5 meters to cement floors.
Q: Does it support 4G and Wi-Fi? A: Yes, it supports 4G LTE (FDD/TDD), IEEE 802.11 a/b/g/n Wi-Fi, and Bluetooth 4.1 for constant connectivity.
Q: How long is the warranty period? A: We provide a 15-month warranty from the shipment date for all products (excluding consumable parts).
Q: Can I use the camera for data capture? A: Yes, the device is equipped with an 8MP autofocus camera with flash for high-quality image and video collection.
Q: What is the lead time for orders? A: Samples are usually ready in 3-5 days, while mass production takes 20-40 days depending on the quantity.
