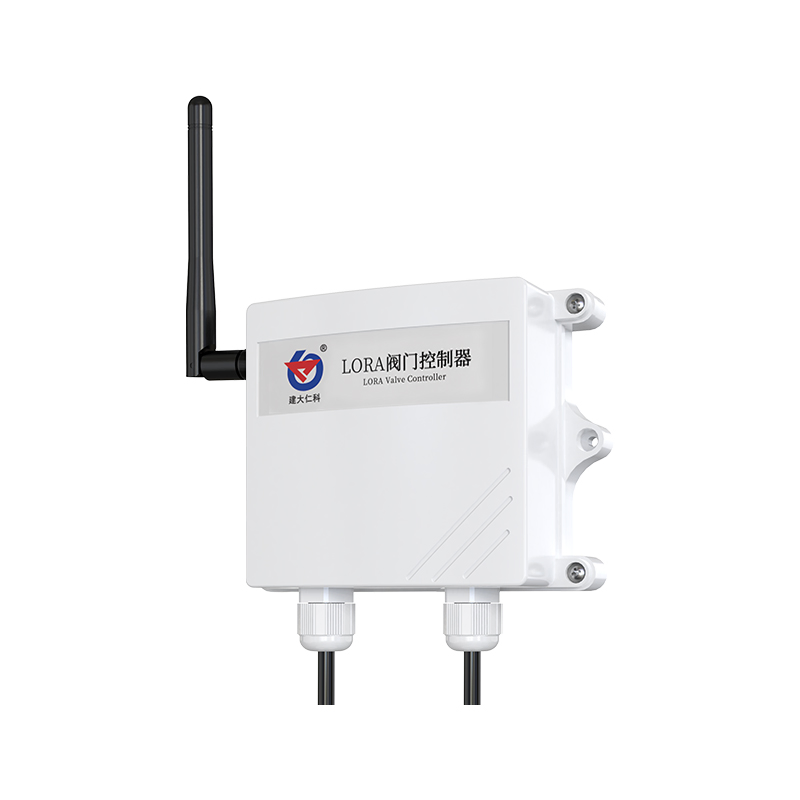

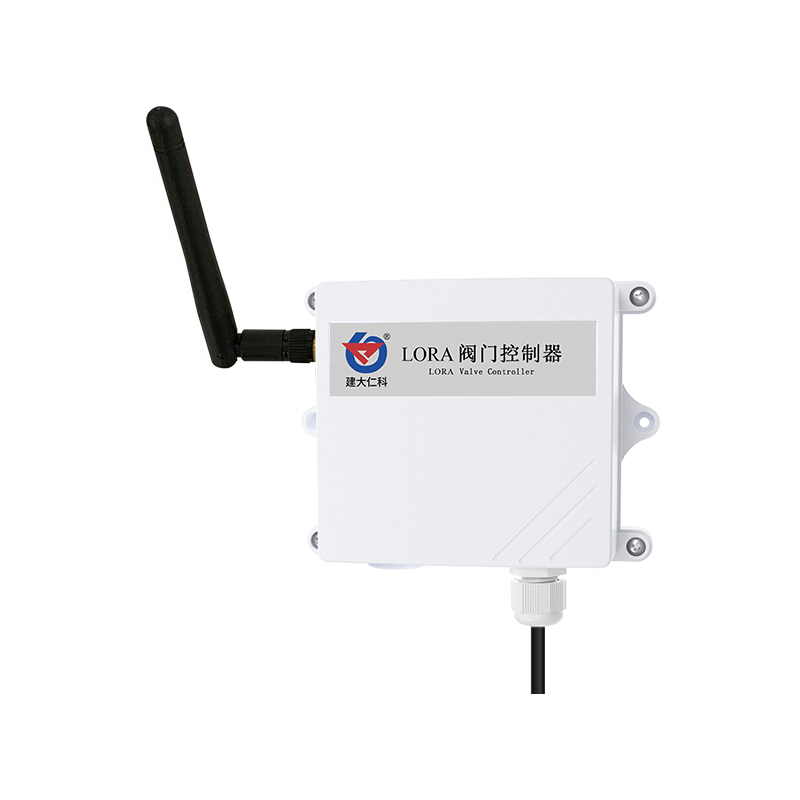

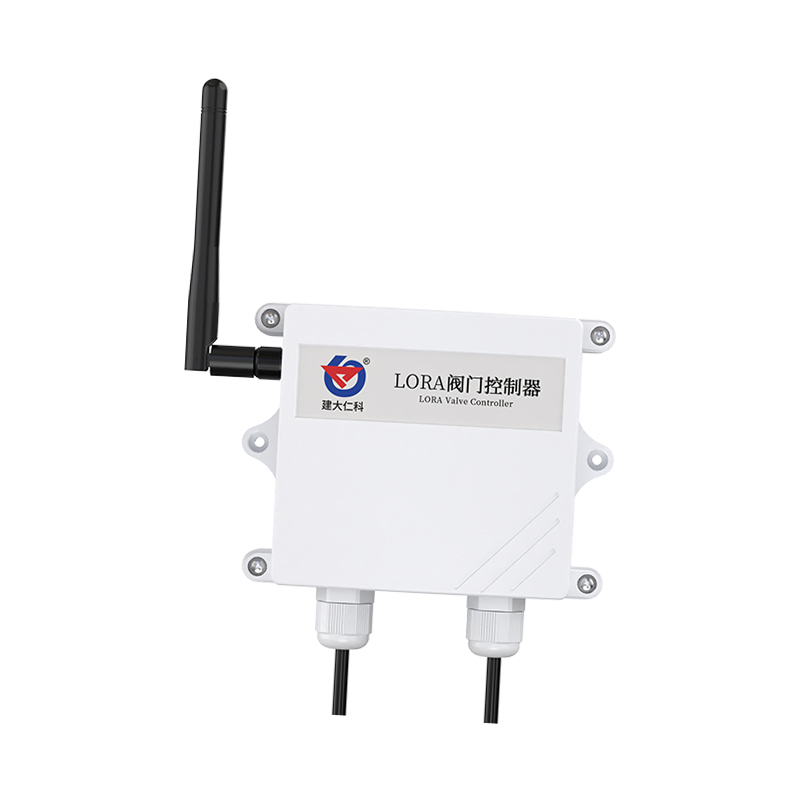

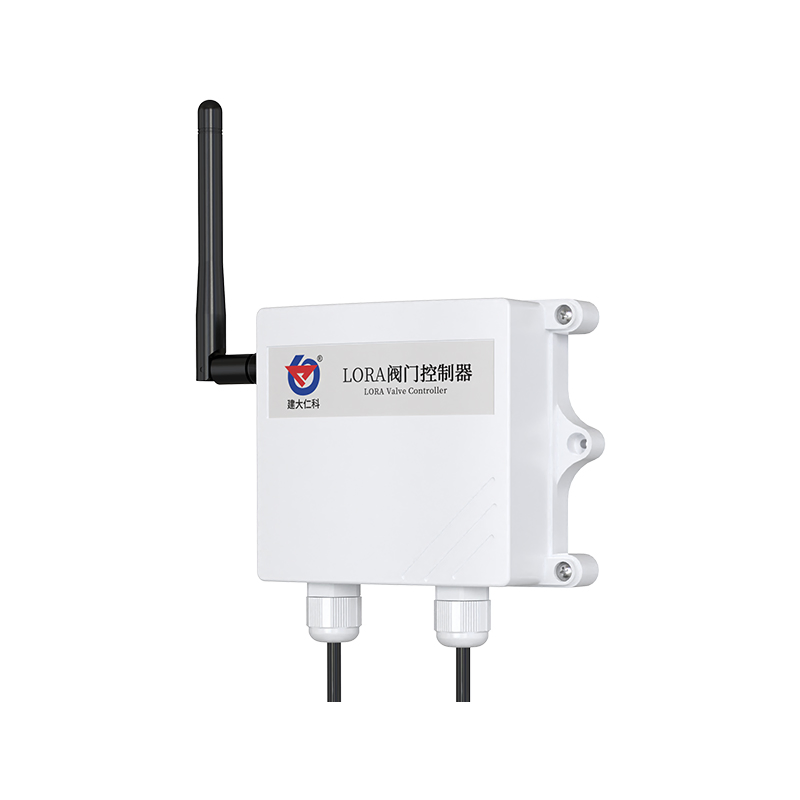

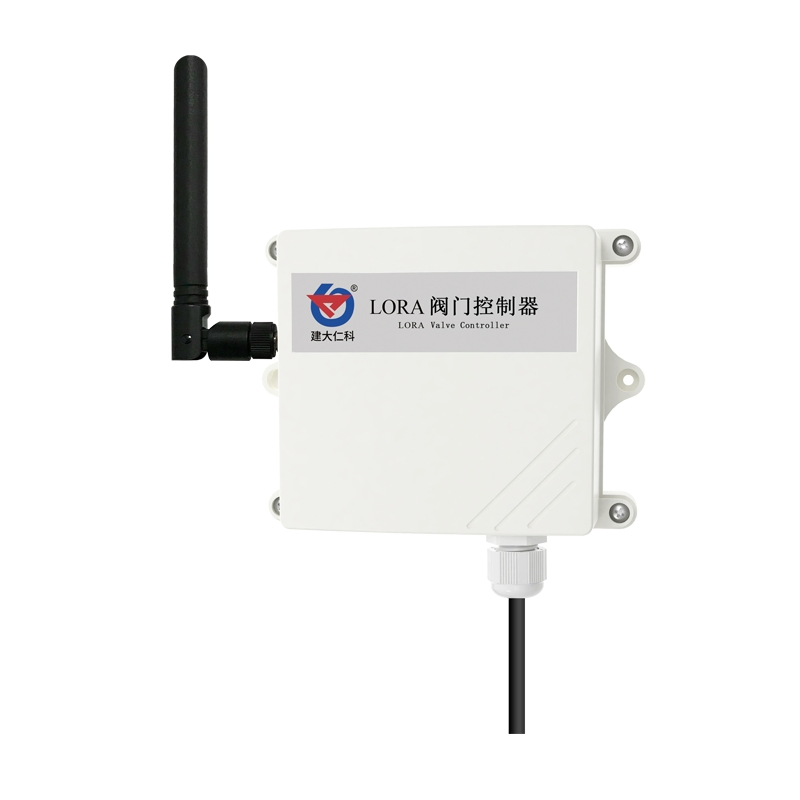

Remote Valve Controller Smart Lora-Based Valve Control Device for Irrigation System Control
Remote Valve Controller Smart Lora-Based Valve Control Device for Irrigation System Control
Remote Valve Controller Smart Lora-Based Valve Control Device for Irrigation System Control
Remote Valve Controller Smart Lora-Based Valve Control Device for Irrigation System Control
Remote Valve Controller Smart Lora-Based Valve Control Device for Irrigation System Control
1 / 5
Remote Valve Controller Smart Lora-Based Valve Control Device for Irrigation System Control
Remote Valve Controller Smart Lora-Based Valve Control Device for Irrigation System Control
Remote Valve Controller Smart Lora-Based Valve Control Device for Irrigation System Control
Remote Valve Controller Smart Lora-Based Valve Control Device for Irrigation System Control
Remote Valve Controller Smart Lora-Based Valve Control Device for Irrigation System Control

Remote Valve Controller Smart Lora-Based Valve Control Device for Irrigation System Control

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year
Send Inquiry

Product Description

Product Overview
The product utilizes long-range, low-power LoRa spread spectrum communication technology, combined with proprietary LoRa wireless communication protocol. This design avoids mutual interference between terminal nodes during signal transmission and overcomes the limitations of traditional wireless devices regarding short communication range and insufficient penetration. The IP65-rated enclosure makes it suitable for outdoor use.
Model NO. RS-*PL-LORA-2-EX
Operating Environment -20℃ ~ +60℃
Waterproof Rating IP65
Data Transmission LoRa Wireless Signal
Output Control Signal Pulse Signal ±9V
Power Supply Built-in battery (3.6V lithium thionyl chloride) / DC 10~30V
Transmission Distance Indoor: 3-4 concrete walls | Outdoor: 3000m (Line of Sight)
Production Capacity 1000 Pieces/Month
Details & Visuals

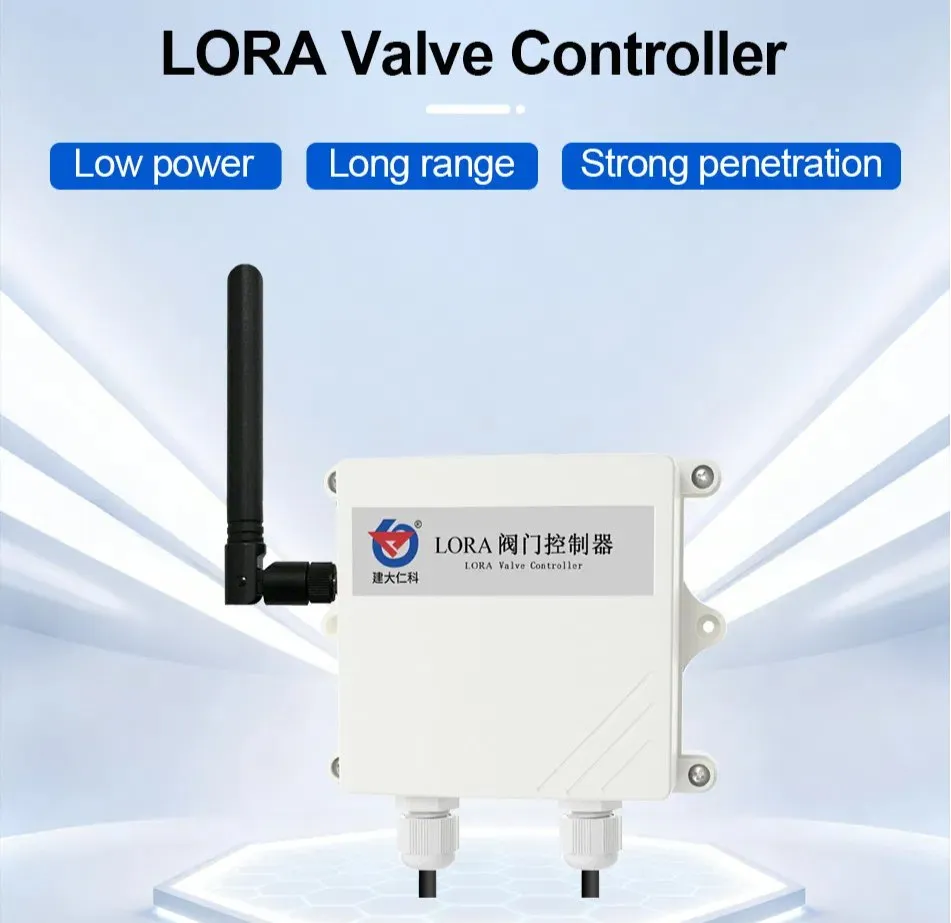

Valve Controller Overview

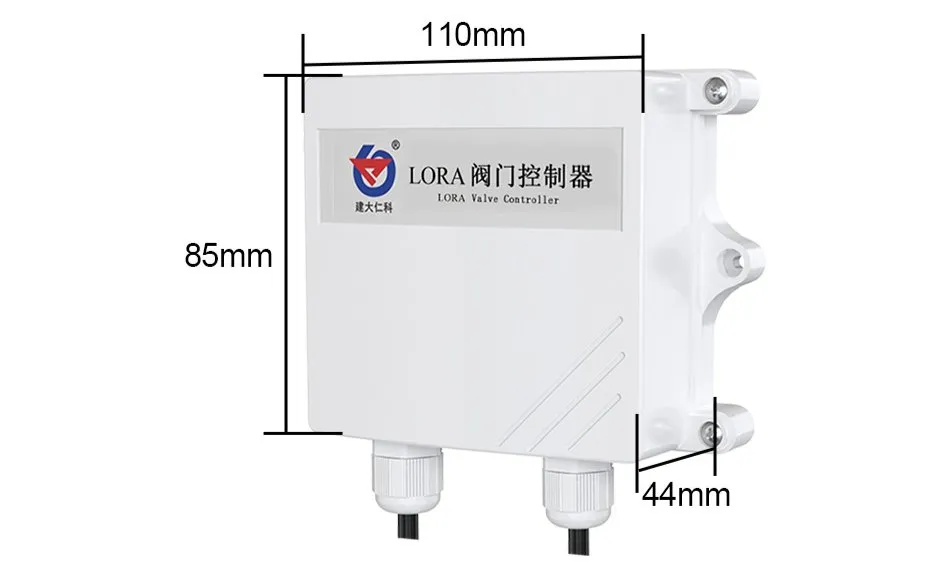

Details View
Key Features
Fast response time of less than 2 seconds when paired with a gateway.
Wireless LoRa technology eliminates complex on-site wiring.
Supports remote manual switching and automated timer settings.
Monitors and uploads battery level and signal strength in real-time.
NFC "tap-to-configure" functionality for rapid mobile app setup.
Robust IP65 protection for reliable outdoor performance.
Feature Diagram
Applications

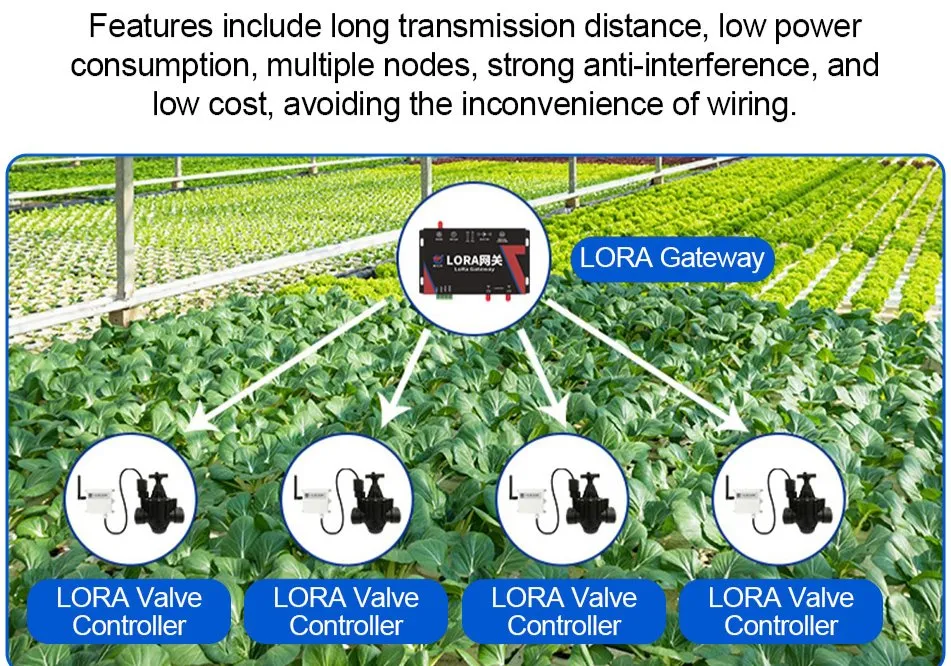

Application Scenario
Technical Excellence
We are engaged in industrial sensors, communication gateways, industrial data platforms, cloud computing services, and measurement control technology solutions. We have won a strong reputation for high-quality products and sincere service. Our team insists on a policy of "technology first, exquisite design, customer satisfied," focusing on every detail from initial drawing to final production.
Production Quality
Quality Standards
Frequently Asked Questions
Q: What is the maximum communication range of the device? A: The device can reach up to 3000 meters in an open outdoor environment (line of sight) and can penetrate 3-4 concrete walls in urban settings.
Q: How is the valve controller powered? A: It can be powered by a built-in 3.6V lithium thionyl chloride battery for wireless operation or via an external DC 10~30V power supply.
Q: Can this device be used in rainy or outdoor environments? A: Yes, the device features an IP65 waterproof rating, making it fully suitable for outdoor installation and various weather conditions.
Q: Is a smartphone required for configuration? A: Configuration and testing can be quickly performed using a mobile app via NFC "tap-to-configure" technology, though it also integrates with central gateways.
Q: What type of signal does the controller output? A: The device provides a ±9V pulse signal to control the valve switching operations.
Q: What is the operating temperature range? A: The controller is designed to operate reliably in environments ranging from -20℃ to +60℃.
