| Structural Parameters | |
| Dimensions | 156mm(L) x 76mm(W) x 26mm(D) |
| Display | 4 inch IPS 480*800 px with Multi-point capacitive touch |
| Battery | Rechargeable Li-polymer Battery 3.7V 4000mAh |

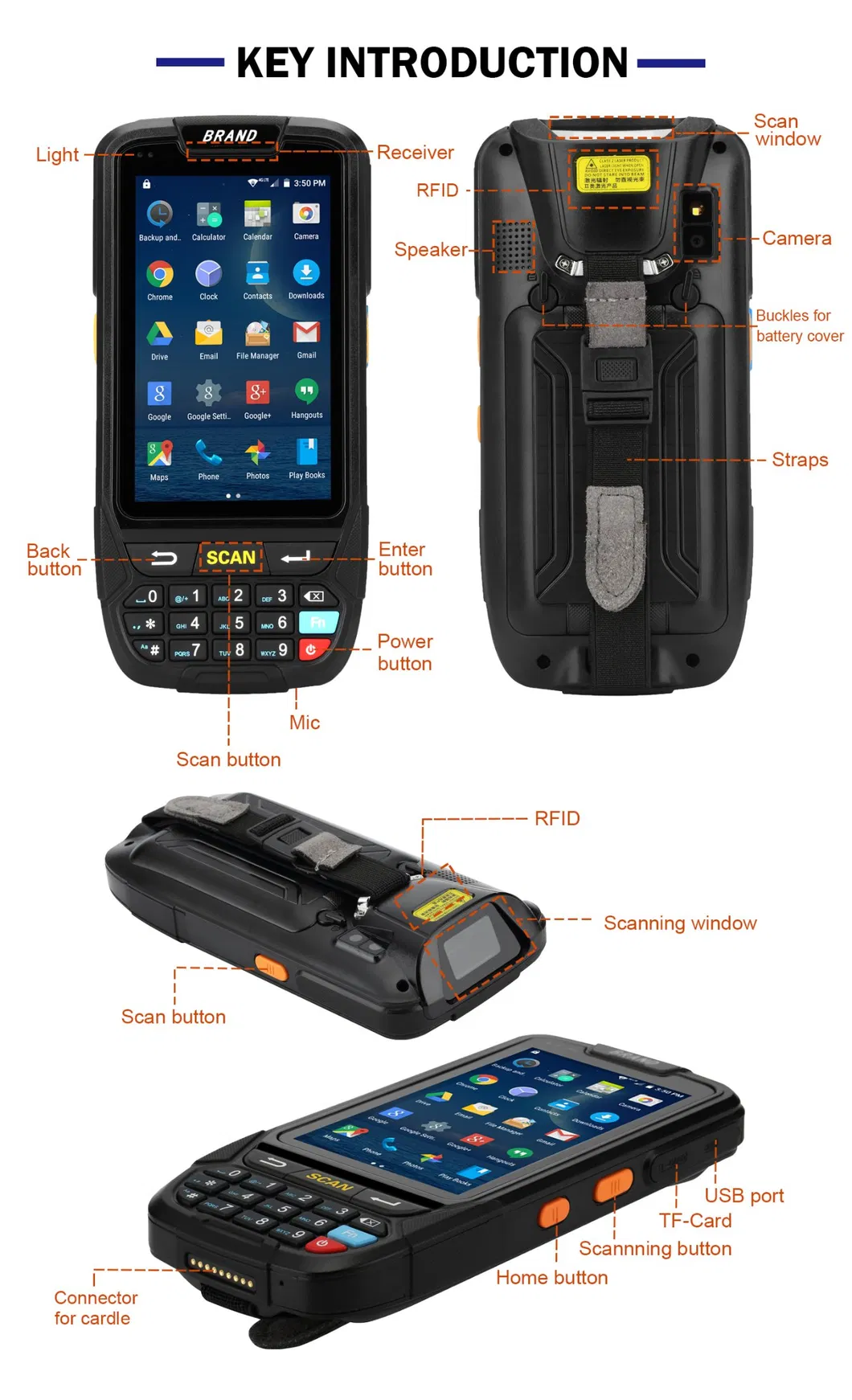

| Keys | 13pcs soft silicon keys |
| Performance Parameters | |
| CPU | ARM CORTEX-A53 64bit Quad-Core 1.3G |
| RAM/ROM | 2G RAM + 16G NAND Flash Storage |
| Expand Port | Micro SD/TF port (Max up to 32G), SIM card |
| Data Communication | |
| WLAN | IEEE802.11 a/b/g/n protocol |
| WWAN | 4G LTE (FDD/TDD), 3G WCDMA, 2G GSM/GPRS |
| Bluetooth | BT 2.0+EDR/3.0+HS/4.1+HS (5-10m) |
| Scanner Modules (Optional) | |
| 1D Laser | Symbol 955, Honeywell N4313 (Resolution: 4Mil) |
| 2D CMOS | Honeywell N6603, NewLand 3096 |
| RFID/NFC | LF (125kHz/134kHz), HF/NFC (13.56MHz) |
| Operating Environment | |
| Sealing | IP65 Grade |
| Drop Spec | 1.5m drop to cement floor (6 sides) |
| Temperature | Operating: -20°C to 50°C; Storage: -25°C to 70°C |

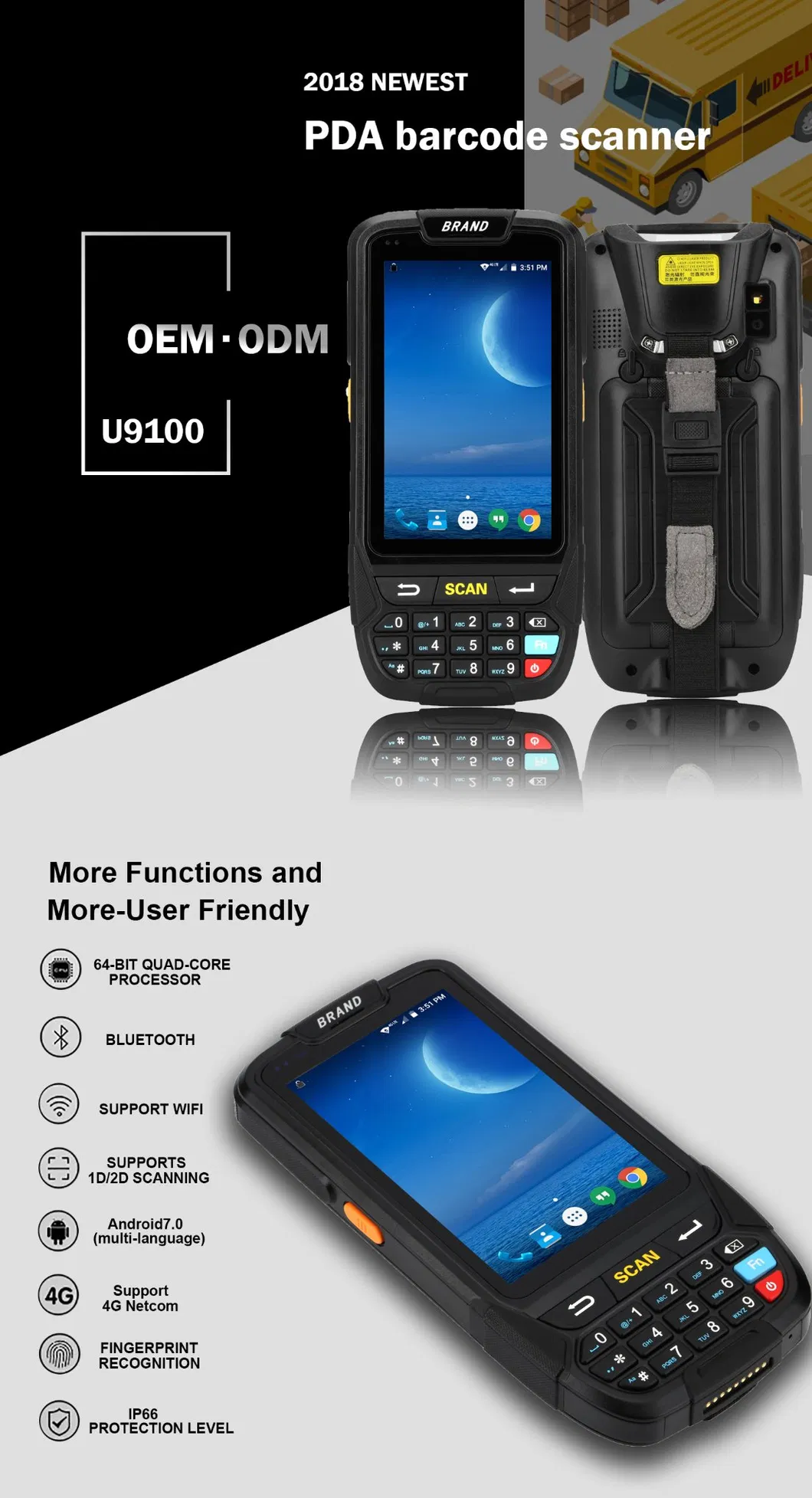

Featuring Android OS and a 64-bit quad-core 1.3GHz high-speed processor, this device offers perfect compatibility and computing capability for strict industrial application requirements.

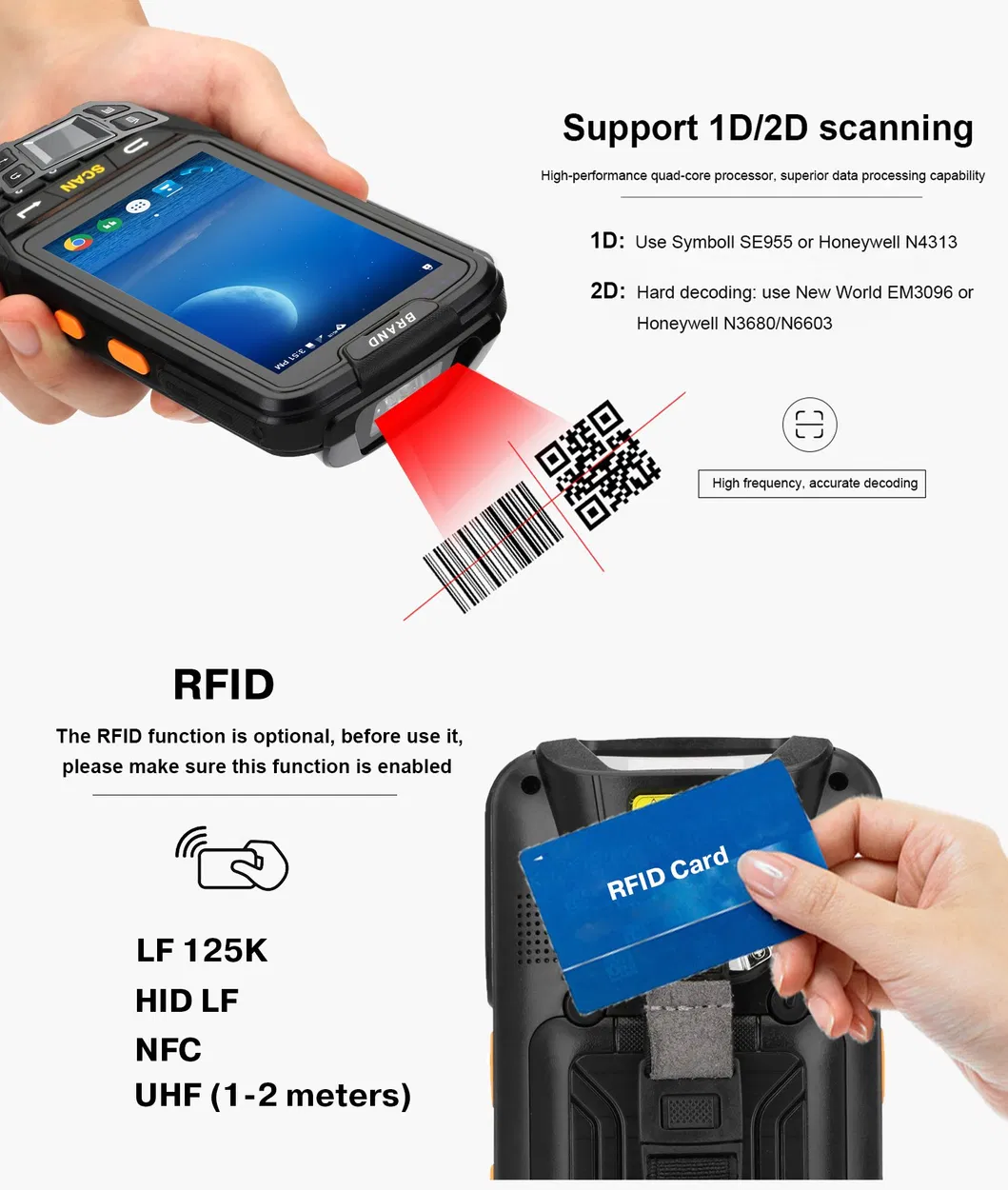

Fully supports high-precision 1D and 2D barcode scanning and optional NFC identification for various data collection needs.

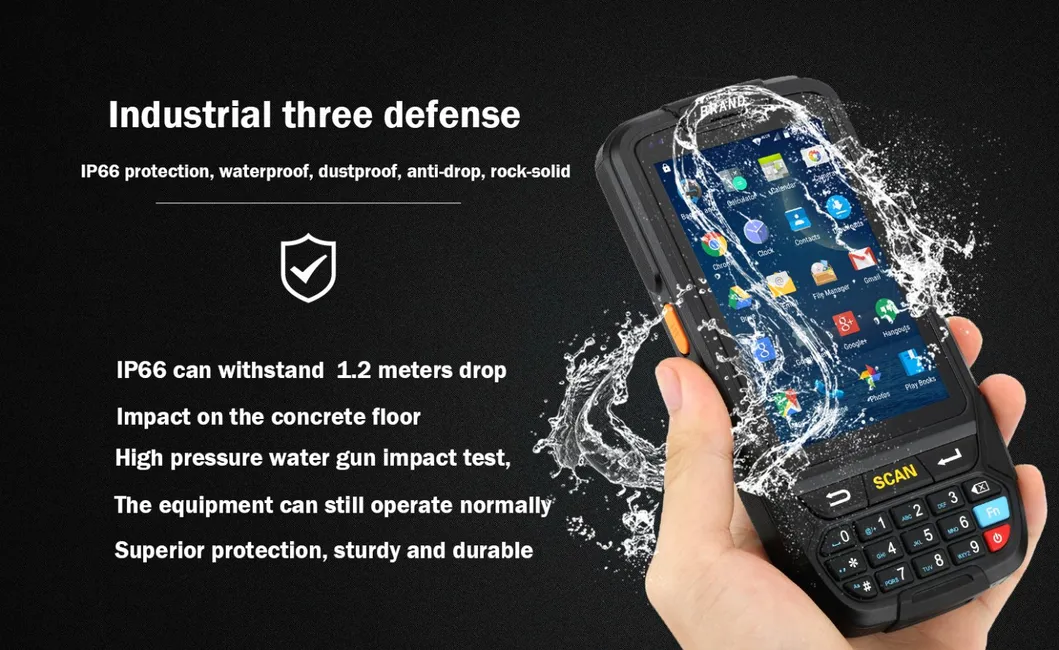

IP65 industrial grade sealing protects against water and dust. The solid yet light body can withstand 1.5m drops and repeated tumbles, ensuring long-term use in harsh environments.
Supports full-band wireless communications including 4G LTE, Wi-Fi, and Bluetooth to maintain real-time connection with your systems.
