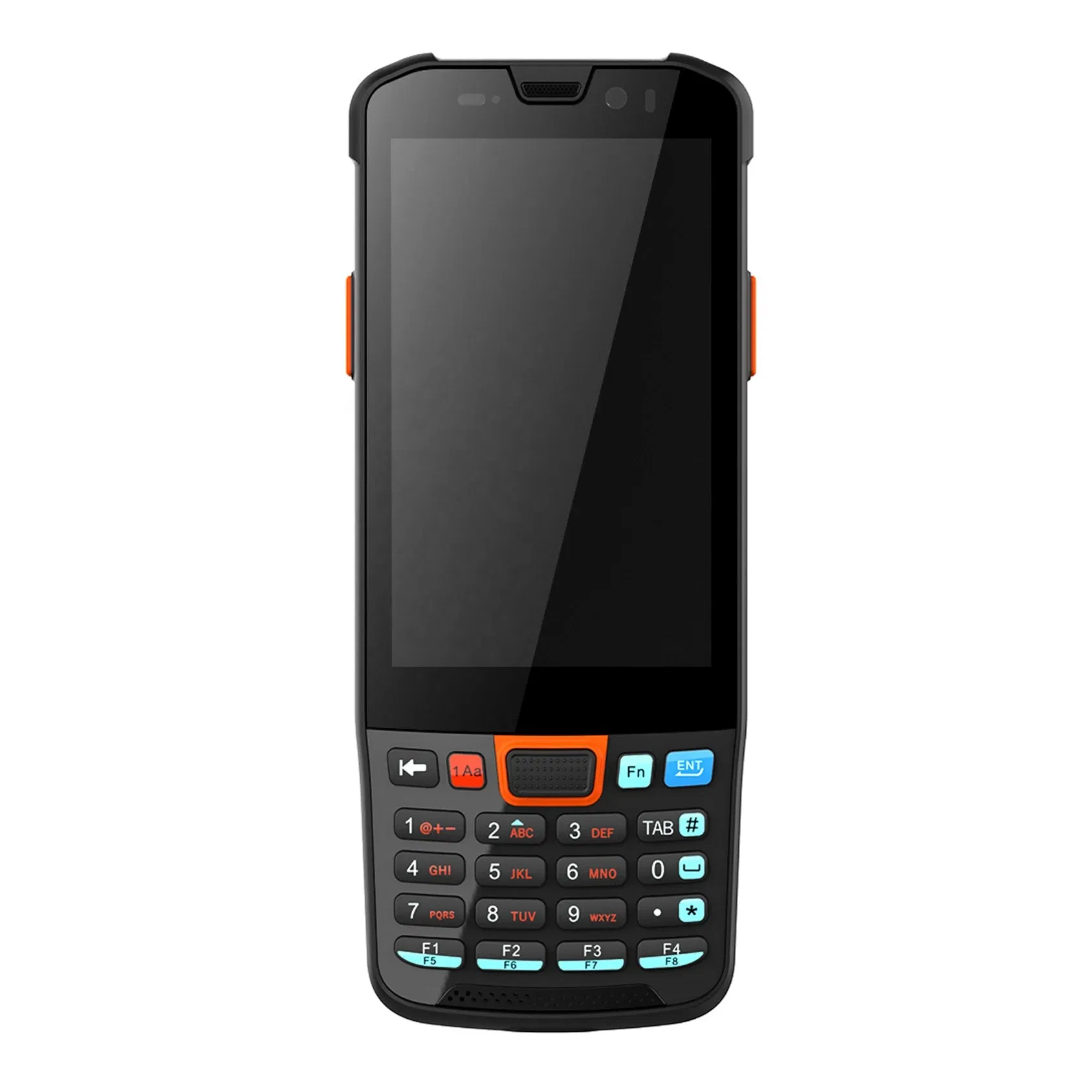

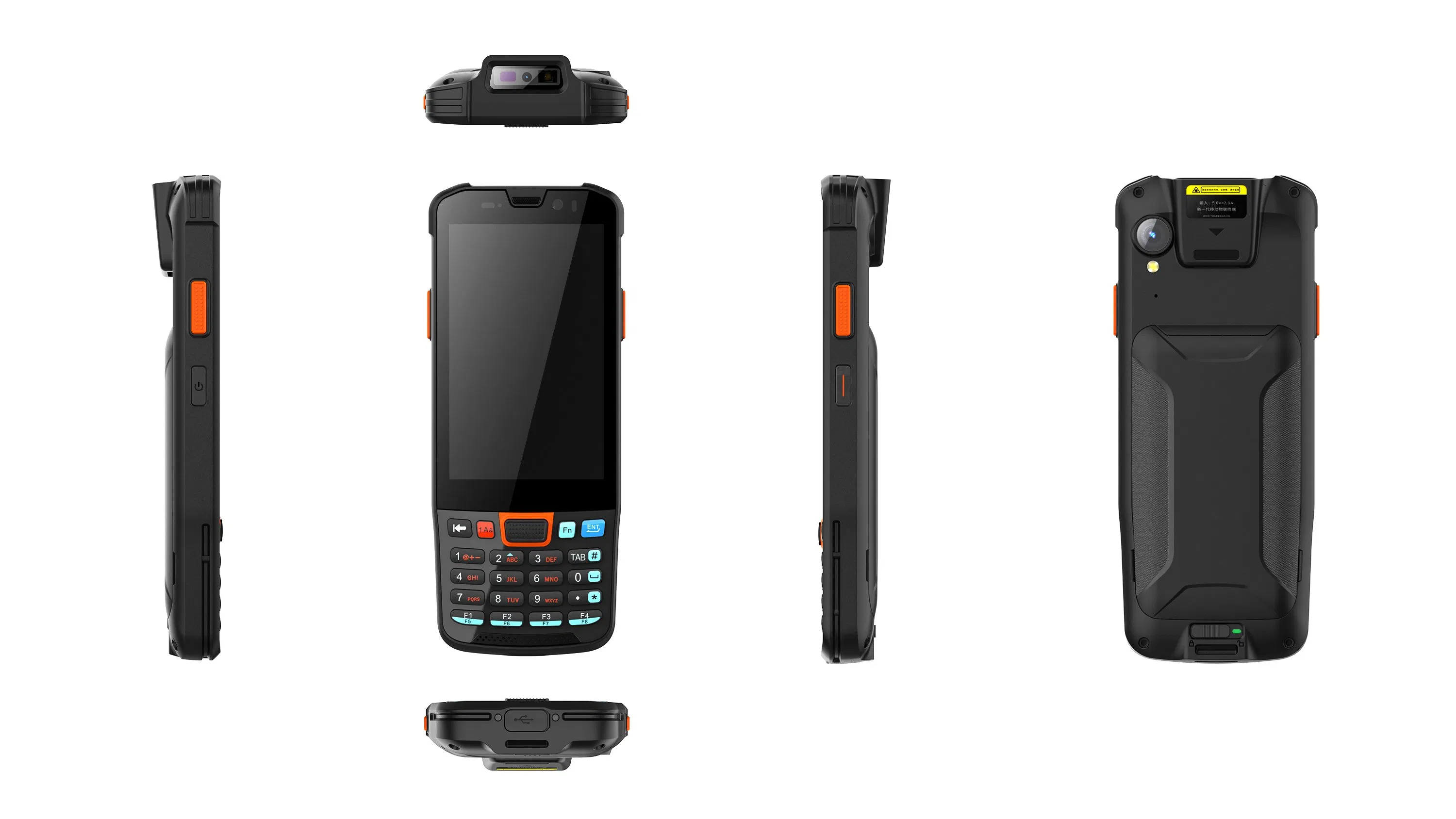

CSN-S2 Handheld Data Terminal Android11 Barcode Scanner Rugged PDA Mobile Computer

ℹ

Basic Information

Model NO.

CSN-S2

Interface Type

Type-C / WiFi / Bluetooth / NFC

Scan Speed

300 scans/sec

Scan Element Type

CMOS

Warranty

1-Year

Weight

245g

Battery

3.85V/5100mAh

Transport Package

20 Sets/Carton

Specification

160mm×66.8 mm×16.8mm

HS Code

8443321400

Production Capacity

1000PCS/Month

📄

Product Description

⚙

Technical Specifications

Performance Parameters
CPU	Octa-core 2.0GHz
OS	Android 11.0
Memory	2GB RAM+16GB ROM (Optional: 3GB/32GB or 4GB/32GB)
SIM Card Slot	2x Nano SIM Card
Expansion Storage	1x MicroSD Card (up to 512GB)
Physical Parameters
Display	4" WVGA IPS, 480 x 800, Capacitive Multi-Touch, Glove mode support
Battery	Removable Lithium Battery, 3.85V/5100mAh
Dimensions	160mm × 66.8mm × 16.8mm
Weight	245g (with battery)

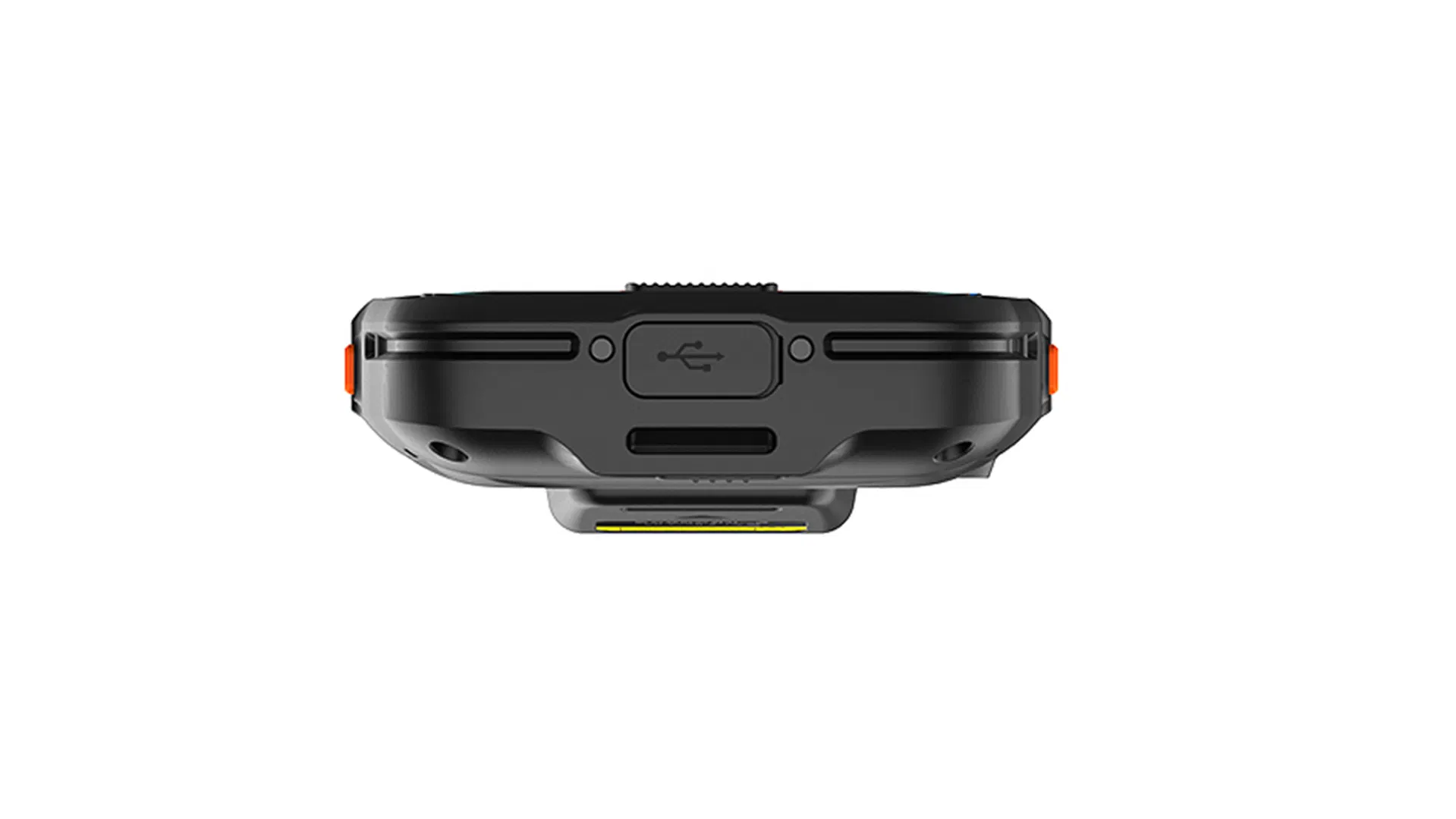

Ports	Waterproof Type C (USB 2.0, OTG, Fast charging)
Protection	IP68, 1.8m Drop Specification
Data Collection

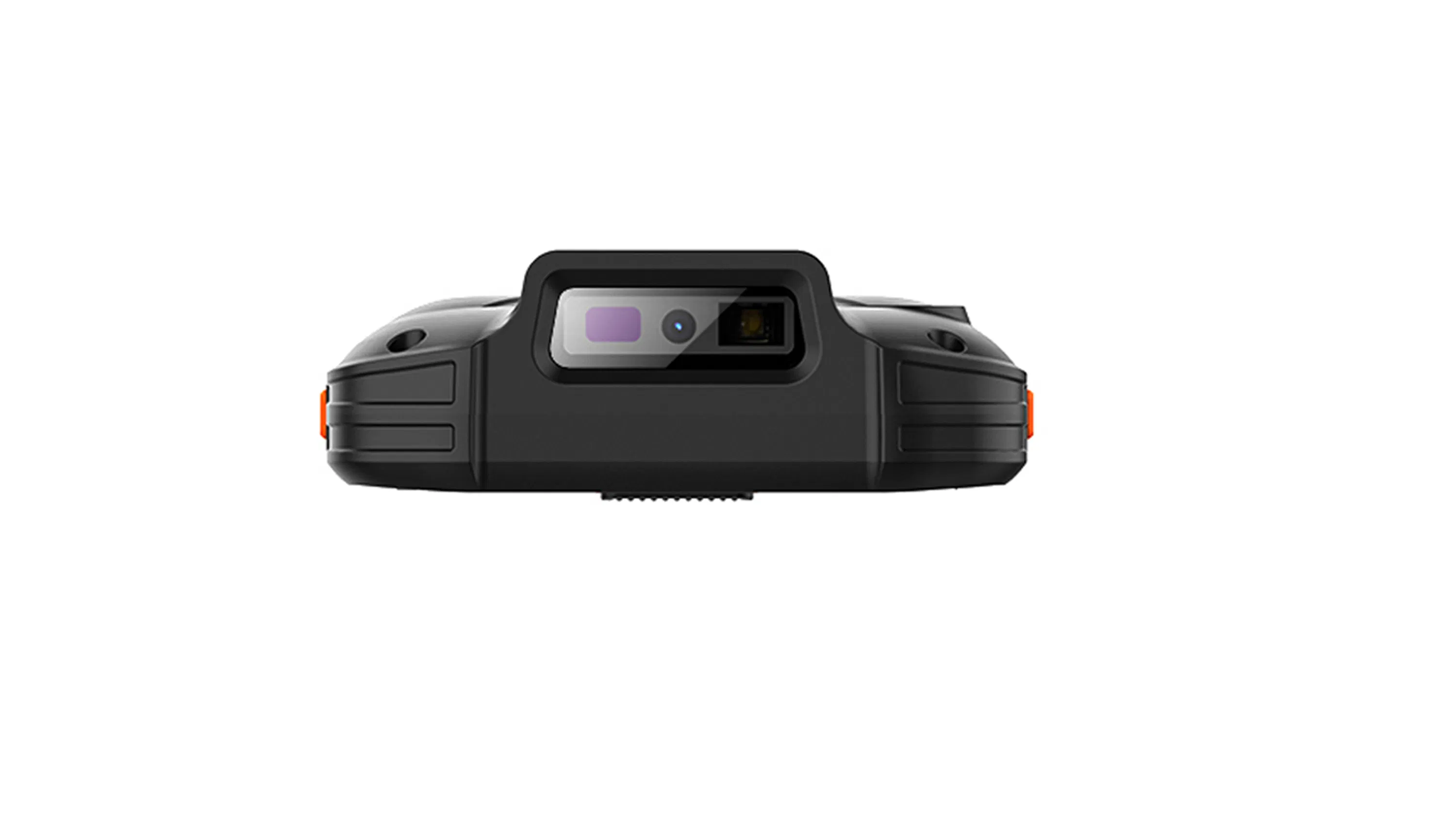

Scanning	1D and 2D Barcodes Reader (Optional)

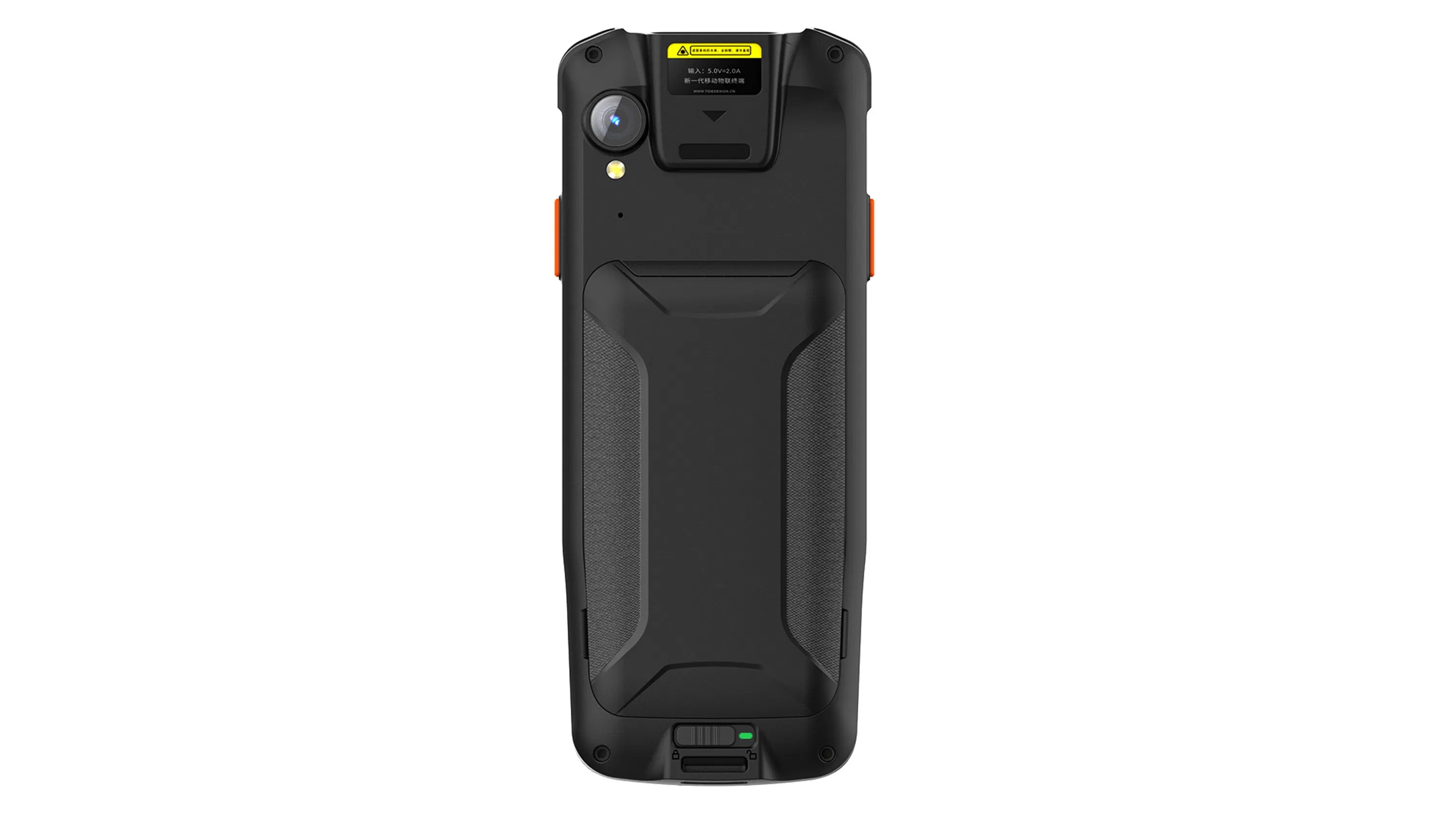

Image Capture	Rear 13/5MP AF with Flash; Front 5MP FF (Optional)
RFID/NFC	Support ISO15693, ISO14443A/B, Mifare, Felica, NFC
Wireless Communication
Wi-Fi	2.4G/5G Dual-band, IEEE 802.11 ac/a/b/g/n/ax ready
Bluetooth	BT5.0 + BR/EDR + BLE

🏢

Company Profile

🏆

Certifications

❓

Frequently Asked Questions

How could I get a sample?

Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.

What is the sample lead time?

For existing items, the sample lead time is within 1-2 days.

Can you place our brand on your products?

Yes. We can print your Logo on both the products and the packages if you can meet our MOQ requirements.

Can the products be made in our specific color?

Yes, the color of the products can be customized if you can meet our MOQ.

How do you guarantee product quality?

We ensure quality through: 1) Strict detection during production. 2) Strict sampling inspection on products before shipment with intact packaging.

What is the standard warranty period?

We provide a standard 1-year warranty for the handheld data terminal.
