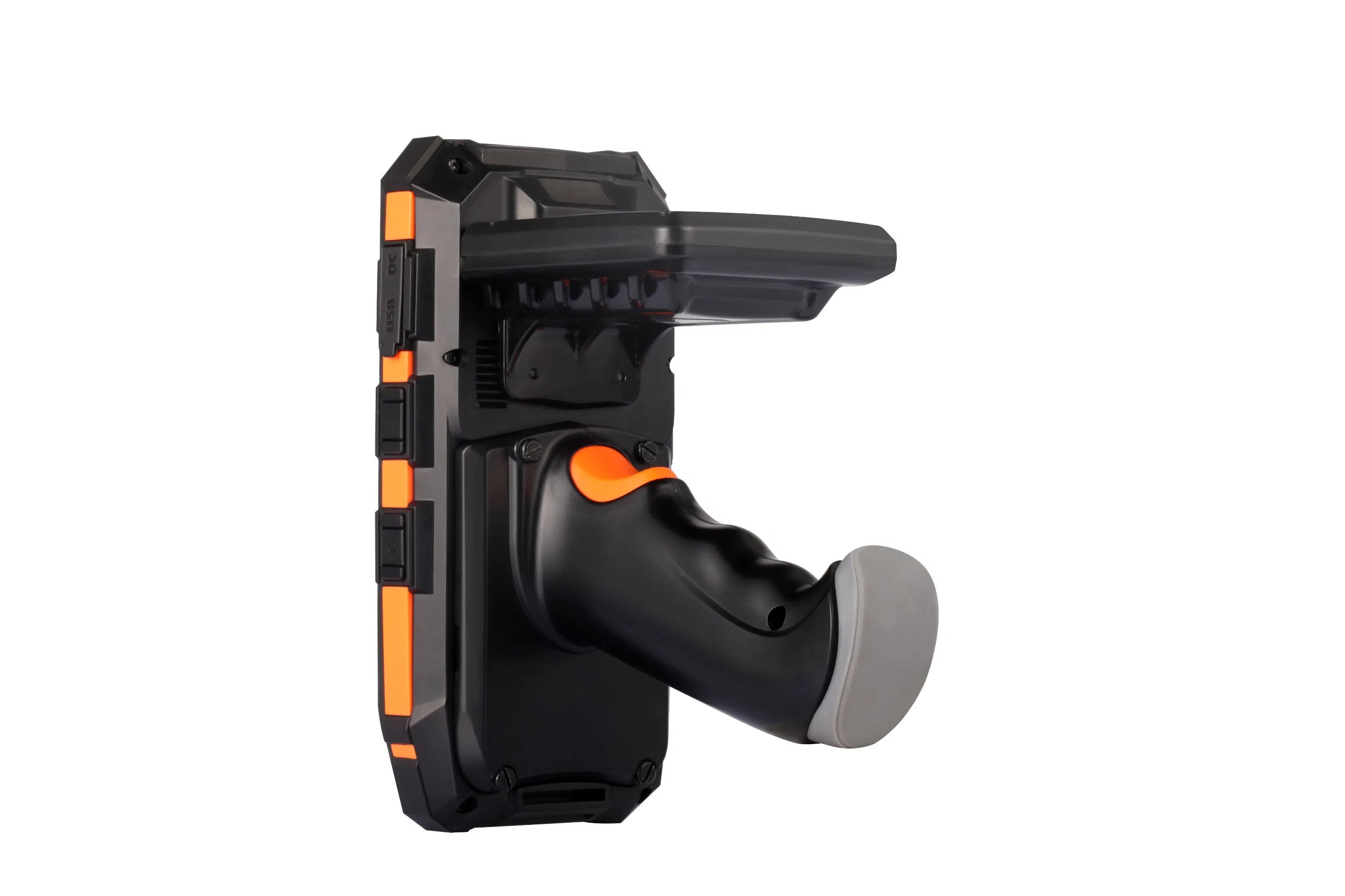

Rugged Handheld PDA Barcode Scanner Android Data Terminal

1 / 5

Rugged Handheld PDA Barcode Scanner Android Data Terminal

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

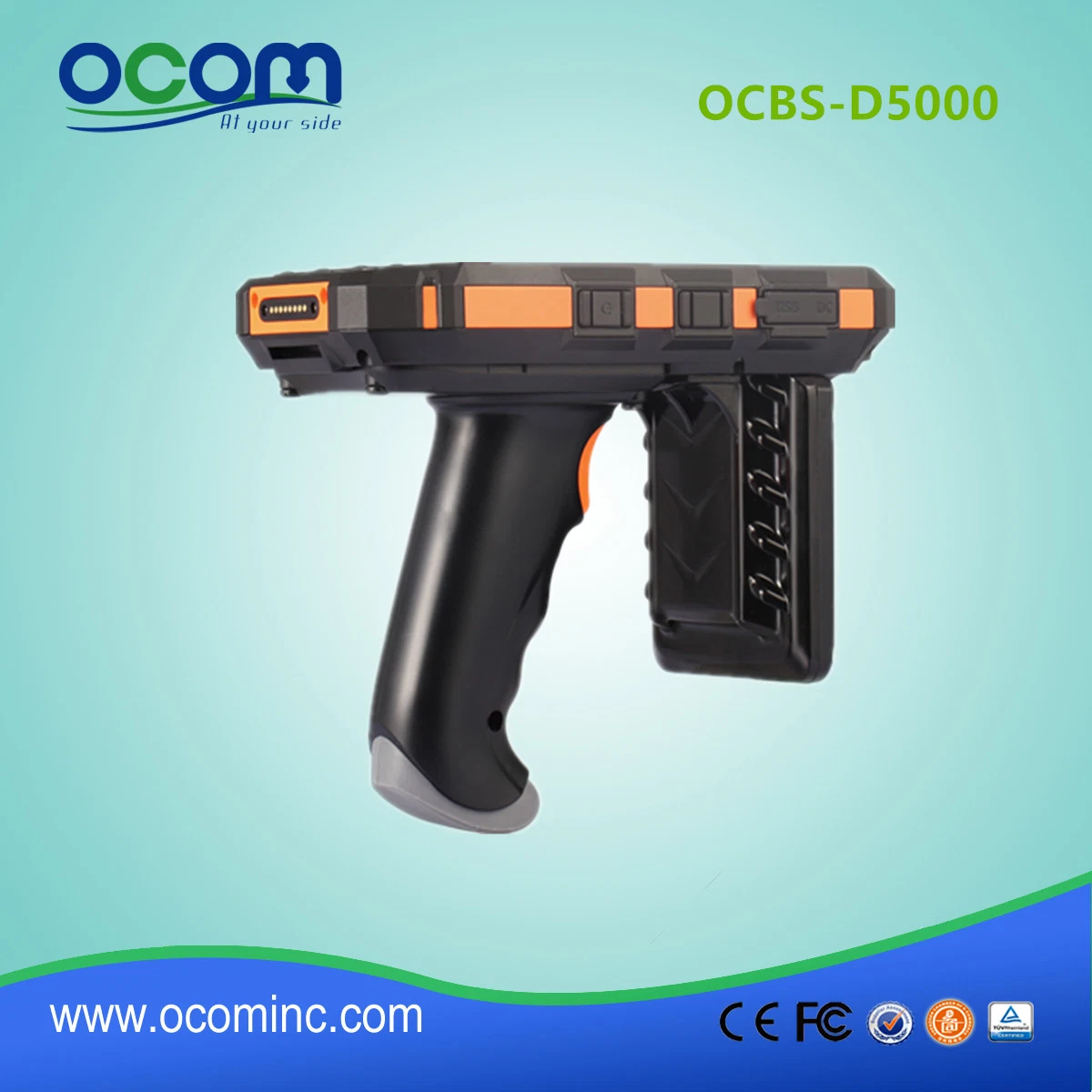

Model: OCBS-D5000

Android Industrial Handheld Terminal

✓ Android 7.0 OS

✓ 2GB RAM + 16GB ROM

✓ 5.0 in. Gorilla HD Screen (720*1280)

✓ Rugged IP65 & 1.5m Drop Tolerance

✓ 4500mAh - 8000mAh Li-ion Battery

✓ 8MP Auto-focus Rear Camera with Flash

✓ 4G/Wifi/GPS/Bluetooth Supported

✓ 1D/2D Barcode Scanner (Optional)

✓ RFID LF/HF/UHF/NFC (Optional)

✓ Capacitive Fingerprint Sensor (Optional)

Technical Specifications

Physical Characteristics
Dimension	170mm(H) x 85mm(W) x 23mm(D) ± 2 mm
Weight	Net Weight: 380g (including battery & wrist strap)
Display	Gorilla 5.0 in. TFT-LCD (720x1280) touch screen with backlight
Keypads	3 TP keys, 6 function keys, 4 side buttons
Expansions	2 PSAM, 1 SIM, 1 TF
Battery	3.7V, 4500mAh (Optional 8000mAh with handle)
Performance Characteristics
CPU	Quad A53 1.5GHz Quad-Core
Operating System	Android 7.0
Storage	2GB RAM, 16GB ROM, MicroSD (max 32GB expansion)
User Environment
Operating Temp.	-20ºC to 50ºC
Storage Temp.	-20ºC to 70ºC
Humidity	5%RH to 95%RH (non-condensing)
Drop Specs	5ft./1.5 m drop to concrete

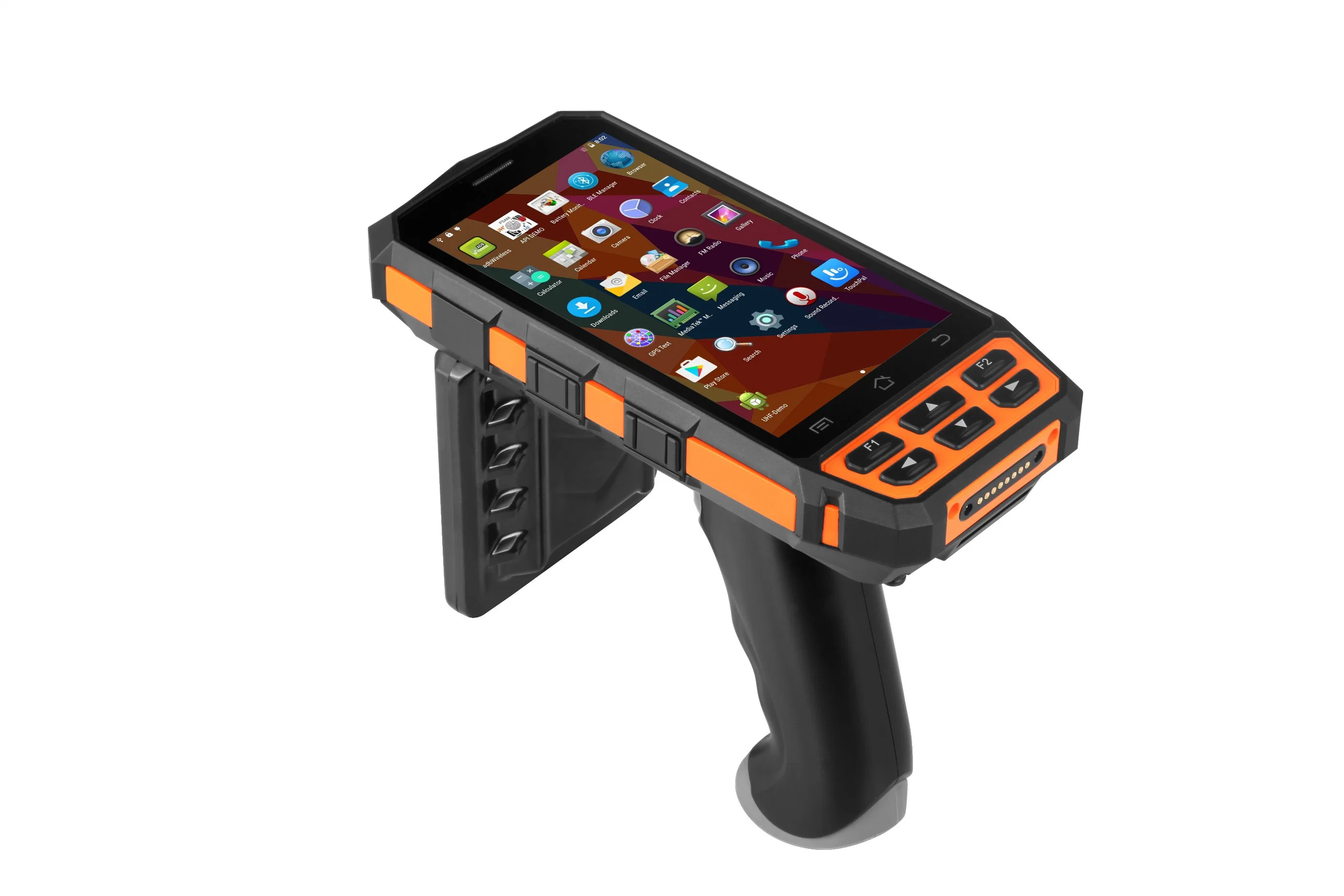

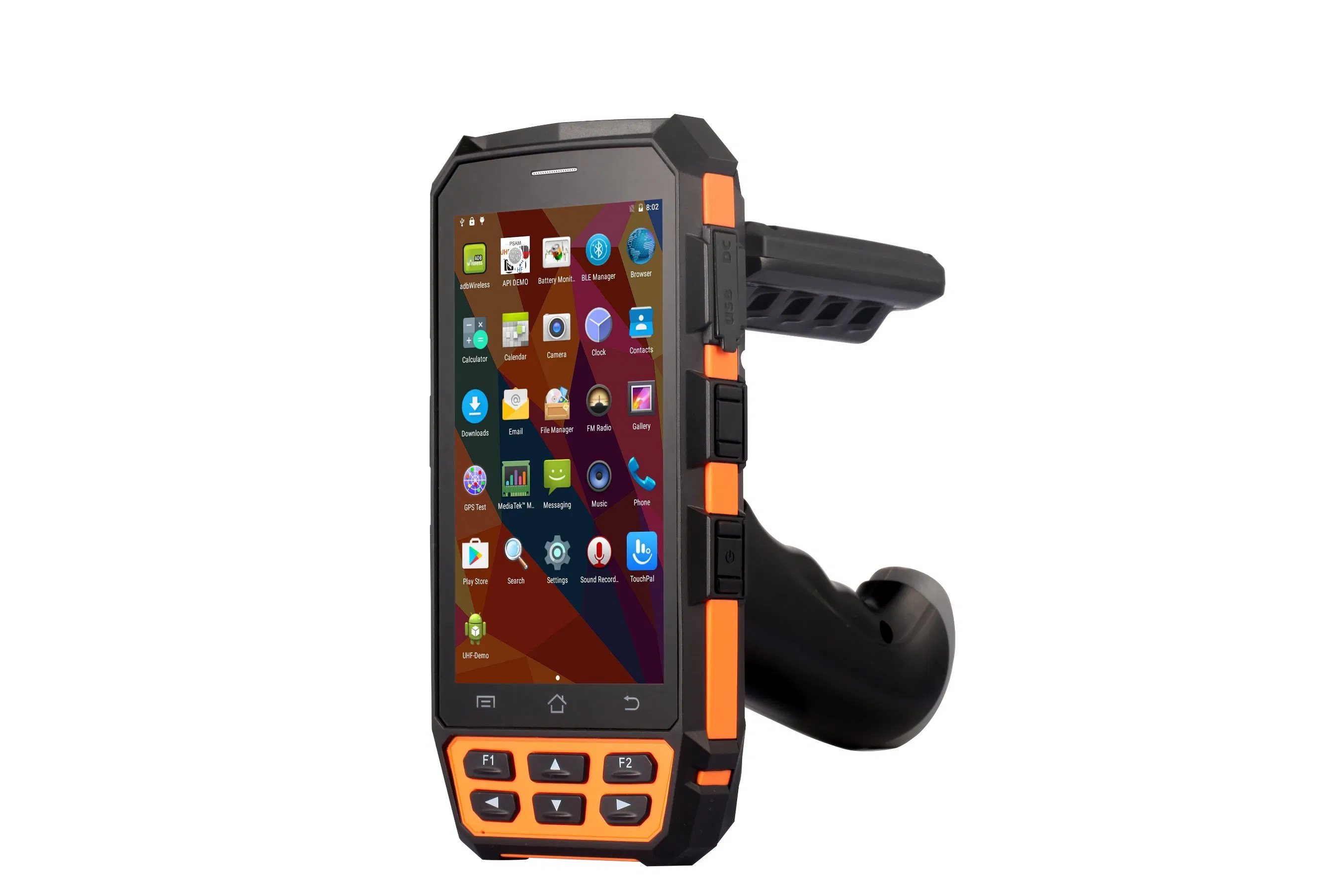

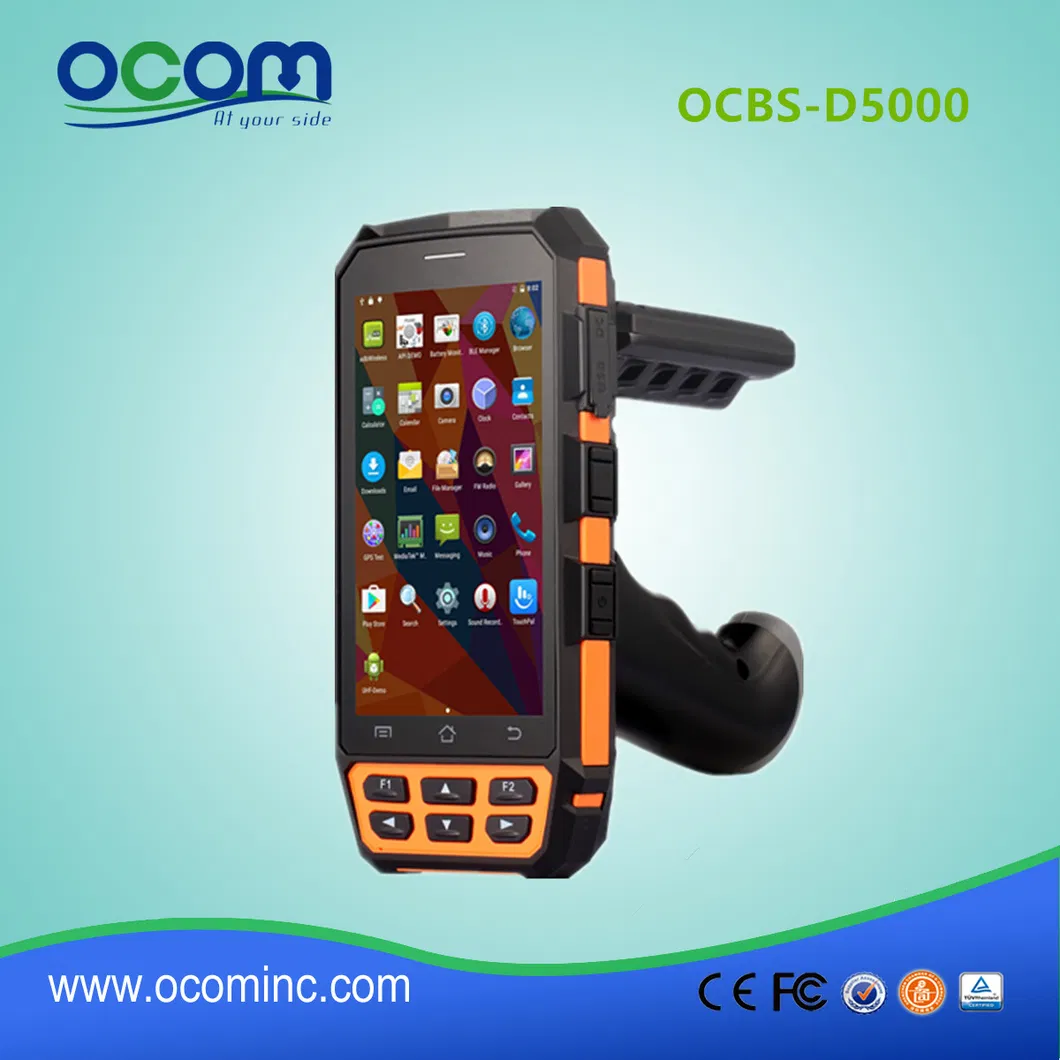

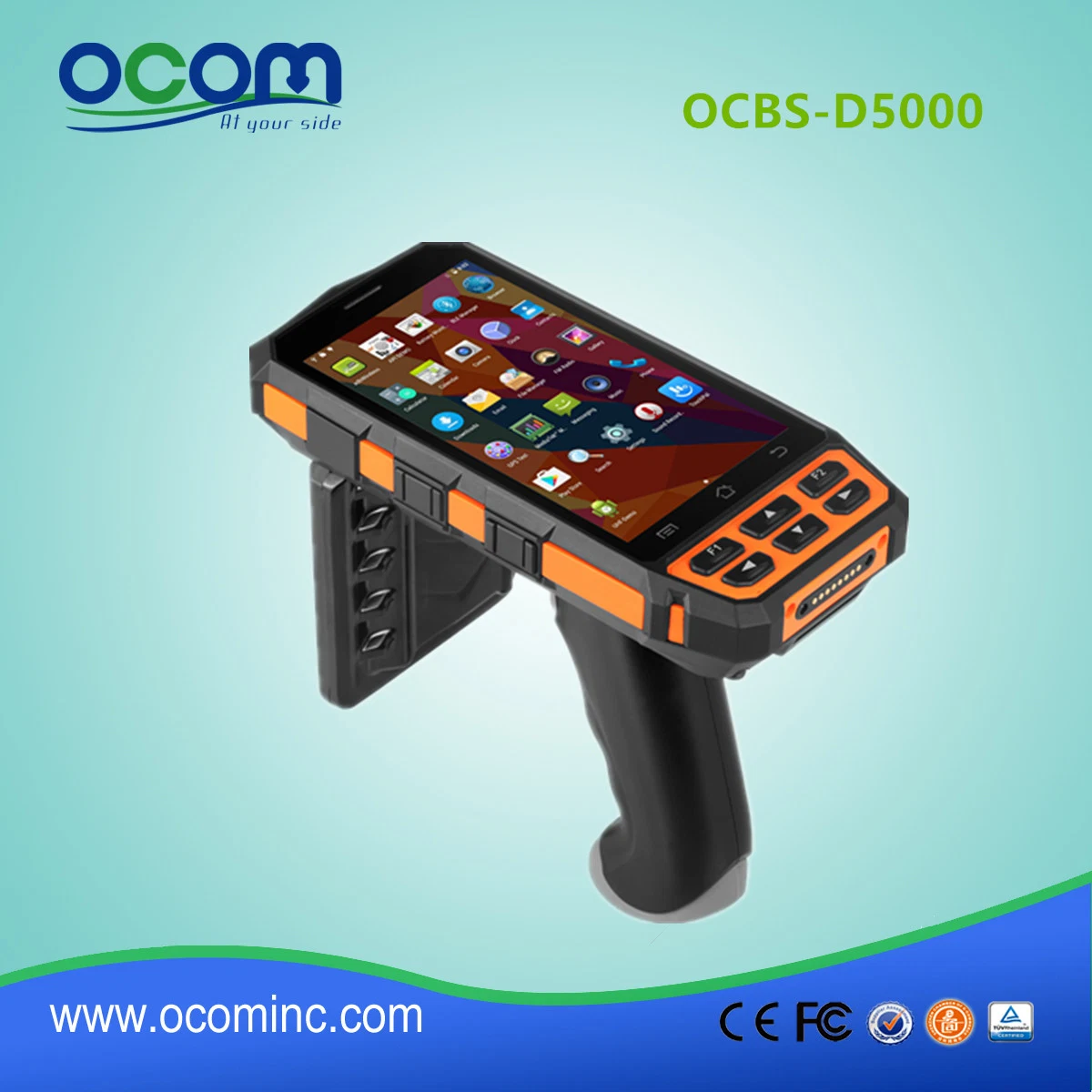

Product Display

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ) policy?

There is no MOQ limitation for standard products. However, unit prices vary based on quantity, with larger orders receiving better pricing. For customized production, requirements can be discussed directly.

Can I obtain samples for testing?

Yes, samples are available for testing and qualification once specifications are confirmed. Samples must be paid for prior to shipment. Sample costs may be credited back upon placing a mass order.

What are the warranty terms?

Products generally come with a 12+1 month warranty from the date of shipment. Some designated models may feature up to a 24-month warranty. DOA (Dead on Arrival) products within 30 days are prioritized for replacement.

What payment methods are accepted?

For mass orders, T/T, LC, and Western Union are accepted. For sample orders, T/T, Western Union, and PayPal are also acceptable options.

What shipping options are available?

We support various shipping methods including express courier, air freight, sea freight, truck transport, or personal pickup by the customer.

Is technical support available for development?

Yes, a Software Development Kit (SDK) is provided to support software development on the handheld terminal.
