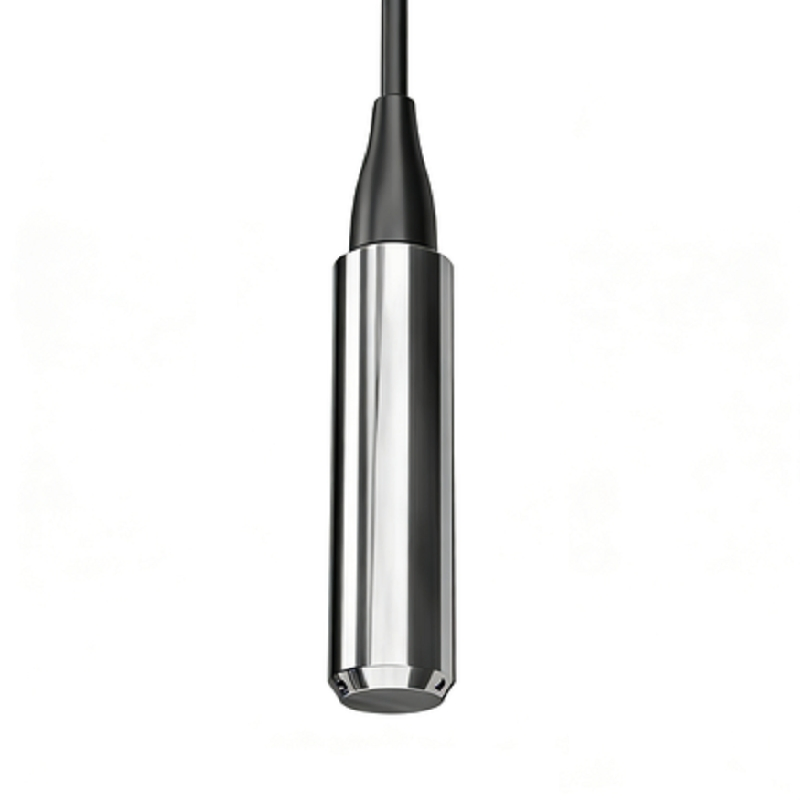

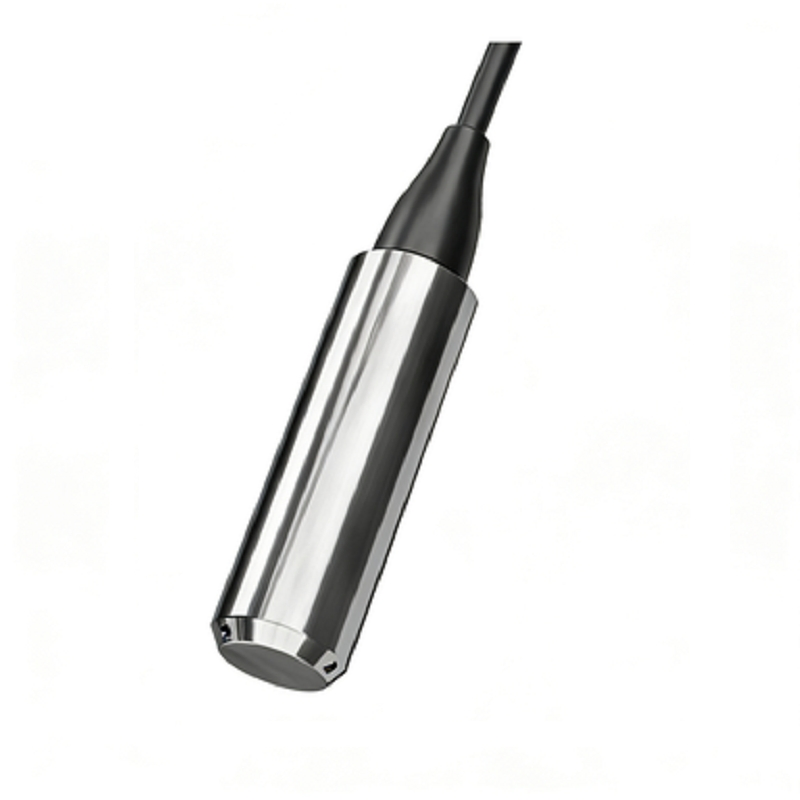

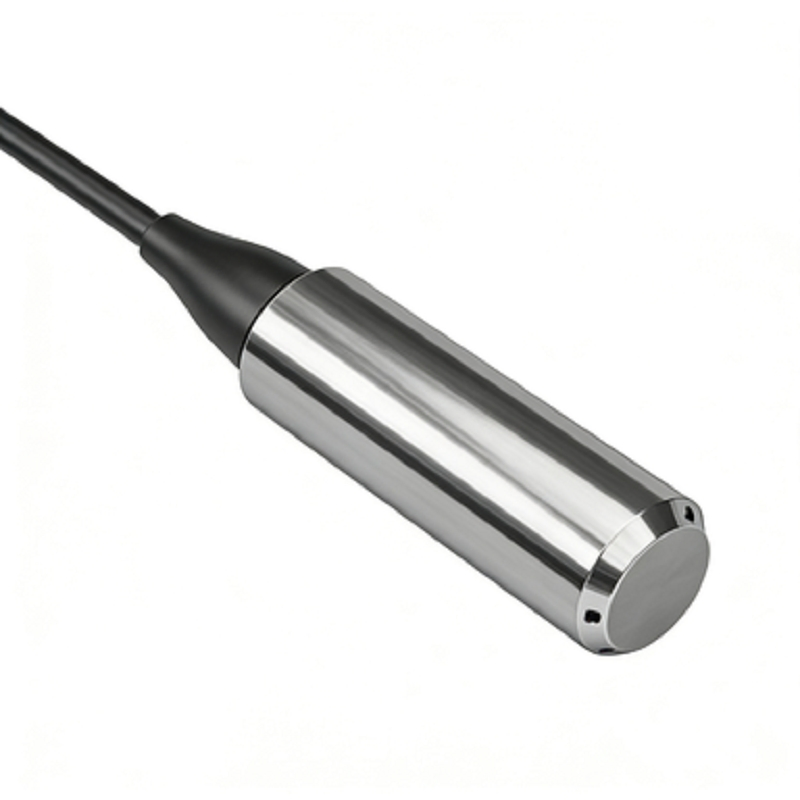

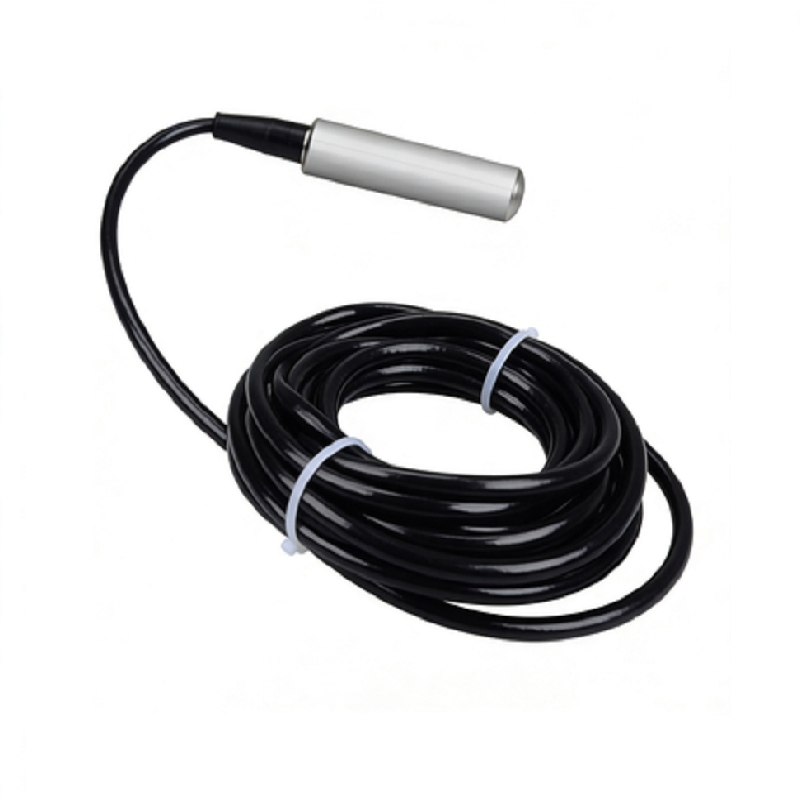

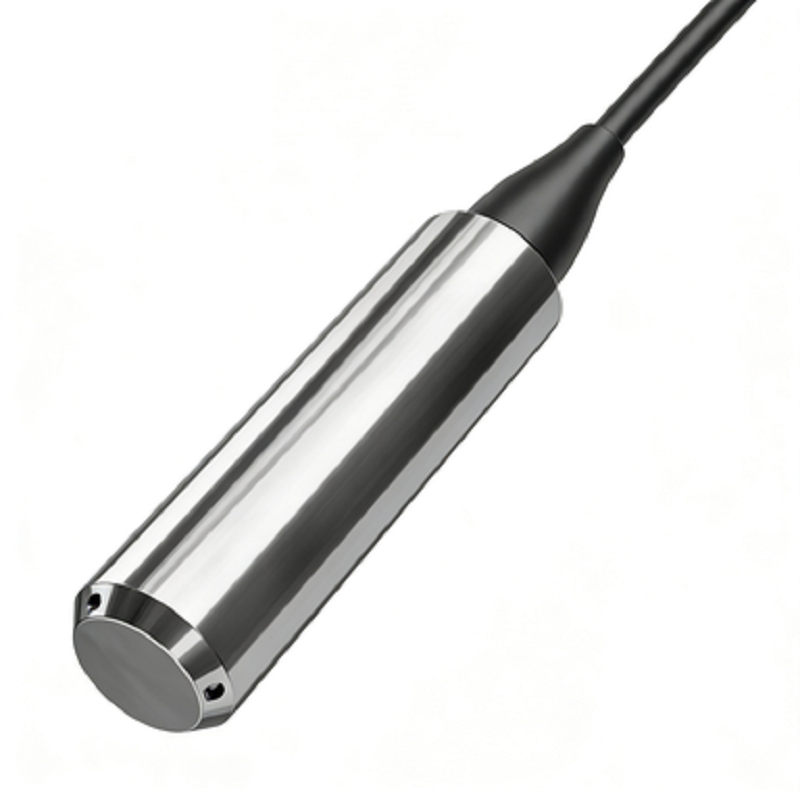

High Accuracy 0.2%Fs/0.5%Fs Water Level Measuring Device Smart Level Sensor for Liquid
High Accuracy 0.2%Fs/0.5%Fs Water Level Measuring Device Smart Level Sensor for Liquid
High Accuracy 0.2%Fs/0.5%Fs Water Level Measuring Device Smart Level Sensor for Liquid
High Accuracy 0.2%Fs/0.5%Fs Water Level Measuring Device Smart Level Sensor for Liquid
High Accuracy 0.2%Fs/0.5%Fs Water Level Measuring Device Smart Level Sensor for Liquid
1 / 5
High Accuracy 0.2%Fs/0.5%Fs Water Level Measuring Device Smart Level Sensor for Liquid
High Accuracy 0.2%Fs/0.5%Fs Water Level Measuring Device Smart Level Sensor for Liquid
High Accuracy 0.2%Fs/0.5%Fs Water Level Measuring Device Smart Level Sensor for Liquid
High Accuracy 0.2%Fs/0.5%Fs Water Level Measuring Device Smart Level Sensor for Liquid
High Accuracy 0.2%Fs/0.5%Fs Water Level Measuring Device Smart Level Sensor for Liquid

High Accuracy 0.2%Fs/0.5%Fs Water Level Measuring Device Smart Level Sensor for Liquid

Customization: Available
Type: Submersible
Contact: Contact
Send Inquiry

Product Description

i

Basic Information

Model NO.
RK-PM200-*-EX
Output Signal
Analog / RS485
Feature
Corrosion Resistant
Material
Stainless Steel
IP Rating
IP68
Power Supply
10-30V DC (RS485), 12-36V DC (Analog)
Accuracy
0.2%Fs, 0.5%Fs (Default)
Measuring Range
0-100m (Optional)
✓

Product Description

This water level sensor features a protective cap on the front end, protecting the sensor diaphragm while ensuring smooth liquid contact. The waterproof lead is sealed to the housing, and the vent tube is connected to the outside world within the cable. The internal structure is designed to prevent condensation. A built-in miniature signal processing circuit enables remote transmission, ensuring excellent stability and reliability.

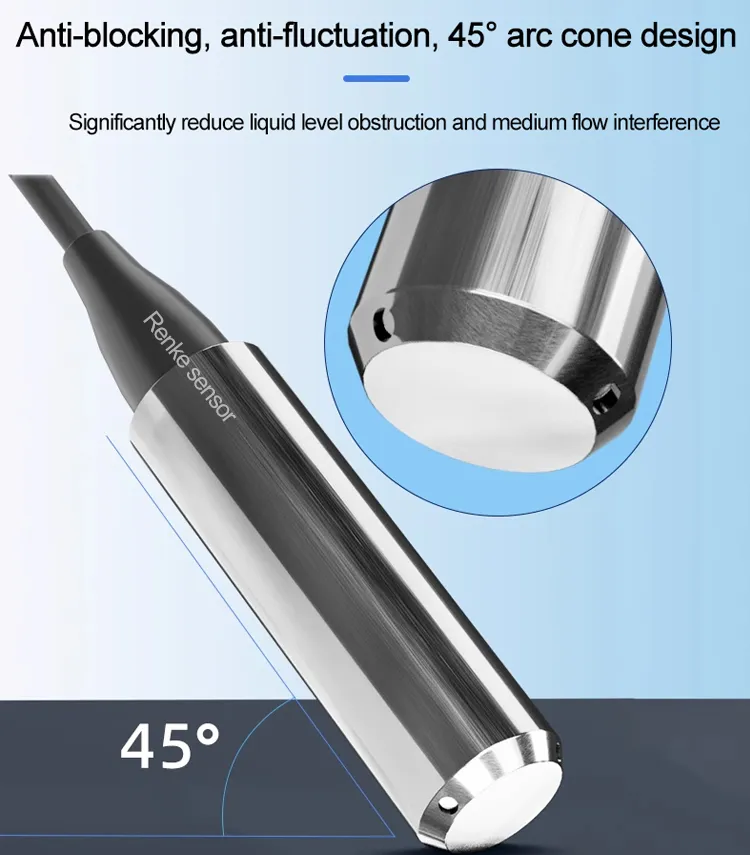

Water Level Measuring Device
⚙

Technical Specifications

Parameter RS485 Output Analog Output
Power supply DC 10-30V, typical 24V DC 12-36V, typical 24V
Max. consumption 0.2W 0.48W
Measuring range 0-100m (optional)
Accuracy 0.2%FS, 0.5%FS (default)
Medium Temp -10 ~ +50℃
Medium Type Oil, water, etc. (non-corrosive to stainless steel)
Protection level IP68
★

Key Features

  • ● Moisture-proof, anti-sweat, IP68 rated sealing against leakage.
  • ● Excellent resistance against impact, overload, shock and erosion.
  • ● Efficient lightning protection and strong anti RFI & EMI protection.
  • ● Advanced digital temperature compensation for wide working scopes.
  • ● High sensibility, high frequency response, and long-term stability.

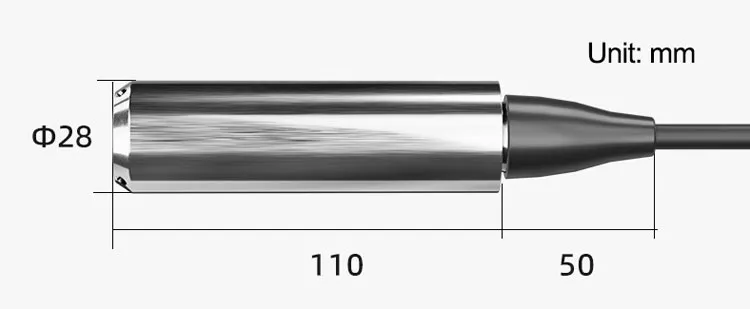

Details 1

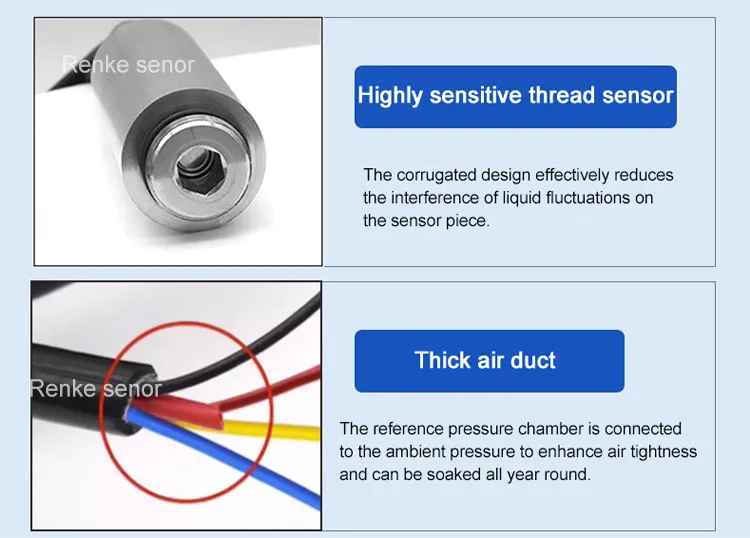

Details 2
◈

Wiring Diagrams

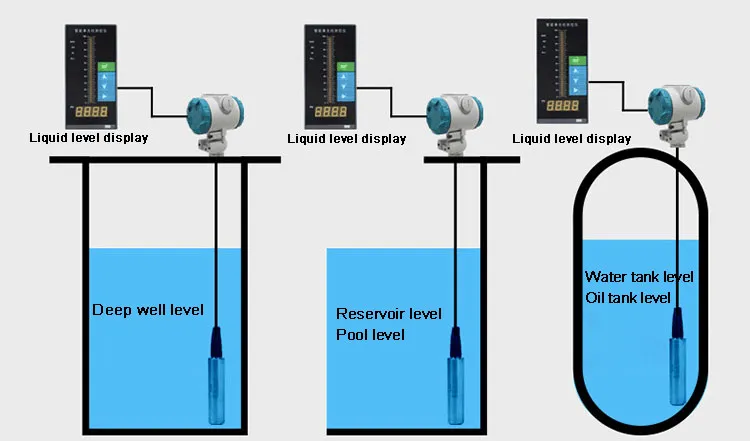

Wiring 1

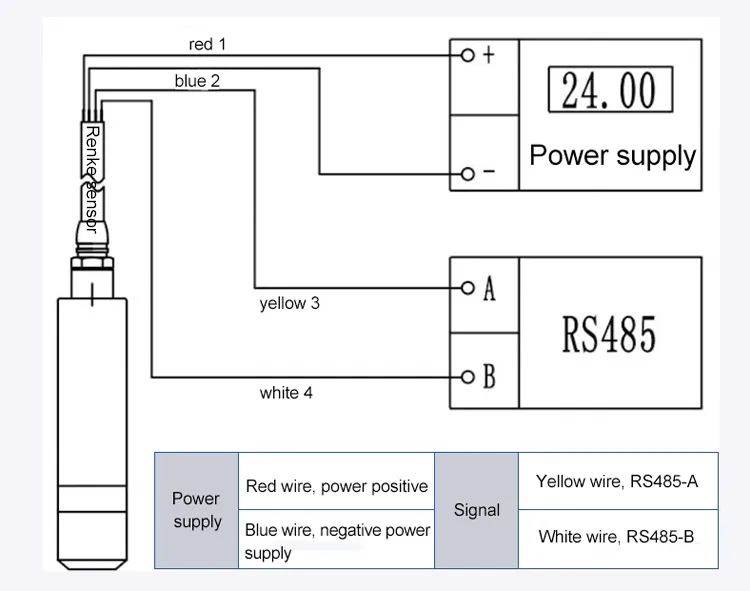

Wiring 2
ℹ

Quality Control & Production

We focus on industrial sensors and measurement control technology solutions, emphasizing "technology first and exquisite design" to ensure every product meets high standards of reliability.
Production 1
Production 2
?

Frequently Asked Questions

Q: Are you the final manufacturer?
A: Yes, we are a leading sensor manufacturer with over 15 years of experience in the industry.
Q: Do you offer OEM services?
A: Yes, we provide OEM services and can design logo marking according to your requirements.
Q: What is the typical delivery time?
A: Orders are typically processed within 24 hours of payment confirmation. Larger orders (100+ pcs) may require an additional 1-2 working days.
Q: What payment methods are accepted?
A: We accept T/T, PayPal, and various online payment methods for your convenience.
Q: How do you handle quality assurance?
A: We offer a one-month free exchange policy and a 24-month quality guarantee on our products.
Q: Which shipping methods do you use?
A: Goods are typically dispatched via major carriers such as DHL, FEDEX, UPS, EMS, or TNT.
