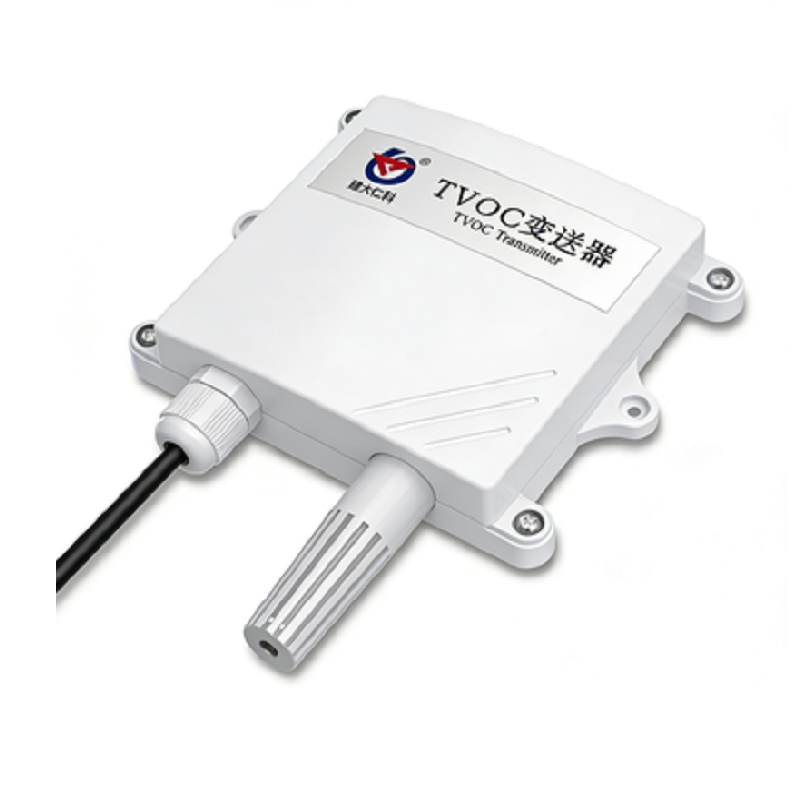

0~60000ppb Wide Range Tvoc Testing Device Indoor Tvoc Monitoring System for Home
0~60000ppb Wide Range Tvoc Testing Device Indoor Tvoc Monitoring System for Home
0~60000ppb Wide Range Tvoc Testing Device Indoor Tvoc Monitoring System for Home
0~60000ppb Wide Range Tvoc Testing Device Indoor Tvoc Monitoring System for Home
0~60000ppb Wide Range Tvoc Testing Device Indoor Tvoc Monitoring System for Home
1 / 5
0~60000ppb Wide Range Tvoc Testing Device Indoor Tvoc Monitoring System for Home
0~60000ppb Wide Range Tvoc Testing Device Indoor Tvoc Monitoring System for Home
0~60000ppb Wide Range Tvoc Testing Device Indoor Tvoc Monitoring System for Home
0~60000ppb Wide Range Tvoc Testing Device Indoor Tvoc Monitoring System for Home
0~60000ppb Wide Range Tvoc Testing Device Indoor Tvoc Monitoring System for Home

0~60000ppb Wide Range Tvoc Testing Device Indoor Tvoc Monitoring System for Home

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
RS-TVOC-*-2-4-EX
Output Signal
RS485/4-20mA/0-5V/0-10V
Measuring Range
0~60000ppb
IP Rating
IP65
Power Supply
DC 10-30V
Material
Plastic
Accuracy
8%Fs(@C4h8,50000ppb,25℃)
Installation
Wall-Mounted

Product Overview

TVOC refers to volatile organic compounds that exist in the air, including polycyclic aromatic hydrocarbons and aldehydes. These substances have a saturated vapor pressure exceeding 133.32pa at room temperature and boiling points between 50°C and 250°C. Our TVOC sensor is engineered to effectively monitor these levels in various environments to ensure safety and air quality compliance.

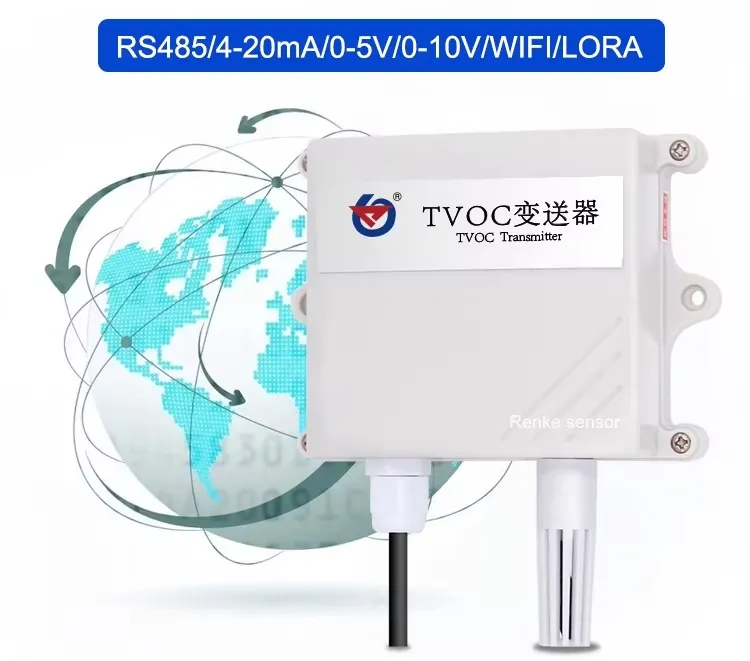

TVOC Testing Device
Power supplyDC 10-30V
Working environment-40℃~+80℃, 0%RH~95%RH non-condensing
Measuring range0~60000ppb
Accuracy8%FS(@C4H8, 50000ppb, 25℃, 50%RH)
Measurement objectVolatile organic compounds
Data refresh time2s
Output signalRS485/4~20mA/0~5V/0~10V
Preheating time≥24h

Key Features

⚡
High Sensitivity: Adopts imported gas detection probes with mature technology and high-performance signal acquisition circuits.
📊
Wide Detection Range: Accurate TVOC measurement range from 0 to 60000ppb.
🛡️
Industrial Design: Wall-mounted waterproof housing ensures easy installation and high-level protection for harsh environments.

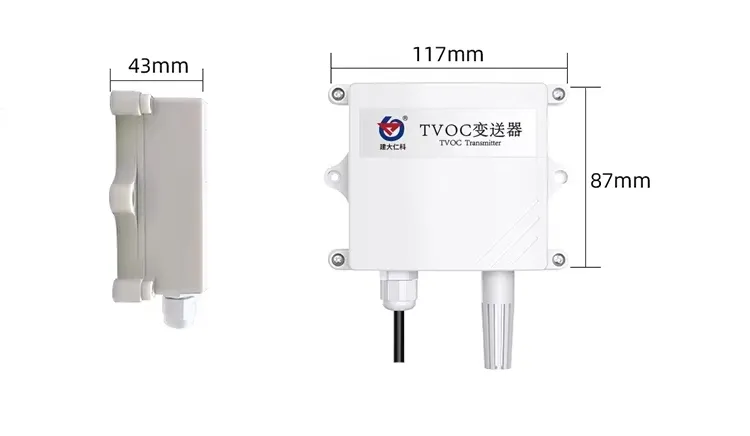

Detailed View 1

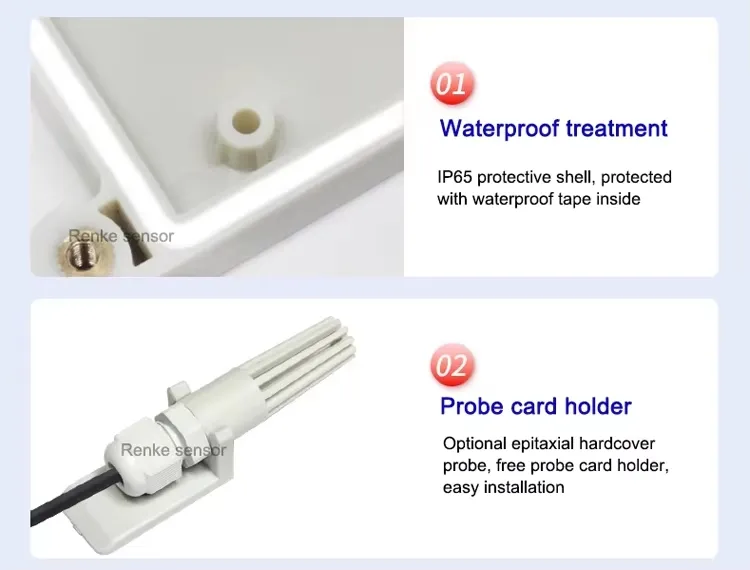

Detailed View 2

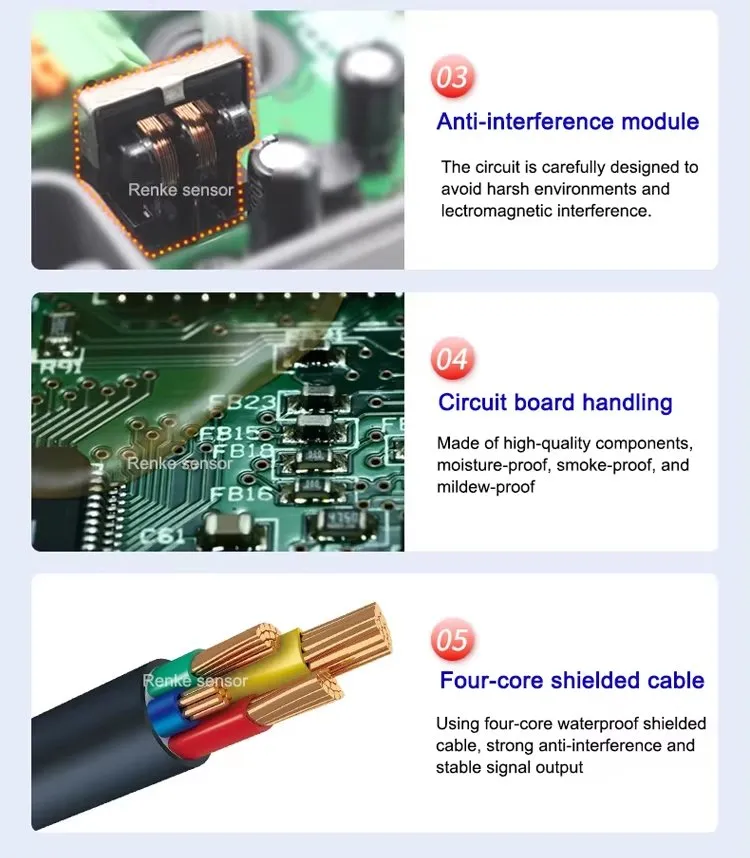

Detailed View 3

Wiring Connection

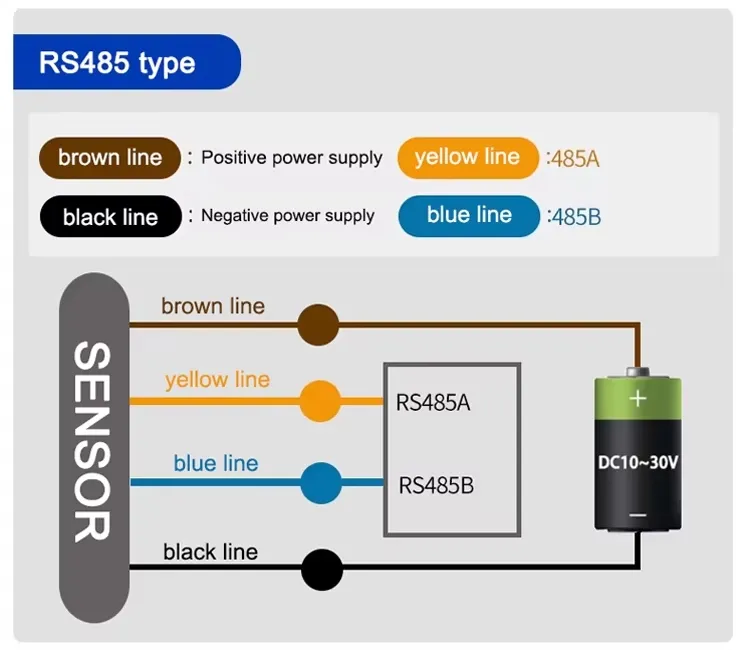

Wiring Diagram 1

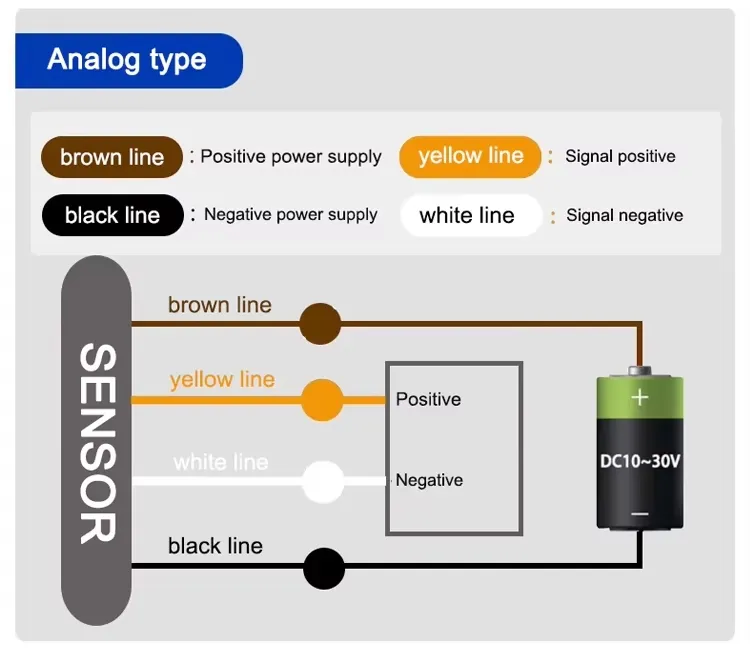

Wiring Diagram 2

Professional Manufacturing

As a leading environmental monitoring high technology enterprise, we focus on industrial sensors, communication gateways, and industrial data platforms. We prioritize "Technology First and Exquisite Design" to ensure every product meets rigorous standards through repeated revisions and careful consideration of every detail.

Factory Overview
Quality Control

Frequently Asked Questions

Are you the direct manufacturer?
Yes, we are a leading sensor manufacturer and exporter with over 15 years of professional experience in the industry.
Do you provide OEM services?
Yes, we offer comprehensive OEM services, including custom logo marking and design adjustments based on your requirements.
What is the standard delivery time?
Standard orders are typically processed within 24 hours after payment confirmation. Orders exceeding 100 pieces may require an additional 2-3 working days.
What payment methods are accepted?
We accept various payment methods including T/T, PayPal, and secure online payments for your convenience.
How is the quality assurance handled?
We provide a 12-month quality guarantee and offer free exchange within one month if any quality issues arise.
What are the shipping methods?
Goods are generally dispatched via major international couriers such as DHL, FEDEX, UPS, EMS, and TNT, or via your designated forwarder.
